Whisper Day Passagierschiff 50 Pax

Dimensions (m): 19.18 x 3.52 x 0.63

Ref. no.: 201004

Mooring: Near Amsterdam, Netherlands

Construction year: 1911

Material: steel

Vision Doeve Brokers

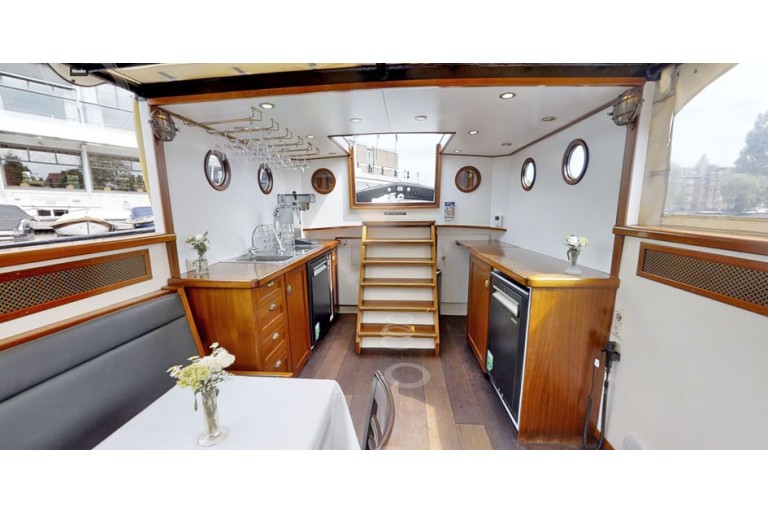

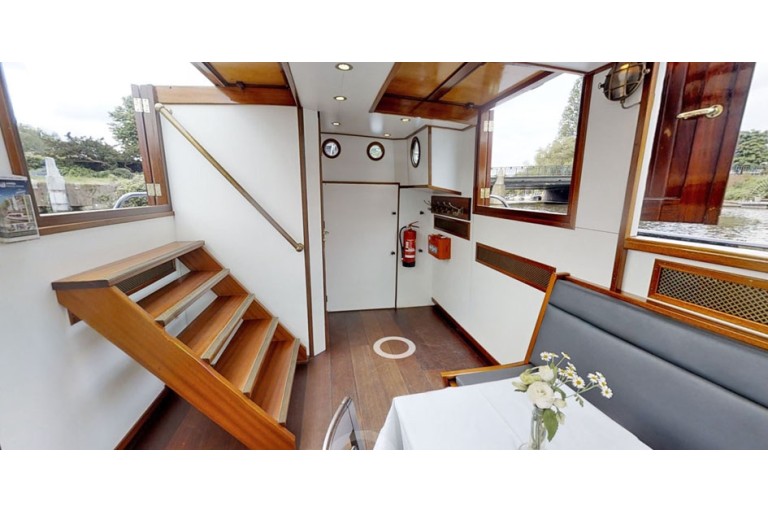

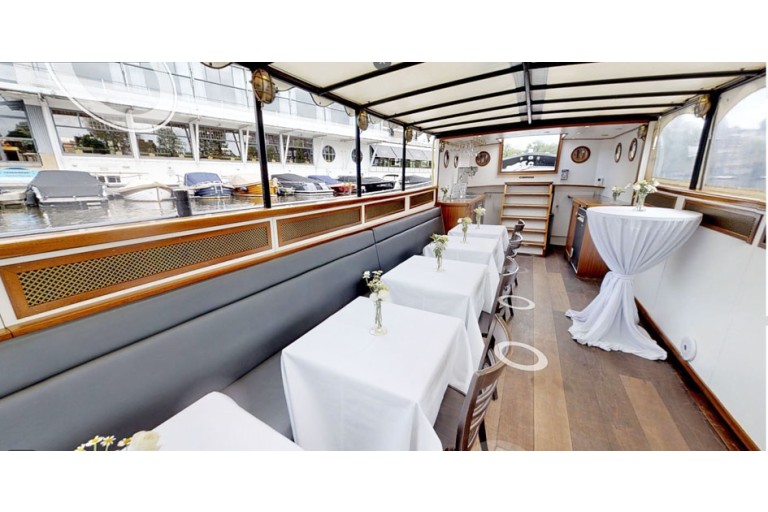

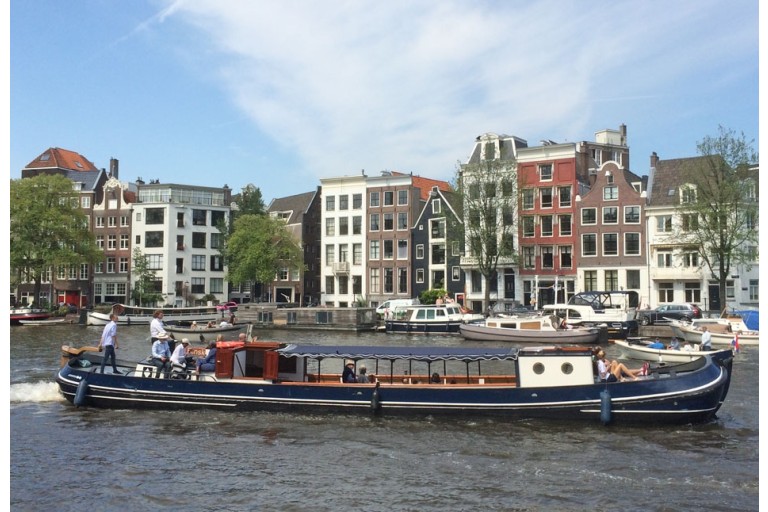

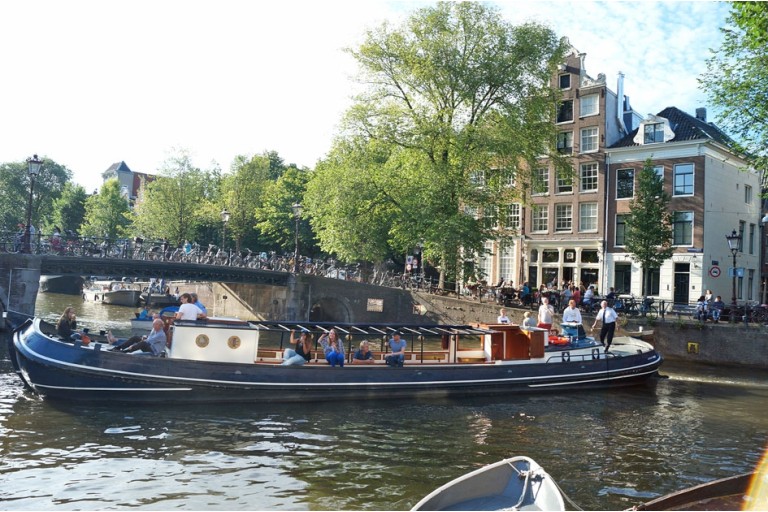

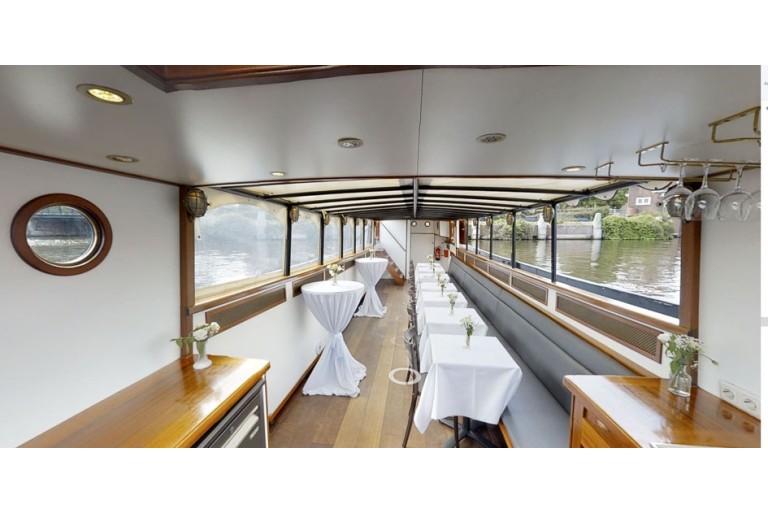

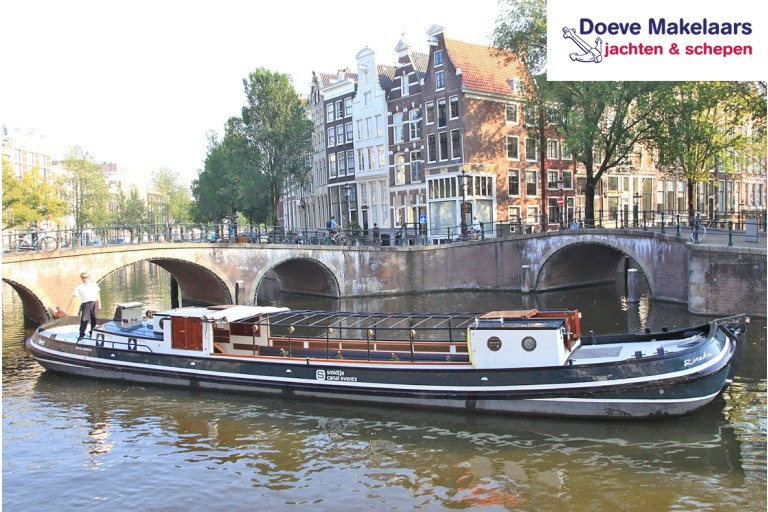

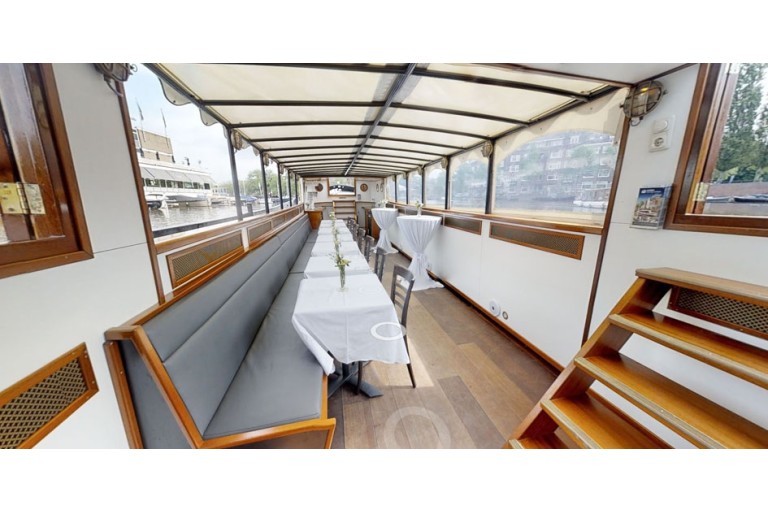

In 2015, this classic Dutch Tjalk was completely refitted and professionally converted into an electrically propelled tour boat, with a capacity of 50 pax, that has been made suitable for the Amsterdam canals or other low bridged areas. She passed the assessment of the city of Amsterdam with flying colors. The vessel has an attractive interior with a long bench, tables with chairs and a toilet area. The salon is equipped with a tent that can be removed. It is also possible to place the already available solar panels there. The whisper generator makes it possible to sail for a long time. When the batteries are fully charged, it is possible to sail at cruising speed for approximately 4 hours. The condition of the ship is good and in October 2020 she was surveyed again for the prolongation of the ES-TRIN certificate. Acquisition of the current permit in Amsterdam, which is valid until 2026, is included.

More information

General information

Yard: Shipyard T.A. Van der Werff, NL-Warga

Yard rebuilt: Shipyard Constructie Montage Services (CMS), NL-Leeuwarden

Rebuilt year: 2015

Hull shape: flatbottom

Hull material: steel

Deck material: steel

Superstructure material: steel

Construction method: riveted
new steel is welded
rubbing strake around

Steering system: tiller
attached rudder
wooden rudder

Displacement (approx.): maximum allowable displacement 31,157 m3
displacement in empty condition 26,338 m3
displacement 4,819 m3

Ballast (approx.): 2500 kg lead

Airdraft (approx.): 1,85 m

Owner: Dutch owner

Registration: Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.

Colour / Paint System: black hull
blue bulwark
very well maintained
2015 completely blasted (inside and outside)
two component system
very well maintained
last underwatership treatment 10-2020

Certificates: limited
zone 3
& zone 4
valid until: 11-2025

Suitable for / as: inland shipping
passengers vessel

General information: Hand over in consultation.
Acquisition of the current operation can be discussed.

Additional information: The techniques used on board are commercial shipping quality.
classic lines
50 day guests
beautiful sheer
all the bad steel is replaced

Technical information

Enginepower: 40 kW
54 Hp

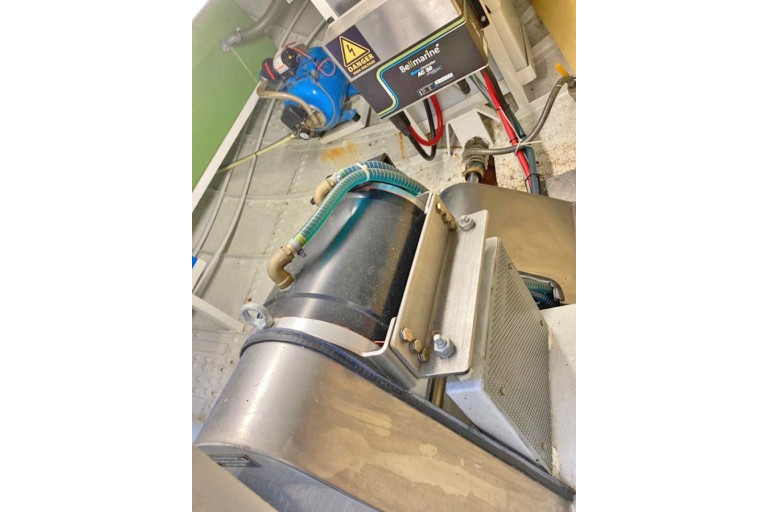

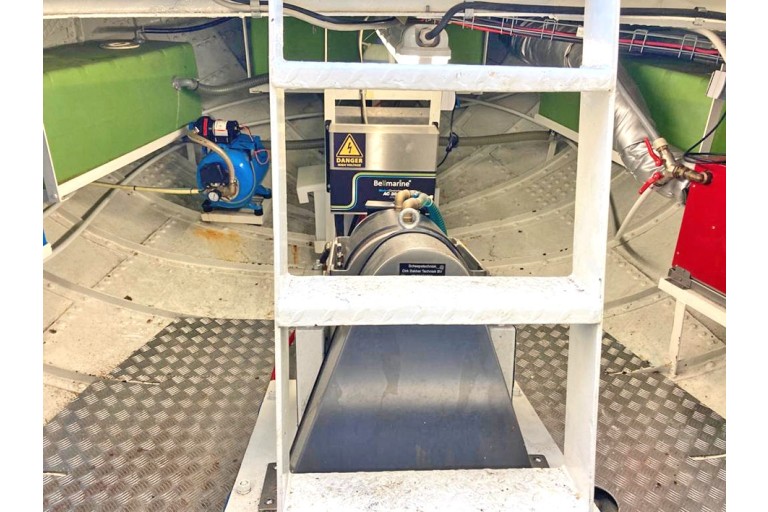

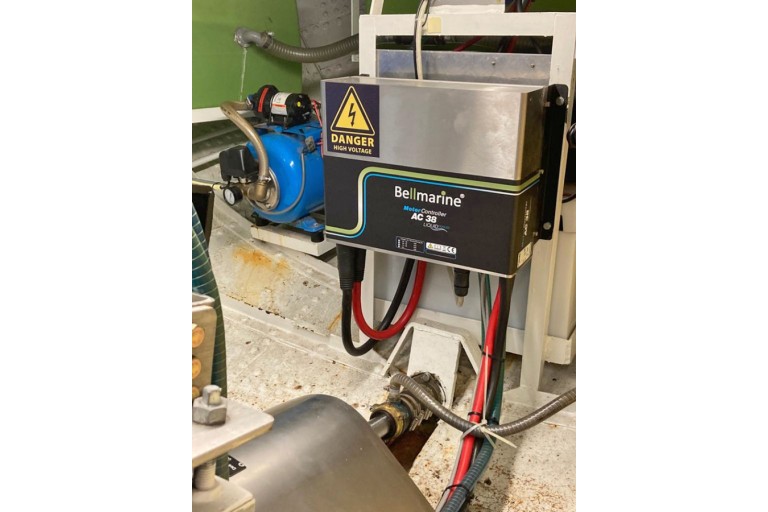

Engine brand: Bellmarine

Engine model: BO AC-60

Fuel: electric

Fuel tank (approx.): 700 litre
1 steel tank(s)

Cooling system: closed
box cooler

Propulsion: 4 blade propeller
water lubricated propeller shaft

Speed (approx.): 8-9 kilometer/hour

Heating: Kabola SLV10B central heating
combi boiler
on diesel

Bow thruster: Vetus electric bow thruster
25 Hp

Electricity system: 12 / 24 / 48 / 230 / 400 Volt
400 Volt shore power connection

Batteries: 3x 1100 Ah @ 48 Volt (2x 2015 & 1x 2019)
2x 230 Ah starter batterie(s) generator

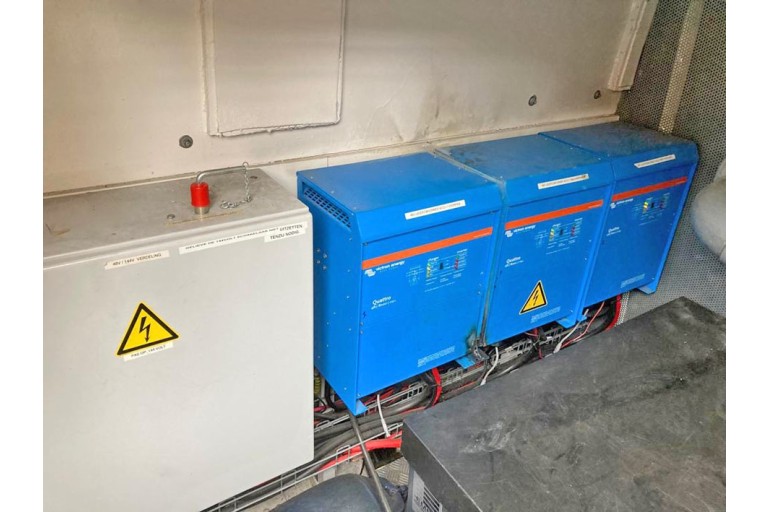

Battery charger: 3x Victron Quattro combi inverter/charger 48/8000/110
Victron Centaur battery charger 24/30

Earth-leakage breaker: present

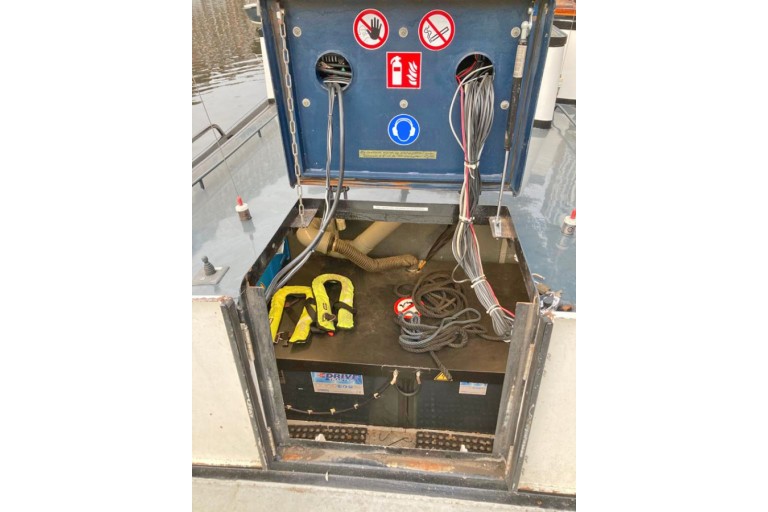

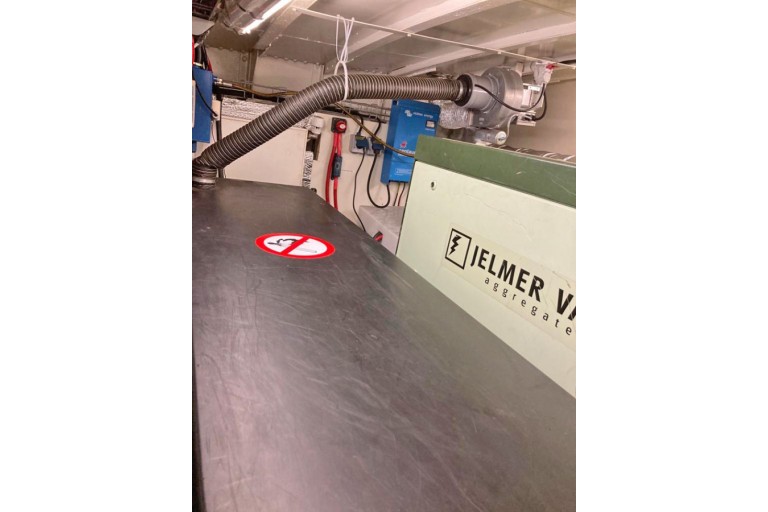

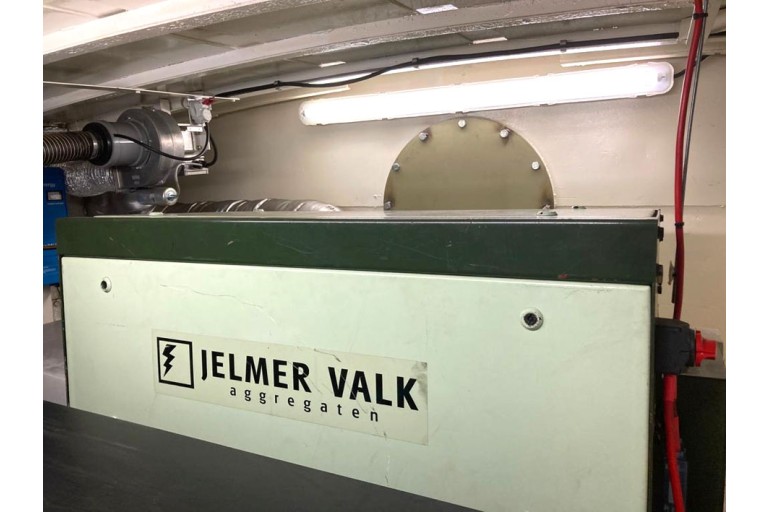

Genny: Jelmer Valk whisper set (05-2015)
35 kVA 230/400 Volt
1500 RPM
125 on the hour counter (approx.) (10-2020)

Inverter: 3x Victron Quattro combi inverter/charger 48/8000/110

Solar panels: 16x 100 Watt present (nog niet geplaatst / not yet installed / noch nicht installiert / pas encore installé)

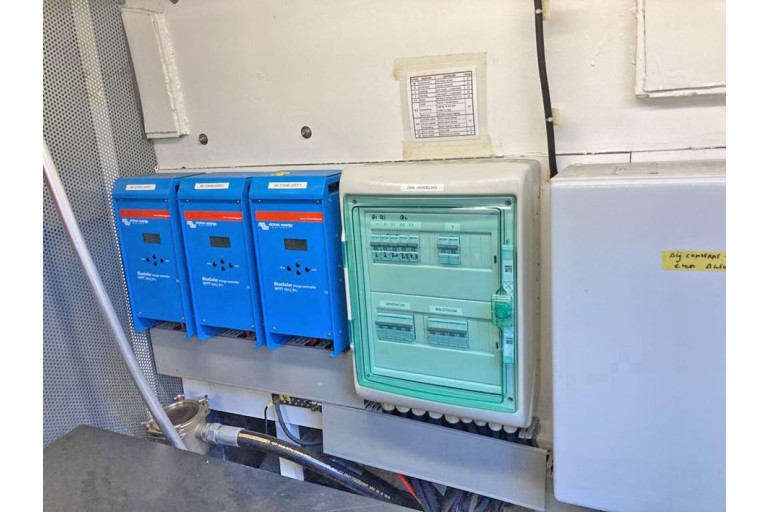

3x Victron Blue Solar MPPT 150/70 charge controller

Fresh water tank (approx.): 700 litre
1 plastic tank(s)

Water pressure system: electric water pump

Hot water system: through the central heating

Holding tank (approx.): 2200 litre
1 steel tank(s)

Gas system: no gas on board

Accommodation

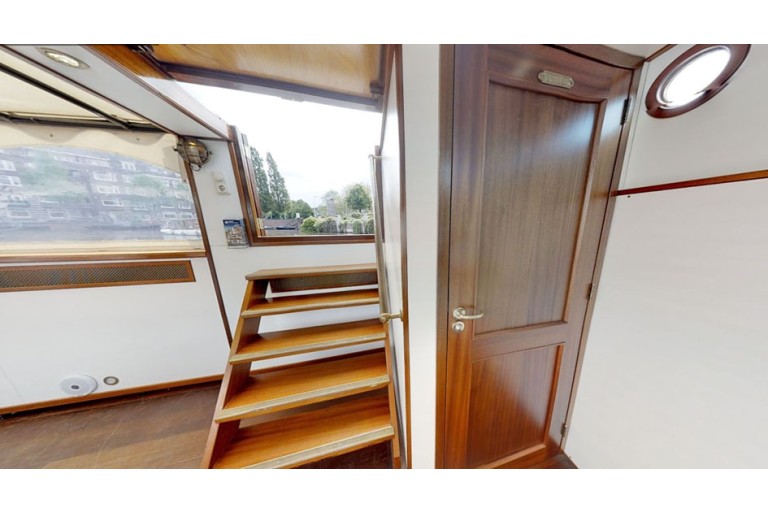

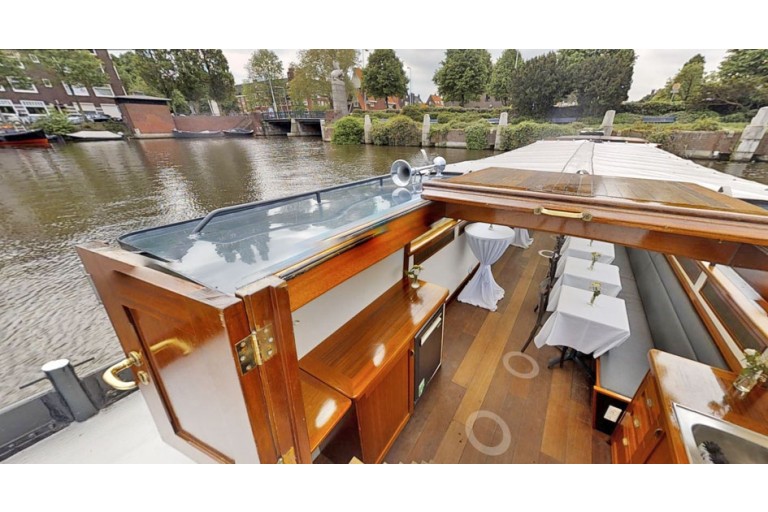

Interior: Jatoba floor(s)
very well maintained
see photographs

Insulation: yes

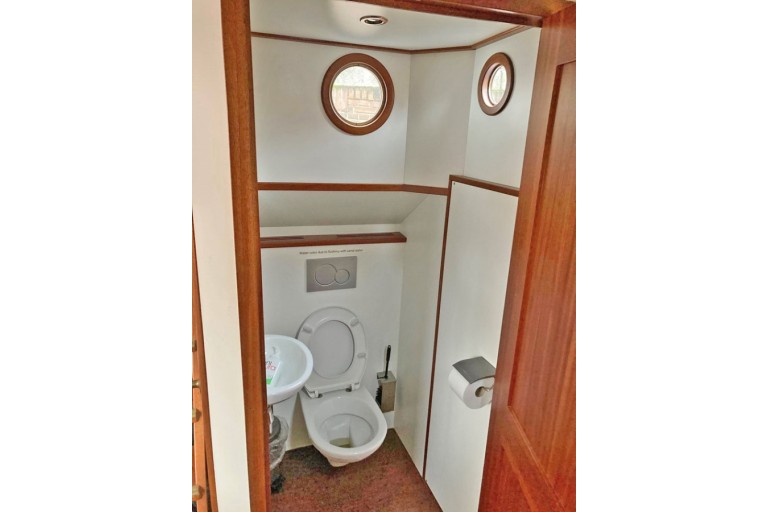

Toilet / Heads: flush toilet
washbasin
cold running water

Fridge / Refrigerator: 2x fridge / refrigerator

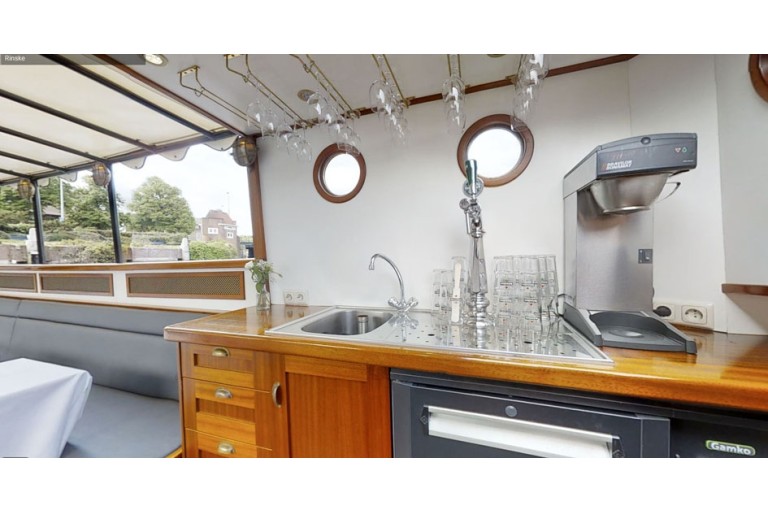

Worktop: hardwooden worktop

Washbasin: stainless steel sink

Water tap: hot & cold running water

Entertainment: intercom/music system

Headroom (approx.): 2,00-1,90 m

Additional information: beer tap
coffee machine

Equipment

Anchor equipment: anchor with rope

Awnings: cockpit cover

Safety: fire extinguishers
life buoys
according to the certification requirements

Additional information: The ship was completely gutted (only the hull is old) and then rebuilt. Before refitting the interior, the inside of the hull was thoroughly treated.
Survey report of the underwatership is available

Day Passenger Ship
