Dutch Barge 14.65 Sold
Vision Doeve Brokers

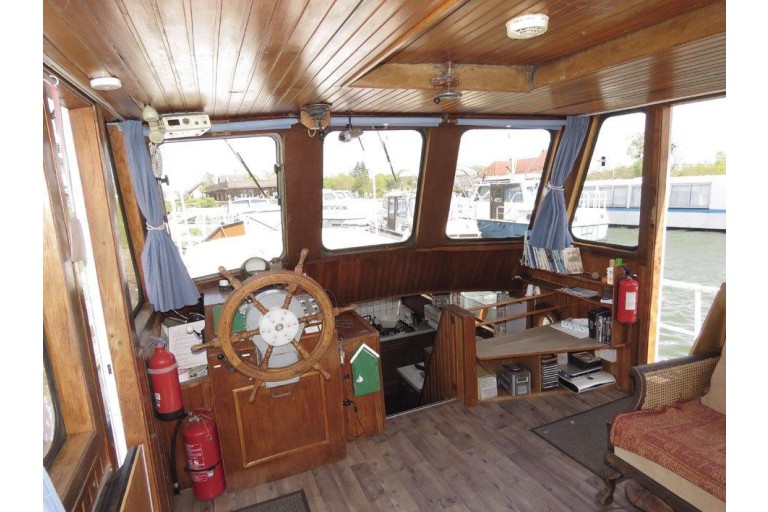

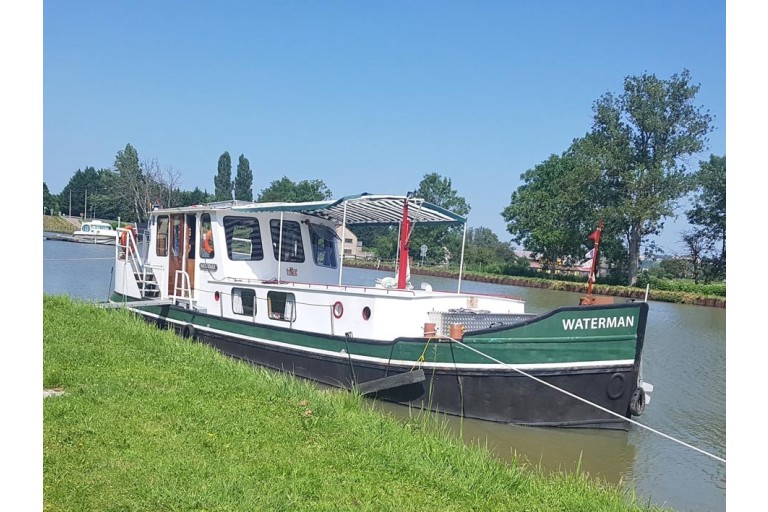

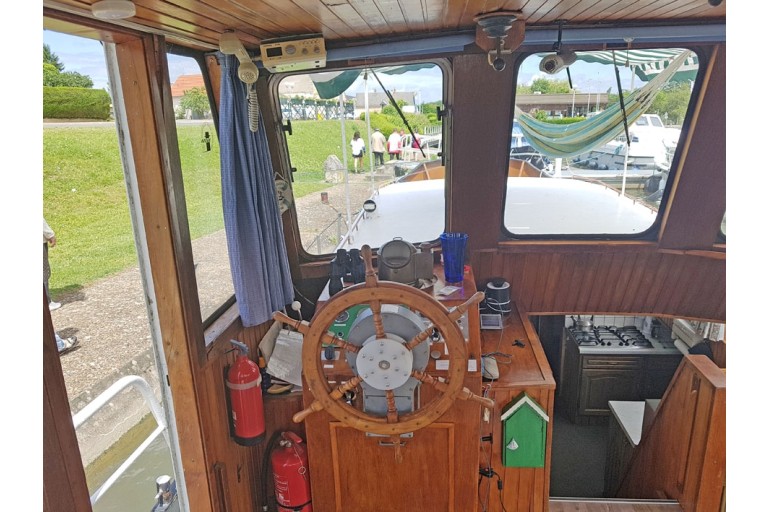

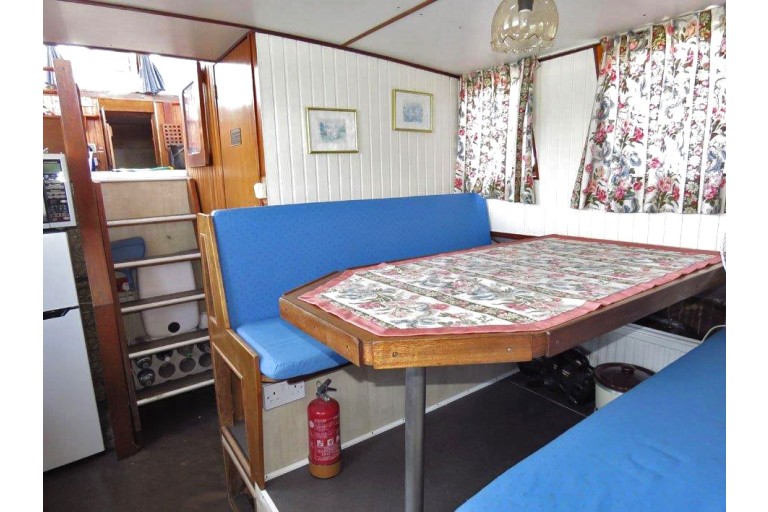

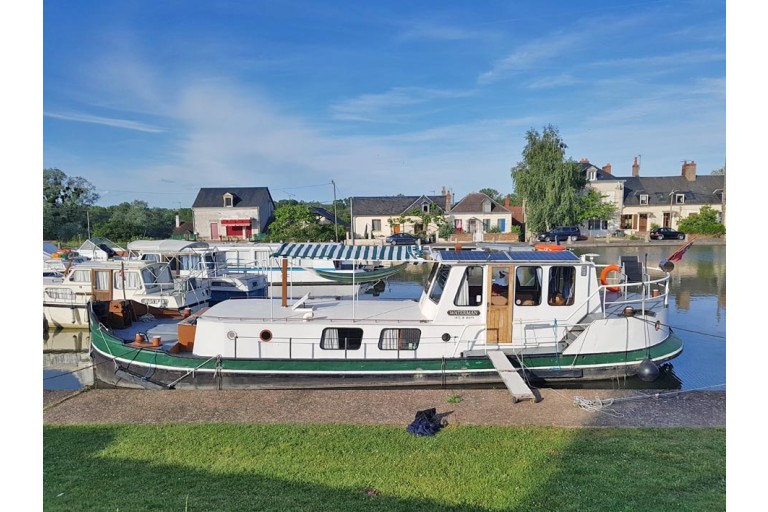

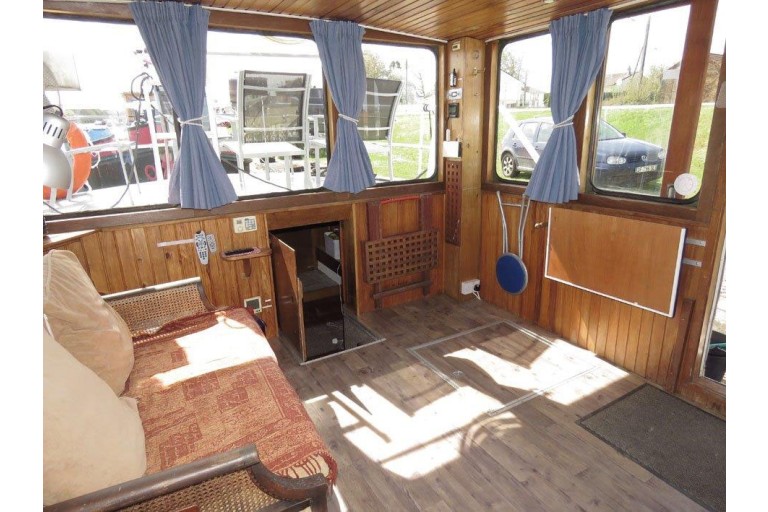

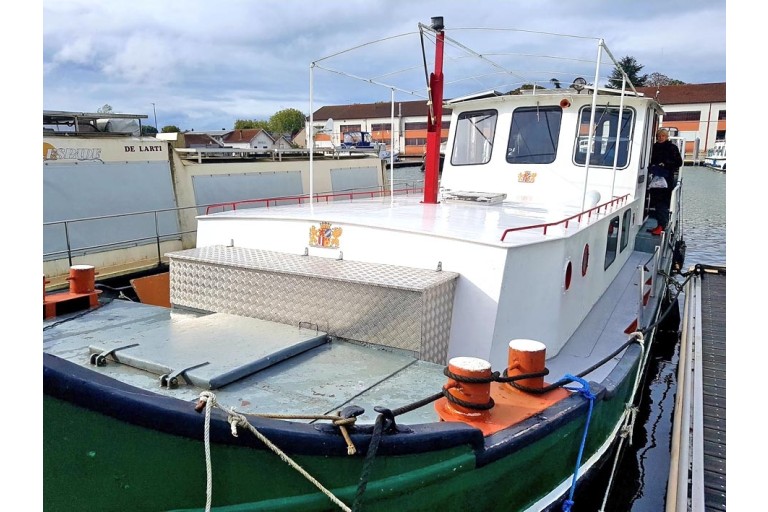

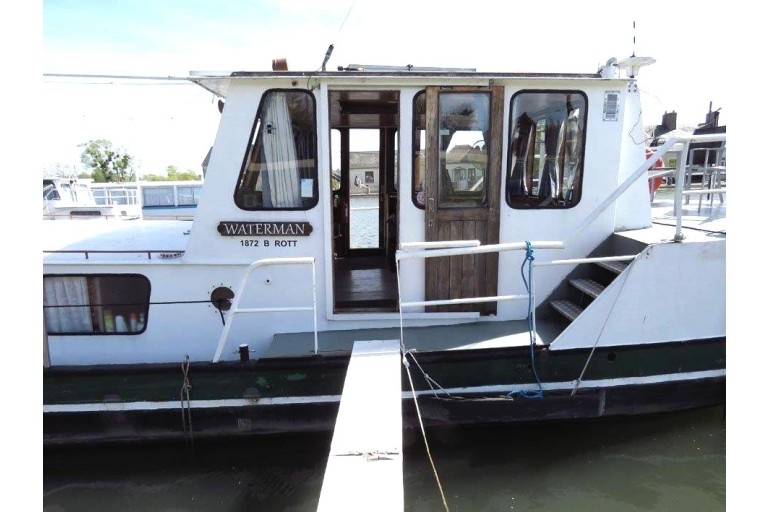

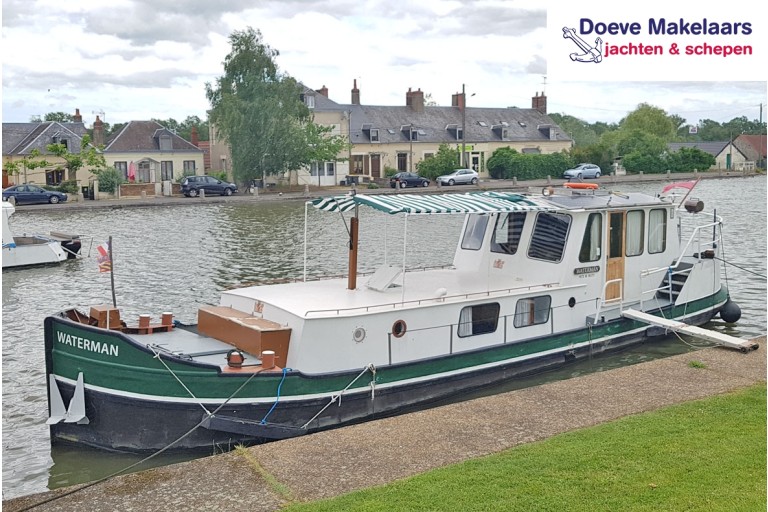

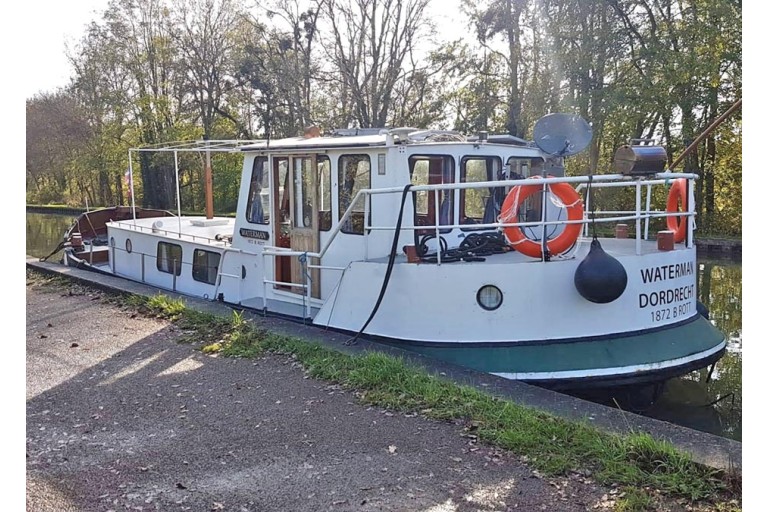

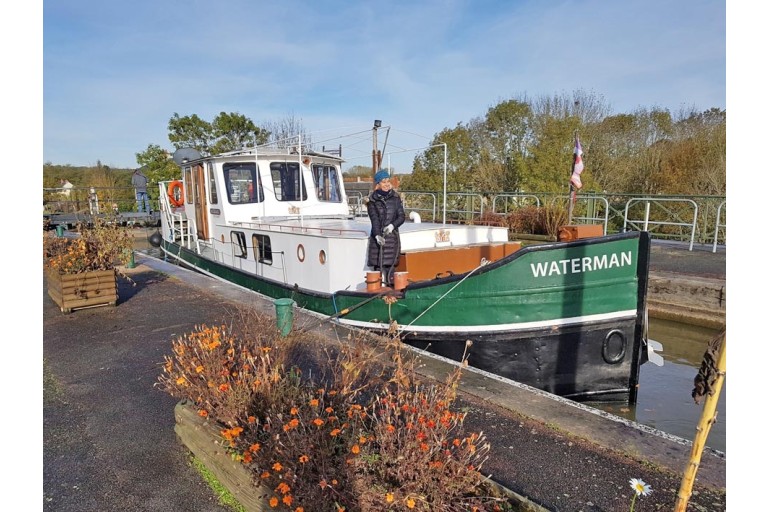

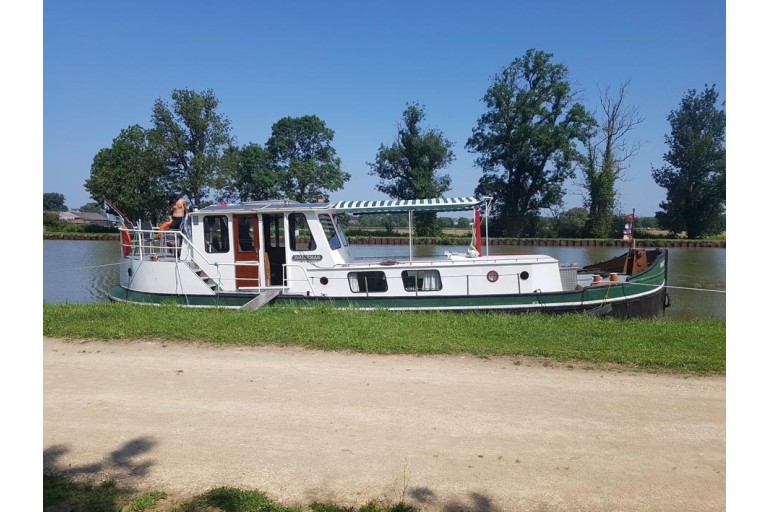

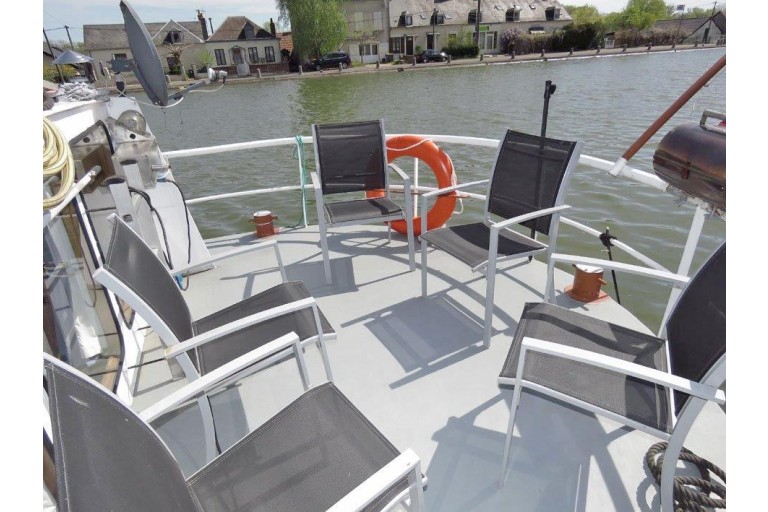

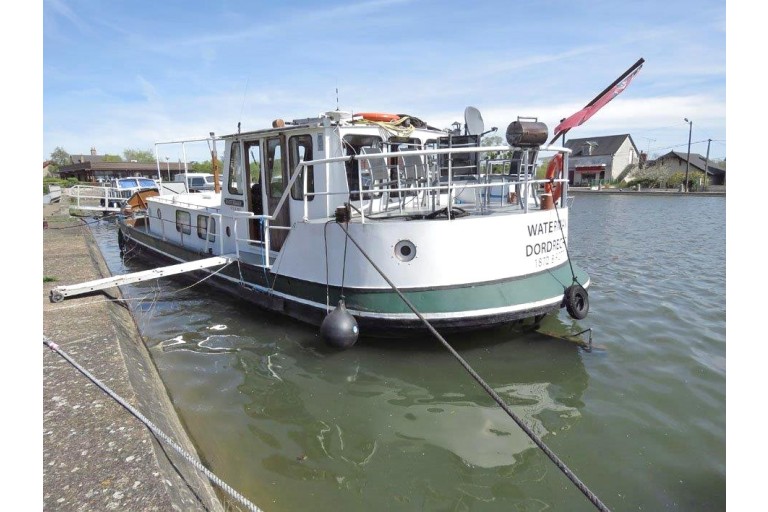

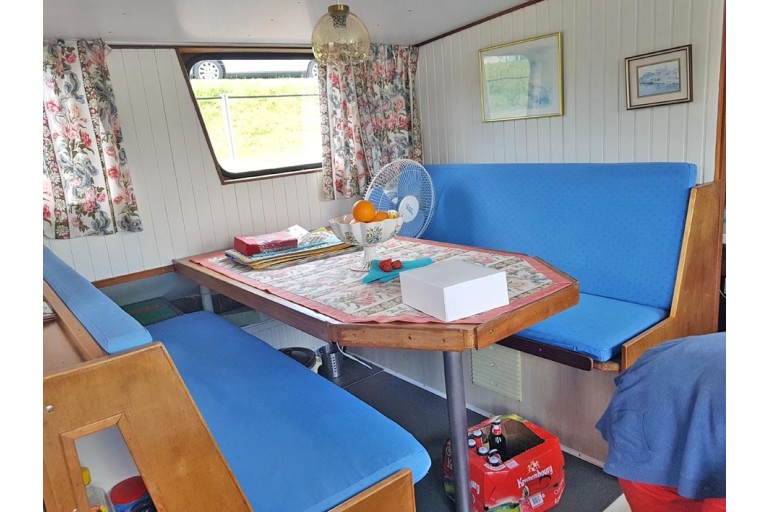

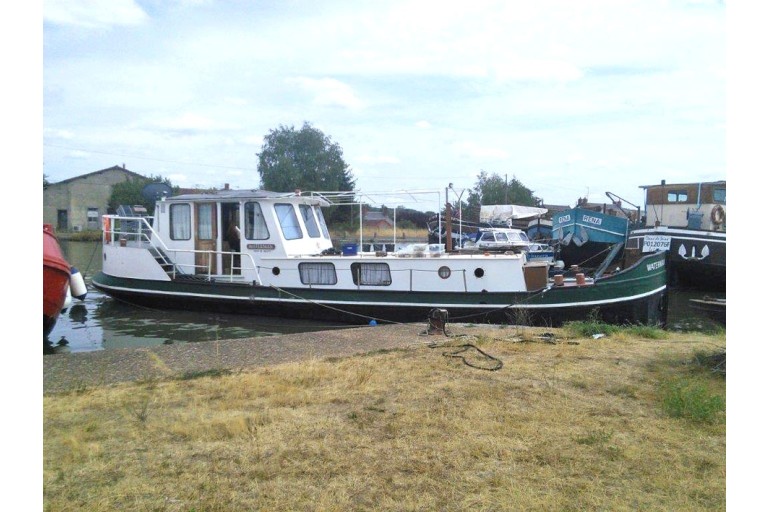

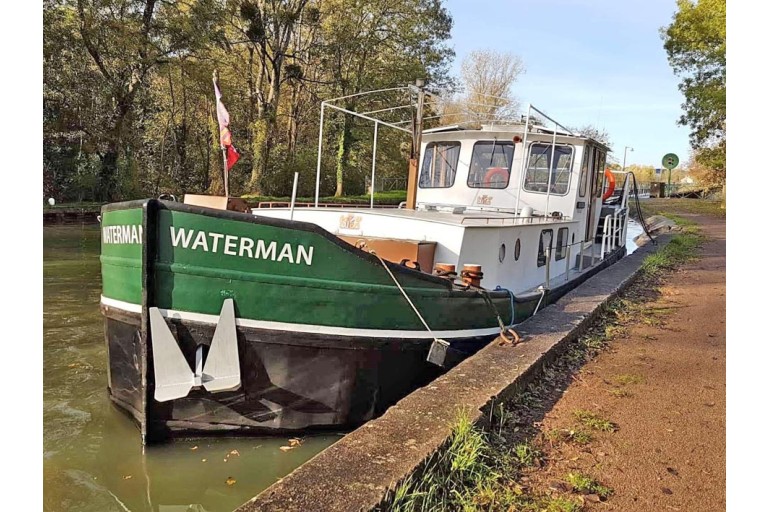

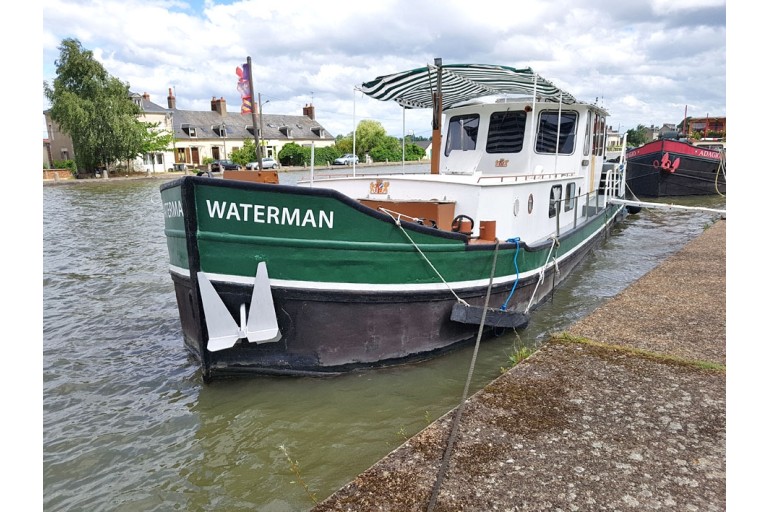

Former inland waterboat that has been converted into a cruising Live Aboard Dutch Barge. The vessel has a well-thought interior and her layout is as follows: in the forepeak there are 2 cabins, each with a 2-persons bed and washbasin with hot and cold running water, midships is the salon with dinette, a large galley and the bathroom. The wheelhouse is well accessible and in the aft is the owner's cabin which has a 2-persons and a 1-persons bed and a washbasin with hot and cold running water. Furthermore, the barge has a double steering position and a spacious aft deck where you can sit comfortably. In front of the wheelhouse you can also sit outside. It is a Dutch Barge that is very suitable for the European inland waterways, such as the French canals and rivers, but also Germany, Belgium and, last but not least, the Netherlands can be done.
More information
General information
Yard: | Shipyard Watergeus, NL-Dordrecht |
Hull shape: | flatbottom |
Hull material: | steel |
Deck material: | steel |
Superstructure material: | steel |
Construction method: | riveted new steel is welded rubbing strake bulwark wide side decks (gunnels) aftcabin |

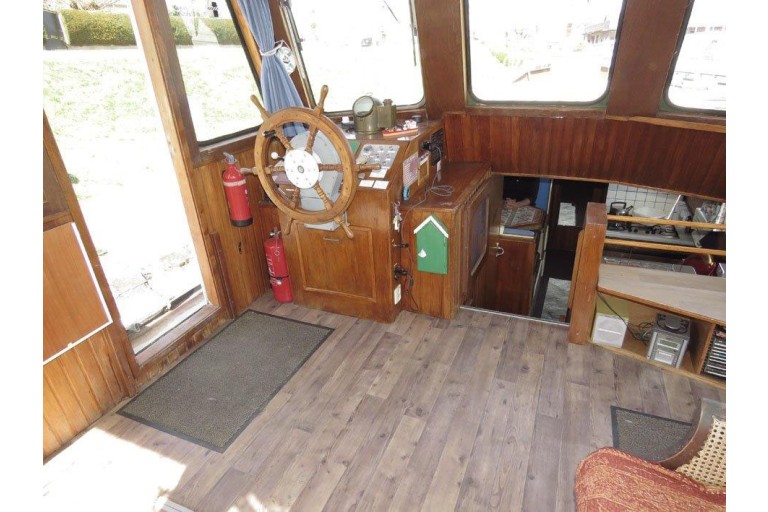

Steering system: | hydraulic inside and outside steering position 2x wheel |

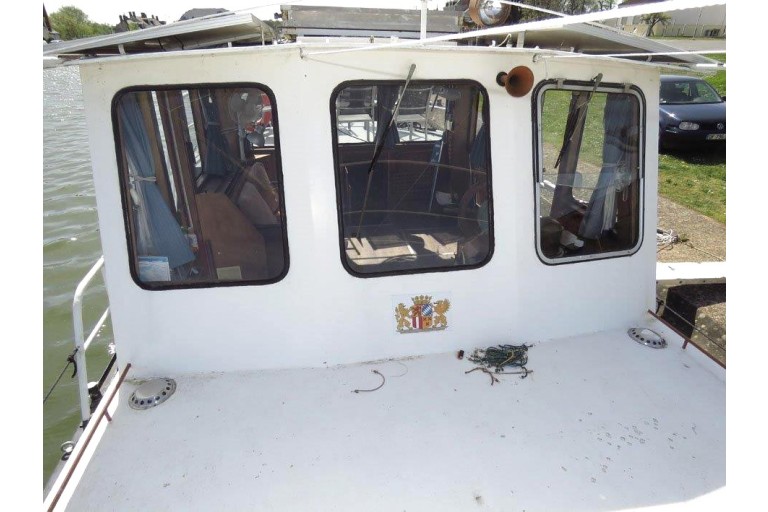

Windows: | rubber window frames hardwood outside doors |
Displacement (approx.): | 30 metric tons |
Ballast (approx.): | poured concrete |
Airdraft (approx.): | 2,70 m |
Owner: | Swiss owner |
Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
Colour / Paint System: | black hull green bulwark white superstructure last underwatership treatment 07-2019 |
Certificates: | no certificate requirement |
Suitable for / as: | inland waterways recreational vessel suitable as a year round live- aboard suitable for bigger waterways |
General information: | not inspected by us For sale due to health issues. |

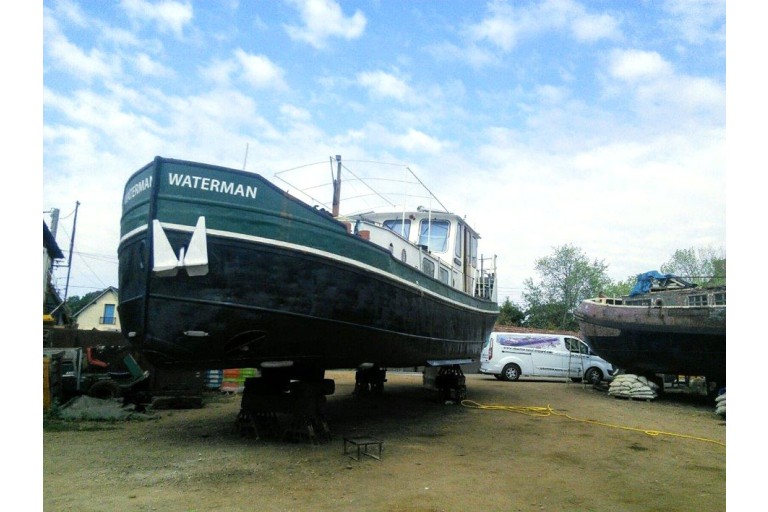

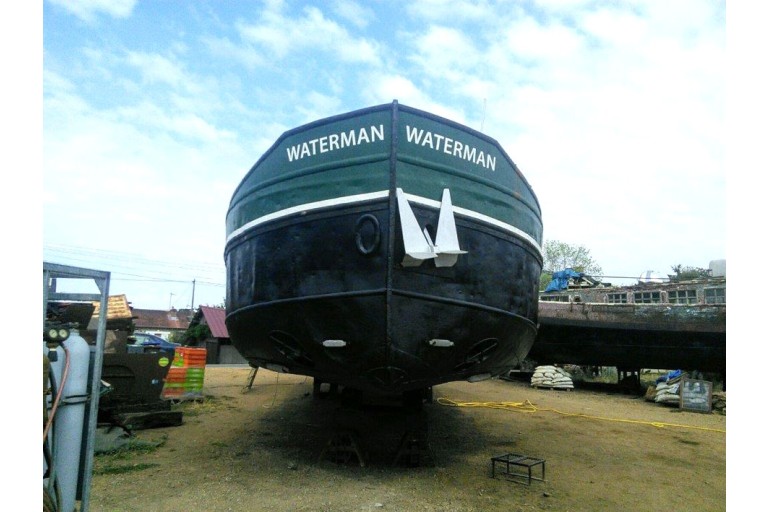

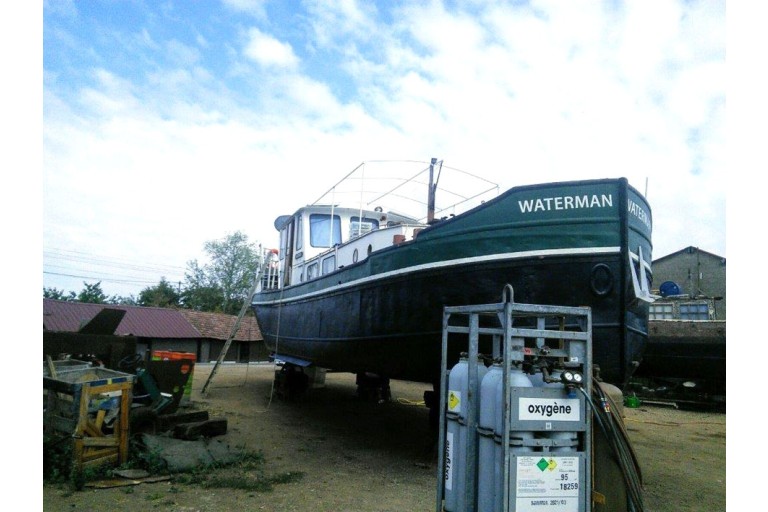

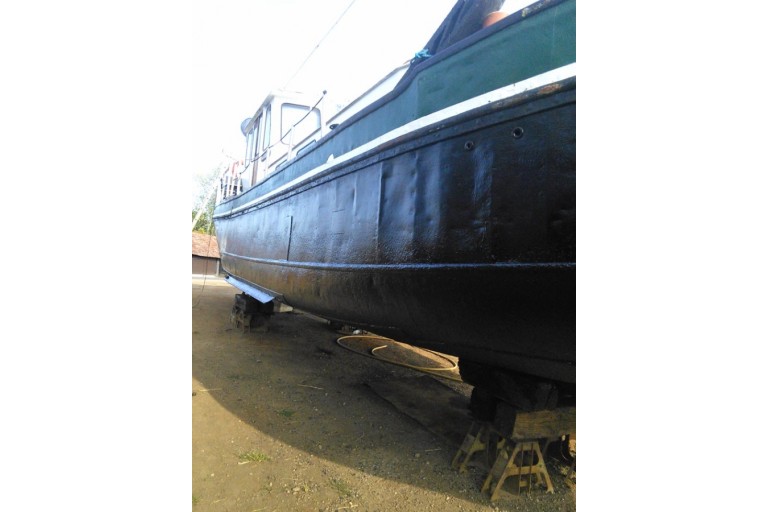

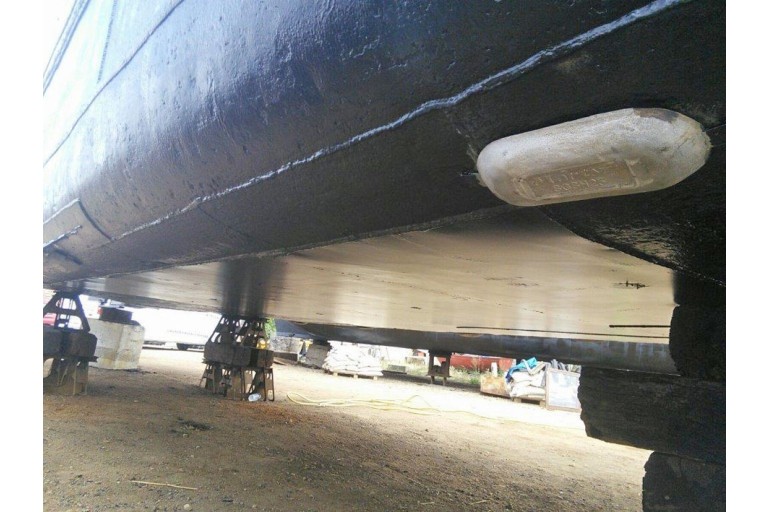

Additional information: | Underwatership is partly double plated. spacious aftdeck roomy foredeck forepeak with chain locker Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the coastal waters. |
Technical information

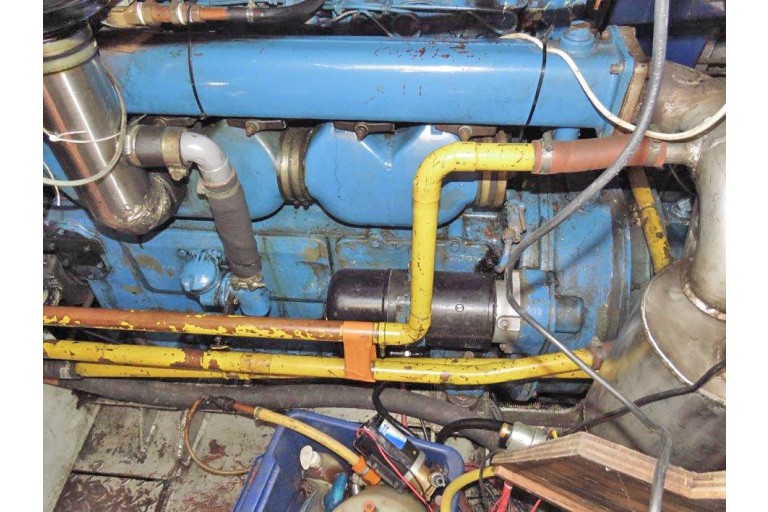

Enginepower: | 120 Hp 88 kW |

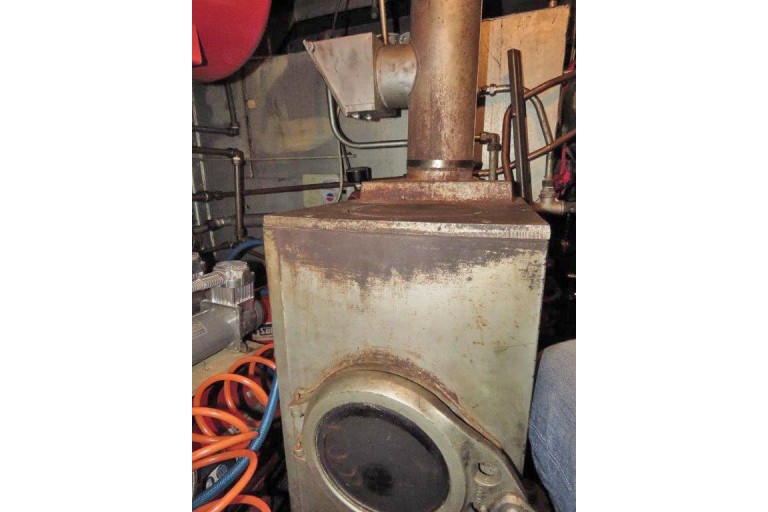

Engine brand: | Kromhout |
Revolutions: | 1200 RPM |
Engine model: | T117 |
Number of cylinders: | 5 |
Running hours (approx.): | 9450 on the hour counter |
Fuel: | diesel |
Fuel tank (approx.): | 1x 1100 litre 1x 300 litre steel tank(s) |
Cooling system: | intercooling wet exhaust |

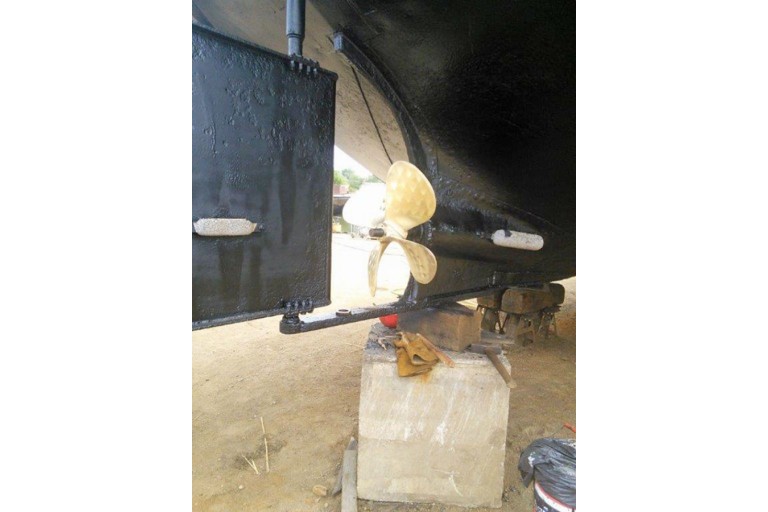

Propulsion: | 4 blade propeller greased lubrication of propeller shaft |
Gearbox: | PRM 160 hydraulic reduction/ratio 3:1 |
Speed (approx.): | 5 km/hour cruising speed at 700 RPM 12 km/hour top speed |
Heating: | Somy central heating on diesel |

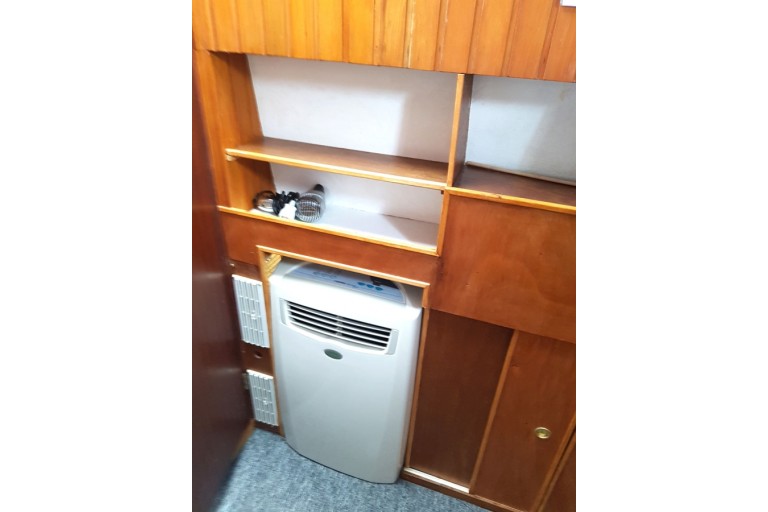

Air conditioning: | 1x present portable |
Bow thruster: | hydraulic bow thruster proportional |
Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection Mastervolt mainmaster control |
Batteries: | 2x 180 Ah starter batterie(s) 6x 220 Ah domestic batterie(s) |

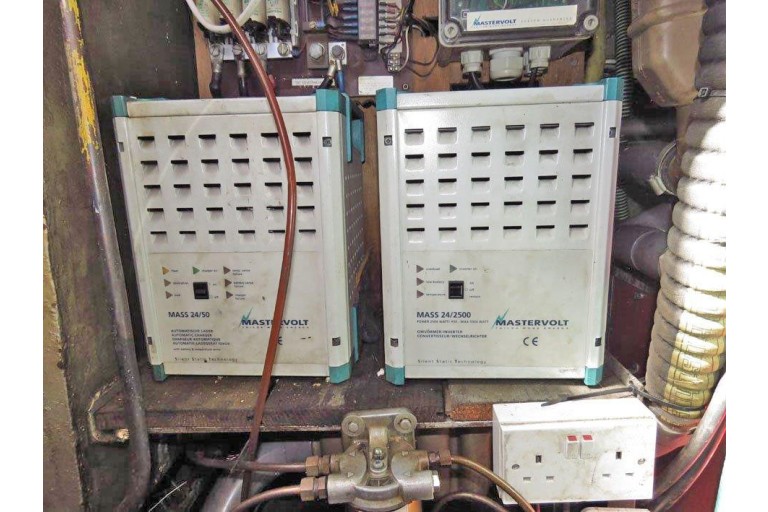

Battery charger: | Mastervolt Mass battery charger 24/50 |
Battery isolator: | present |
Isolation transformer: | present |
Earth-leakage breaker: | present |

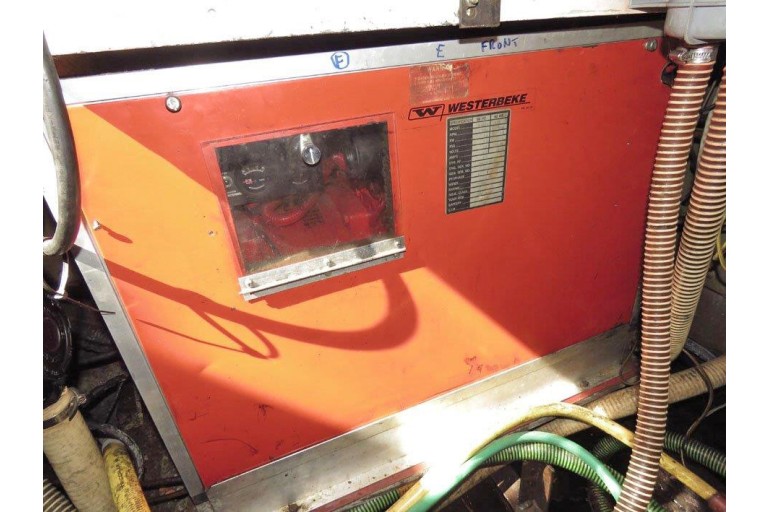

Genny: | Westerbeke whisper set 6 kVA 230 Volt 1500 RPM |
Alternator: | 1x 75 ampère 24 Volt |
Inverter: | Mastervolt Mass inverter 24/2500 |
Solar panels: | 4x present |
Fresh water tank (approx.): | 1x 1200 litre steel tank(s) cemented tank(s) |
Water pressure system: | 2x electric water pump |
Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system |
Holding tank (approx.): | 1x 300 litre plastic tank(s) |
Diesel waterseparator: | present |
Bilge pump: | 2x submersible pump 230 Volt |
Gas system: | yes, bottle(s) in bottle box on deck |
Additional information: | LED lightning main engine with PTO for the hydraulic air compressor |
Accommodation
Interior: | various materials have been used see photographs suitable for living on board |
Insulation: | polystyrene |
Cabins: | 3 cabins |

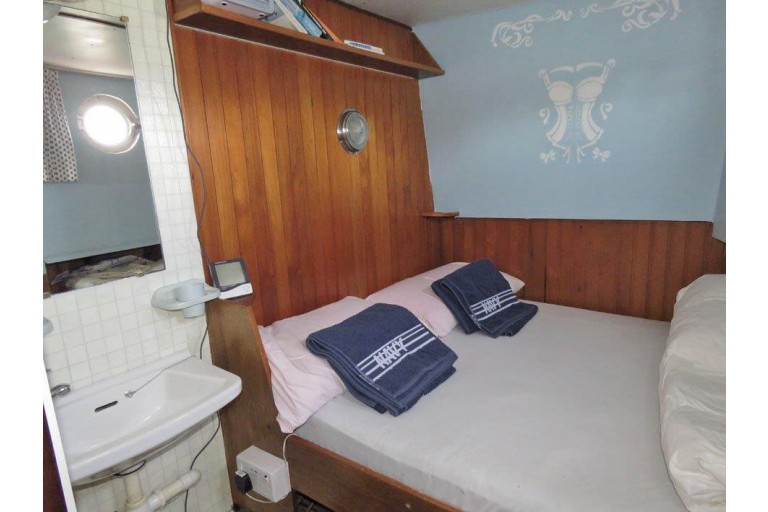

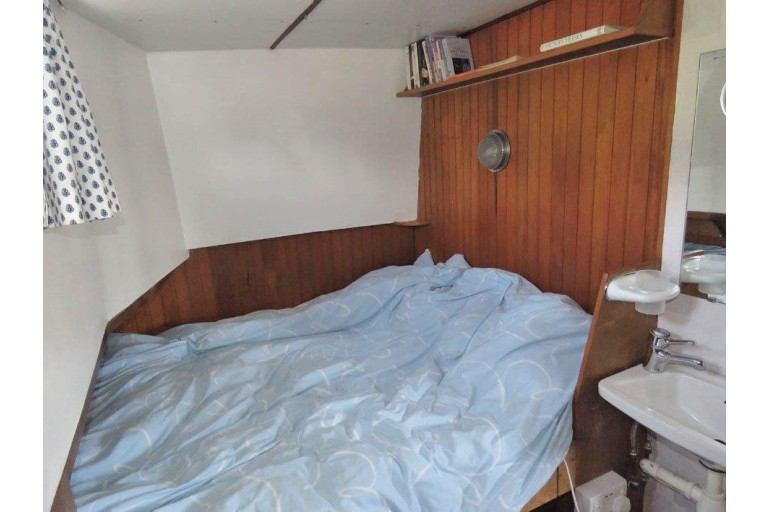

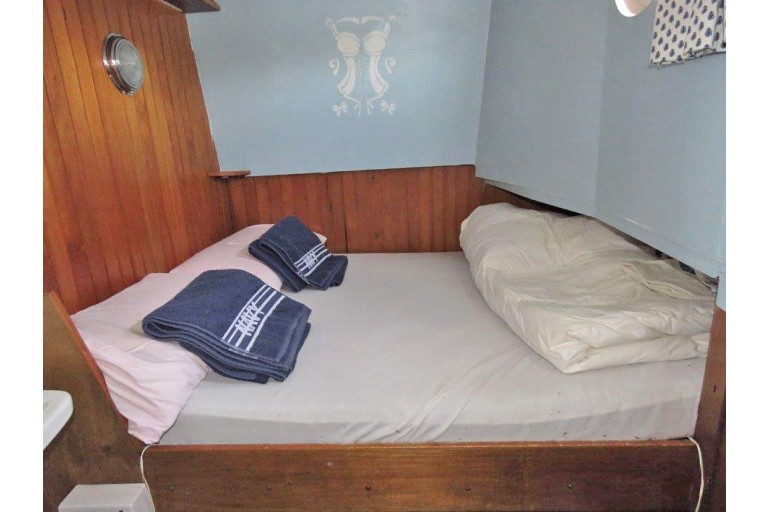

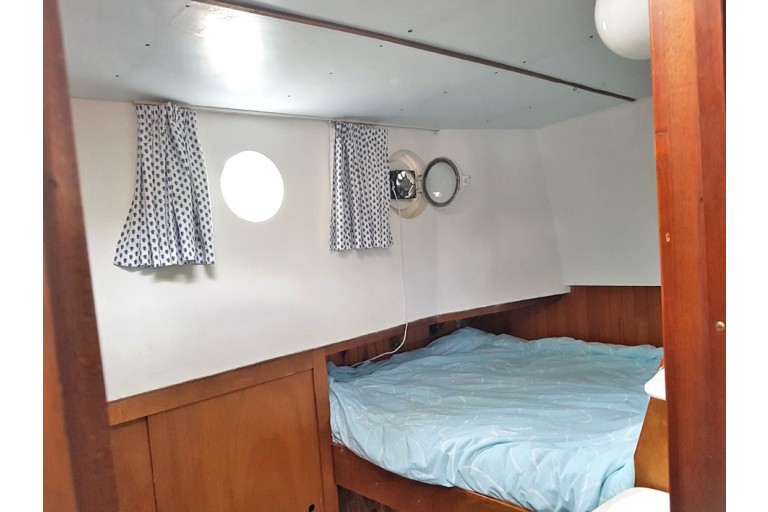

Berth: | Portside cabin: 1x 2-pers Starboard cabin: 1x 2-pers Aft: 1x 2-pers & 1x 1-pers |
Lay-out plan (not to scale): | see attachment |

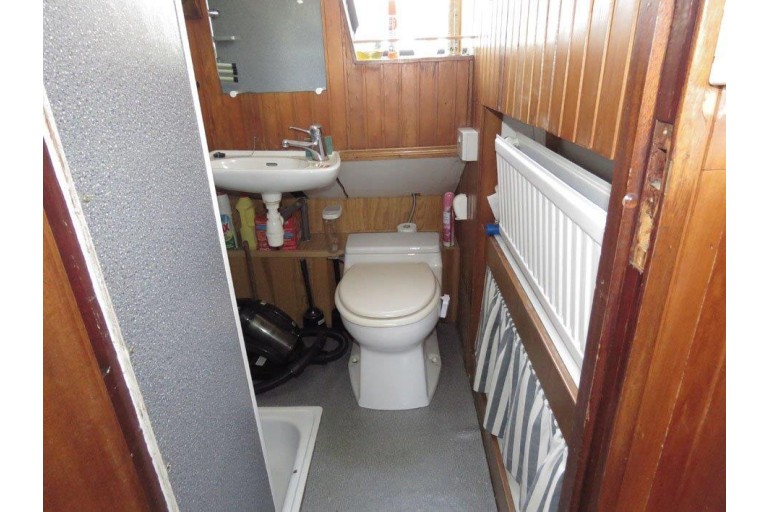

Bathroom: | shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet cabins with wash basin with mixer tap |
Toilet / Heads: | electric toilet (Microflush) |

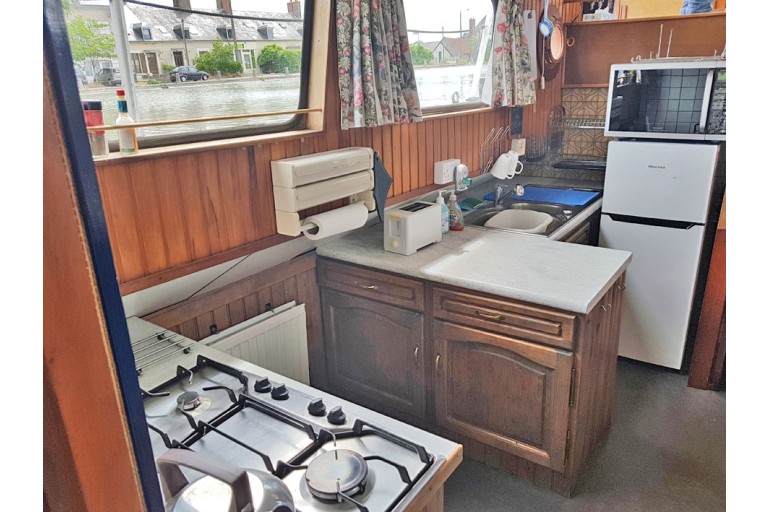

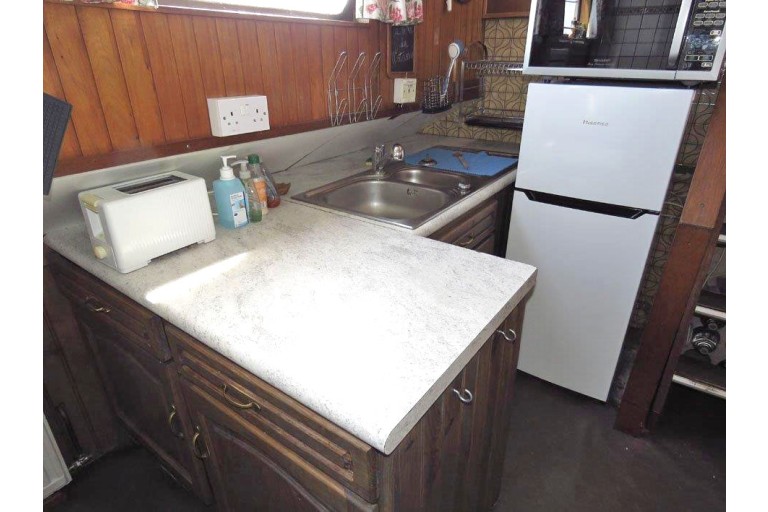

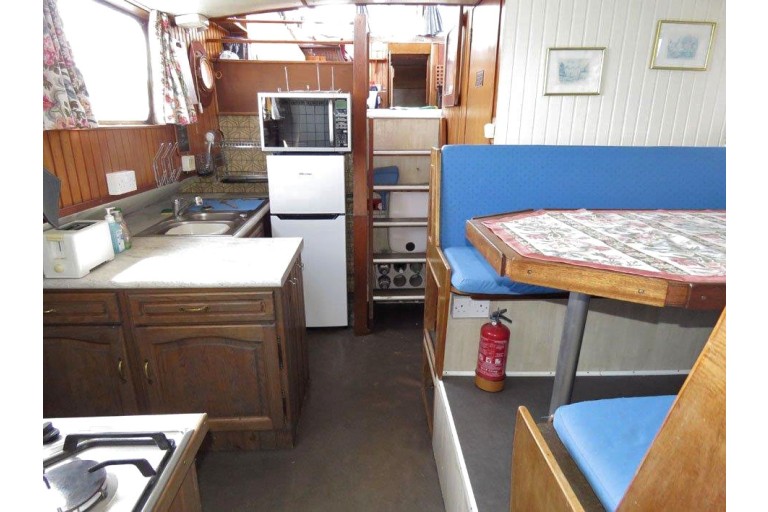

Galley: | L-shape galley & sideways |
Cooker: | 4-burner hob stainless steel on gas |

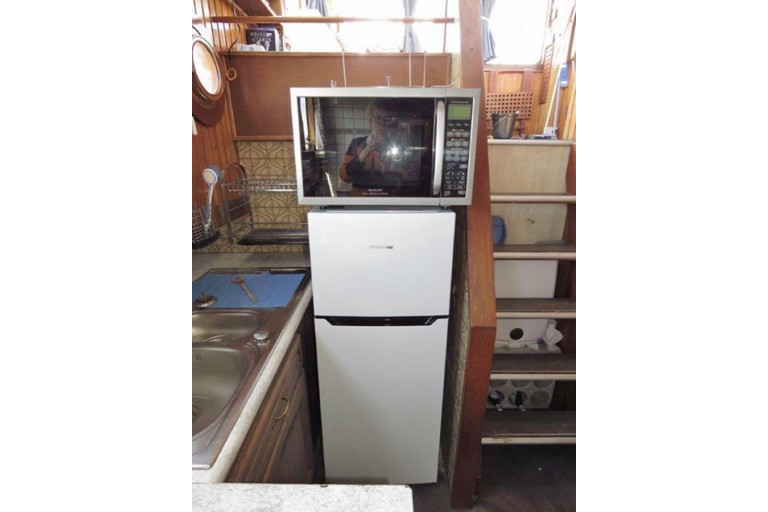

Oven: | microwave/oven grill |
Fridge / Refrigerator: | present 230 Volt combination with freezer |
Freezer: | freezer |
Worktop: | formica worktop |
Washbasin: | stainless steel sink |
Water tap: | hot & cold running water |
Headroom (approx.): | forward (approx.) 1,98 m corridor / walkthrough (approx.) 2,00 m salon (approx.) 2,00 m wheelhouse (approx.) 1,92 m aftcabin (approx.) 1,81 m |

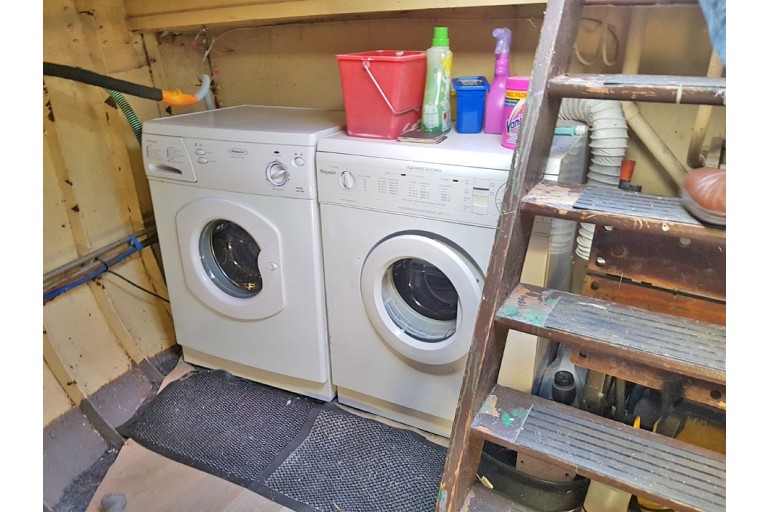

Additional information: | inventory washing machine tumble dryer |
Navigation equipment
Navigation equipment: | VHF compass horn window wiper rudder indicator navigation lights |
Equipment

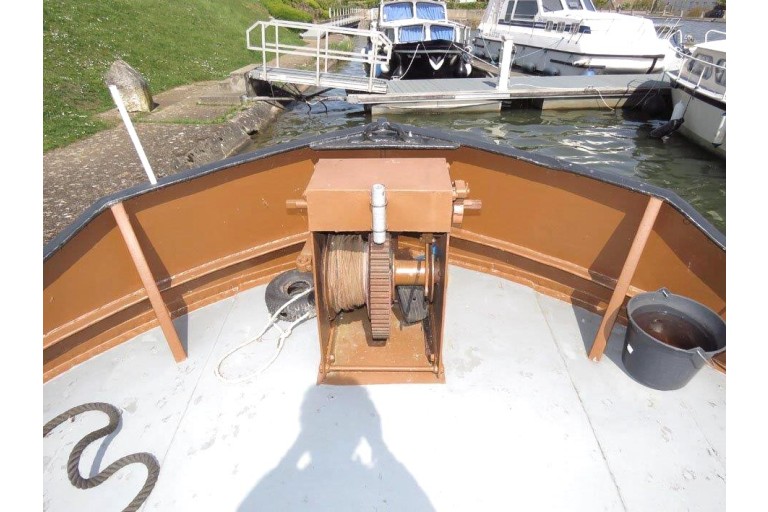

Anchor equipment: | manual anchor winch Pool anchor anchor cable in hawse-hole |
Outdoor cushions: | present |

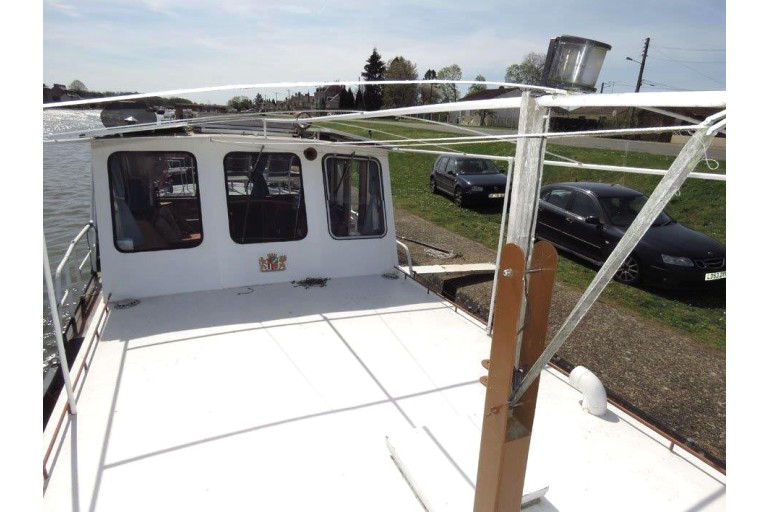

Bimini: | sun awning |
Boarding ladder: | aluminium |
Searail / Pulpit: | searail on bulwark guardrail around aftdeck |
Safety: | fire blanket fire extinguishers life buoys life jackets smoke detector(s) |
Additional information: | set deck furniture gangway Survey report of the underwatership is available (07-2019) |
