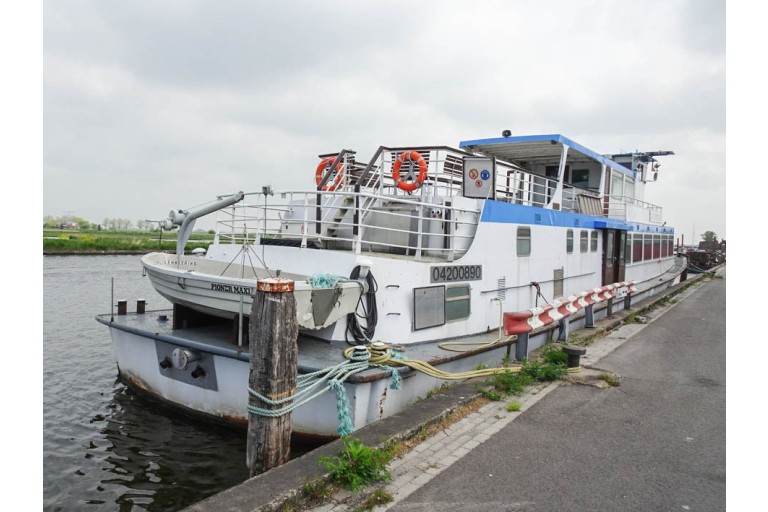

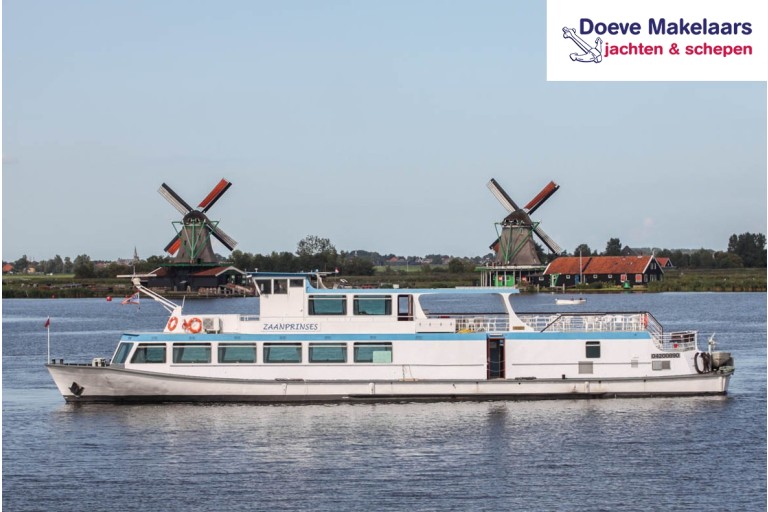

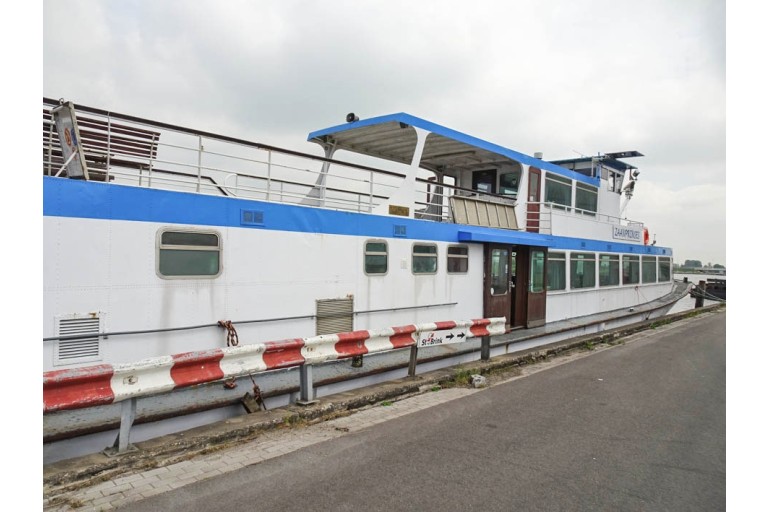

Day Passenger ship 120 pax / Live Aboard barge

Image of
Dimensions (m): 35.03 x 5.98 x 1.24 Ref. nr.: 220509
Mooring: Near Amsterdam, Netherlands Construction year: 1969
Price Information: Under offer Material: steel

Vision Doeve Brokers

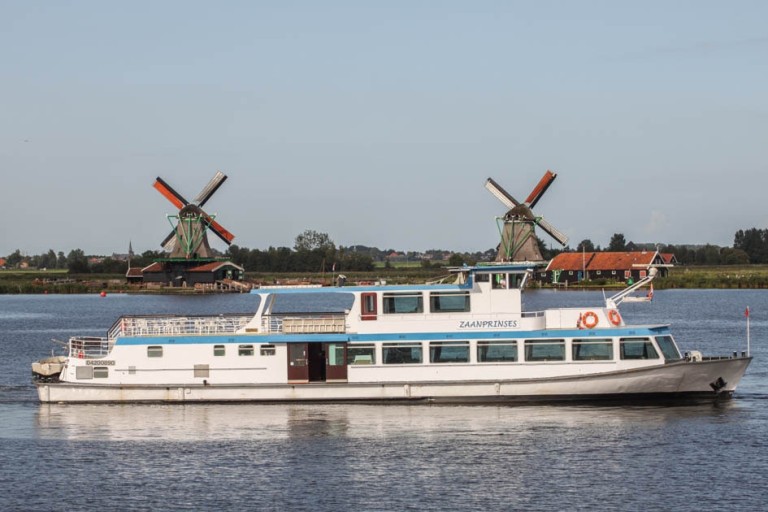

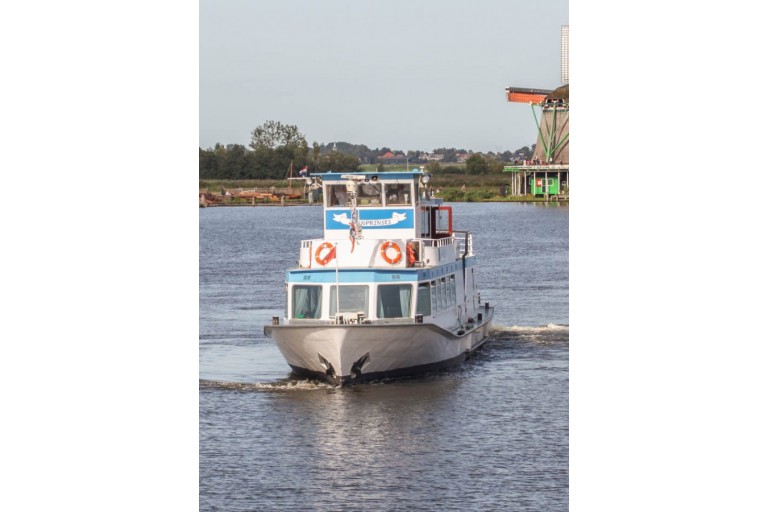

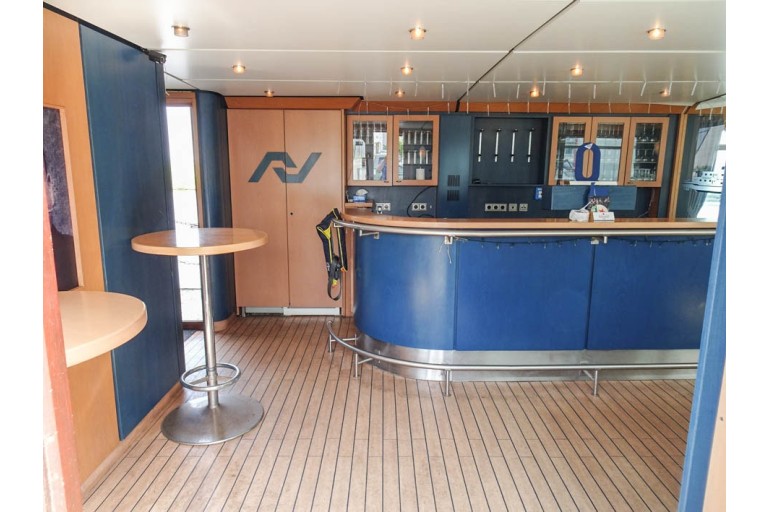

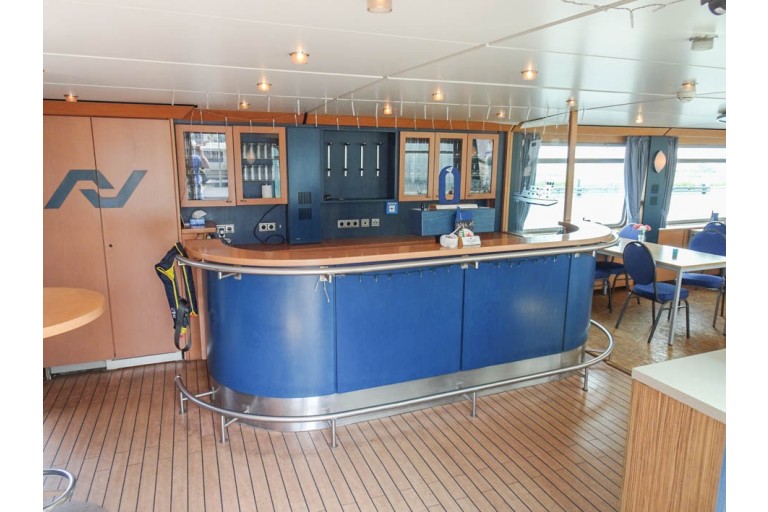

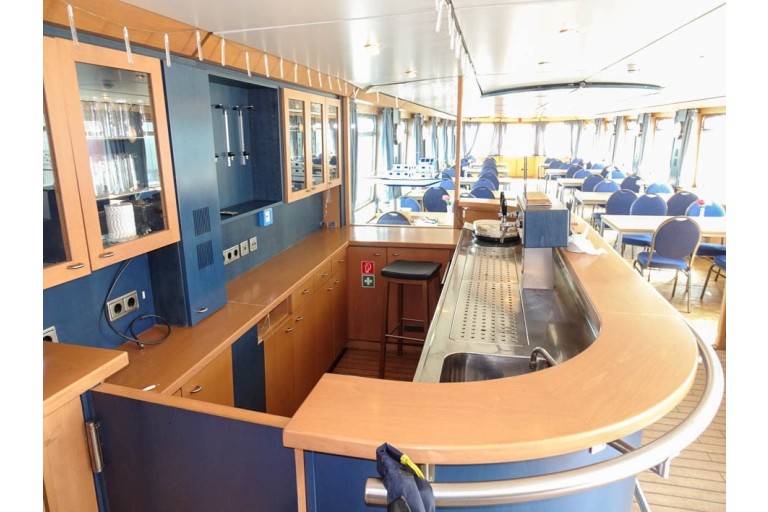

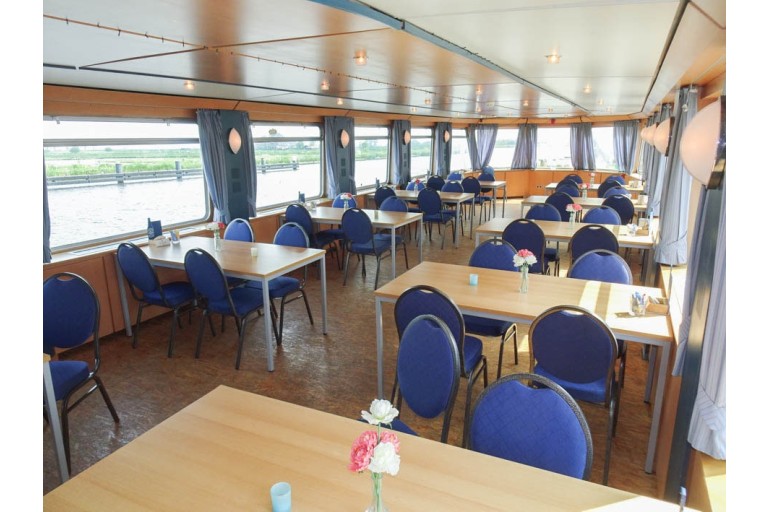

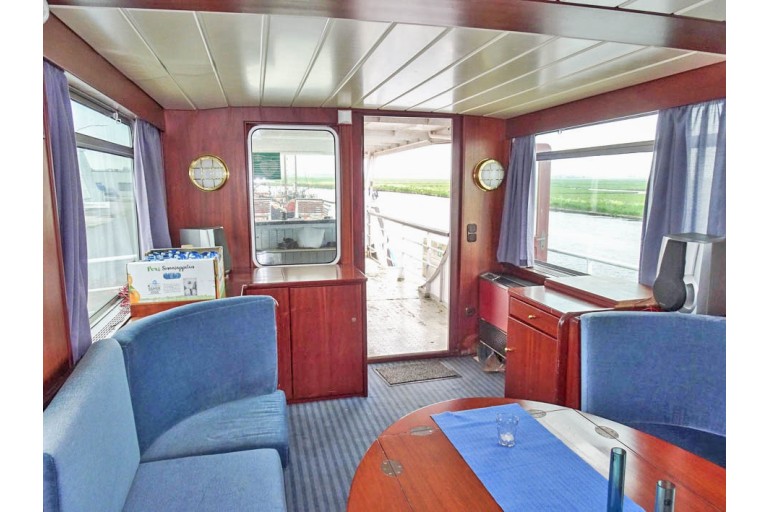

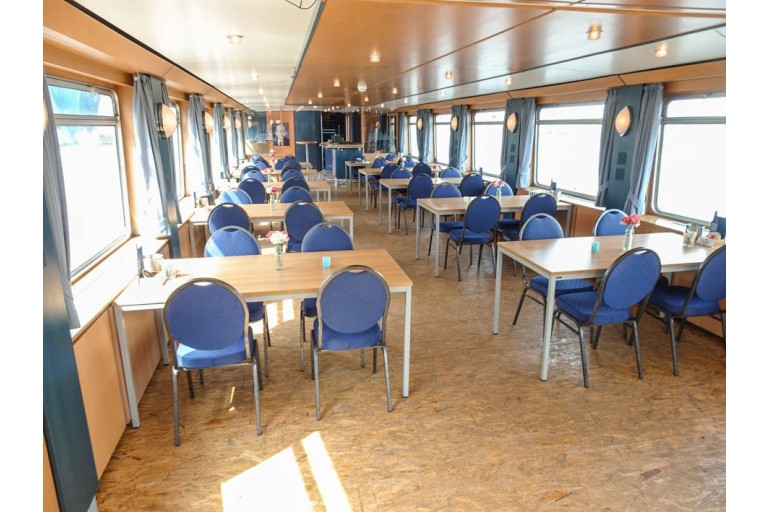

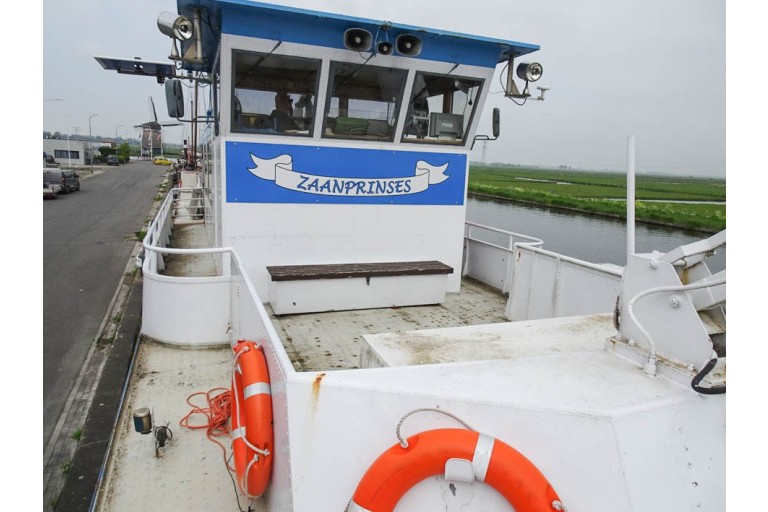

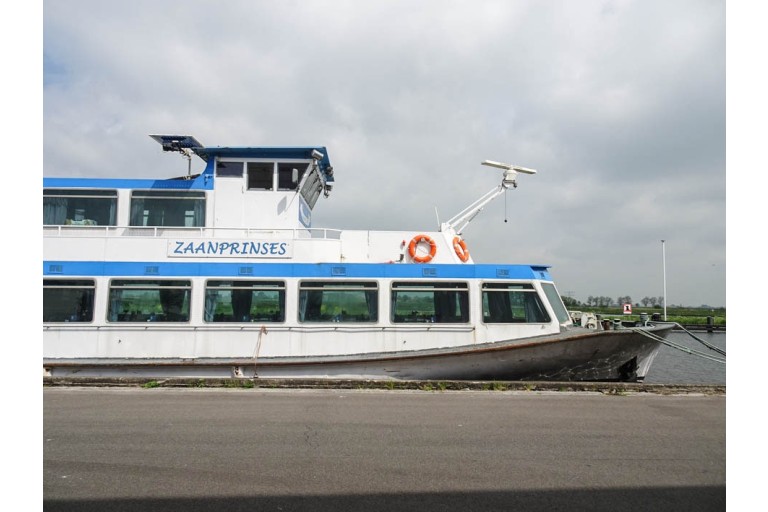

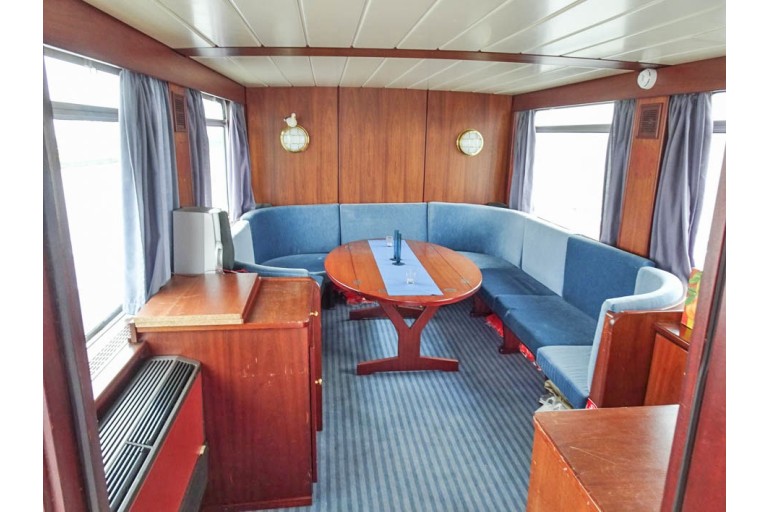

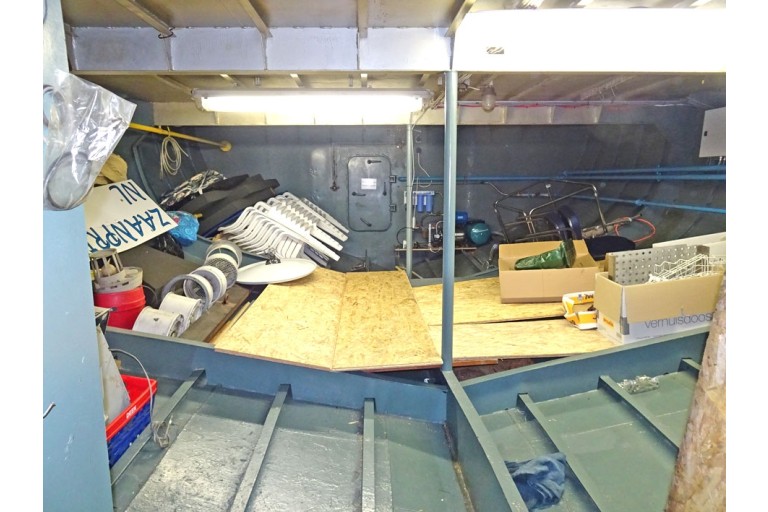

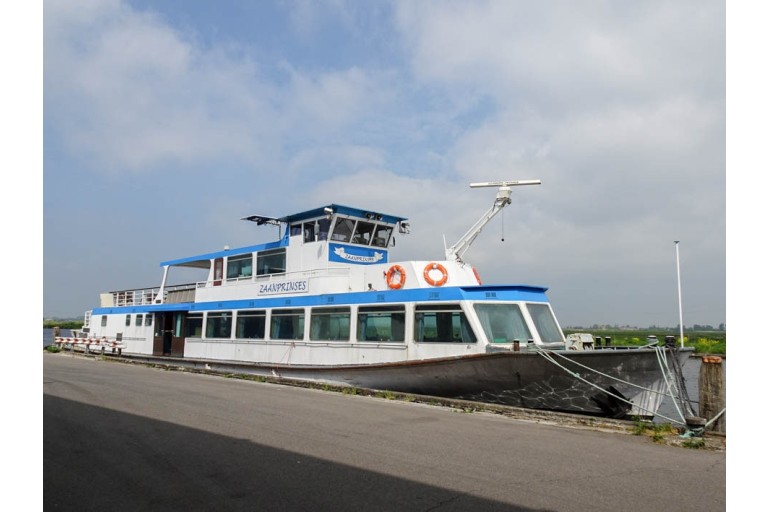

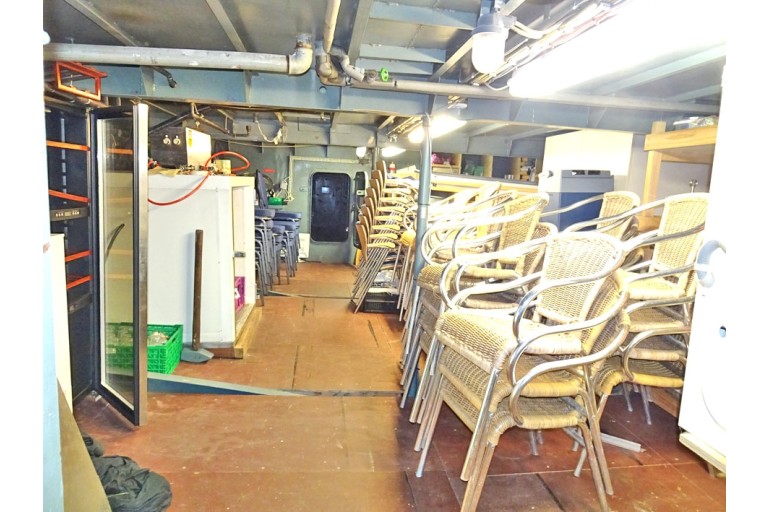

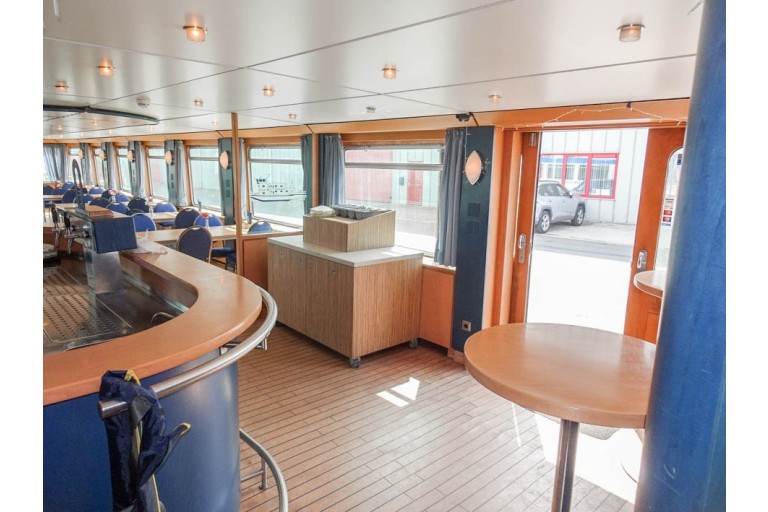

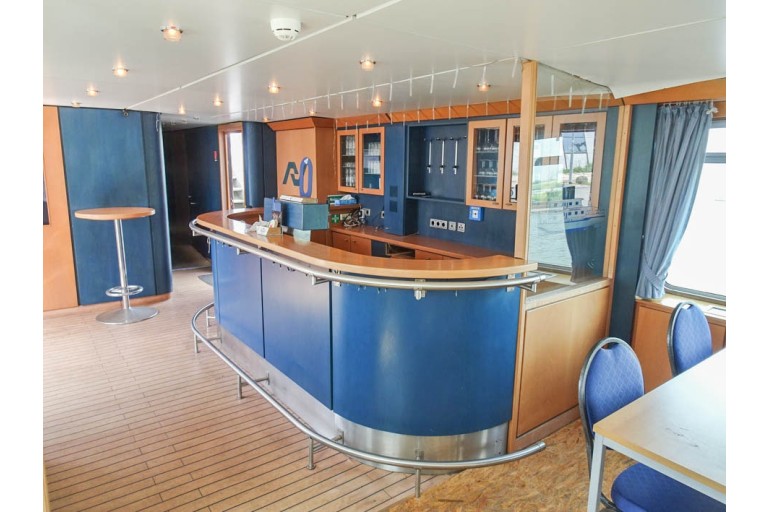

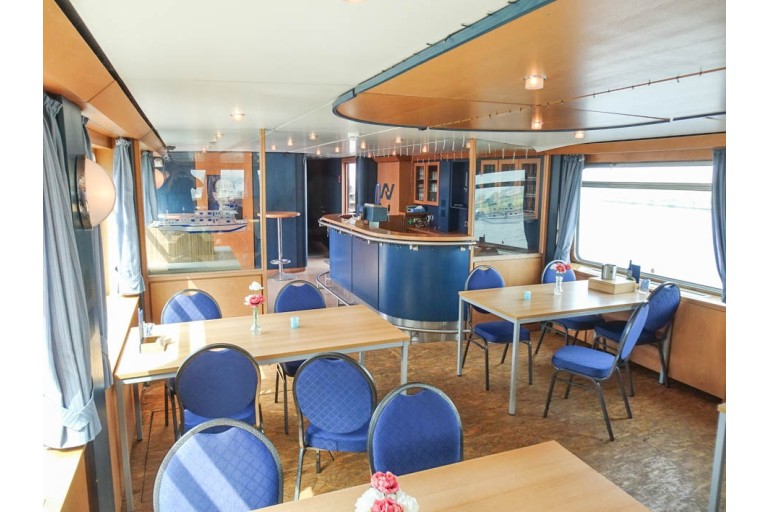

Day passenger ship that previously sailed in Duisburg, Germany, on the river Rhine under the name Delphin as a day passenger ship and as Carl Lehnkering as management vessel. At the moment, due to circumstances, the vessel has some deferred maintenance. In our view, this is an excellent opportunity to acquire a certified inland barge, which can be turned into a ship that looks good again and can be used as a sailing Live aboard vessel or as a passenger vessel. There are 2 Mercedes engines, 2 generators, spacious storage rooms, salon with bar, galley and toilet rooms. Behind the wheelhouse there is a salon with a great view.

More information

General information

Yard:Shipyard Ewald Breninghausen, D-Koln
Hull shape:round bottom
Hull material:steel
Deck material:steel
Superstructure material:steel
Construction method:welded
flare shape bow
rubbing strake
transom stern

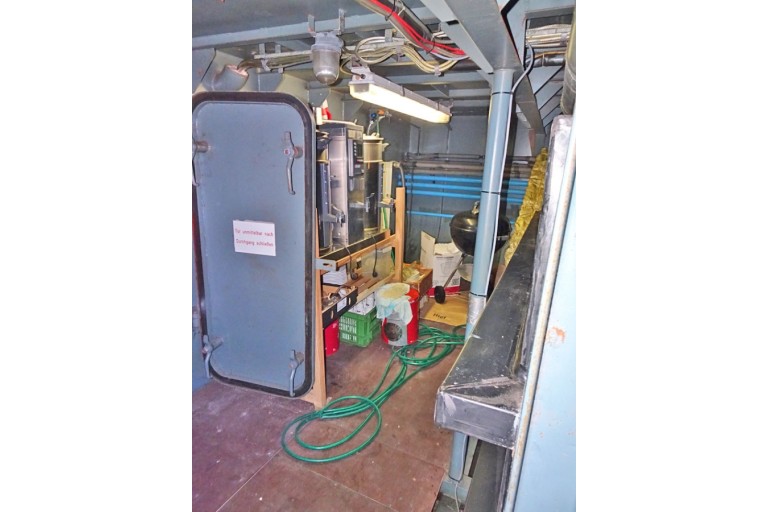

5 watertight bulkhead(s) with watertight door(s)
2 watertight bulkhead(s)
Steering system:electric hydraulic steering
follow up steering
time dependent steering
not connected
Windows:aluminium windows frames
double glazing (niet / not / nicht / ne pas 100%)
Displacement (approx.):maximum allowable displacement 164,050 m3
displacement in empty condition 128,878 m3
displacement 35,172 m3
Ballast (approx.):1/2 metric tons
steel
Airdraft (approx.):6,50 m
Owner:Dutch owner
Registration:Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
Colour / Paint System:white hull
white superstructure
see photographs
overdue maintenance

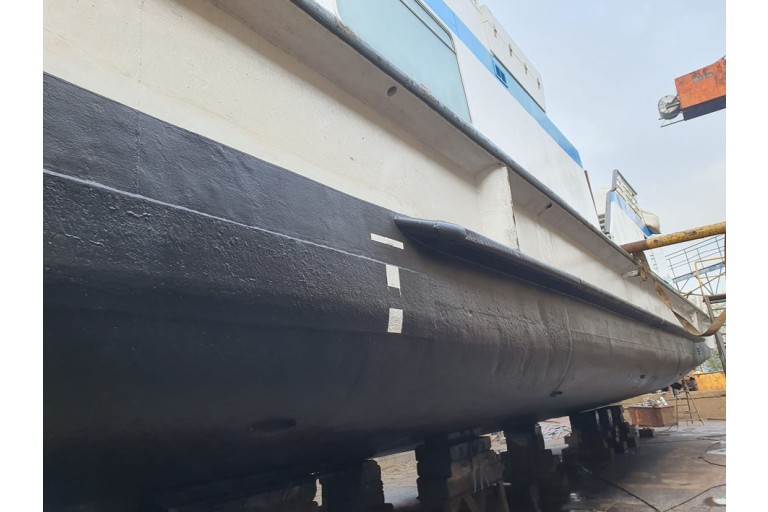

last underwatership treatment 11-2019
Certificates:inland waterways certificated (TRIWV)
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 11-2024
Suitable for / as:inland waterways
passengers vessel
pancake restaurant
recreational vessel
can be used as live-aboard
General information:offered in the condition that she is in
Additional information:The techniques used on board are commercial shipping quality.
120 day guests
Great vessel for cruising on the European canals and rivers.



Technical information

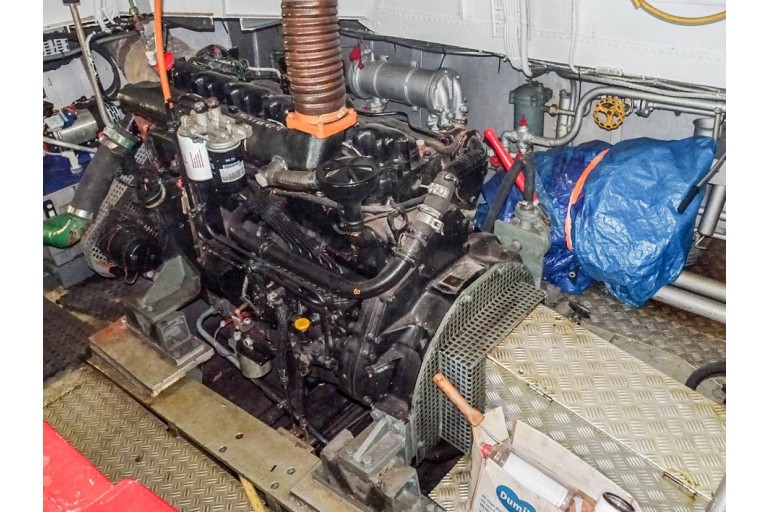

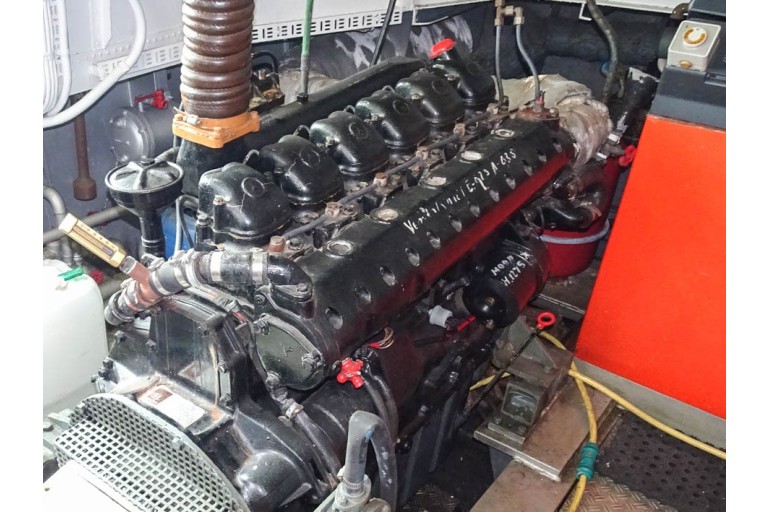

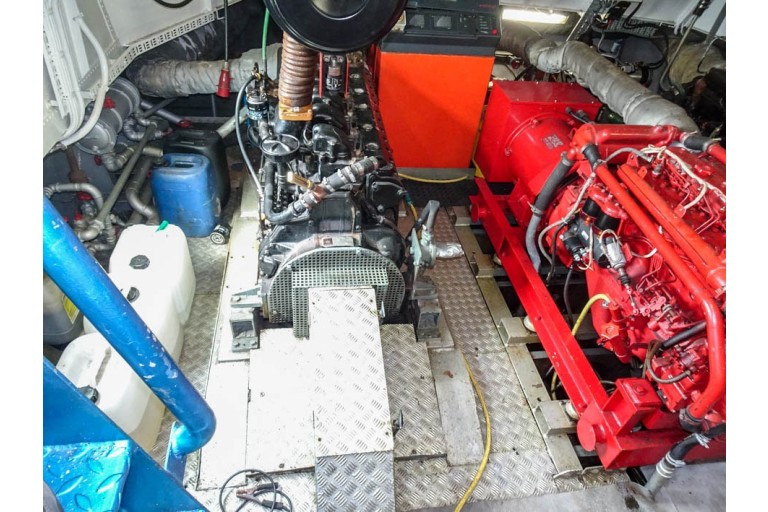

Enginepower:2x 170 Hp
2x 125 kW
Engine brand:2x Mercedes
Revolutions:2x 1856 RPM
Engine model:2x WM220A (OM 407)
Number of cylinders:2x 6
Construction year engine:unknown
Running hours (approx.):portside 12170
starboard 12130
on the hour counter
Fuel:diesel
Fuel tank (approx.):1x 10000 litre
2x 350 litre
waterbag(s)
steel tank(s)
BOBS overflowing fuel safety system
Cooling system:2x closed
2x box cooler

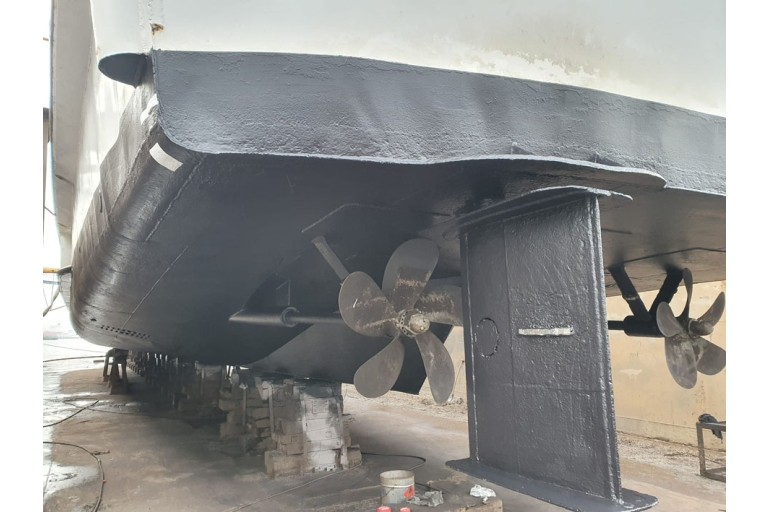

Propulsion:2x 5 blade propeller
2x greased lubrication of propeller shaft
2x V-drive

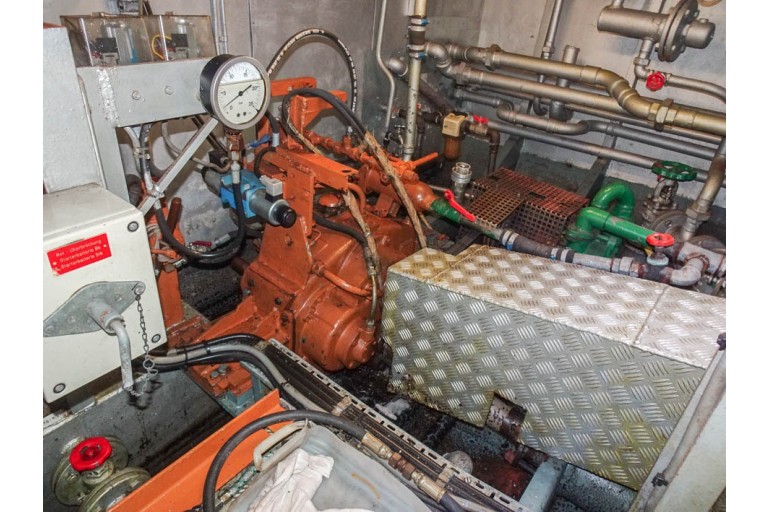

Gearbox:2x Lohmann & Stolterfoht hydraulic
GUS 2000
Heating:Weishaupt central heating
on diesel

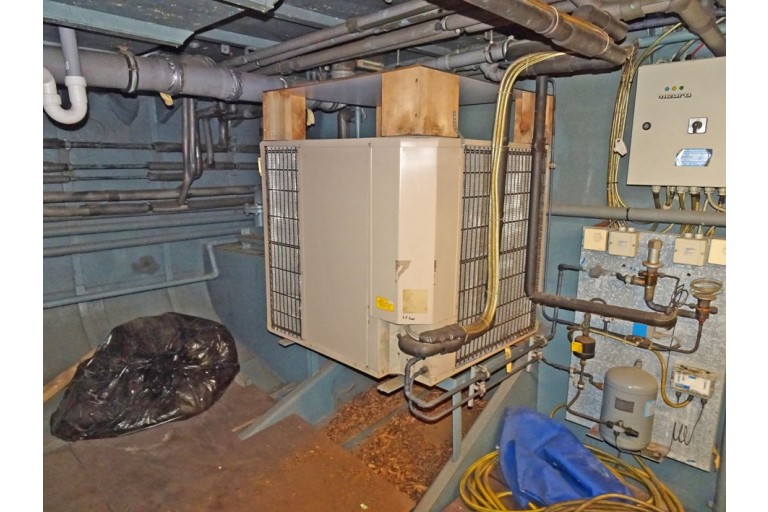

Air conditioning:present
Bow thruster:electric bow thruster
45 kW
400 Volt
proportional

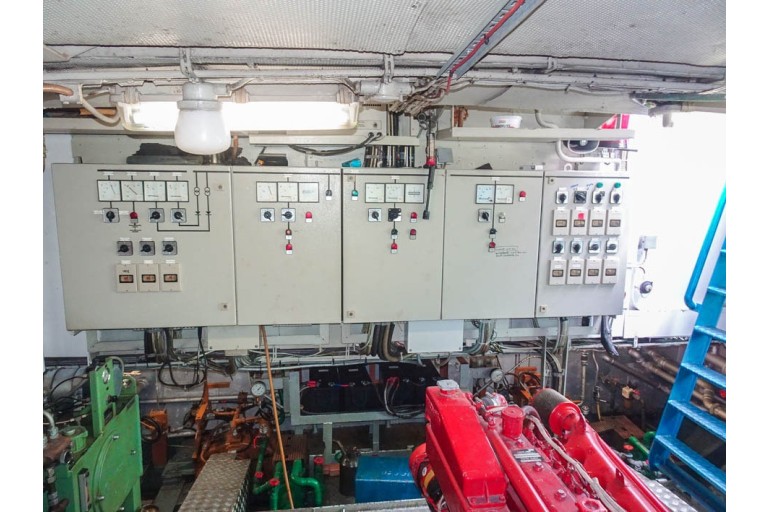

Electricity system:12 / 24 / 230 / 400 Volt
230 Volt shore power connection
400 Volt shore power connection
Batteries:2x 230 Ah emergency batterie(s)
4x 230 Ah starter batterie(s)
1x 100 Ah starter batterie(s) generator
Battery charger:Elektron battery charger 24/40
Elektron battery charger 12/8

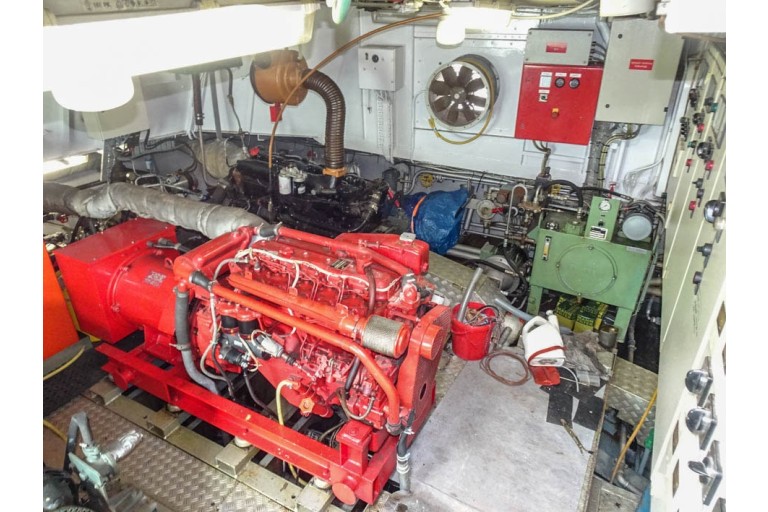

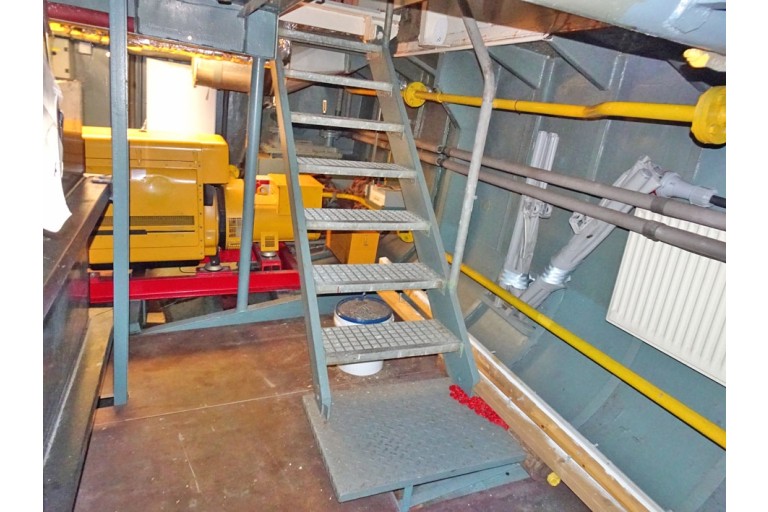

Genny:Iveco Aifo diesel genny
85 kVA 230/400 Volt, 1500 RPM
&

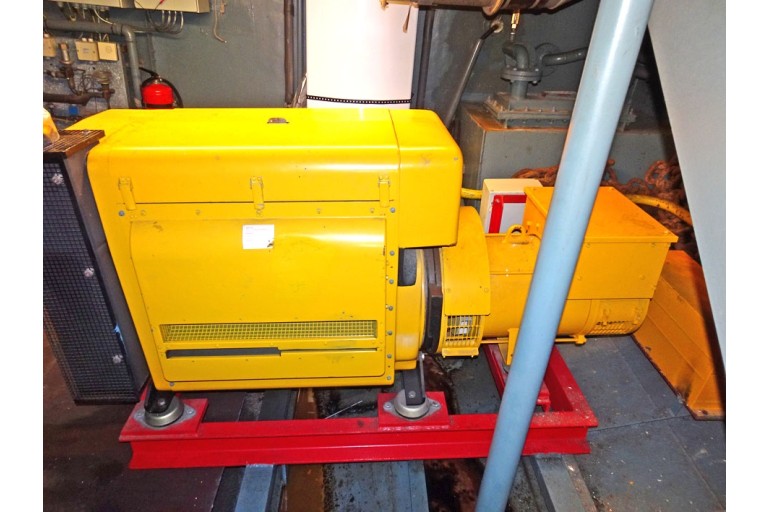

Hatz diesel genny
35 kVA 230/400 Volt, 1500 RPM
1350 running hours (approx.)

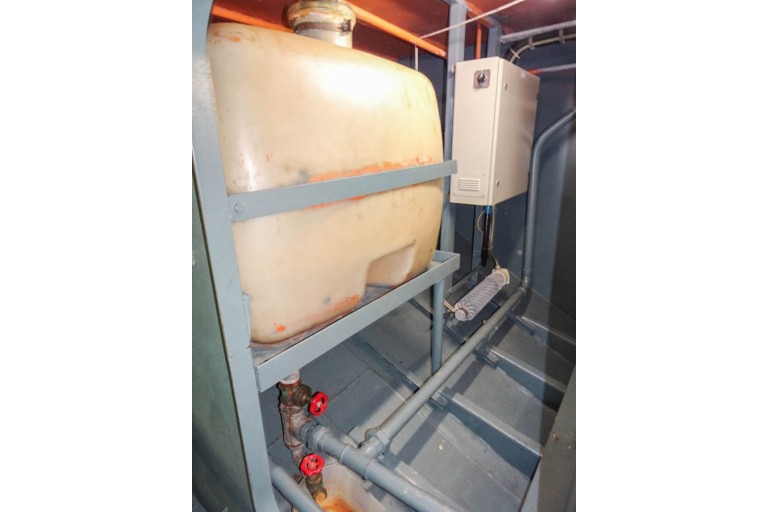

Fresh water tank (approx.):2x 750 litre
plastic tank(s)

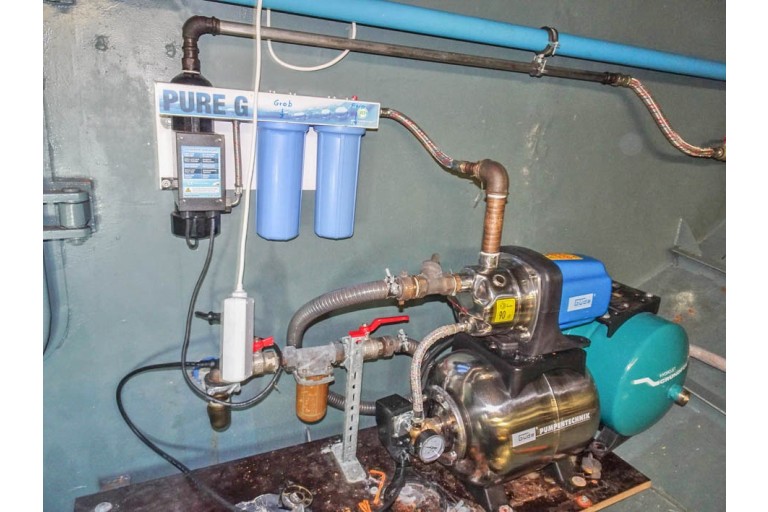

Water pressure system:hydrophore pump
Hot water system:Valliant boiler/water calorifier
Holding tank (approx.):9000 litre
1 plastic tank(s)

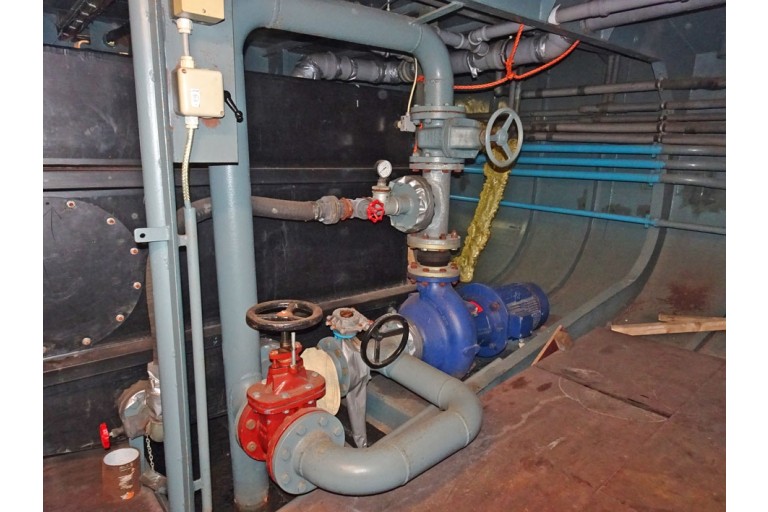

Bilge pump:2x general service pump
with manifold
also deckwash pump



Accommodation

Interior:simple interior
some overdue maintenance
see photographs
Insulation:partly
Lay-out plan (not to scale):see attachment

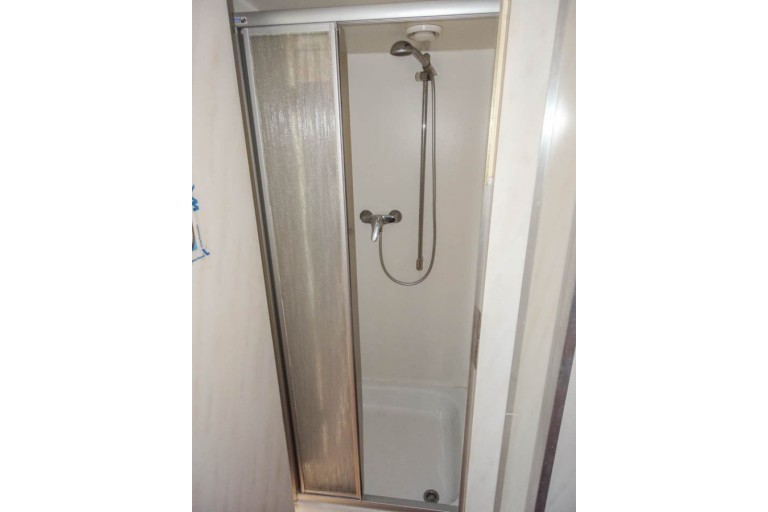

Bathroom:shower cubicle
mixer tap with hot & cold running water

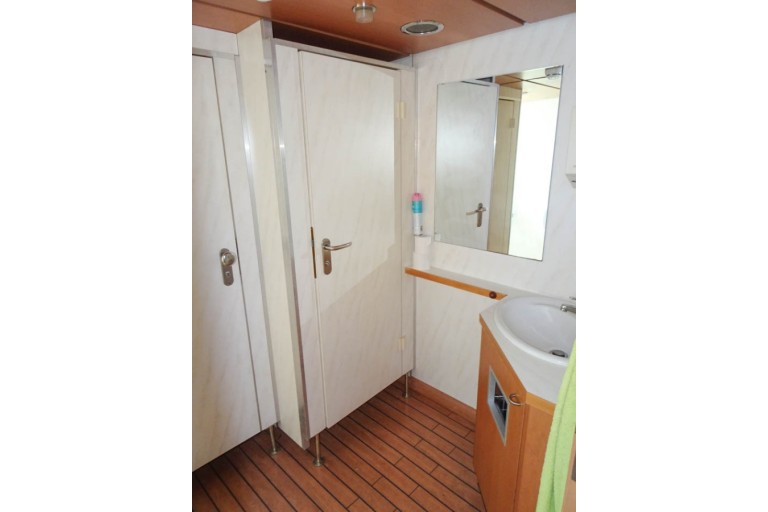

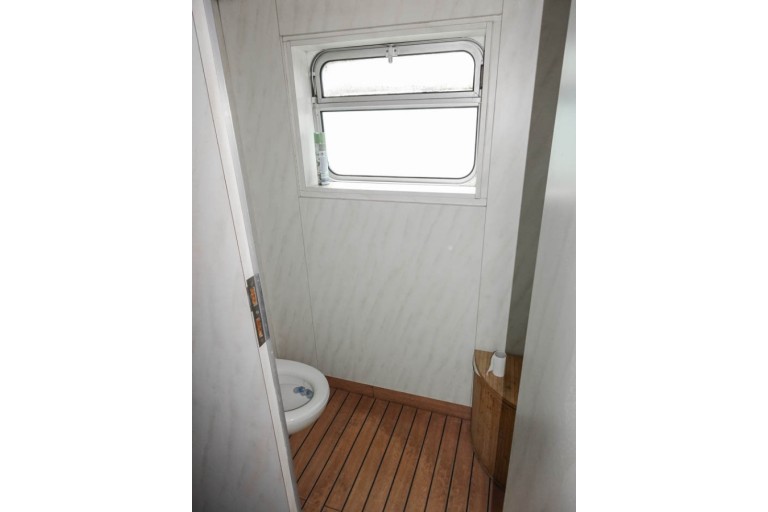

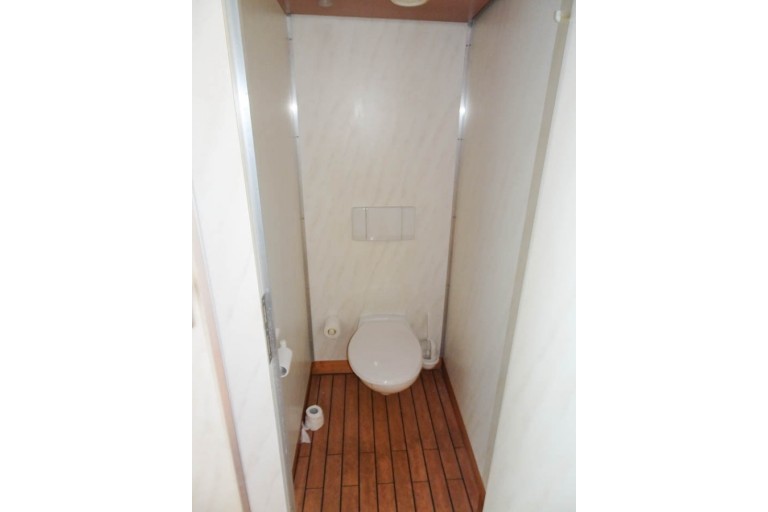

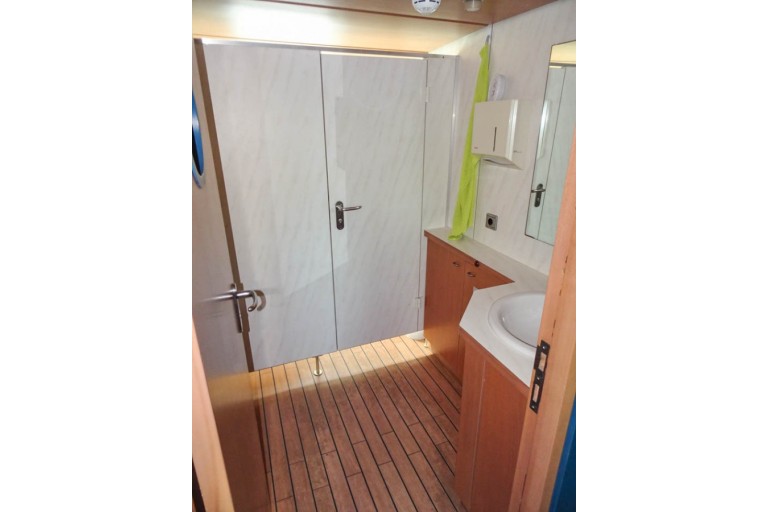

Toilet / Heads:lady's room:
flush toilet
washbasin with hot & cold running water

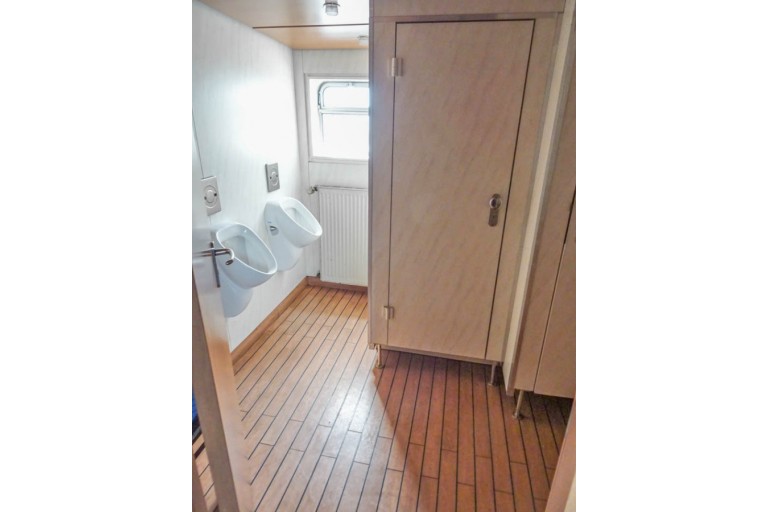

men's room:
2x urinal
flush toilet
washbasin with hot & cold running water

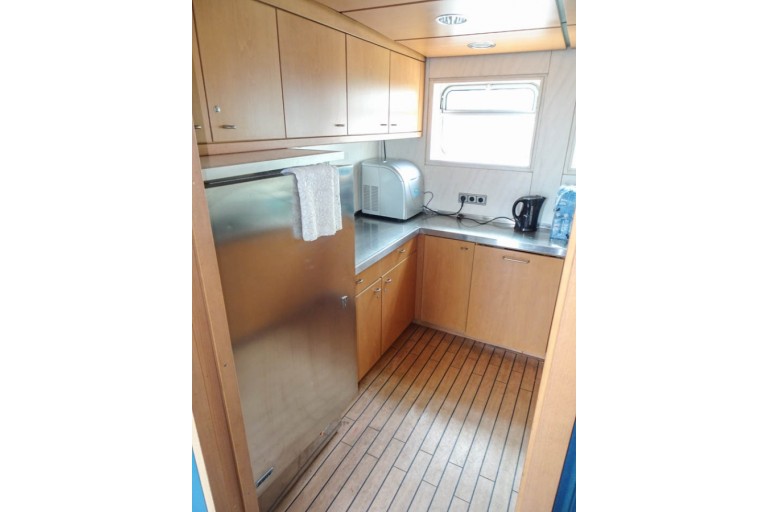

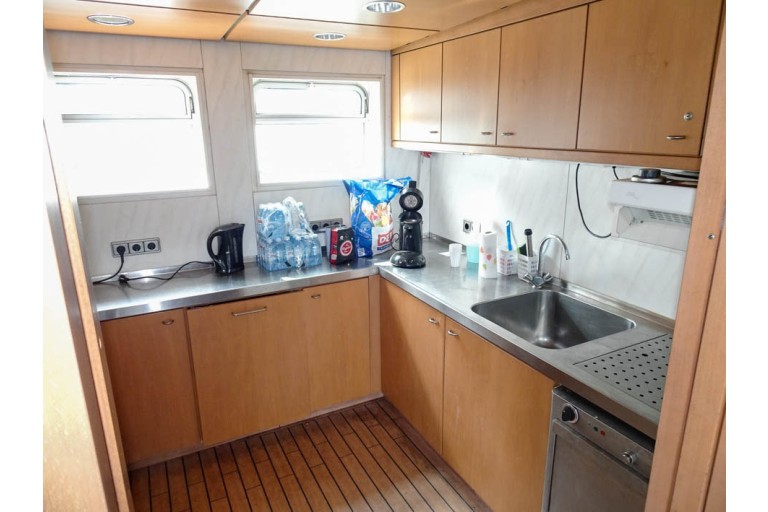

Galley:U-shape galley
Cooker:2-burner hob
electric cooker
Microwave:present
Fridge / Refrigerator:4x present
1x bottles cooler
Freezer:1x present
Worktop:stainless steel worktop
Washbasin:stainless steel sink
Water tap:hot & cold running water
Dishwasher:dishwasher
Headroom (approx.):wheelhouse (approx.) 2,02 m
salon (approx.) 1,99 m
below deck (approx.) 2,06 m

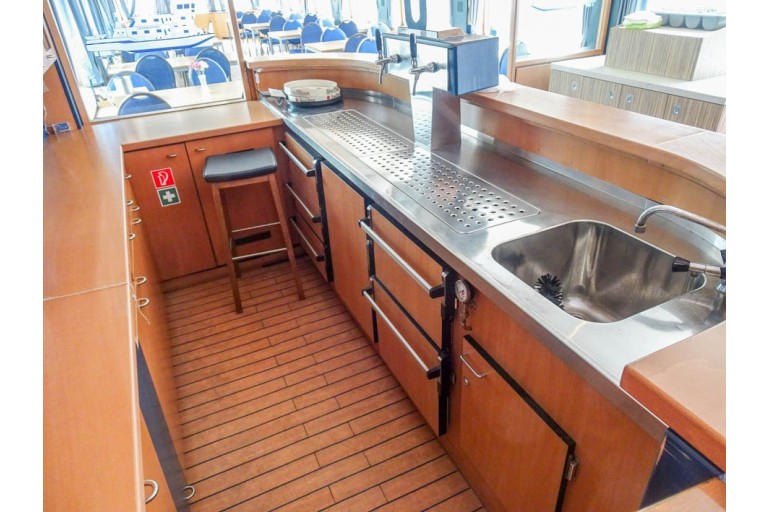

bar (approx.) 2,12 m

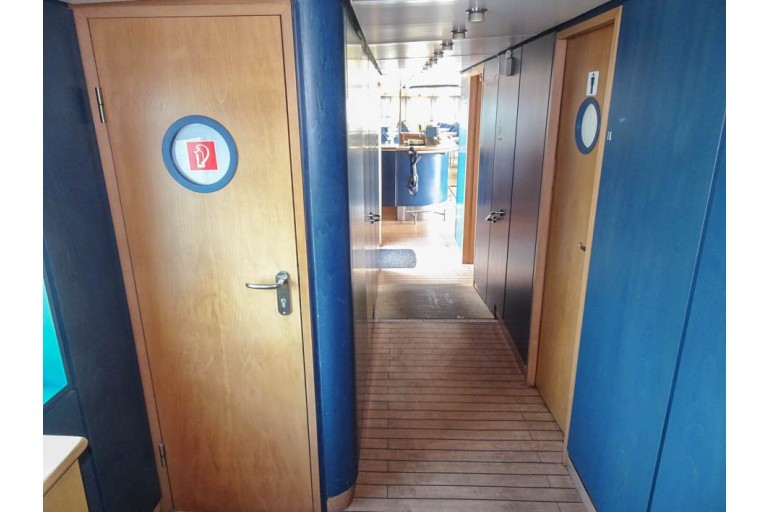

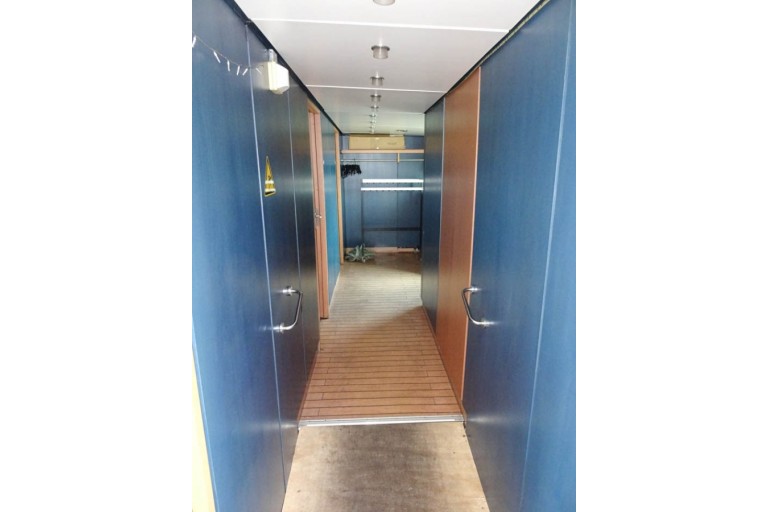

corridor / walkthrough (approx.) 1,98 m
toilet (approx.) 2,00 m
galley (approx.) 2,13 m
Additional information:ice-cube maker
beer tap

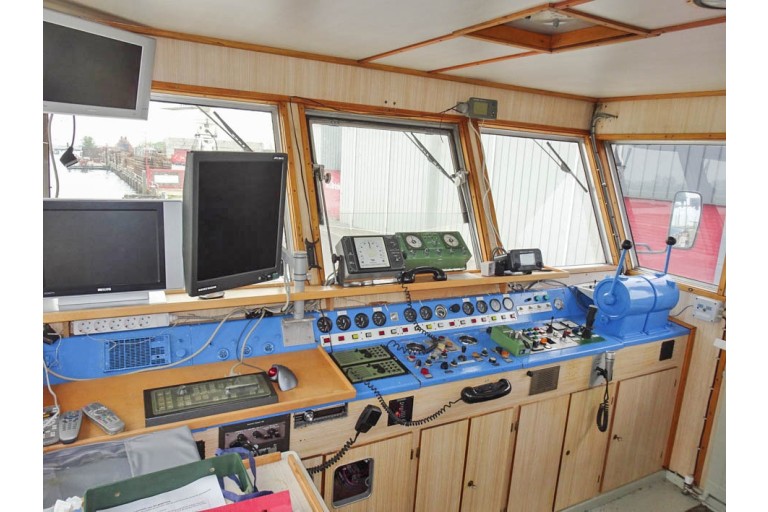

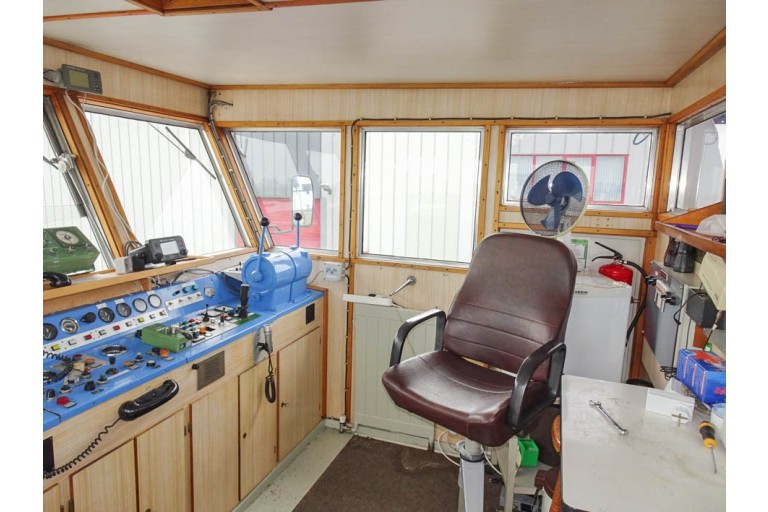

Navigation equipment

Navigation equipment:2x RT2048 VHF
True Heading Carbon Pro Automatic Identification System (AIS)
Radio Zeeland Euro 500 rudder indicator
Radio Zeeland Euro 500 rate-of-turn indicator
Radio Zeeland Euro 500/600 follow up steering
Radio Zeeland Euro 500/600 river autopilot (follow-up steering )
Radio Holland RI 4740 rate-of-turn indicator
2x search light
Furuno GP-31 GPS
intercom
camera system
blue board with oscillating light
navigation lights
horn
3x window wiper



Rigging and sails

Mast:radarmast
Lowerable:yes
manual



Equipment

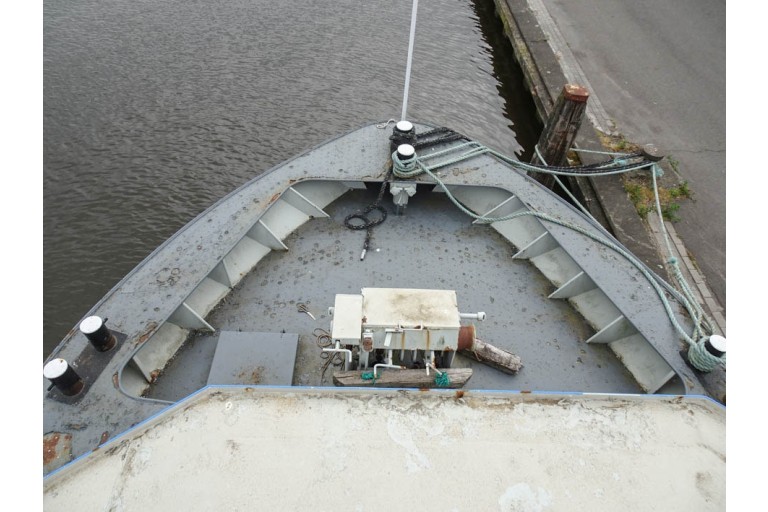

Anchor equipment:manual anchor winch
2x d'hone anchor
anchor chain
in hawse-hole

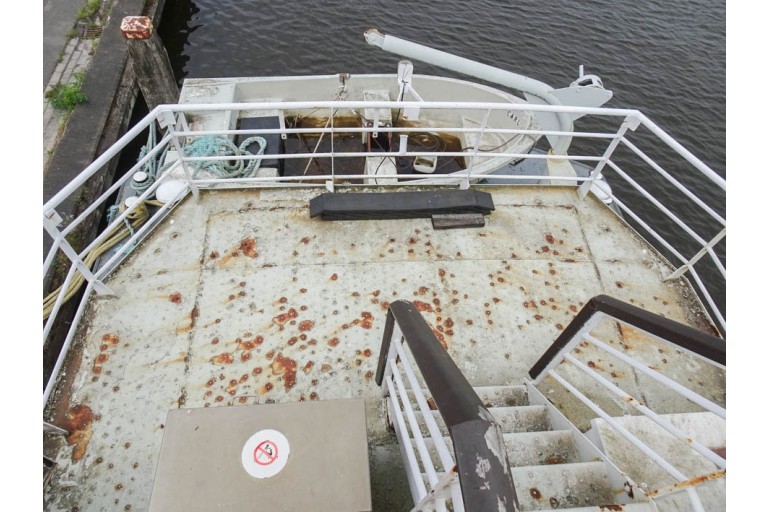

Searail / Pulpit:guardrail around upperdeck
guardrail around aftdeck
Dinghy:Pioner Maxi dinghy
Davits:present

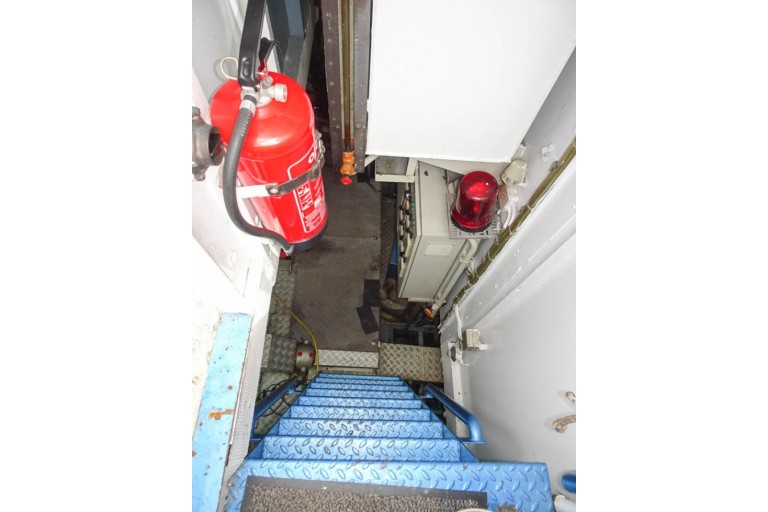

Safety :fire extinguishers
life buoys
life jackets
according to the certification requirements
Additional information:steering chair
set deck furniture
deck lights

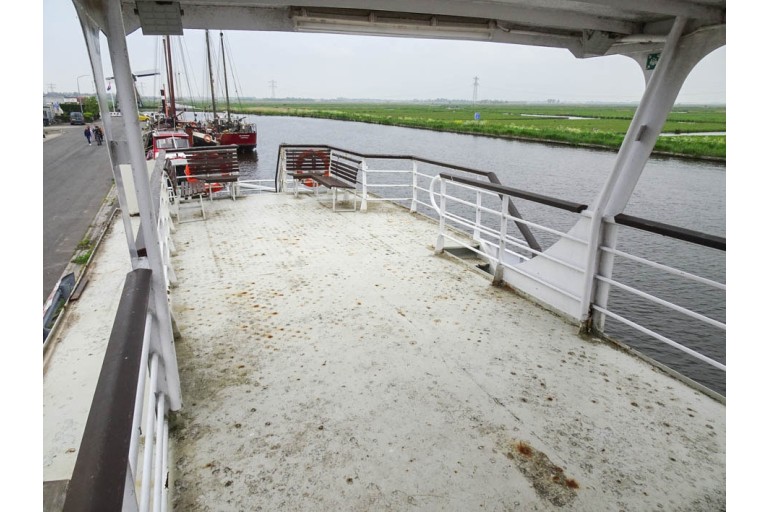

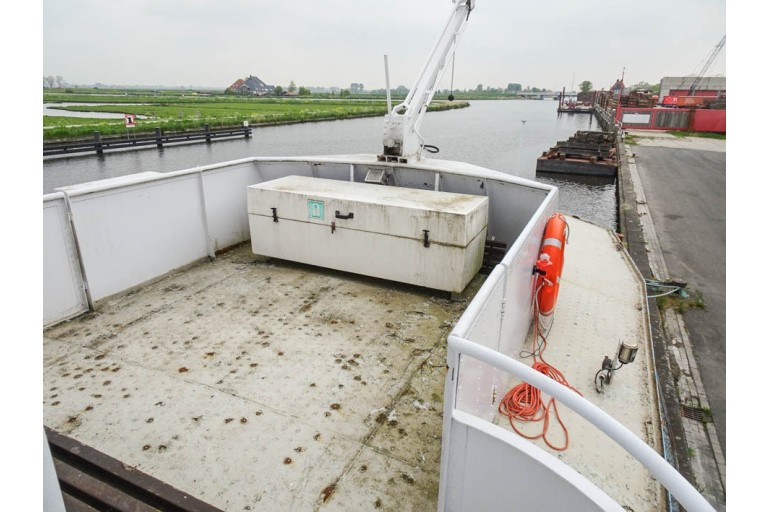

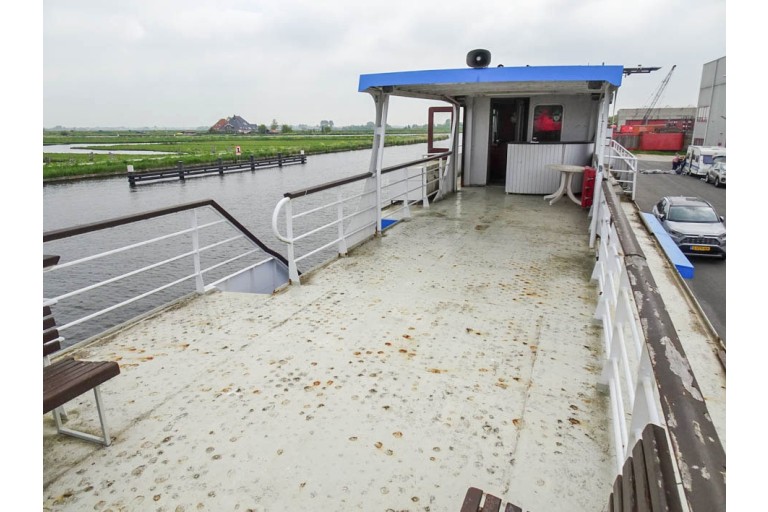

sundeck

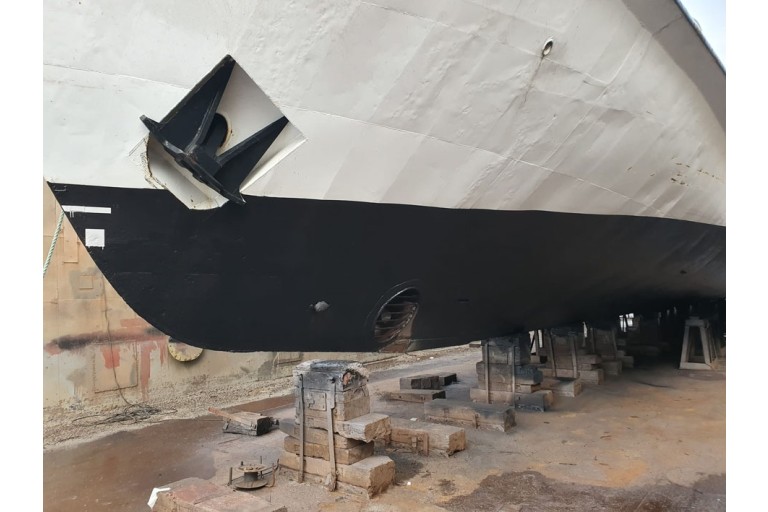

Survey report of the underwatership is available (11-2019)
