Historic Coastal Sailingvessel 27.80 with TRIWV Sold
Dimensions (m):
27.80 x 5.85 x 1.25
Ref. no.:
201202
Mooring:
Near Woudrichem, Netherlands
Construction year:
1931
Material:
steel
Residential berth
Vision Doeve Brokers

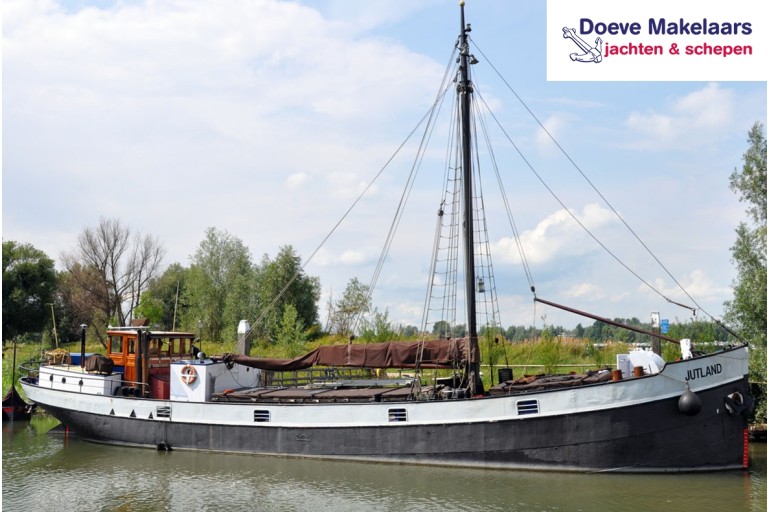

Former coastal cargo vessel that, after that she was taken out of service in 1981, has been converted into a museum-worthy comfortable Sailing Live Aboard vessel, where authenticity was very important by the conversion. Equipped with a beautiful slow running 375 RPM engine of 1938, 2x generator, central heating system and a bow thruster, makes it a fully equipped and self-sufficient coaster. The interior in the old cargo hold is spacious, neat and cozy. In the aft cabin it is cozy, and you experiences the authenticity, together with a modern bathroom. This former coaster has a straight hull, bulwark all around, wide sidewalks, mast deck with steel mast and mast winch and a renovated wheelhouse with teak on top. In our opinion, this is a highly recommended Live Aboard vessel for someone who wishes to live comfortably on a ship with the option of making beautiful trips to for example Scandinavia / Baltic Sea.
More information
General information
| Yard: | Shipyard Van Diepen, NL-Waterhuizen |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel teak top side of the wheelhouse wooden hatches covers over hold |
| Construction method: | riveted new steel is welded rubbing strake around bulwark around wide side decks (gunnels) deckhouse 3 watertight bulkhead(s) 1 watertight bulkhead(s) with watertight door(s) |
| Keel: | bilge keels |
| Steering system: | mechanical wheel steel rudder |
| Windows: | portholes |
| Displacement (approx.): | 98 GT 29 BT |
| Ballast (approx.): | 9 ton |
| Airdraft (approx.): | 4,00 m lowered mast(s) |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull white bulwark white superstructure see photographs two component system |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 06-2025 |
| Suitable for / as: | suitable as a year round live- aboard inland waterways coastal waters |
| General information: | Hand over in consultation. The ship is recognized as a Historic Vessel |
| Additional information: | classic lines beautiful sheer Hull shape is suitable for drying out. straight hull forepeak with chain locker Great vessel for cruising on the coastal waters. |
Technical information
| Enginepower: | 120 Hp 88 kW |
| Engine brand: | Deutsche Werke |
| Revolutions: | 375 RPM |
| Engine model: | 4 M 36 air started |
| Number of cylinders: | 4 |
| Construction year engine: | 1938 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 2500 litre 2 steel tank(s) |
| Cooling system: | direct cooling system |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft greasing device |
| Gearbox: | Reintjes hydraulic |
| Heating: | Baxiroca Gavina central heating on diesel & stove on wood with back boiler connected to central heating & pelletstove |
| Bow thruster: | Kalkman electric bow thruster 400 Volt 35 Hp proportional |
| Electricity system: | 24 / 230 / 400 Volt 400 Volt shore power connection mainmaster control |
| Batteries: | 2x 230 Ah domestic batterie(s) 1x 105 Ah starter batterie(s) generator 1x 105 Ah starter batterie(s) generator |
| Battery charger: | Victron Skylla-TG battery charger 24/50 CTEK XS battery charger 12/0,8 Victron battery charger 12/7 |
| Earth-leakage breaker: | present |
| Genny: | Hatz whisper diesel 1500 RPM 35 kVA, 230/400 Volt 630 running hours (approx.) & JF Marine / Mitsubishi diesel 1500 RPM 9 kVA, 230/400 Volt |
| Inverter: | Victron Atlas inverter 24/1600 |
| Fresh water tank (approx.): | 3000 litre 3 stainless steel tank(s) |
| Water pressure system: | Speck hydrophore pump |
| Hot water system: | boiler/water calorifier through the central heating |
| Holding tank (approx.): | 250 litre 1 stainless steel tank(s) |
| Engineroom: | see photographs |
| Bilge pump: | 2x submersible pump |
| Gas system: | no gas on board |
| Additional information: | air compressor 2x air bottle partly LED lightning |
Accommodation
| Interior: | pine Plywood painted white pine floor(s) very well maintained see photographs |
| Insulation: | glass wool Rockwool hard foam plates |
| Cabins: | 5 cabins |
| Berth: | Forward: 1x 1-pers Starboard cabin: 1x 2-pers Starboard cabin: 1x 1-pers Portside cabin: 1x 2-pers Aft: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: partly tiled shower thermostat tap washbasin with mixer tap and hot & cold running water Aft: tiled bathroom shower cubicle thermostat tap washbasin with hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | Forward: partly tiled toilet flush toilet warm/cold water cold running water Aft: flush toilet |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob induction cooker cookerhood stainless steel |
| Oven: | microwave/oven |
| Fridge / Refrigerator: | present 230 Volt combination with freezer |
| Freezer: | freezer |
| Worktop: | wooden worktop |
| Washbasin: | 2x stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Headroom (approx.): | forward cabin (approx.) 1,89 m office (approx.) 2,25 / 2,78 m 2x cabin (approx) 2,22 m corridor / walkthrough (approx.) 2,22 m toilet in the front (approx.) 2,10 m bathroom (approx.) 1,96 / 2,38 m salon (approx.) 2,57 m wheelhouse (approx.) 1,93 m aftcabin (approx.) 1,88 / 1,94 m bathroom / toilet aft (approx.) 1,86 m |
| Additional information: | central vacuum clean system The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. useful as live-aboard washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | 2x Sailor RT144 VHF Nasa Target 2 depth / echosounder MLR Valsat 2008 M2 GPS ComNav Voyager X3 class A Automatic Identification System (AIS) compass blue board with oscillating light rudder indicator navigation lights Sailor R109 transceiver |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | steel |
| Lowerable: | yes winch electric |
| Boom: | pine |
| Gaff: | pine |
| Material of the sails: | Dacron |
| Sails: | mainsail boom jib |
| Additional information: | jibboom sail cover |
Equipment
| Anchor equipment: | manual anchor winch with electric motor warping drum 1x Spek anchor 1x Klipp anchor in hawse-hole 2x 40 m anchor chain 1x kedge anchor specified length(s) is/are approximate |
| Awnings: | over the hold hatches |
| Boarding ladder: | aluminium |
| Dinghy: | present inboard engine |
| Safety: | life buoys 2 inflatable life jackets fire extinguishers fire blanket according to the certification requirements |
| Additional information: | 2x aluminium gangway Taking over of the current official residential rental mooring can be discussed with the port manager. deck lights Survey report of the underwatership is available (06-2018) |
