Tugboat 14.50 Sold
Dimensions (m):
14.50 x 3.40 x 1.40
Ref. no.:
220306
Mooring:
Near Breda, Netherlands
Construction year:
1936
Material:
steel
Vision Doeve Brokers

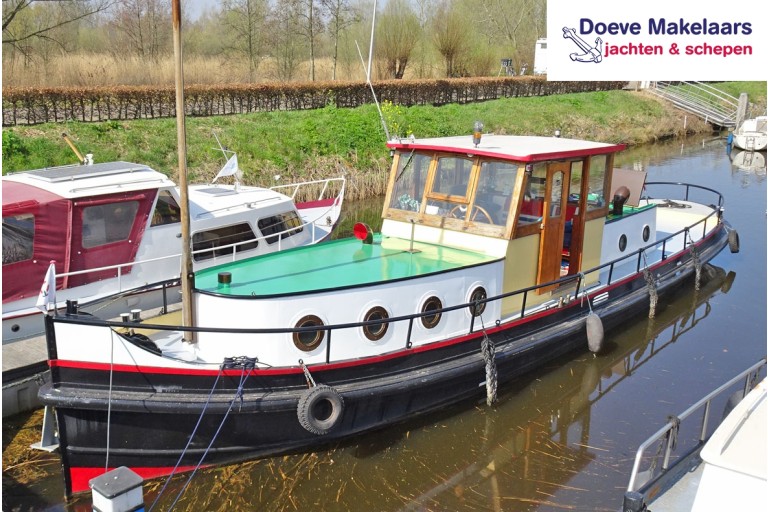

Former inland tug that has been converted into a recreational vessel. The seller has invested a lot in maintenance in recent years, such as hydrojets and painting of the entire boat and the installation of a bow thruster. The woodwork still needs to be varnished. It is a nice boat with a pleasant headroom, a 2-persons berth under the wheelhouse and the galley is located in the spacious fore cabin. With this boat you are a welcome participant at nautical events.
More information
General information
| Yard: | unknown |
| Hull shape: | round bottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded rubbing strake around bulwark around deckhouse forward deckhouse |
| Steering system: | hydraulic wheel steel rudder (2020) |
| Windows: | portholes |
| Displacement (approx.): | 25 ton |
| Ballast (approx.): | concrete |
| Airdraft (approx.): | 3,00 m |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull black bulwark white superstructure 2019 underwater ship and hull completely stripped to bare steel (hydrojet) two component system 2020 decks and superstructure one component system |
| Certificates: | no certificate requirement |
| Suitable for / as: | inland waterways recreational vessel |
| General information: | The ship is recognized as a Historic Vessel For sale due to health issues. |
| Additional information: | classic lines tug bitts towing hook tug spacious aftdeck Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 105 Hp 77 kW |
| Engine brand: | DAF |
| Revolutions: | 2200 RPM |
| Engine model: | DD575 |
| Number of cylinders: | 6 |
| Construction year engine: | 1967 |
| Overhaul engine: | 1991 as declared |
| Running hours (approx.): | 4580 |
| Fuel: | diesel |
| Fuel tank (approx.): | 750 litre 1 steel tank(s) |
| Cooling system: | intercooling dry exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | PRM hydraulic |
| Heating: | Eberspächer hot air heating on diesel |
| Bow thruster: | Vetus electric bow thruster 160 KGF 24 Volt |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 2 starter batterie(s) 2x 230 Ah bow thruster batterie(s) |
| Battery charger: | present |
| Battery isolator: | Victron battery isolator |
| Genny: | Fairline JEG 2600 petrol (gasoline) 2,6 kW |
| Inverter: | Skytronic inverter 24/300 |
| Fresh water tank (approx.): | 150 litre 1 plastic tank(s) |
| Water pressure system: | gravity |
| Engineroom: | see photographs |
| Bilge pump: | 1 submersible pump |
| Gas system: | yes, bottle(s) in bottle box does not fully meet current safety requirements |
Accommodation
| Interior: | various materials have been used see photographs |
| Cabins: | 1 cabin |
| Berth: | Under deck: 1x 2 pers |
| Lay-out plan (not to scale): | see attachment |
| Toilet / Heads: | 1 pumptoilet 1 chemical toilet |
| Galley: | L-shape galley |
| Cooker: | 3-burner hob stainless steel on gas |
| Fridge / Refrigerator: | coolbox |
| Worktop: | formica worktop |
| Water tap: | cold water |
| Headroom (approx.): | wheelhouse (approx.) 1,96 m salon (approx.) 1,95 m forward (approx.) 2,02 m |
Navigation equipment
| Navigation equipment: | Shipmate RS8110 VHF Nasa depth / echosounder rudder indicator window wiper horn clock barometer hygrometer |
Rigging and sails
| Mast: | lantern mast wood |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch Pool anchor anchor chain in hawse-hole |
| Boarding ladder: | present |
| Additional information: | steering chair sundeck |
