Motorvlet 10.60 GSOK No longer available
Dimensions (m):
10.60 x 3.40 x 0.90
Ref. no.:
221005
Mooring:
Near Dordrecht, Netherlands
Construction year:
1936
Material:
steel
Vision Doeve Brokers

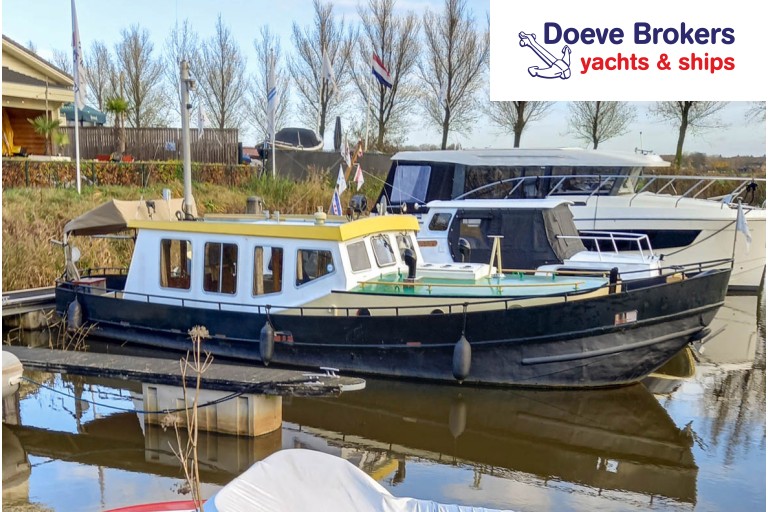

Former workboat of the Dutch waterway authorities (Rijkswaterstaat) that has been deployed on the major rivers of the Netherlands and the NL-Ketelmeer. After she left service in 1978, she was refurbished into a sturdy recreational vessel. A 52 hp / 38 kW, 3 cylinder Kromhout provides the propulsion. A movie of the running engine is available. In the front there is a sleeping accommodation (bed size 1.15 x 1.86 m). After a few adjustments, it is possible to create more sleeping space. From the salon you have a good view all around. She has a large sailing area due to her low air draft and shallow draft. A great boat to spend the weekends and holidays on.
More information
General information
| Yard: | Shipyard B. Tans & Zn, NL-Rotterdam |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded bulwark around open cockpit self-draining cockpit stainless steel bollards |
| Keel: | bilge keels |
| Steering system: | mechanical wheel |
| Windows: | aluminium windows frames bronze portholes & stainless steel portholes |
| Displacement (approx.): | 18 metric tons estimated |
| Airdraft (approx.): | 2,35 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | black hull white superstructure |
| Suitable for / as: | inland waterways recreational vessel |
| Additional information: | motor cruiser GSOK cruiser Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 52 Hp 38 kW |
| Engine brand: | Kromhout |
| Revolutions: | 1500 RPM |
| Engine model: | T117 |
| Number of cylinders: | 3 |
| Construction year engine: | approximately 1962 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 2x 300 litre steel tank(s) |
| Cooling system: | closed keel cooling wet exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft thrust bearing |
| Gearbox: | Twin Disc MG 61 reduction/ratio 1,96:1 |
| Speed (approx.): | 12 km/hour cruising speed at 1200 RPM |
| Heating: | Webasto hot air heating on diesel |
| Electricity system: | 12 / 230 Volt 230 Volt shore power connection |
| Batteries: | 1x 200 Ah starter batterie(s) (2022) 1x 190 Ah domestic batterie(s) Victron BMV-600S battery monitor |
| Battery charger: | Victron Centaur battery charger 12/60 |
| Earth-leakage breaker: | present |
| Inverter: | 1200 Watt |
| Solar panels: | 2x 175 Watt (2021) 2x Victron BlueSolar PWM charge controller 12/24/10 |
| Fresh water tank (approx.): | 1x 1000 litre stainless steel tank(s) |
| Water pressure system: | hydrophore pump |
| Diesel waterseparator: | present |
| Bilge pump: | electric pump 12 Volt |
| Gas system: | present bottlebox |
Accommodation
| Interior: | various materials have been used simple interior see photographs |
| Cabins: | 1 cabin |
| Berth: | Forward: 1x 1½-pers Salon: 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Toilet / Heads: | hand pumptoilet |
| Galley: | along ships |
| Cooker: | 2-burner hob stainless steel on gas |
| Fridge / Refrigerator: | Isotherm fridge / refrigerator 12 Volt |
| Freezer: | small ice compartment |
| Worktop: | wooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | cold running water |
| Entertainment: | radio/CD player |
| Headroom (approx.): | Forward: 1,64 m toilet (approx.) 1,61 m galley (approx.) 1,60 m wheelhouse (approx.) 1,86 m salon (approx.) 1,79 m |
Navigation equipment
| Navigation equipment: | Furuno GP-31 GPS Sailtron r/t80 VHF Nasa Sting Ray depth / echosounder Eagle Ultra Classic fishfinder Autohelm ST4000 autopilot navigation lights barometer hygrometer thermometer clock search light horn horn light compass 2x window wiper |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch anchor in hawse-hole chain anchor cable |
| Bimini: | bimini top above cockpit |
| Searail / Pulpit: | searail on bulwark |
| Davits: | aluminium manual winch |
| Safety: | 2 fire extinguishers |
| Additional information: | skylight fenders |
