Luxe Motor replica 15.00 Sold
Dimensions (m):
15.00 x 3.90 x 1.10
Ref. no.:
221009
Mooring:
Near Szczecin, Poland
Construction year:
2007
Material:
steel
Vision Doeve Brokers

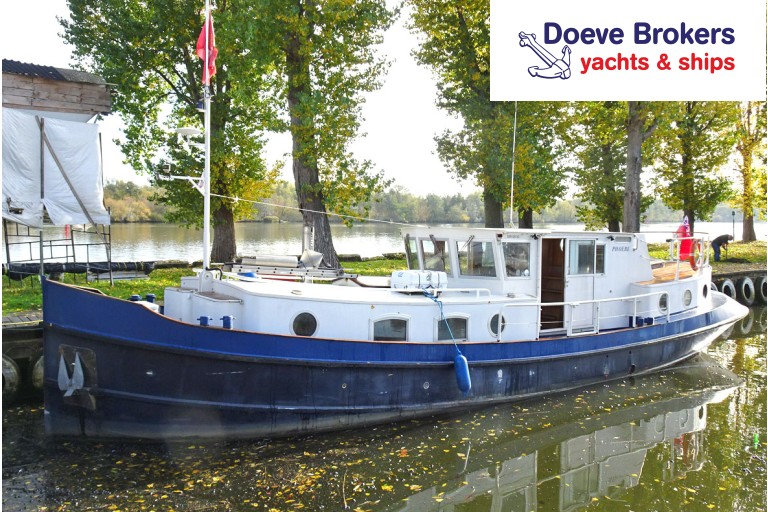

A RCD/CE category B replica of the well-known Dutch Luxe Motor that has been further developed for her certification to be able to handle waves of 4 meters at sea. This creates an unprecedentedly large cruising area that this barge can sail. A tour of Europe suddenly takes on a completely different meaning. This Dutch style motor yacht has a forepeak with watertight bulkhead, a spacious salon with open kitchen and a bathroom. The sofa in the salon is also a double bed. The wheelhouse has 2 side doors and a door to the aft deck. In the aft is the master cabin with a double bed and a bathroom. In our view an interesting cruising Live Aboard barge or motor yacht that is excellently suited for both inland waterways and the spacious coastal waters.
More information
General information
| Yard: | Shipyard Stocnia, PL-Gdansk Interior: Soft Meble, PL-Gdansk |
| Designer / Architect: | Choren Design & Consulting, PL-Gdansk Branson Boats Design, UK-Fengate, Peterborough |
| Hull shape: | hard chine |
| Hull material: | steel 18/12/6 mm |
| Deck material: | steel 5 mm teak on aftdeck |
| Superstructure material: | steel 5 mm |
| Construction method: | welded deckhouse 3 watertight bulkhead(s) rubbing strake around plastic rubbing strake bulwark closed bollard cabinets |
| Steering system: | hydraulic inside and outside steering position wheel & time dependent steering |
| Windows: | aluminium windows frames double glazing aluminium portholes double glazing & single glass aluminium outside doors |
| Displacement (approx.): | 25 metric tons |
| Ballast (approx.): | 1,5 metric tons steel trim ballast |
| Airdraft (approx.): | 2,80 m everything down |
| Owner: | British owner |
| Registration: | SSR British registered |
| Colour / Paint System: | blue hull blue bulwark white superstructure two component system some overdue maintenance |
| RCD / CE Certification: | B |
| Suitable for / as: | inland waterways coastal waters suitable as a year round live- aboard recreational vessel |
| General information: | from first owner |
| Additional information: | forepeak with chain locker motor yacht motor cruiser Hull shape is suitable for drying out. spacious aftdeck straight hull Great vessel for cruising on the coastal waters. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 114 Hp 84 kW |
| Engine brand: | Vetus Deutz |
| Revolutions: | 2500 RPM |
| Engine model: | DT44 |
| Number of cylinders: | 4 |
| Construction year engine: | 2007 |
| Running hours (approx.): | 700 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 1100 litre 1x 650 litre steel tank(s) |
| Cooling system: | intercooling wet exhaust with water separator |
| Propulsion: | 4 blade propeller water lubricated propeller shaft Python constant velocity prop shaft with thrust bearing |
| Gearbox: | ZF Hurth 45 hydraulic reduction/ratio 2,5:1 |
| Speed (approx.): | 5 knots cruising speed at 2000 RPM 7 knots top speed |
| Heating: | Morse stove on wood & Mikuni stove on diesel |
| Air conditioning: | air conditioning |
| Bow thruster: | Max Power electric bow thruster 125 KGF 24 Volt |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 2x 130 Ah starter batterie(s) 8x 120 Ah domestic batterie(s) 1x 160 Ah starter batterie(s) generator battery monitor |
| Battery charger: | 2x Power Master battery charger 24/25 1x Power Master battery charger 12/50 |
| Isolation transformer: | 3000 Watt isolation transformer |
| Earth-leakage breaker: | present |
| Genny: | Vetus GHS 6.2 SIK whisper set 6,2 kVA 230 Volt 3000 RPM Mitsubishi diesel 100 running hours (approx.) wet exhaust with water separator |
| Inverter: | Power inverter 24/3000 |
| Fresh water tank (approx.): | 1x 290 litre 1x 380 litre plastic tank(s) 1 is lek / 1 has leak / 1 ist undicht / 1 est fuit |
| Water pressure system: | electric water pump |
| Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system & through the central heating 100 litre |
| Holding tank (approx.): | 1x 250 litre gray water tank(s) 1x 840 litre black water tank(s) steel tank(s) |
| Diesel waterseparator: | diesel waterseparator |
| Engineroom: | sound insulated engineroom |
| Bilge pump: | 3x electric pump 1x electric pump 1x manual pump |
| Gas system: | yes, bottle(s) in bottle box on deck does not fully meet current safety requirements |
Accommodation
| Interior: | Marine Plywood cherry wood interior pine ceiling with laths (classic) see photographs |
| Insulation: | foamed insulation & hard foam plates |
| Cabins: | 1 cabin |
| Berth: | Aft: 1x 2-pers Sofa bed: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: shower thermostat tap washbasin with mixer tap and hot & cold running water tiled bathroom in 1 area together with the toilet Aft: bath with shower thermostat tap washbasin with mixer tap and hot & cold running water tiled bathroom in 1 area together with the toilet |
| Toilet / Heads: | 2x electric toilet |
| Galley: | along ships |
| Cooker: | 4-burner hob on gas in combination with the oven cookerhood stainless steel |
| Oven: | gas oven & grill |
| Microwave: | Matsui microwave/oven |
| Fridge / Refrigerator: | Electrolux fridge / refrigerator 230 Volt |
| Freezer: | small ice compartment |
| Worktop: | 2x granite worktop |
| Washbasin: | 1 sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | flatscreen TV stereoset Sony radio/CD player |
| Headroom (approx.): | wheelhouse (approx.) 1,99 m galley (approx.) 1,88 m corridor / walkthrough (approx.) 1,90 m bathroom / toilet in the front (approx.) 1,90 m salon (approx.) 2,02 m aftcabin (approx.) 1,93 m bathroom / toilet aft (approx.) 1,86 m |
| Additional information: | Whirlpool washing machine |
Navigation equipment
| Navigation equipment: | Navman 7200 VHF with DSC timedepending steering Electronic compass rudder indicator 3x window wiper navigation lights horn radar reflector camera system |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | Quick electric anchor winch Brittany anchor 50 m anchor chain (kettingteller / chain counter / Kettenzähler / compteur de chaîne) Stainless steel bow plate remote control specified length(s) is/are approximate |
| Searail / Pulpit: | guardrail around aftdeck searail on bulwark guardrail around side-walks |
| Safety: | Sea-Fire FM-200 automatic fire extinguishing system in engine room fire extinguishers 6 life jackets 6-pers liferaft with certificate 2 life buoys fire blanket |
| Additional information: | 2x skylight deck lights sundeck steering chair |
