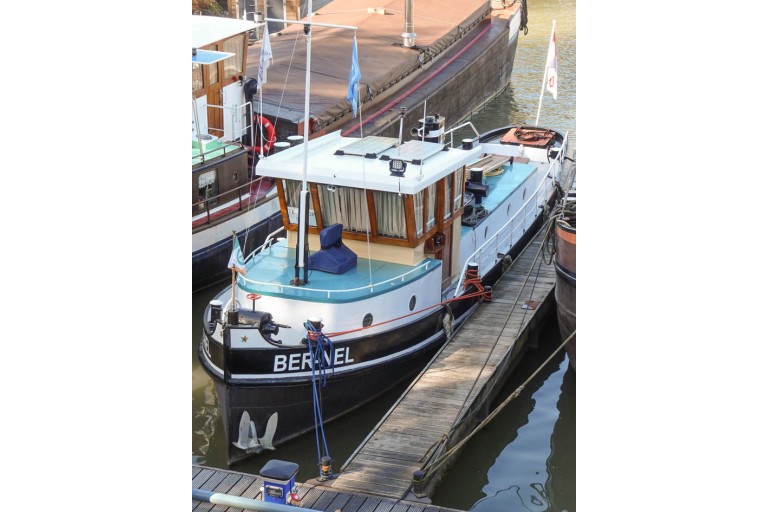

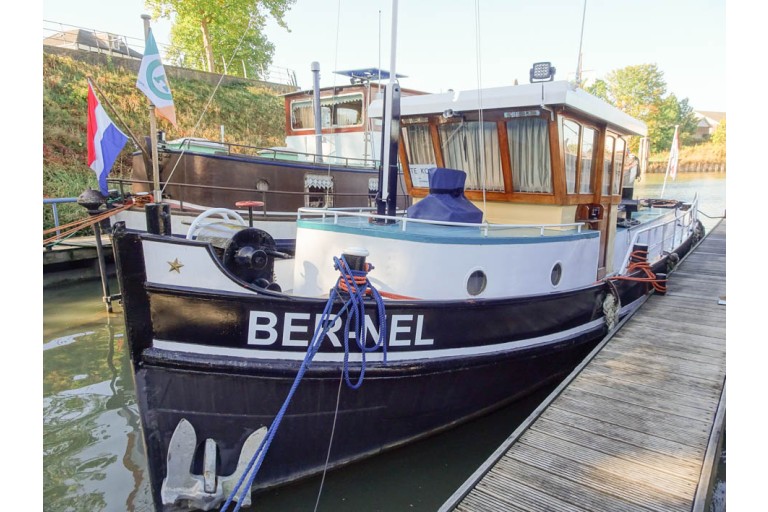

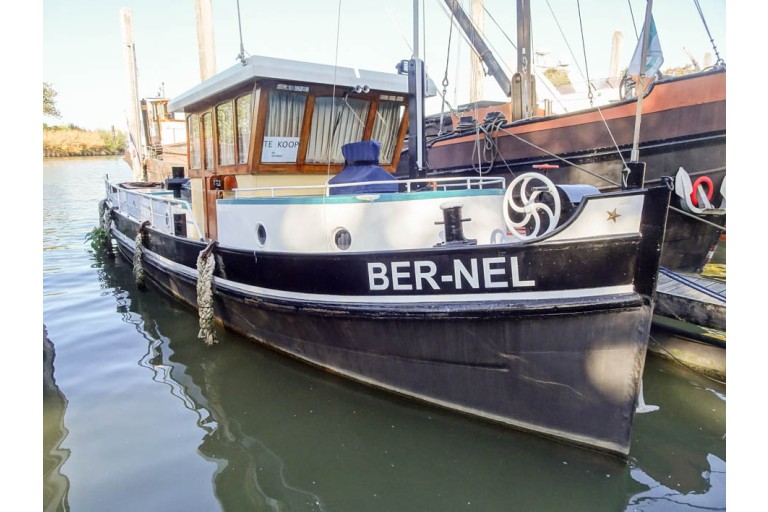

Tugboat 14.85 Sold
Dimensions (m):
14.85 x 3.20 x 1.60
Ref. no.:
221008
Mooring:
Near 's-Hertogenbosch, Netherlands
Construction year:
1903
Material:
steel
Vision Doeve Brokers

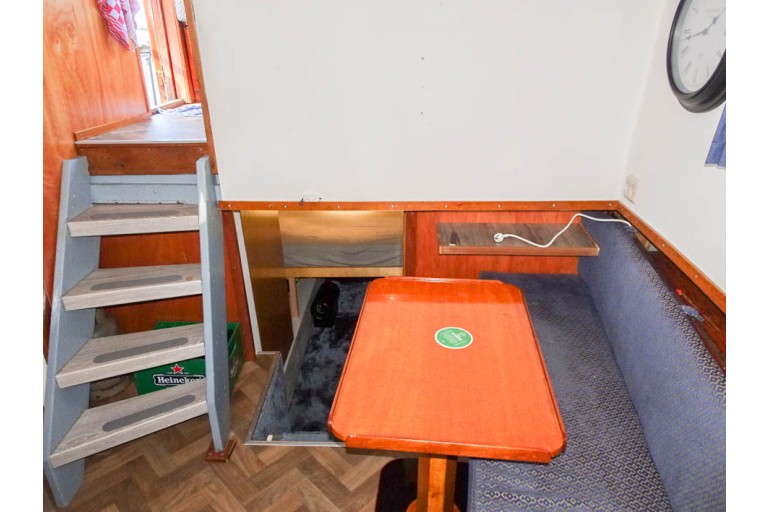

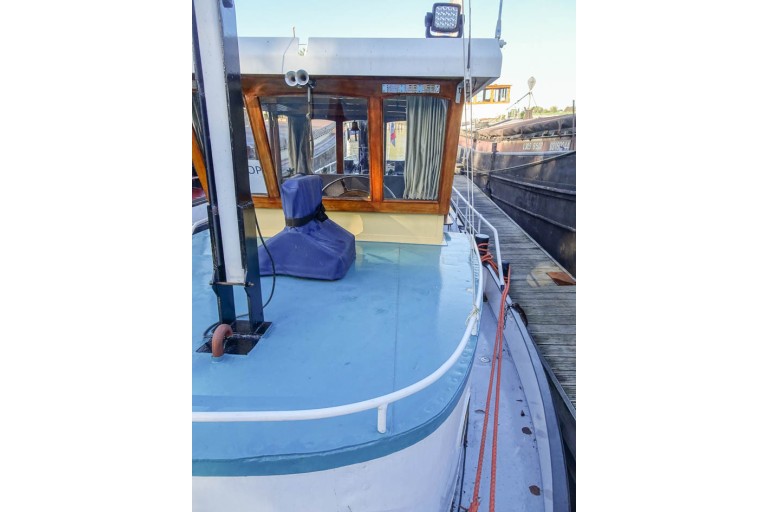

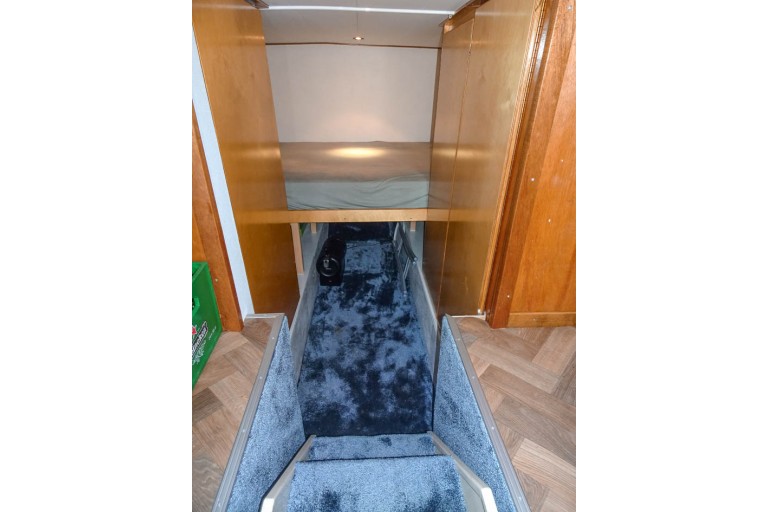

Former inland tug boat that has been converted into a recreational vessel. The seller has recently invested in a diesel generator, toilet, the interior and painting. All living areas are accessible from the inside. In the fore cabin are the galley and the salon with a headroom of 1.87 m. Under the wheelhouse, is the toilet and a double bed. A 160 hp, V8 cylinder diesel engine provides the propulsion. The tug boat is well maintained and ready to enjoy immediately. It is also an interesting boat for tugboat events.
More information
General information
Yard:
unknown
Hull shape:
round bottom
Hull material:
iron/steel
Deck material:
steel
Superstructure material:
steel
Construction method:
riveted
new steel is welded
forward deckhouse
bulwark
rubbing strake around
closed bollard cabinets
Sturdy, heavily constructed
new steel is welded
forward deckhouse
bulwark
rubbing strake around
closed bollard cabinets
Sturdy, heavily constructed

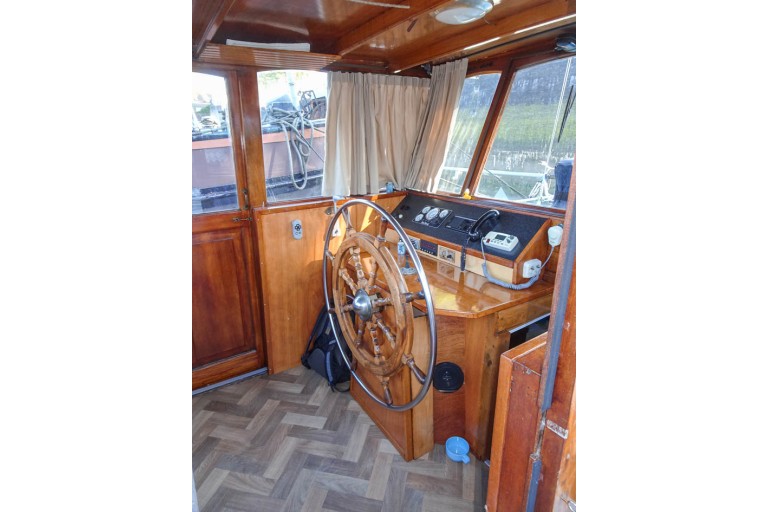

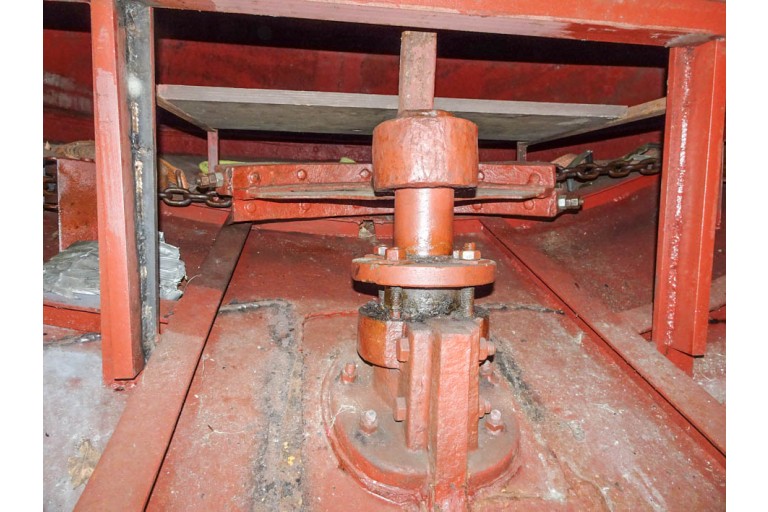

Steering system:
mechanical
wheel
wheel

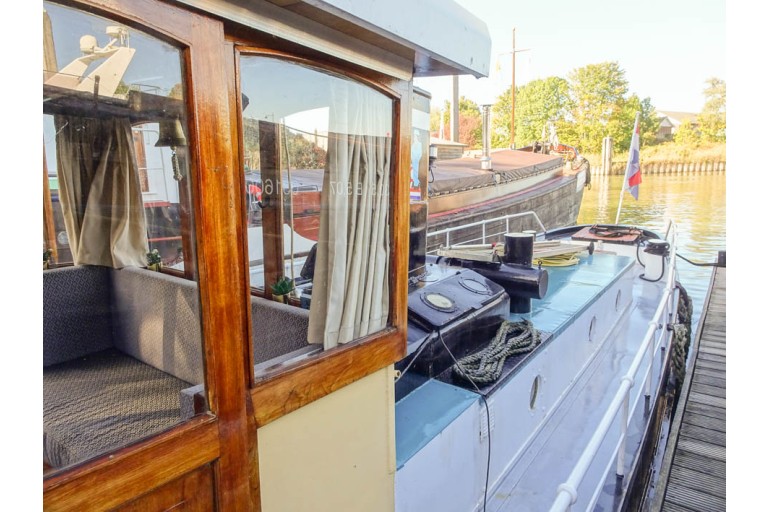

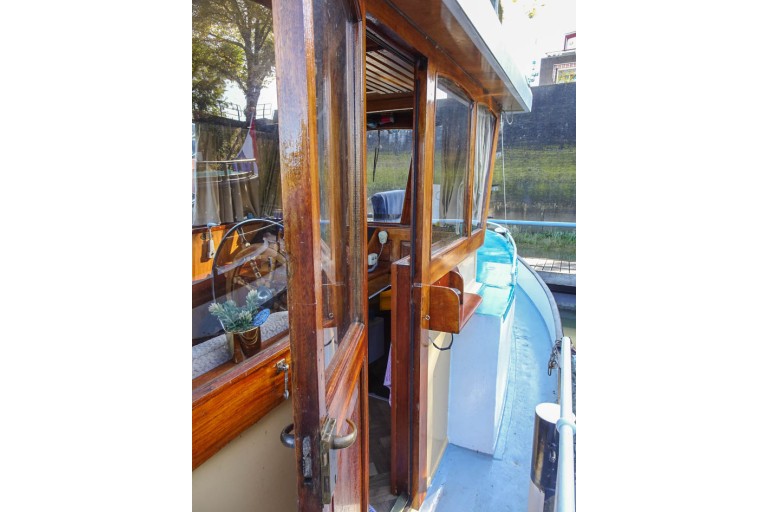

Windows:
hardwood window frames
hardwood outside doors
bronze portholes
hardwood outside doors
bronze portholes
Airdraft (approx.):
2,95 m everything down
Owner:
Dutch owner
Colour / Paint System:
black hull
white striping
white superstructure
last underwatership treatment
well maintained
white striping
white superstructure
last underwatership treatment
well maintained
Certificates:
no certificate requirement
Suitable for / as:
recreational vessel
inland waterways
inland waterways
Additional information:
tug

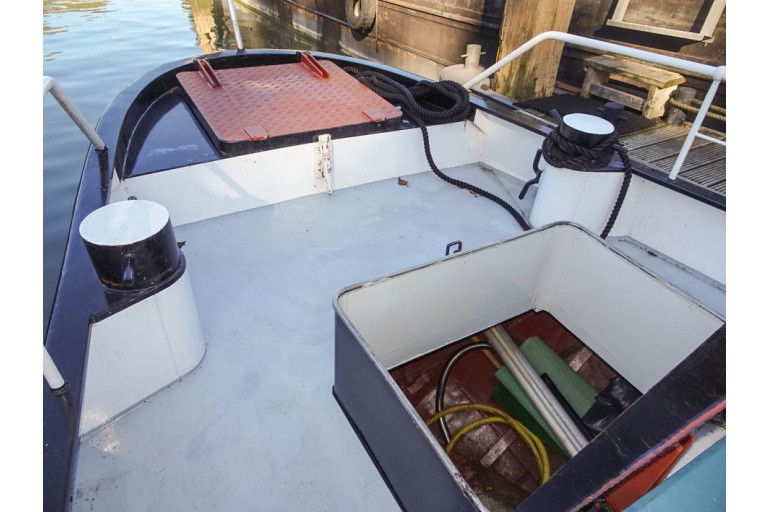

forepeak with chain locker
tug bitts
classic lines
Great vessel for cruising on the European canals and rivers.
forepeak with chain locker
tug bitts
classic lines
Great vessel for cruising on the European canals and rivers.
Technical information

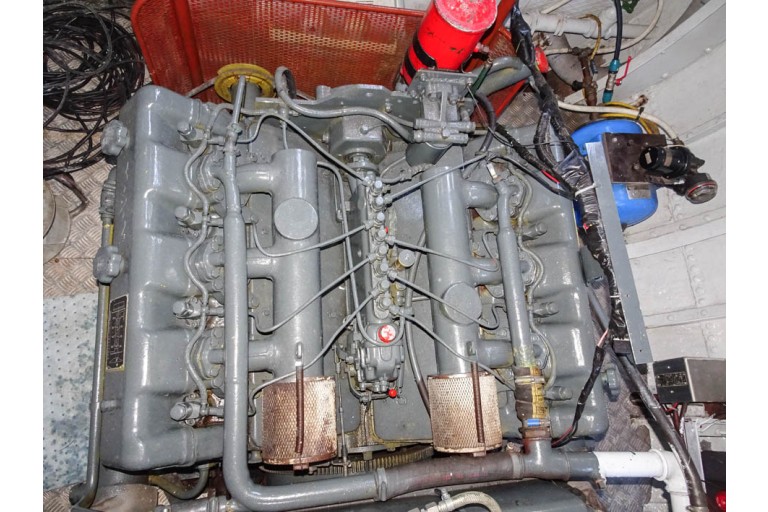

Enginepower:
160 Hp
117 kW
117 kW
Engine brand:
MAN
Revolutions:
2000 RPM
Engine model:
D1548M
Number of cylinders:
V8
Construction year engine:
1962
Fuel:
diesel
Fuel tank (approx.):
1x 700 litre
steel tank(s)
steel tank(s)
Cooling system:
intercooling
dry exhaust
dry exhaust
Propulsion:
3 blade propeller
greased lubrication of propeller shaft
greased lubrication of propeller shaft
Gearbox:
Renk SWV-14 mechanical
reduction/ratio 3:1
reduction/ratio 3:1
Heating:
hot air heating
on diesel
on diesel
Bow thruster:
Vetus electric bow thruster
12 Volt
12 Hp
12 Volt
12 Hp
Electricity system:
12 / 230 Volt
230 Volt shore power connection
Victron Phoenix Multi Control mainmaster control
230 Volt shore power connection
Victron Phoenix Multi Control mainmaster control
Batteries:
2x 50 Ah starter batterie(s) Optima Red Top
2x 230 Ah domestic batterie(s)
1x 155 Ah bow thruster batterie(s)
2x 230 Ah domestic batterie(s)
1x 155 Ah bow thruster batterie(s)
Battery charger:
Victron Phoenix combi inverter/charger 12/1600/70
Victron Centaur battery charger 12/40
Mobitronic 912-012 battery charger 12/12
Victron Centaur battery charger 12/40
Mobitronic 912-012 battery charger 12/12

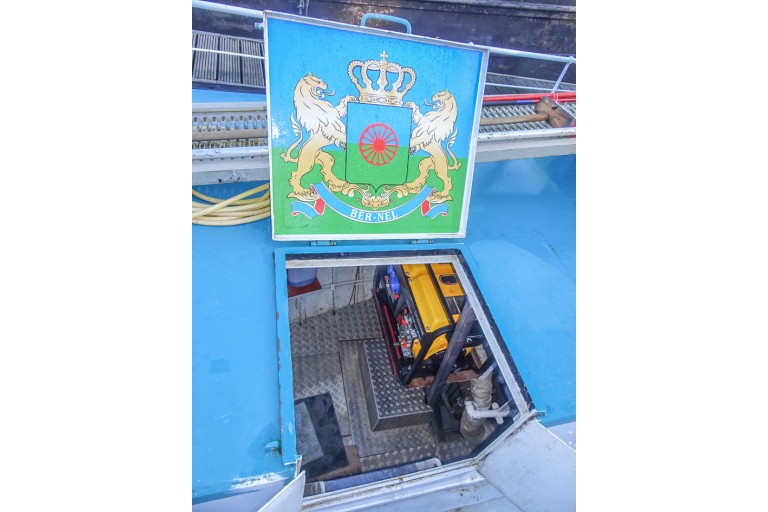

Genny:

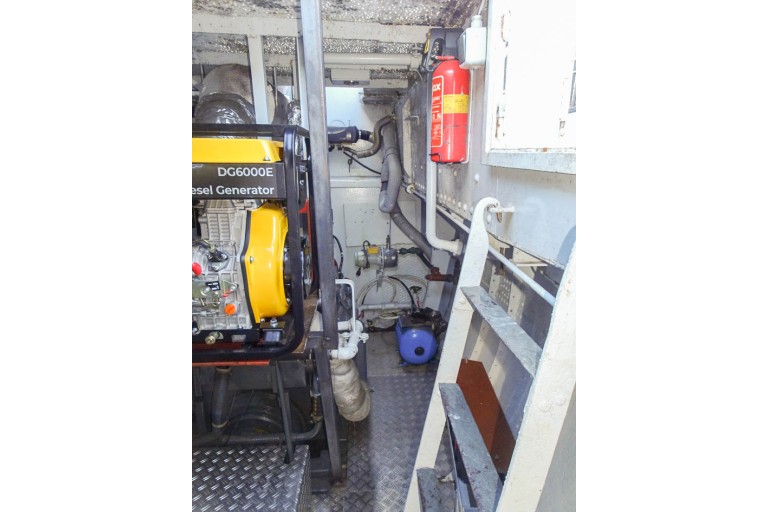

Valkenpower DG6000E diesel genny (2021)
6 kVA
230 Volt
3000 RPM
6 kVA
230 Volt
3000 RPM
Inverter:
Victron Phoenix combi inverter/charger 12/1600/70
Solar panels:
2x solar panel
Fresh water tank (approx.):
2x 250 litre
waterbag
waterbag
Water pressure system:
electric water pump
Diesel waterseparator:
present

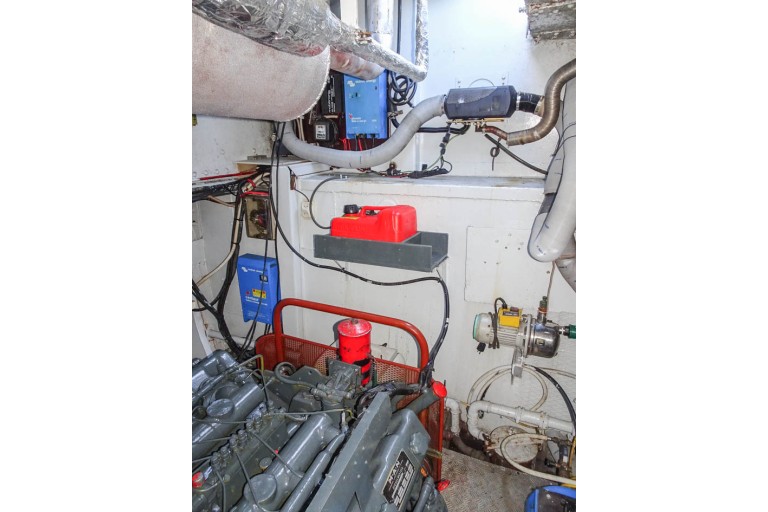

Engineroom:
see photographs
Bilge pump:
present
12 Volt
12 Volt
Deck wash pump:
present
230 Volt
230 Volt
Gas system:
present
not according to the present requirements
not according to the present requirements
Additional information:
Zilmet air compressor
Accommodation

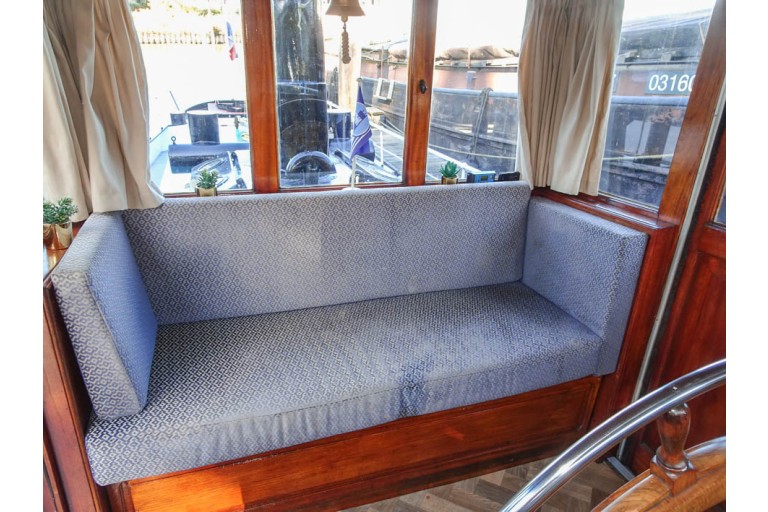

Interior:
various materials have been used
see photographs
see photographs
Insulation:
partly
Rockwool
Rockwool
Cabins:
1 cabin
Berth:

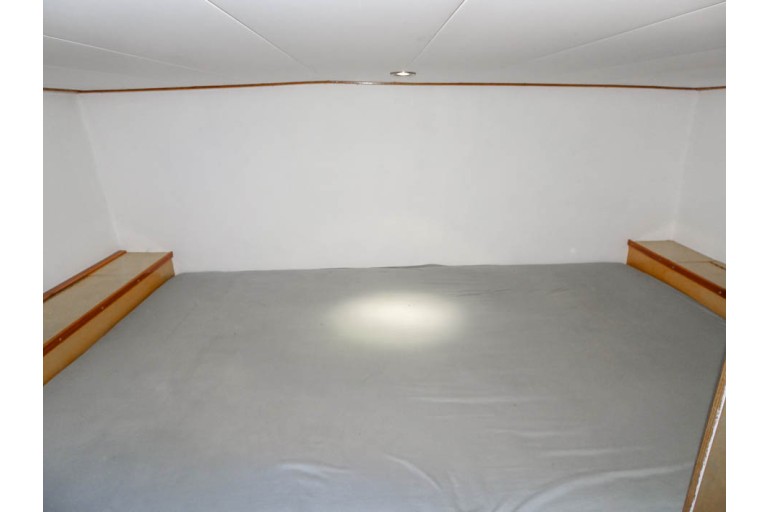

1x 2-pers

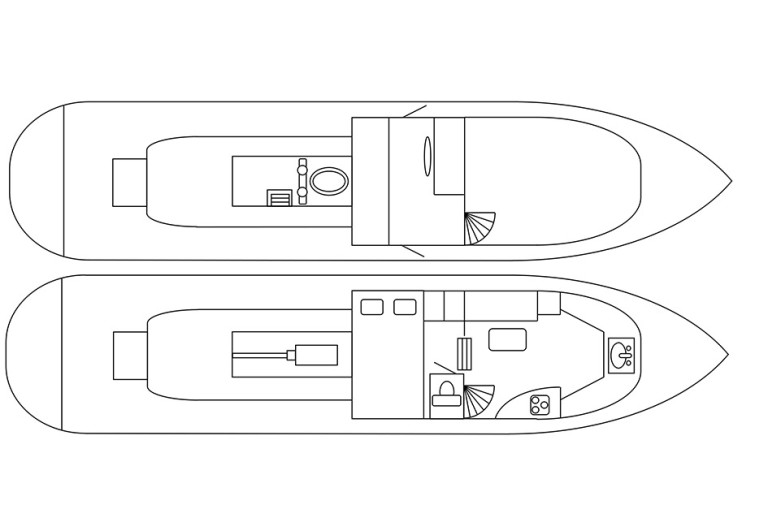

Lay-out plan (not to scale):
see attachment

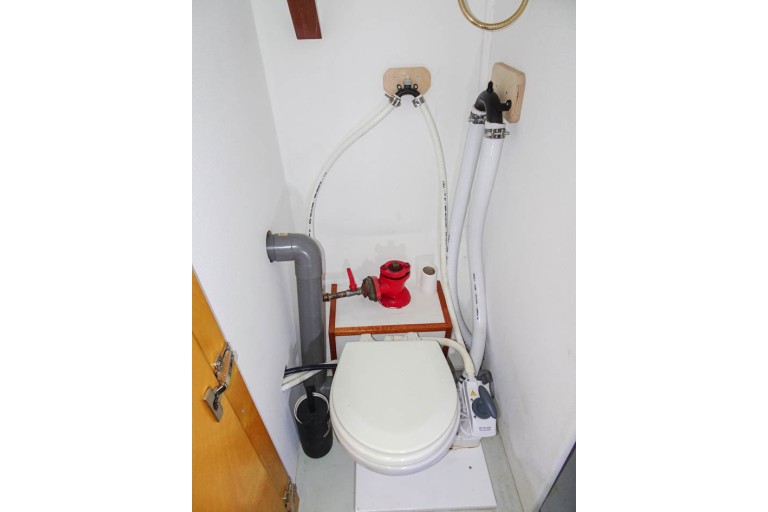

Toilet / Heads:
hand pumptoilet (2022)

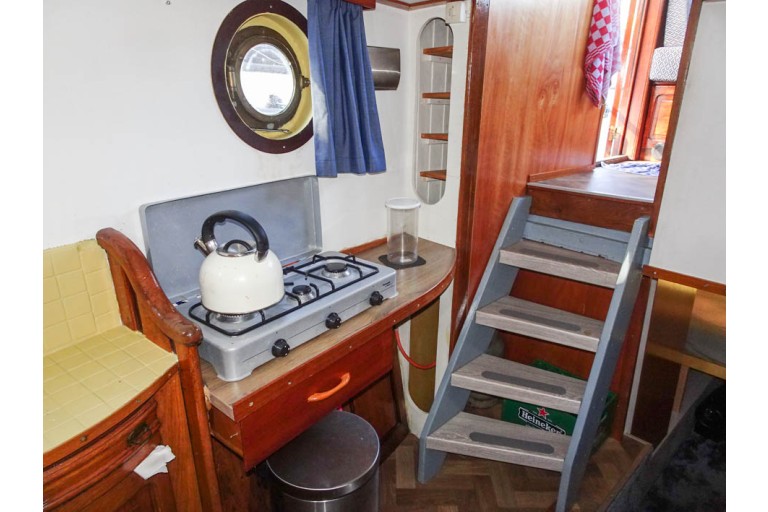

Galley:

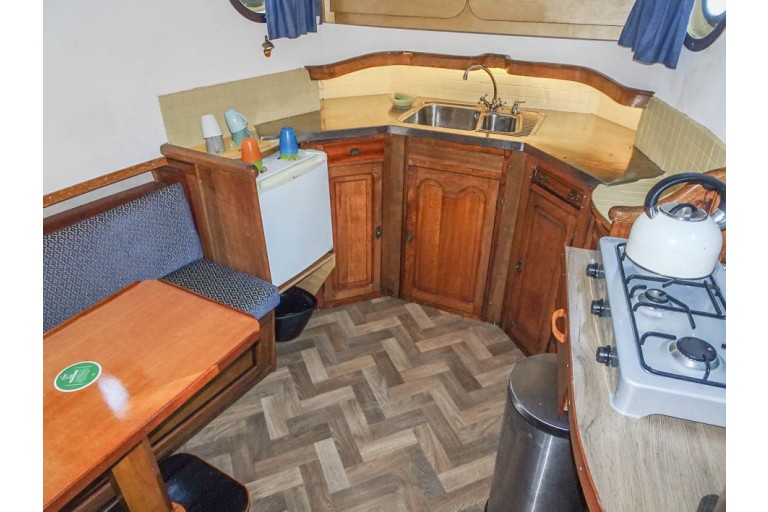

L-shape galley
Cooker:
3-burner hob
on gas
on gas
Fridge / Refrigerator:
LG fridge / refrigerator
230 Volt
230 Volt
Freezer:
small ice compartment
Worktop:
stainless steel worktop
Washbasin:
stainless steel sink
Water tap:
cold running water
Entertainment:
Kenwood radio/CD player
Headroom (approx.):
galley (approx.) 1,87 m
cabin (approx) 1,65 m
toilet (approx.) 1,37 m

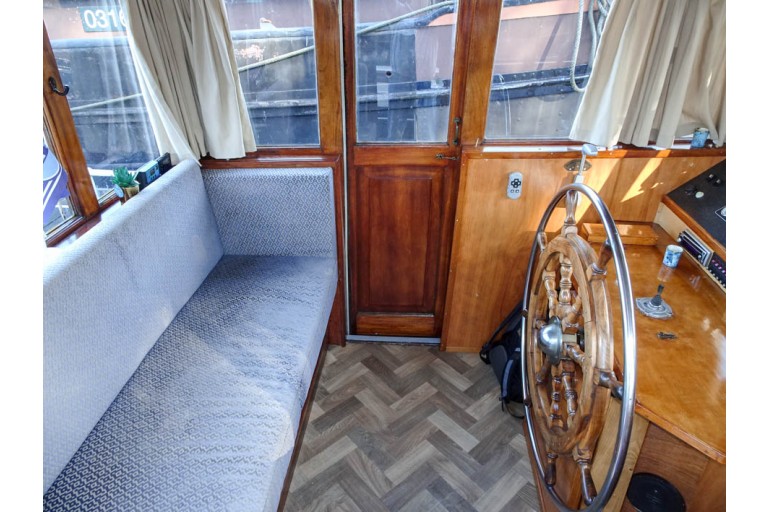

wheelhouse (approx.) 1,80 m
cabin (approx) 1,65 m
toilet (approx.) 1,37 m
wheelhouse (approx.) 1,80 m
Rigging and sails
Mast:
lantern mast
steel
steel
Lowerable:
yes
manual
manual
Equipment

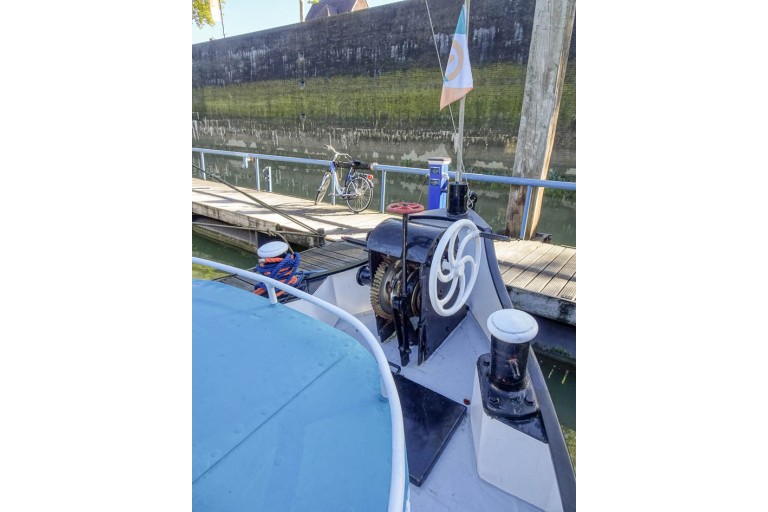

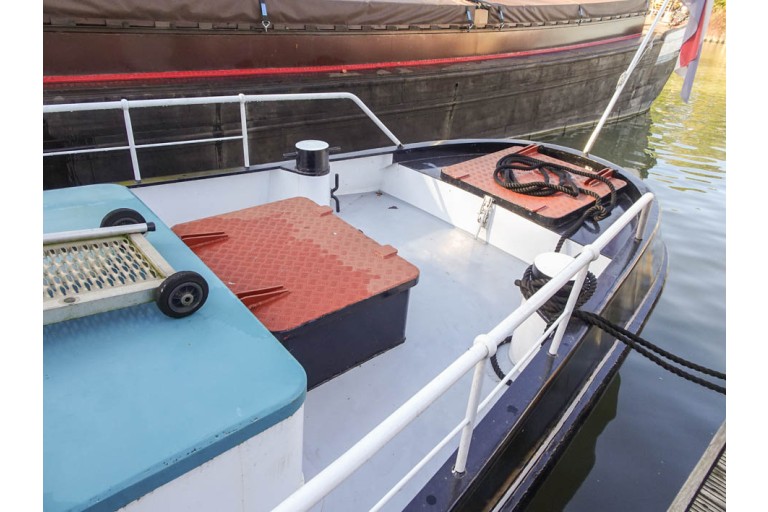

Anchor equipment:
manual anchor winch
2x warping drum
Klipp anchor
anchor chain
in hawse-hole
2x warping drum
Klipp anchor
anchor chain
in hawse-hole
Searail / Pulpit:
searail on bulwark
grab rail
grab rail
Safety:
2x fire extinguisher
Additional information:
skylight
cover over skylight
aluminium gangway
cover over skylight
aluminium gangway
