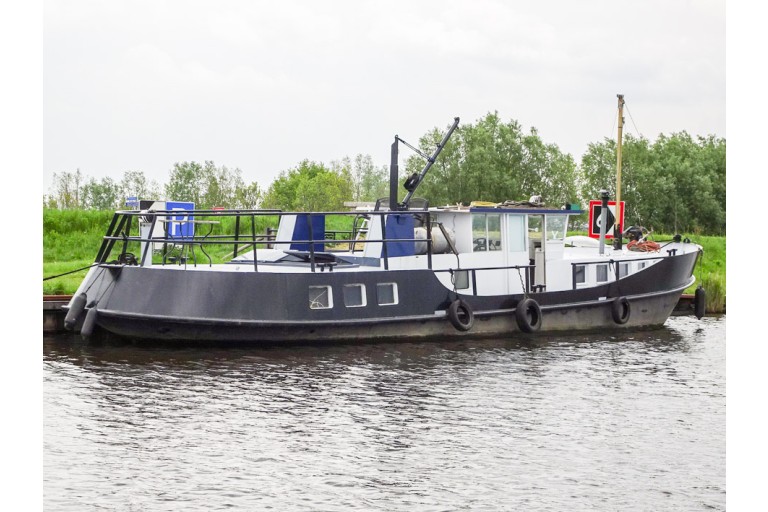

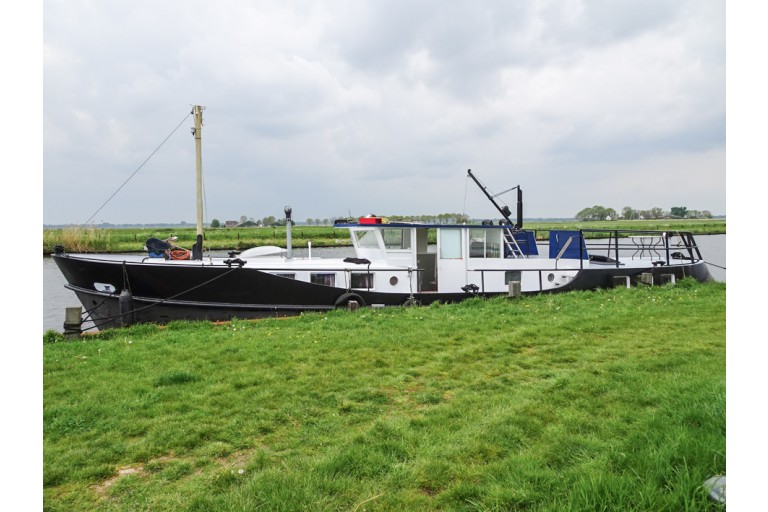

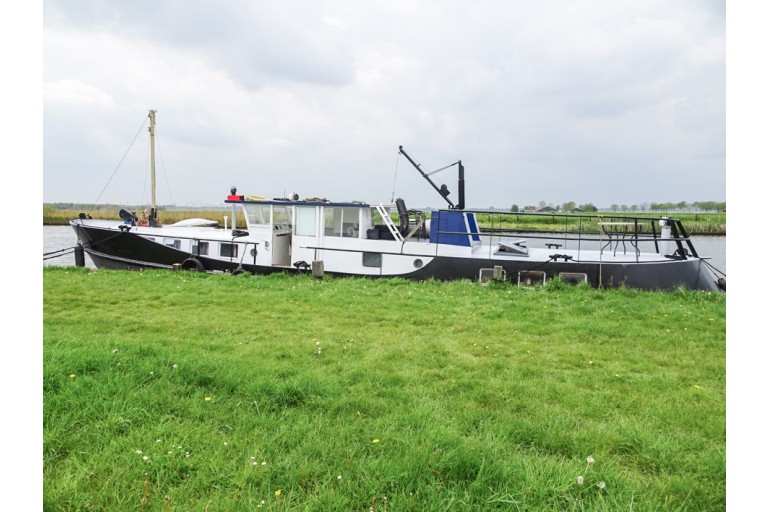

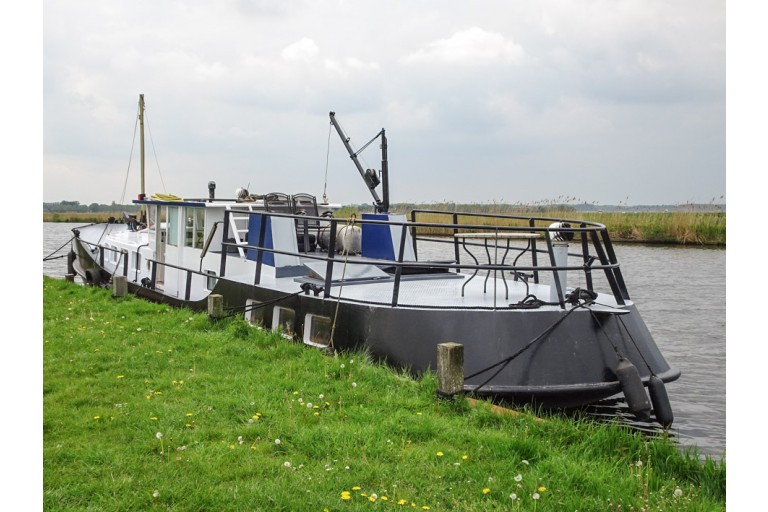

Dutch Barge 17.70 Sold
Dimensions (m):
17.70 x 4.00 x 1.30
Ref. no.:
221010
Mooring:
Near Almere, Netherlands
Construction year:
1949
Material:
steel
Vision Doeve Brokers

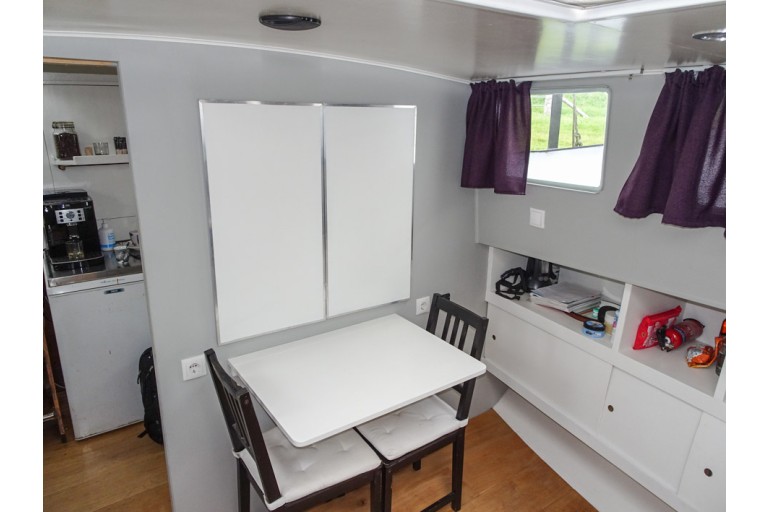

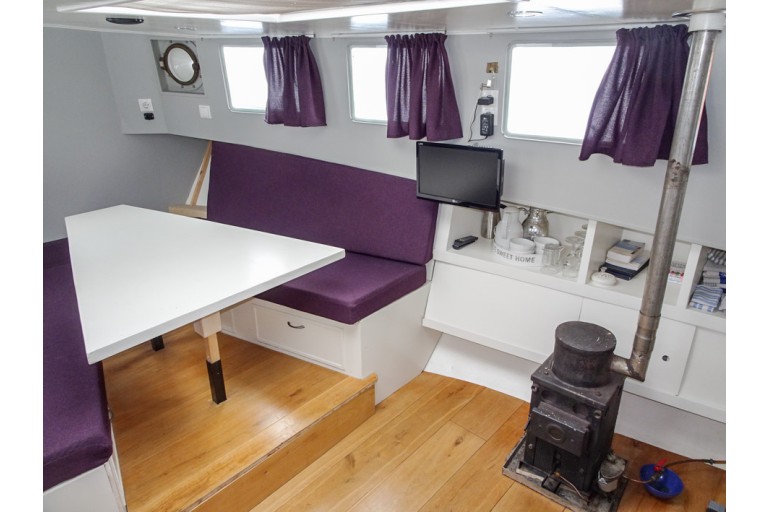

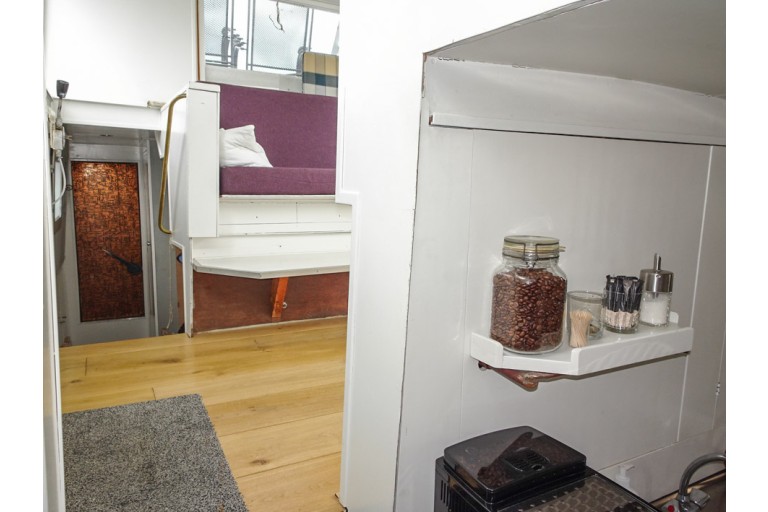

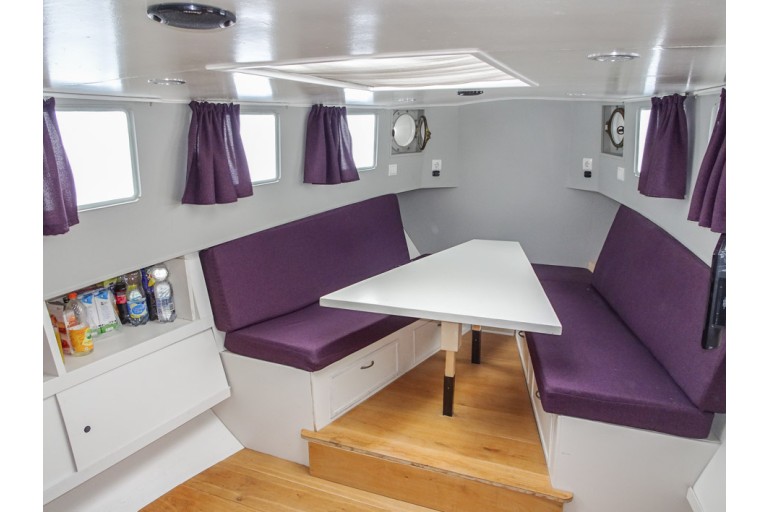

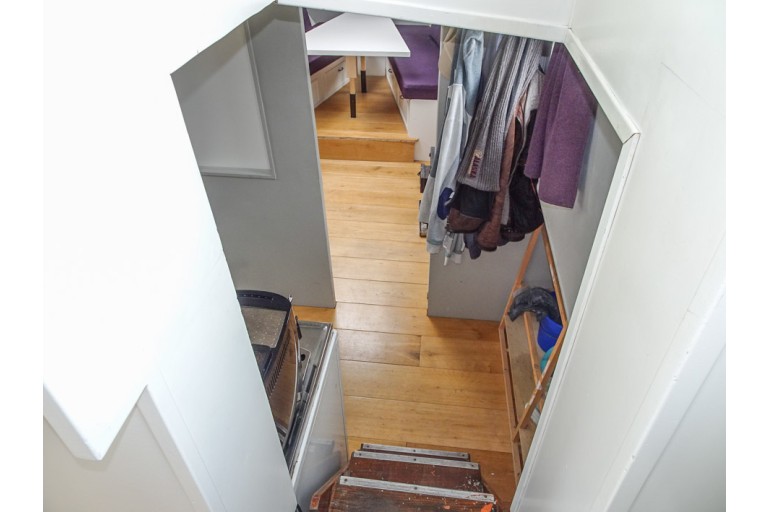

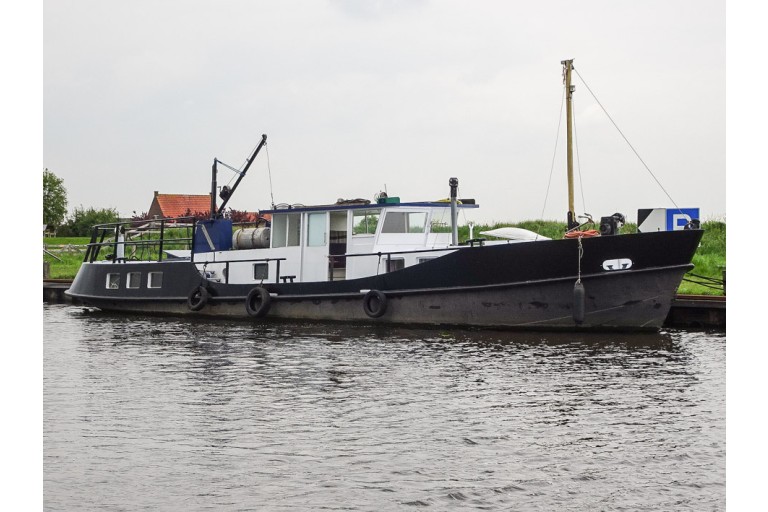

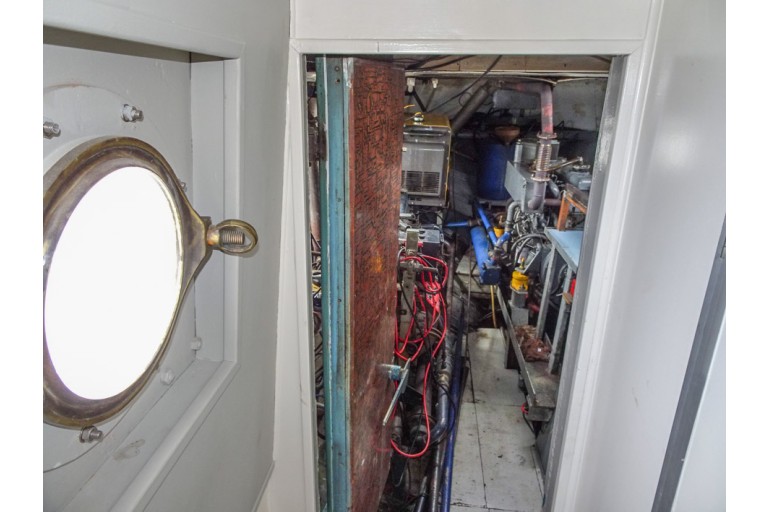

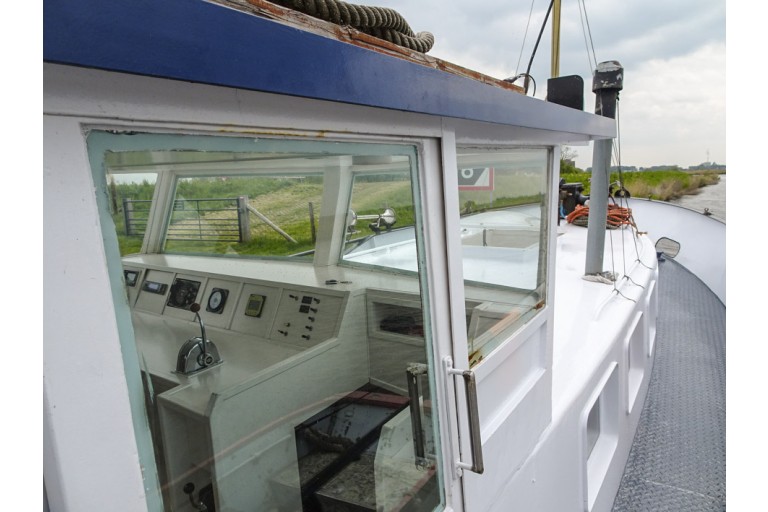

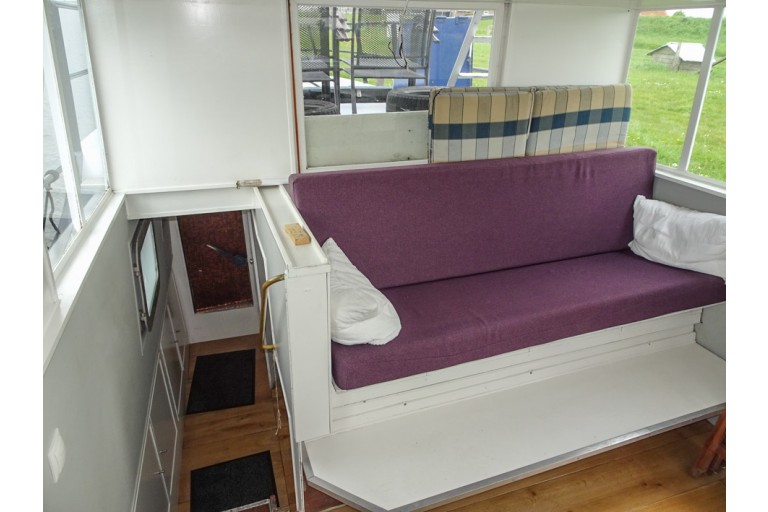

Former motor tugboat that has been converted into a cruising Live Aboard vessel. It is a sturdy and robust Dutch Barge. In the past she has also been used in coastal waters. The current owner has largely rebuilt the interior. The layout is simple with in the salon in the bow an U-seat that also functions as a bed, wall with door, galley, stairs to the wheelhouse with 2 sliding doors and a sofa, stairs to the rear where you easily can create a cabin with a fixed sleeping place, bathroom and door to the engine room. It is a Dutch Barge that, in our view, can be lived on by someone with a small budget or can be used as a recreational ship. This person must be a handy person.
More information
General information
Yard:
Shipyard Bernard, NL- Nieuwendam (Amsterdam)
Hull shape:
round bottom
Hull material:
steel
Deck material:
steel
Superstructure material:
steel
Construction method:
riveted and welded hull
welded superstructure
rubbing strake around
bulwark
wide side decks (gunnels)
Sturdy, heavily constructed
1 watertight bulkhead(s) with watertight door(s)
1 watertight bulkhead(s)
welded superstructure
rubbing strake around
bulwark
wide side decks (gunnels)
Sturdy, heavily constructed
1 watertight bulkhead(s) with watertight door(s)
1 watertight bulkhead(s)
Self made:
interior
Keel:
bilge keels

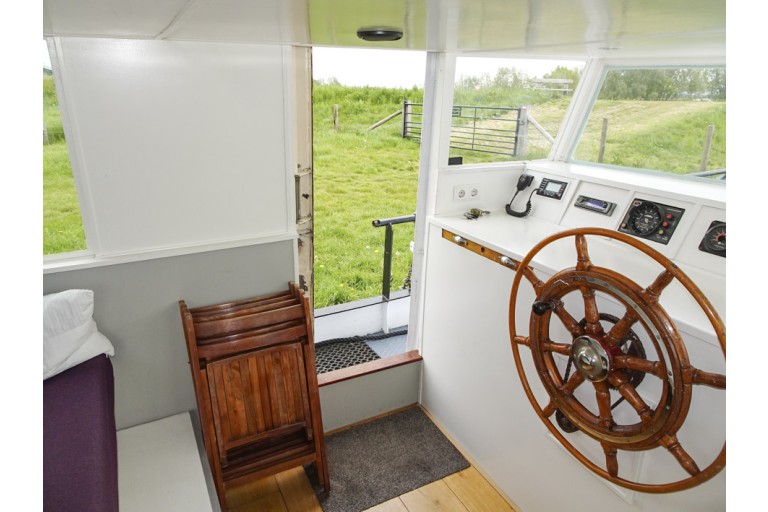

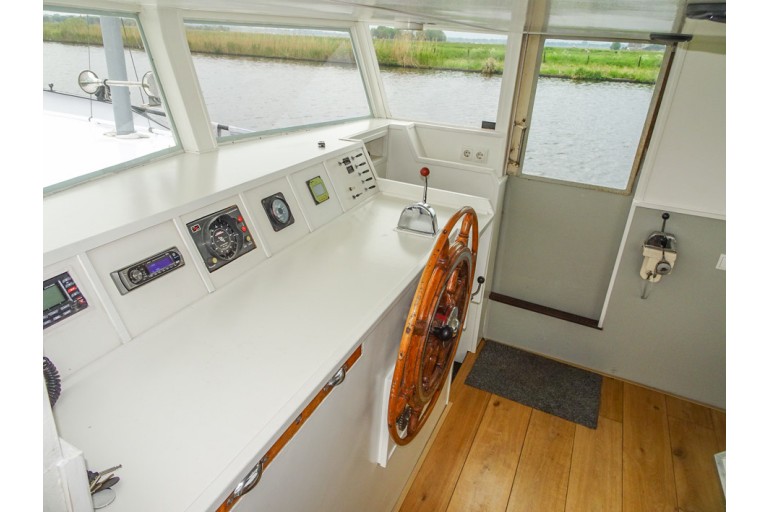

Steering system:
hydraulic
wheel
wheel
Windows:
single glass
steel outside doors
steel outside doors
Displacement (approx.):
33 metric tons
Ballast (approx.):
trim ballast
concrete &
concrete tiles
concrete &
concrete tiles
Airdraft (approx.):
2,70 m everything down
Owner:
Dutch owner
Colour / Paint System:
black hull
black bulwark
white superstructure
last underwatership treatment 08-2019
some overdue maintenance
black bulwark
white superstructure
last underwatership treatment 08-2019
some overdue maintenance
Certificates:
no certificate requirement
Suitable for / as:
inland waterways
coastal waters
recreational vessel
suitable as a year round live- aboard
coastal waters
recreational vessel
suitable as a year round live- aboard
Additional information:
Hull shape is suitable for drying out.

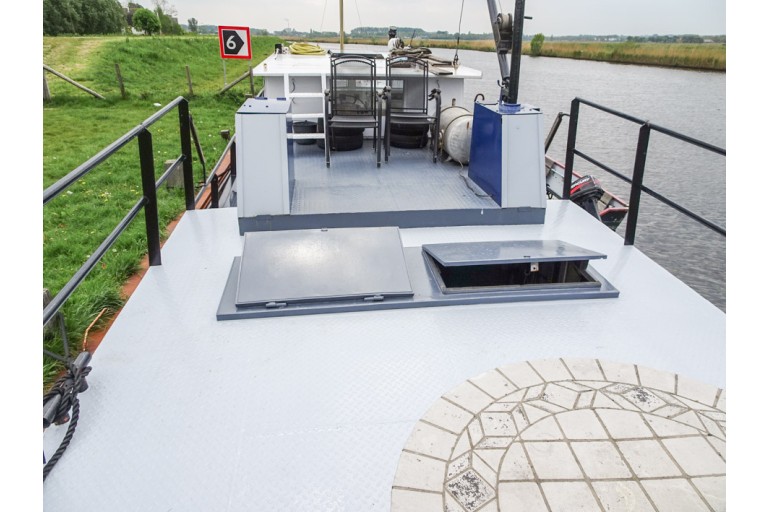

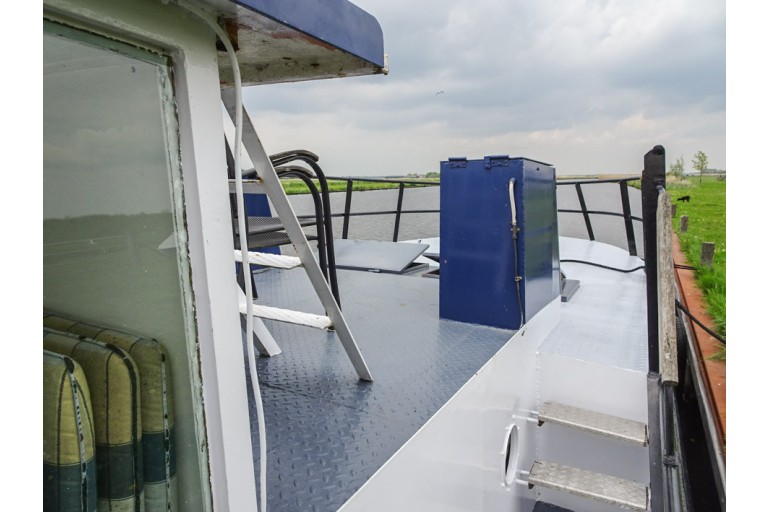

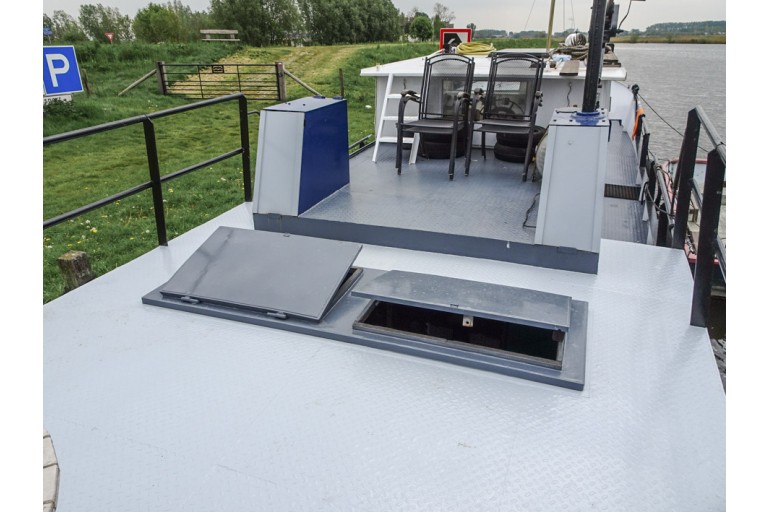

spacious aftdeck
Great vessel for cruising on the French canals and rivers.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the coastal waters.
spacious aftdeck
Great vessel for cruising on the French canals and rivers.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the coastal waters.

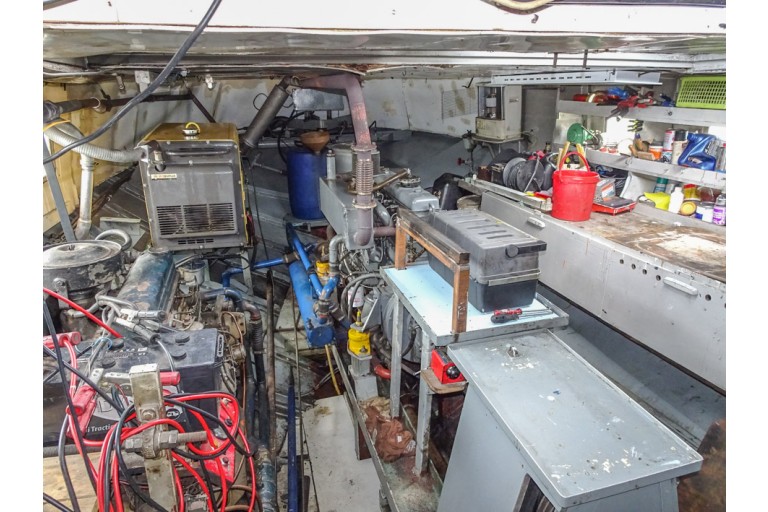

Technical information
Enginepower:
105 Hp
77 kW
77 kW

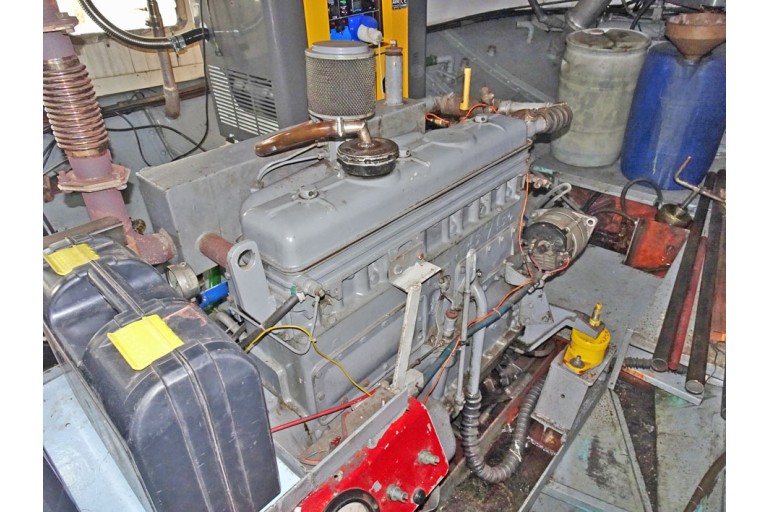

Engine brand:
DAF
Revolutions:
2400 RPM
Engine model:
DD575
Number of cylinders:
6
Construction year engine:
1969
Running hours (approx.):
unknown
Fuel:
diesel
Fuel tank (approx.):
1x 550 litre
1x 150 litre
1x 75 litre
steel tank(s)
1x 150 litre
1x 75 litre
steel tank(s)
Cooling system:
intercooling
dry exhaust
dry exhaust
Propulsion:
3 blade propeller
greased lubrication of propeller shaft
V-drive
greased lubrication of propeller shaft
V-drive
Gearbox:
Paragon hydraulic
05-2019 reconditioned
05-2019 reconditioned
Speed (approx.):
11,5 km/hour cruising speed at 1800 RPM
13,5 km/hour top speed
13,5 km/hour top speed

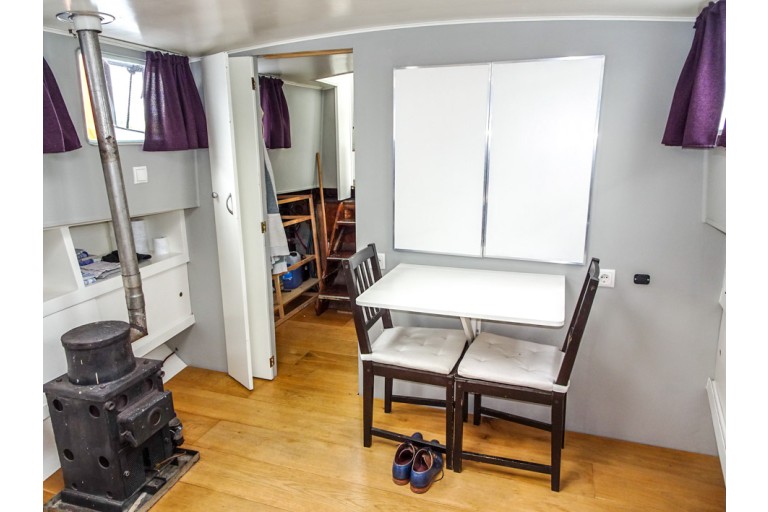

Heating:
stove heater
on diesel
on diesel
Electricity system:
12 / 24 / 230 Volt
230 Volt shore power connection
230 Volt shore power connection
Batteries:
2x 100 Ah starter batterie(s)
2x 100 Ah domestic batterie(s)
1 starter batterie(s) generator
2x 100 Ah domestic batterie(s)
1 starter batterie(s) generator
Battery charger:
present

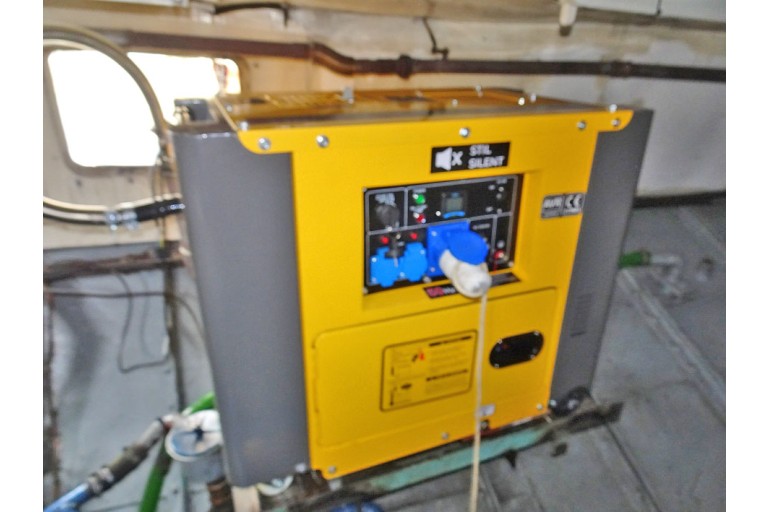

Genny:
ValkenPower DG6500SE whisper set (2021)
6 kVA 230 Volt
running hours (approx.) 75
6 kVA 230 Volt
running hours (approx.) 75
Inverter:
HQ inverter 24/1000
Solar panels:
1 solar panel
Victron BlueSolar MPPT 75/15 charge controller
Victron BlueSolar MPPT 75/15 charge controller
Fresh water tank (approx.):
1x 500 litre
steel tank(s)
steel tank(s)
Water pressure system:
hydrophore pump
Hot water system:
boiler/water calorifier (230 Volt)
1x 80 litre
1x 10 litre
1x 80 litre
1x 10 litre
Holding tank (approx.):
not present, enough space to build-in
Bilge pump:
submersible pump
Deck wash pump:
present
electric pump
electric pump

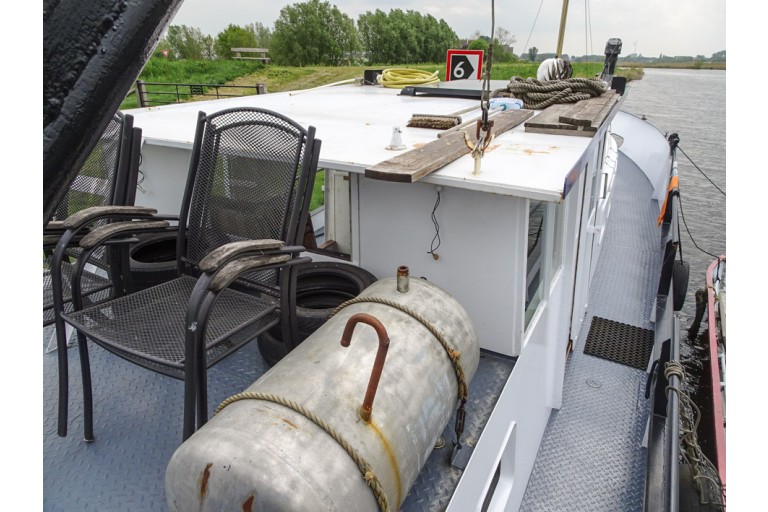

Gas system:
yes, bottle(s) in bottle box on deck
Additional information:
Ford auxiliary diesel engine (60 pk / Hp / PS / cv)
Thuiskomer
To return to the harbor
Um zurückzukehren zum Hafen
Pour ramener au port
LED lightning
Thuiskomer
To return to the harbor
Um zurückzukehren zum Hafen
Pour ramener au port
LED lightning
Accommodation
Interior:
various materials have been used
simple interior
oak floor(s)
see photographs
simple interior
oak floor(s)
see photographs
Insulation:
glass wool
polystyrene
polystyrene
Berth:
Forward: 1x 2-pers

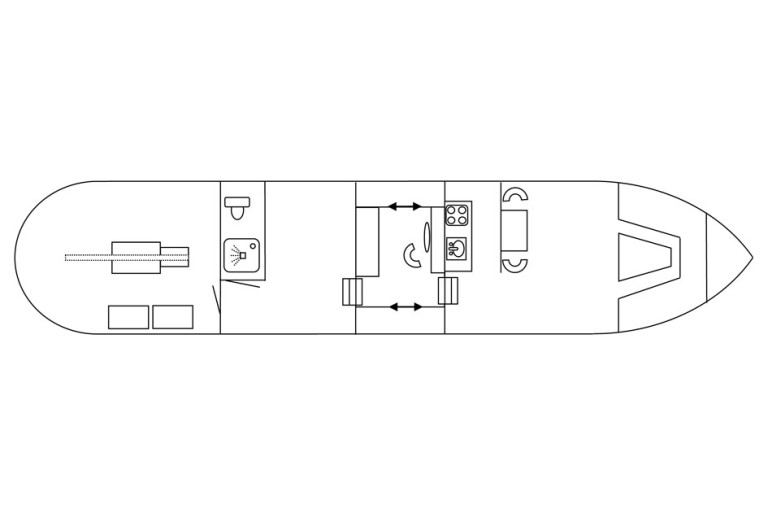

Lay-out plan (not to scale):
see attachment

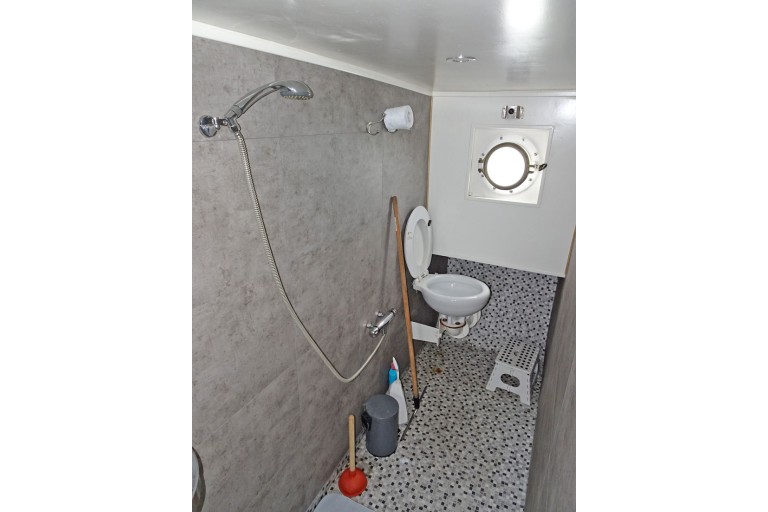

Bathroom:
shower
thermostat tap
walls of waterproof plate material
in 1 area together with the toilet
thermostat tap
walls of waterproof plate material
in 1 area together with the toilet
Toilet / Heads:
above water toilet

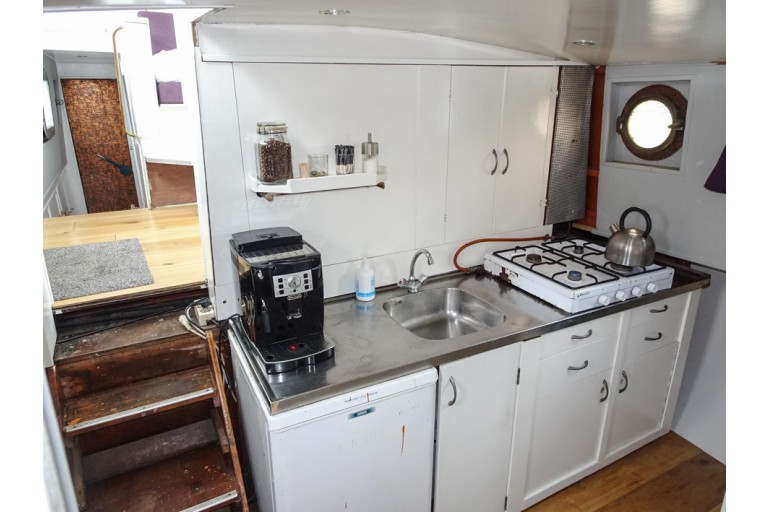

Galley:
sideways
Cooker:
4-burner hob
on gas
on gas
Fridge / Refrigerator:
present
230 Volt
230 Volt
Worktop:
stainless steel worktop
Washbasin:
stainless steel sink
Water tap:
hot & cold running water
Entertainment:
flatscreen TV
Headroom (approx.):
forward (approx.) 1,87 m
salon (approx.) 1,88 m
wheelhouse (approx.) 1,80 m
aft (approx.) 1,87 m
bathroom (approx.) 1,80 m / 1,88 m
salon (approx.) 1,88 m
wheelhouse (approx.) 1,80 m
aft (approx.) 1,87 m
bathroom (approx.) 1,80 m / 1,88 m
Rigging and sails

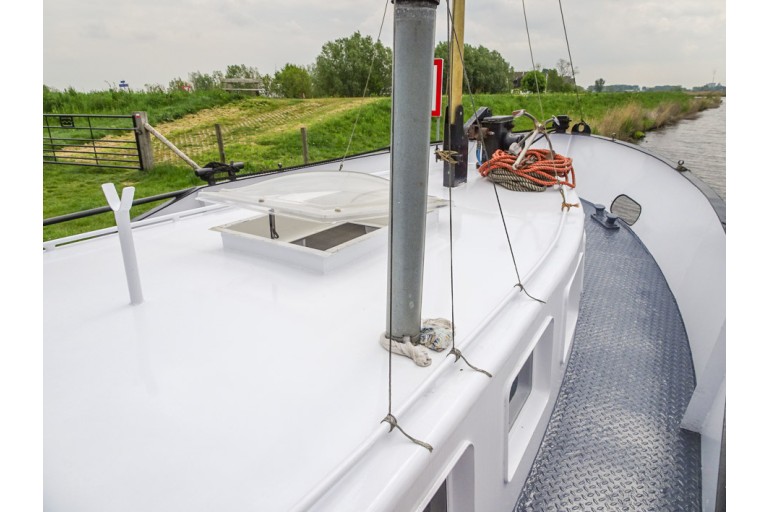

Mast:
lantern mast
aluminium
aluminium
Lowerable:
yes
manual
manual
Equipment

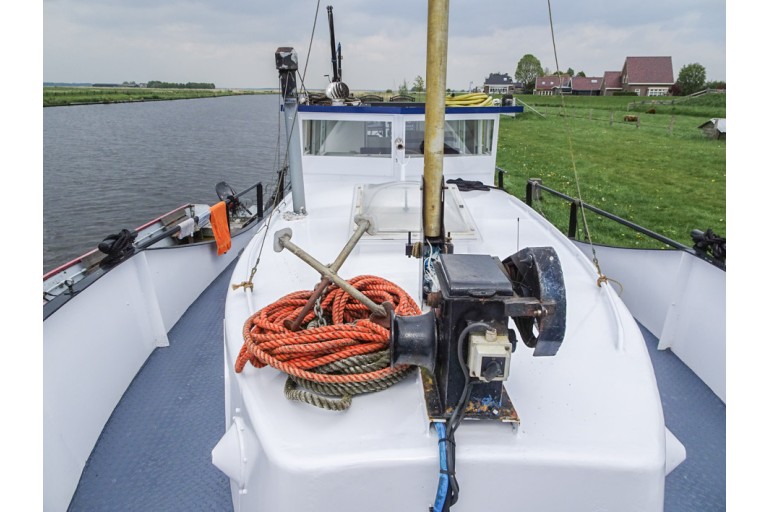

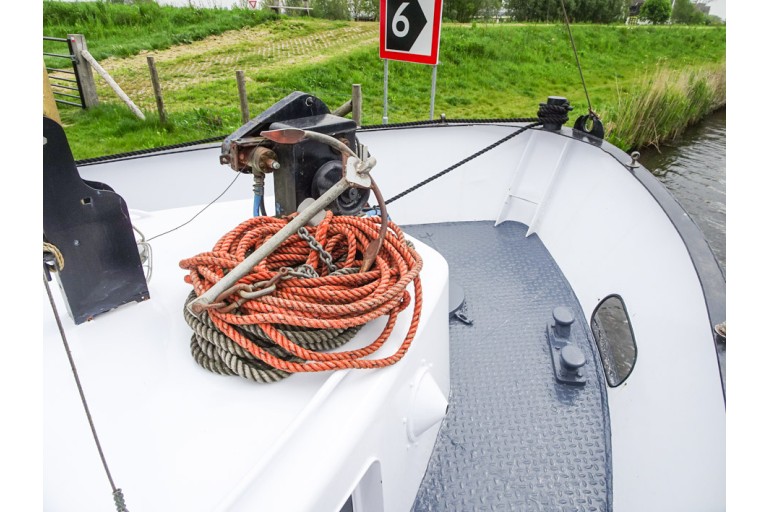

Anchor equipment:
grapnel anchor
chain &
anchor line
chain &
anchor line

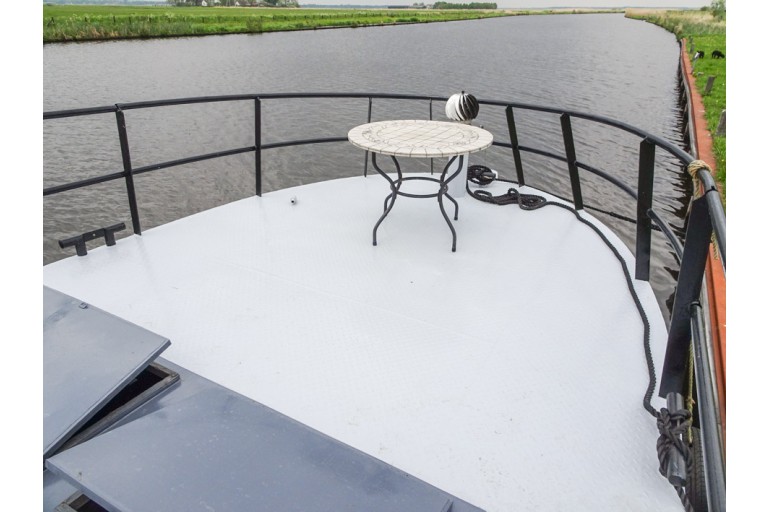

Searail / Pulpit:

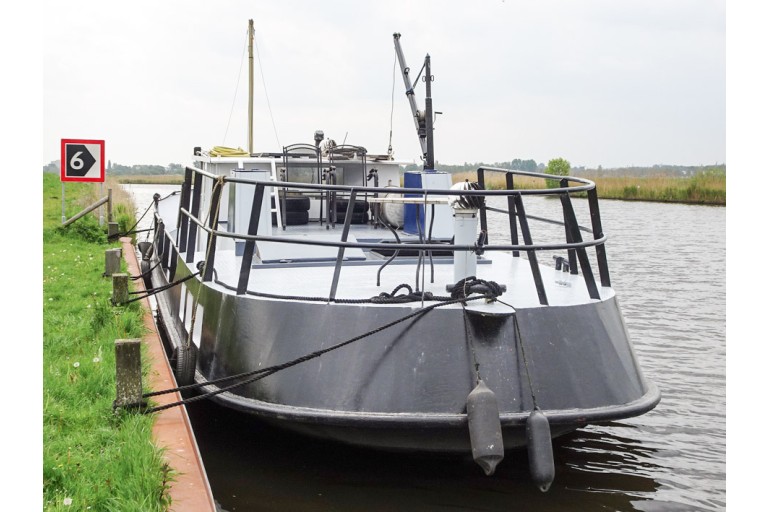

guardrail around aftdeck
searail on bulwark
searail on bulwark

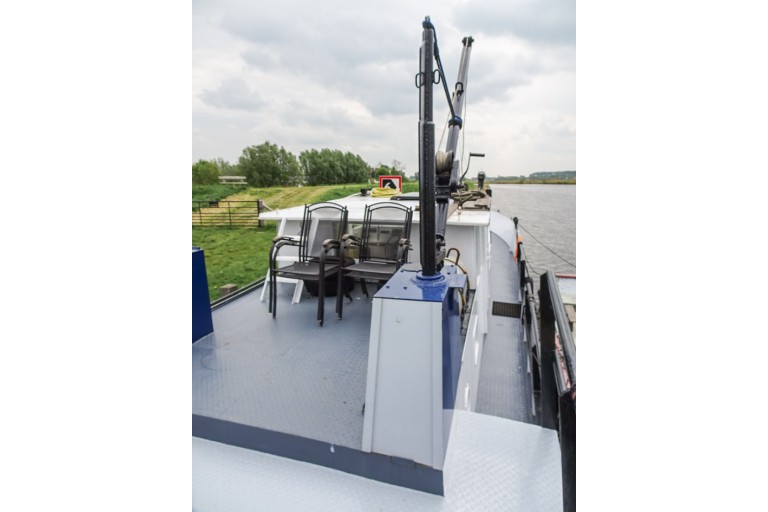

Davits:
with boom
Additional information:
Survey report of the underwatership is available (08-2019)
sundeck
sundeck
