Dutch Barge 19.10 No longer available
Vision Doeve Brokers

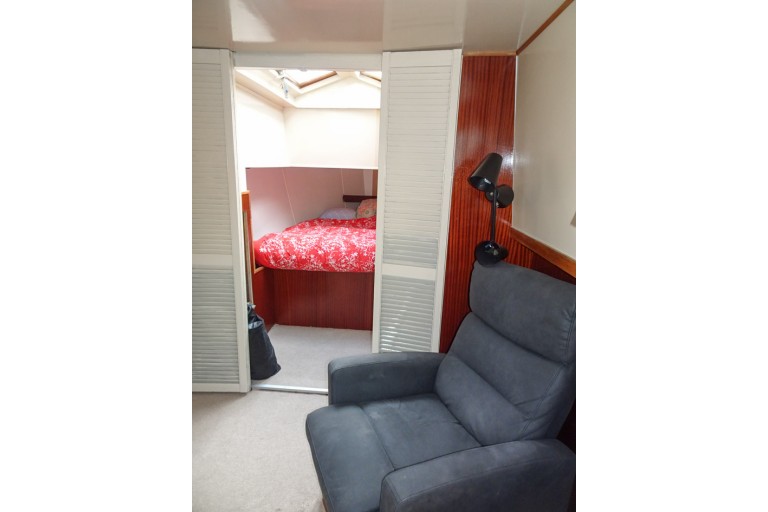

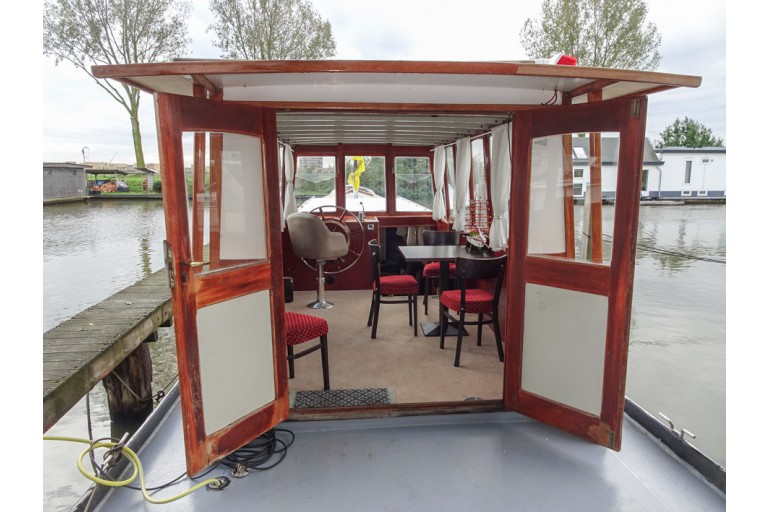

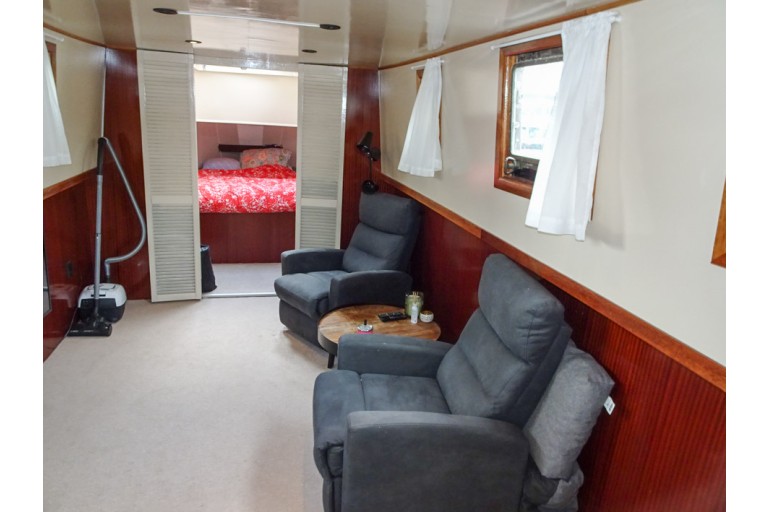

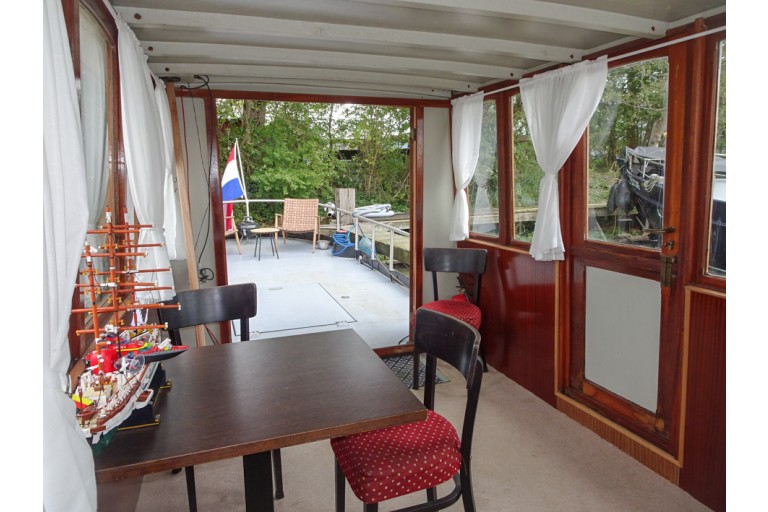

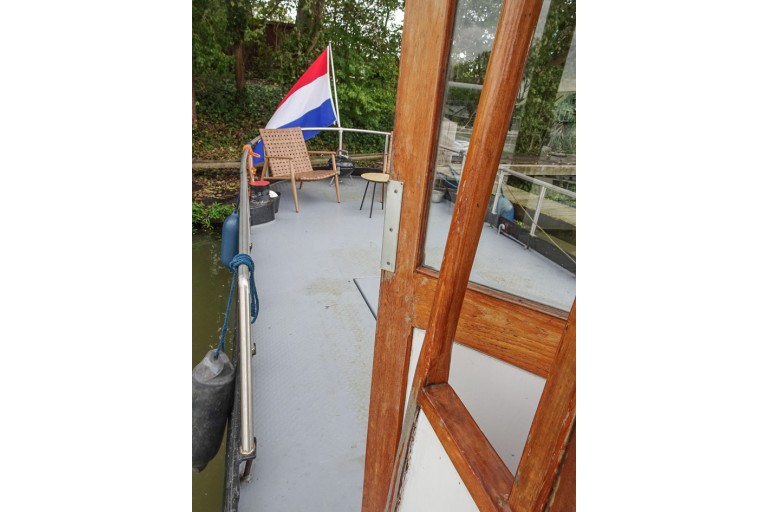

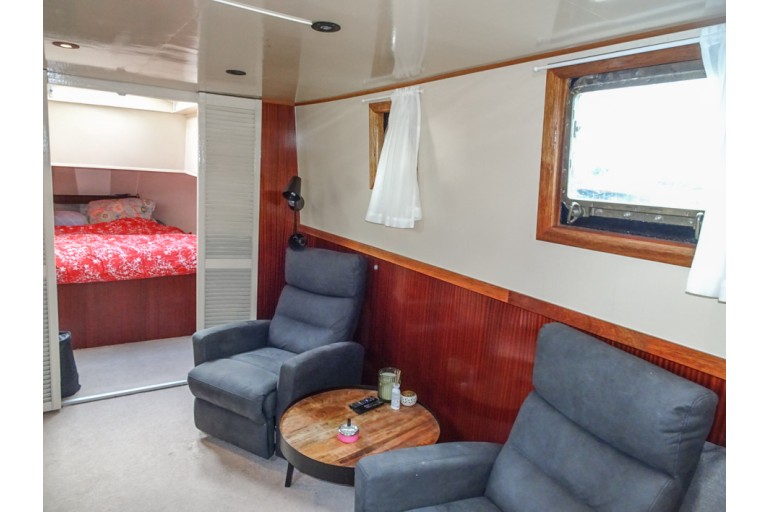

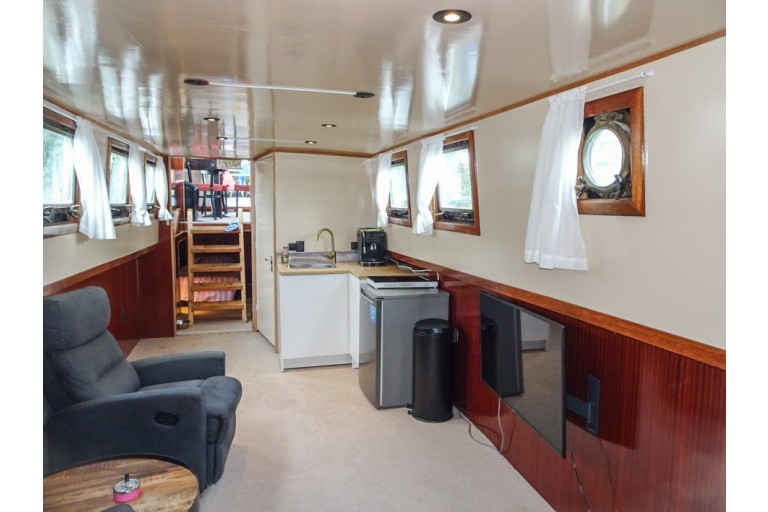

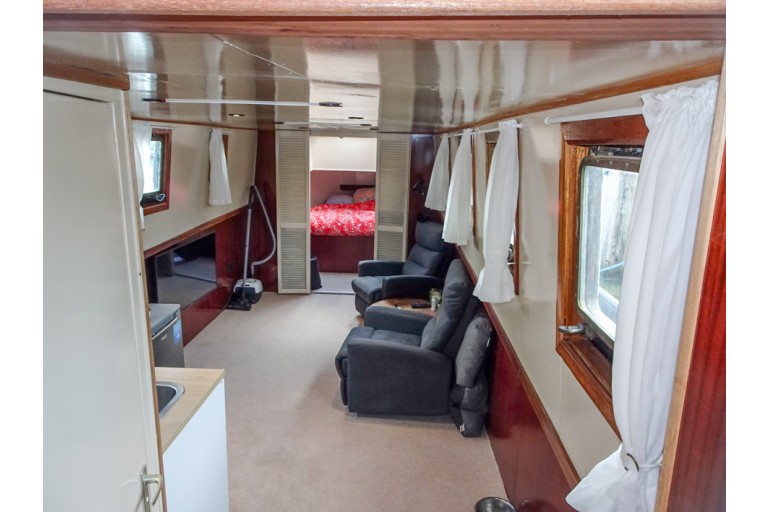

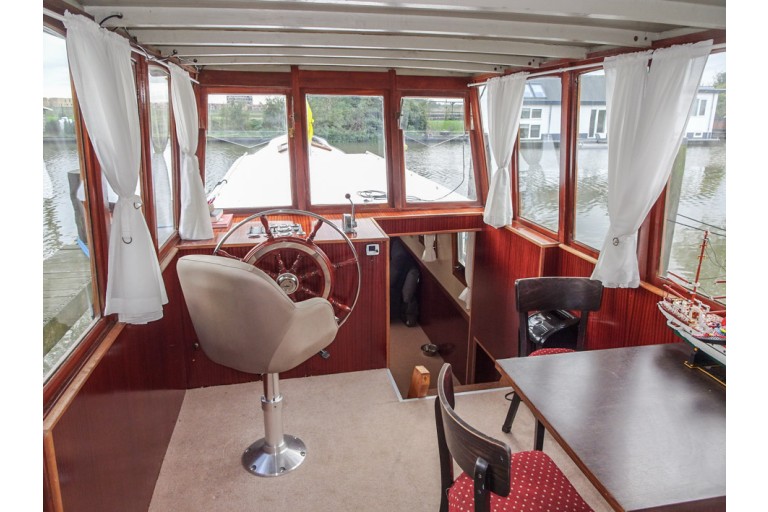

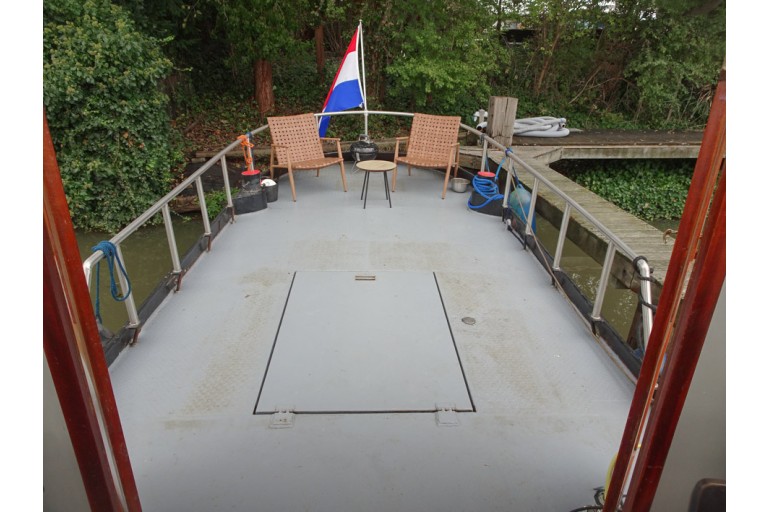

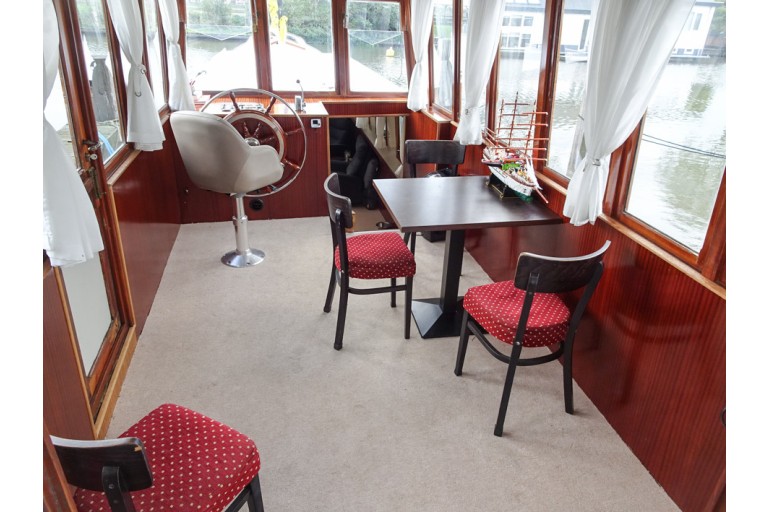

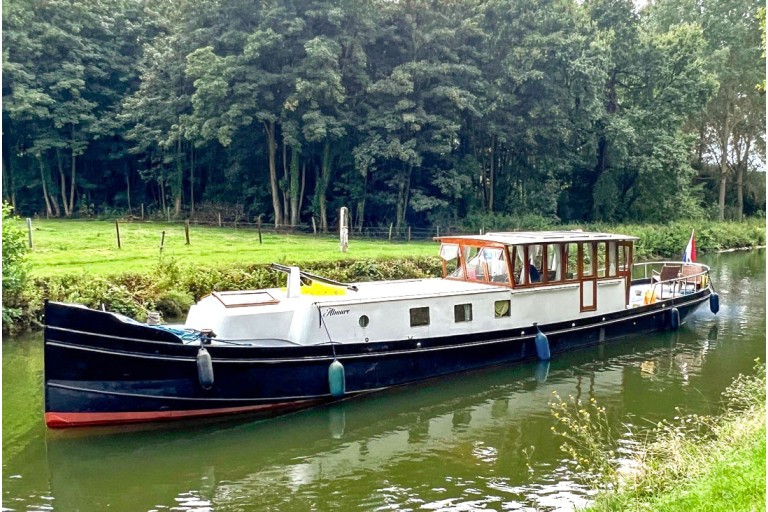

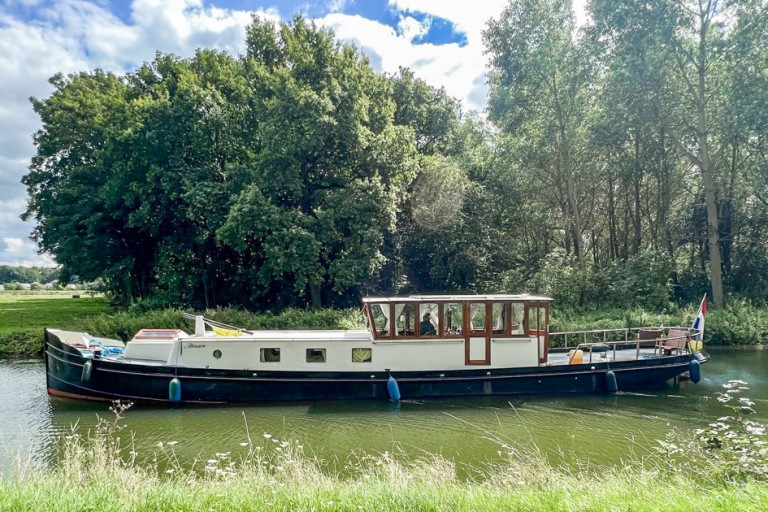

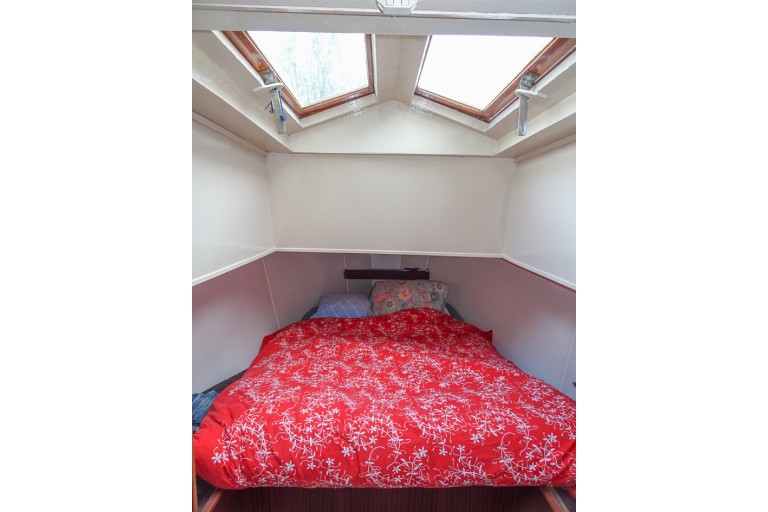

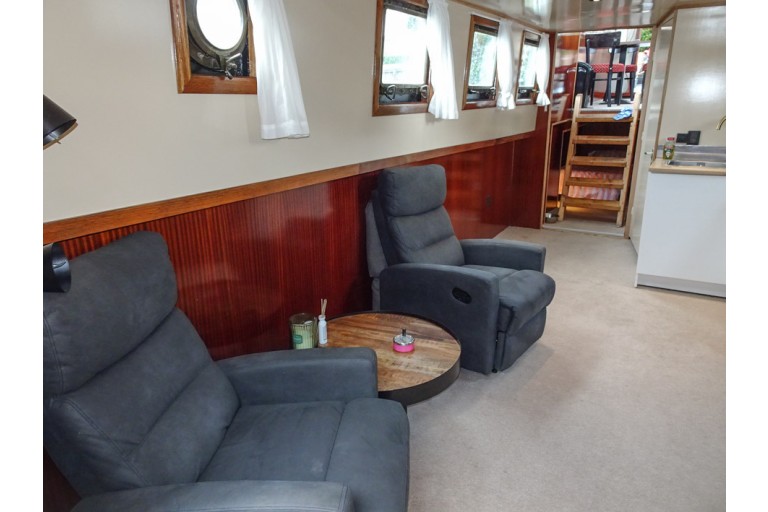

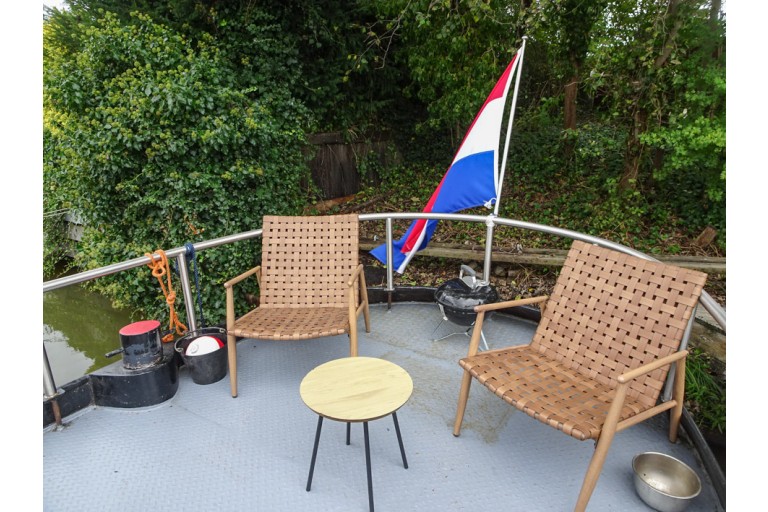

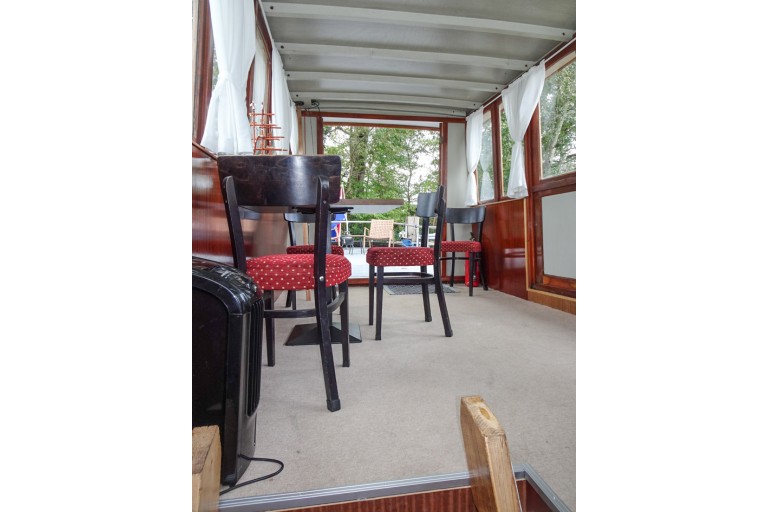

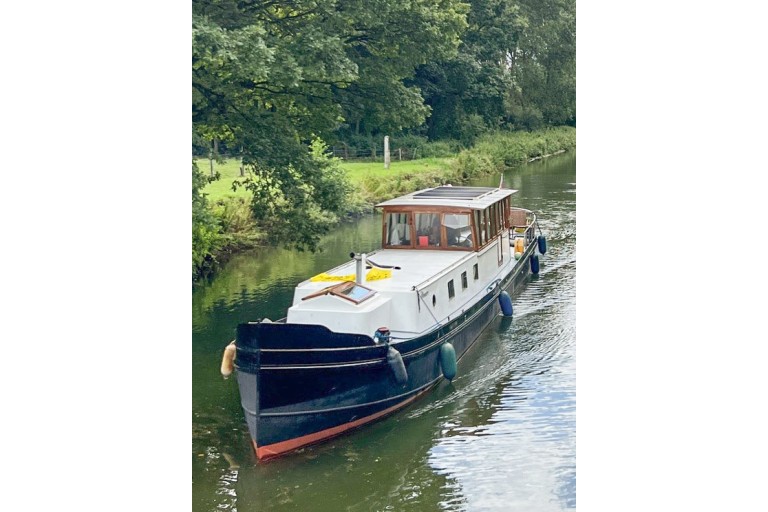

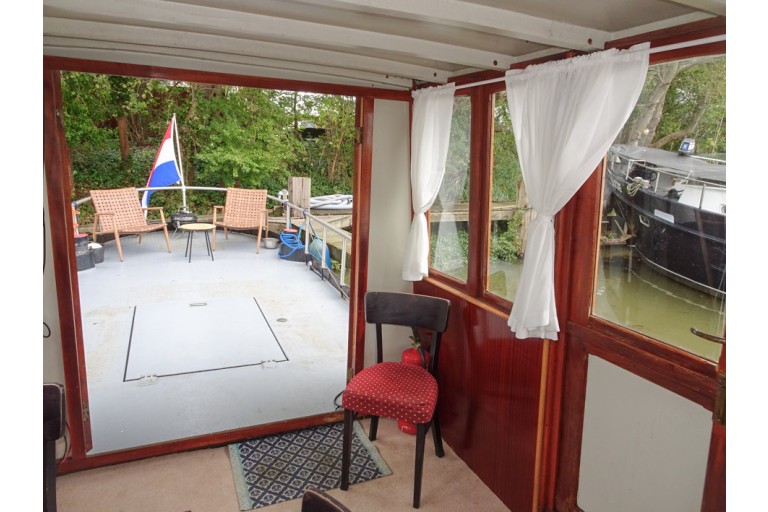

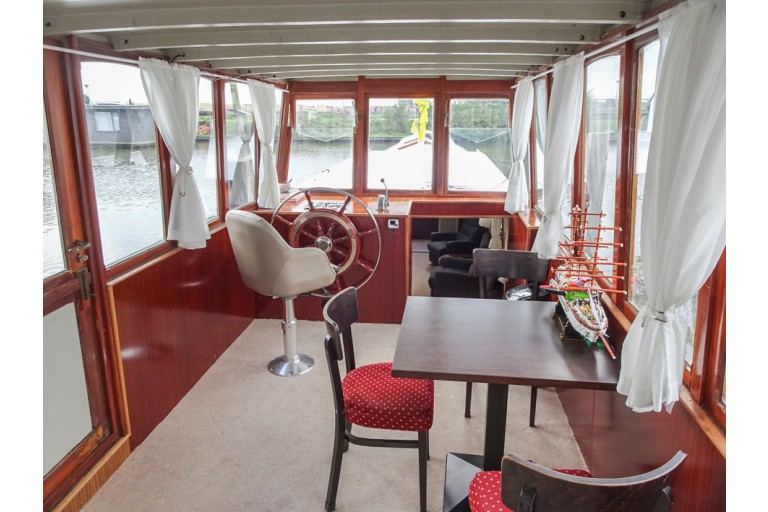

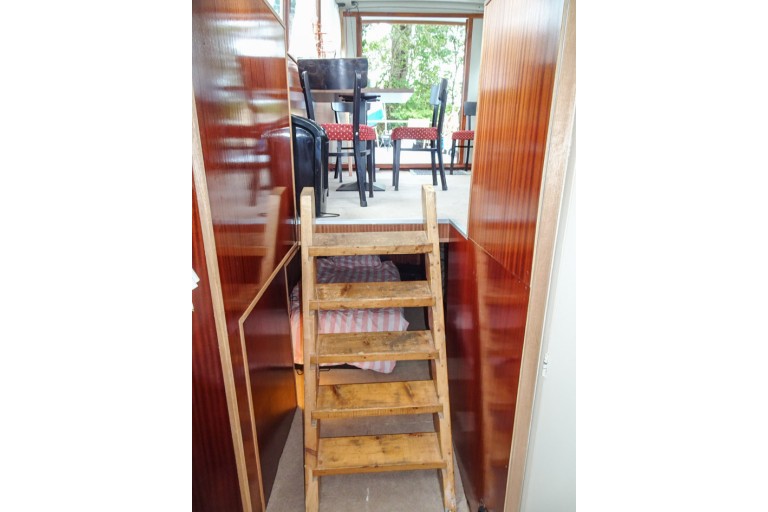

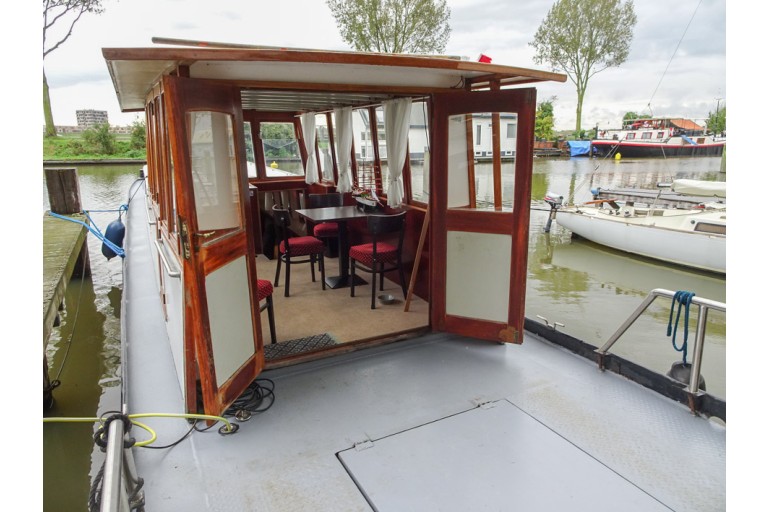

Former inland cargo ship for the transport of probably building materials, that has been converted into a sailing houseboat / live aboard barge. The ship has been largely renovated, but the project is not completely finished yet and is certainly not at a standstill. A large part of the work that still needs to be carried out concerns painting the outside and will be done as soon as possible. The interior is ready except of a few minor things. The layout from front to back is as follows: a cabin with a double bed, salon, galley, bathroom with shower, cabin with 2x single beds under the wheelhouse, a spacious wheelhouse with seating area. Through the French doors of the wheelhouse you reach a very spacious aft deck with a length of approximately 5.50 meters. The ship is largely insulated. Even the floor has not been forgotten to insulate. You have a large sailing area at your disposal due to her shallow draft. If you are looking for a former cargo ship with character, suitable for a long stay on board and that also offers plenty of space outside, then this vessel will certainly appeal to you.
More information
General information
| Yard: | unknown |
| Rebuilt year: | interior 2023 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded closed bollard cabinets rubbing strake around bulwark wide side decks (gunnels) forecabin |

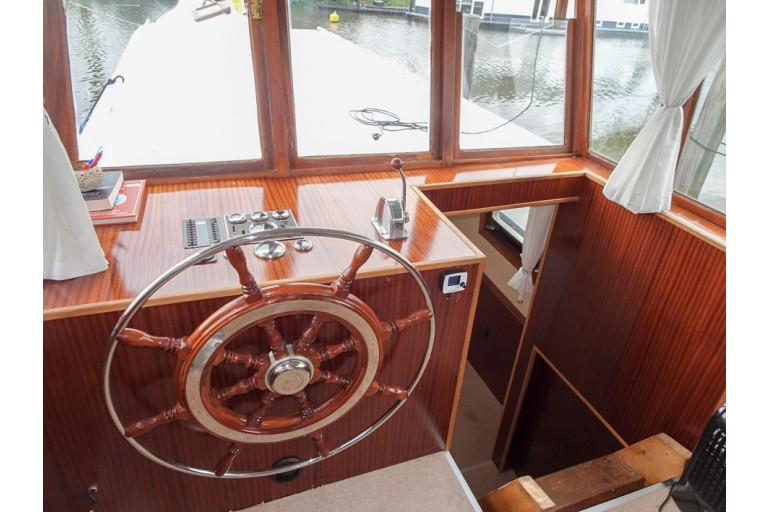

| Steering system: | hydraulic wheel |

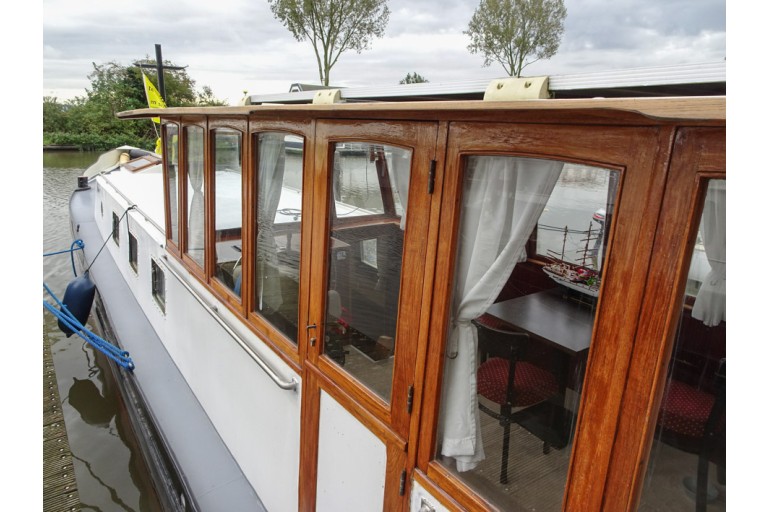

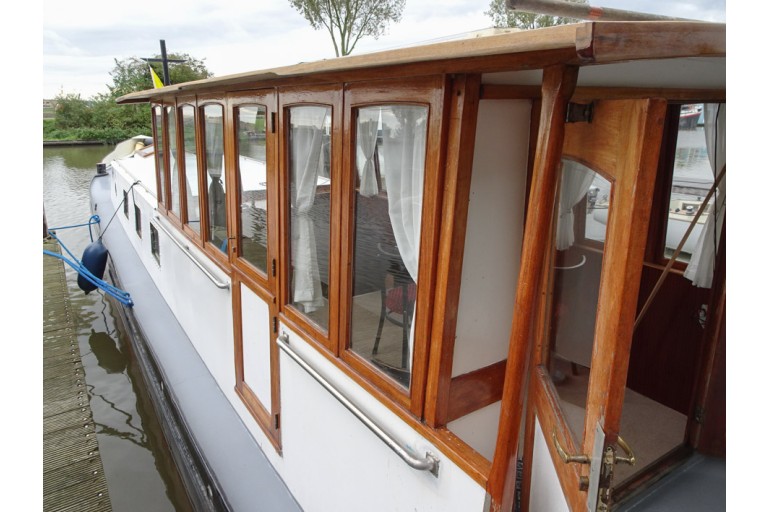

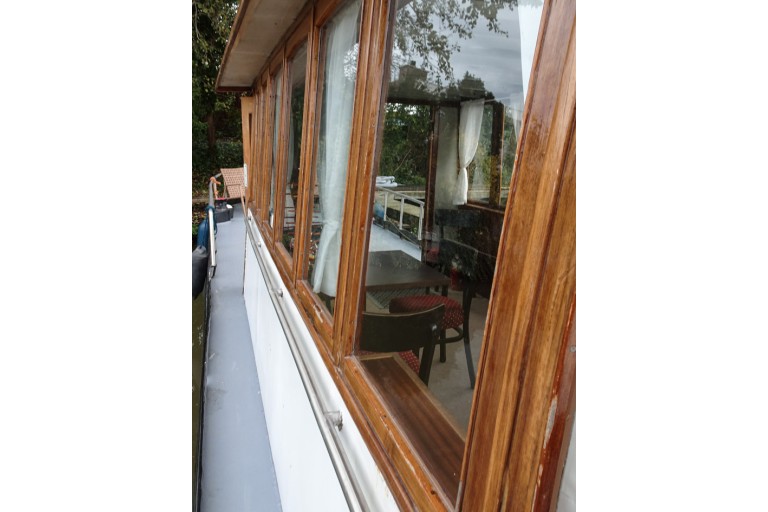

| Windows: | hardwood window frames hardwood outside doors bronze portholes steel window frames |
| Displacement (approx.): | 22 ton estimated |
| Ballast (approx.): | poured concrete |
| Airdraft (approx.): | 2,80 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | black hull black bulwark white superstructure last underwatership treatment 01-2023 one component finish 2023 |
| Suitable for / as: | inland waterways recreational vessel |
| Additional information: | spacious aftdeck Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information

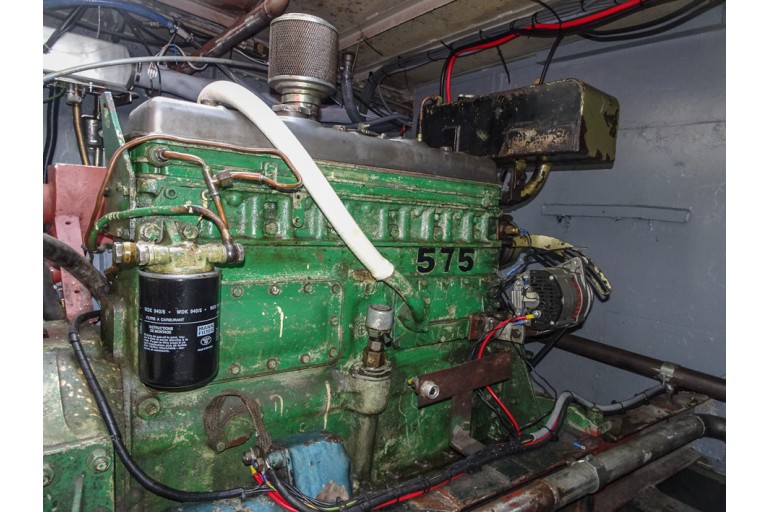

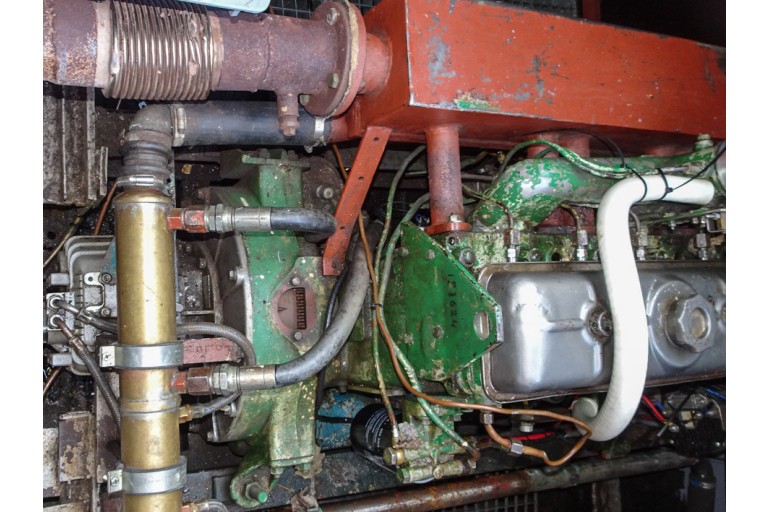

| Enginepower: | 105 Hp 77 kW |
| Engine brand: | DAF |
| Revolutions: | 2400 RPM |
| Engine model: | 575 |
| Number of cylinders: | 6 |
| Construction year engine: | 1971 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 300 litre steel tank(s) |
| Cooling system: | closed Blokland box cooler wet exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Hurth hydraulic |
| Heating: | Webasto hot air heating on diesel |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 680 Ah traction batterie bank (12x 2 Volt) 2x 120 Ah starter batterie(s) 1x 60 Ah starter batterie(s) generator Victron BMV-712 SMART battery monitor |
| Battery charger: | Victron MultiPlus combi inverter/charger 24/3000/70 Victron Orion battery charger 24/12-25 |
| Earth-leakage breaker: | present |
| Genny: | Onan whisper set 230 Volt 7 kVA 1500 RPM 11800 running hours (approx.) |
| Inverter: | Victron MultiPlus combi inverter/charger 24/3000/70 |

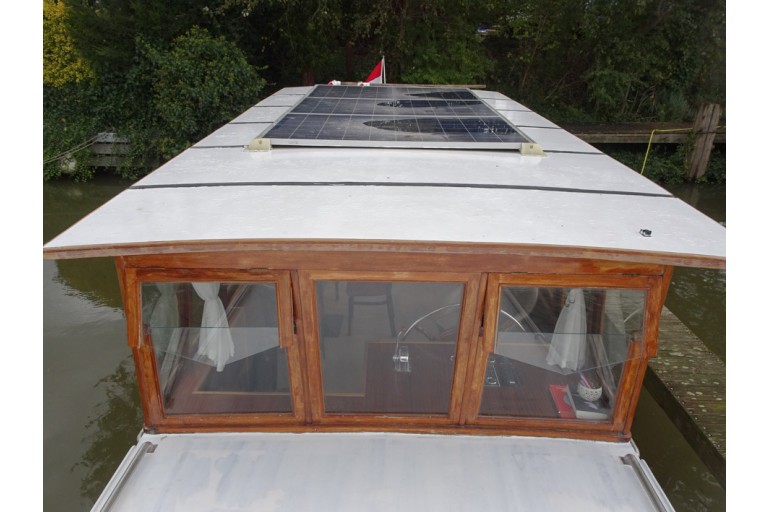

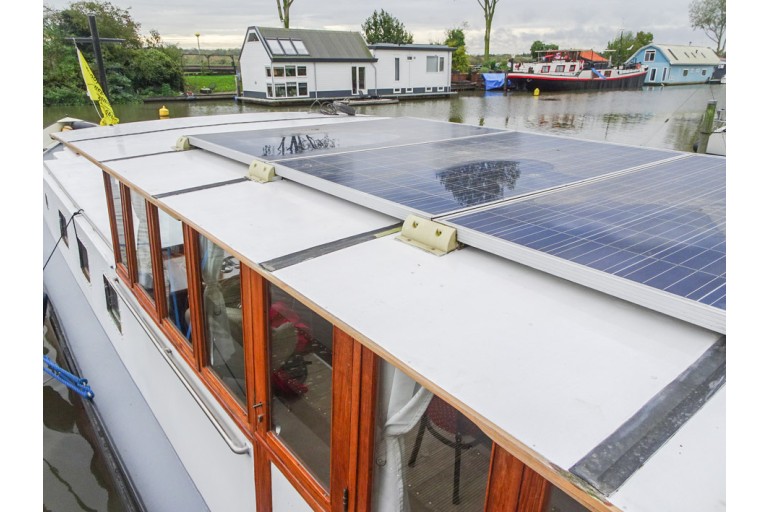

| Solar panels: | 3x present Victron SmartSolar MPPT 250/85 charge controller |
| Fresh water tank (approx.): | 1x 650 litre plastic tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | Fais boiler/water calorifier (230 Volt) 15 litre |
| Diesel waterseparator: | present |
| Additional information: | LED lightning |
Accommodation
| Interior: | various materials have been used mahogany finish Plywood painted white |
| Insulation: | partly Rockwool |
| Cabins: | 2 cabins |
| Berth: | owners cabin: 1x 2-pers Under deck: 2x 1-pers |

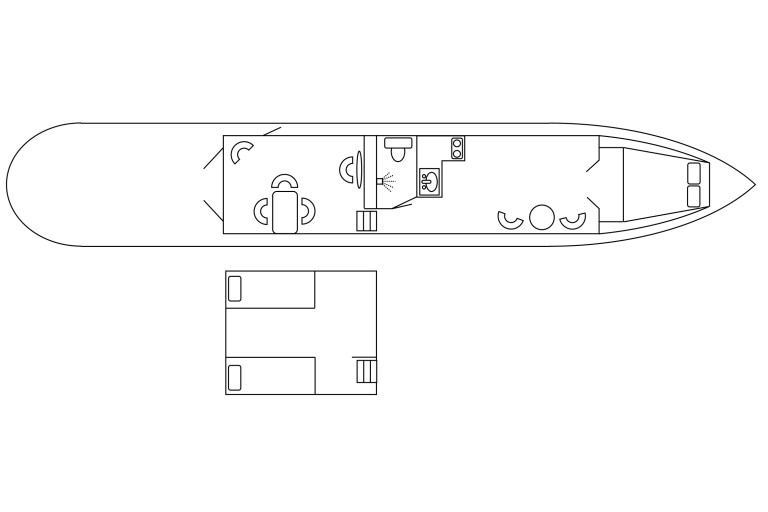

| Lay-out plan (not to scale): | see attachment |

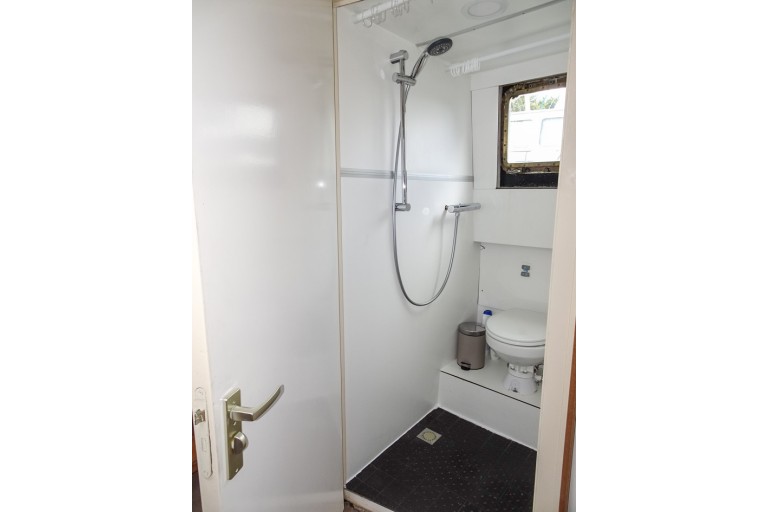

| Bathroom: | shower thermostat tap in 1 area together with the toilet partly tiled |
| Toilet / Heads: | electric toilet |

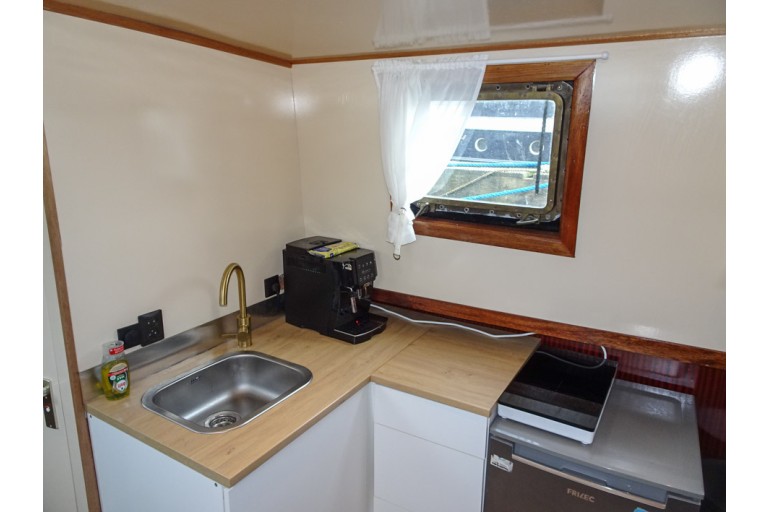

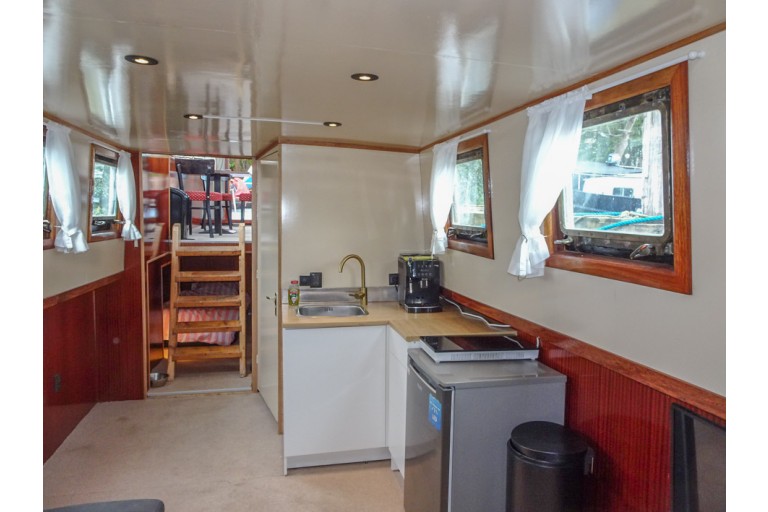

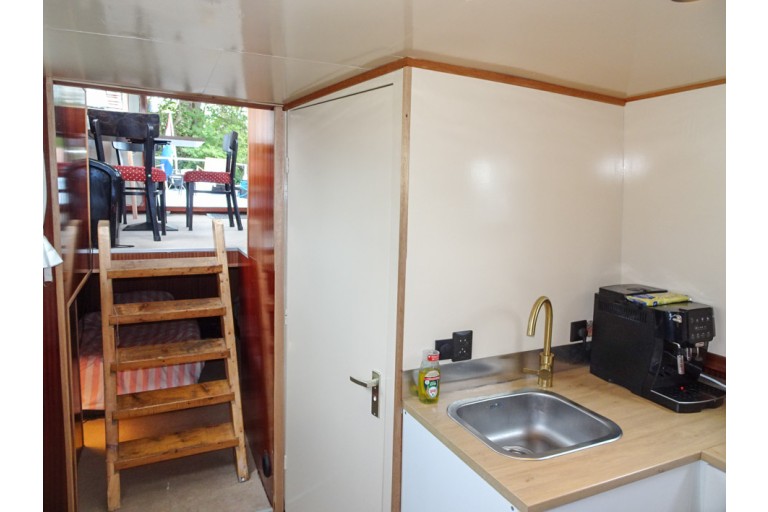

| Galley: | L-shape galley |
| Cooker: | 2-burner hob induction cooker |
| Fridge / Refrigerator: | Frilec fridge / refrigerator 230 Volt |
| Worktop: | wooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | flatscreen TV |
| Headroom (approx.): | ownerscabin (approx.) 2,11 m salon (approx.) 1,96 m galley (approx.) 2,01 m bathroom / toilet (approx.) 1,94 m guest cabin (approx.) 1,09 m wheelhouse (approx.) 1,86 m |
| Additional information: | Beko washing machine / dryer |
Navigation equipment
| Navigation equipment: | rudder indicator |
Rigging and sails
| Mast: | decorative mast steel |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | DC anchor |
| Searail / Pulpit: | guardrail around aftdeck grab rail |
| Safety: | fire extinguisher |

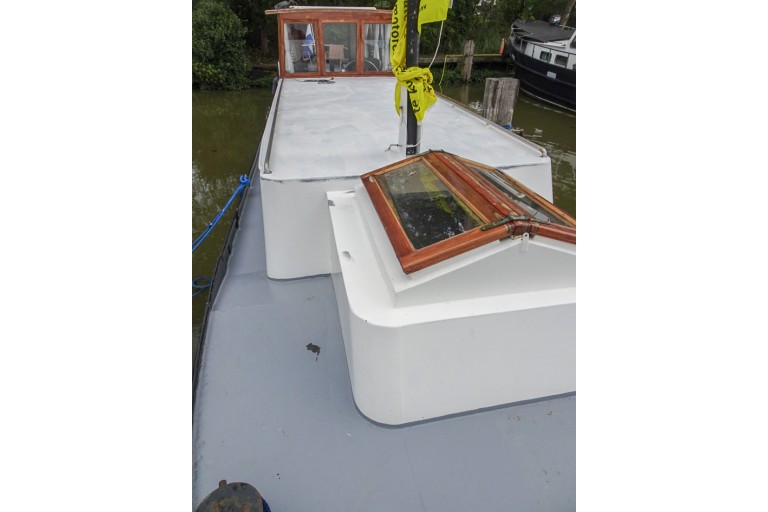

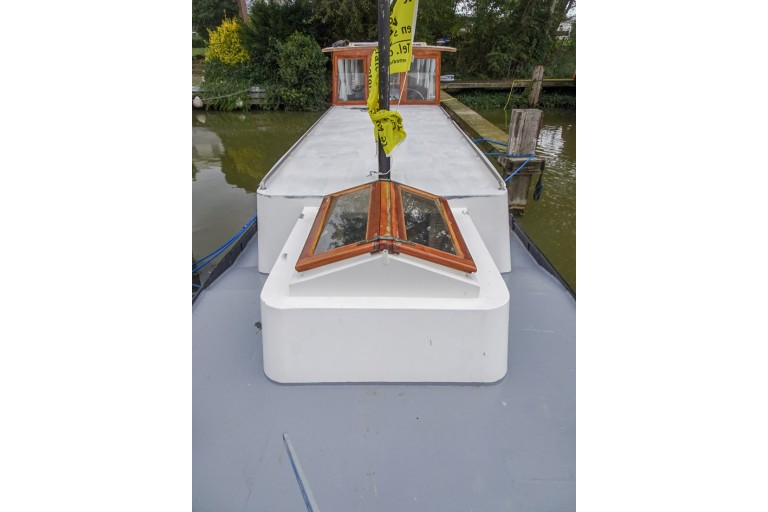

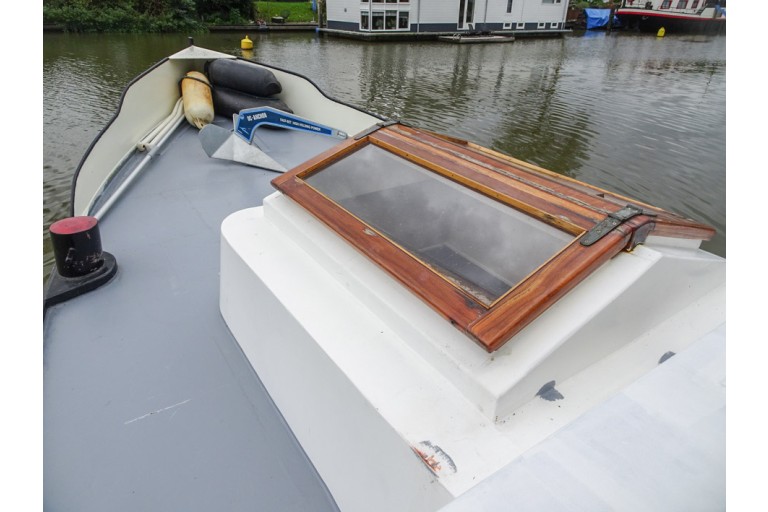

| Additional information: | sundeck hard wooden skylight fenders Survey report of the underwatership is available (10-2022) |
