Dockyard 13, Motor tender reduced in price
Dimensions (m):
19.18 x 3.78 x 1.40
Ref. no.:
250407
Mooring:
Near Rotterdam, Netherlands
Construction year:
1928
Material:
steel
Price:
€ 34.500,--
VAT not applicable
Vision Doeve Brokers

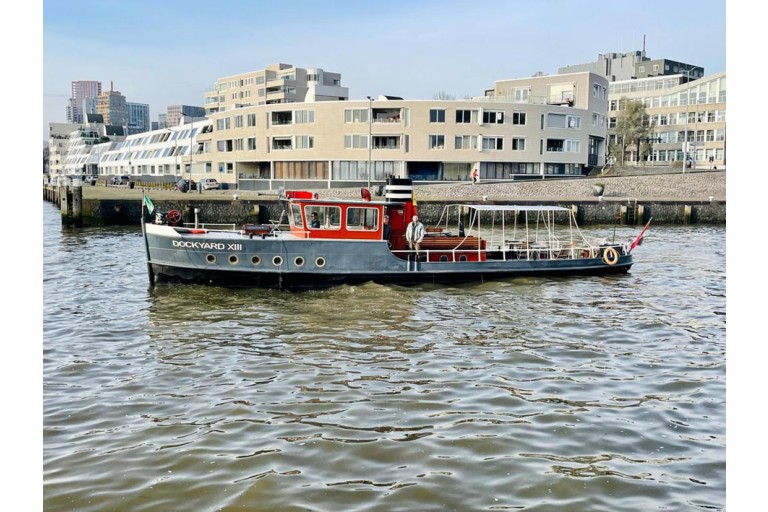

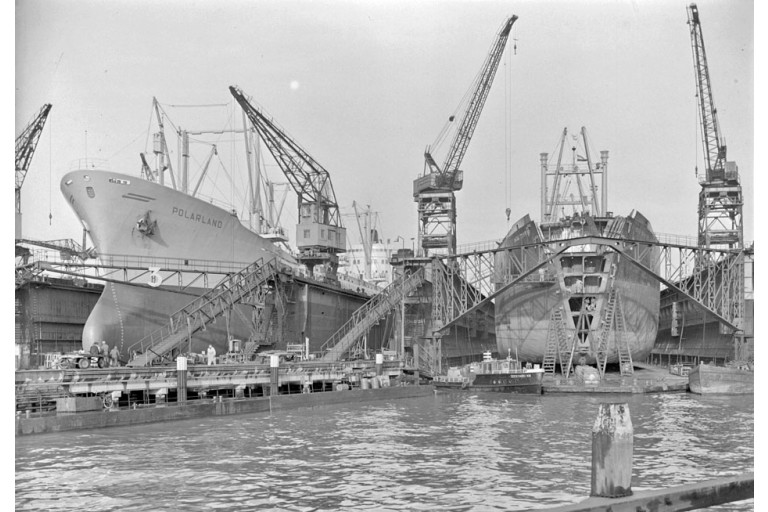

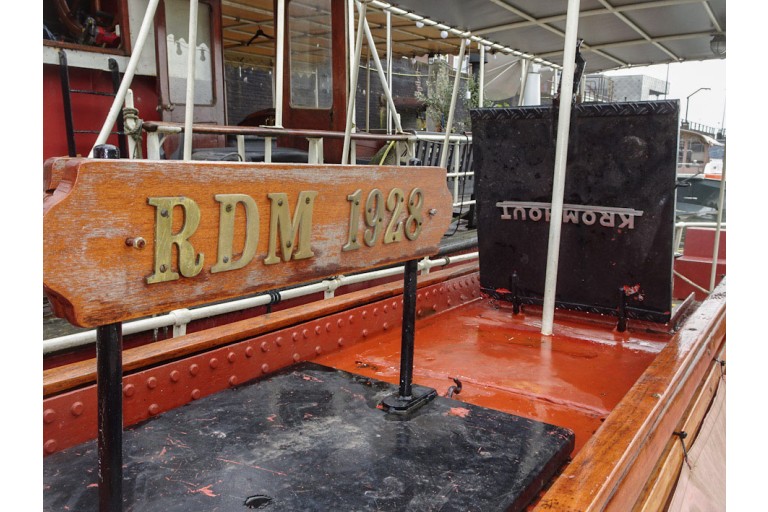

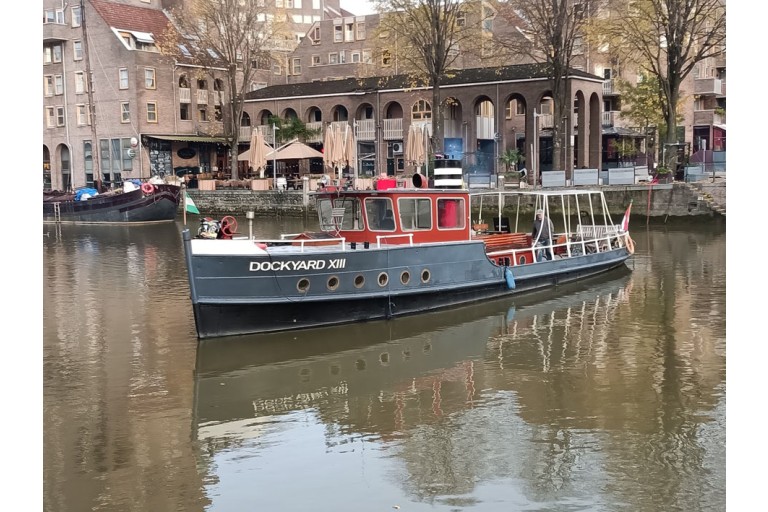

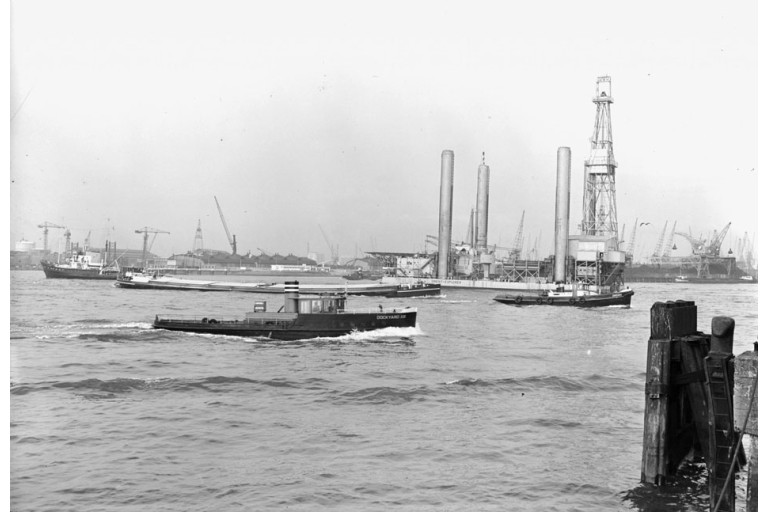

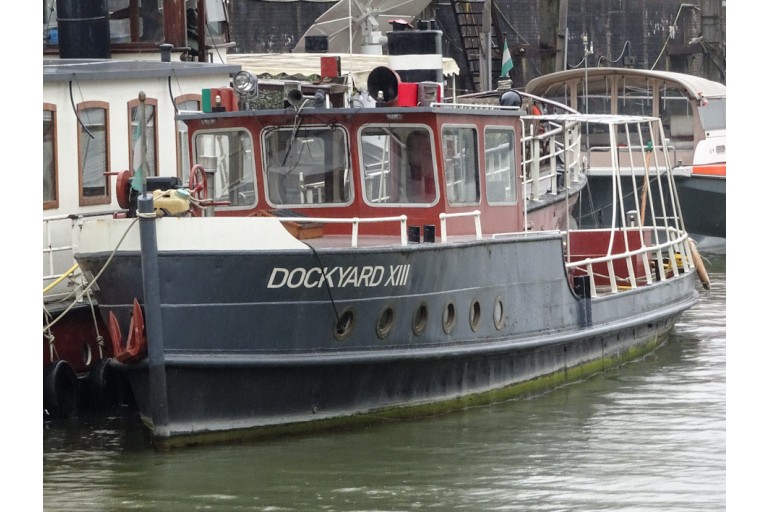

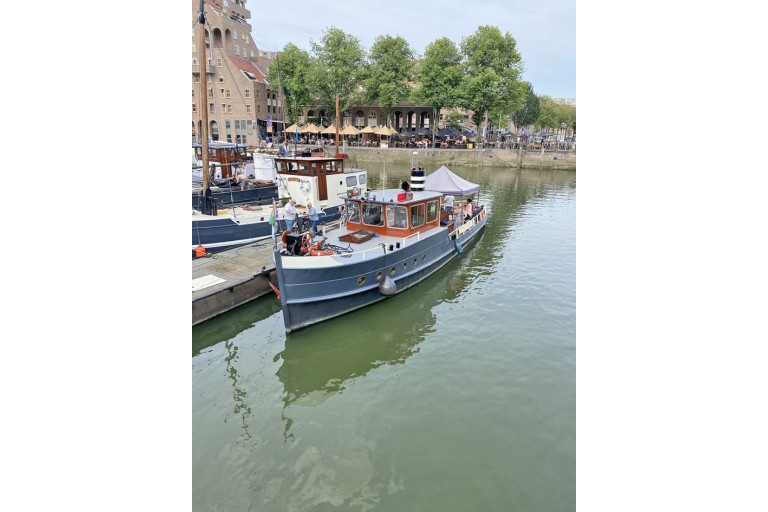

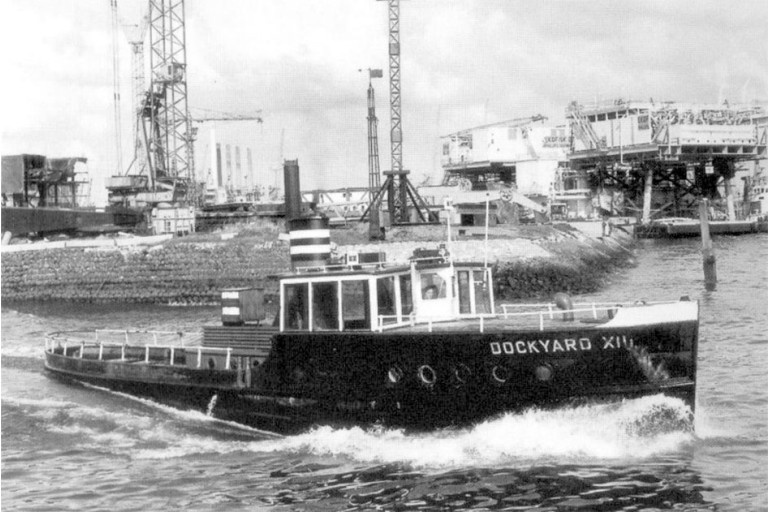

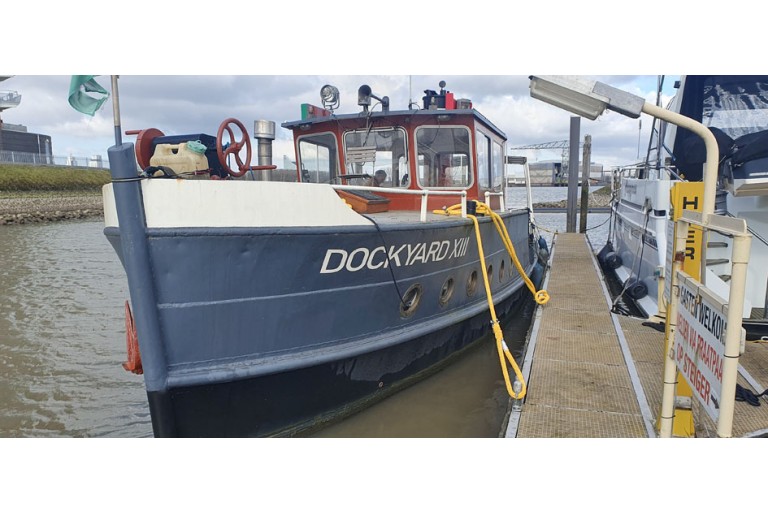

The Dockyard XIII is a unique and characterful vessel with an impressive appearance, originally built as a personnel transport vessel / motor tender by the renowned shipyard Rotterdamsche Droogdok Maatschappij N.V. (RDM) in NL-Rotterdam. This boat has a robust steel hull and has been thoroughly maintained and partially modernized in recent years, while preserving her authenticity. A significant part of the interior has already been renewed; however, these works have not been completed due to circumstances. Nevertheless, this vessel offers an excellent foundation for further conversion into a live aboard ship or a stylish historic pleasure craft. Thanks to her classic lines and sturdy look, the Dockyard XIII is a true eye-catcher in any port and, in our opinion, qualifies for a berth in many museum harbors.
More information
General information
| Yard: | Shipyard Rotterdamsche Droogdok Maatschappij N.V., NL-Rotterdam |
| Rebuilt year: | 2021/2024 |
| Hull shape: | round bottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded flush deck bulwark rubbing strake |
| Keel: | bilge keels |

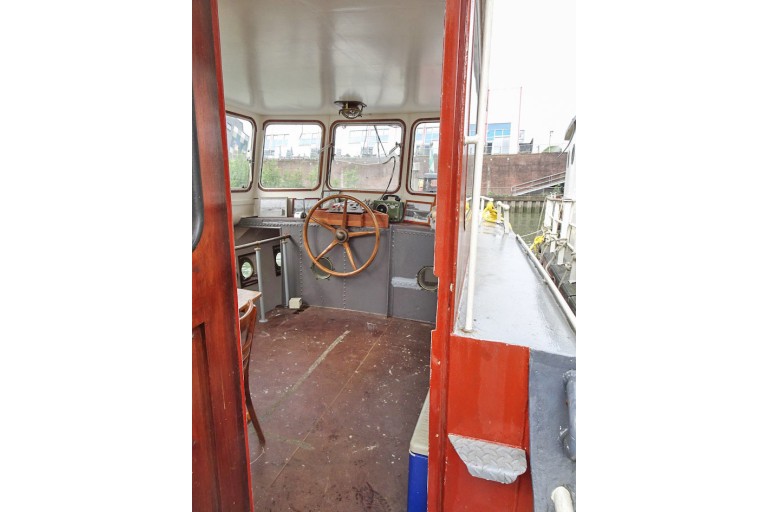

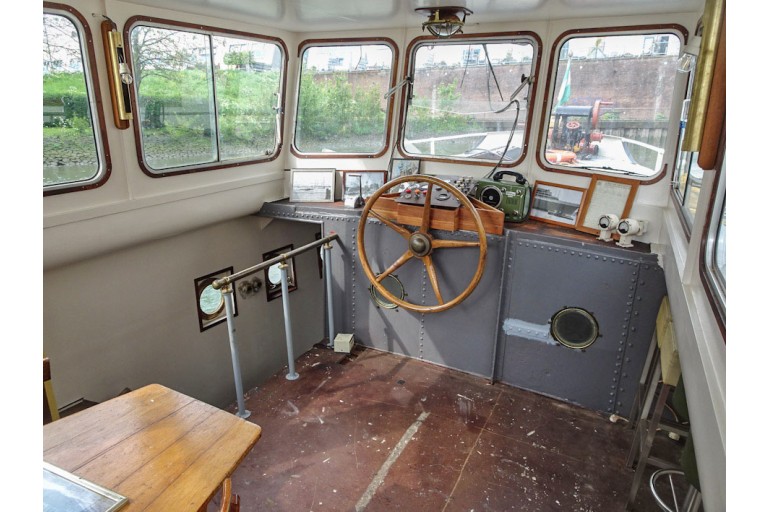

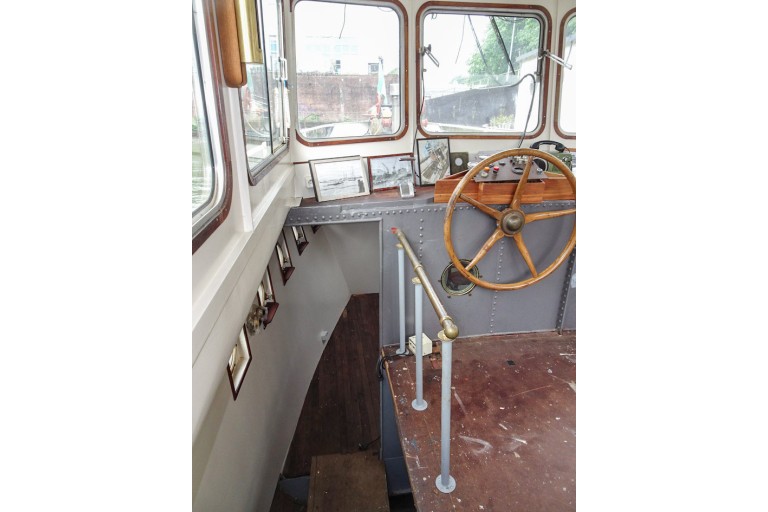

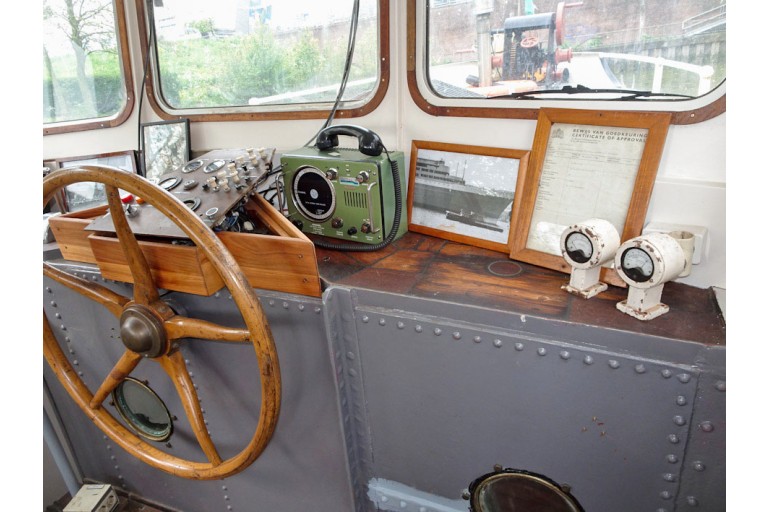

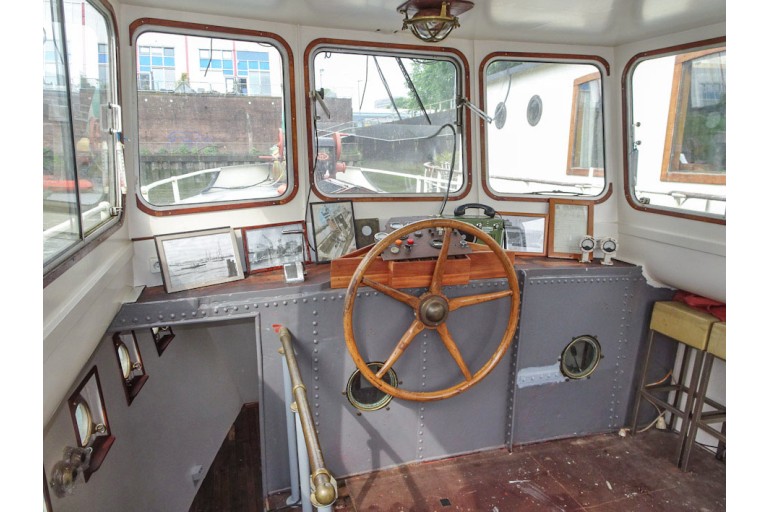

| Steering system: | mechanical wheel steel rudder emergency tiller |

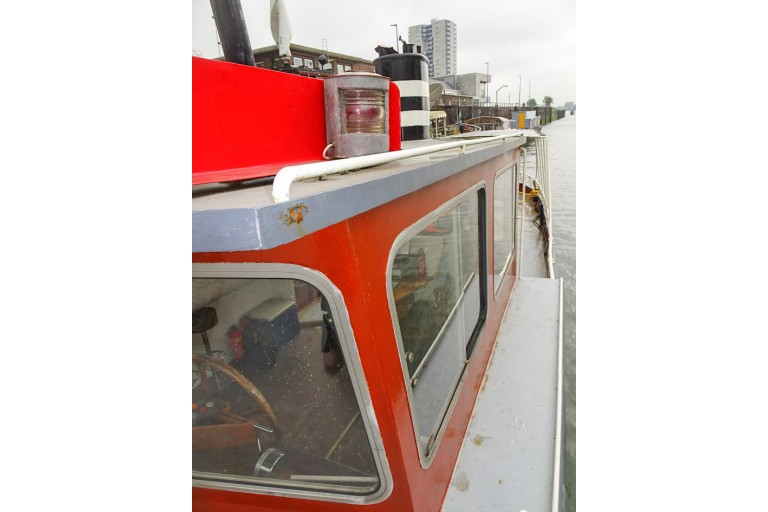

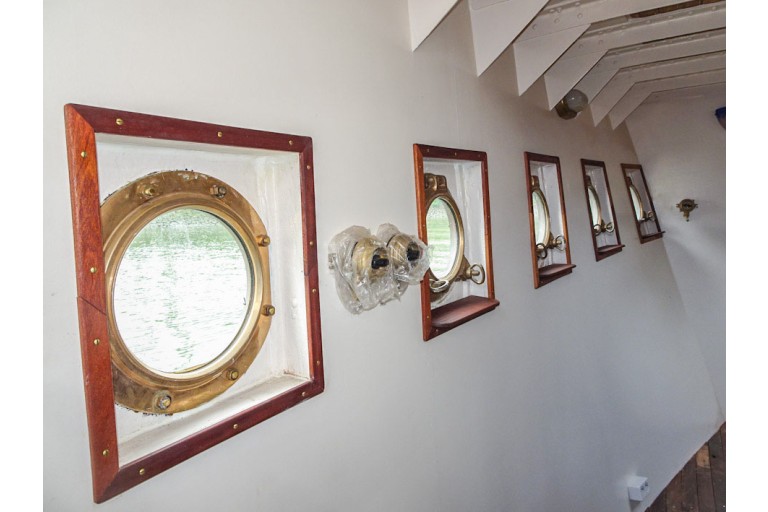

| Windows: | aluminium windows frames brass portholes hardwood outside doors |
| Displacement (approx.): | 45 ton displacement |
| Ballast (approx.): | poured concrete 1 metric tons mentioned weight is an estimate |
| Airdraft (approx.): | 3,80 m |
| Owner: | Dutch owner |
| Colour / Paint System: | black hull grey bulwark red / brown superstructure last underwatership treatment 09-2022 see photographs |
| Certificates: | no certificate requirement |
| Suitable for / as: | recreational vessel inland shipping suitable as a year round live- aboard |
| General information: | offered in the condition that she is in Old age clause applicable. not finished project The seller has actually never used the vessel himself. |

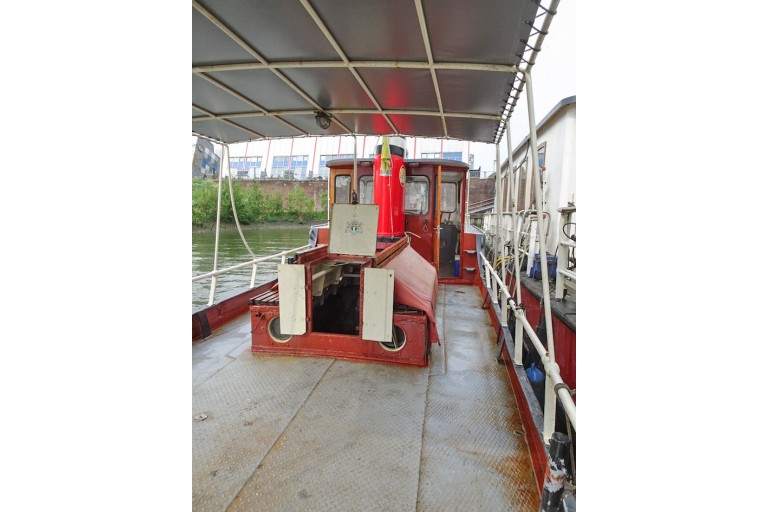

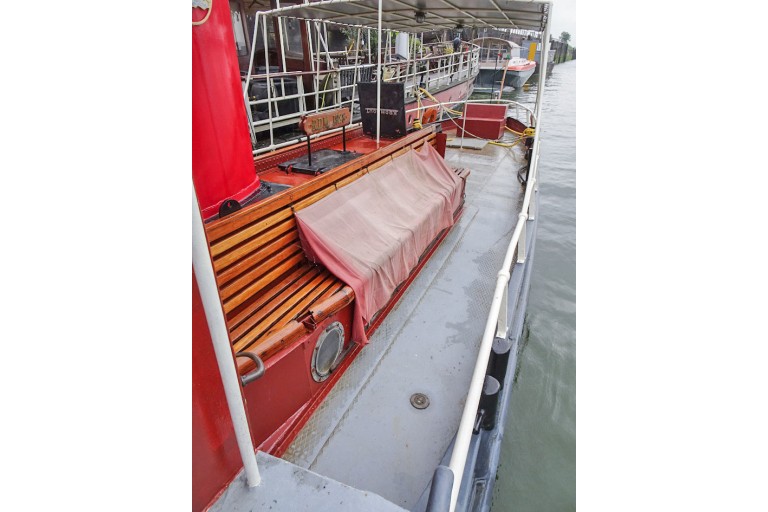

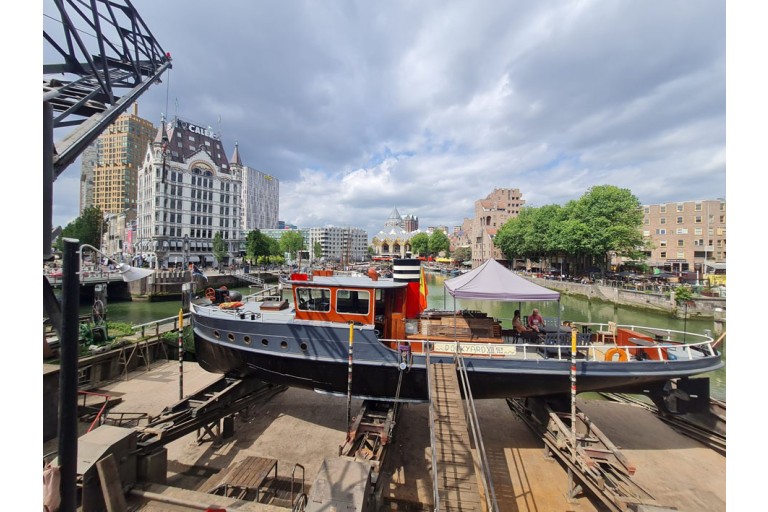

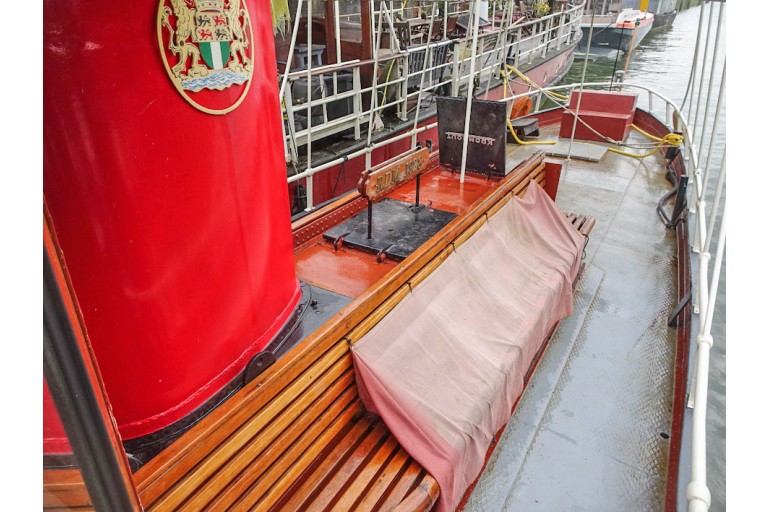

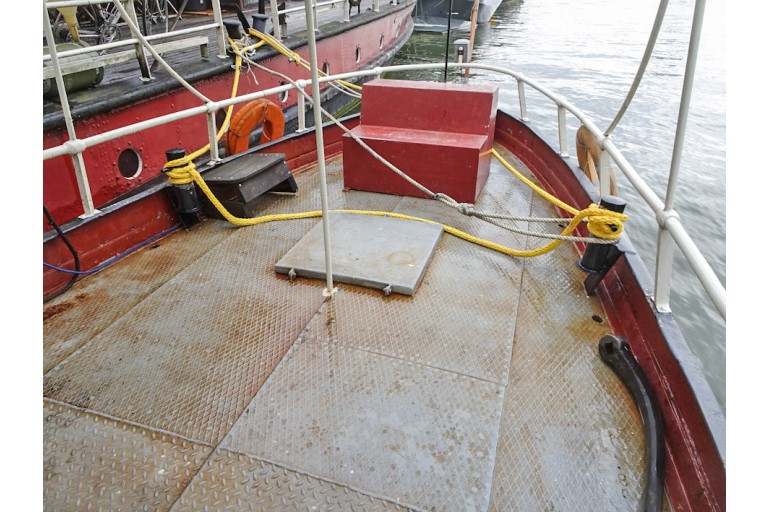

| Additional information: | Hull shape is suitable for drying out. classic motor yacht beautiful sheer spacious aftdeck roomy foredeck wheelhouse Great vessel for cruising on the European canals and rivers. |
Technical information

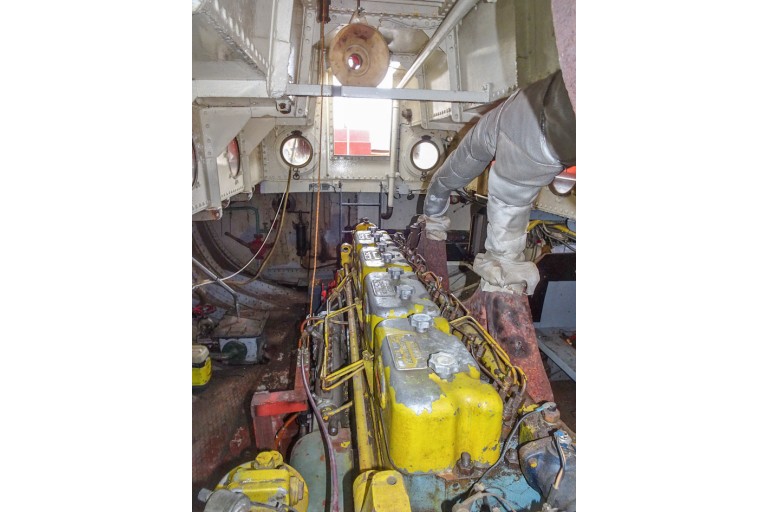

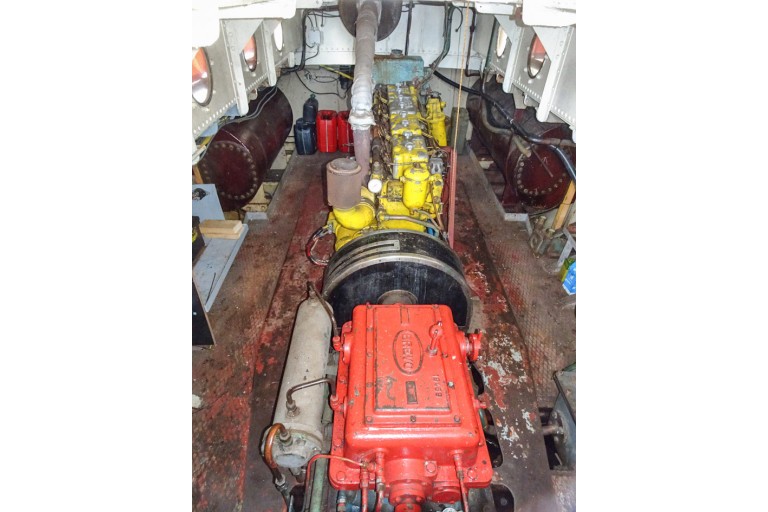

| Enginepower: | 150 Hp 110 kW |
| Engine brand: | Kromhout |
| Revolutions: | 1500 RPM |
| Engine model: | 8TS |
| Number of cylinders: | 8 |
| Construction year engine: | 1962 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 500 litre 1x 700 litre steel tank(s) |
| Cooling system: | intercooling dry exhaust |
| Propulsion: | greased lubrication of propeller shaft |
| Gearbox: | Brevo hydraulic reduction/ratio 3:1 |
| Heating: | stove heater stainless steel on diesel |
| Electricity system: | 12 Volt 24 Volt 230 Volt shore power connection |
| Batteries: | 4x 230 Ah domestic batterie(s) 2x 120 Ah starter batterie(s) |
| Battery charger: | Mastervolt Mass battery charger 24/50 |
| Earth-leakage breaker: | present |
| Inverter: | Mastervolt Mass Sine inverter 24/2500 |
| Fresh water tank (approx.): | 1x 700 litre stainless steel tank(s) |
| Water pressure system: | electric water pump |

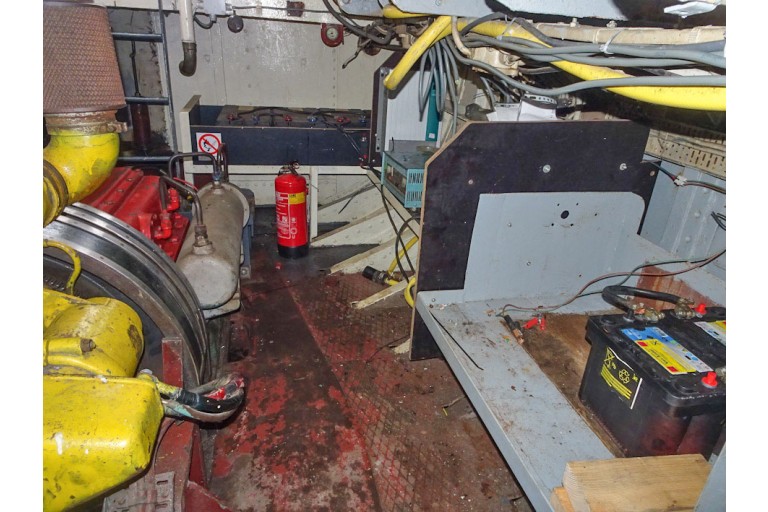

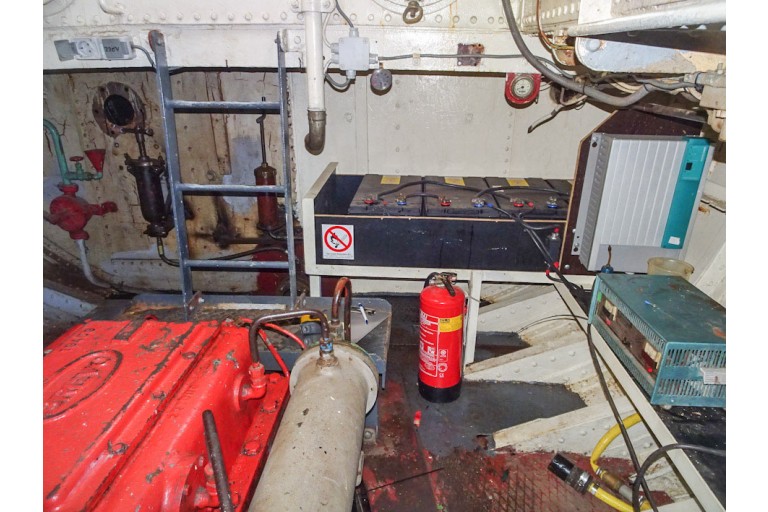

| Engineroom: | some overdue maintenance |
| Bilge pump: | present also deckwash pump |
| Gas system: | present does not fully meet current safety requirements |
Accommodation

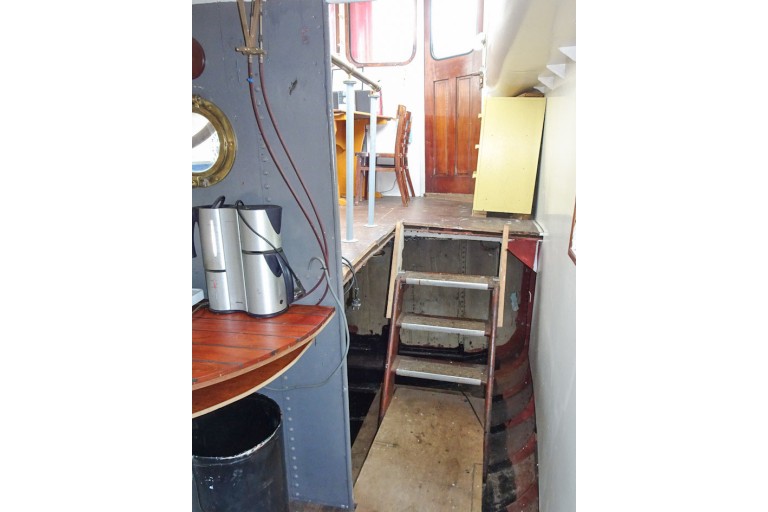

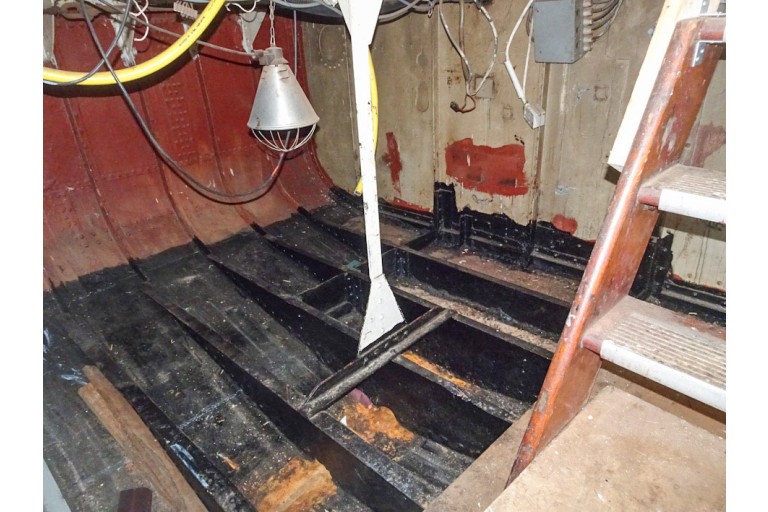

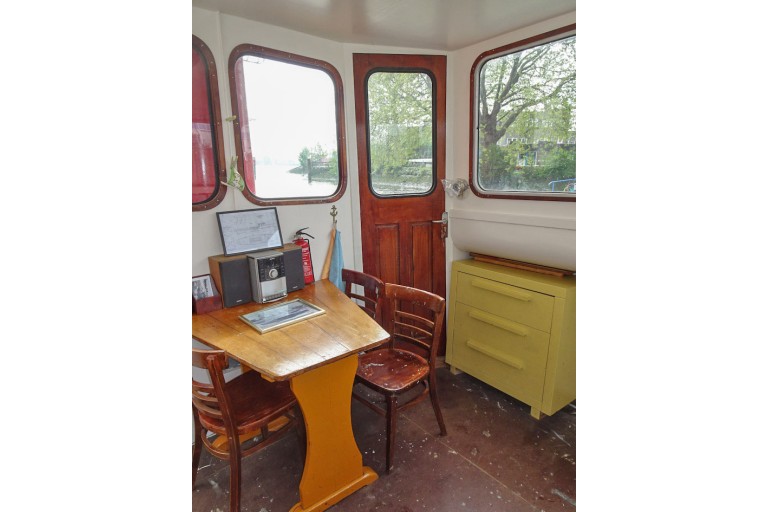

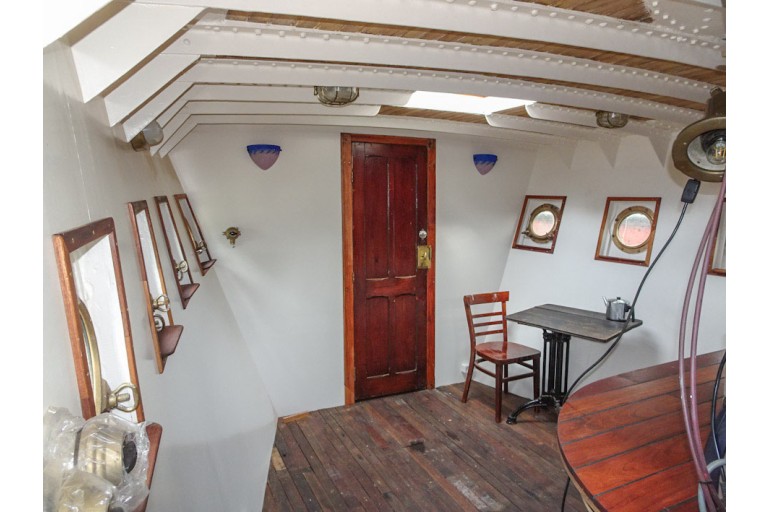

| Interior: | various materials have been used see photographs |
| Insulation: | partly |
| Cabins: | 1 cabin |
| Berth: | 0 sleeping places |

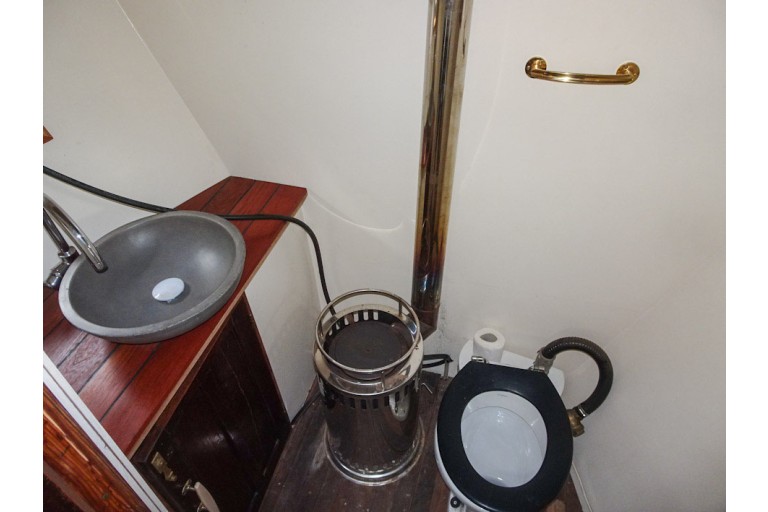

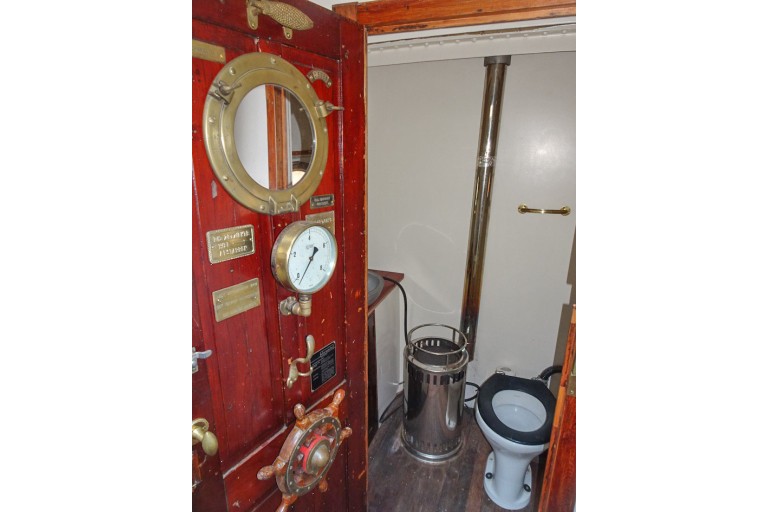

| Toilet / Heads: | flush toilet washbasin with mixer tap and hot & cold running water |

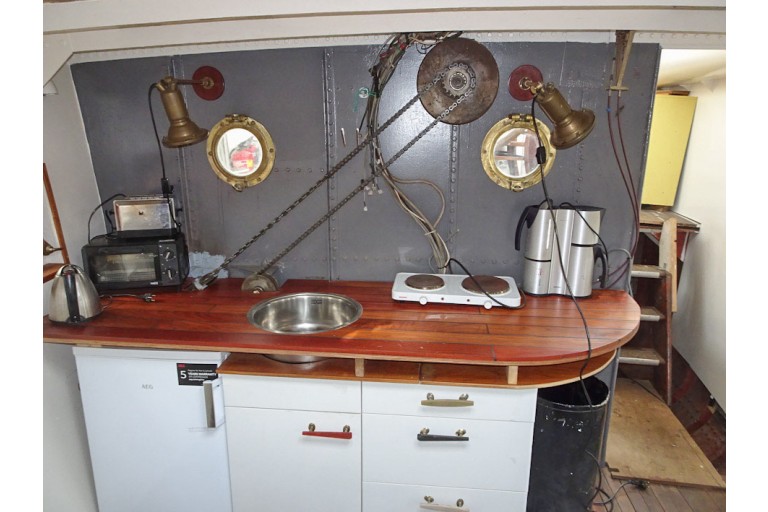

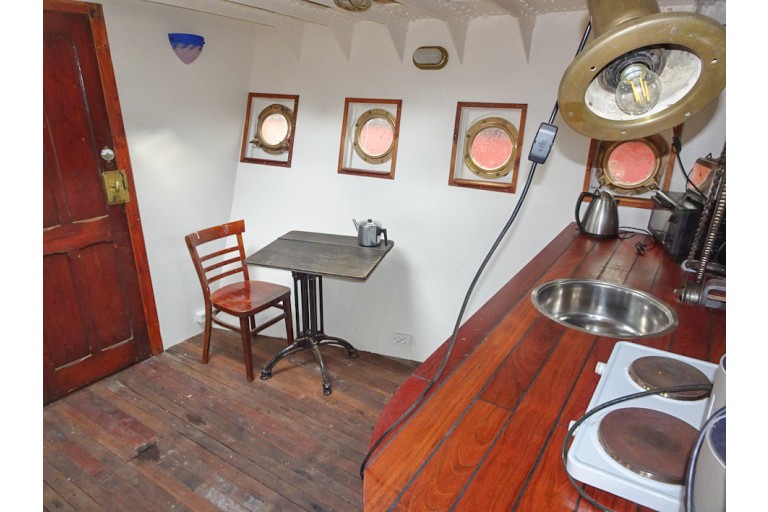

| Galley: | along ships |
| Cooker: | 2-burner hob electric cooker |
| Fridge / Refrigerator: | fridge / refrigerator 230 Volt |
| Worktop: | wooden worktop |
| Washbasin: | stainless steel sink |
| Headroom (approx.): | toilet (approx.) 1,96 m salon (approx.) 1,99 m cabin (approx) 1,29 m wheelhouse (approx.) 2,15 m |
Navigation equipment

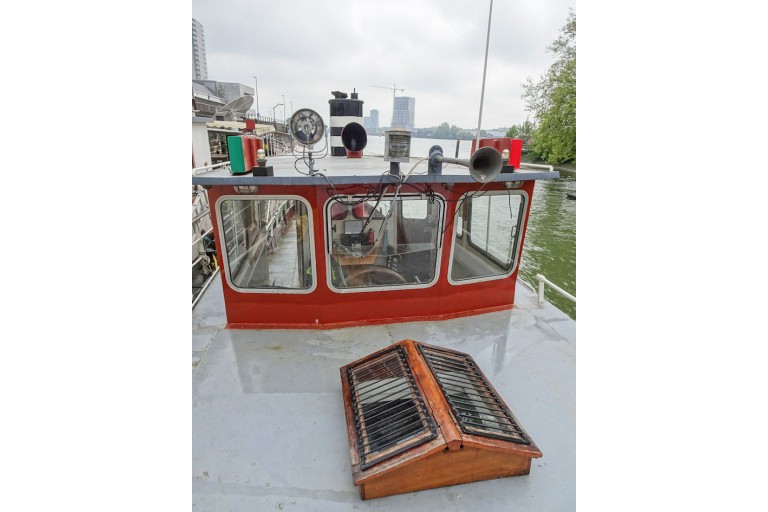

| Navigation equipment: | search light Sailor RT144 VHF navigation lights window wiper ships bell horn |
Rigging and sails
| Mast: | steel lantern mast |
| Lowerable: | yes |
Equipment

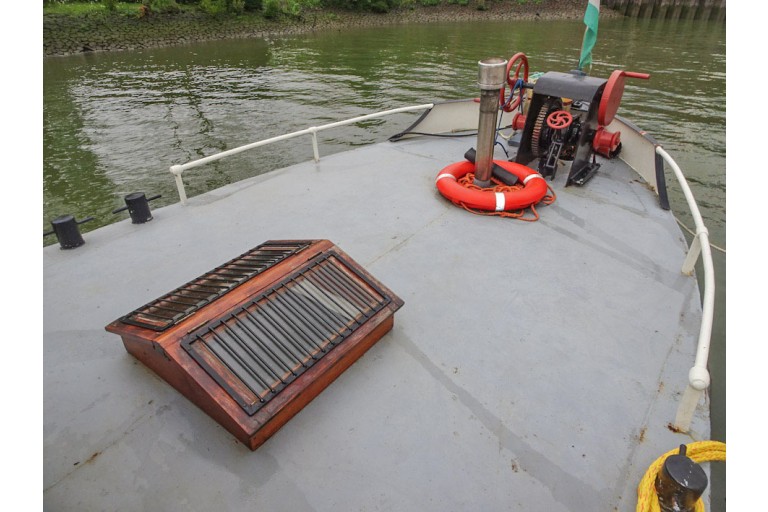

| Anchor equipment: | manual anchor winch warping drum Klipp anchor anchor chain in hawse-hole |
| Additional information: | deck lights table with storage inside hard wooden skylight Survey report of the underwatership is available (04-2021) |
