Work ship 35.10 with ES-TRIN
Vision Doeve Brokers

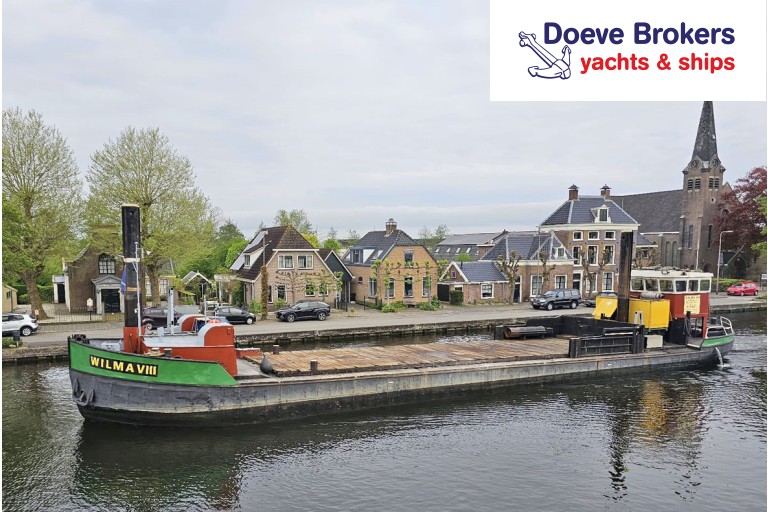

Are you looking for a robust, functional and versatile workboat for Nautic engineering or inland waterway construction? This vessel offers the ideal combination of practical equipment, basic crew accommodation and wide applicability for various projects on inland waterway. Certified for inland waters until January 2030; this workboat is immediately deployable. Equipped with a powerful proportional 400 Volt bow thruster, it ensures excellent manoeuverability under all operating conditions. The spacious working deck, finished with durable Azobé hardwood planking, is designed to accommodate a crawler crane or excavator (not included). Thanks to the electrically operated spud poles, the vessel can be held in a stable position during operations. Below deck, ample storage space is available for tools, materials and equipment. This vessel is highly suitable for a wide range of marine construction and civil engineering tasks, such as installing sheet piling, placing mooring piles, constructing jetties or pontoons, supporting dredging and foundation works. In addition, the ship can be used as a supply vessel for transporting (construction) materials to remote or water-accessible project sites that are hard to reach by road.
More information
General information
| Yard: | Shipyard Heinrich Brand, D-Oldenburg |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | welded rubbing strake canoe stern forecastle 4 watertight bulkhead(s) |
| Steering system: | mechanical wheel |
| Windows: | aluminium windows frames |
| Displacement (approx.): | loading capacity 141,547 m³ |
| Airdraft (approx.): | 5,30 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull green bulwark brown superstructure last underwatership treatment 01-2023 |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 01-2030 |
| Suitable for / as: | inland waterways commercial shipping workshop inspection vessel crane ship |
| General information: | offered in the condition that she is in Old age clause applicable. Any transactions must be submitted to the client or owner of the vessel for approval. Until this approval has been granted, all offers made are entirely without obligation. |
| Additional information: | The relevant VAT will be due on the asking price if the vessel is purchased by a consumer or by a Dutch company (provided it concerns a Dutch seller). Sale at 0% VAT to a is eventually possible if the buyer meets the applicable VAT guidelines. Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 239 Hp 176 kW |
| Engine brand: | GM Detroit |
| Revolutions: | 1800 RPM |
| Engine model: | 8V-71N |
| Number of cylinders: | 8 |
| Running hours (approx.): | 23800 |
| Fuel: | diesel |
| Fuel tank (approx.): | 2x 1500 litre 1x 1200 litre steel tank(s) BOBS overflowing fuel safety system |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft greasing device |
| Gearbox: | Twin Disc hydraulic |
| Heating: | electric |
| Bow thruster: | Kalkman electric bow thruster 400 Volt proportional 50 Hp |
| Electricity system: | 24 / 230 / 400 Volt 400 Volt shore power connection |
| Batteries: | 2x 225 Ah domestic batterie(s) 2x 140 Ah starter batterie(s) 1x 120 Ah starter batterie(s) generator |
| Battery charger: | 2x Ferve battery charger 24/8 |
| Genny: | Struver whisper set (1986) 150 kVA 230/400 Volt 1500 RPM 480 running hours (approx.) |
| Fresh water tank (approx.): | 1x 300 litre stainless steel tank(s) 1x 1000 litre (wordt niet gebruikt / is not in use / wird nicht verwendet / n'est pas utilisé) steel tank(s) |
| Water pressure system: | hydrophore pump & gravity |
| Bilge pump: | electric pump general service pump also deckwash pump |
| Gas system: | no gas on board |
| Additional information: | spare propeller |
Accommodation
| Interior: | simple interior |
| Cabins: | 2 cabins |
| Berth: | 2x 1-pers |
| Toilet / Heads: | toilet on deck |
| Galley: | along ships |
| Fridge / Refrigerator: | present |
| Washbasin: | stainless steel sink |
| Water tap: | cold running water |
| Headroom (approx.): | forward (approx.) 2,14 m cabins (approx.) 2,30 m toilet (approx.) 1,80 m wheelhouse (approx.) 1,93 m |
Navigation equipment
| Navigation equipment: | Jotron Automatic Identification System (AIS) Sailor RT144c VHF Icom VHF rudder indicator 2x window wiper tachograph horn navigation lights blue board with oscillating light |
Rigging and sails
| Mast: | lantern mast steel |
| Lowerable: | yes manual |
| Additional information: | 2x pin rail bobstay |
Equipment
| Anchor equipment: | manual anchor winch Klipp anchor anchor chain in hawse-hole 2x spudleg / pole (electric) 6,00 m under the bottom 2x 2,00 m verlengers / extenders / Verlängerung / Pièces de rallongesstücke specified length(s) is/are approximate warping drum |
| Safety: | life buoys life jackets fire extinguishers according to the certification requirements |
| Additional information: | Survey report of the underwatership is available (01-2023) steering chair deck lights |
