Luxe Motor 29.15 with ES-TRIN Rhine No longer available
Dimensions (m):
29.15 x 5.01 x 1.00
Ref. no.:
251003
Mooring:
Near Zwolle, Netherlands
Construction year:
1912
Material:
steel
Residential berth
Vision Doeve Brokers

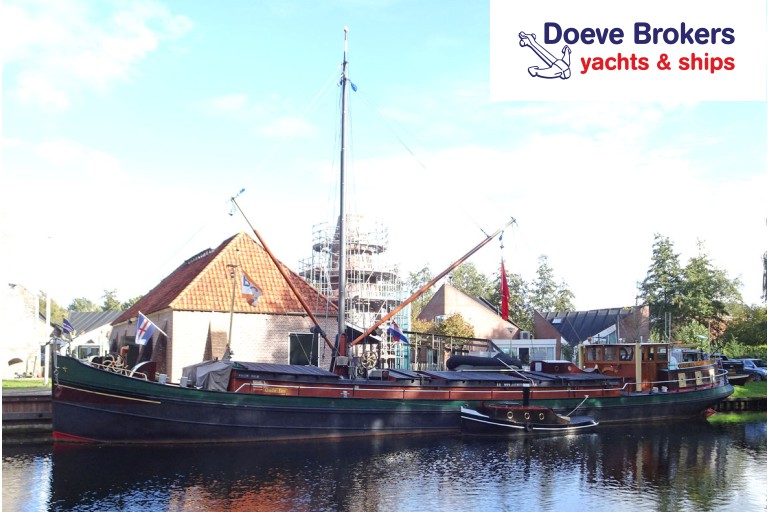

This Luxe Motor is a liveaboard vessel that retains its authentic exterior appearance while featuring a completely modernized interior. The aft cabin (aft deckhouse) still showcases much of its original character but has been tastefully updated. The wheelhouse is equipped with all modern conveniences and is collapsible, allowing an air draft of approximately 2,50 m. In the former cargo hold, a spacious and comfortable residential area has been created, featuring an open-plan galley, a generous saloon, a bathroom with both separate shower and bathtub, a toilet compartment, and a large owner’s cabin. In the forepeak, there is an exceptionally quiet whisper generator, and there is room to create an additional double berth. The onboard technical systems are of excellent quality and include various domotics (smart control) systems. Propulsion is fully electric, ensuring extremely quiet operation; for this purpose, two silent generators have been installed in the engine room. This liveaboard vessel combines modern comfort with the charm of a historic ship and has a residential mooring at its current berth. The buyer therefore has the opportunity to take over a unique mooring with residential status in one of the most beautiful areas of the Netherlands. For more information about the possibilities, please contact us.
More information
General information
| Yard: | Shipyard De Dageraad, de Wed. J. Boot, NL-Woubrugge |
| Yard rebuilt: | completed in-house finished using professionals |
| Rebuilt year: | 2005/2011 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel steel hatches covers over hold wooden hatches covers over hold |
| Construction method: | riveted new steel is welded deckhouse rubbing strake around bulwark wide side decks (gunnels) 1 watertight bulkhead(s) with watertight door(s) 2 watertight bulkhead(s) |
| Self made: | partly high quality |
| Steering system: | manual hydraulic steering wheel & electric steering |
| Windows: | double glazing & single glass hardwood outside doors |
| Displacement (approx.): | 69,360 m³ |
| Ballast (approx.): | 2 metric tons concrete tiles 2 metric tons lead |
| Airdraft (approx.): | 3,15 m 2,50 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull brown superstructure green bulwark last underwatership treatment 09-2024 very well maintained see photograph |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone R (Rhine) zone 3 zone 4 zone 2 Netherlands valid until: 11-2031 |
| Suitable for / as: | inland waterways suitable as a year round live- aboard & recreational vessel B&B |
| General information: | Any transactions must be submitted to the client or owner of the vessel for approval. Until this approval has been granted, all offers made are entirely without obligation. The ship is recognized as a Historic Vessel |
| Additional information: | Underwatership is partly double plated. Underwatership is almost fully replaced. classic lines beautiful sheer Hull shape is suitable for drying out. straight hull forepeak with chain locker Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 110 kW |
| Engine brand: | 400 Volt |
| Construction year engine: | 2011 |
| Fuel: | electric |
| Fuel tank (approx.): | 1x 300 litre 1x 4000 litre |
| Propulsion: | 5 blade propeller De Waal Stuwa propeller shaft seal greased lubrication of propeller shaft greasing device |
| Speed (approx.): | 15 km/hour top speed |
| Heating: | pelletstove & Roca Baja GTI Confort central heating on diesel |
| Air conditioning: | LG air conditioning reversed circle |
| Bow thruster: | Kalkman Epsilon 400 Volt electric bow thruster 30 kW 360 degrees turnable proportional |
| Electricity system: | 12 / 24 / 230 / 400 Volt 230 Volt shore power connection 400 Volt shore power connection largely replaced Mastervolt mainmaster control Mastervolt Switch with automatic changeover |
| Batteries: | 1200 Ah domestic batterie(s) 12x 2 Volt 1x 90 Ah starter batterie(s) generator 1x 90 Ah starter batterie(s) generator 1x 60 Ah starter batterie(s) generator 1x 20 Ah emergency batterie(s) |
| Battery charger: | Mastervolt Mass battery charger 24/100, 230 Volt Mastervolt Mass 3 Phase battery charger 24/100, 400 Volt Victron Phoenix battery charger 12/30 |
| Isolation transformer: | present ??????????? |
| Genny: | John Deere 100 kVA 230/400 Volt 1900 running hours (approx.) John Deere 60 kVA 230/400 Volt 330 running hours (approx.) Mastervolt Whisper 12 Ultra kW 230 Volt whisper set |
| Inverter: | 2x Mastervolt Mass inverter 24/2500 |
| Fresh water tank (approx.): | 1x 1350 litre 1x 650 litre stainless steel tank(s) |
| Water pressure system: | electric water pump |
| Fresh water filter system: | Wyckomar fresh water filter system |
| Hot water system: | 3x boiler/water calorifier (230 Volt) |
| Holding tank (approx.): | present suitable for pumping sewage to the shore |
| Diesel waterseparator: | present |
| Engineroom: | very well maintained clean engineroom see photographs |
| Bilge pump: | present |
| Deck wash pump: | present |
| Gas system: | no gas on board |
| Additional information: | LED lightning air compressor spare propeller |
Accommodation
| Interior: | Marine Plywood painted mahogany finish synthetic floor(s) suitable for living on board very well maintained see photographs |
| Insulation: | Rockwool vapor return film |
| Cabins: | 2 cabins |
| Berth: | owners cabin: 1x 2-pers Aft: 1x 2-pers Forward: 1x 2-pers (voorbereid / prepared / vorbereitet / préparé) |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: shower cubicle thermostat tap bath hot & cold running water washbasin with mixer tap and hot & cold running water Aft: shower hot & cold running water washbasin with hot & cold running water |
| Toilet / Heads: | Forward: toilet washbasin cold running water Aft: toilet |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob induction cooker cookerhood |
| Oven: | 1x Miele combi steamer oven 1x Miele microwave/oven |
| Fridge / Refrigerator: | 1x Miele fridge / refrigerator combination with freezer |
| Freezer: | 1x Miele freezer 1x Miele freezer |
| Worktop: | granite worktop |
| Washbasin: | granite sink |
| Water tap: | 1x mixer tap with hot & cold running water 1x Quooker boiling water tap 1x chilled water tap |
| Dishwasher: | Miele dishwasher |
| Headroom (approx.): | galley (approx.) 2,04 m salon (approx.) 2,02 m bathroom in the front (approx.) 2,06 m toilet in the front (approx.) 2,12 m ownerscabin (approx.) 2,16 m forward (approx.) 1,76 m wheelhouse (approx.) 1,85 m toilet aft (approx.) 1,81 m bathroom aft (approx.) 1,74 m cabin (approx.) 1,81 m |
| Additional information: | The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | A. van der Velden ECP 500 / Radio Zeeland 600 river autopilot (follow-up steering ) & follow up steering A. van der Velden ECP 500 rate-of-turn indicator A. van der Velden ECP 500 rudder indicator 2x DEBEG 6448 VHF Em-Trak A200 Automatic Identification System (AIS) compass blue board with oscillating light horn chartplotter JRC depth / echosounder JRC anemometer window wiper |
Rigging and sails
| Mast: | steel |
| Lowerable: | yes winch electric afstandsbediening / remote control / Fernbedienung / télécommande |
| Boom: | steel |
Equipment
| Anchor equipment: | manual anchor winch with electric motor remote control Klipp anchor in hawse-hole & kedge anchor Leeuwenstein spudleg / pole (electric) |
| Searail / Pulpit: | guardrail around side-walks |
| Dinghy: | present electric engine |
| Davits: | present |
| Safety: | life buoys life jackets fire extinguishers according to the certification requirements |
| Additional information: | The ship was completely gutted (only the hull is old) and then rebuilt. Before refitting the interior, the inside of the hull was thoroughly treated. Survey report of the underwatership is available (09-2024) Taking over of the current official residential rental mooring is possible. aluminium gangway |
