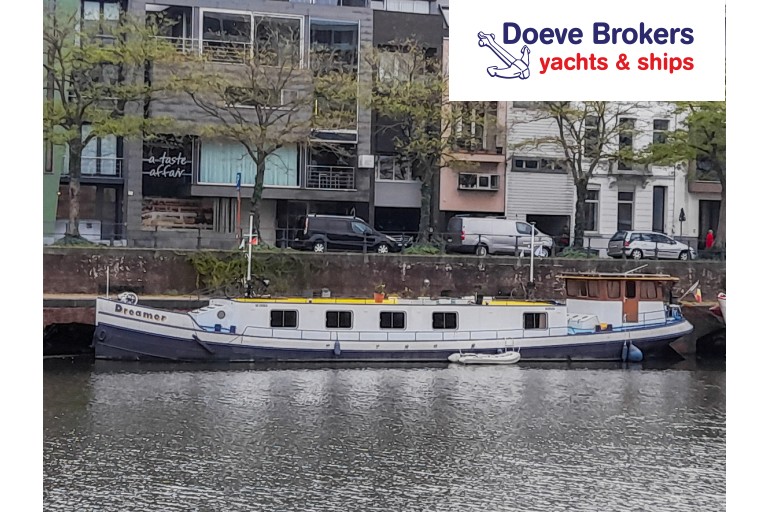

Luxe Motor 25.20 with ES-TRIN certificate No longer available
Dimensions (m):
25.20 x 4.95 x 1.10
Ref. no.:
251101
Mooring:
Near Ghent, Belgium
Construction year:
1911
Material:
steel
Vision Doeve Brokers
This cruising liveaboard vessel, a Luxe Motor, is ideally suited for long voyages on the European inland waterways or for permanent living on board. Thanks to the well-thought-out layout and woodwork, the interior is remarkably light, offering a beautiful open view over the water from both the galley and the salon, which greatly enhances onboard comfort. There are three cabins: one in the front with two double berths, one cabin is in the aft section of the former cargo hold with a double berth, and one cabin is in the aft cabin, accessible via the wheelhouse, which is fitted with a double berth, a compact bath/shower and a toilet. The vessel is in good condition, meaning that no deferred maintenance needs to be done by the new owner. Subject to the approval of the harbor master, it may even be possible to take over the current recreational mooring (which allows long-term recreational stay). In short, a complete and ready-to-go liveaboard barge perfectly prepared for new adventures on the inland waterways.
More information
General information
| Yard: | Shipyard R. de Winter, B-Boom |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded rubbing strake around bulwark aft cabin below 2 watertight bulkhead(s) |
| Steering system: | wheel mechanical |
| Windows: | aluminium windows frames hardwood outside doors |
| Displacement (approx.): | maximum allowable displacement 148,710 m³ displacement in empty condition 116,697 m³ displacement 32,013 m³ |
| Airdraft (approx.): | 3,60 m everything down |
| Owner: | Belgian owner |
| Registration: | Belgian registered |
| Colour / Paint System: | black hull white bulwark white superstructure freeboard & bulwark sandblasted decks and superstructure sandblasted two component basic system one component finish last underwatership treatment 06-2023 very well maintained |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone 3 zone 4 zone 2 Netherlands valid until: 06-2028 |
| Suitable for / as: | suitable as a year round live- aboard & recreational vessel inland waterways |
| General information: | Old age clause applicable. Hand over in consultation. |
| Additional information: | Hull shape is suitable for drying out. wheelhouse spacious upperdeck Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 194 Hp 143 kW |
| Engine brand: | DAF |
| Revolutions: | 1900 RPM |
| Engine model: | DK 1160 |
| Number of cylinders: | 6 |
| Construction year engine: | 1978 |
| Overhaul engine: | 2005 |
| Running hours (approx.): | 1500 after overhaul |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 350 litre white 1x 3300 litre red steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Twin Disc hydraulic |
| Heating: | Kabola B25 central heating on diesel hot air heating with back boiler connected to central heating |
| Bow thruster: | Kalkman Beta electric bow thruster 24 Volt 12 Hp |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 2x 150 Ah starter batterie(s) 8x 200 Ah Victron AGM domestic batterie(s) 2x 200 Ah bow thruster batterie(s) |
| Battery charger: | Victron MultiPlus-II combi inverter/charger 24/5000/120 CTEK battery charger |
| Inverter: | Victron MultiPlus-II combi inverter/charger 24/5000/120 Victron Orion Tr inverter 24/12-20 |
| Solar panels: | 8x 190 Wp solar panel Victron BlueSolar MPPT 150/70 charge controller |
| Fresh water tank (approx.): | 1x 9000 litre steel tank(s) coated |
| Water pressure system: | Grundfos hydrophore pump |
| Hot water system: | 1x boiler/water calorifier (230 Volt) 100 litre |
| Holding tank (approx.): | 1x 120 litre not connected |
| Engineroom: | see photographs |
| Bilge pump: | present |
| Deck wash pump: | present |
| Gas system: | no gas on board |
| Additional information: | LED lightning |
Accommodation
| Interior: | oak finish oak floor(s) various materials have been used suitable for living on board very well maintained see photographs |
| Insulation: | available |
| Cabins: | 3x cabin |
| Berth: | owners cabin: 1x 2-pers Forward: 2x 2-pers Aft: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Amidship: tiled bathroom shower thermostat tap washbasin with hot & cold running water in 1 area together with the toilet Aft: 1x guest cabin(s): sitting bath with shower thermostat tap in 1 area together with the toilet |
| Toilet / Heads: | Forward: electric toilet washbasin with mixer tap and hot & cold running water Amidship: flush toilet Aft: electric toilet |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob ceramic cooker cookerhood |
| Oven: | electric oven grill |
| Fridge / Refrigerator: | 230 Volt |
| Freezer: | 230 Volt |
| Worktop: | tiled worktop |
| Washbasin: | 1 sink |
| Water tap: | mixer tap with hot & cold running water |
| Headroom (approx.): | salon (approx.) 2,12 m forward cabin (approx.) 1,85 m ownerscabin (approx.) 2,05 m aftcabin (approx.) 1,59 m toilet in the front (approx.) 1,97 m bathroom / toilet (approx.) 2,03 m galley (approx.) 2,12 m |
| Additional information: | AEG washing machine Bosch Avantixx 7 tumble dryer The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. |
Navigation equipment
| Navigation equipment: | Garmin Class B Automatic Identification System (AIS) Garmin VHF 100i VHF with DSC Standard Horizon HX300 portable VHF rudder indicator PC Navigo chartplotter horn navigation lights |
Rigging and sails
| Mast: | 2x lantern mast steel |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch warping drum Klipp anchor anchor chain in hawse-hole |
| Searail / Pulpit: | guardrail around |
| Dinghy: | Zodiac inflatable dinghy electric engine 3 Hp |
| Davits: | steel manual winch |
| Safety: | fire extinguishers life jackets life buoys according to the certification requirements fire blanket |
| Additional information: | deck lights aluminium gangway deck lights steering chair Survey report of the underwatership is available (06-2023) The berth is not automatically transferable. However, a potential new owner can submit a request for takeover to the port if they wish to keep the berth. An introductory meeting is part of the decision-making process. sundeck |
