Luxe Motor 16.20 Deckhouse

Dimensions (m): 16.20 x 4.40 x 1.30
Ref. no.: 260605
Mooring: Near Nijmegen, Netherlands
Construction year: 1927
Material: steel
Price: € 249.500,--
VAT not applicable

Download PDF folder

Contact us

Vision Doeve Brokers

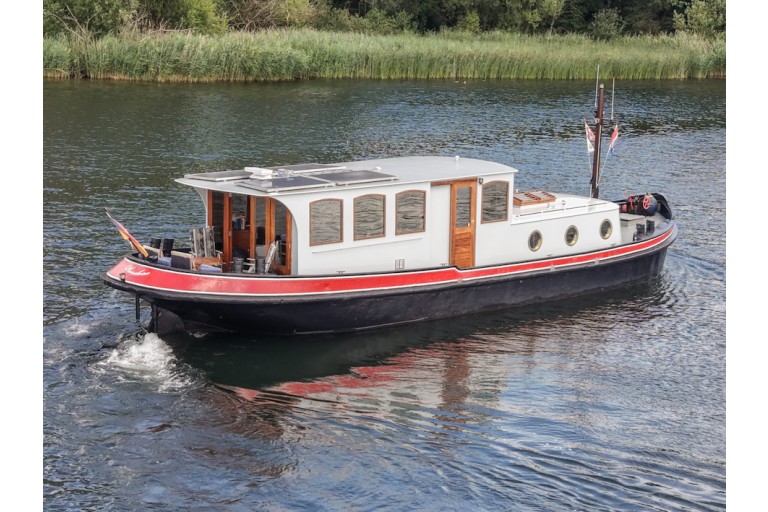

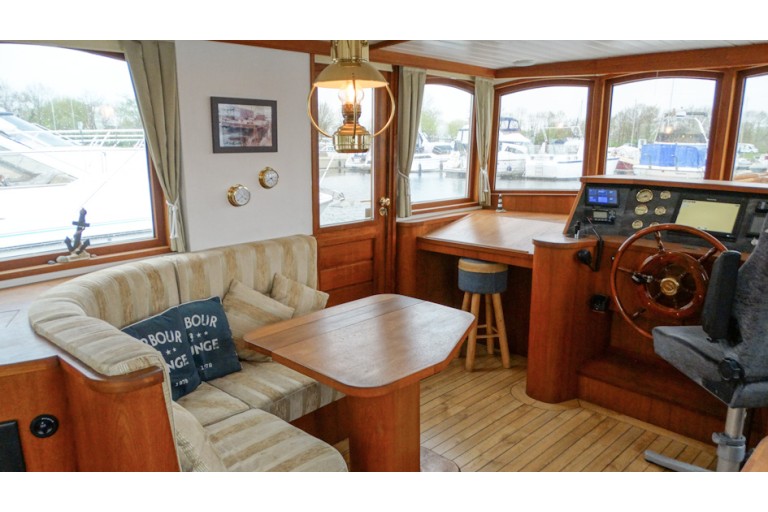

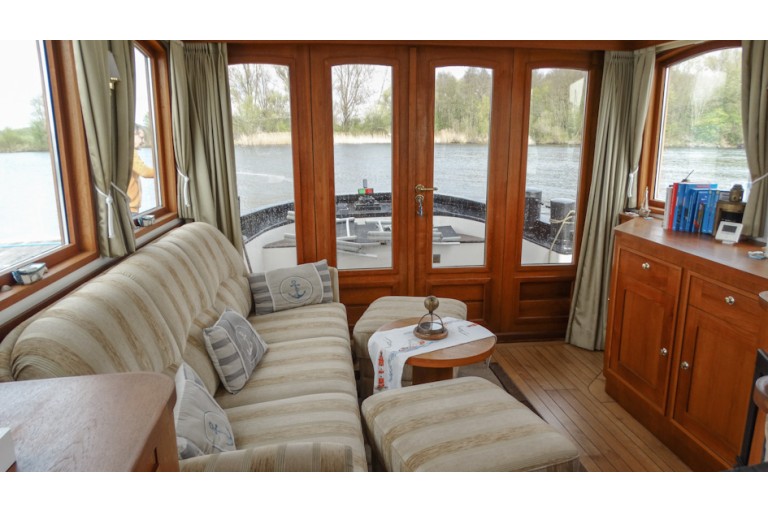

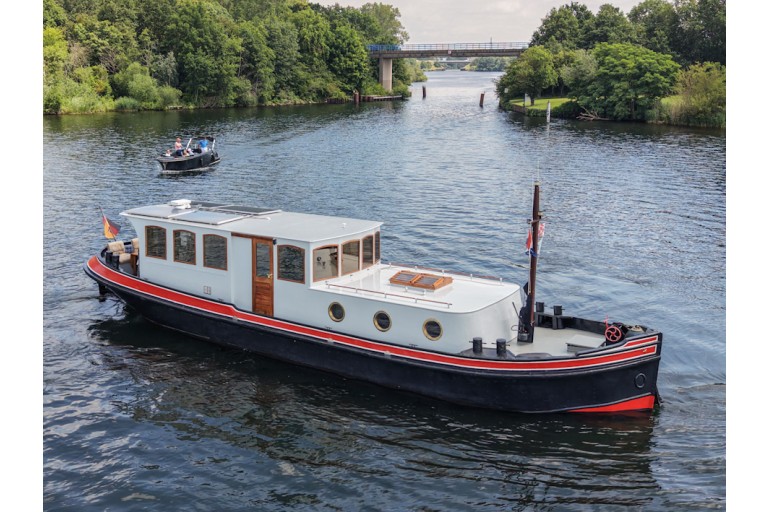

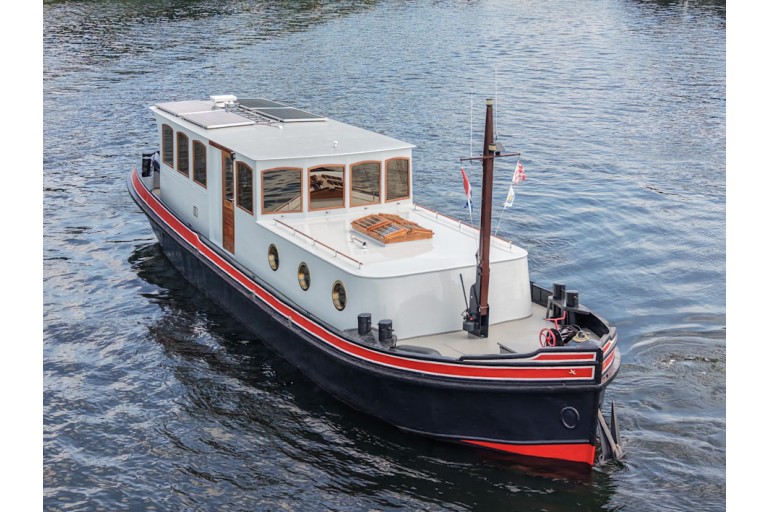

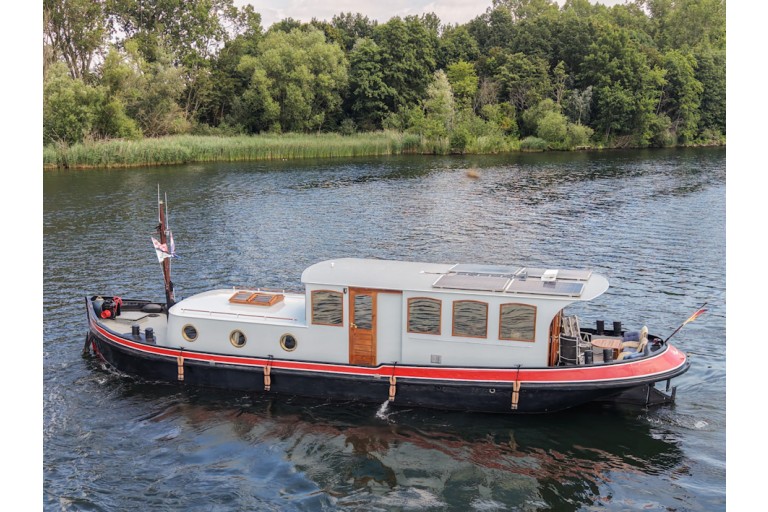

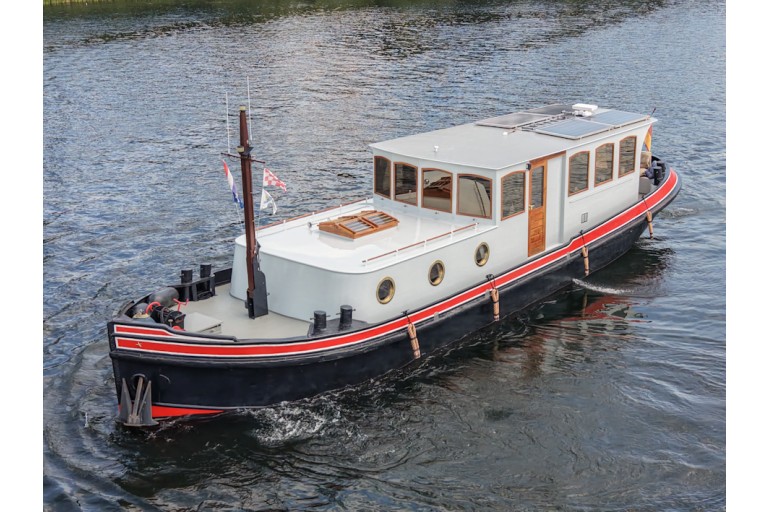

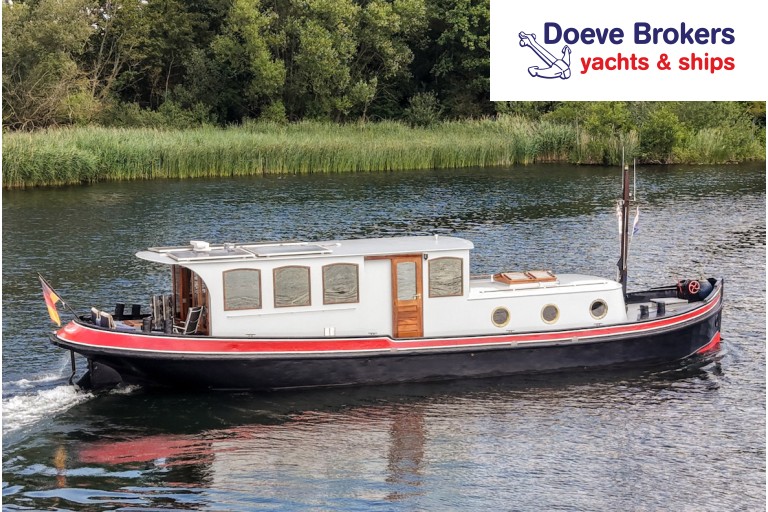

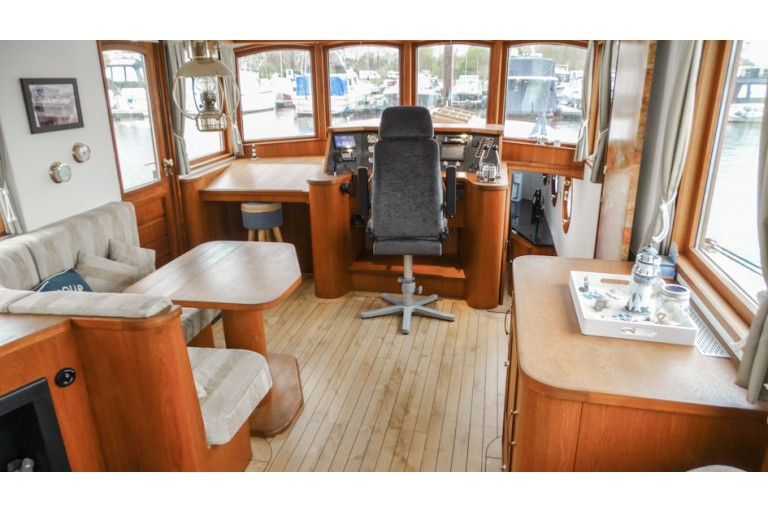

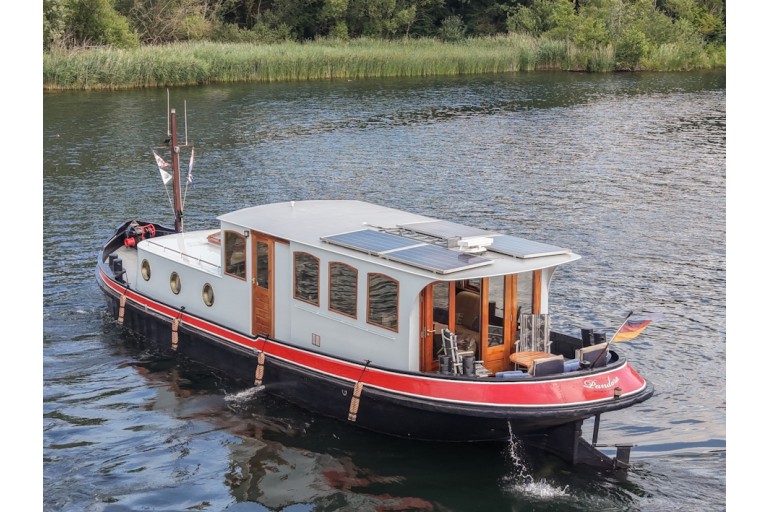

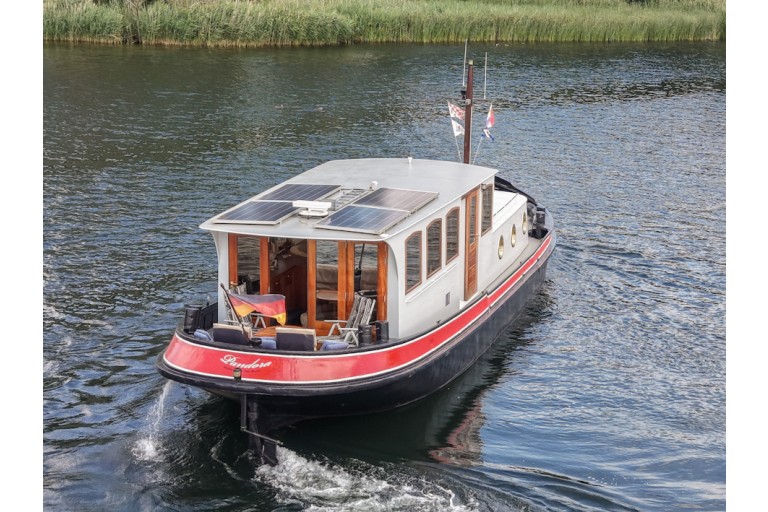

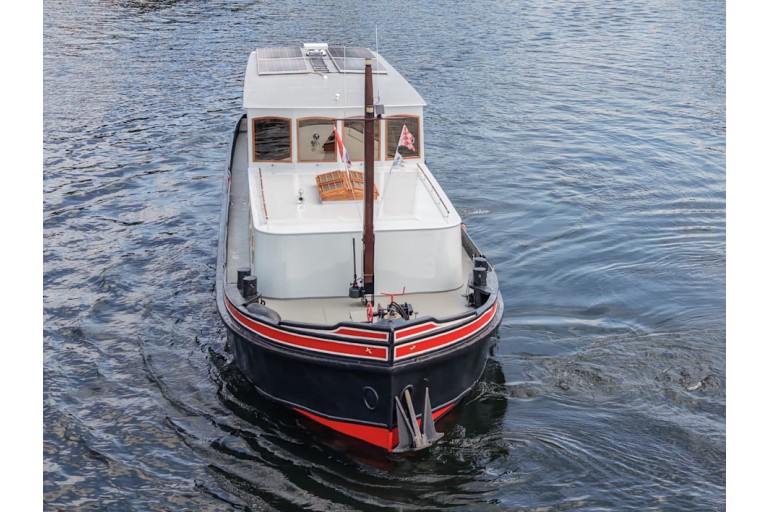

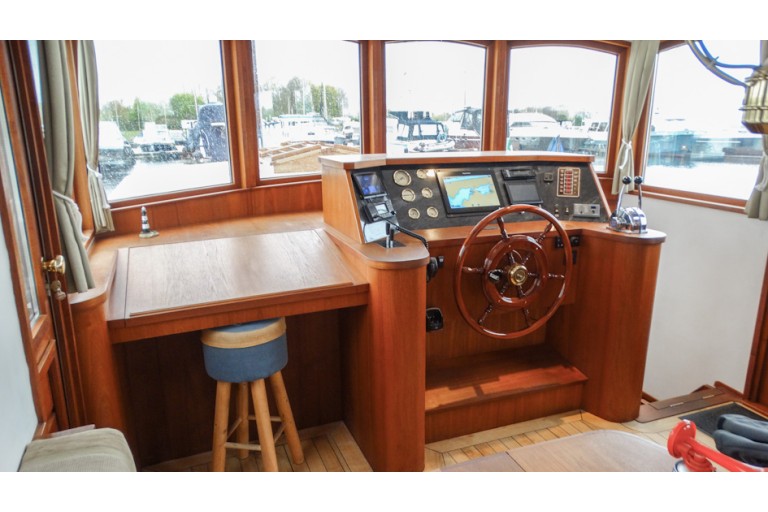

Former inland cargo vessel that has been shortened, after which the hull was completely rebuilt into a cruising liveaboard Dutch Barge. Thanks to her beam there is ample interior volume. The deckhouse with integrated wheelhouse offers excellent all-round visibility and a comfortable cruising experience. The generous windows, combined with the aft and side doors, all fitted with insulated double glazing, create a bright and open living environment with a direct connection between the interior and exterior spaces. Due to her dimensions, the vessel is not subject to ES-TRIN certification requirements, while the air draft of approximately 2.95 metres provides access to an extensive cruising area. The interior has been professionally fitted out with great attention to detail, using high-quality materials. The accommodation features an owner’s cabin with a French bed, a spacious bathroom with shower cabin and washbasin, a separate toilet room, a practical storage area in the forepeak, a galley and a spacious salon. The salon accommodates the inside steering position, a comfortable dinette and a generous settee. The aft deck provides ample outdoor space and is a pleasant place to enjoy the surroundings. The vessel is in a good state of maintenance and has been preserved with a 2-component paint system, contributing to long-lasting protection and a well-kept appearance.

More information

General information

Yard: Shipyard De Industrie, NL-Alphen aan den Rijn
Yard rebuilt: Yard Bendie, NL-Katwijk
Rebuilt year: 2014/2018

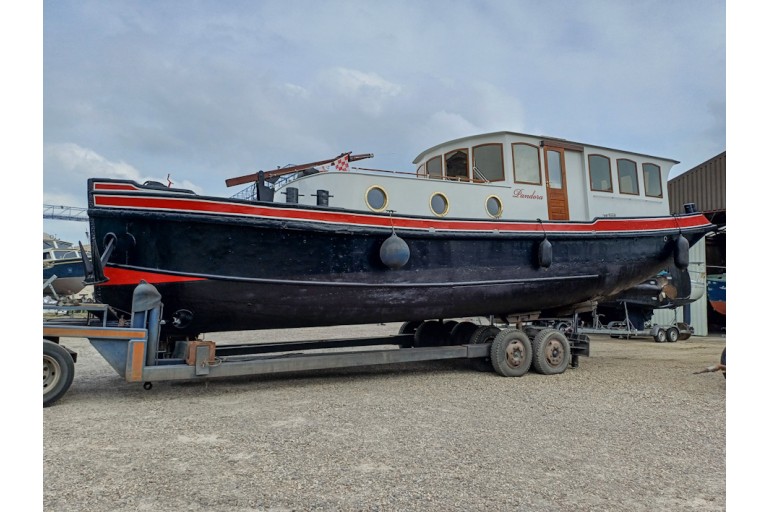

Hull shape: flatbottom
Hull material: steel
Deck material: steel
Superstructure material: steel
Construction method: riveted
new steel is welded
rubbing strake around
bulwark around
deckhouse
wide side decks (gunnels)
Steering system: hydraulic
wheel

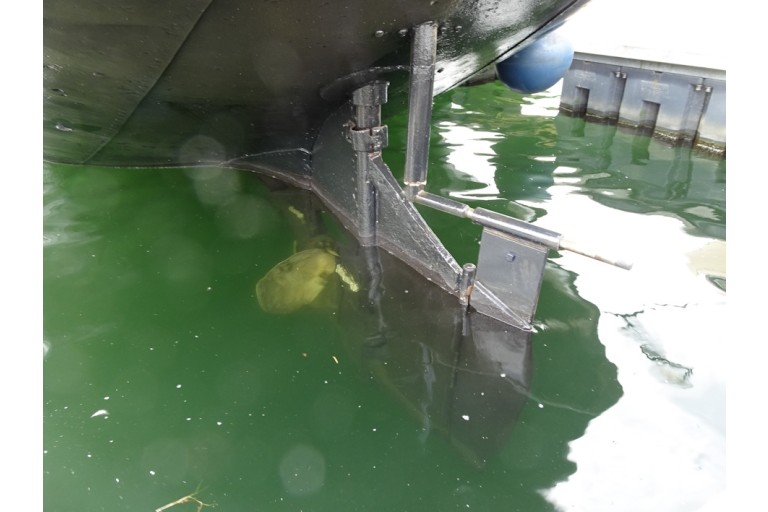

balance rudder
Becker rudder
Windows: brass portholes
teak wood window frames
teak wooden outside doors
double glazing
Displacement (approx.): 35 metric tons
Ballast (approx.): 5 metric tons
tiles
lead blocks
Airdraft (approx.): 2,95 m
Owner: German owner
Colour / Paint System: black hull
red bulwark
white superstructure
two component system
very well maintained
05-2015 underwater ship and hull sandblasted
two component system
last underwatership treatment 06-2026
antifouling
Certificates: no certificate requirement
RCD / CE Certification: no
Suitable for / as: inland waterways
suitable as a year round live- aboard
recreational vessel
General information: good sailing characteristics
Additional information: Given construction year is an estimate.
Hull shape is suitable for drying out.
classic motor yacht
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.

Technical information

Enginepower: 136 Hp
100 Hp

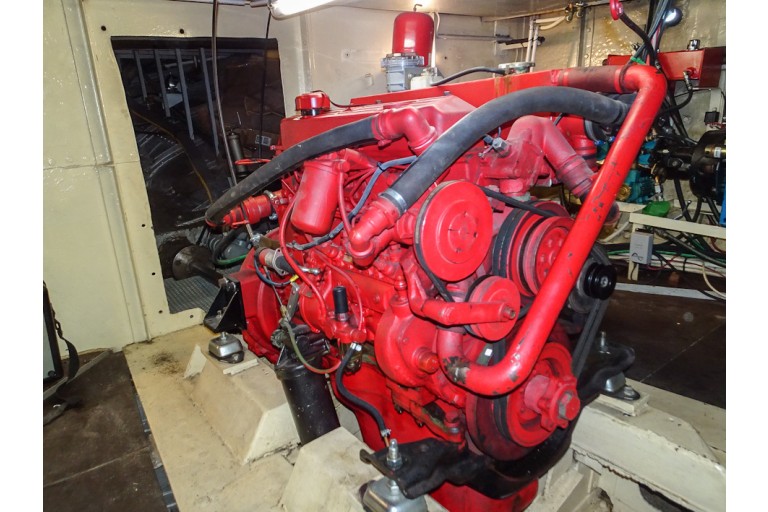

Engine brand: Mercedes
Engine model: OM366
Number of cylinders: 6
Construction year engine: 1985
Running hours (approx.): unknown
Fuel: diesel
4,5 ltr/hrs consumption of the engine at cruising speed (as declared)
Fuel tank (approx.): 2150 litre
1 plastic tank(s)
Cooling system: intercooling
wet exhaust
Propulsion: 3 blade propeller
greased lubrication of propeller shaft
Gearbox: ZF-Hurth HSW 450 hydraulic
reduction/ratio 3,75:1
Speed (approx.): 10 km/hour cruising speed
14 km/hour top speed

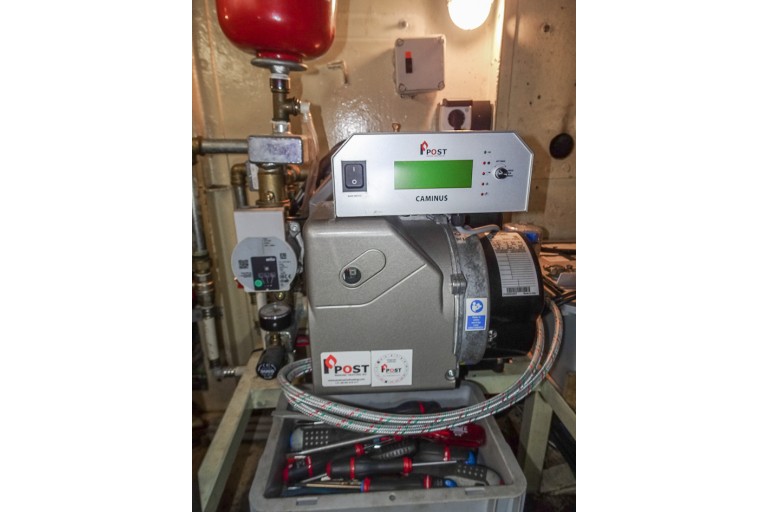

Heating: Post Caminus central heating
combi boiler
on diesel
&
gel stove
Bow thruster: Vetus BOW16024D hydraulic bow thruster
160 KGF
Stern thruster: Vetus BOW16024D hydraulic stern thruster
160 KGF
proportional

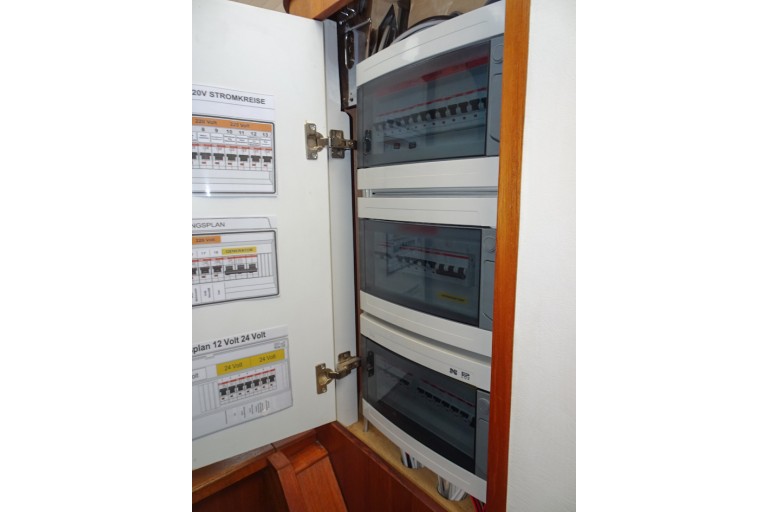

Electricity system: 12 / 24 / 230 Volt
230 Volt shore power connection
Victron Cerbo GX
Victron GX Tank 140
Victron GX Touch & VictronConnect app mainmaster control
Victron MultiControl
Batteries: 2x 190 Ah starter batterie(s)
1x 75 Ah starter batterie(s) auxiliary engine
4x 100 Ah, 25,9 Volt domestic batterie(s) LiFePO4
Battery charger: Victron MultiPlus combi inverter/charger 24/3000/70
Earth-leakage breaker: present
Inverter: Victron MultiPlus combi inverter/charger 24/3000/70
Victron Orion-TR inverter 24/12-20

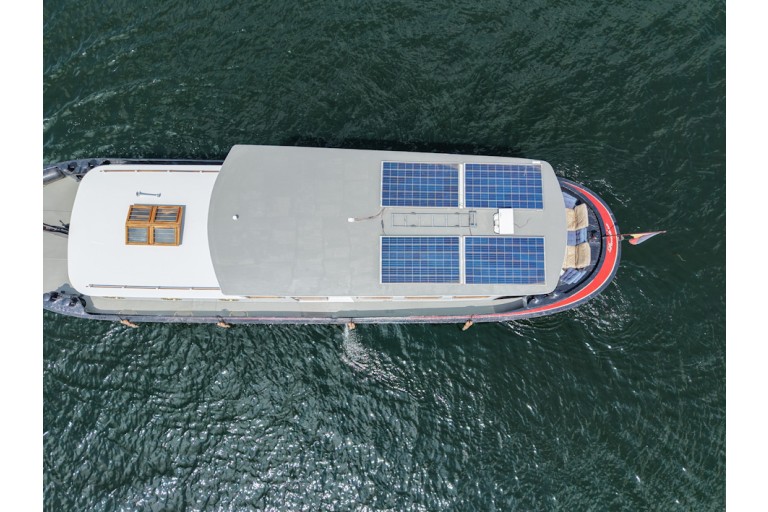

Solar panels: present
4x 275 Watt
Victron Blue Solar MPPT charge controller 100/50
Fresh water tank (approx.): 1425 litre
1 plastic tank(s)
Water pressure system: electric water pump
230 Volt
Hot water system: through the central heating
Holding tank (approx.): 160 litre
1 plastic tank(s)
Bilge pump: present
3x electric pump
230 Volt
Deck wash pump: present
electric pump
230 Volt
Gas system: yes, bottle(s) in bottle box
Additional information: spare propeller

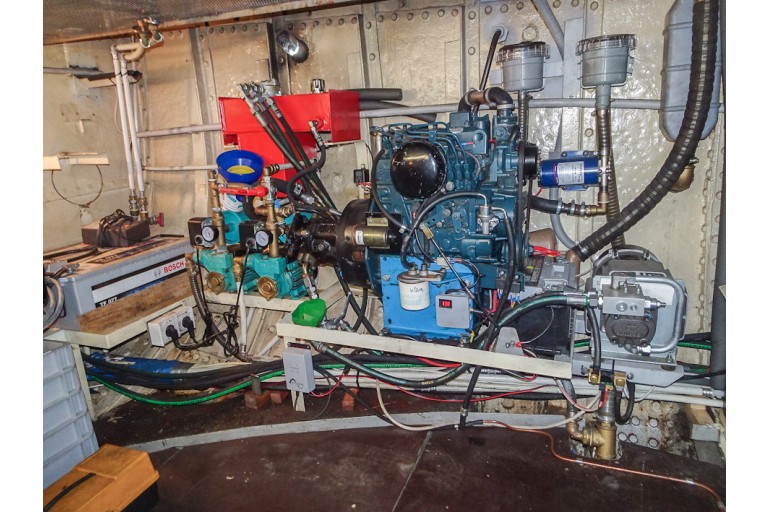

Kubota auxiliary engine with PTO for the hydraulic
Homematic Smart control
LED lightning

Accommodation

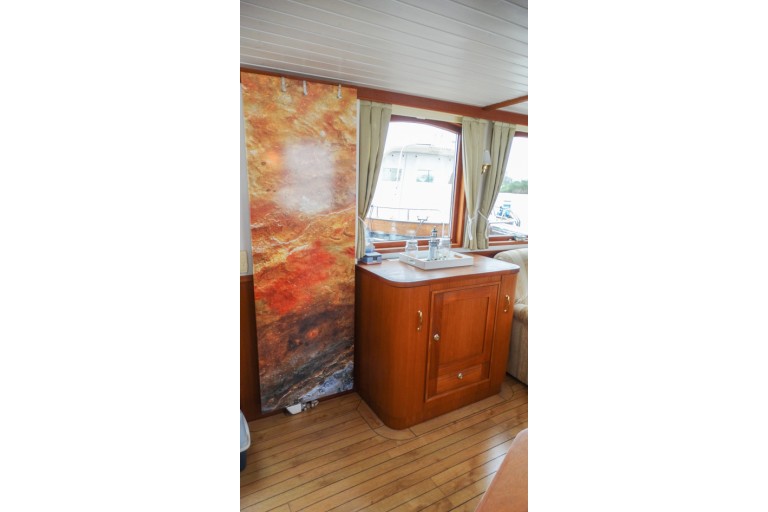

Interior: teak interior
professionally done
see photographs
Insulation: well insulated
Thermo Hanf Combi Jute
Cabins: 1 cabin

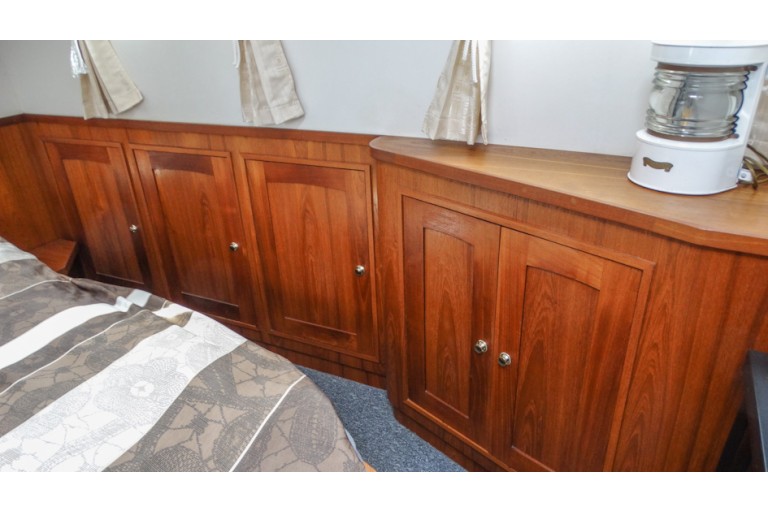

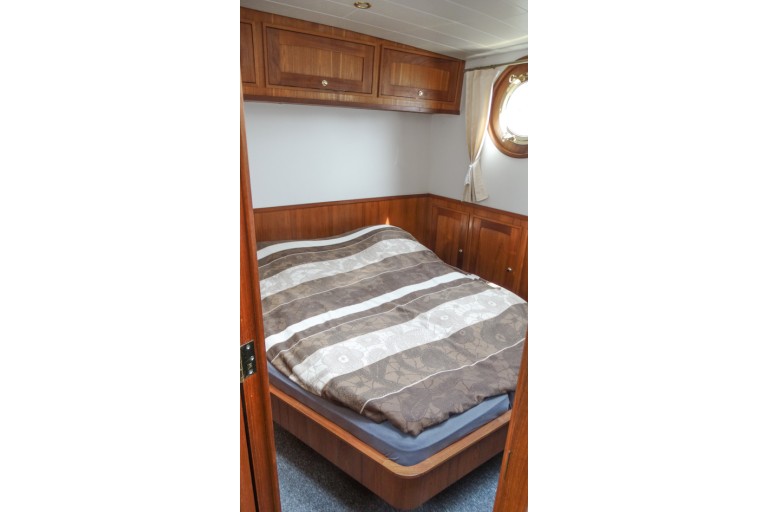

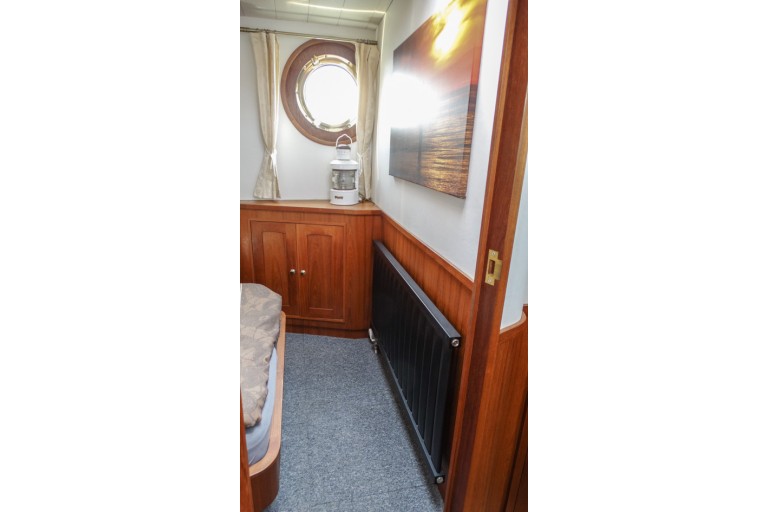

Berth: owners cabin: 1x 2-pers
French bed

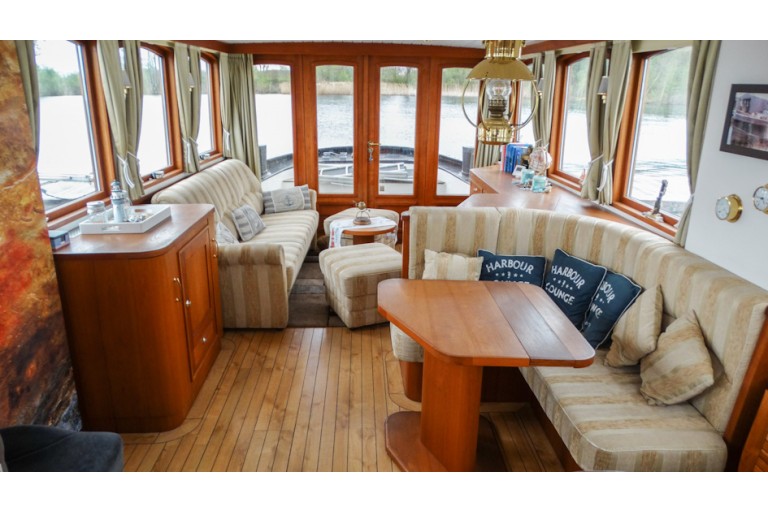

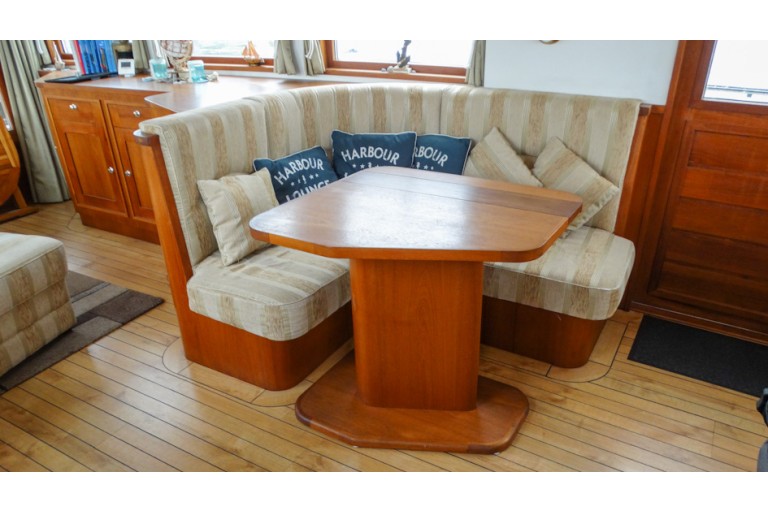

Salon: 1x 2-pers

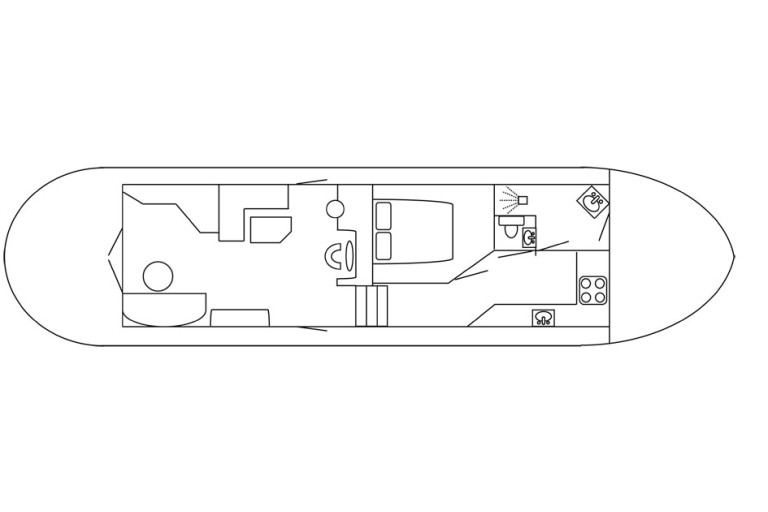

Lay-out plan (not to scale): see attachment

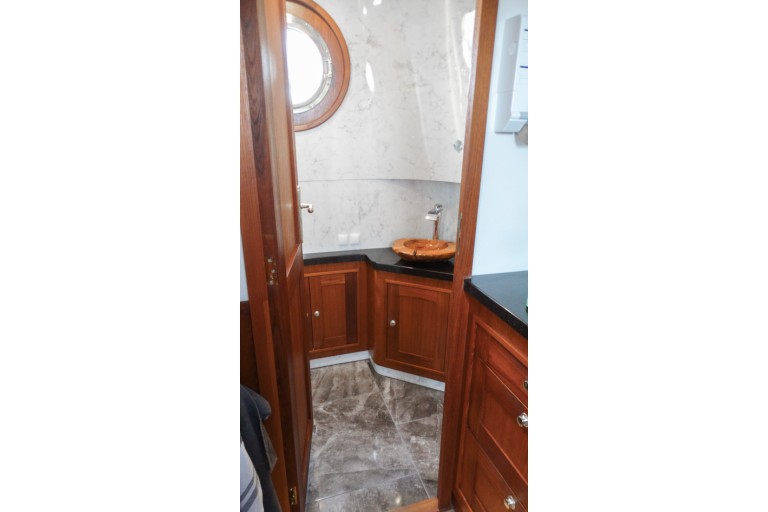

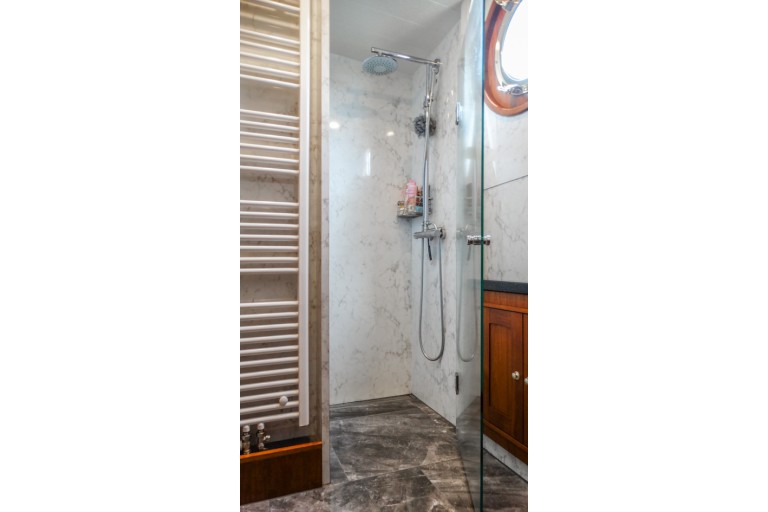

Bathroom: shower cubicle
thermostat tap

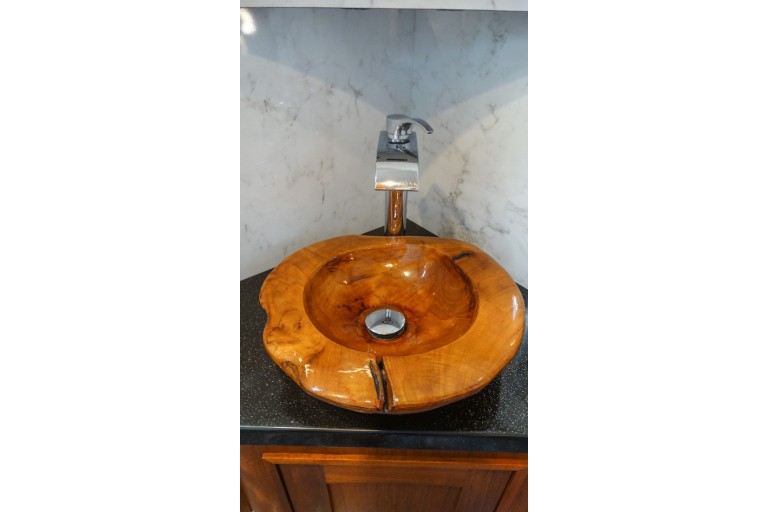

washbasin with mix tap and hot & cold running water

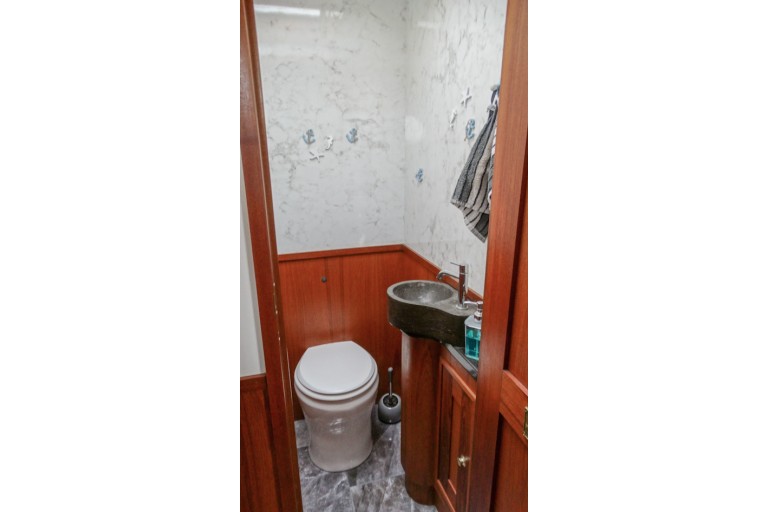

Toilet / Heads: electric toilet
washbasin

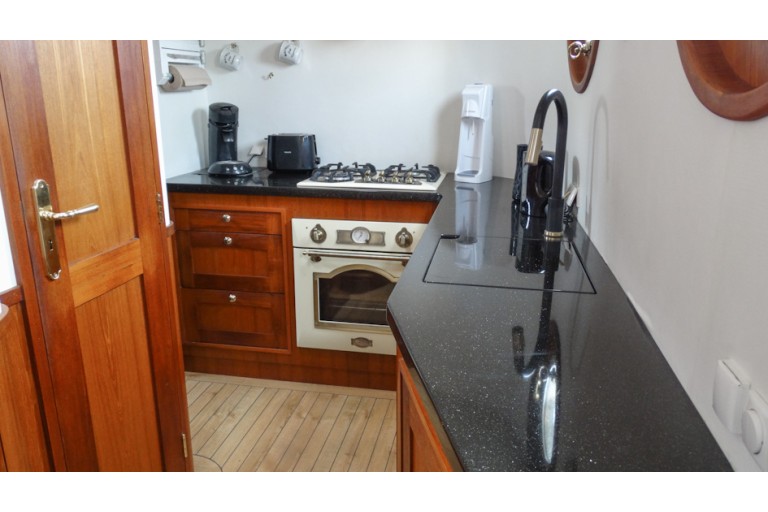

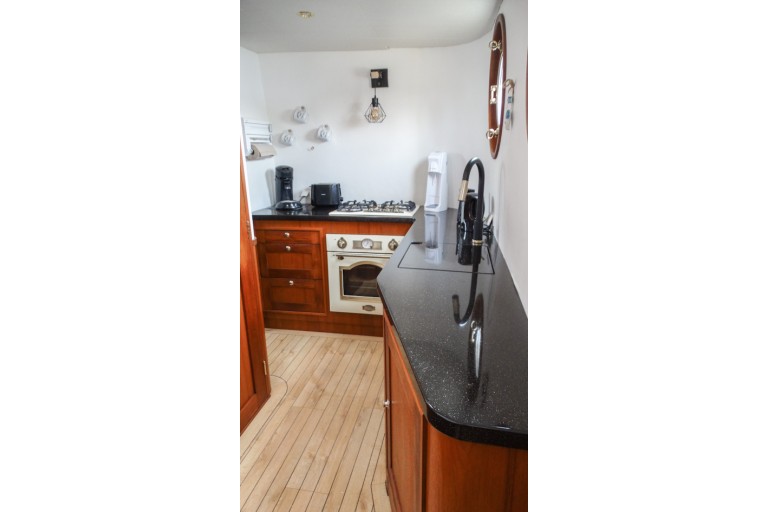

Galley: L-shape galley
Cooker: 4-burner hob
on gas
Oven: gas oven
Fridge / Refrigerator: present
230 Volt
& bottles cooler
Freezer: present
230 Volt
Worktop: GetaCore plastic worktop
Washbasin: granite sink
Water tap: mixer tap with hot & cold running water

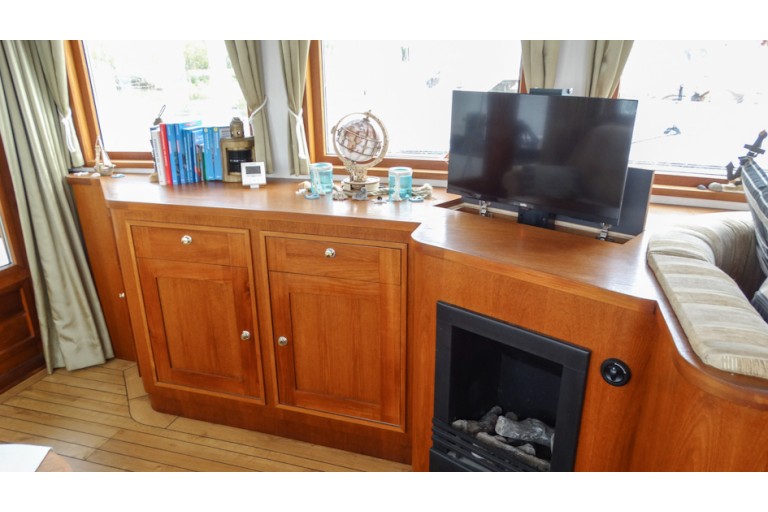

Entertainment: flatscreen TV
TV lift
satellite antenna
Headroom (approx.): salon (approx.) 1,95 m
ownerscabin (approx.) 2,03 m
galley (approx.) 2,03 m
toilet (approx.) 2,03 m
bathroom (approx.) 2,15 m
Additional information: washing machine

Navigation equipment

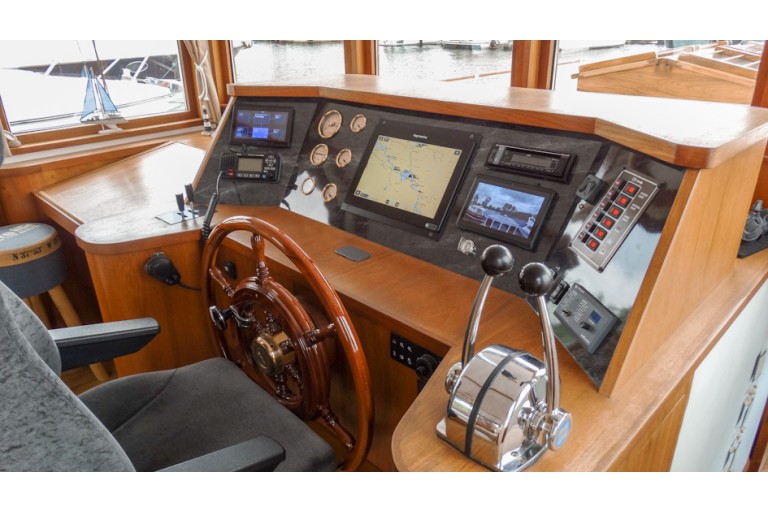

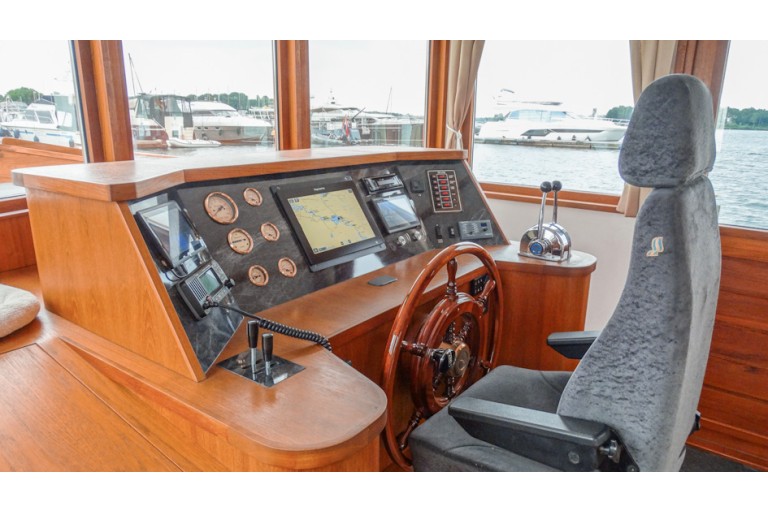

Navigation equipment: Raymarine Axiom 12 chartplotter / GPS
Class B Automatic Identification System (AIS)
ICOM IC-M323G VHF with DSC
Raymarine depth / echosounder
horn
navigation lights
burglary alarm

Rigging and sails

Mast: lantern mast
wood
Lowerable: yes
hydraulic

Equipment

Anchor equipment: manual windlass with hydraulic motor
d'hone anchor
100 m anchor chain
in hawse-hole
warping drum
specified length(s) is/are approximate
Boarding ladder: present
steel
Safety: fire extinguishers
bilge alarm
life jackets
Additional information: hard wooden skylight
set deck furniture
Survey report of the underwatership is available (05-2026)
steering chair
