Luxe Motor 24.00, ES-TRIN Rhine certified
Dimensions (m):
24.00 x 4.85 x 1.25
Ref. no.:
260707
Mooring:
Near Mulhouse, France
Construction year:
2006
Material:
steel
Price:
€ 297.500,--
VAT has been paid
Vision Doeve Brokers

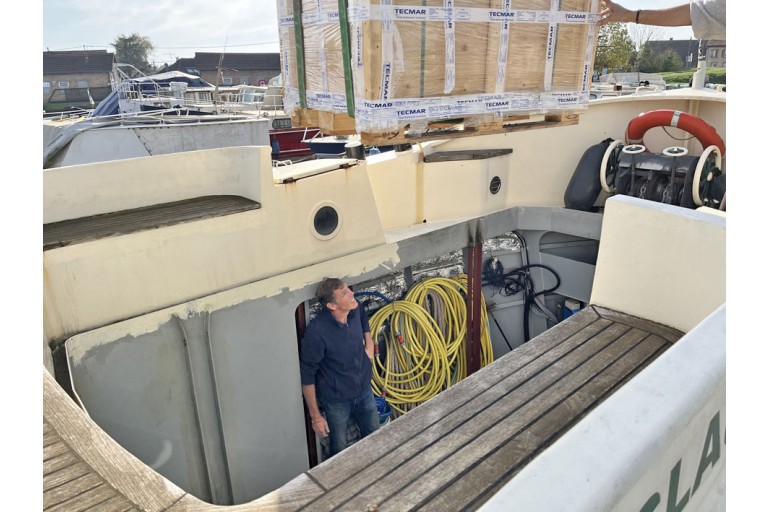

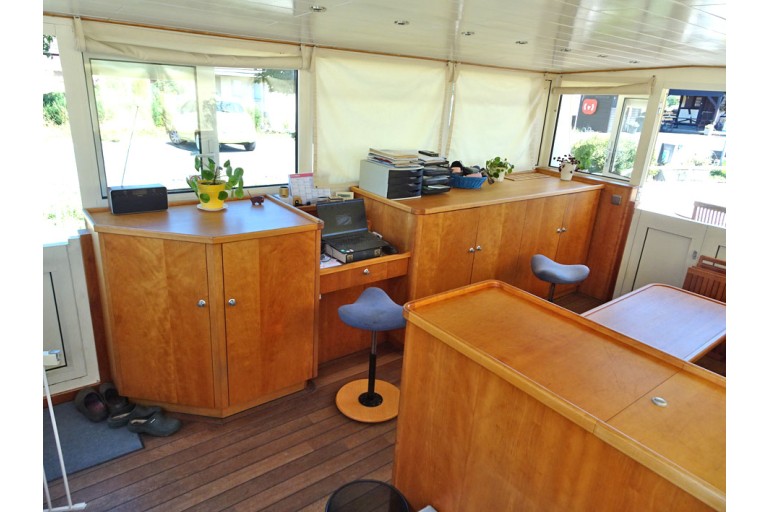

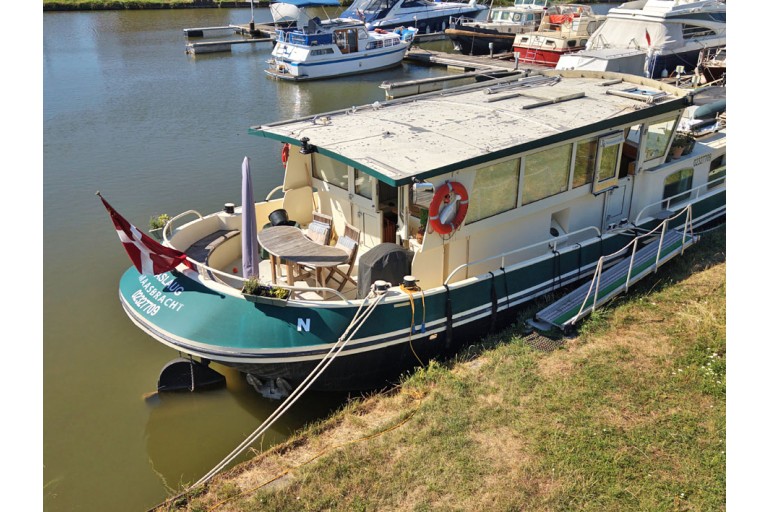

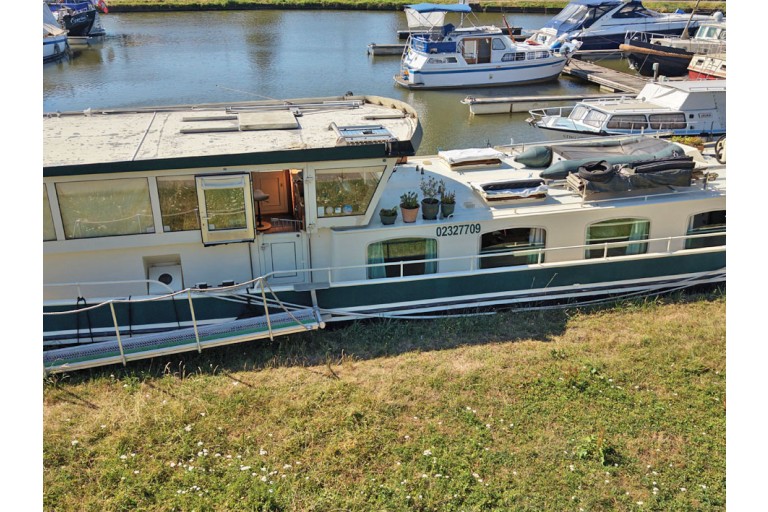

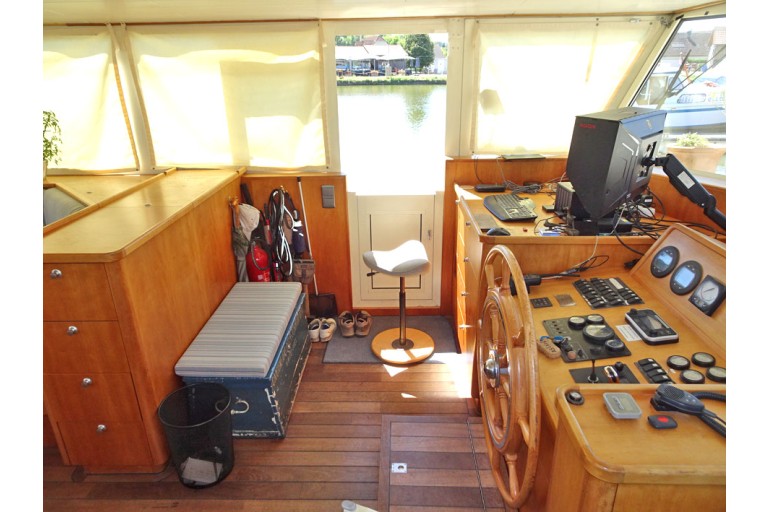

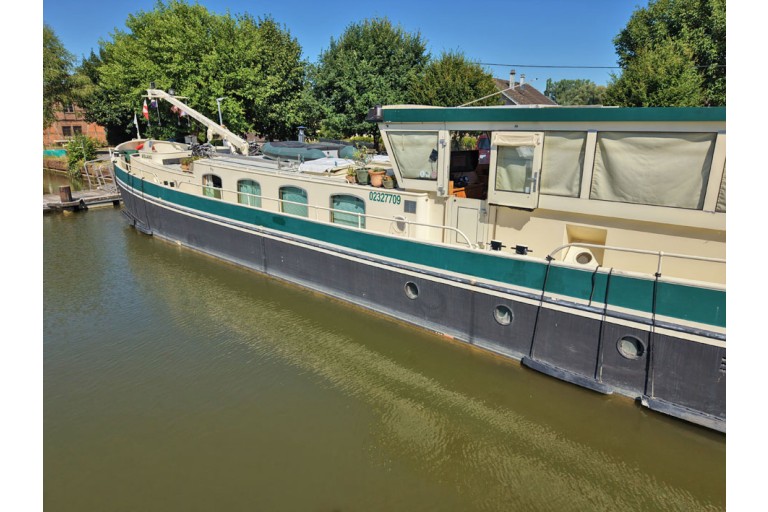

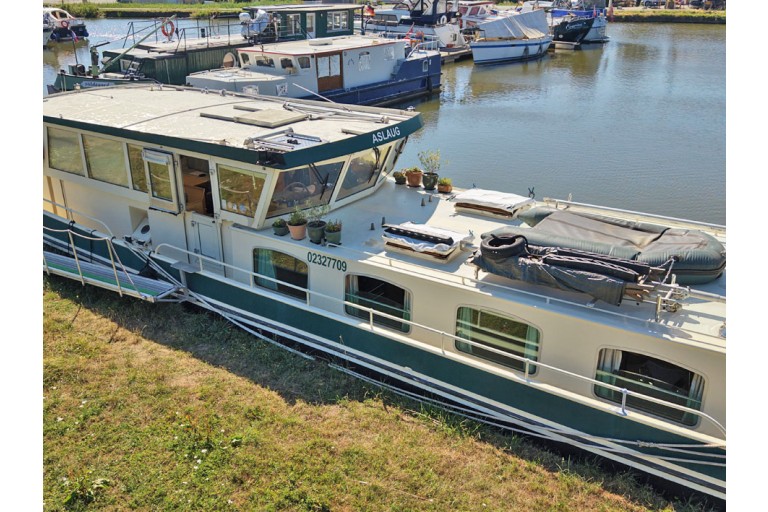

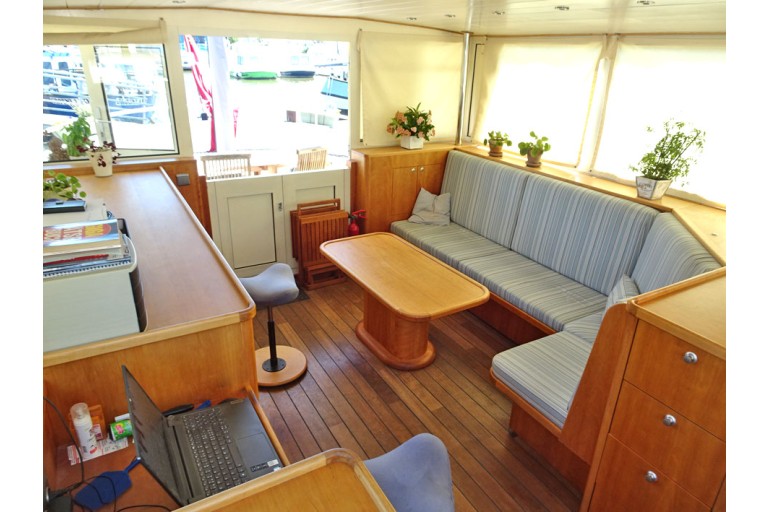

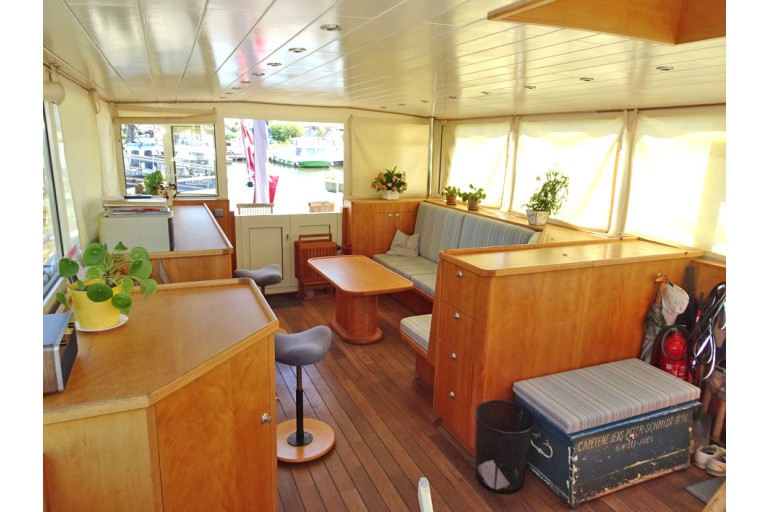

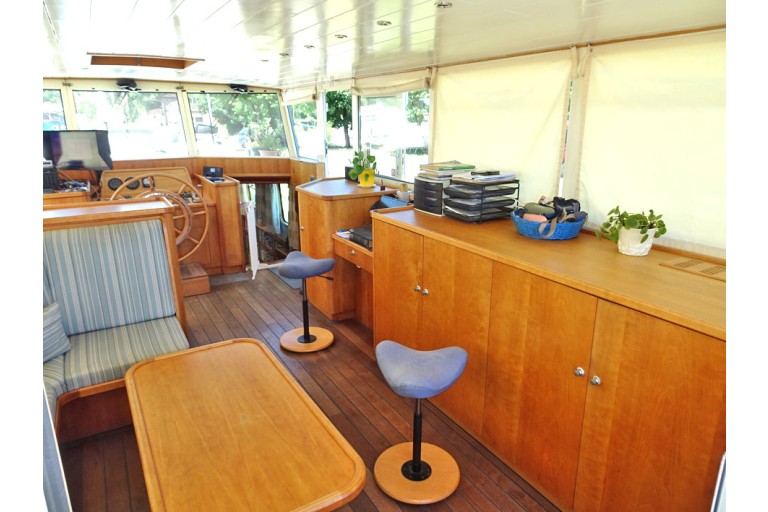

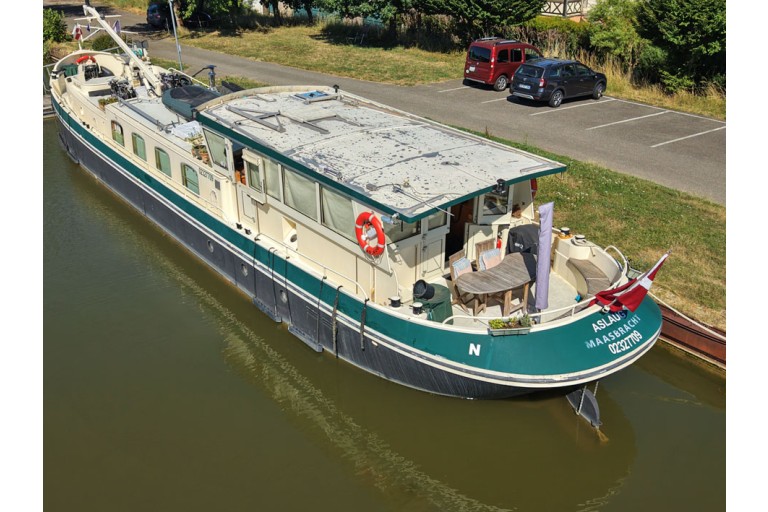

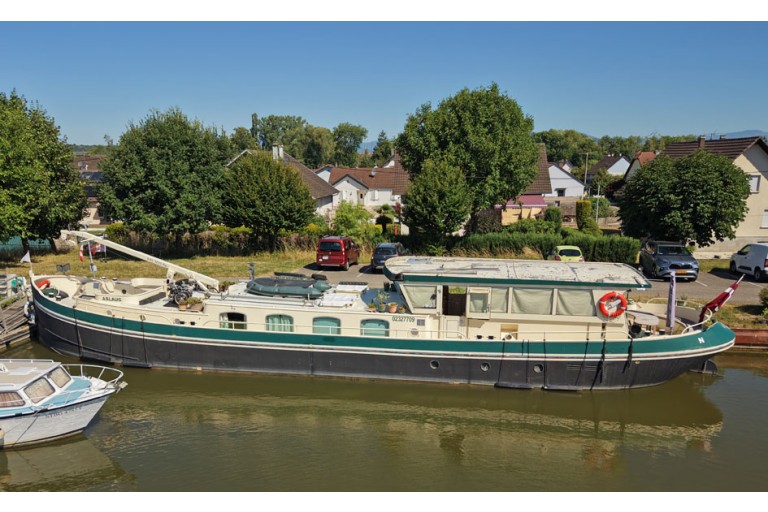

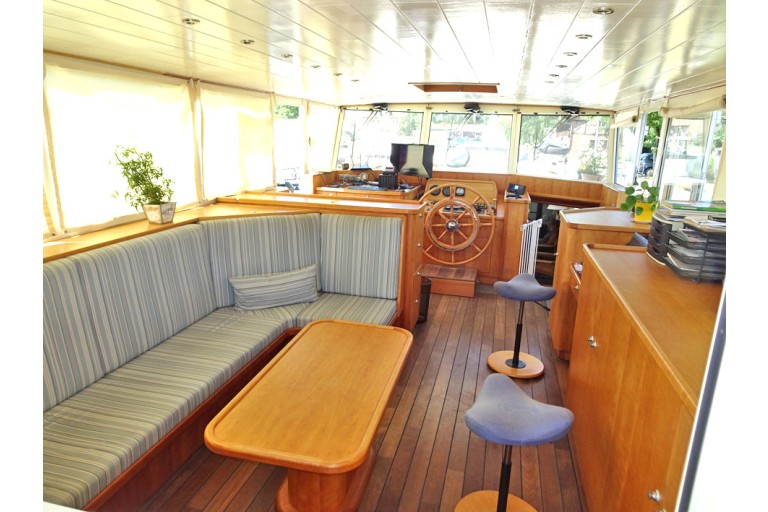

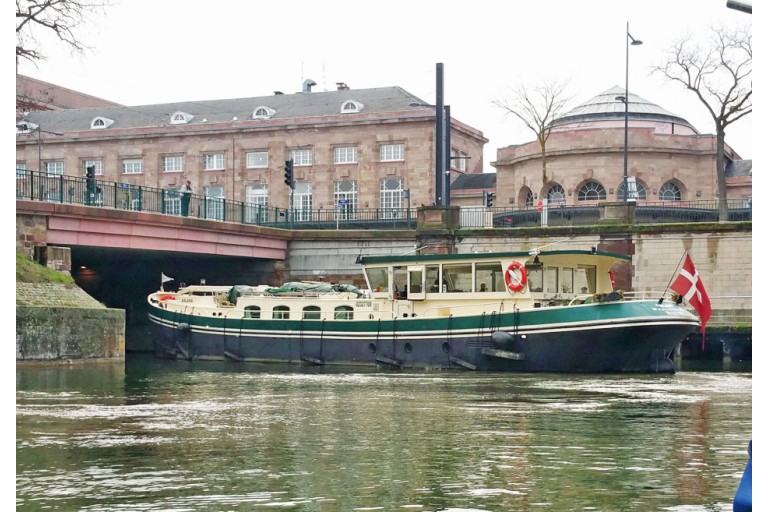

This Luxe Motor was newly built for and partly by the present owner to provide living comfortably onboard while cruising the European inland waterways with a limited number of guests. No expense was spared to achieve a high level of comfort and practicality. The vessel features an extensive technical installation, including a vehicle crane. The forepeak serves as a garage for a small car (or motorcycle). Another distinctive feature is the hydraulically height-adjustable wheelhouse roof. Lowering the roof reduces the air draft to only approx. 2.60 meters. The accommodation is spacious and practically arranged, with two comfortable guest cabins, each with an en suite bathroom. In addition, there is an owner's cabin with en suite bathroom, a salon and a spacious galley. The wheelhouse offers an excellent steering position and ample seating with panoramic views. Side doors and aft doors provide excellent access to the outside and make manoeuvring easy. During recent years the exterior has received less attention, resulting in some deferred maintenance. This has been fully reflected in the asking price. An excellent opportunity for anyone seeking a spacious and comfortable liveaboard barge with an extensive cruising range.
More information
General information
| Yard: | Shipyard Euroship Services, NL-Heerewaarden / Ament Metaalbewerking, B-Kinrooi Interior: DKS, NL-Hardinxveld-Giessendam |
| Designer / Architect: | Euroship Services, NL-Heerewaarden |
| Hull shape: | multi hard chine flatbottom |
| Hull material: | steel 20/10/6 mm |
| Deck material: | steel 5 mm |
| Superstructure material: | steel 5 mm aluminium top side of the wheelhouse |
| Construction method: | welded rubbing strake around bulwark around closed bollard cabinets 1 watertight bulkhead(s) 1 watertight bulkhead(s) with watertight door(s) Sturdy, heavily constructed |
| Steering system: | hydraulic (Hydrosta) wheel heavy-duty system |
| Windows: | aluminium windows frames double glazing aluminium outside doors bronze portholes |
| Displacement (approx.): | 85 metric tons |
| Ballast (approx.): | present 9 ton steel & 9 ton lead |

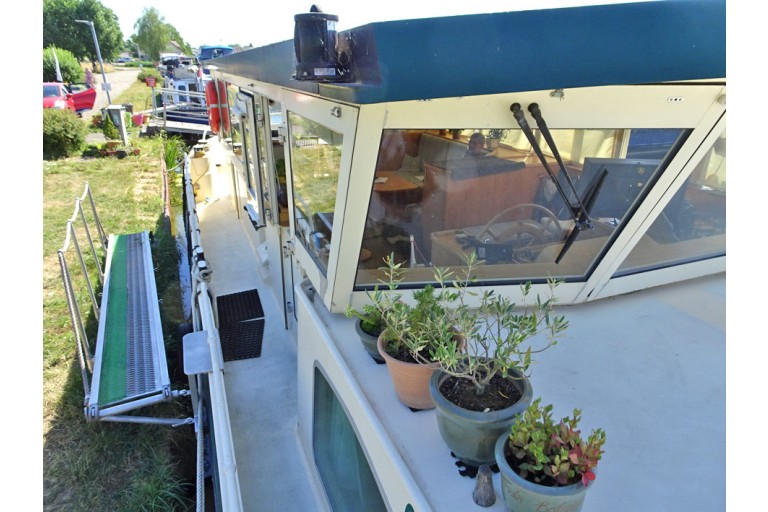

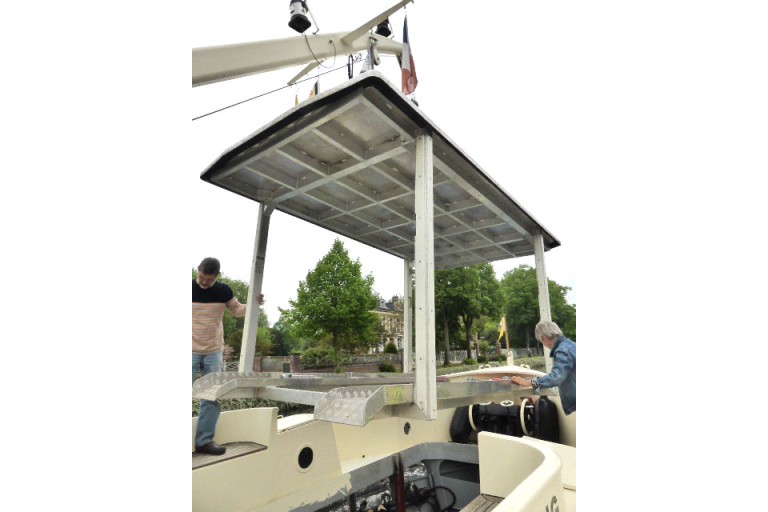

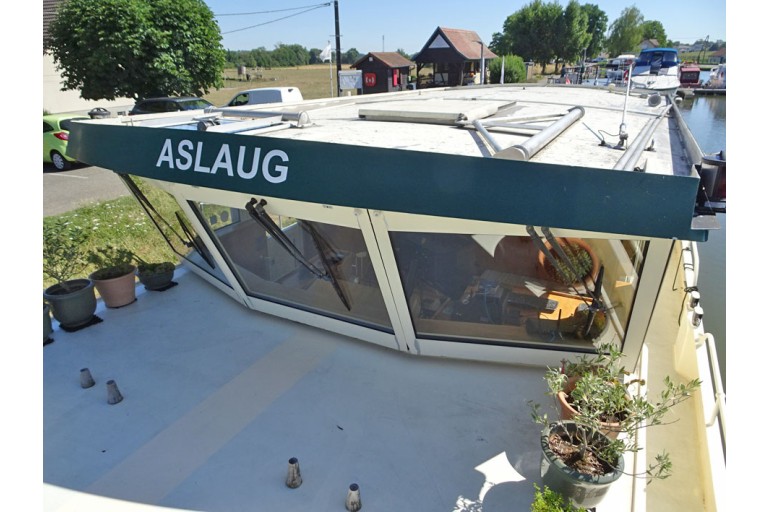

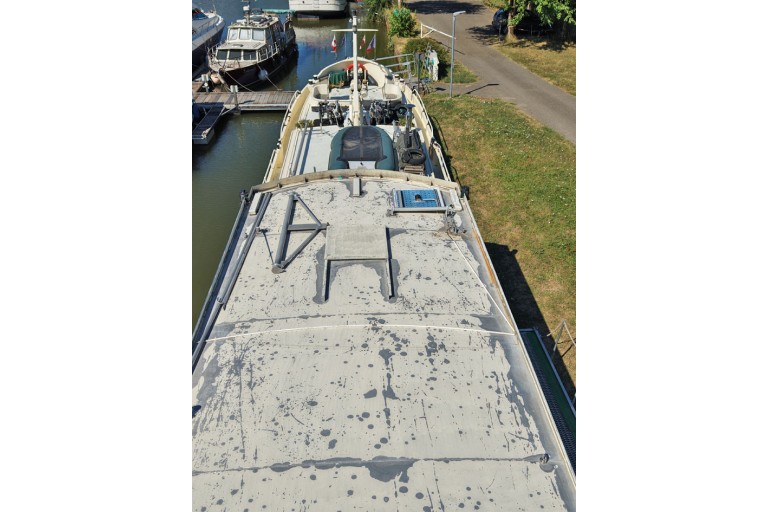

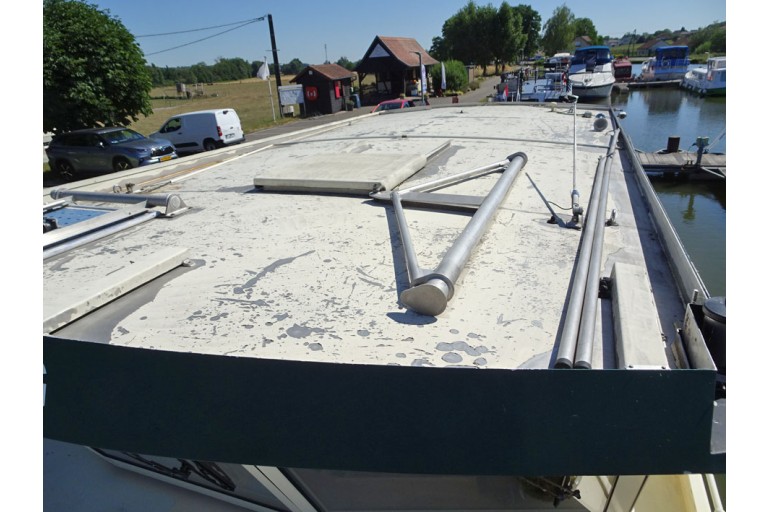

| Airdraft (approx.): | 3,35 m 2,60 m everything down Upper part wheelhouse is hydraulically lowered. |
| Owner: | Danish owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |

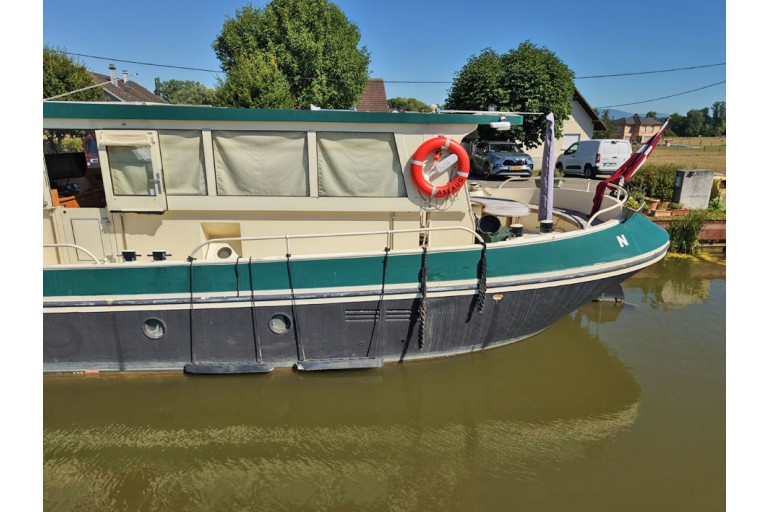

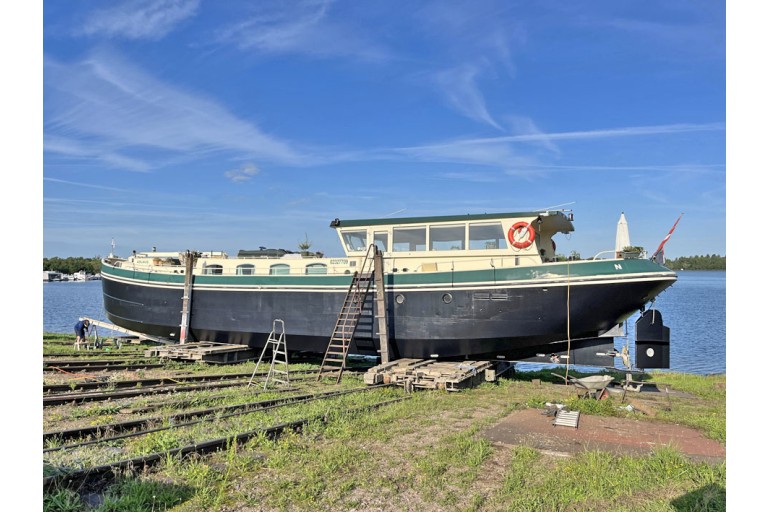

| Colour / Paint System: | black hull green bulwark cream superstructure two component system last underwatership treatment 08-2023 some overdue maintenance |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) EU zone 3 EU zone 4 zone R (Rhine) zone 2 Netherlands valid until: 08-2030 |
| RCD / CE Certification: | C |
| Suitable for / as: | suitable as a year round live- aboard useful as charter recreational vessel inland waterways coastal waters |
| General information: | from first owner For sale because of the age of the seller. good sailing characteristics |

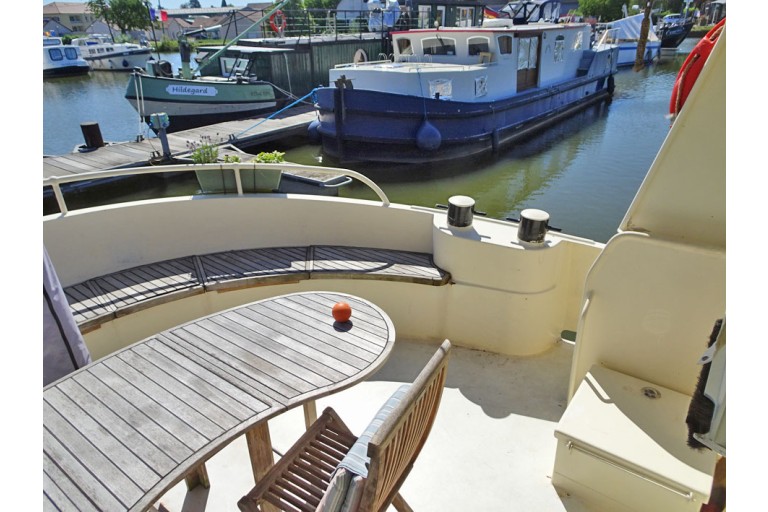

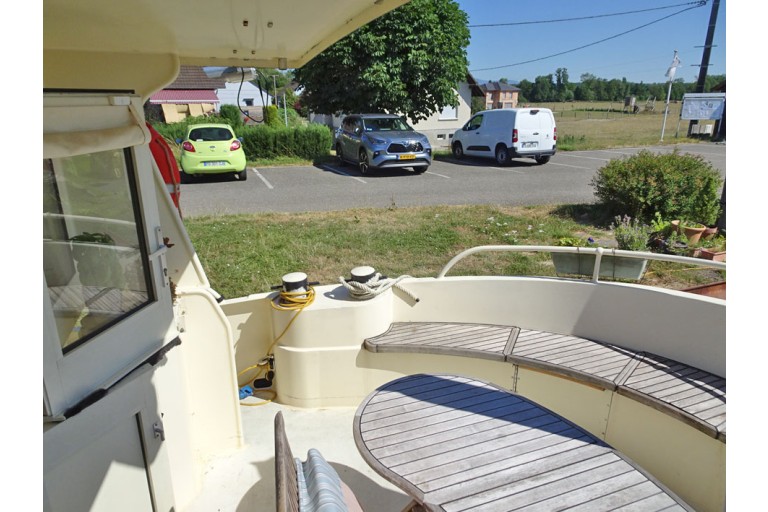

| Additional information: | forepeak with chain locker Given construction year is the year that the ship was ready and she was launched. Hull shape is suitable for drying out. spacious aftdeck Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information

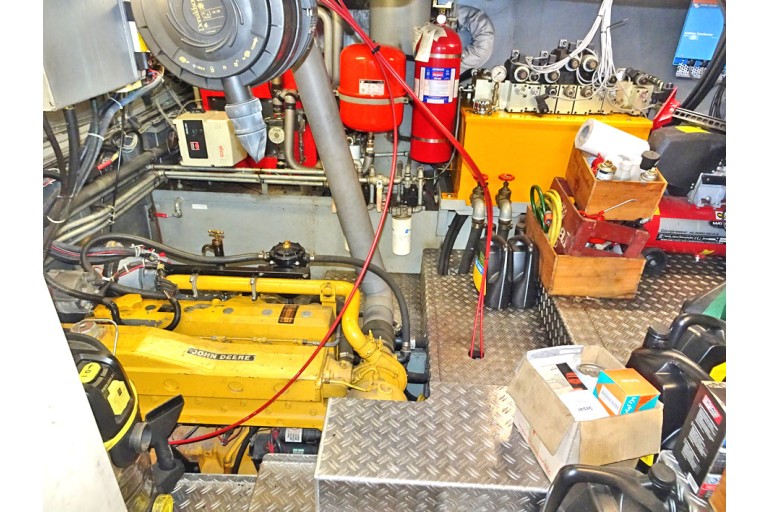

| Enginepower: | 225 Hp 168 kW |

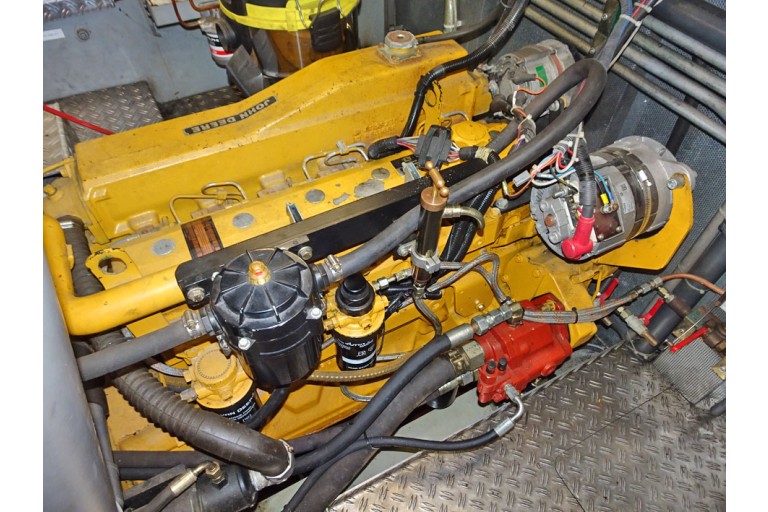

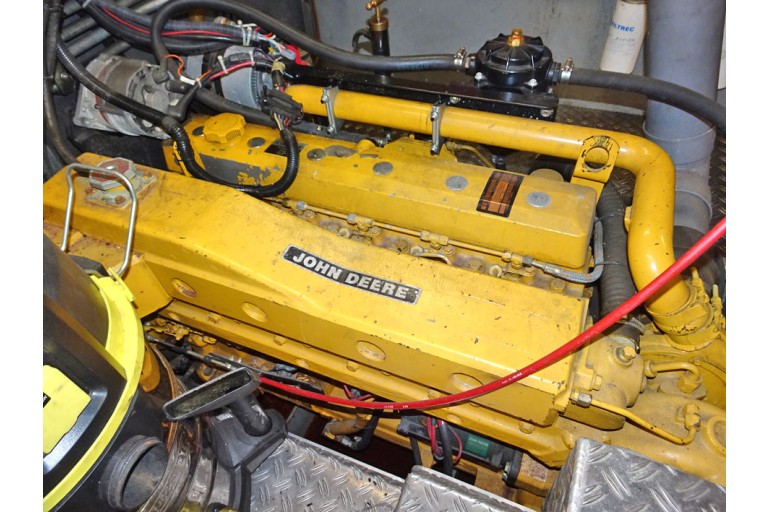

| Engine brand: | John Deere |
| Revolutions: | 2600 RPM |
| Engine model: | 6068TFM50 |
| Number of cylinders: | 6 |
| Construction year engine: | 2006 into operation |
| Running hours (approx.): | 5475 on the hour counter |
| Fuel: | diesel emergency shut-off valve(s) in fuel system |
| Fuel tank (approx.): | 2x 5000 litre 2x 500 litre steel tank(s) |
| Cooling system: | closed keel cooling dry exhaust insulated exhaust |
| Propulsion: | 4 blade propeller oil bath propeller stern tube Python constant velocity prop shaft with thrust bearing |
| Gearbox: | Twin Disc MG5050SC hydraulic reduction/ratio 3:1 |
| Speed (approx.): | 8 km/hour cruising speed at 1100 RPM 16 km/hour top speed |

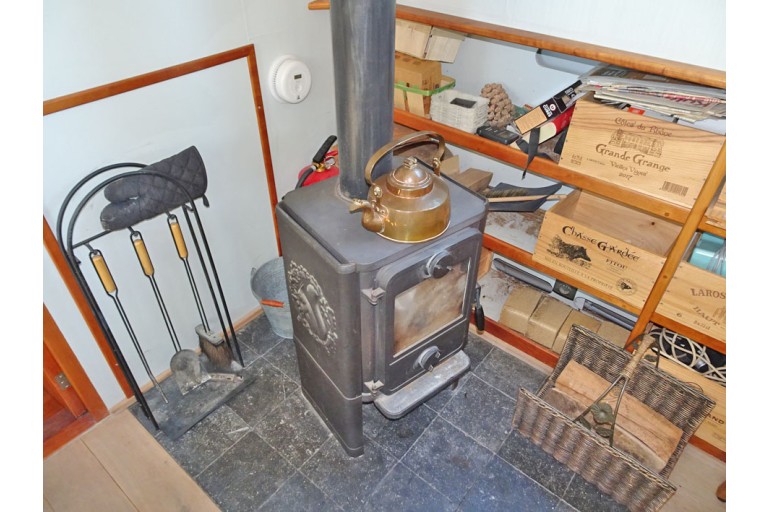

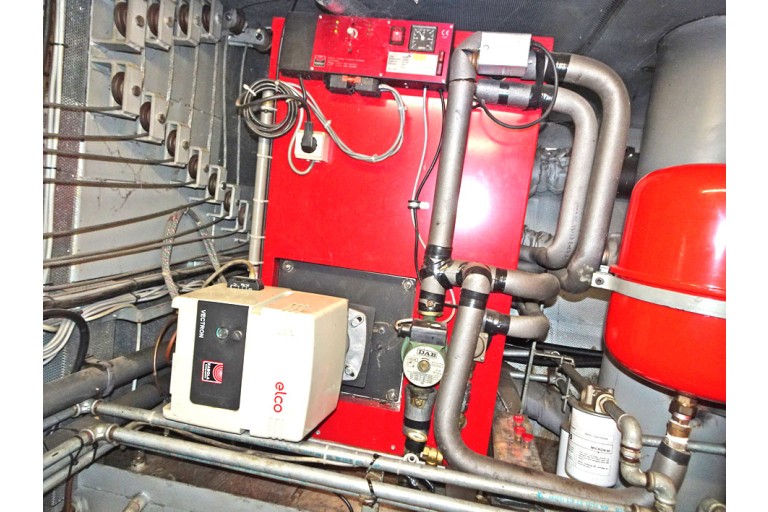

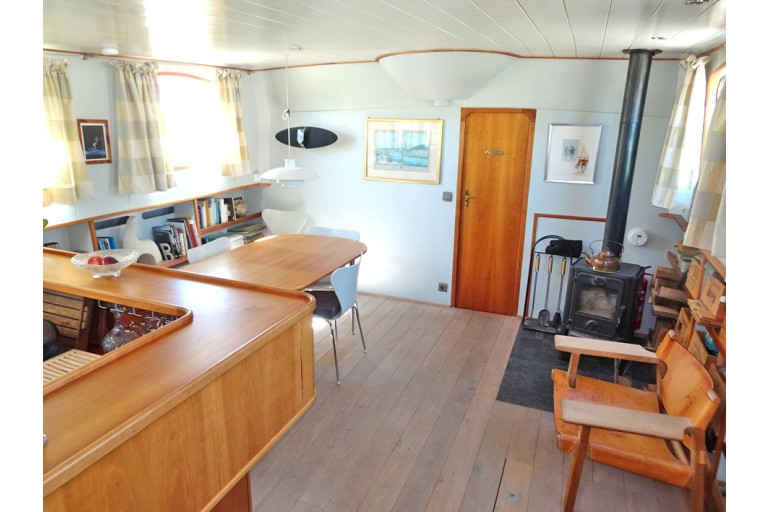

| Heating: | Kabola B25-tap central heating on diesel combi boiler floor heating & radiators Morsö wood burning stove |
| Engine instruments: | present |
| Bow thruster: | Hydrosta 35 HPM hydraulic bow thruster 35 Hp proportional |
| Stern thruster: | Hydrosta 15 HPM hydraulic stern thruster 15 Hp proportional |

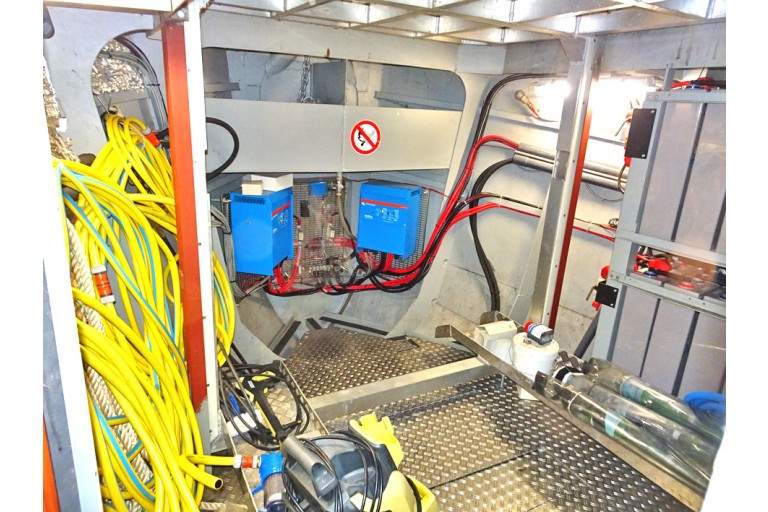

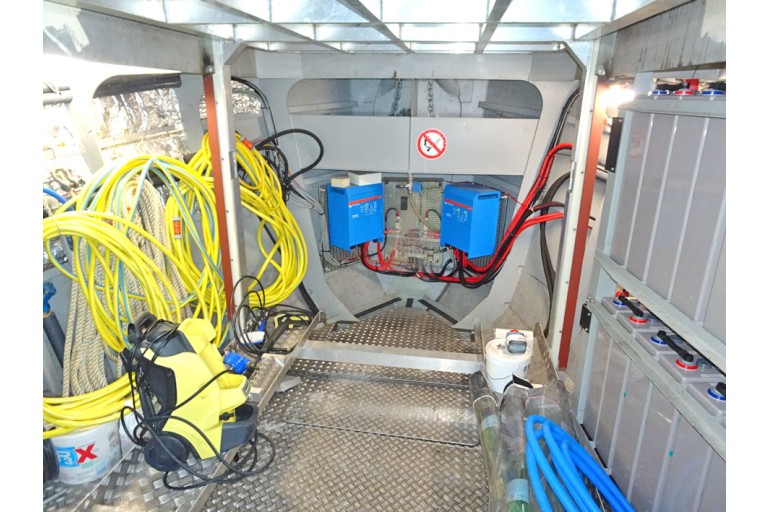

| Electricity system: | 24 / 230 / 400 Volt 230 Volt shore power connection professionally installed system 2x Victron Blue Power control 2x Victron Blue Power multi control |

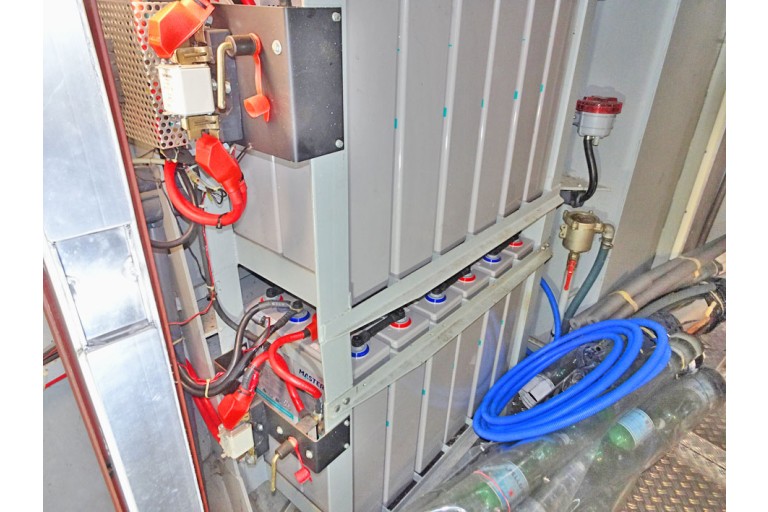

| Batteries: | 2x 750 Ah traction batterie bank 12x 2 Volt Mastervolt Gel 2x 55 Ah starter batterie(s) Optima Red Top 2x 55 Ah starter batterie(s) generator Optima Red Top |
| Battery charger: | Victron Blue Smart battery charger 24/16 2x Victron MultiPlus combi inverter/charger 24/5000/120 |
| Battery isolator: | present |

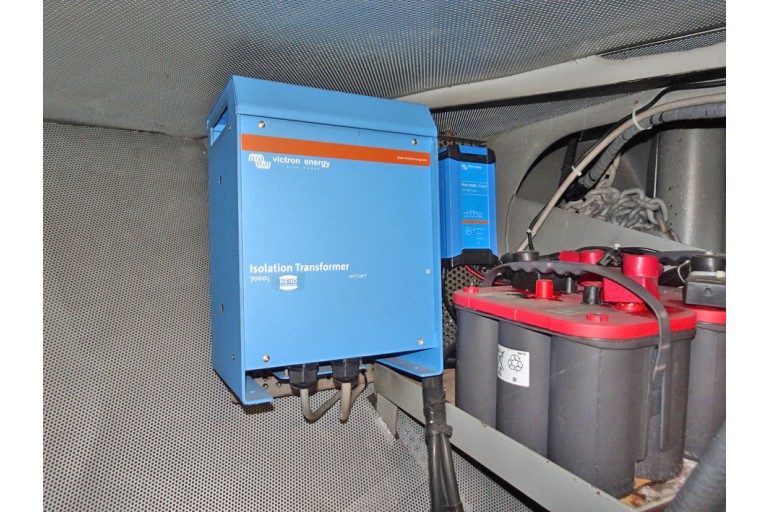

| Isolation transformer: | Victron isolation transformer 7000 Watt |
| Earth-leakage breaker: | present |

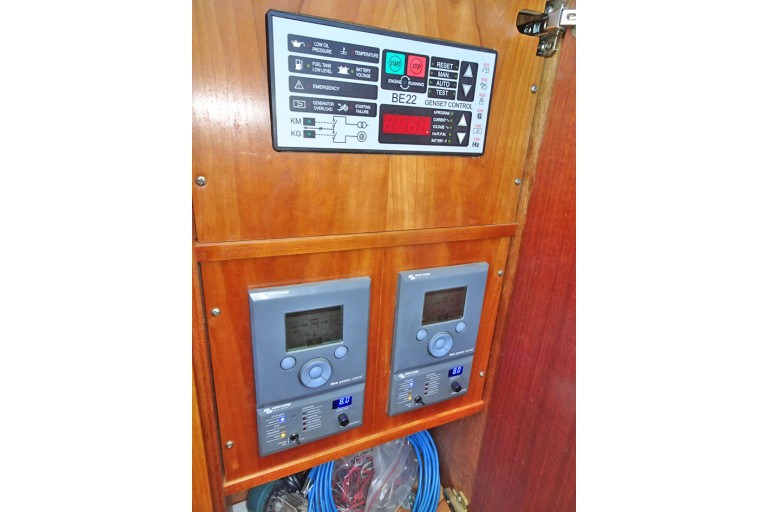

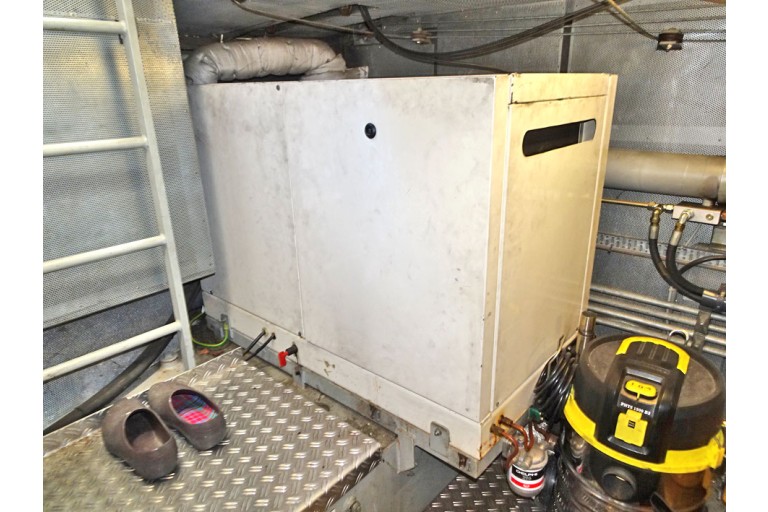

| Genny: | Kubota diesel Stamford whisper set 13,5 kVA 230/400 Volt 1500 RPM 3500 running hours (approx.) closed cooling system |
| Alternator: | 2x alternator |

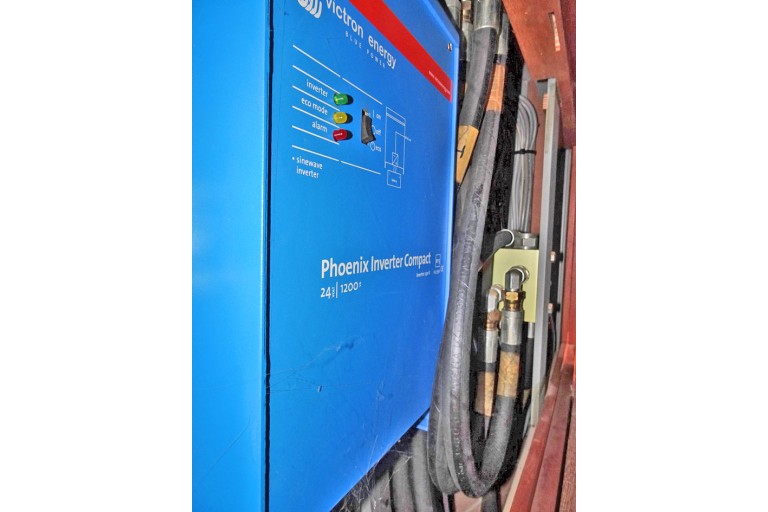

| Inverter: | 2x Victron MultiPlus combi inverter/charger 24/5000/120 Victron Phoenix Compact inverter 24/1200 |
| Fresh water tank (approx.): | 6500 litre 2x plastic tank(s) |
| Water pressure system: | 2x hydrophore pump |
| Fresh water filter system: | fresh water filter system |
| Hot water system: | through the central heating |
| Holding tank (approx.): | 3500 litre 1 steel tank(s) |
| Diesel waterseparator: | Separ diesel waterseparator |

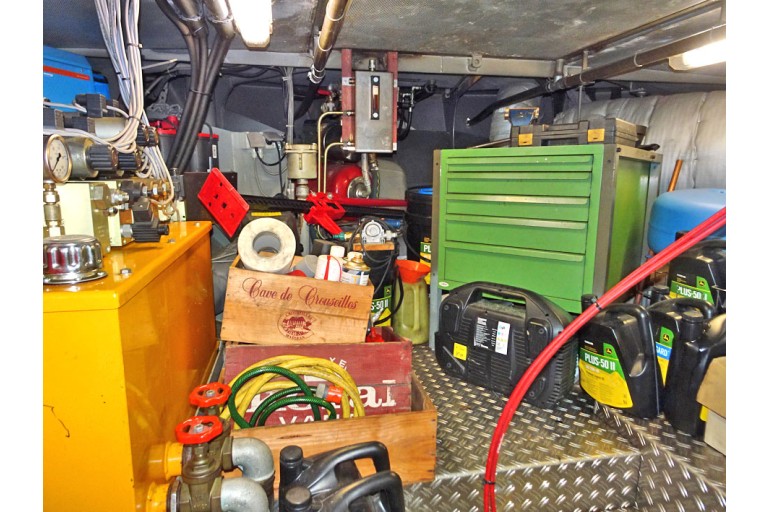

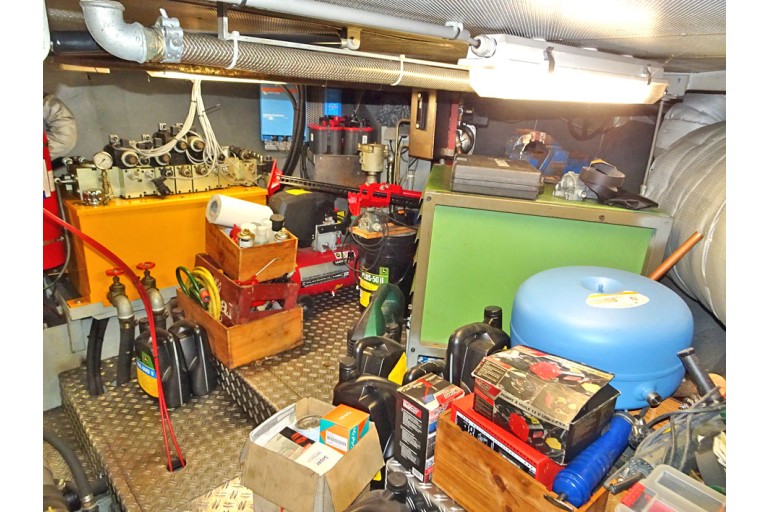

| Engineroom: | sound insulated engineroom |
| Bilge pump: | 4x electric pump |
| Deck wash pump: | 2x electric pump |
| Gas system: | yes, bottle(s) in bottle box Gas certificate |
| Additional information: | main engine with PTO for the hydraulic Morse electric engine control system |
Accommodation

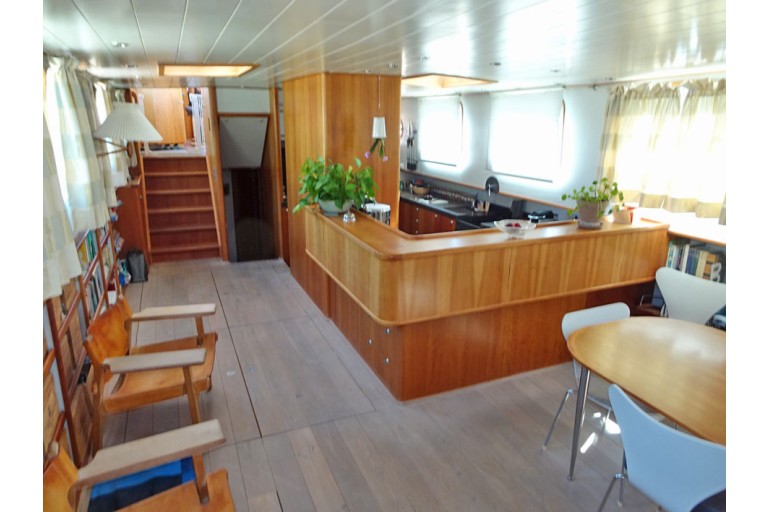

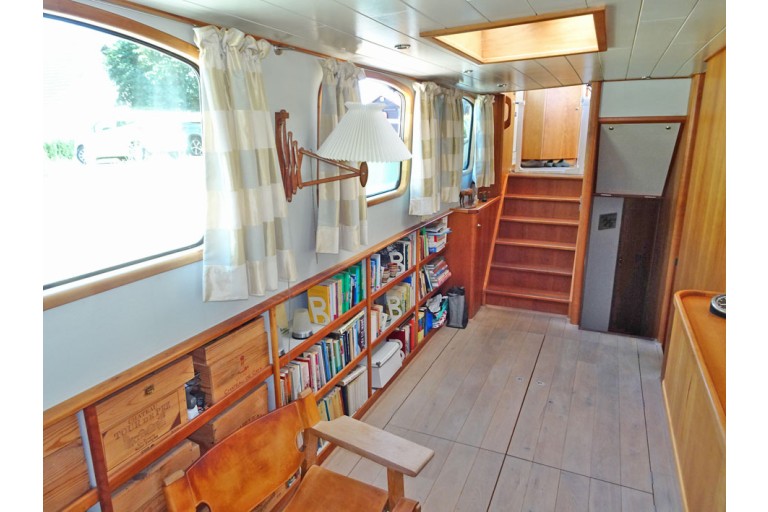

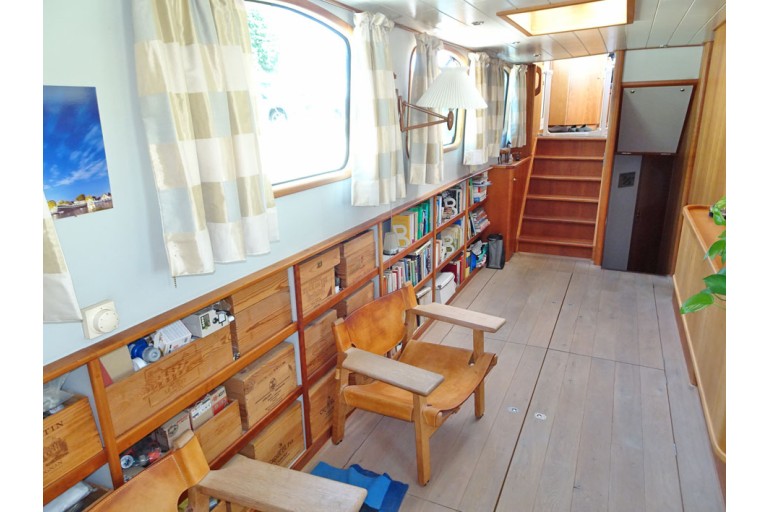

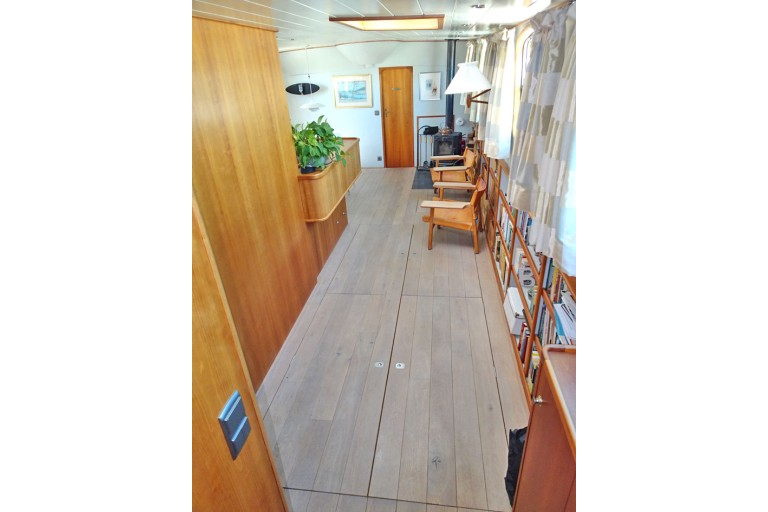

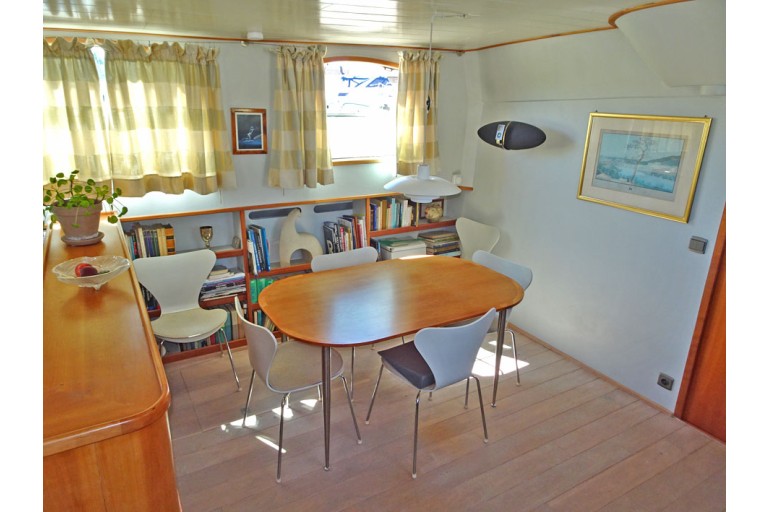

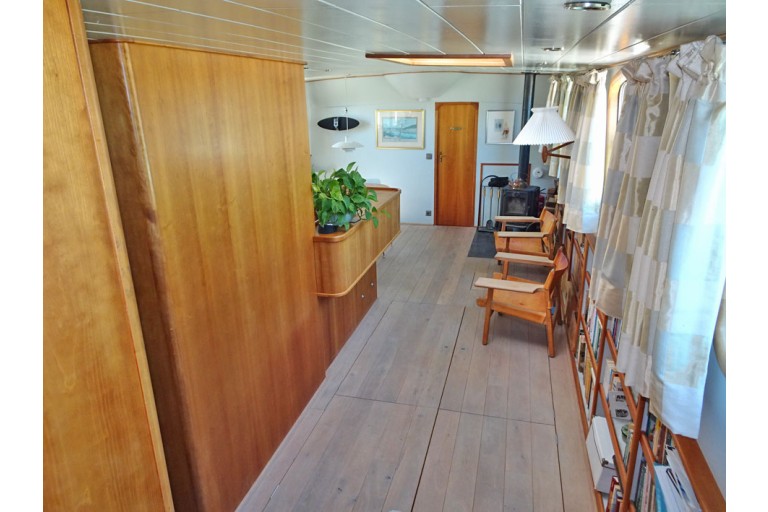

| Interior: | various materials have been used cherry wood interior oak floor(s) & Jatoba floor(s) Belgian Blue hardstone floor(s) very well maintained see photographs |
| Insulation: | Rockwool with aluminium foil |
| Cabins: | 3 cabins |

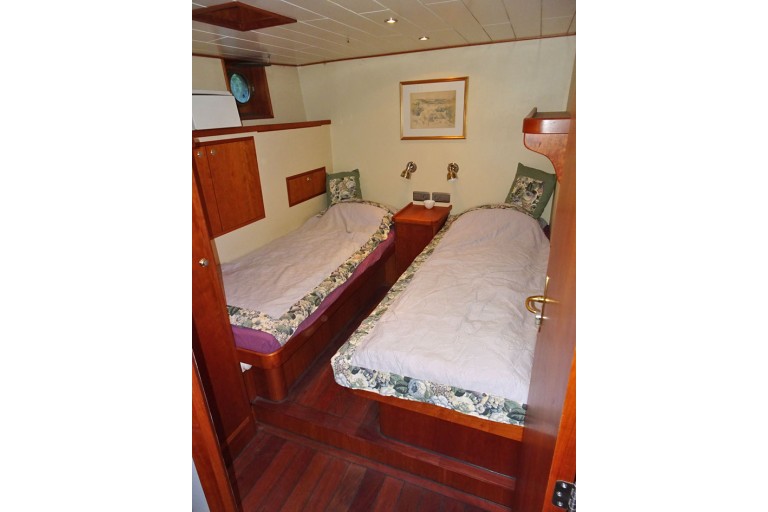

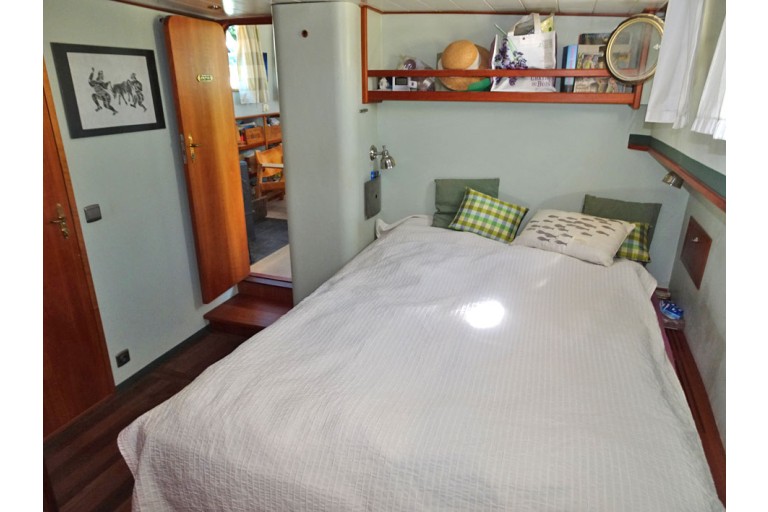

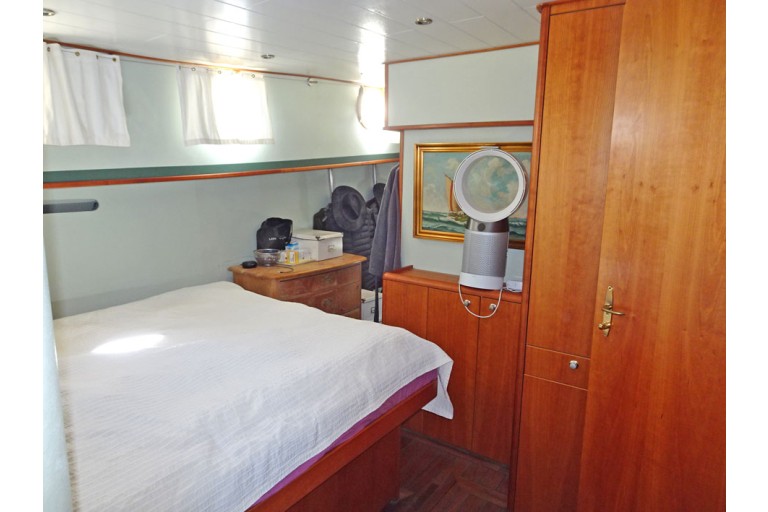

| Berth: | owners cabin: 1x 2-pers Portside cabin: 2x 1-pers Starboard cabin: 2x 1-pers |

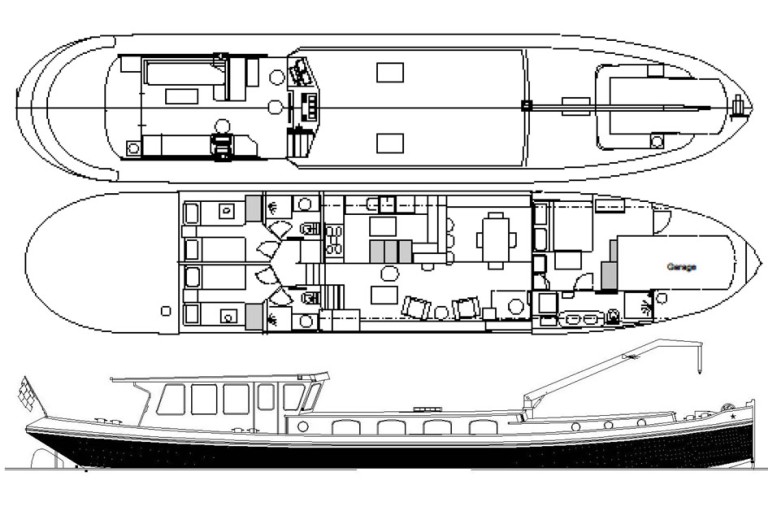

| Lay-out plan (not to scale): | see attachment |

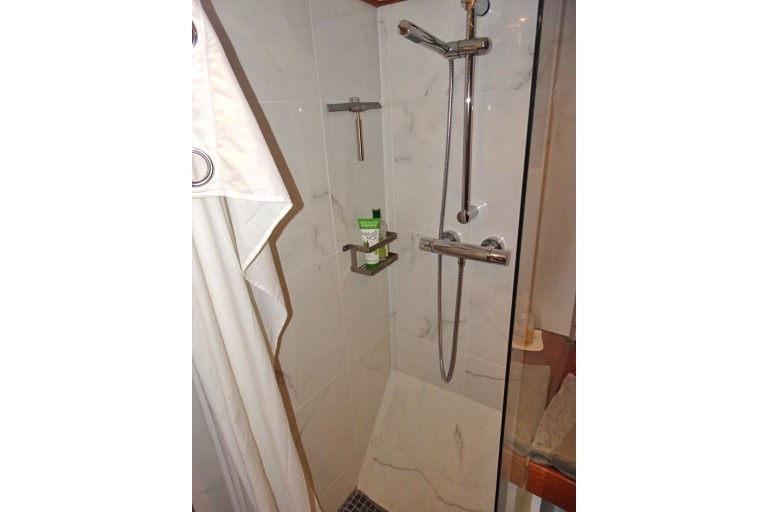

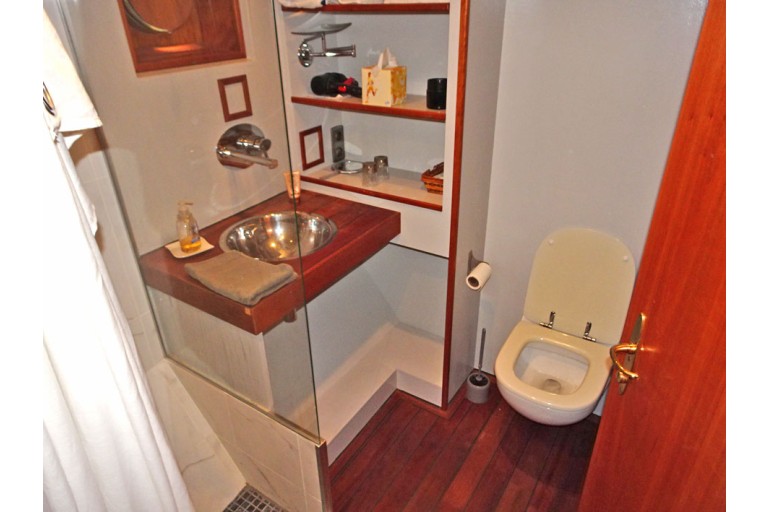

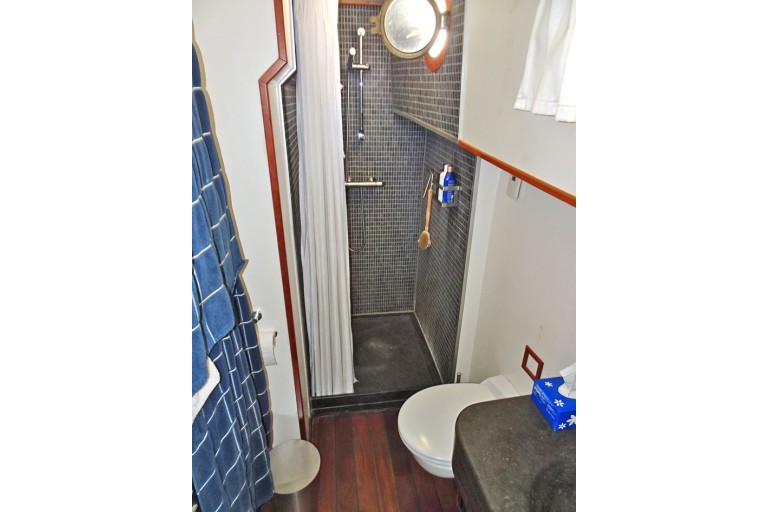

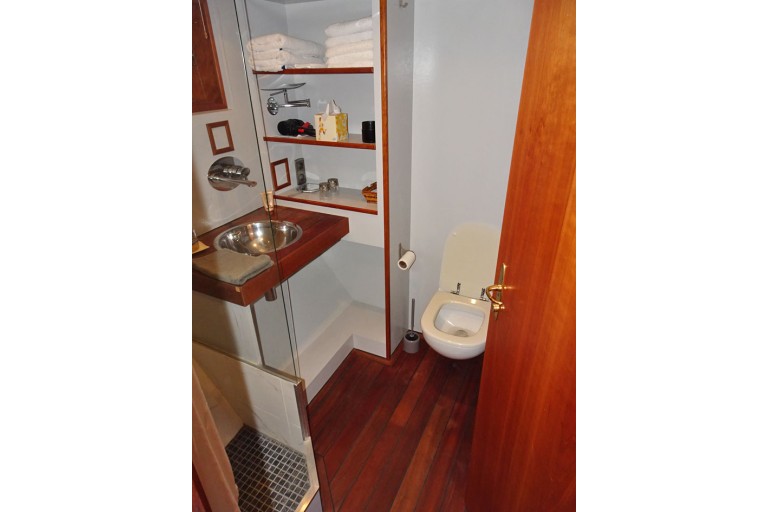

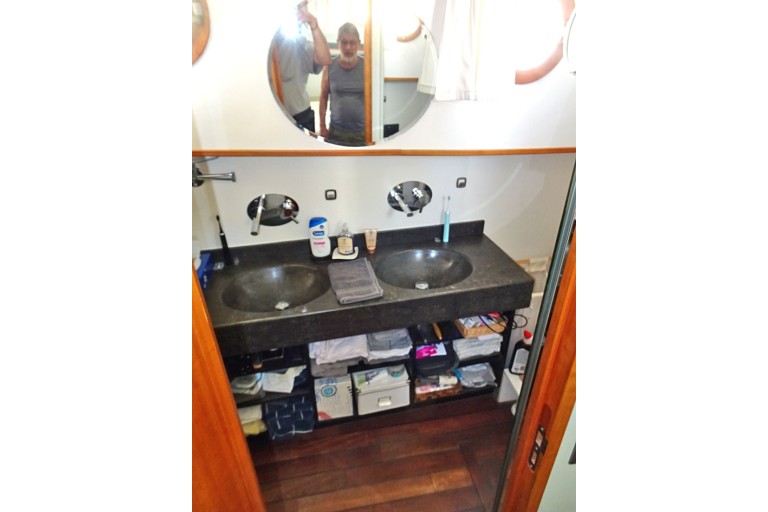

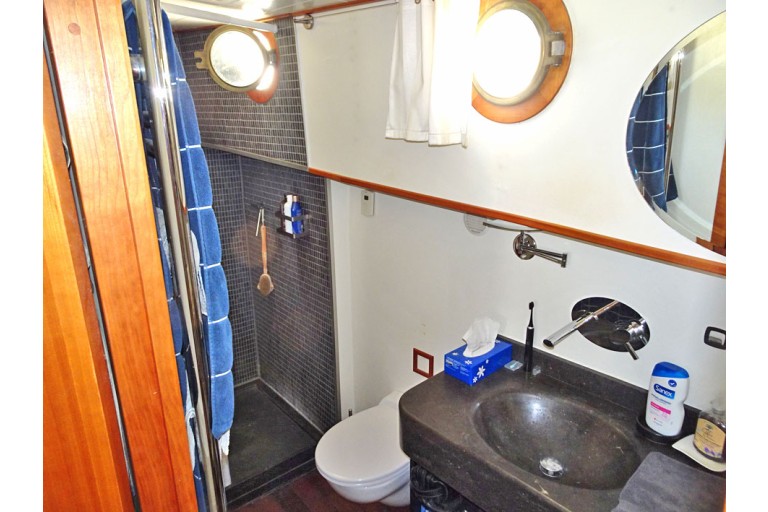

| Bathroom: | Forward: En Suite shower thermostat tap washbasin with mix tap and hot & cold running water in 1 area together with the toilet Aft: 2x bathrooms, each equipped with: shower cubicle thermostat tap washbasin with mix tap and hot & cold running water 2x En Suite 2x in 1 area together with the toilet |
| Toilet / Heads: | 3x electric toilet |

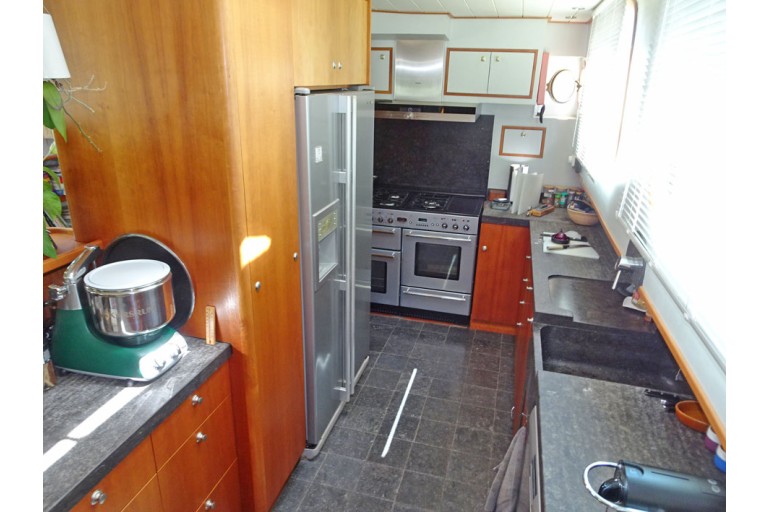

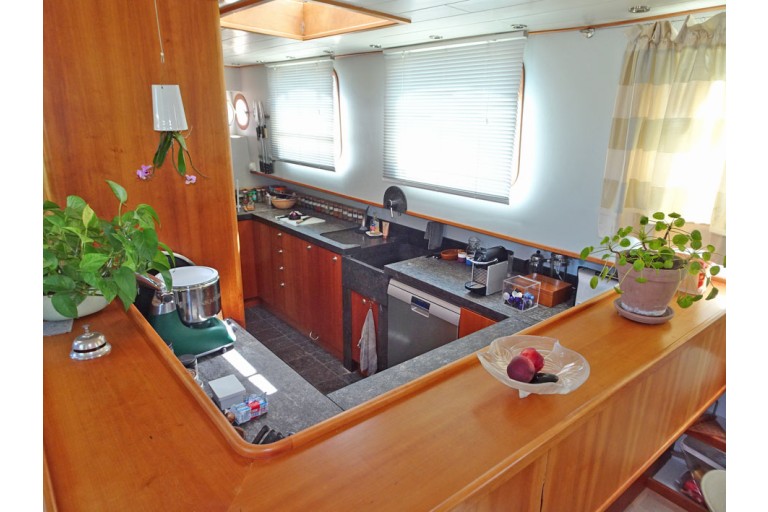

| Galley: | U-shape galley |

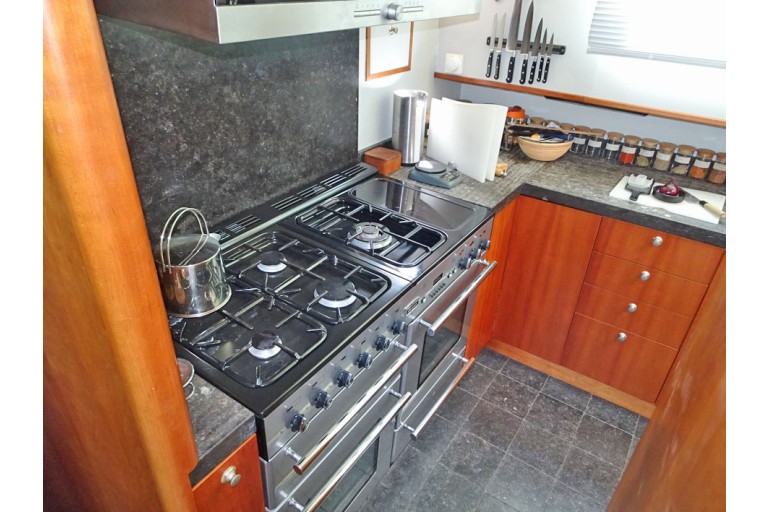

| Cooker: | 5-burner hob (Falcon Toledo) on gas cookerhood stainless steel |
| Oven: | 2x electric oven 1x grill |
| Microwave: | present |
| Fridge / Refrigerator: | 1x American fridge/freezer 1x fridge / refrigerator |
| Freezer: | freezer with ice maker |
| Worktop: | hardstone worktop |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | present |

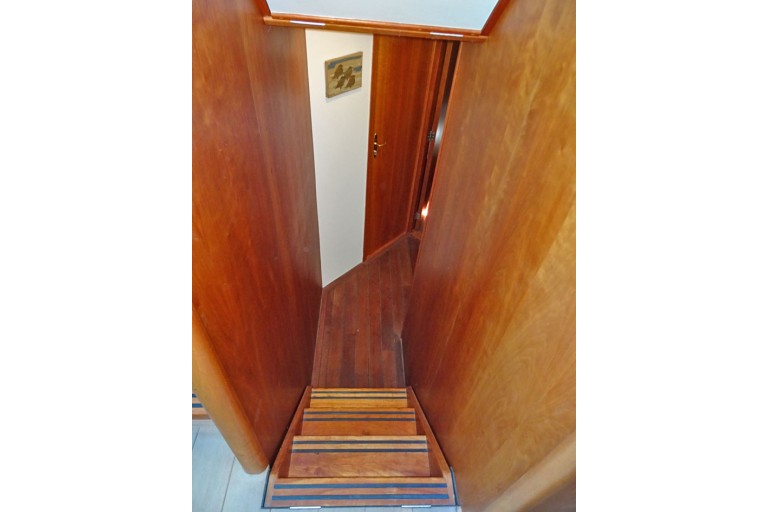

| Headroom (approx.): | wheelhouse (approx.) 2,03 m galley (approx.) 2,23 m salon (approx.) 2,14 m / 2,05 m ownerscabin (approx.) 2,07 m bathroom / toilet in the front (approx.) 2,03 m Aft: corridor / walkthrough (approx.) 1,81 m cabins (approx.) 1,93 m 2x bathroom / toilet aft (approx.) 1,93 m |

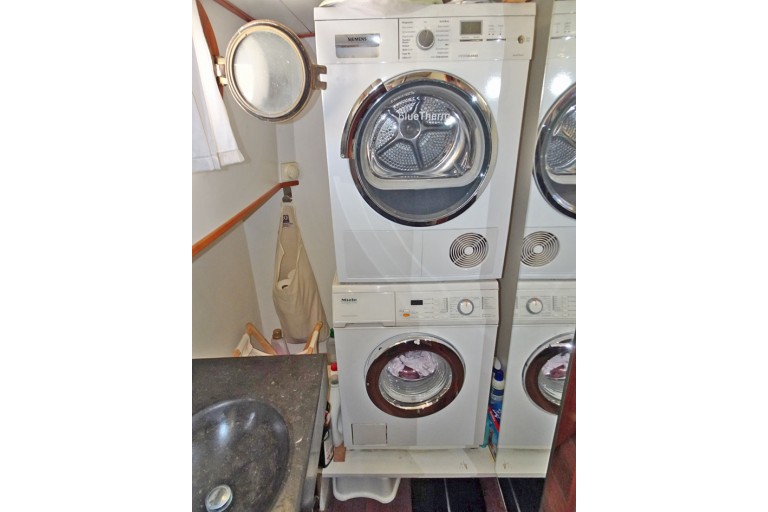

| Additional information: | washing machine tumble dryer The vessel will be delivered with everything on board less personal effects & artwork. useful as live-aboard |
Navigation equipment

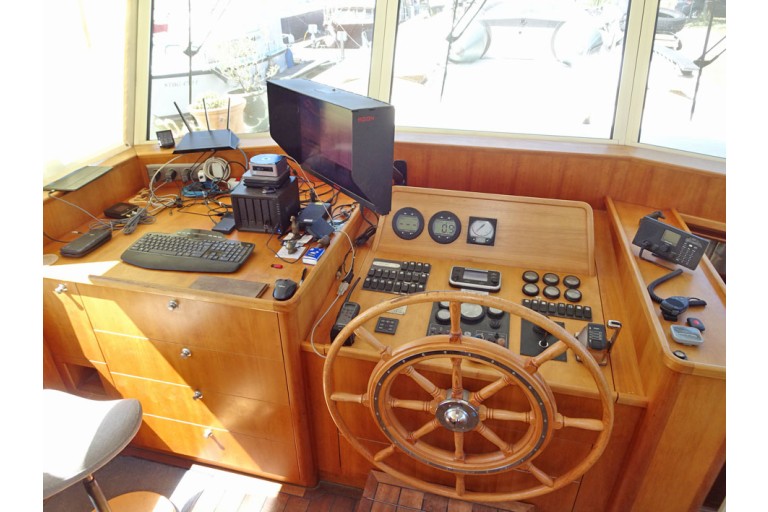

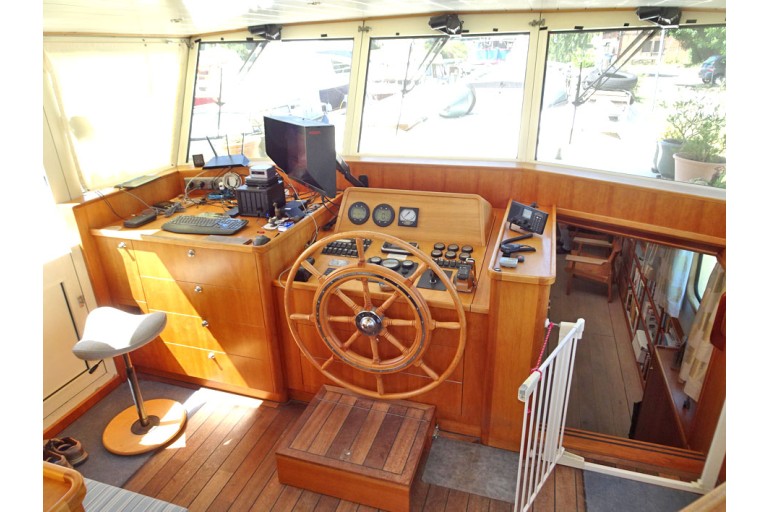

| Navigation equipment: | Simrad RS86 VHF with DSC OceanSat Automatic Identification System (AIS) Simrad IS15 rudder indicator Simrad IS15 depth / echosounder Simrad HT50 portable VHF blue board with oscillating light 3x window wiper navigation lights computer horn |
Equipment

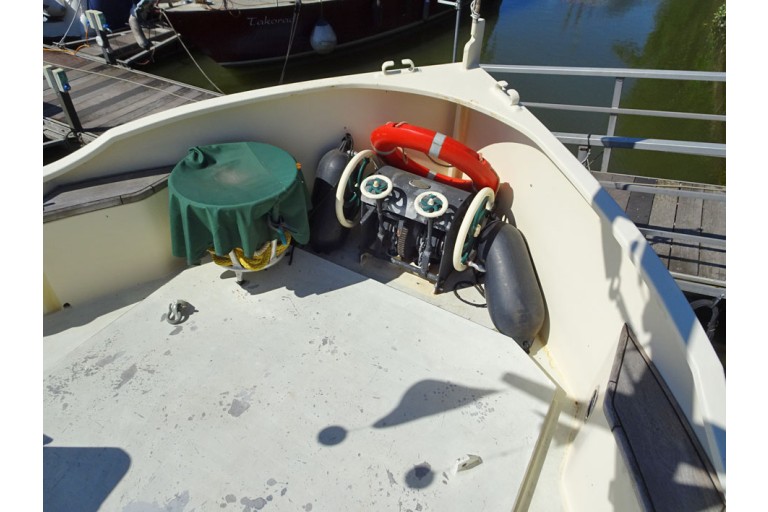

| Anchor equipment: | manual anchor winch 2x 75 kg Klipp anchor 2x 40,00 m anchor chain in hawse-hole Aft: electric anchor winch Klipp anchor 40,00 m anchor chain in hawse-hole 2x spudleg / pole (hydraulic) 1,70 m under the bottom specified length(s) is/are approximate |
| Searail / Pulpit: | searail on bulwark |

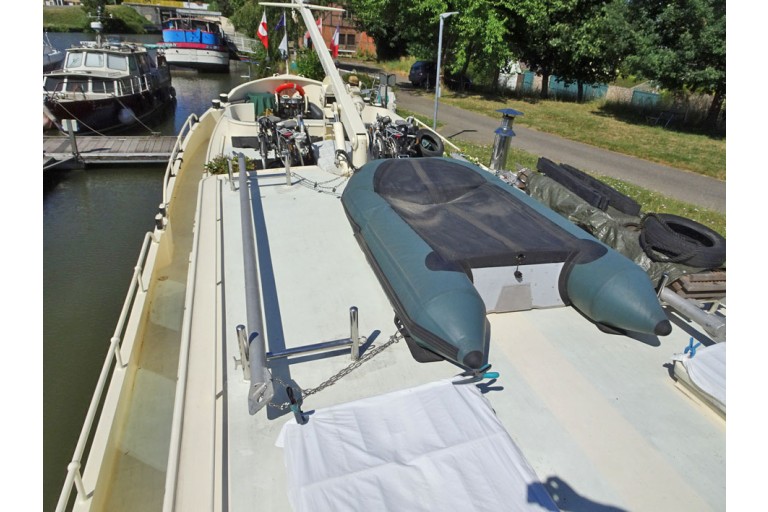

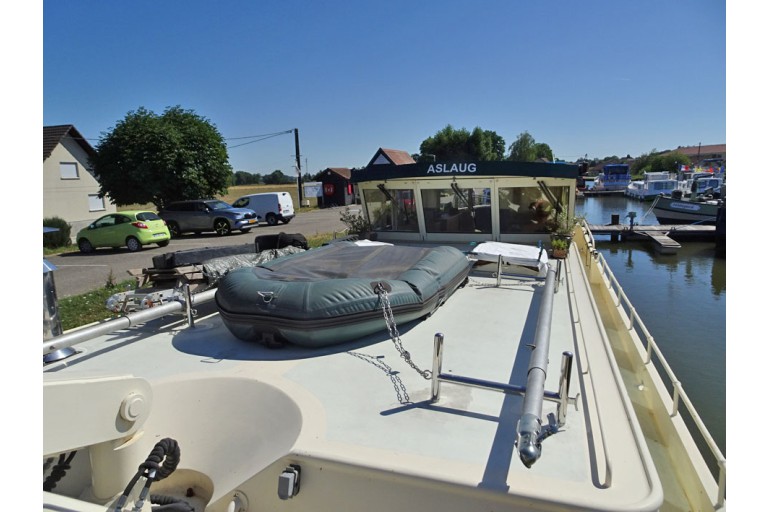

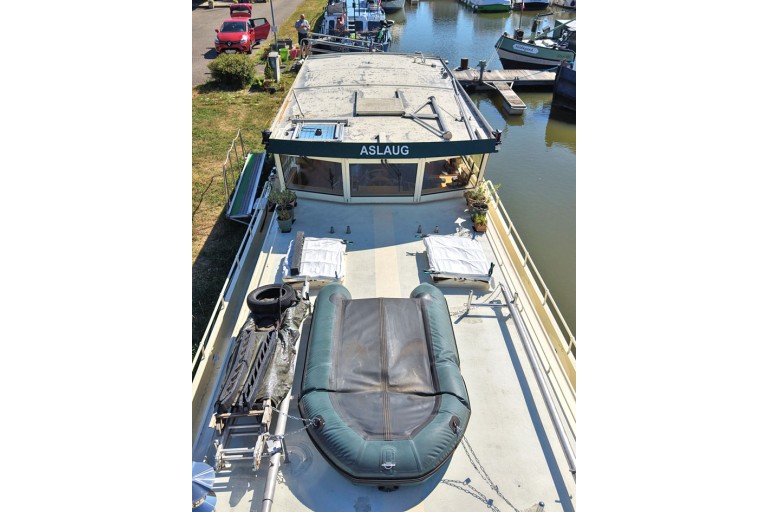

| Dinghy: | inflatable dinghy |

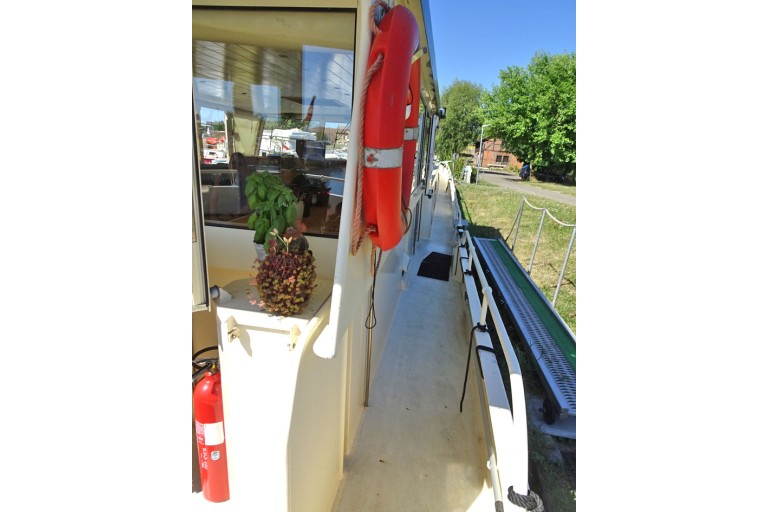

| Safety: | life buoys life jackets fire extinguishers FM200 automatic fire extinguishing system in engine room according to the certification requirements carbon monoxide detector(s) smoke detector(s) |

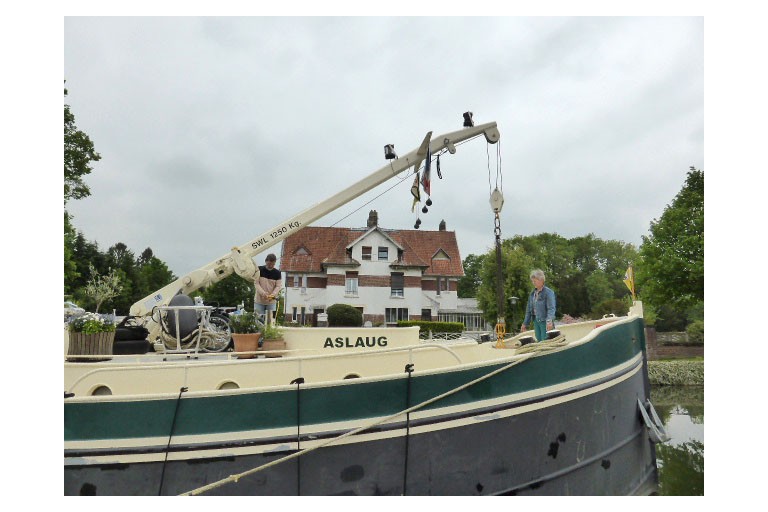

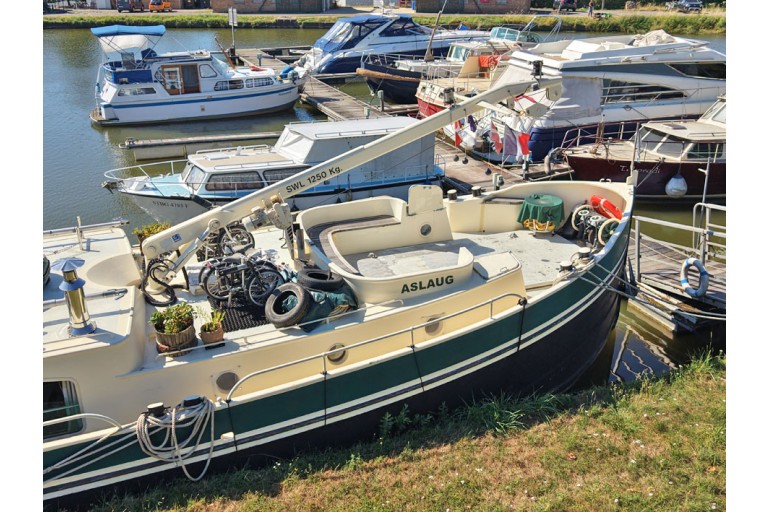

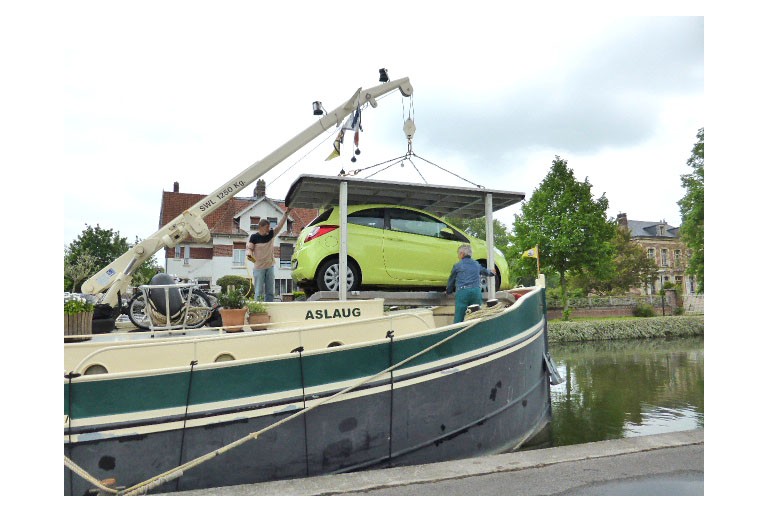

| Additional information: | 5,00 m car crane SWL 1250 kg deck lights 2x spacers 4,00 m aluminium gangway 4x foldable Bike(s) Survey report of the underwatership is available (08-2023) sundeck |
