Luxe Motor 28.80 (with TRIWV) Sold
Dimensions (m):
28.80 x 4.80 x 1.05
Ref. no.:
160507
Mooring:
Near Toul, France
Construction year:
1911
Material:
steel
Vision Doeve Brokers

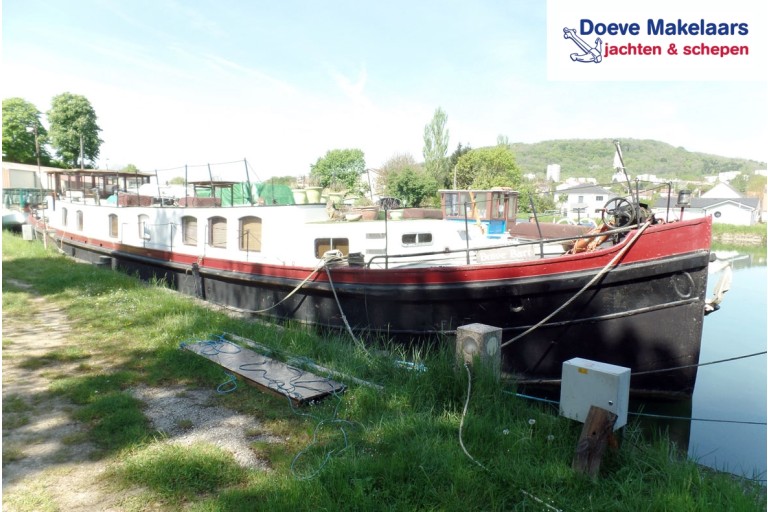

Former inland cargo vessel that has been converted into a sailing live aboard / small hotel barge. Equipped with a forepeak with a 2 persons bed and a private bathroom, spacious owners cabin and guest cabin with a shared bathroom, saloon, galley, spacious wheelhouse and an aft cabin with a private bathroom. This barge has due to circumstances some overdue maintenance. Furthermore, the ship is equipped with a bow thruster, air conditioning, whisper generator, central heating, etc. etc. An interesting barge for someone who wants to bring her back in her old glory.
More information
General information
| Yard: | Shipyard Boot, NL-Alphen aan den Rijn |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel hardwooden top side of the wheelhouse |
| Construction method: | riveted new steel is welded rubbing strake around wide body superstructure aftcabin 2 watertight bulkhead(s) |
| Steering system: | hydraulic wheel |
| Windows: | hardwood window frames hardwood outside doors |
| Displacement (approx.): | 79 m³ |
| Ballast (approx.): | present concrete blocks |
| Airdraft (approx.): | 3,35 m |
| Owner: | British owner |
| Registration: | British registered SSR |
| Colour / Paint System: | black hull bordeaux red bulwark white superstructure some overdue maintenance see photographs |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 valid until: 31-05-2019 |
| Suitable for / as: | suitable as a year round live- aboard inland waterways |
| General information: | offered in the condition that she is in |
| Additional information: | Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 105 Hp 77 kW |
| Engine brand: | DAF |
| Revolutions: | 2400 RPM |
| Engine model: | 575 |
| Number of cylinders: | 6 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 900 litre |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | greased lubrication of propeller shaft |
| Heating: | Webasto central heating on diesel & stove on wood |
| Air conditioning: | 5x air conditioning |
| Bow thruster: | electric bow thruster |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 4x 200 Ah domestic batterie(s) starter batterie(s) generator |
| Battery charger: | Mastervolt Mass combi inverter/charger 24/2000/60 |
| Genny: | Vetus whisper set 6LS-10 10 kVA 1500 RPM running hours (approx.) 4800 wet exhaust |
| Inverter: | Mastervolt Mass combi inverter/charger 24/2000/60 Victron Orion inverter 24/12-20 |
| Fresh water tank (approx.): | 6000 litre |
| Water pressure system: | hydrophore pump |
| Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system |
| Holding tank (approx.): | 1000 litre |
| Bilge pump: | present |
| Gas system: | present does not fully meet current safety requirements |
Accommodation
| Interior: | various materials have been used see photographs some overdue maintenance |
| Insulation: | yes |
| Cabins: | 4 cabins |
| Berth: | Forward: 1x 2-pers owners cabin: 1x 2-pers Guest cabin(s): 1x 2-pers Aft: 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: sitting bath in 1 area together with the toilet The hold: shower cubicle 2x washbasin with hot & cold running water tiled bathroom in 1 area together with the toilet Aft: sitting bath washbasin with hot & cold running water partly tiled in 1 area together with the toilet |
| Toilet / Heads: | 3x electric toilet |
| Galley: | U-shape galley |
| Cooker: | 5-burner hob on gas |
| Oven: | gas oven & grill |
| Microwave: | present |
| Fridge / Refrigerator: | 1x combination with freezer 1x bottles cooler |
| Freezer: | ice compartment |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |
| Headroom (approx.): | foc's hole (approx.) 1,69 m ownerscabin (approx.) 1,97 / 2,03 m bathroom / toilet (approx.) 1,97 m corridor / walkthrough (approx.) 2,00 m guest cabin (approx.) 2,00 m salon (approx.) 2,03 m galley (approx.) 2,20 m wheelhouse (approx.) 2,20 / 1,88 m aftcabin (approx.) 1,80 m bathroom / toilet aft (approx.) 1,33 m |
| Additional information: | useful as charter useful as live-aboard inventory washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | Raymarine ST 60 depth / echosounder Autohelm rudder indicator Cobra portable VHF M-Tech MT-500 VHF with DSC blue board window wiper navigation lights |
Equipment
| Anchor equipment: | manual anchor winch Klipp anchor in hawse-hole 40 m anchor chain specified length(s) is/are approximate |
| Searail / Pulpit: | guardrail around upperdeck guardrail around foredeck guardrail around side-walks |
| Safety: | 3x life buoy 4x fire extinguisher 2x fire blanket |
| Additional information: | aluminium gangway Survey report of the underwatership is available sundeck |
