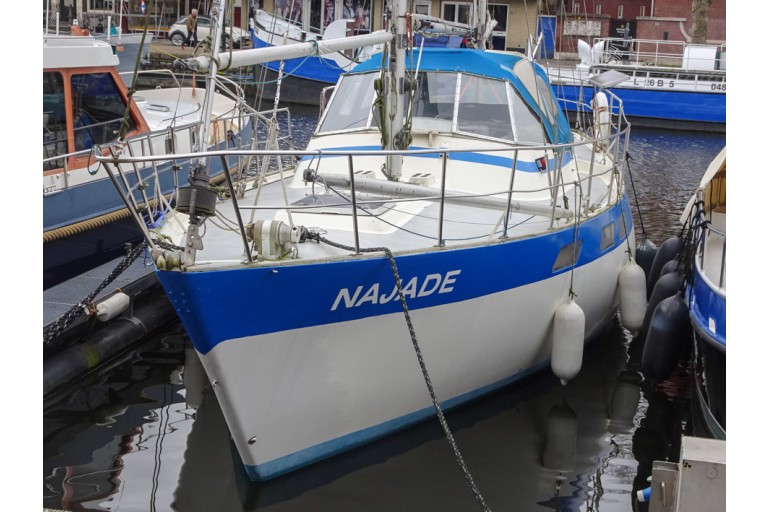

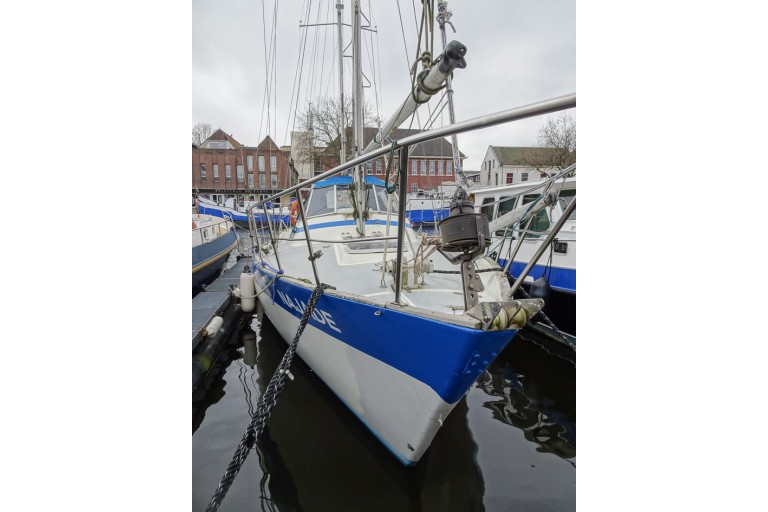

Wauquiez Amphora Sold
Dimensions (m):
11.40 x 3.90 x 1.83
Ref. no.:
230304
Mooring:
Near Rotterdam, Netherlands
Construction year:
1980
Material:
GRP
Vision Doeve Brokers

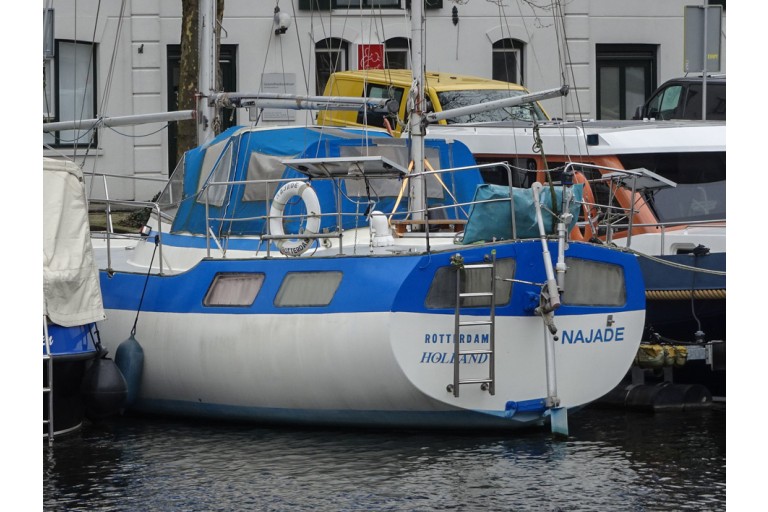

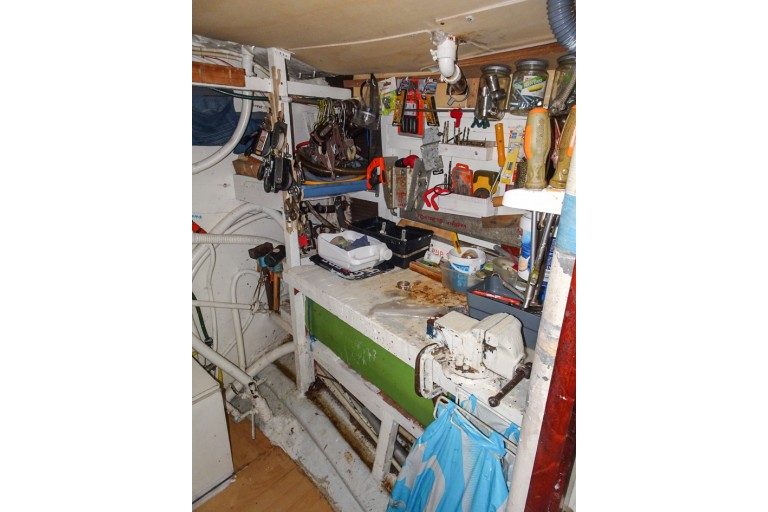

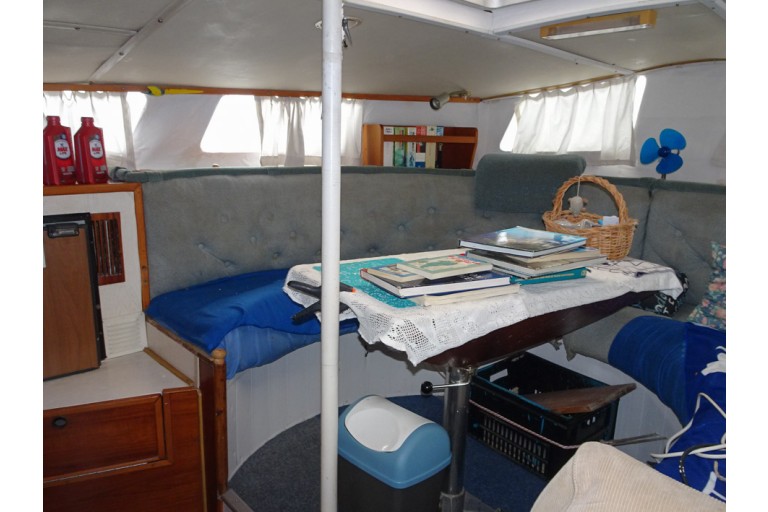

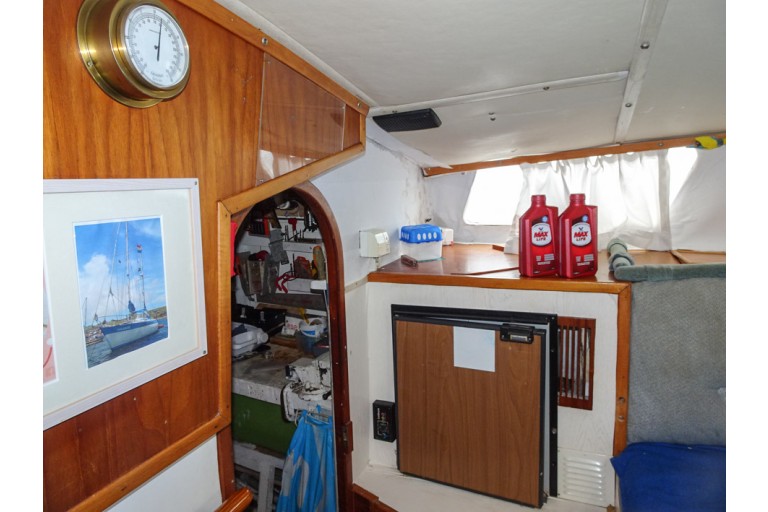

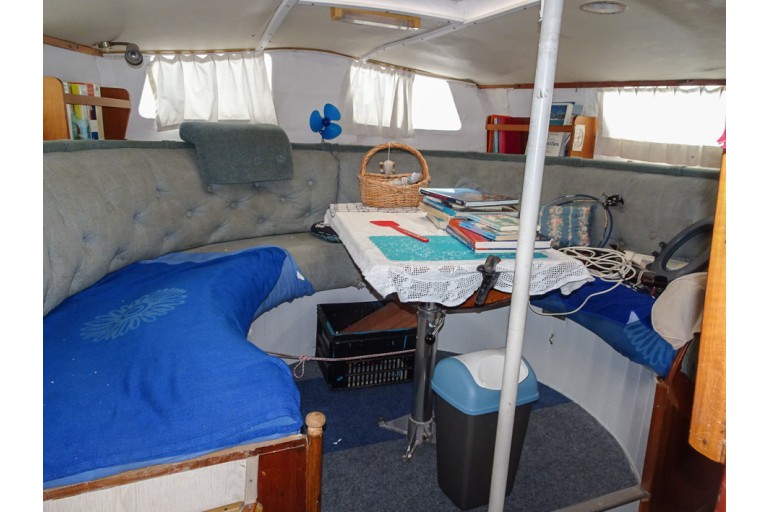

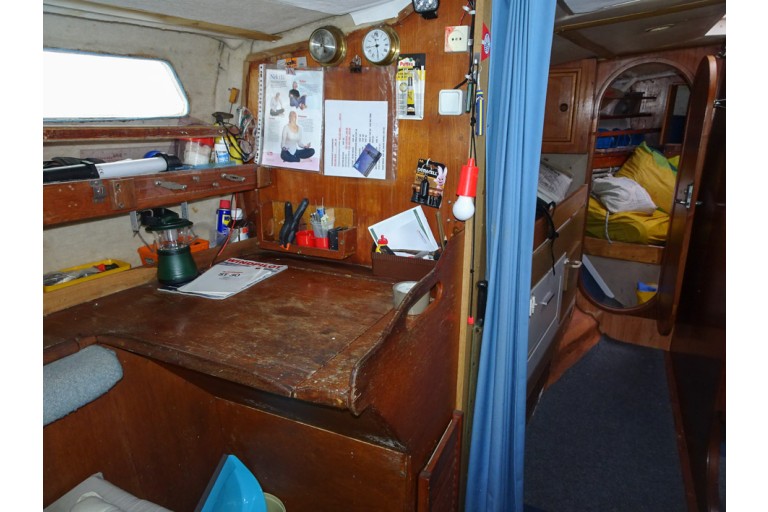

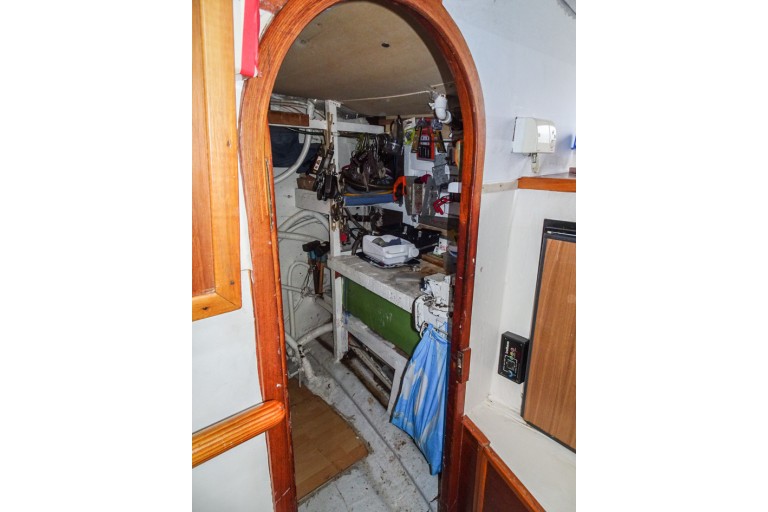

This is a ketch rigged sailing yacht suitable for both short and long distance solo sailing. Due to the long trips she has already made, she is even equipped with a workshop. That she has already made many long sailing trips shows. The interior definitely needs a good overhaul. There are five berths in total, a bathroom with toilet and shower, a chart table and a spacious round seat with table. The engine was replaced for a new one only a few years ago. This sailing yacht is generously equipped with several sails. A very attractively priced sailing yacht that a handy do-it-yourselfer can still enjoy.
More information
General information
| Yard: | Yard Wauquiez, Fr-Neuville-en-Ferrain |
| Designer / Architect: | Holman & Pye |
| Hull shape: | round bilged |
| Hull material: | GRP |
| Deck material: | GRP |
| Superstructure material: | GRP |

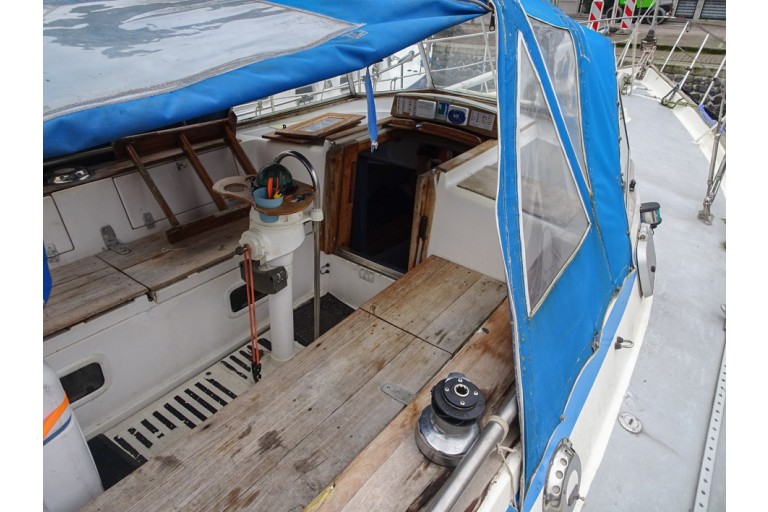

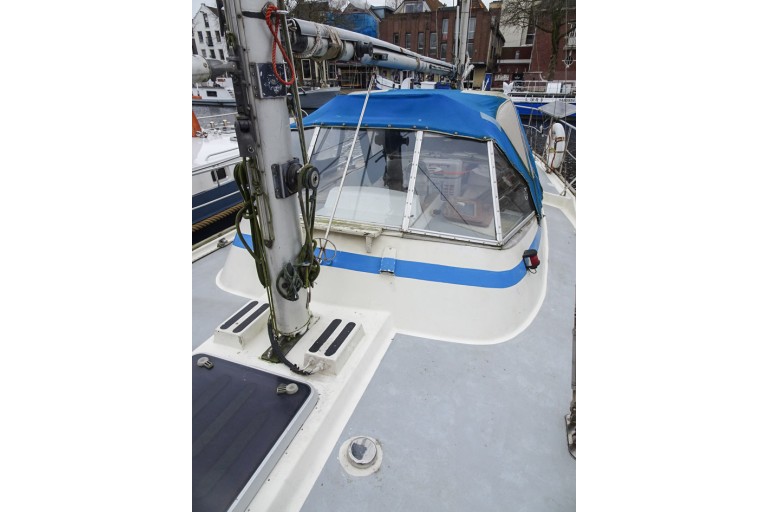

| Construction method: | centre cockpit self-draining cockpit forecabin cleats |
| Keel: | fin keel |

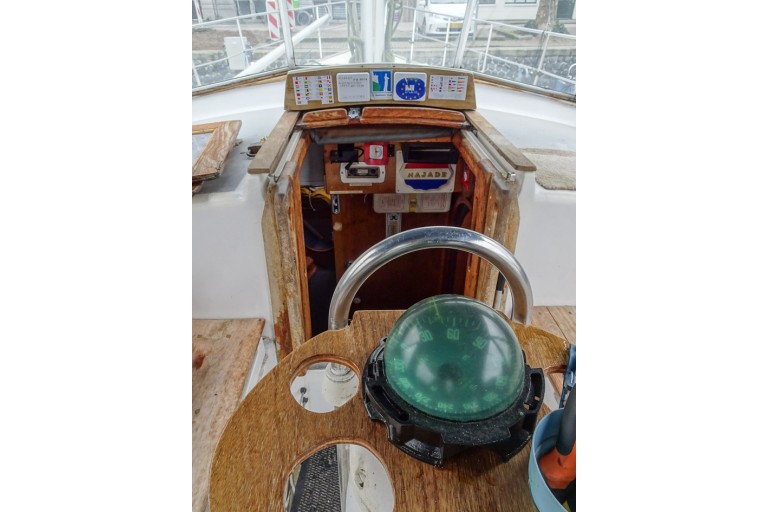

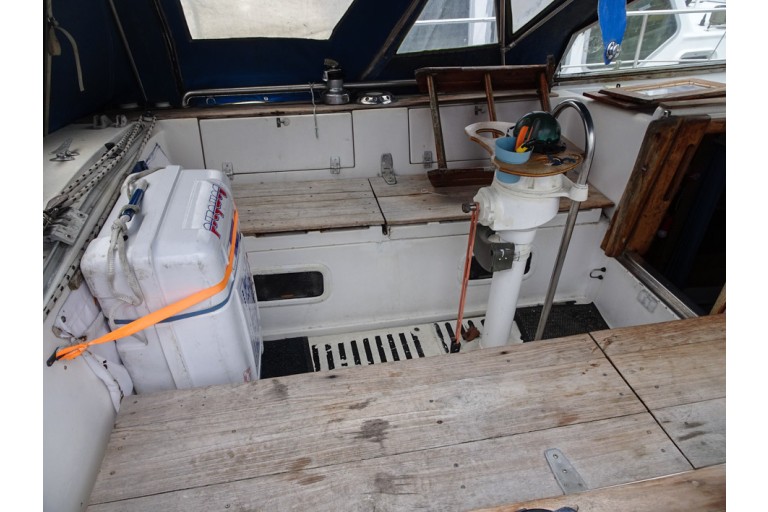

| Steering system: | mechanical wheel on steering pedestal |
| Windows: | plexiglass aluminium windshield |
| Displacement (approx.): | 8 ton |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | white hull blue striping white superstructure last underwatership treatment 2020/2021 some overdue maintenance |
| Suitable for / as: | seaworthy recreational vessel |
| General information: | offered in the condition that she is in can be sailed by 1 person |
| Additional information: | centre cockpit sailing yacht Great vessel for cruising on the coastal waters. |
Technical information

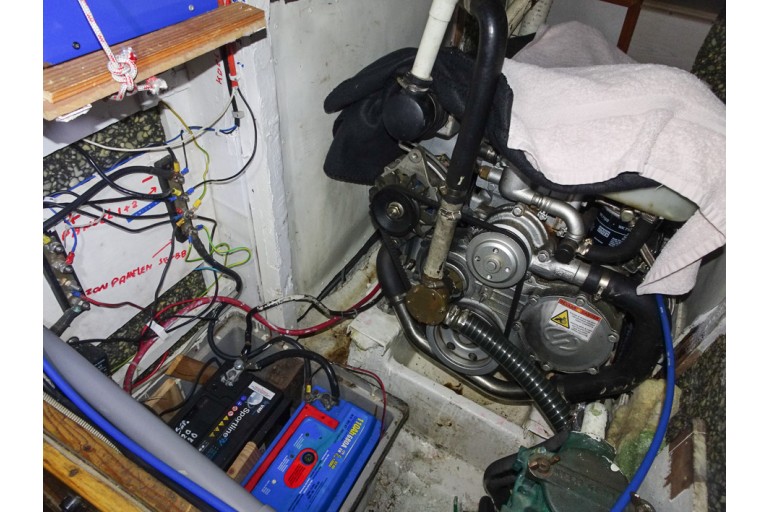

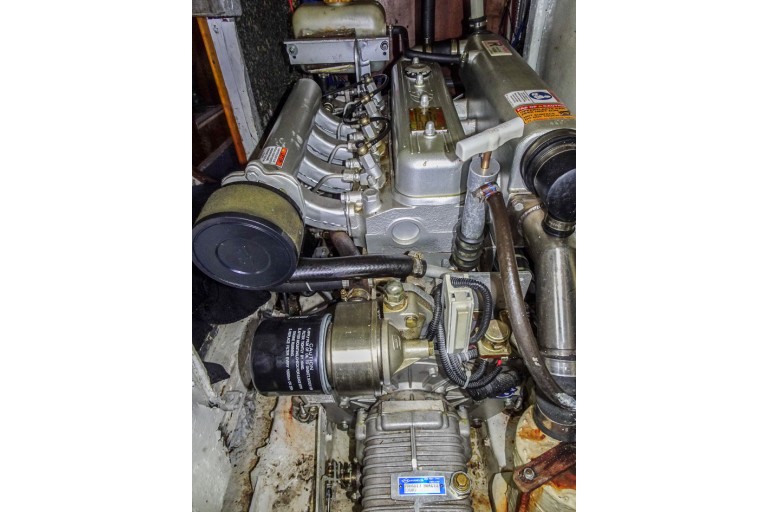

| Enginepower: | 46 Hp 34 kW |
| Engine brand: | Timray |
| Revolutions: | 3000 RPM |
| Engine model: | TMD 49DI |
| Number of cylinders: | 4 |
| Construction year engine: | 2014 into operation |
| Running hours (approx.): | 500 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 190 litre |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | 3 blade propeller water lubricated propeller shaft Python constant velocity prop shaft with thrust bearing |
| Gearbox: | PRM mechanical reduction/ratio 2,04:1 |
| Electricity system: | 12 Volt 230 Volt shore power connection |
| Batteries: | 1x 110 Ah 1x 70 Ah |
| Battery charger: | MVP battery charger 12/8 |
| Battery isolator: | battery isolator |

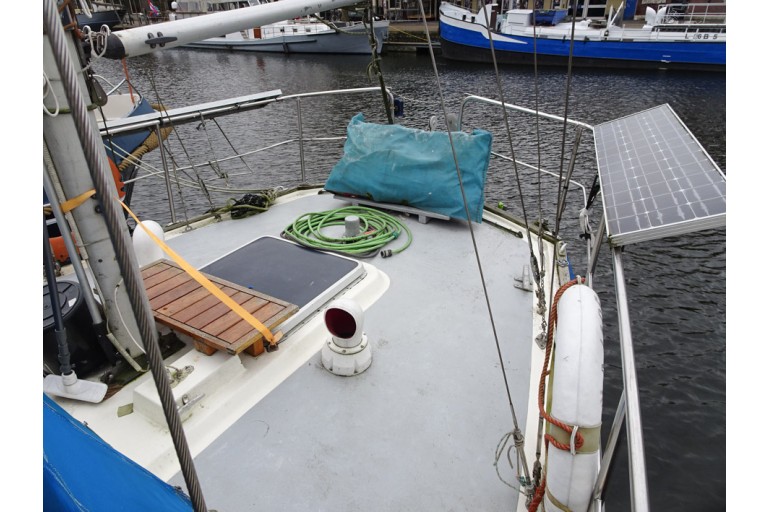

| Solar panels: | 2x solar panel Victron Blue Solar PWM charge controller |
| Fresh water tank (approx.): | 1x 300 litre 1x 110 litre plastic tank(s) |
| Water pressure system: | electric water pump foot pump |
| Hot water system: | geyser (gas heater) |
| Diesel waterseparator: | present |
| Bilge pump: | present |
| Gas system: | present |
Accommodation

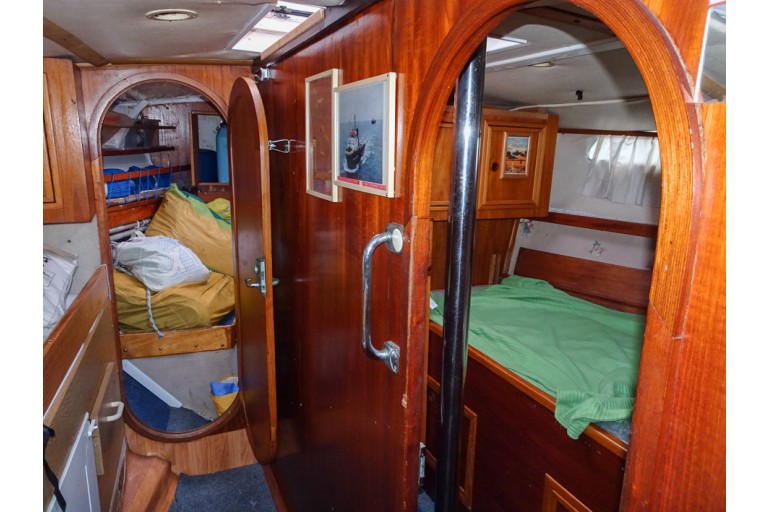

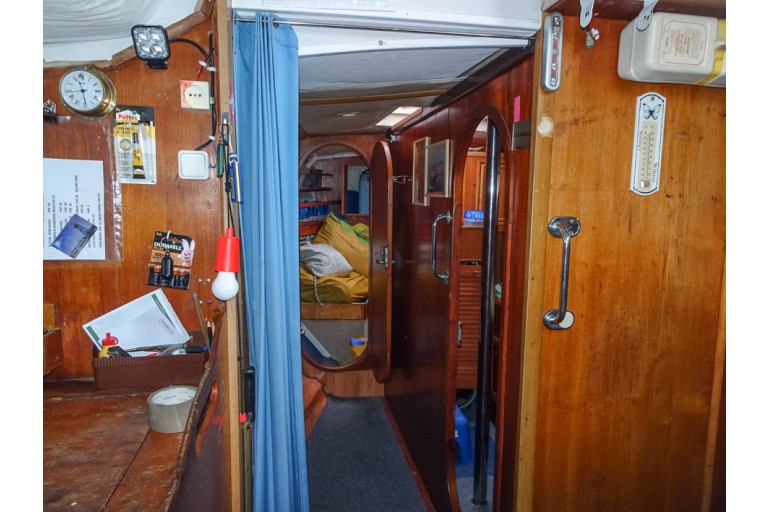

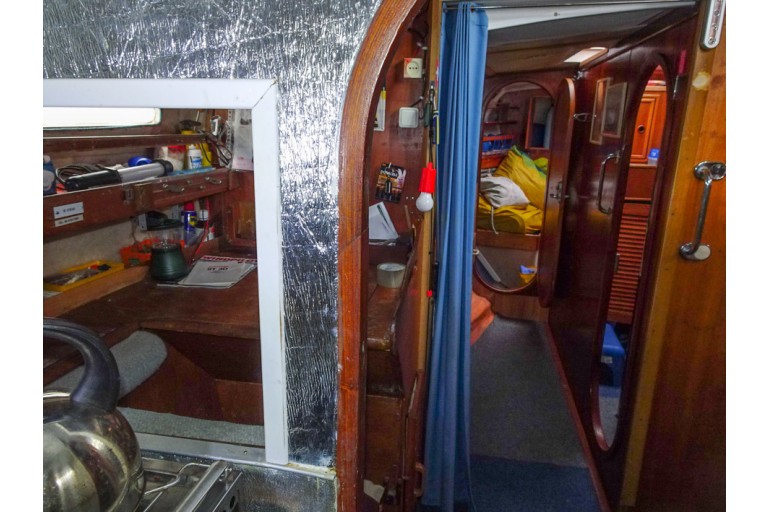

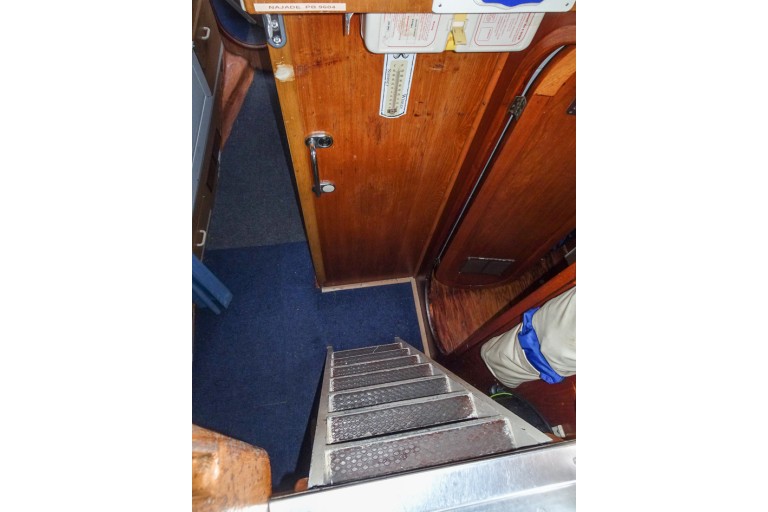

| Interior: | various materials have been used overdue maintenance see photographs |
| Cabins: | 2 cabins |

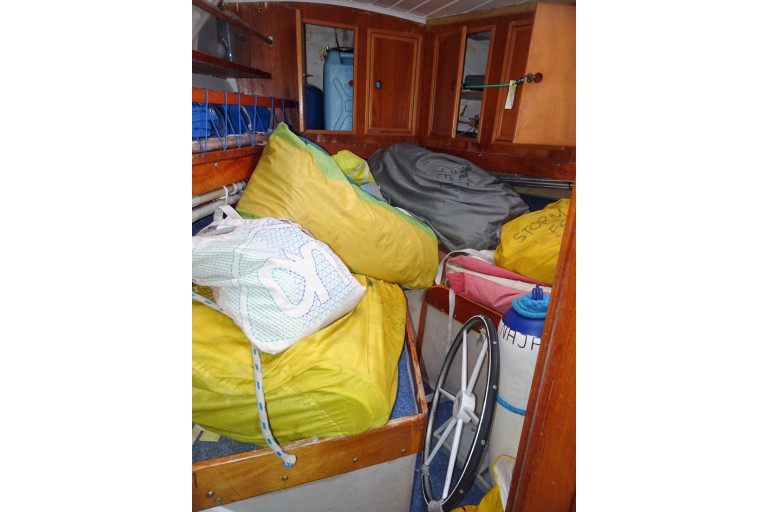

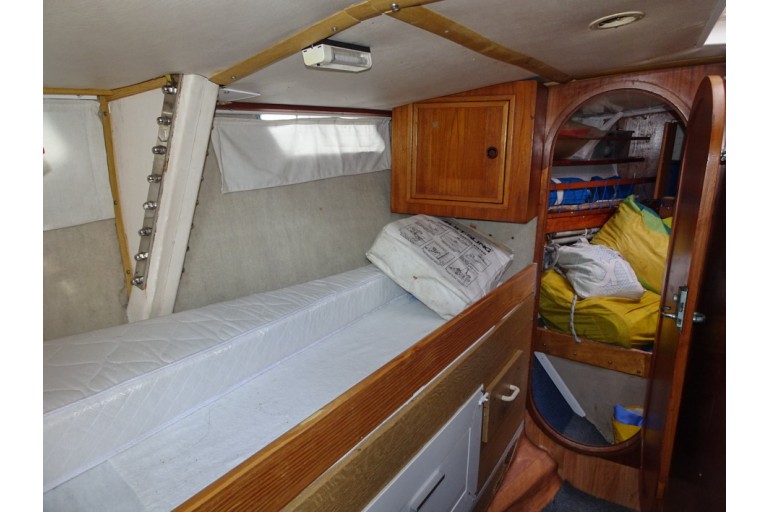

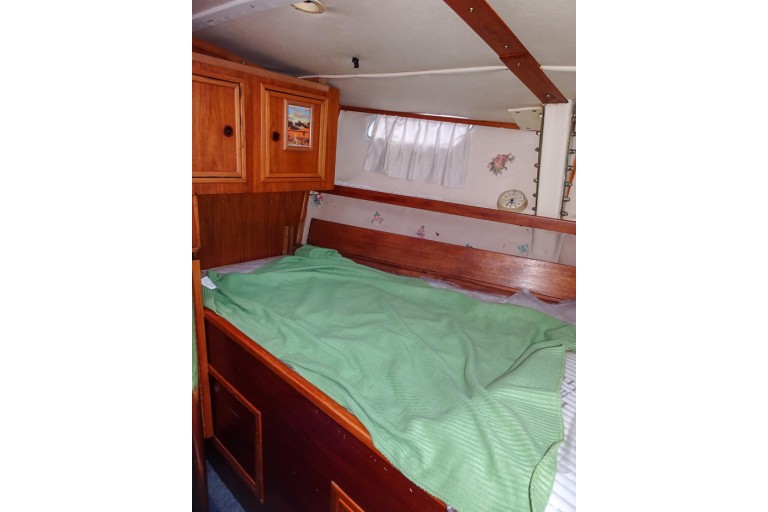

| Berth: | Forward: 2x 1-pers Starboard cabin: 1x 2-pers Quarter berth: 1x 1-pers |

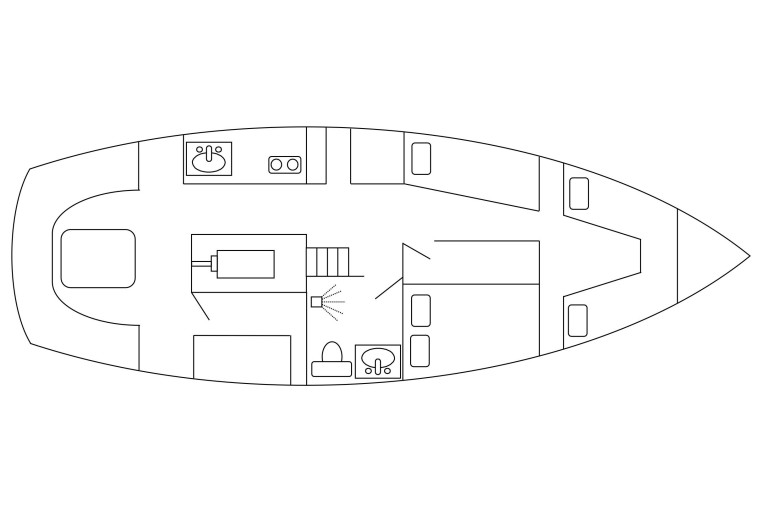

| Lay-out plan (not to scale): | see attachment |

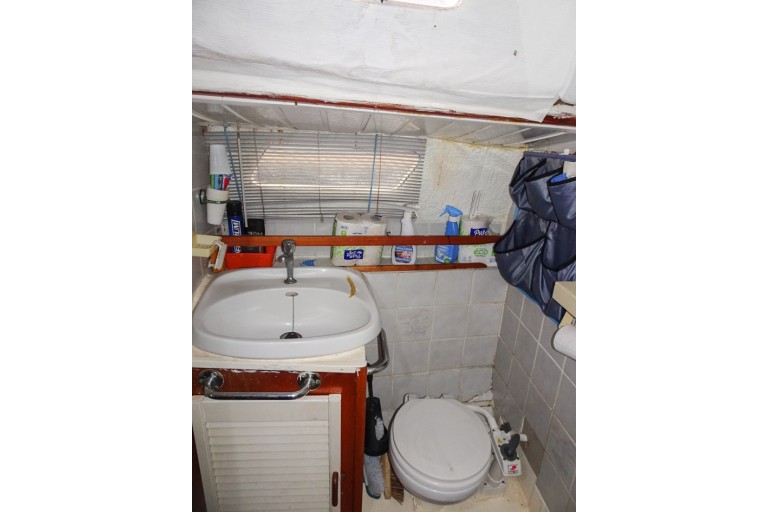

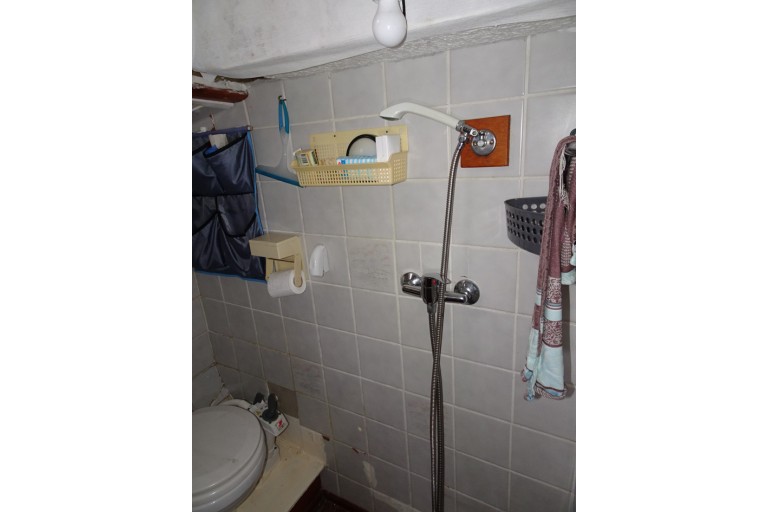

| Bathroom: | partly tiled shower mixer tap with hot & cold running water washbasin cold running water in 1 area together with the toilet |
| Toilet / Heads: | hand pumptoilet |

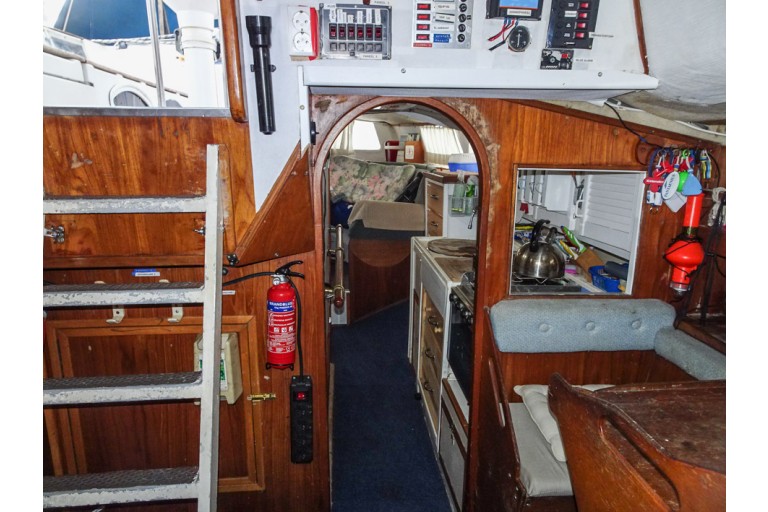

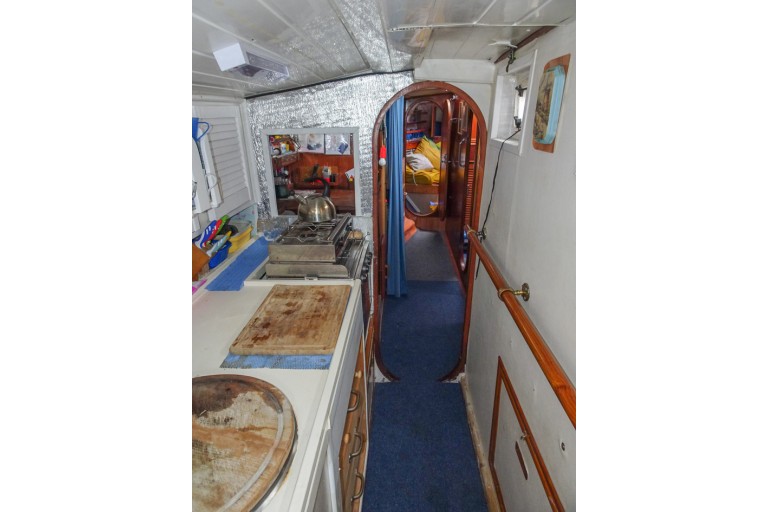

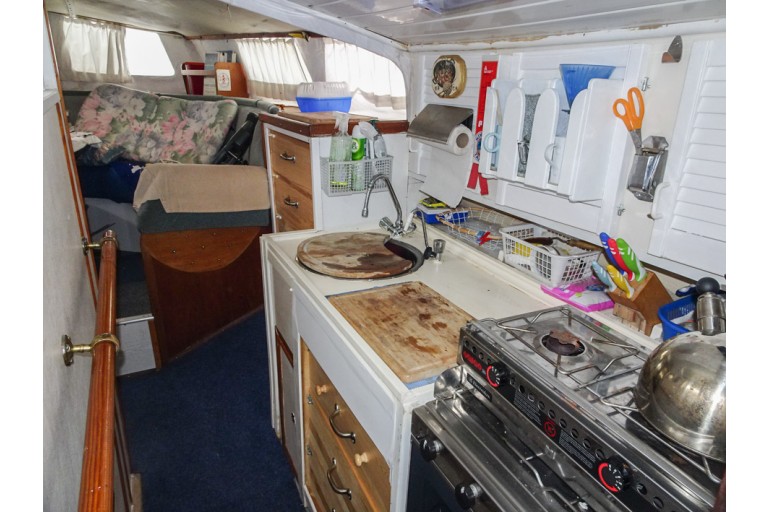

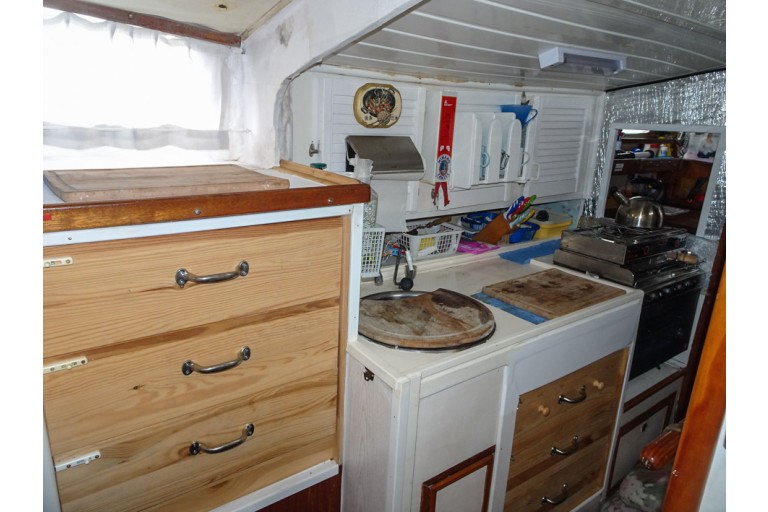

| Galley: | along ships |
| Cooker: | 3-burner hob stainless steel on gas Origo 3000 2-burner hob on spirit |
| Oven: | gas oven half gimbal |
| Fridge / Refrigerator: | Isotherm fridge / refrigerator |
| Freezer: | small ice compartment |
| Worktop: | wooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water foot pump cold water |
| Headroom (approx.): | forecabin (approx.) 1,78 m corridor / walkthrough (approx.) 1,75 m ownerscabin (approx.) 1,80 m bathroom / toilet (approx.) 1,94 m galley (approx.) 1,70 m salon (approx.) 1,85 m workshop 1,65 m |
Navigation equipment

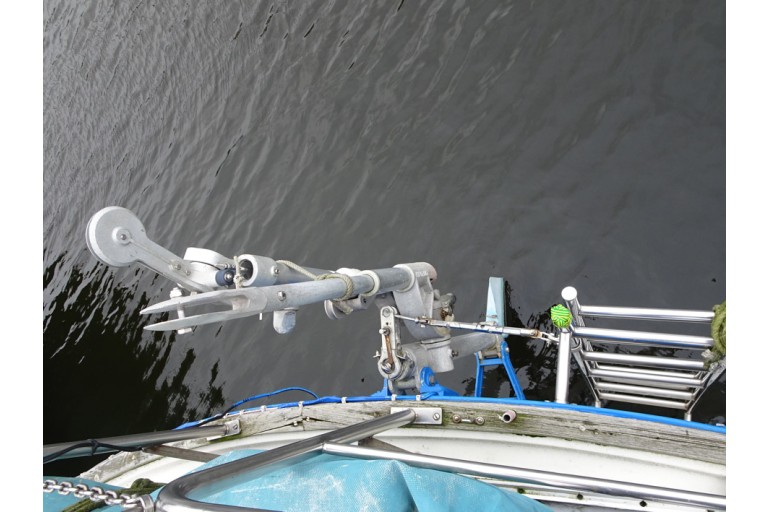

| Navigation equipment: | Sailor RT144 VHF Navico WP 300 CX autopilot Autohelm AH800 autopilot windvane steering Seafarer International depth / echosounder Autohelm depth / echosounder Autohelm log / speed compass hygrometer clock thermometer barometer navigation lights |
Rigging and sails
| Rigging type: | ketch rigged |

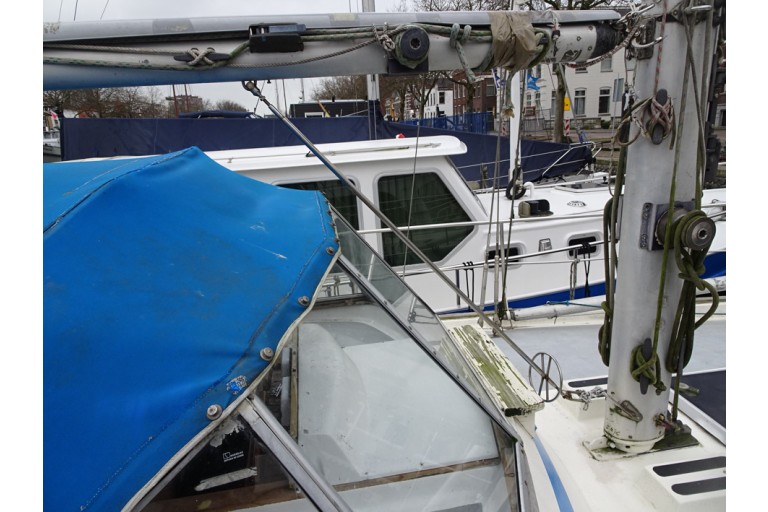

| Mast: | aluminium mast deck-stepped mast mast steps mizzen mast |
| Lowerable: | no |
| Boom: | 2x aluminium |
| Winches: | 2x Lewmar 30ST sheet winch selftailing 1x Lewmar 44 Three Speed 2x Lewmar halyard winch 2x reefing winch |
| Material of the sails: | Dacron |
| Sails: | mainsail Roller Furling Genoa Roller Furling Genoa 2 2x high aspect jib storm jib mizzen |
| Roller Reefing system: | furling genoa |
| Additional information: | rodkicker spinnaker boom jibboom |
Equipment

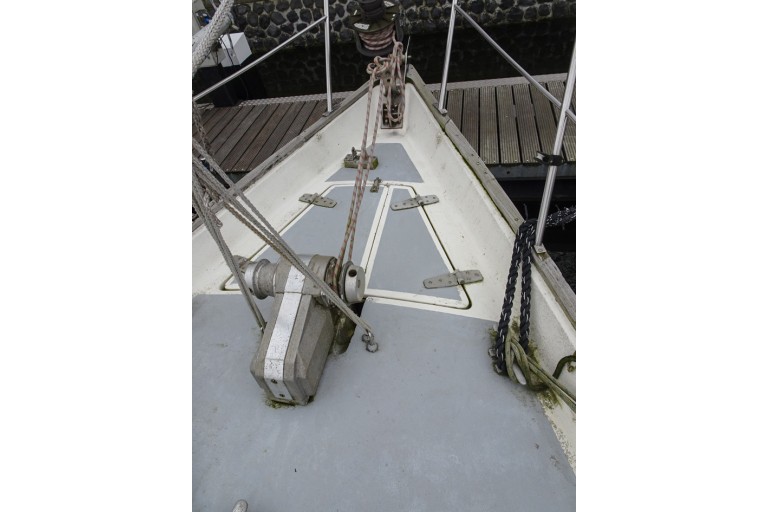

| Anchor equipment: | Lofrans electric anchor winch warping drum 2x anchor with rope and chain bow roller |

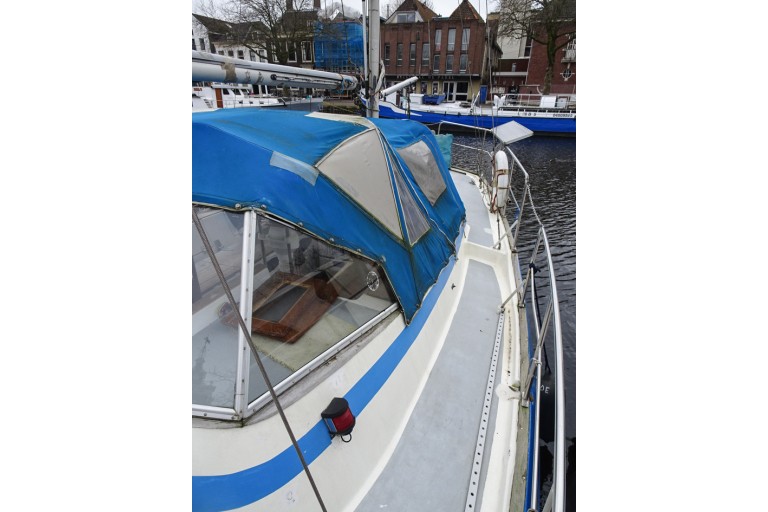

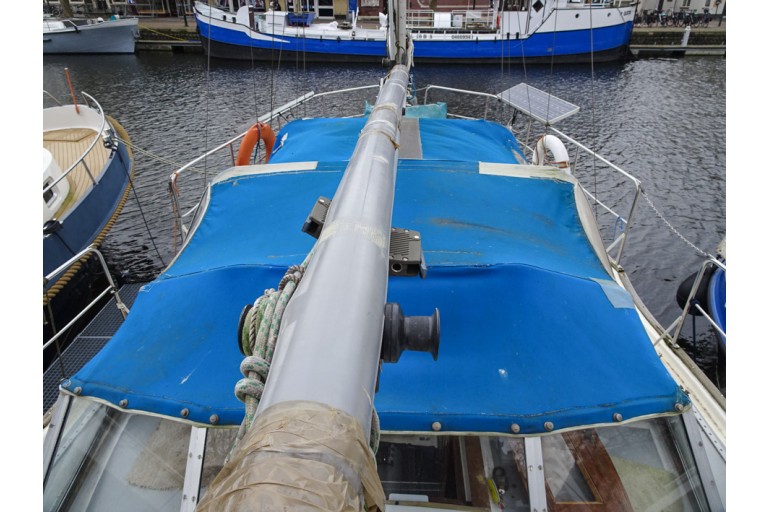

| Cockpit tent: | cockpit tent |
| Swimming platform: | stainless steel |

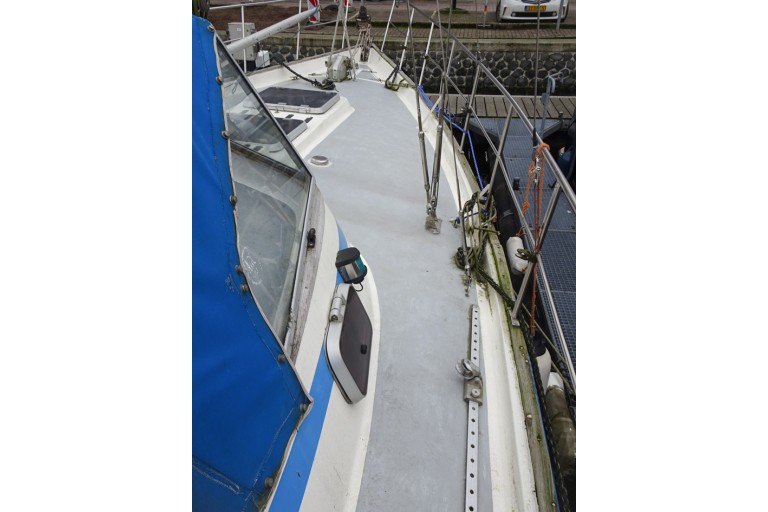

| Searail / Pulpit: | stainless steel searail |
| Safety: | EPIRB liferaft without certificate rescue sling |
| Additional information: | fenders |
