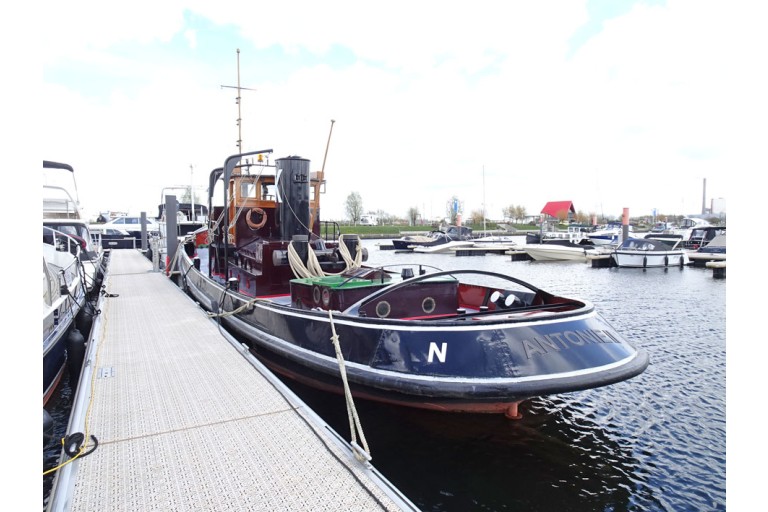

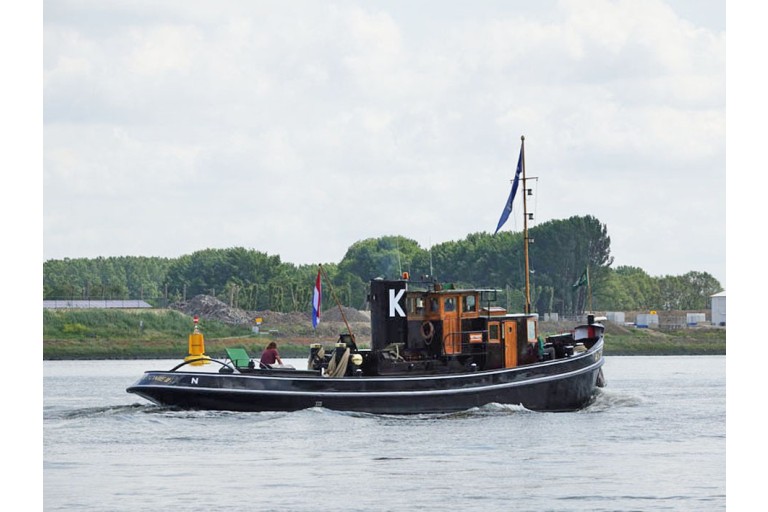

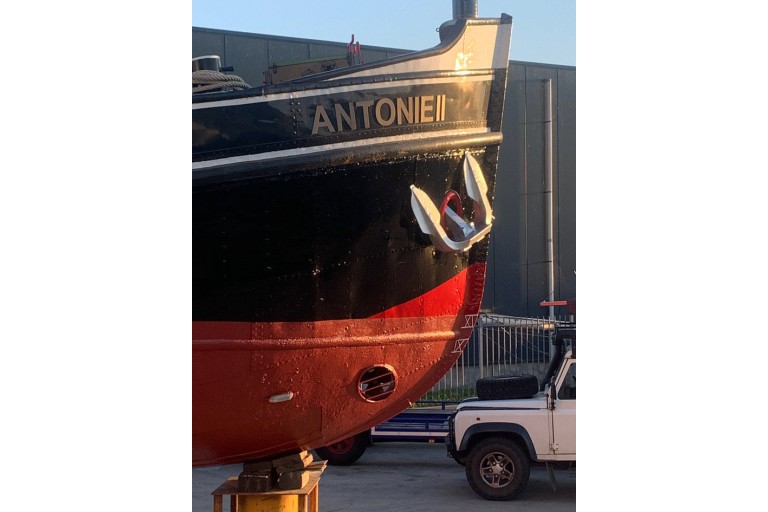

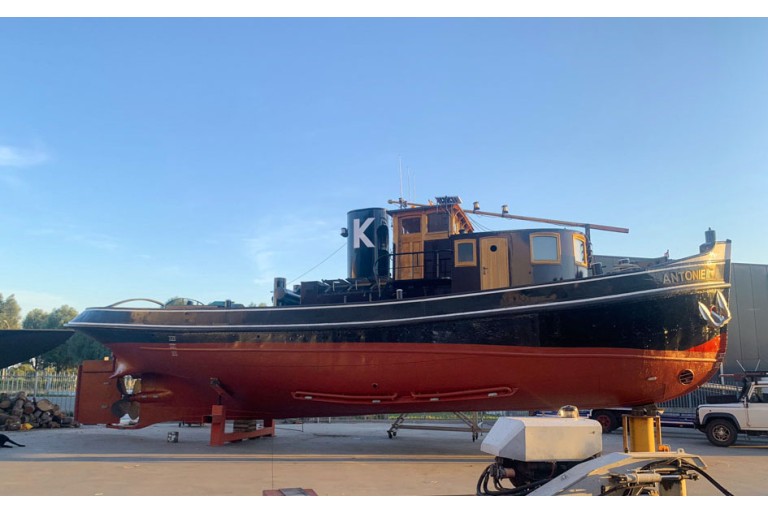

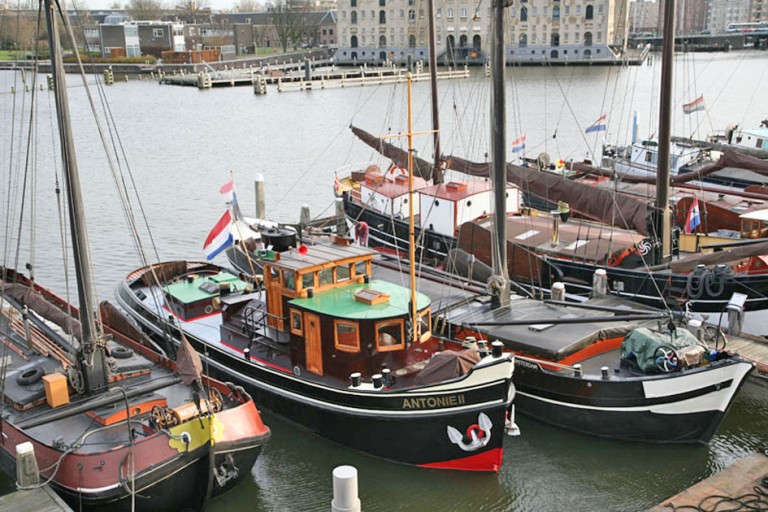

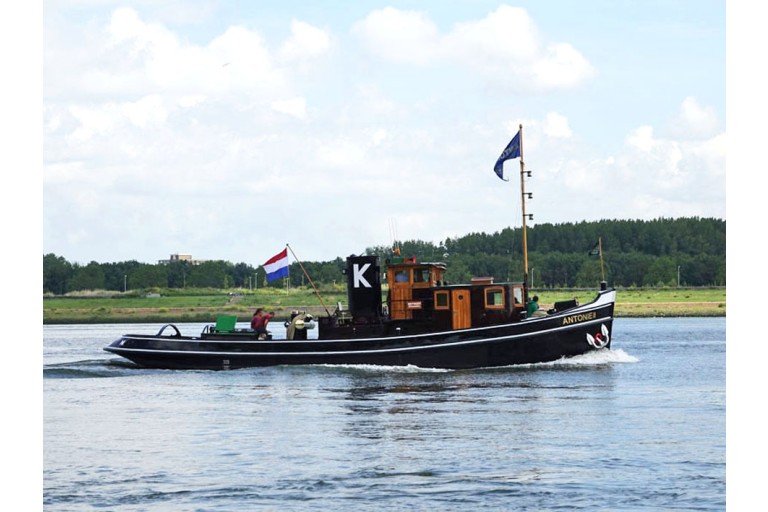

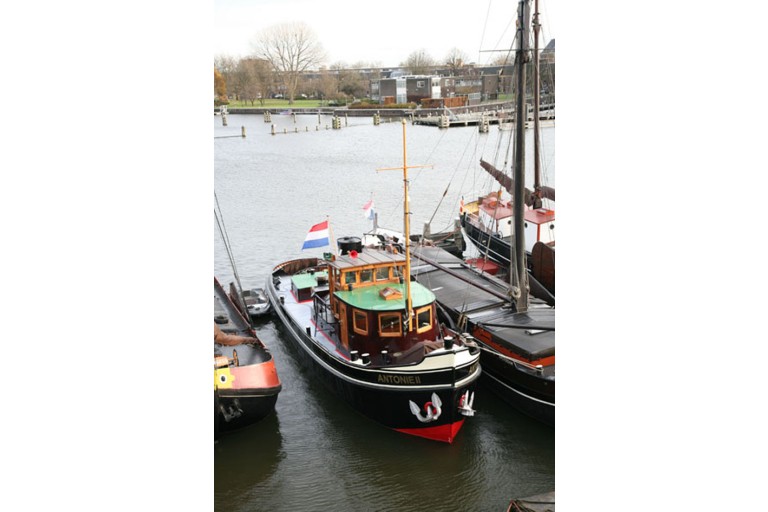

Tugboat Antonie II with TRIWV Sold
Dimensions (m):
18.75 x 4.72 x 1.65/2.00
Ref. no.:
230402
Mooring:
Near Drimmelen, Netherlands
Construction year:
1938
Material:
steel
Vision Doeve Brokers

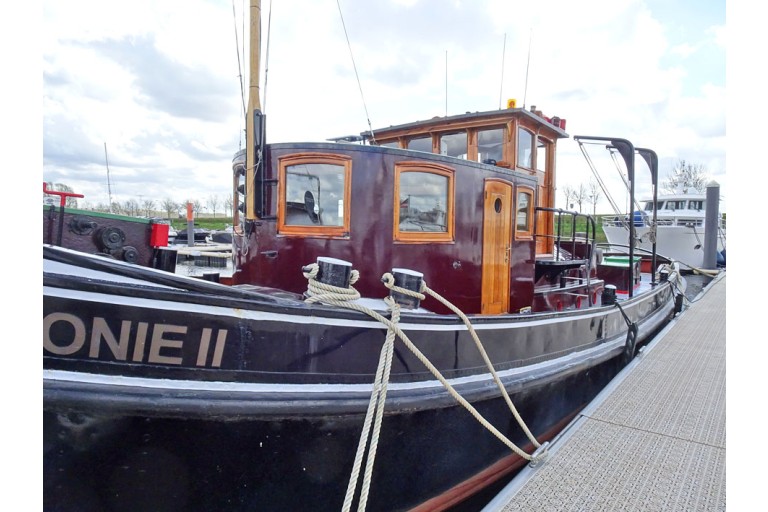

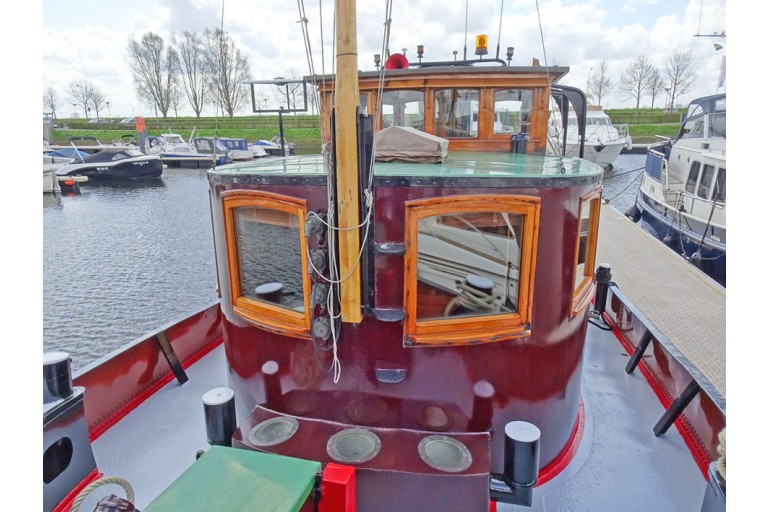

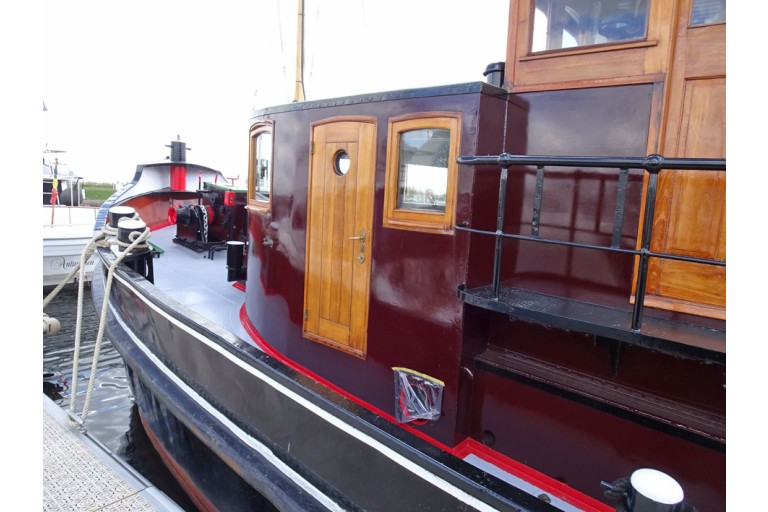

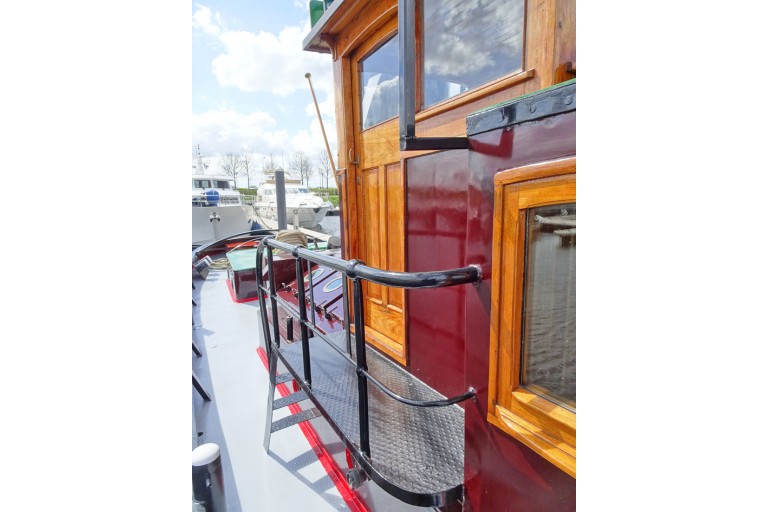

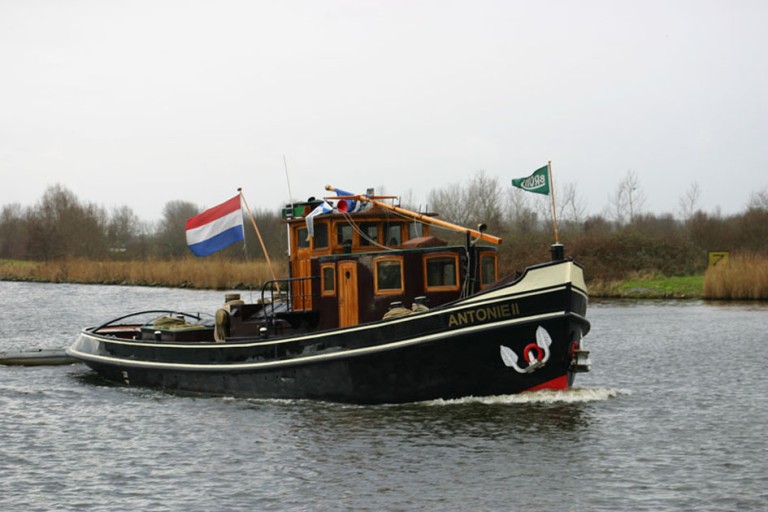

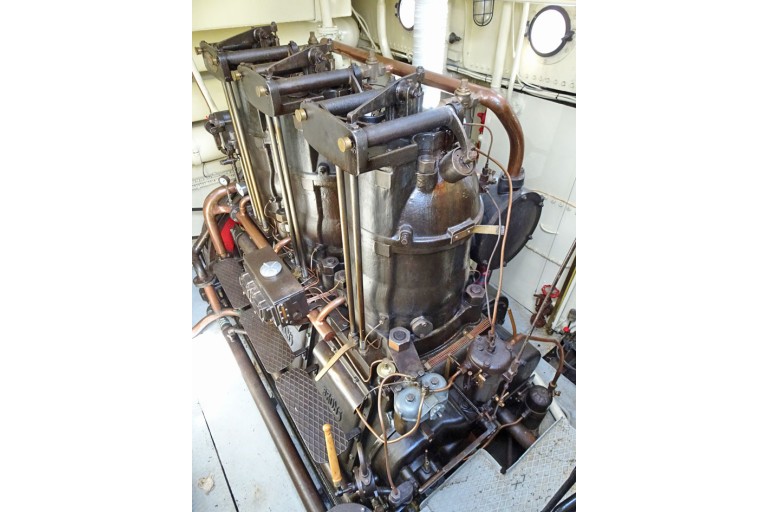

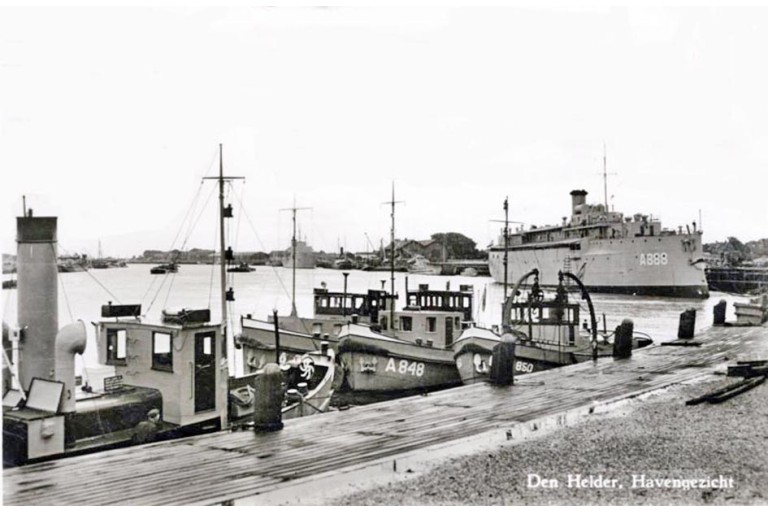

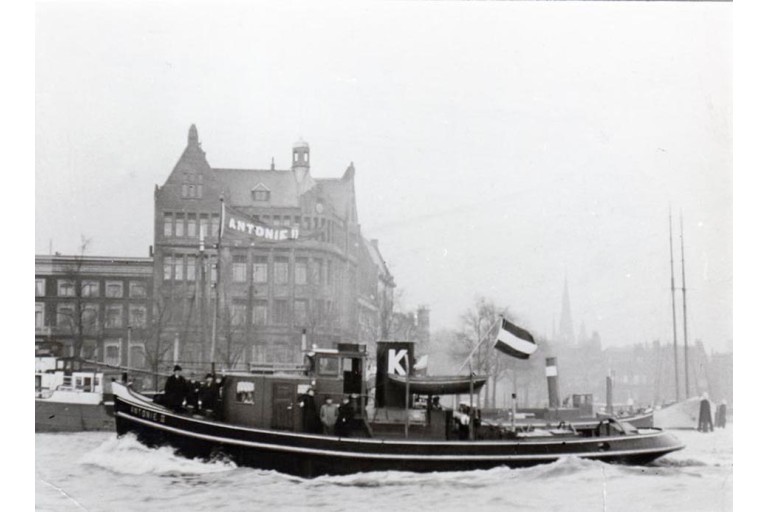

Beautifully built and well-maintained motor tugboat that after being built for the well-known Dutch tugcompany A.Kooren & Zn., has been owned by, among others things, the Amsterdamsche Droogdok Maatschappij, the German Kriegsmarine, the Dutch Royal Navy (A 848 / Y8027), Dutch waterways authorities (Rijkswaterstaat) and subsequently by a number of other owners. The boat is equipped with an overhauled beautiful Brons 3 cylinder diesel. The engine room is very neat, just like the rest of the boat. The wheelhouse has a copper roof covering. The interior is classic with many authentic details, but is fully equipped. In our view, an excellent opportunity to acquire a boat like this, that is certified as a recreational craft.
More information
General information
| Yard: | Shipyard G. Bijlsma Jzn, NL-Wartena |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel hardwooden top side of the wheelhouse |
| Construction method: | riveted new steel is welded rubbing strake around bulwark around forward deckhouse forecastle deckhouse wide side decks (gunnels) 4 watertight bulkhead(s) |

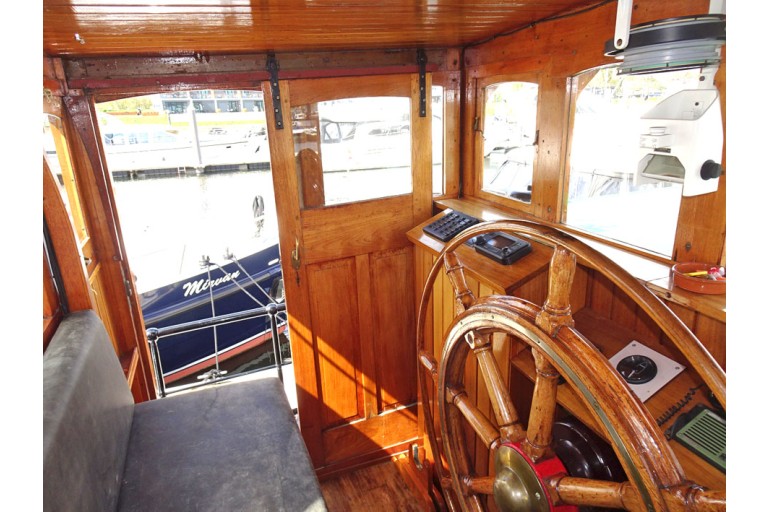

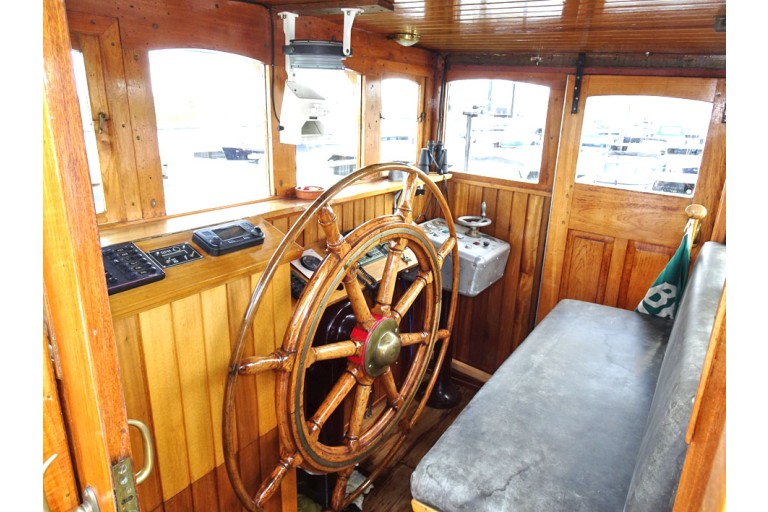

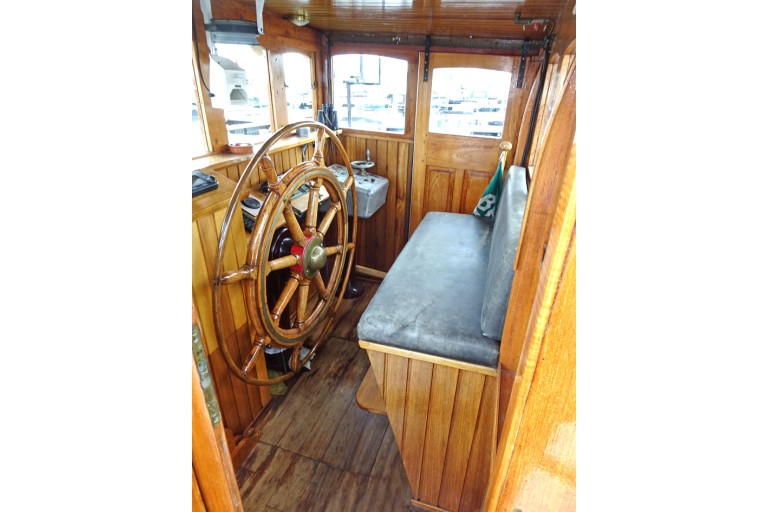

| Steering system: | hydraulic wheel |
| Windows: | hardwood window frames double glazing & single glass |
| Ballast (approx.): | present lead |
| Airdraft (approx.): | 4,20 m everything down |
| Owner: | Dutch owner |

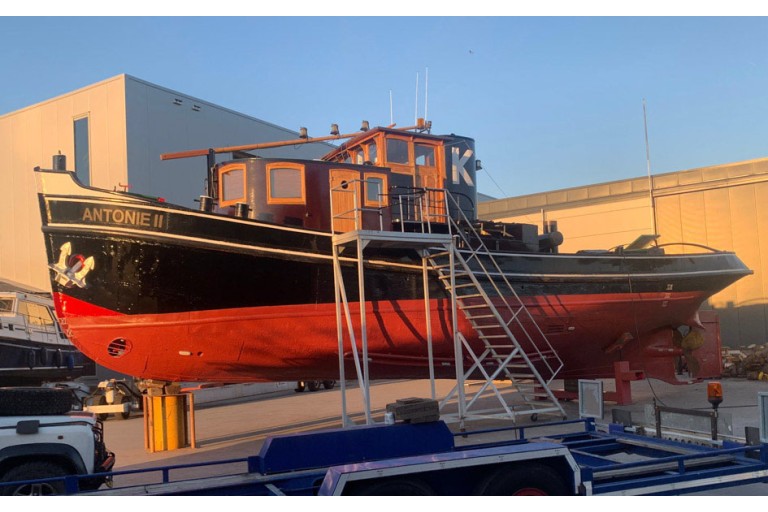

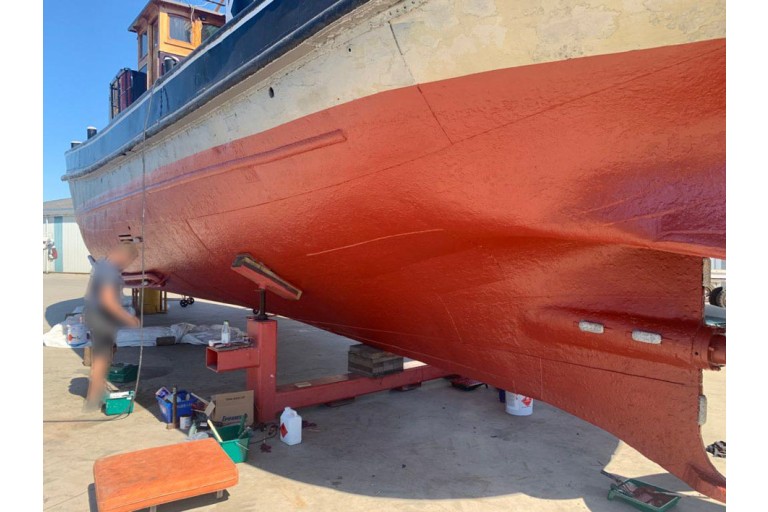

| Colour / Paint System: | black hull black bulwark brown superstructure see photographs very well maintained last underwatership treatment 08-2022 |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 03-2030 |
| Suitable for / as: | inland waterways recreational vessel suitable as a year round live- aboard |
| General information: | offered in the condition that she is in The ship is recognized as a Historic Vessel |

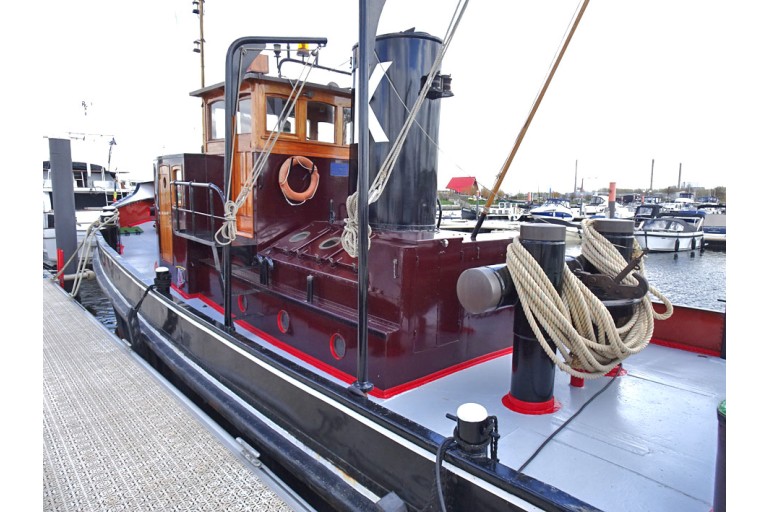

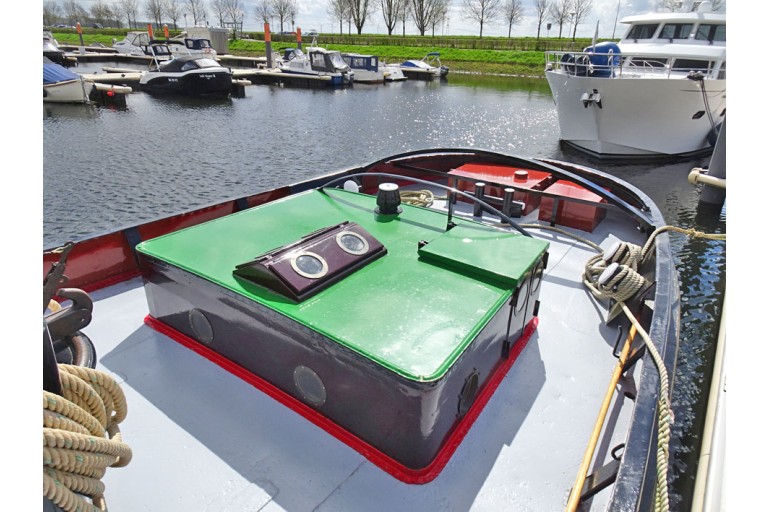

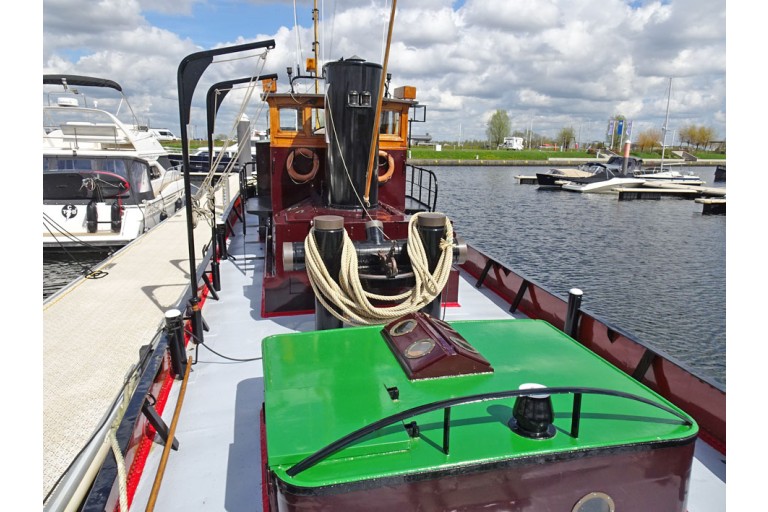

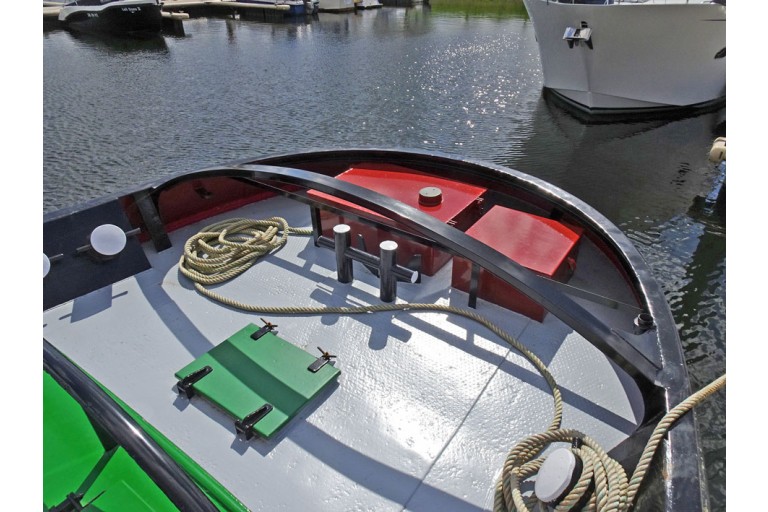

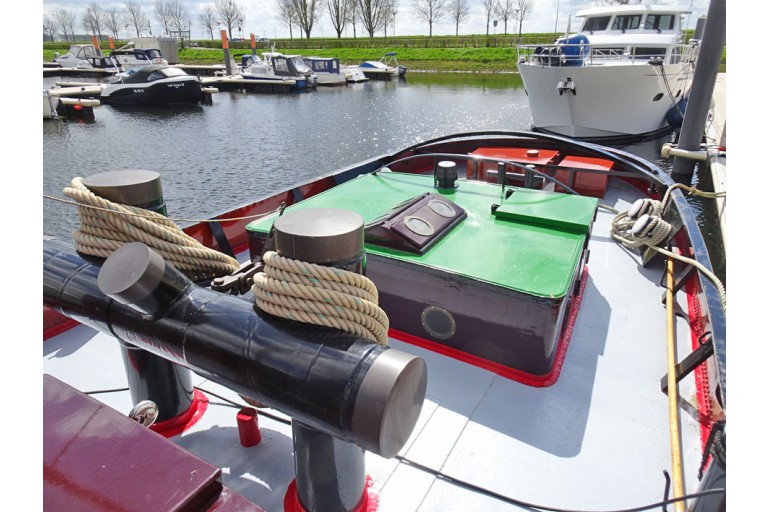

| Additional information: | tug bitts towing hook classic motor yacht classic lines beautiful sheer spacious aftdeck forepeak with chain locker |
Technical information

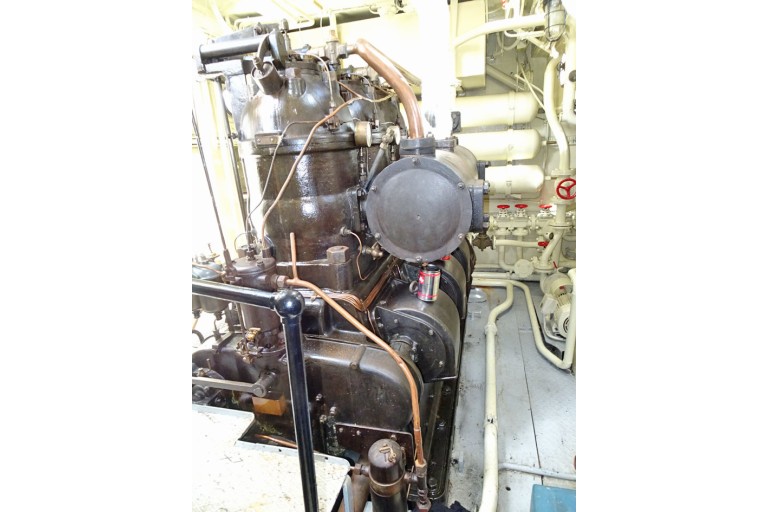

| Enginepower: | 150 Hp 110 kW |

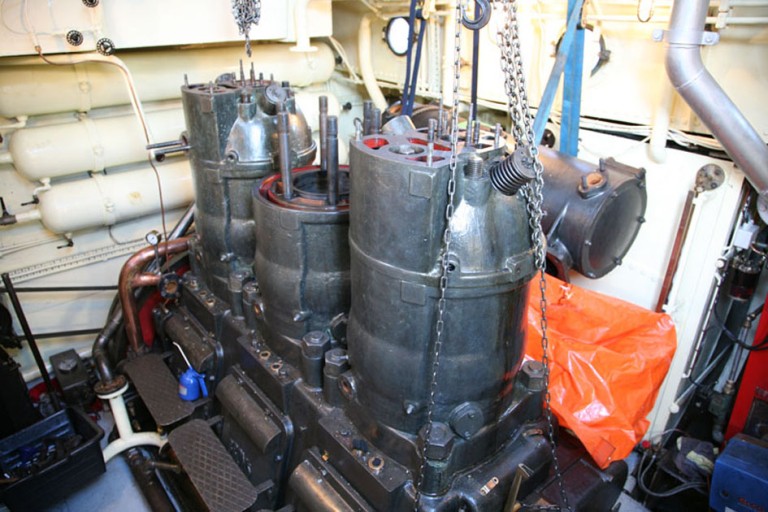

| Engine brand: | Brons |
| Revolutions: | 290 RPM |
| Engine model: | TC3 air started |
| Number of cylinders: | 3 |
| Construction year engine: | 1938 |

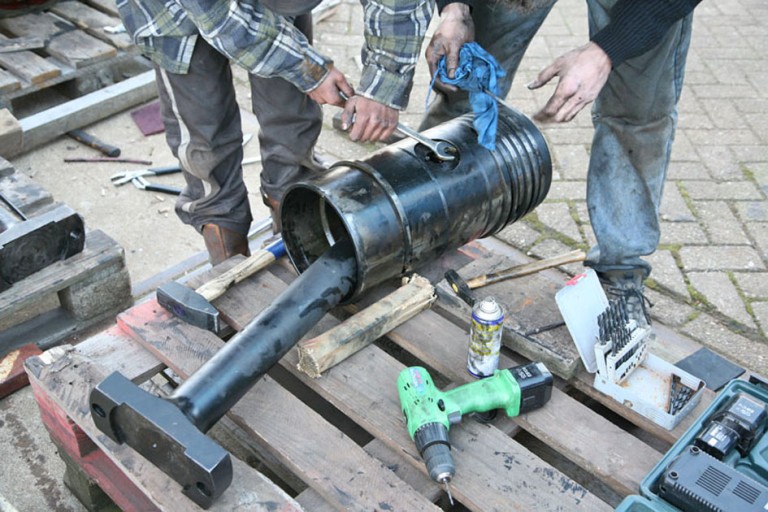

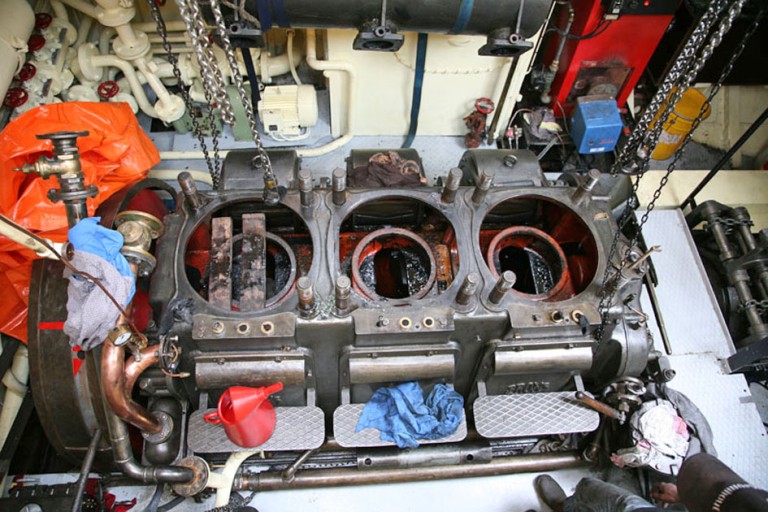

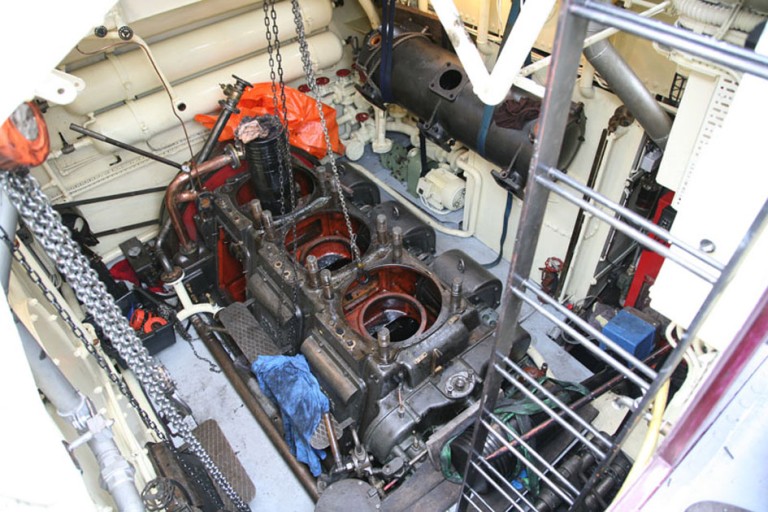

| Overhaul engine: | 2005/2006 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 900 litre 1x 600 litre 1x 500 litre 1x 50 litre steel tank(s) |
| Cooling system: | closed keel cooling |

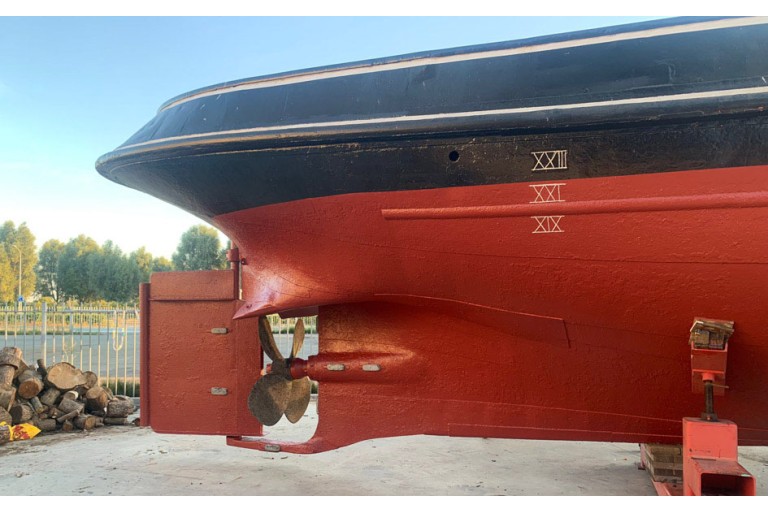

| Propulsion: | 4 blade propeller greasing device |

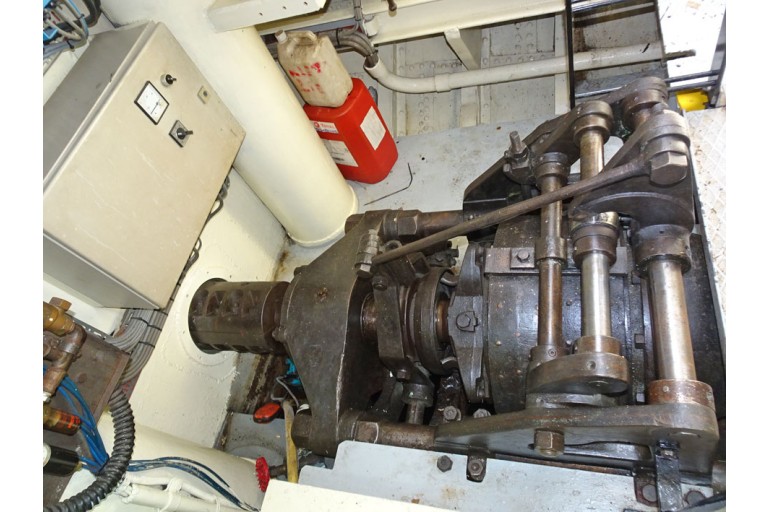

| Gearbox: | mechanical reduction/ratio 1:1 |
| Heating: | Kabola B25 central heating on diesel |
| Bow thruster: | Duco electric bow thruster (2018) 13,5 kW |
| Electricity system: | 24 / 230 / 400 Volt 230 Volt shore power connection |
| Batteries: | 1x traction batterie bank 12x 2 Volt |

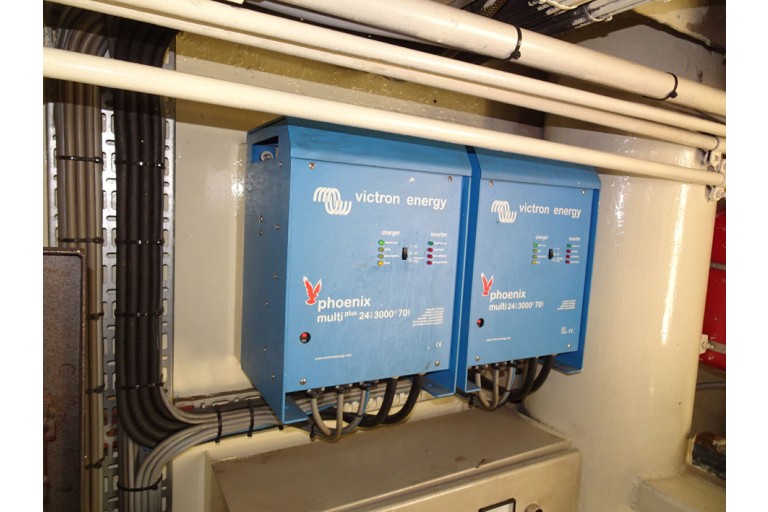

| Battery charger: | Victron Phoenix Multi combi inverter/charger 24/3000/70 Victron Phoenix Multiplus combi inverter/charger 24/3000/70 |

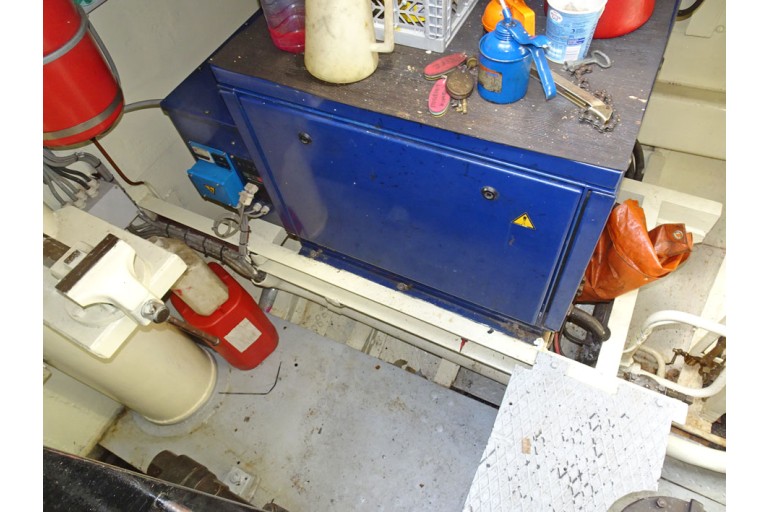

| Genny: | BW Generatortechniek whisper set 13.5 kVA 230/400 Volt 1500 RPM 550 running hours (approx.) box cooler |
| Inverter: | Victron Phoenix Multi combi inverter/charger 24/3000/70 Victron Phoenix Multiplus combi inverter/charger 24/3000/70 |
| Fresh water tank (approx.): | 1x 1200 ltr steel tank(s) 1x 1000 ltr not in use steel tank(s) |
| Water pressure system: | Speck hydrophore pump |
| Hot water system: | boiler/water calorifier (230 Volt) 30 litre |
| Holding tank (approx.): | 120 litre plastic tank(s) 350 litre gray water tank(s) |

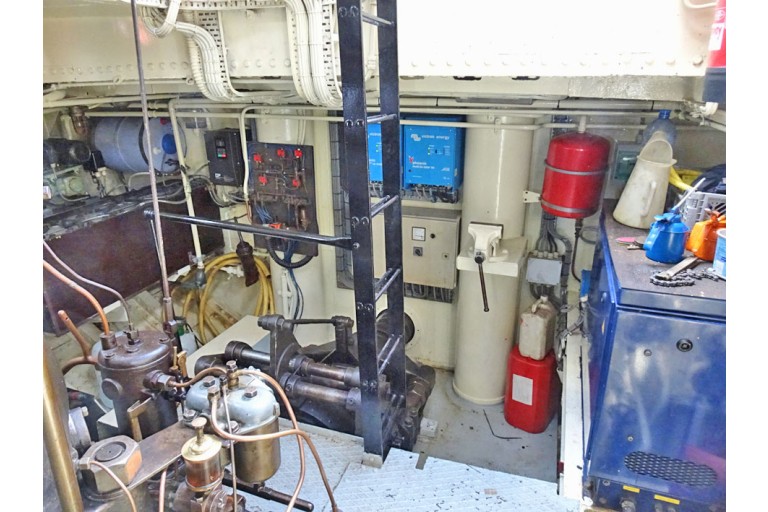

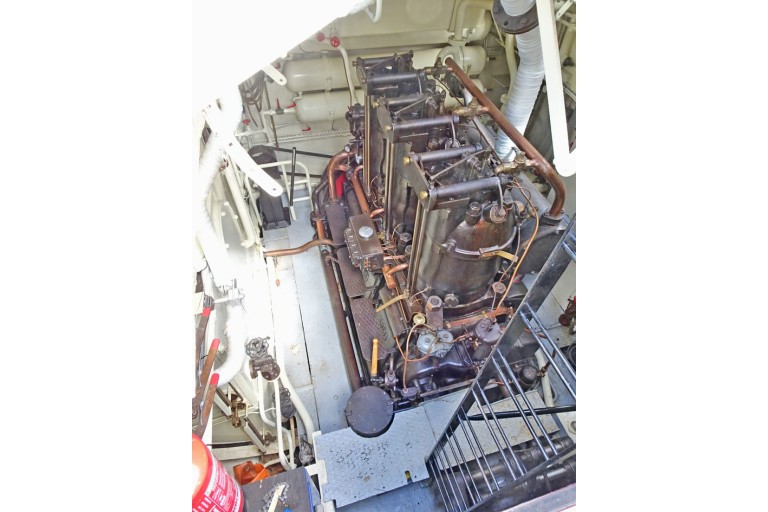

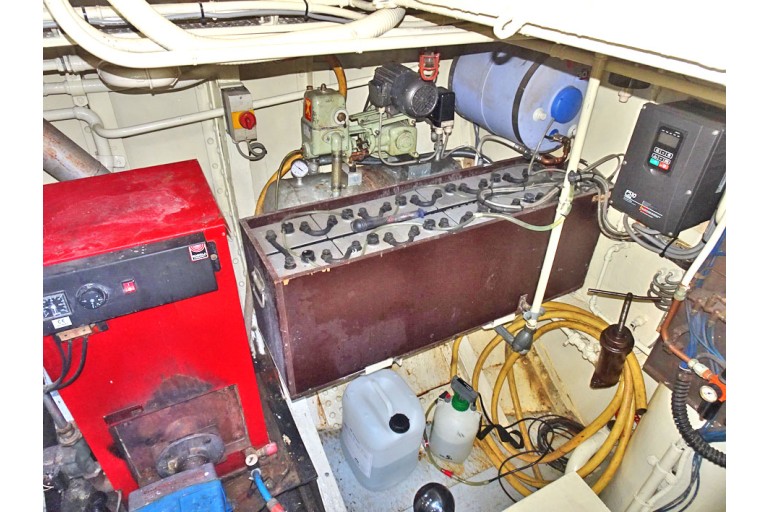

| Engineroom: | well maintained see photographs |
| Bilge pump: | electric pump & manual pump with manifold also deckwash pump & submersible pump |
| Gas system: | yes, bottle(s) in bottle box Gas certificate |

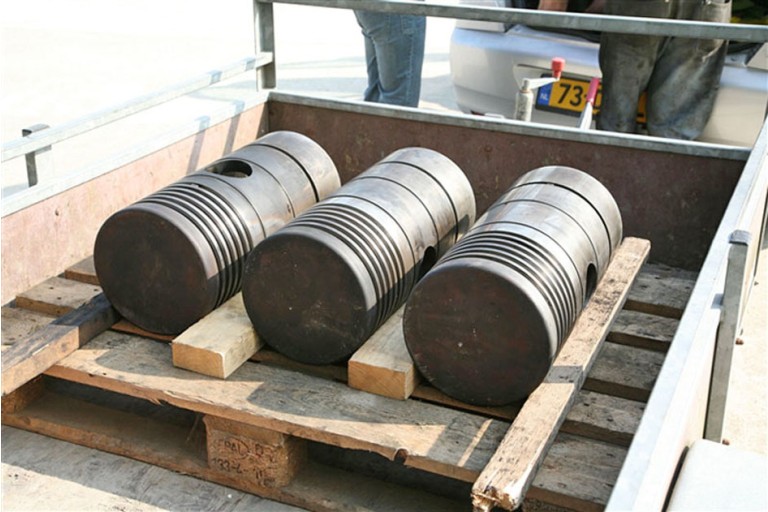

| Additional information: | 2x air compressor 3x air bottle 200 liter lubrication oil tank (approx.) |
Accommodation

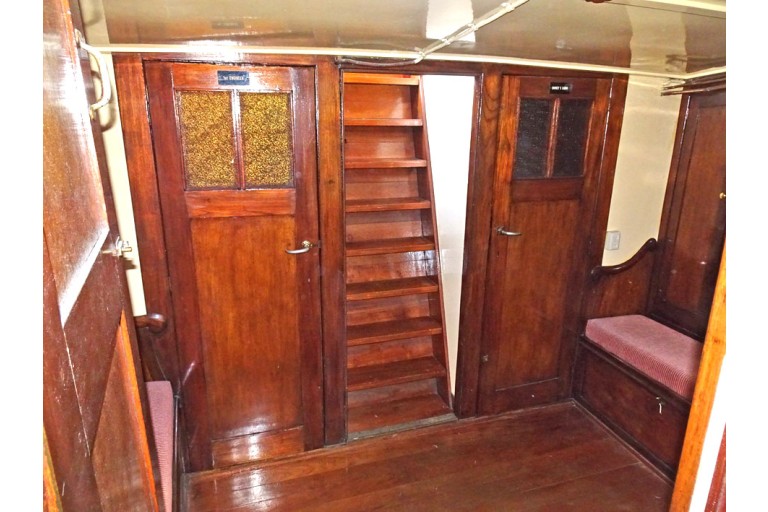

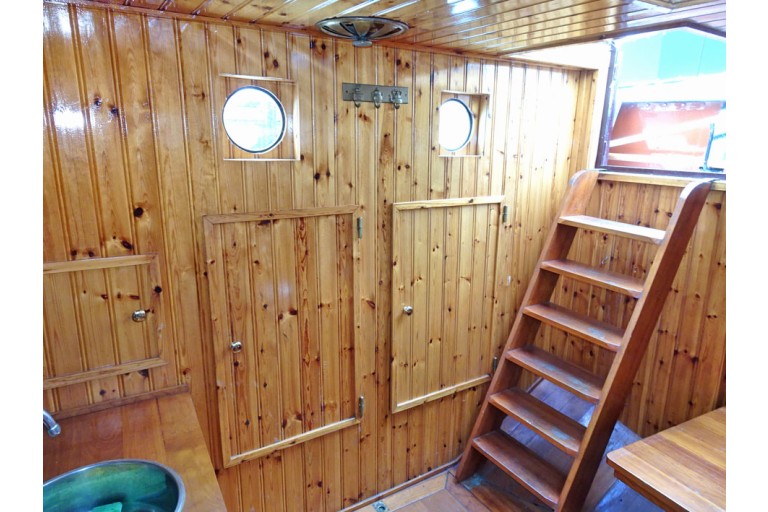

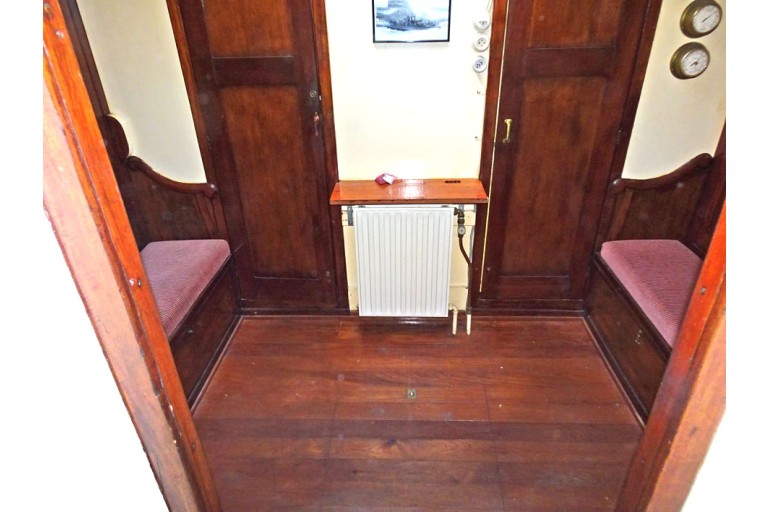

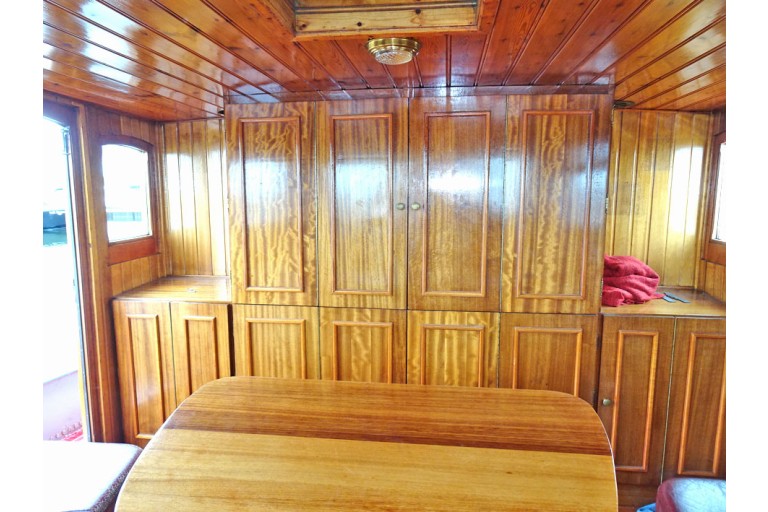

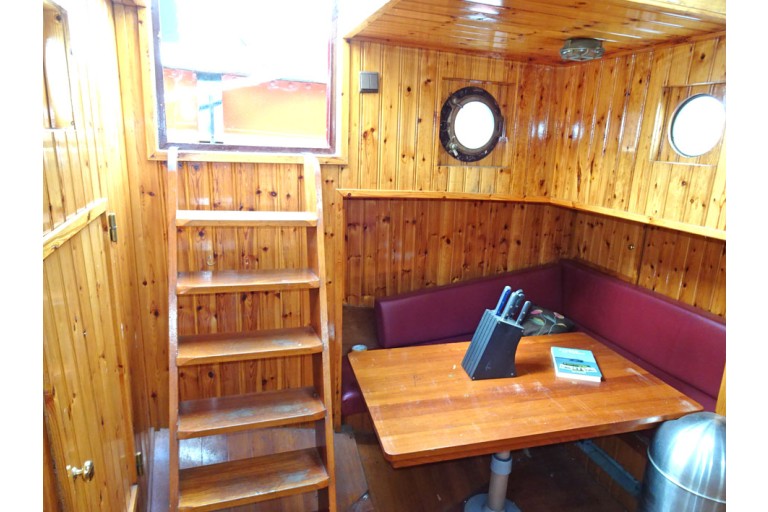

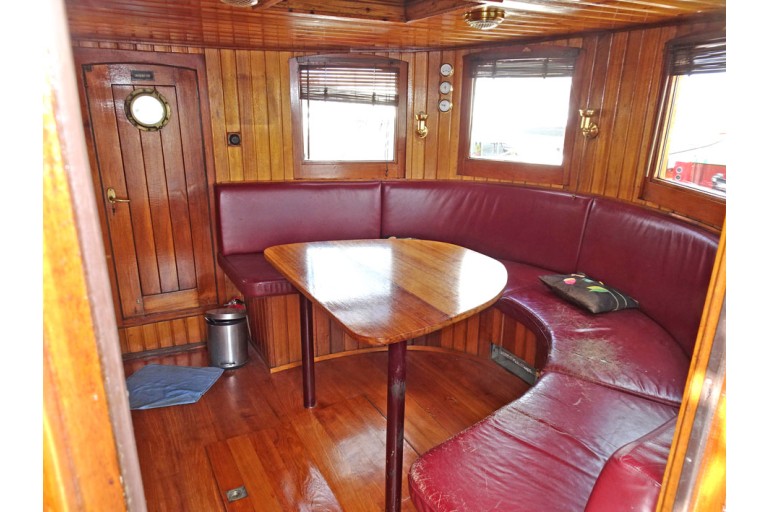

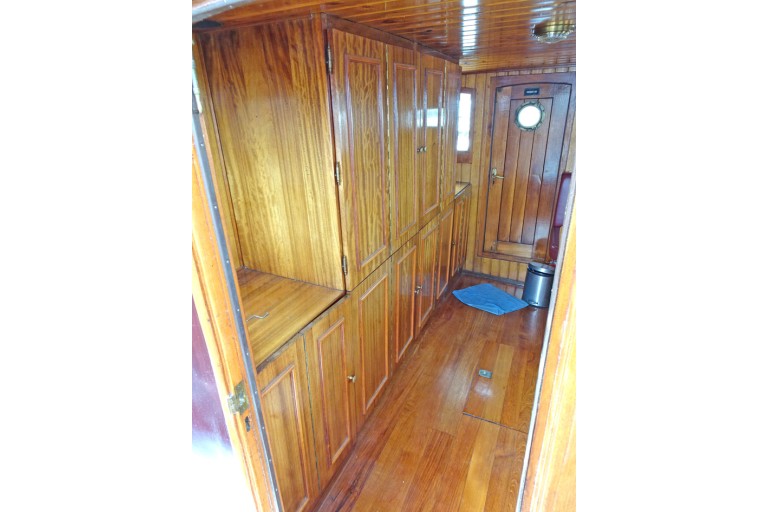

| Interior: | various materials have been used see photographs suitable for living on board |
| Insulation: | presumably insulated |
| Cabins: | 2 cabins |

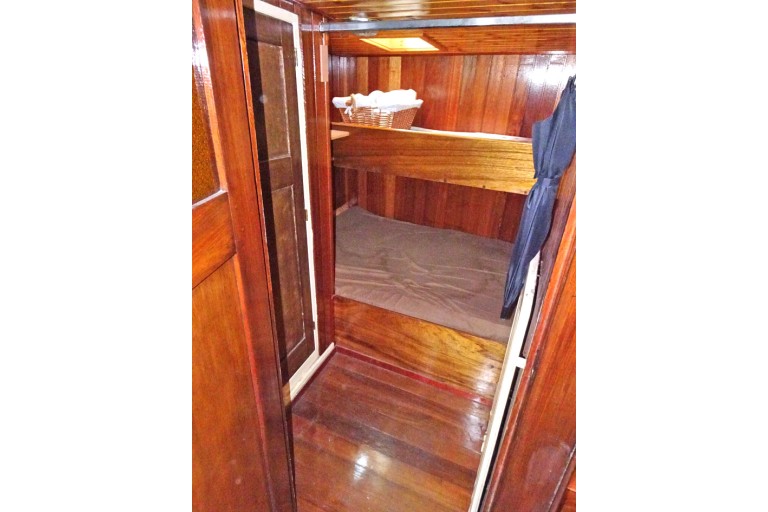

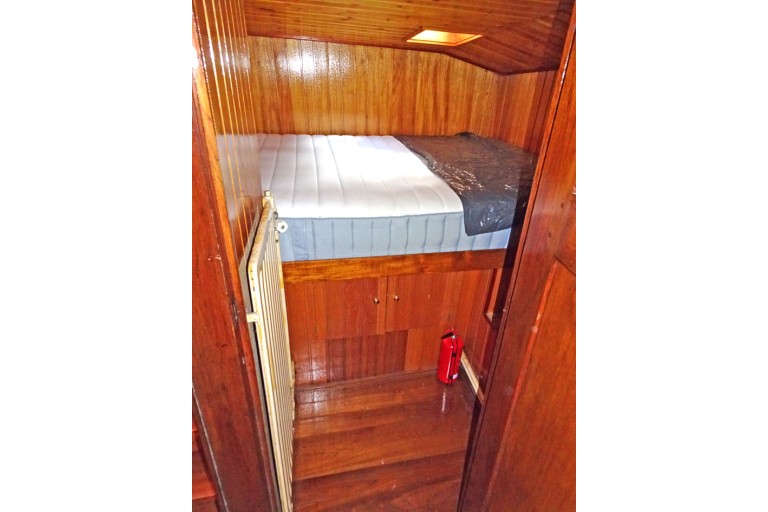

| Berth: | Portside cabin: 1x 2-pers Starboard cabin: 1x 2-pers & 1x 1-pers |

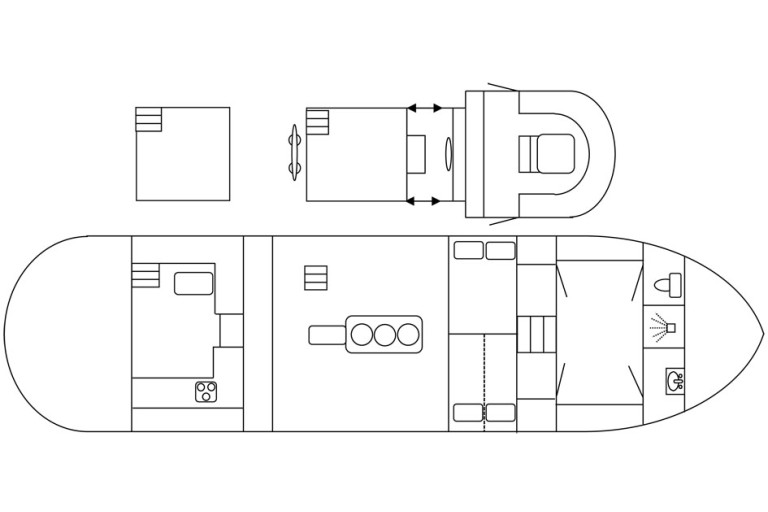

| Lay-out plan (not to scale): | see attachment |

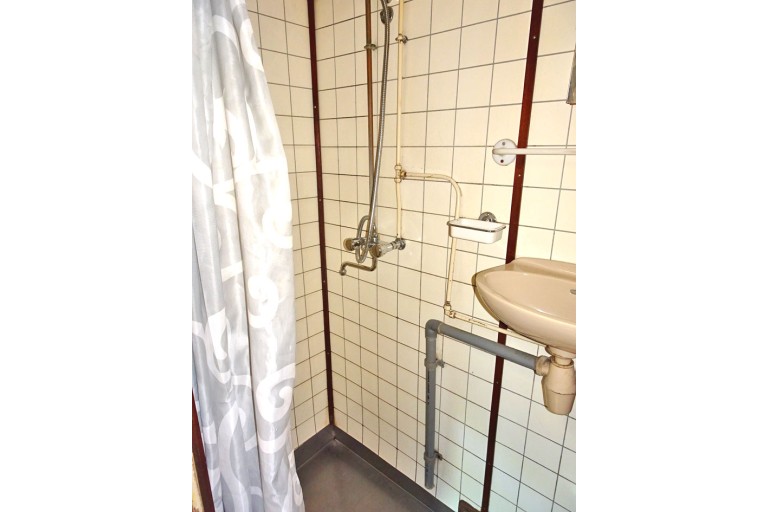

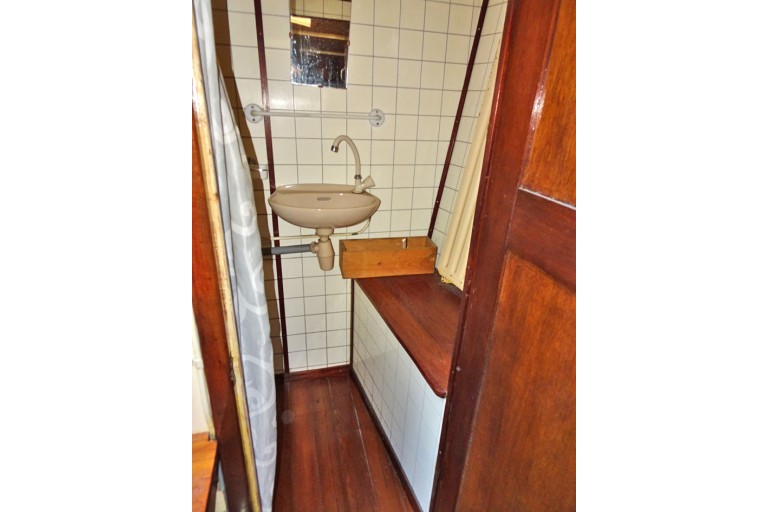

| Bathroom: | washbasin cold running water shower hot & cold running water |

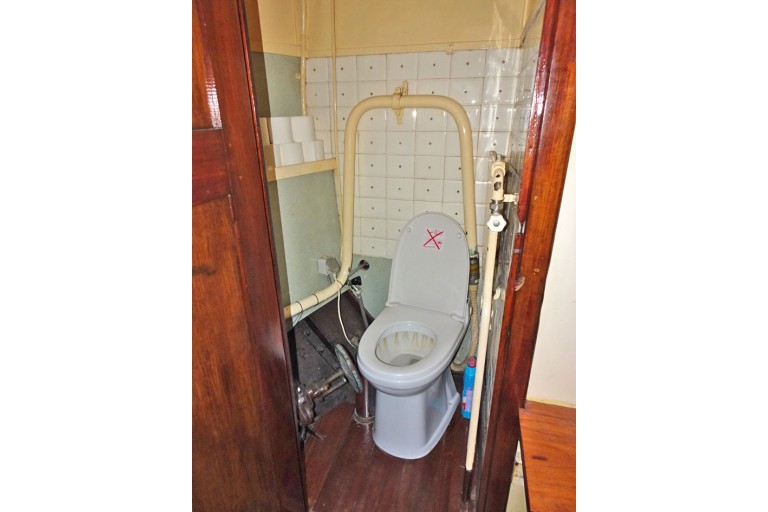

| Toilet / Heads: | electric toilet |

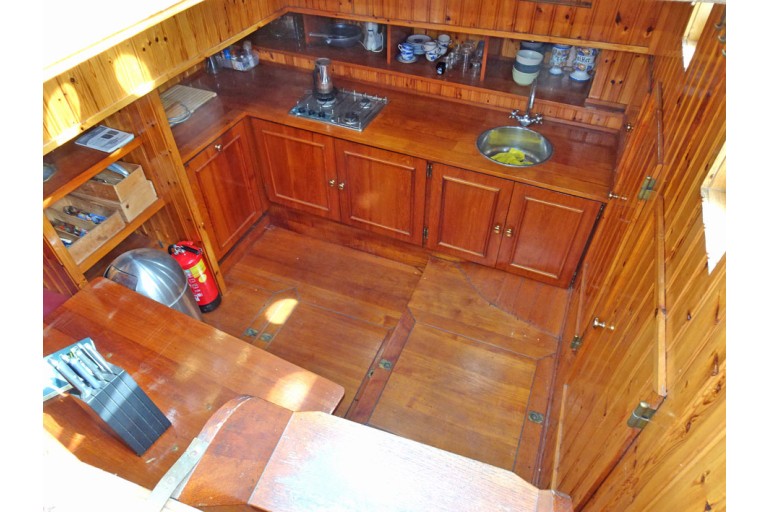

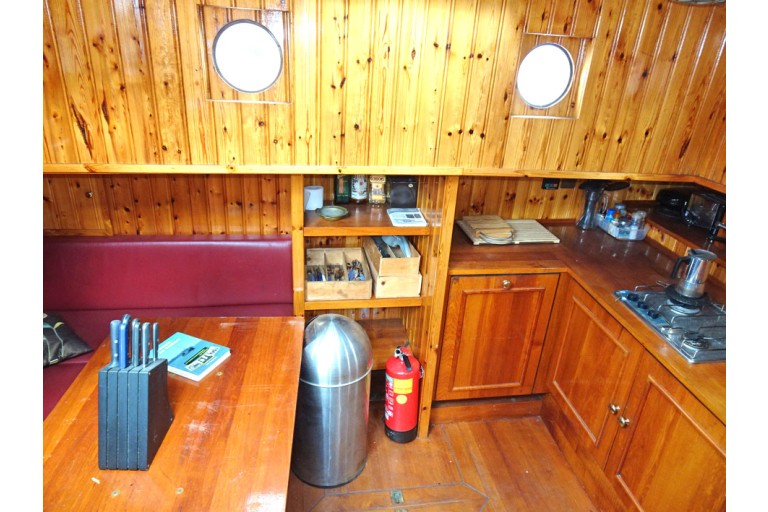

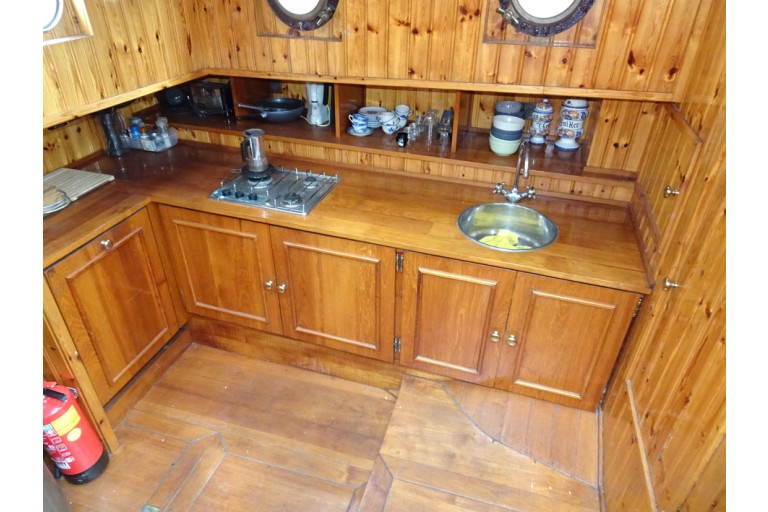

| Galley: | along ships |
| Cooker: | 3-burner hob on gas stainless steel |
| Worktop: | hardwooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |
| Dishwasher: | present |
| Headroom (approx.): | wheelhouse (approx.) 1,88 m salon (approx.) 1,73 m foc's hole (approx.) 1,81 m toilet (approx.) 1,76 m bathroom (approx.) 1,79 / 1,92 m cabins (approx.) 1,73 m aftcabin (approx.) 2,02 m |
Navigation equipment
| Navigation equipment: | 2x Sailor RT2048 VHF rudder indicator Em-Trak A100 Automatic Identification System (AIS) compass blue board with oscillating light horn horn light navigation lights clock barometer thermometer hygrometer |
Rigging and sails
| Mast: | lantern mast wooden mast & apparatus wing |
| Lowerable: | yes manual |
Equipment

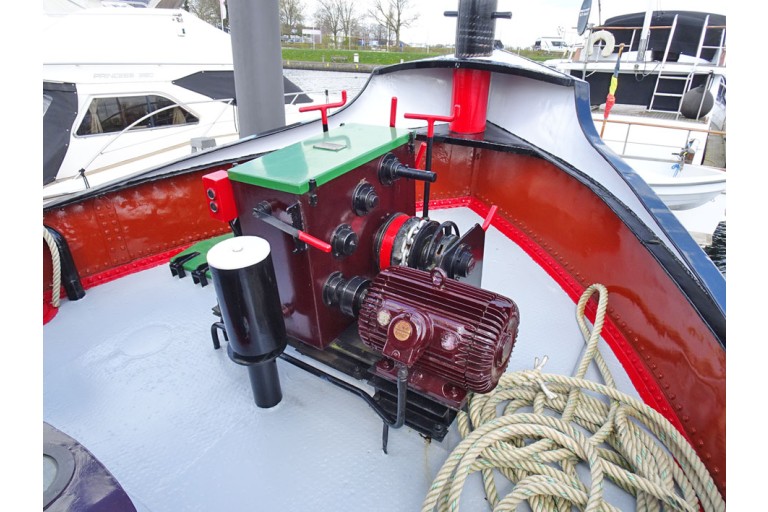

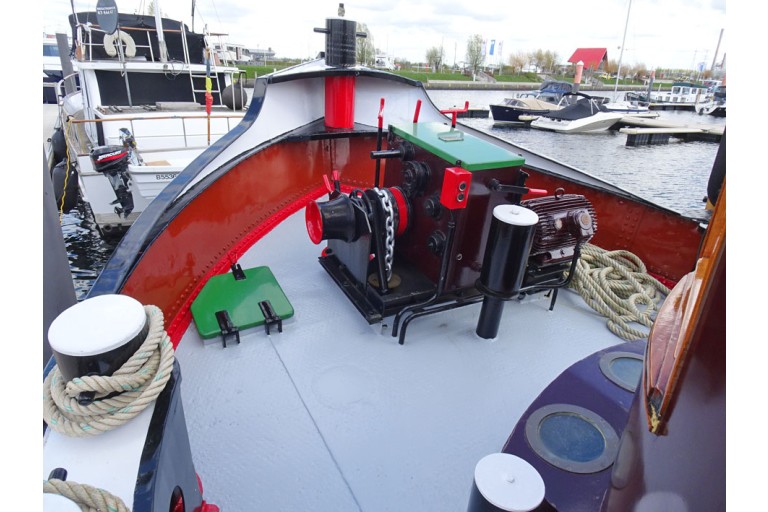

| Anchor equipment: | Ridderinkhof electric anchor winch 1x Klipp anchor 1x Spek anchor 2x anchor chain in hawse-hole 2x warping drum |
| Davits: | 2x davits |
| Safety: | fire extinguishers life buoys life jackets according to the certification requirements |

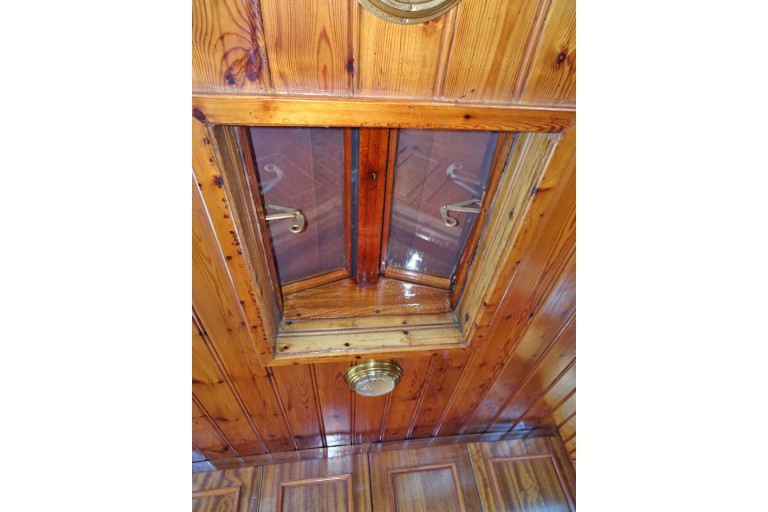

| Additional information: | Survey report of the underwatership is available hard wooden skylight cover over skylight |
