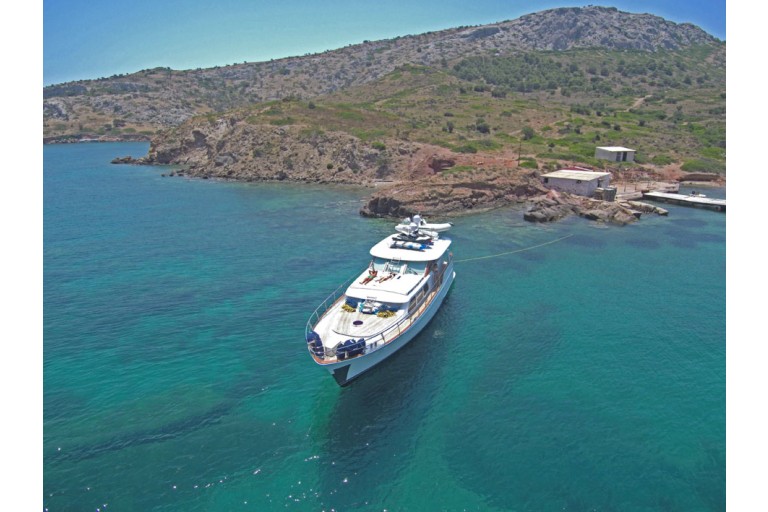

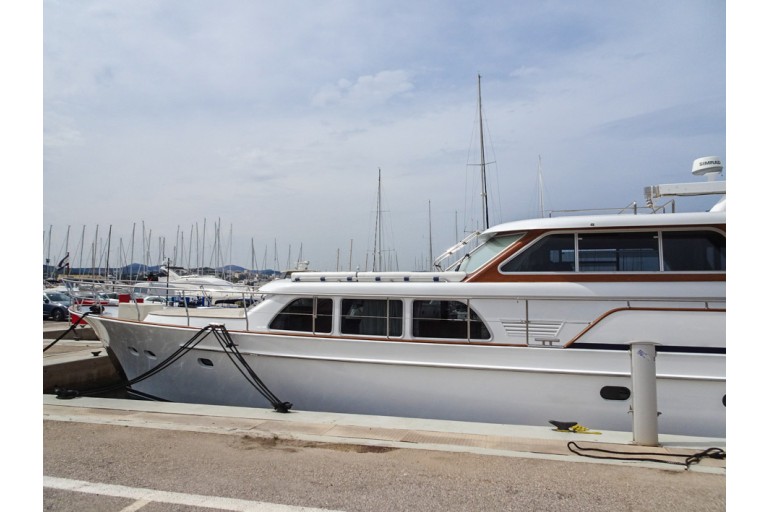

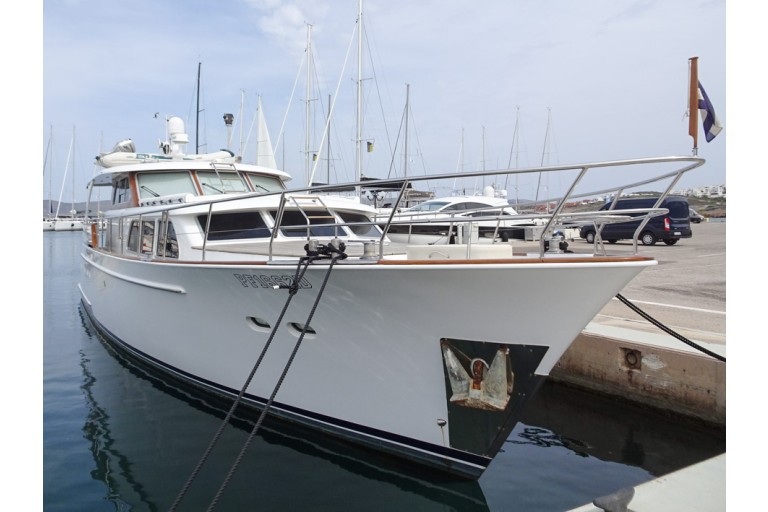

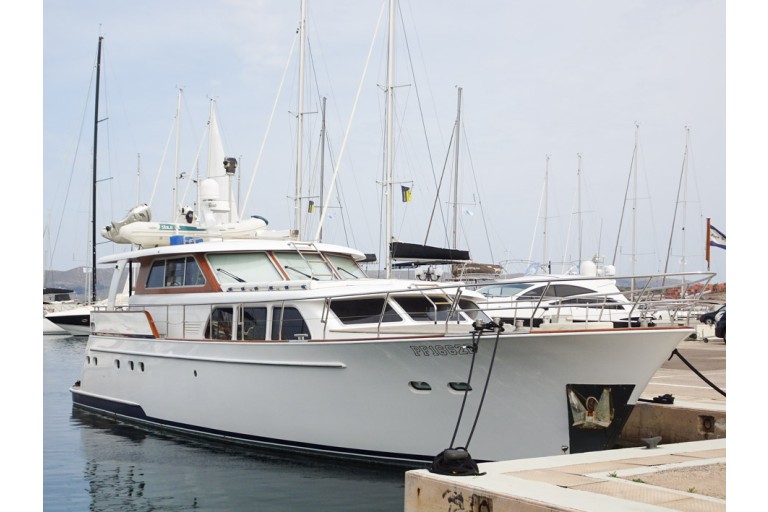

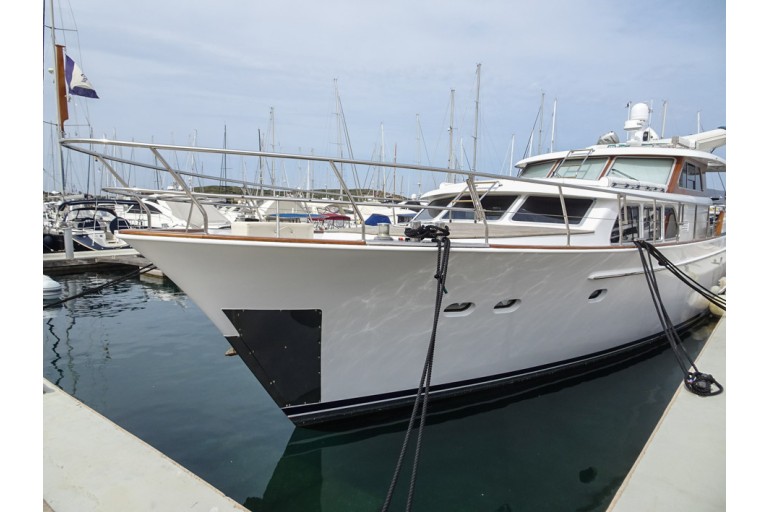

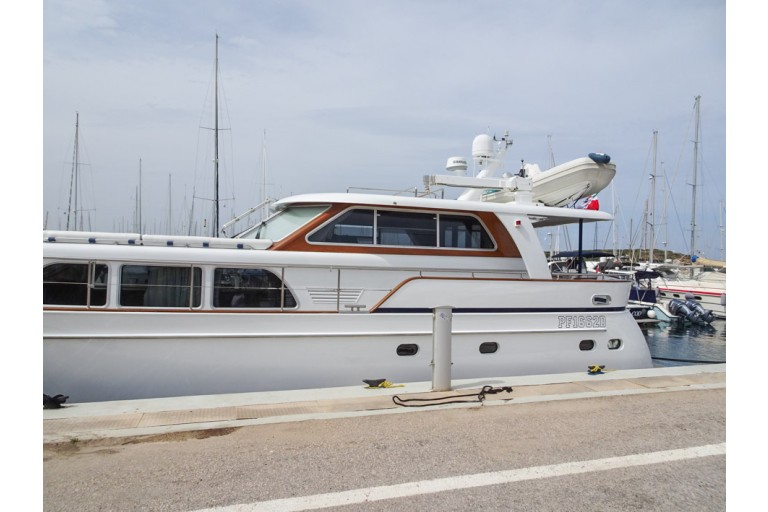

Mulder 63 Wheelhouse No longer available
Dimensions (m):
19.40 x 5.30 x 1.50
Ref. no.:
230510
Mooring:
Near Athens, Greece
Construction year:
2007
Material:
steel
Vision Doeve Brokers

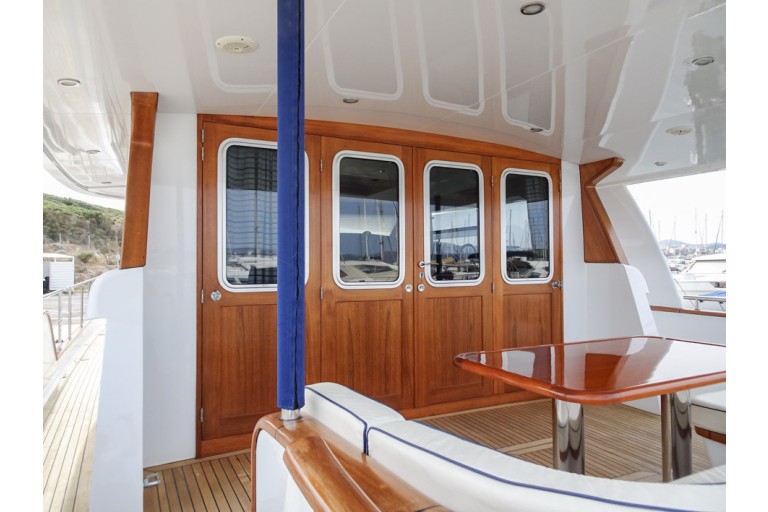

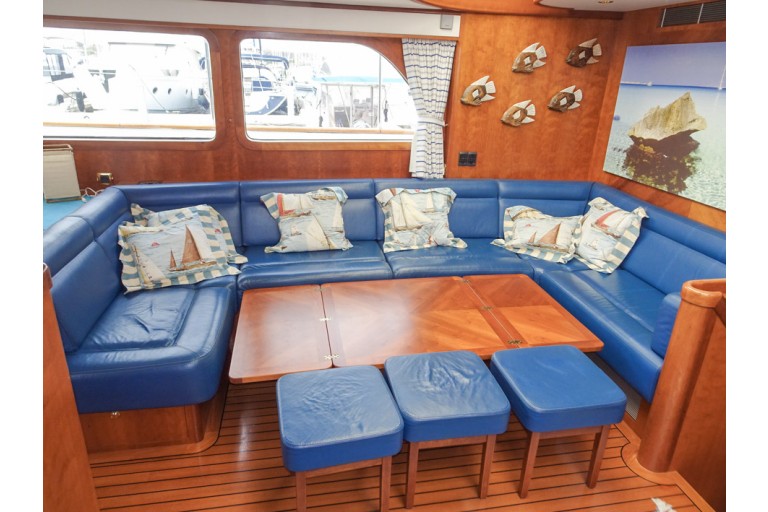

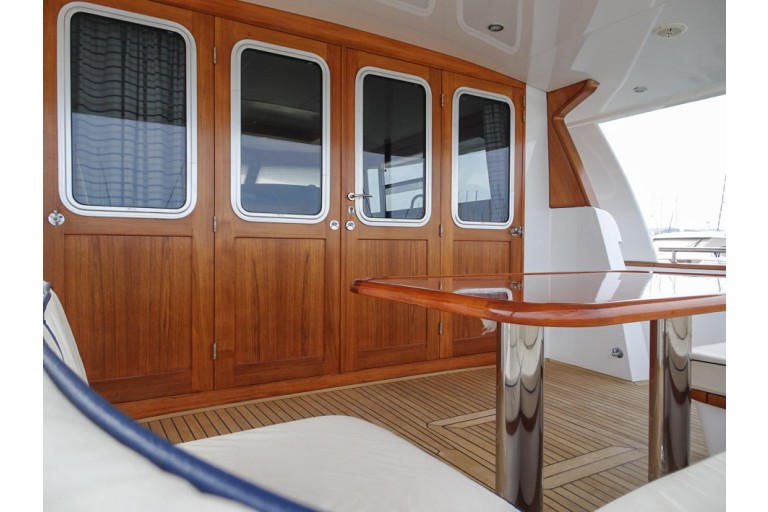

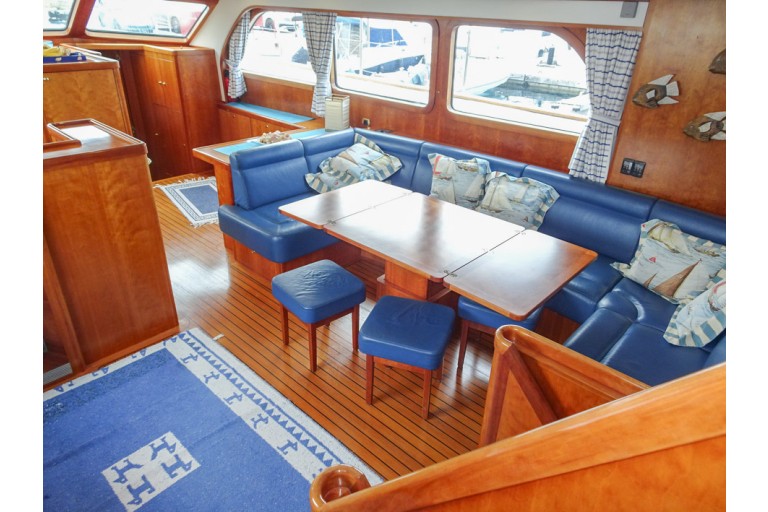

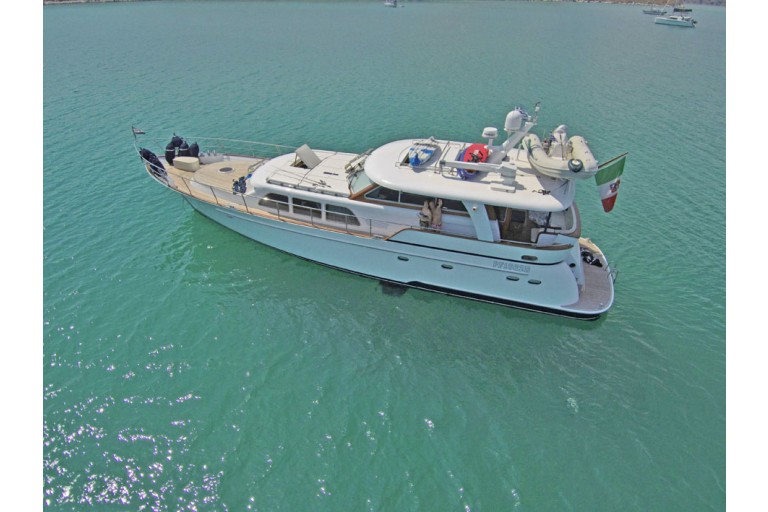

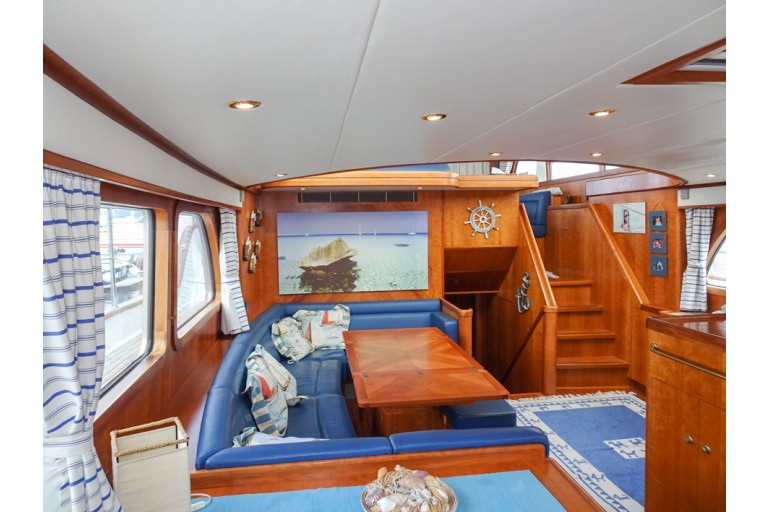

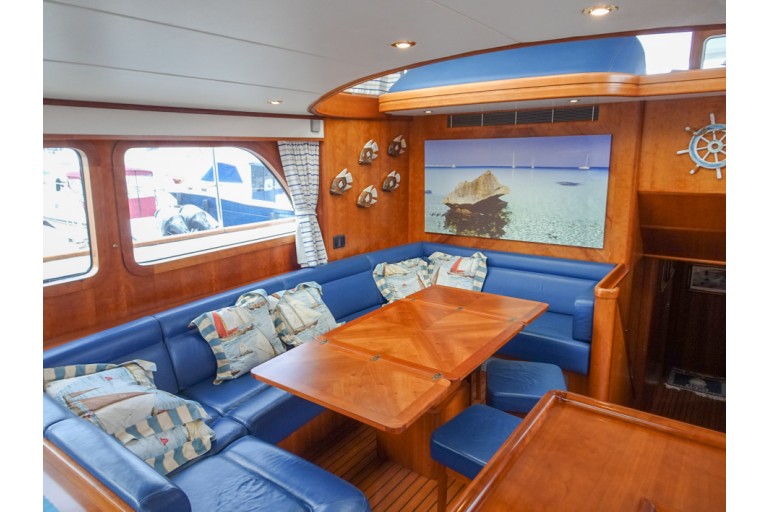

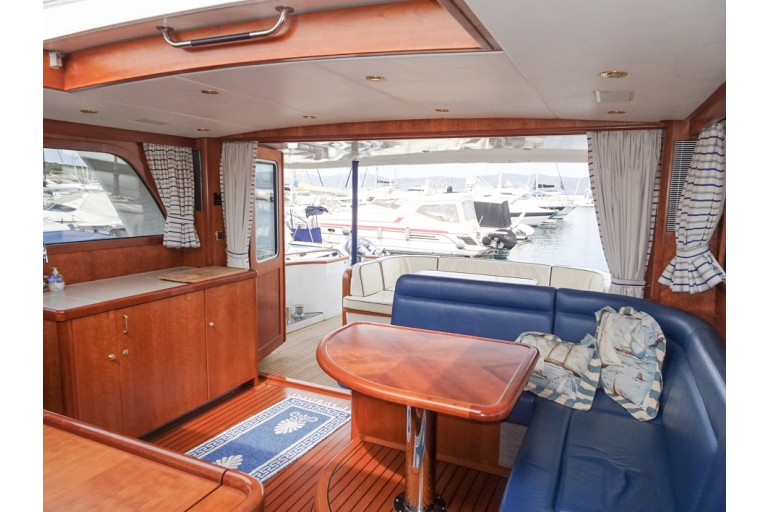

This luxury Dutch Quality motor yacht, which is equipped with classic elements, offers a combination of elegance, comfort and excellent performance. With her beautiful cherry wood interior, spacious layout and high-quality finish, this yacht is the perfect choice for discerning sailors looking for a motor yacht which is suitable for long journeys or live on board. The interior has been finished with attention to detail, creating a luxurious and refined ambiance. One of the striking features of this Mulder 63 Wheelhouse is the spacious kitchen in the saloon with a spacious sofa that is perfect for relaxing and an electrically adjustable table for dining. The fixed wheelhouse of this motor yacht is a real eye-catcher. With the full-width opening teak doors to the aft deck, you can enjoy a seamless transition between in- and outdoors and you can enjoy the view. There are 3 guest cabins and 1 spacious owner's cabin. Powered by 2 powerful Caterpillar engines and with the hydraulic bow thruster and stern thruster, maneuvering is a piece of cake. Furthermore, there are stabilizers, air conditioning, a water maker and a generator on board. In our opinion, a must for anyone looking for a well-maintained ship.
More information
General information

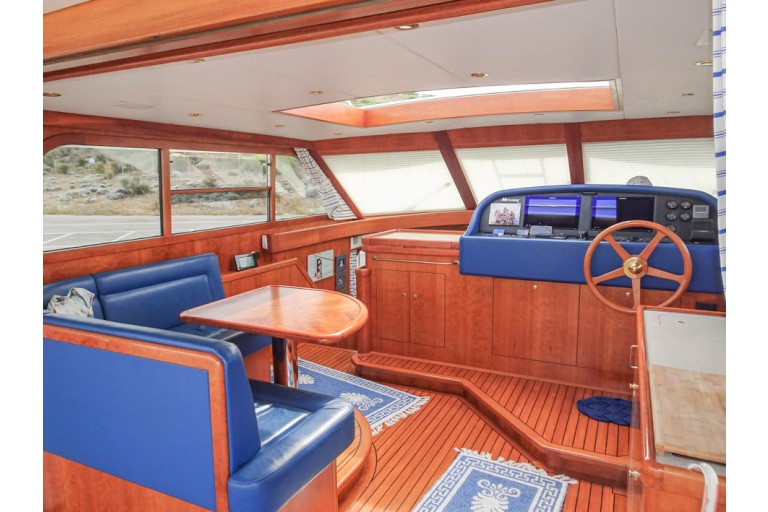

| Yard: | Yard D. Mulder B.V., NL-Zoeterwoude |
| Designer / Architect: | Guido de Groot / Kitty van der Kamp Vripack |
| Hull shape: | round bilged |
| Hull material: | steel |

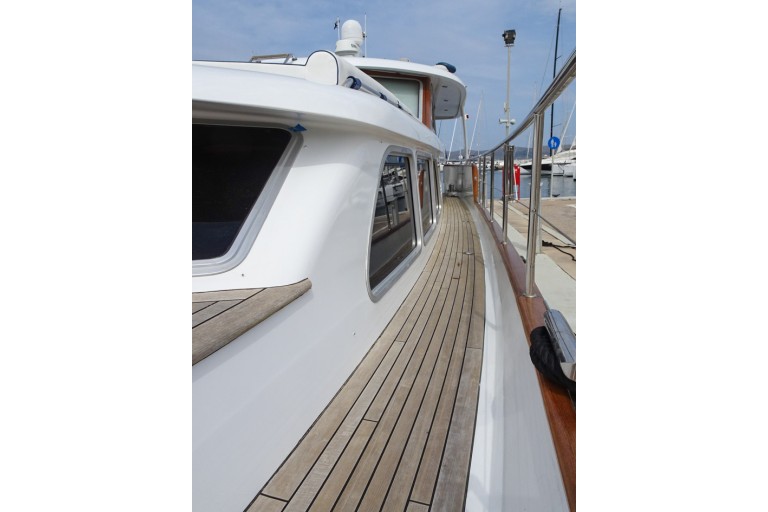

| Deck material: | steel teak deck(s) |
| Superstructure material: | aluminium |

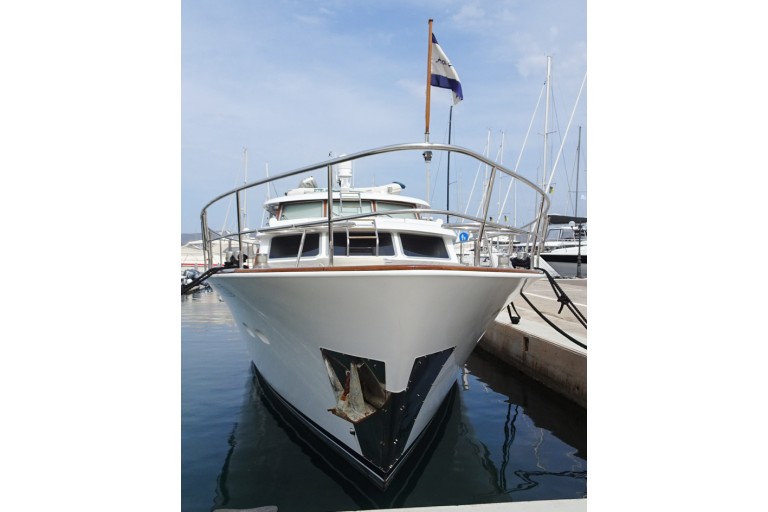

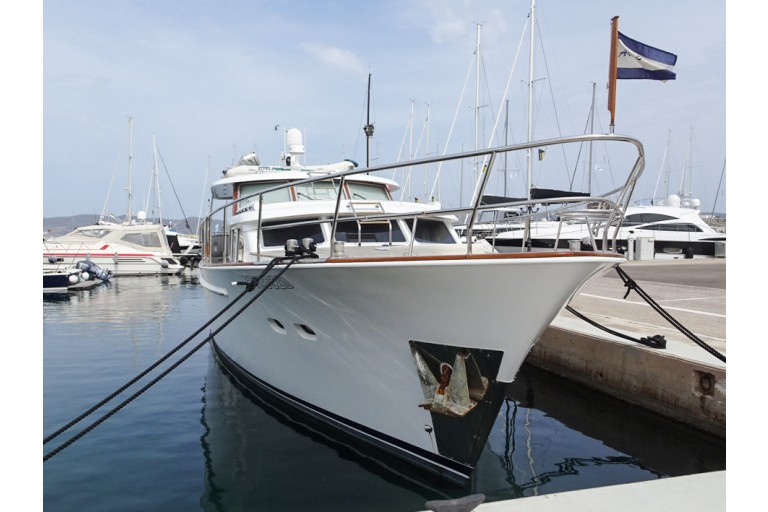

| Construction method: | flare shape bow bulwark around stainless steel rubbing strake closed bollard cabinets stainless steel bollards aft cabin below Sturdy, heavily constructed |
| Steering system: | hydraulic wheel power steering 2x steel rudder |

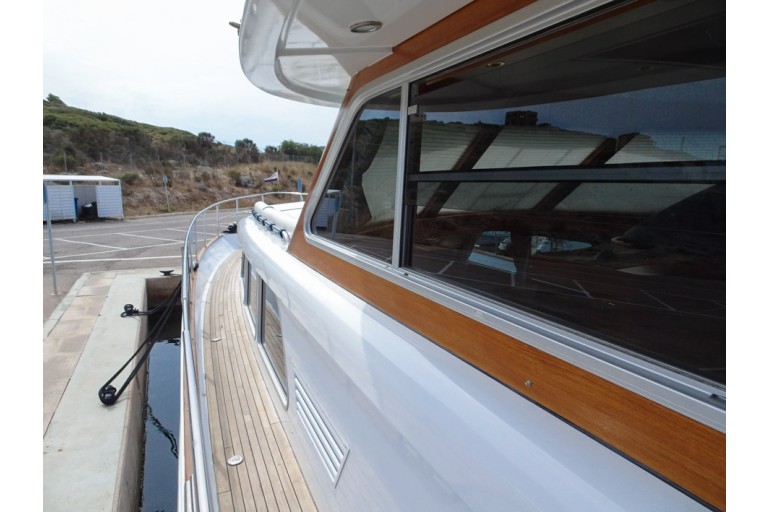

| Windows: | aluminium windows frames aluminium portholes double glazing teak wooden outside doors toned glass |
| Displacement (approx.): | 60 metric tons |
| Ballast (approx.): | trim ballast lead |
| Airdraft (approx.): | 6,25 m everything down |
| Owner: | Italian owner |
| Registration: | Italian registered |
| Colour / Paint System: | white hull white superstructure Awlgrip two component system last underwatership treatment 05-2022 see photographs |
| RCD / CE Certification: | A |
| Suitable for / as: | ocean going & inland waterways suitable as a year round live- aboard & recreational vessel |
| General information: | from first owner good sailing characteristics |

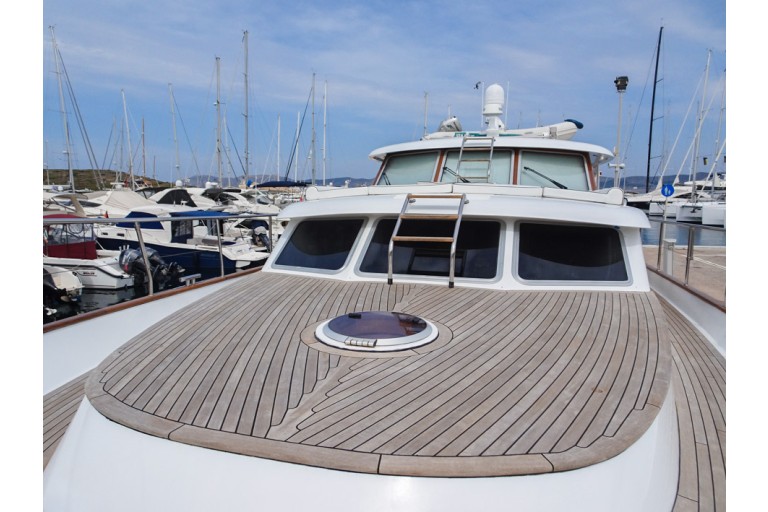

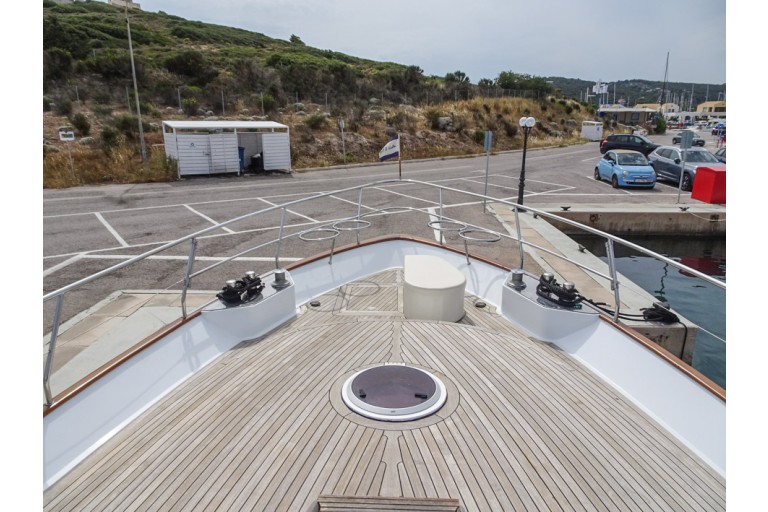

| Additional information: | Many rust sensitive places are made from stainless steel. classic lines beautiful sheer motor cruiser GSAK roomy foredeck spacious aftdeck forepeak with chain locker |
Technical information

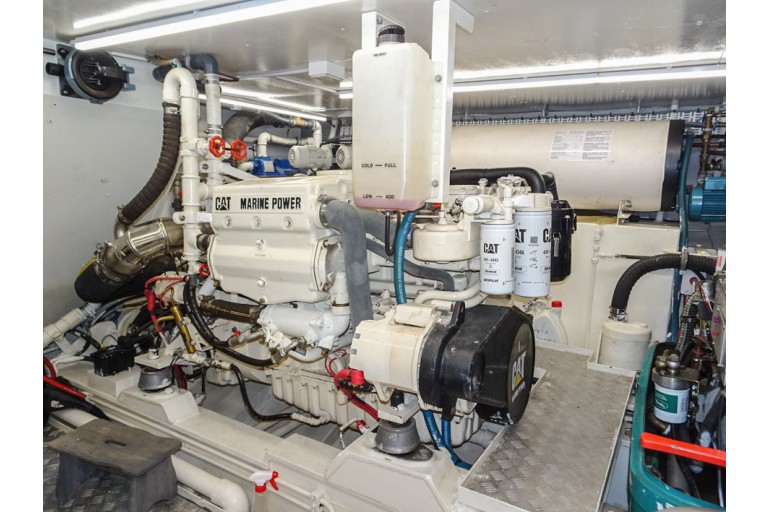

| Enginepower: | 2x 315 Hp 2x 232 kW |
| Engine brand: | 2x Caterpillar |
| Revolutions: | 2x 2400 RPM |
| Engine model: | 2x C7 DI |
| Number of cylinders: | 2x 6 |
| Construction year engine: | 2007 into operation |
| Overhaul engine: | 10-2019 portside |
| Running hours (approx.): | starboard 1774 (05-2023) portside 1667 (05-2023) portside 50 na revisie |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 1160 litre 1x 440 litre 1x 1355 litre steel tank(s) |
| Cooling system: | 2x intercooling 2x wet exhaust |
| Propulsion: | 2x 4 blade propeller 2x water lubricated propeller shaft 2x thrust bearing |
| Gearbox: | 2x Twin Disc MG 5061 SC hydraulic reduction/ratio 3:1 |

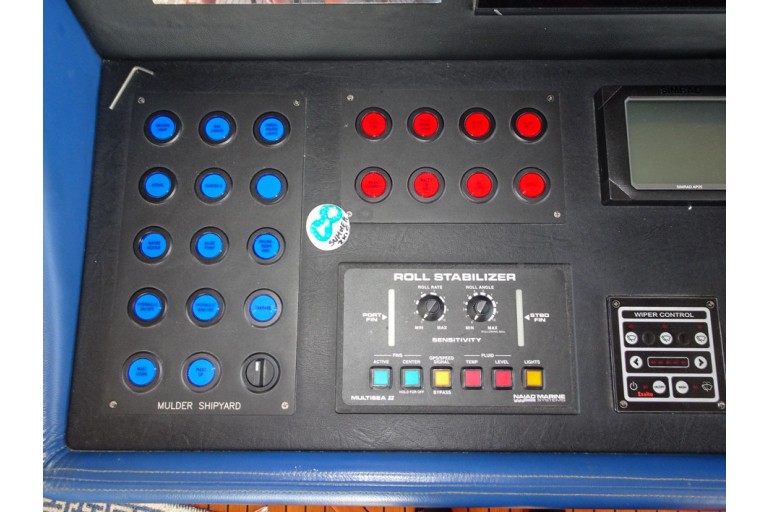

| Stabilisers: | Naiad Marine Multisea II system electric/hydraulic |
| Speed (approx.): | 8,5 knots cruising speed at 2x 1600 RPM 12 knots top speed |
| Heating: | via air conditioning unit heating 37700 Btu/hrs |
| Air conditioning: | Thermowell air conditioning reversed circle cooling 30000 Btu/hrs |
| Engine instruments: | present alarm system |
| Bow thruster: | Side-Power hydraulic bow thruster proportional |
| Stern thruster: | Side-Power hydraulic stern thruster proportional |

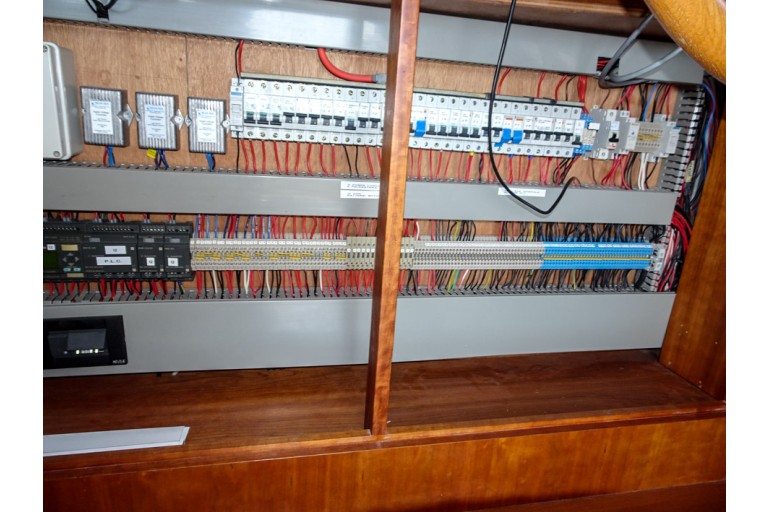

| Electricity system: | 24 / 230 Volt 230 Volt shore power connection Mastervolt Power system mainmaster control with automatic changeover |
| Batteries: | 2x 200 Ah starter batterie(s) 4x 200 Ah domestic batterie(s) 1x 55 Ah starter batterie(s) generator |
| Battery charger: | Mastervolt battery charger Mastervolt Mass battery charger 24/75 Victron Blue Smart battery charger 12/7 |
| Battery isolator: | Mastervolt battery isolator |
| Isolation transformer: | isolation transformer |
| Earth-leakage breaker: | present |

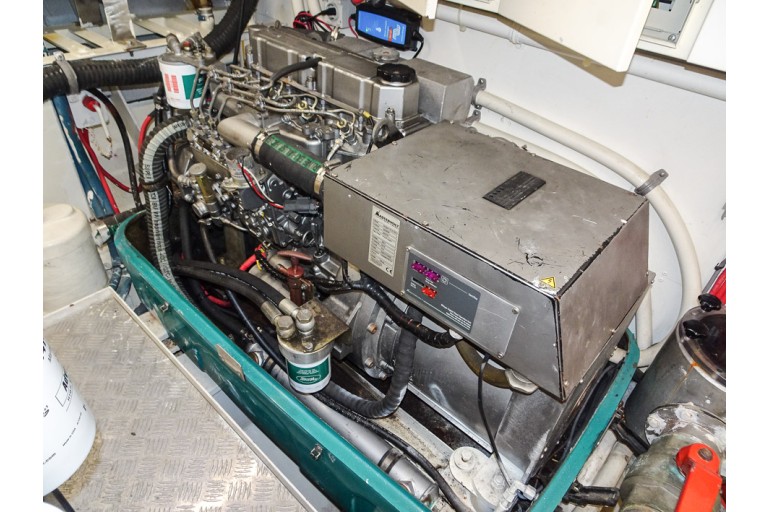

| Genny: | Mastervolt Whisper 16 Ultra diesel genny 16 kVA 230 Volt 2200 running hours (approx.) |
| Inverter: | Mastervolt Mass Sine inverter 24/2500 |
| Fresh water tank (approx.): | 1x 2200 litre plastic tank(s) |
| Water pressure system: | electric water pump |
| Fresh water filter system: | fresh water filter system |
| Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system 75 litre |
| Holding tank (approx.): | 250 litre steel tank(s) |
| Water maker: | present 380 ltr/hrs |
| Diesel waterseparator: | present |

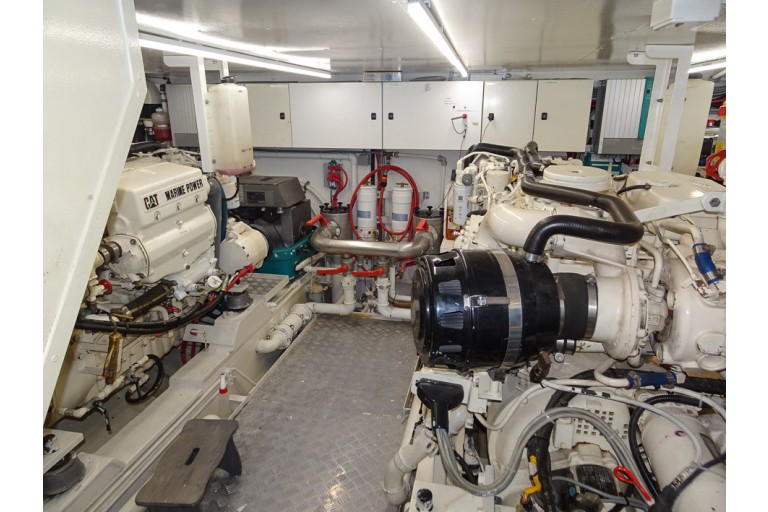

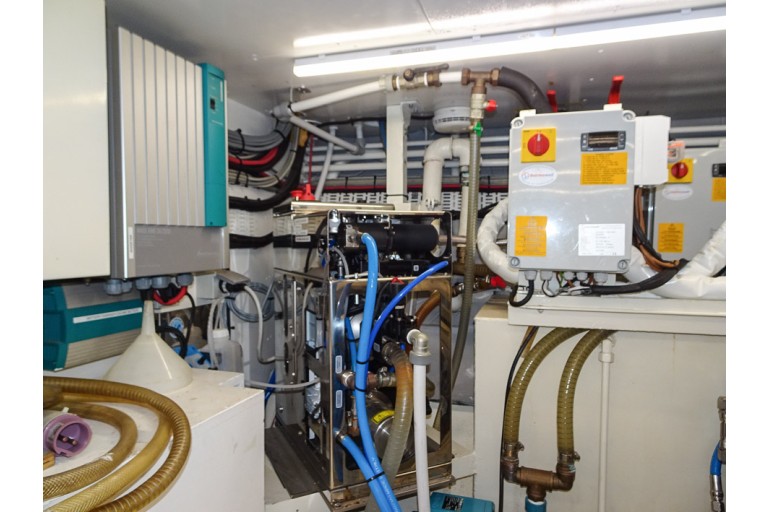

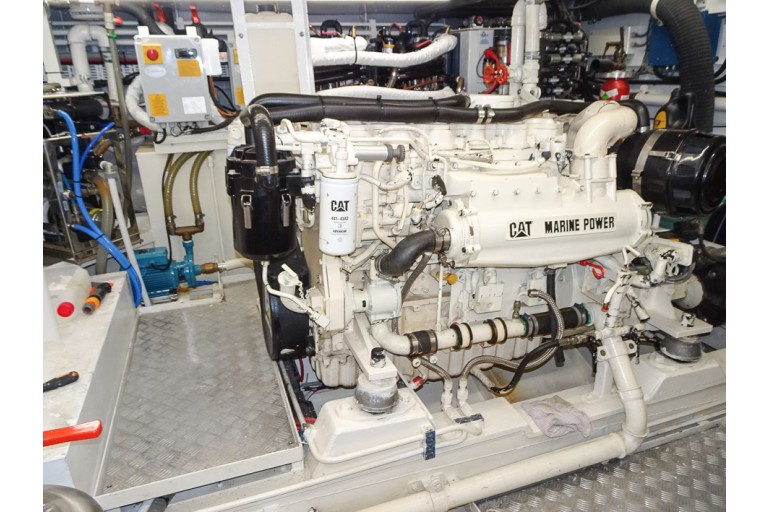

| Engineroom: | sound insulated engineroom very well maintained see photographs |
| Bilge pump: | 1x 230 Volt 1x 24 Volt with manifold |
| Gas system: | no gas on board |
| Additional information: | 2x main engine with PTO for the hydraulic LED lightning air compressor electric engine control system |
Accommodation

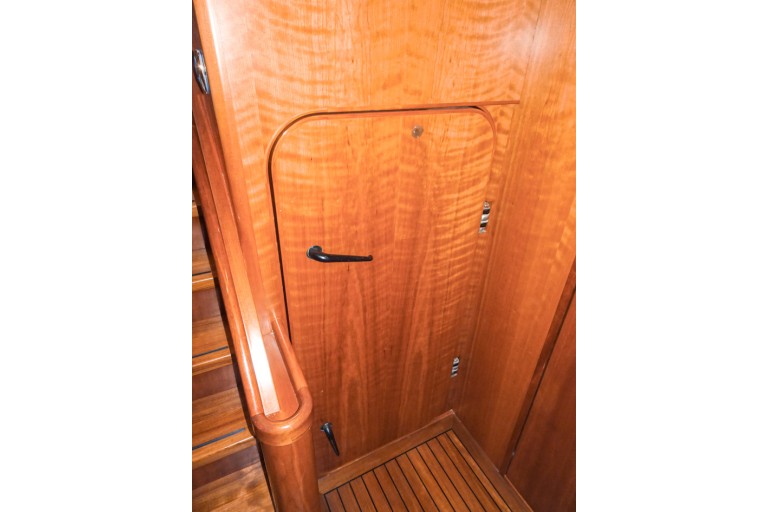

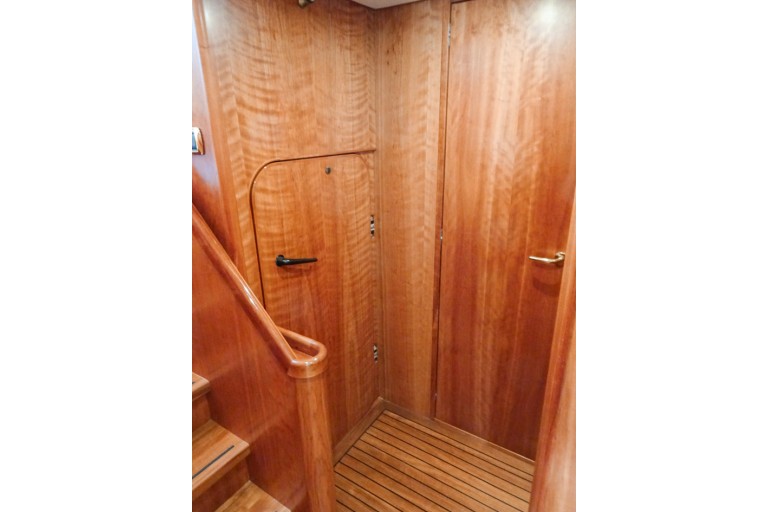

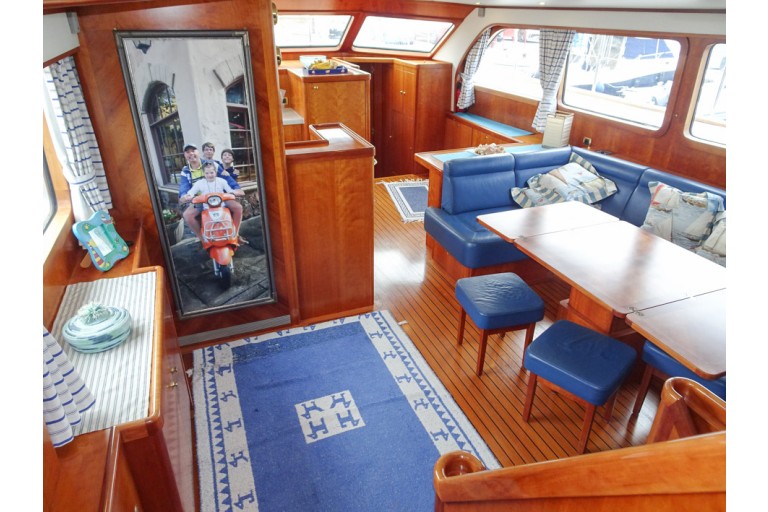

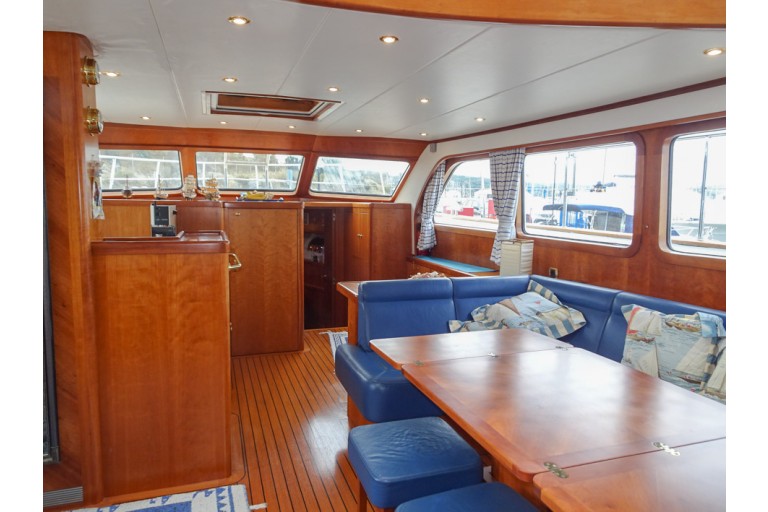

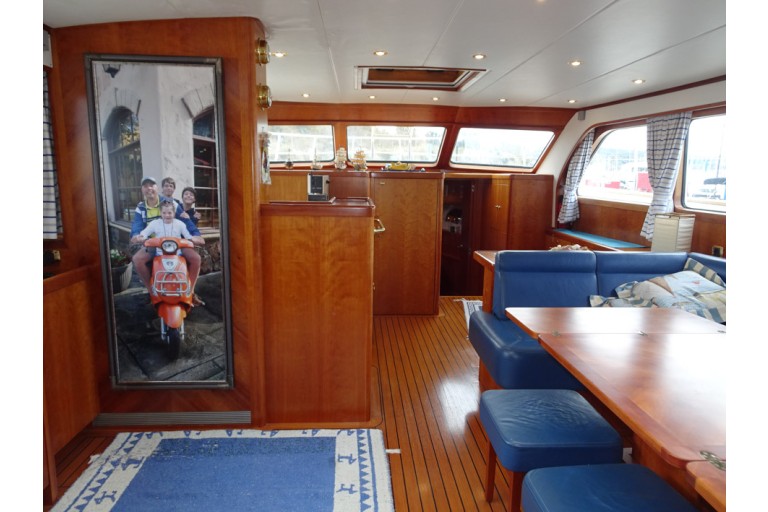

| Interior: | cherry wood interior teak floor(s) very well maintained see photographs |
| Insulation: | foamed insulation |

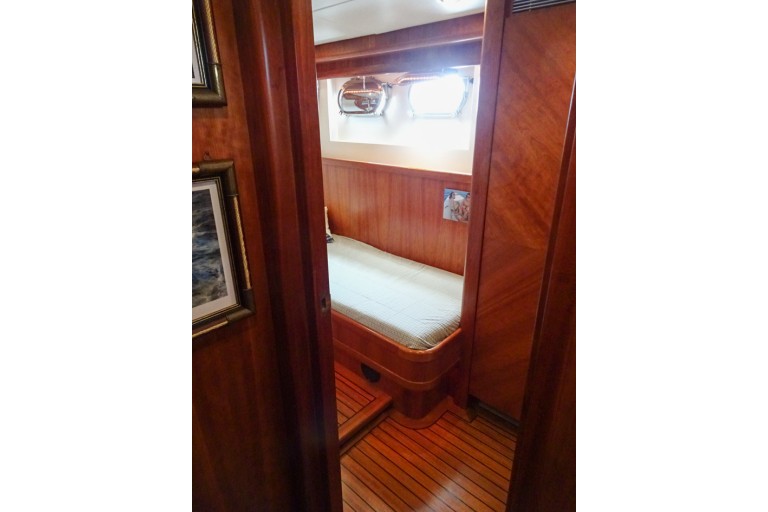

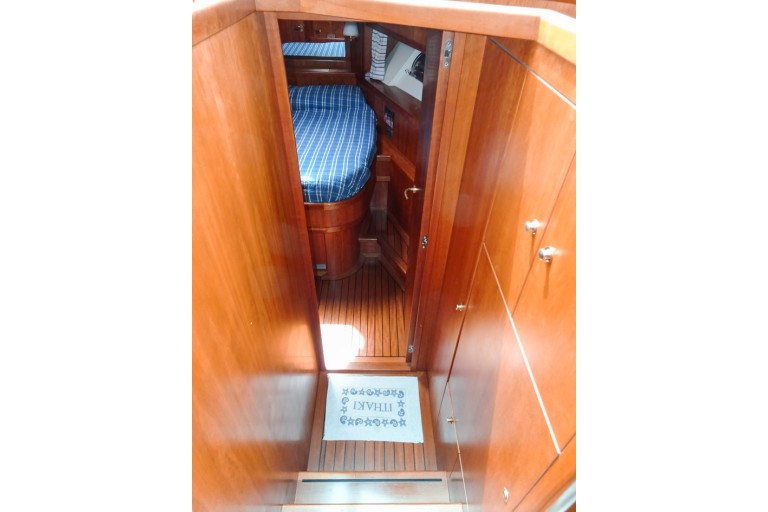

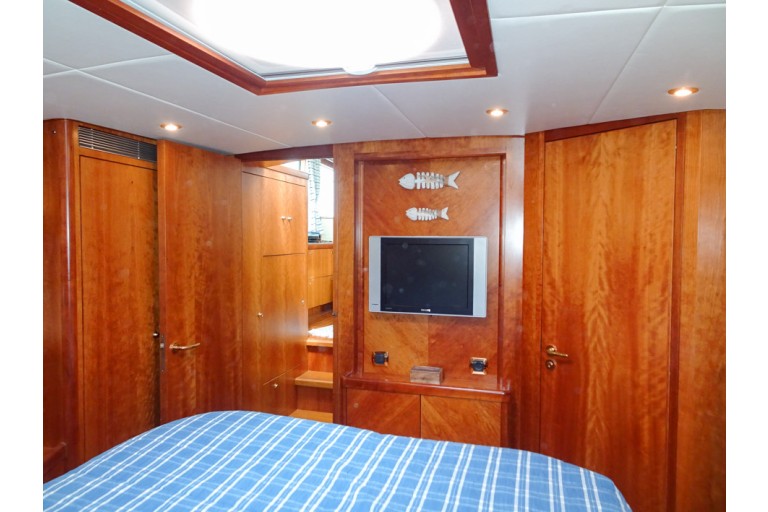

| Cabins: | 4 cabins |

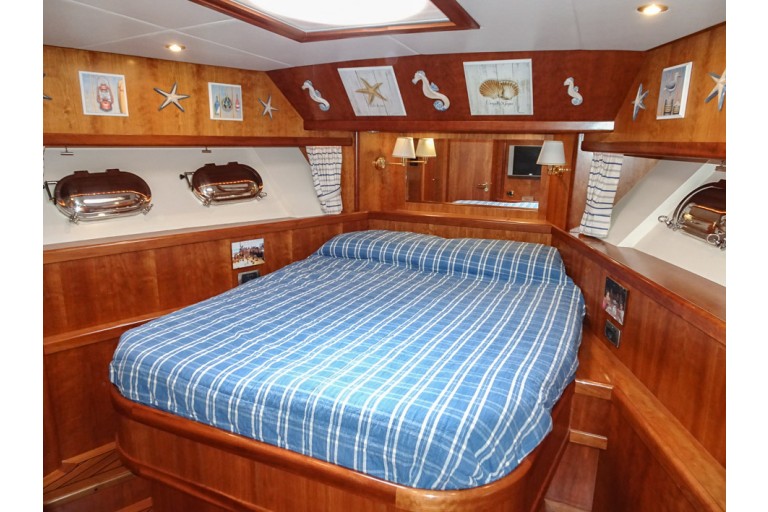

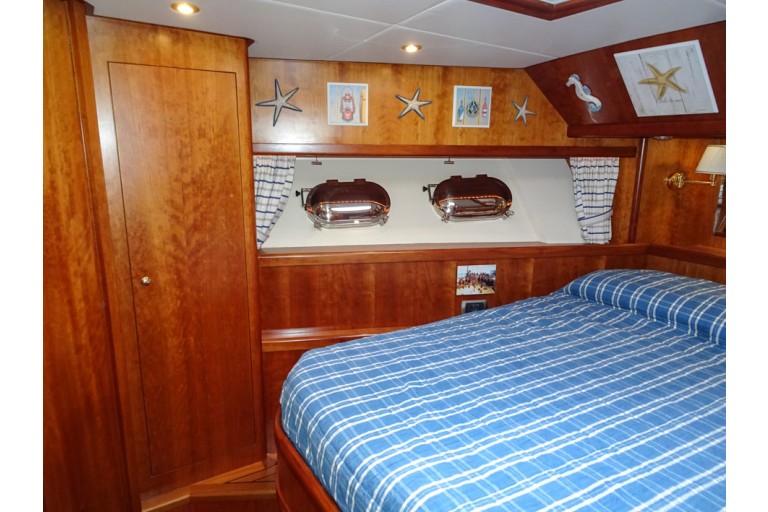

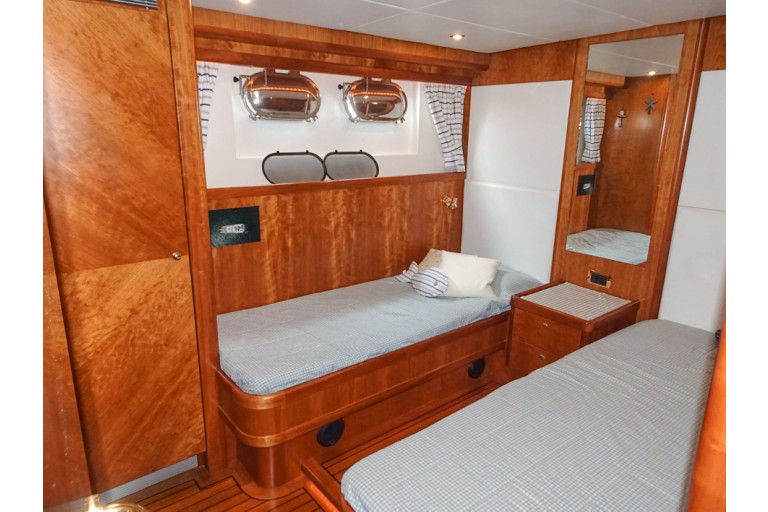

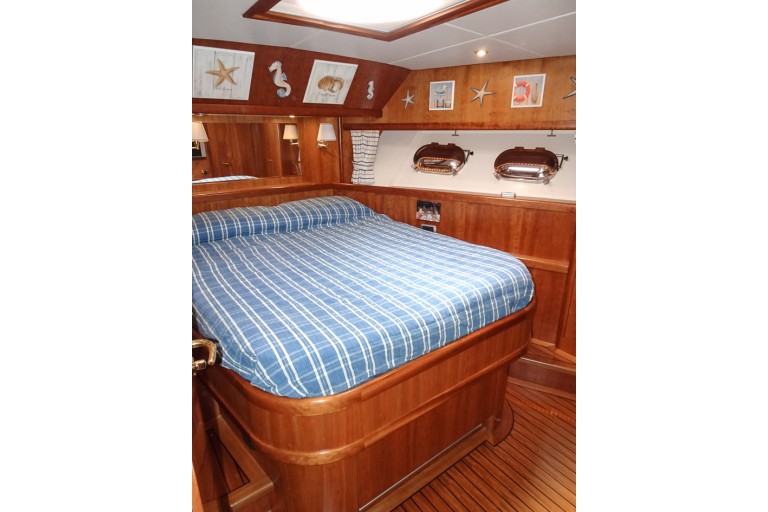

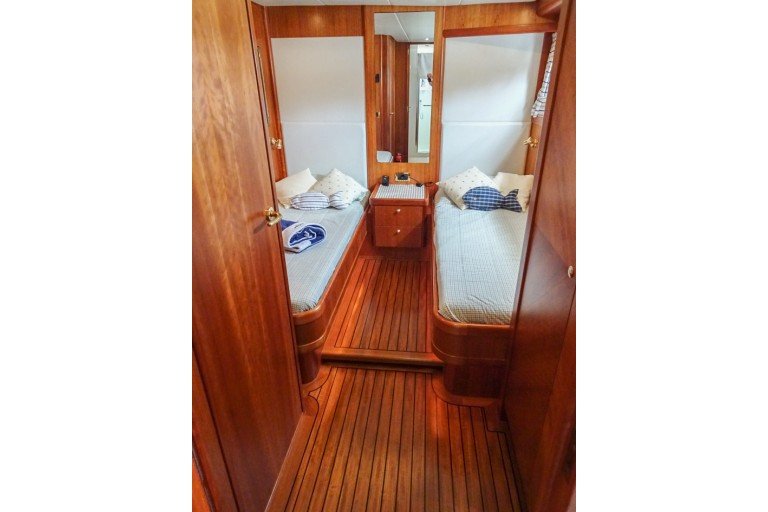

| Berth: | Forward: 1x 2 pers = French bed Aft: 1x 1-pers 2x 1-pers 2x 1-pers |

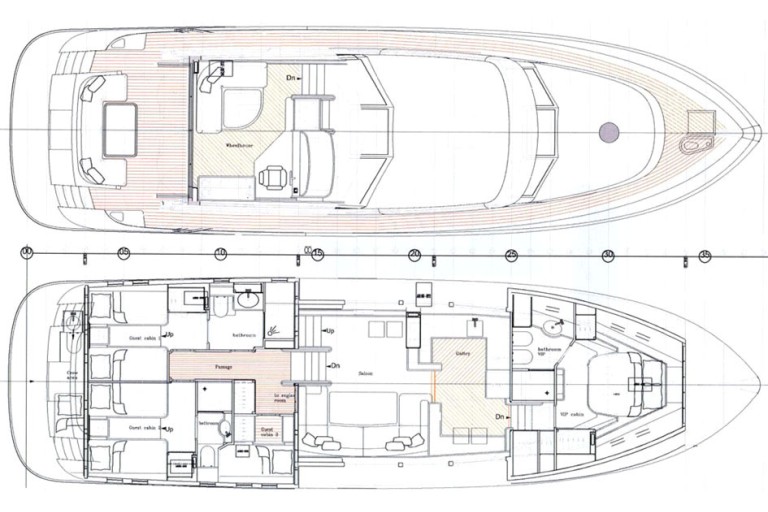

| Lay-out plan (not to scale): | see attachment |

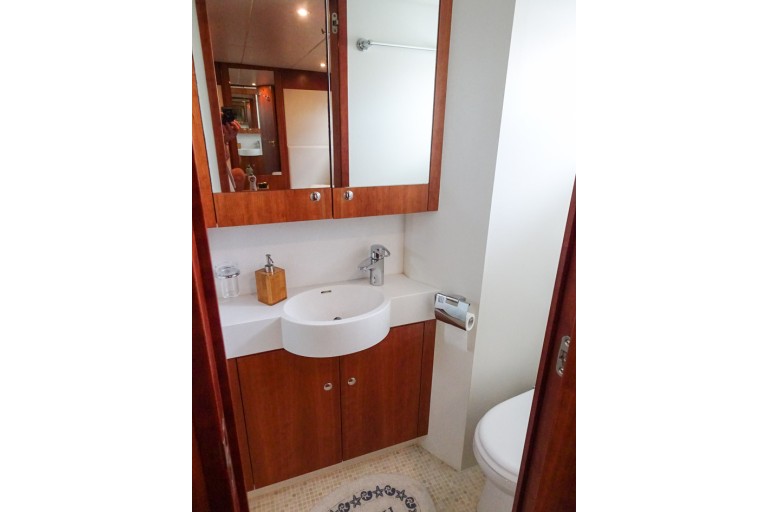

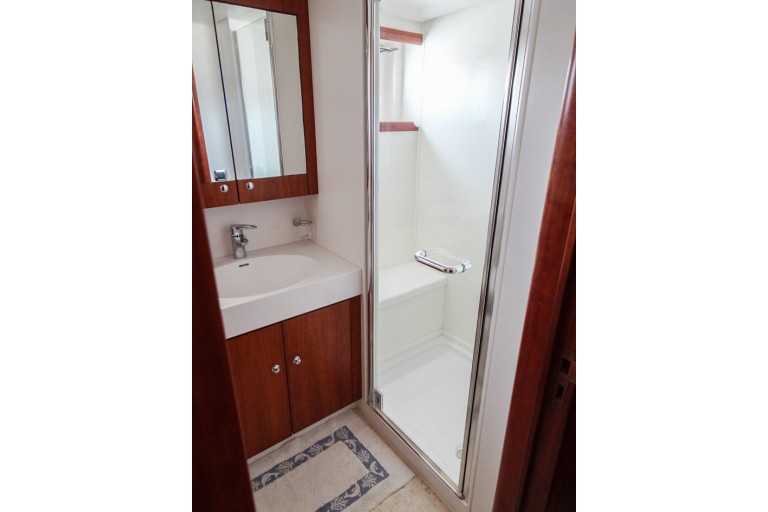

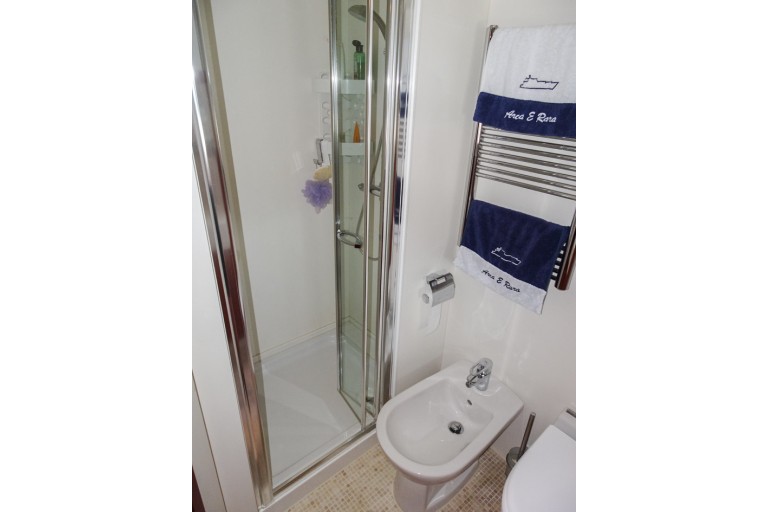

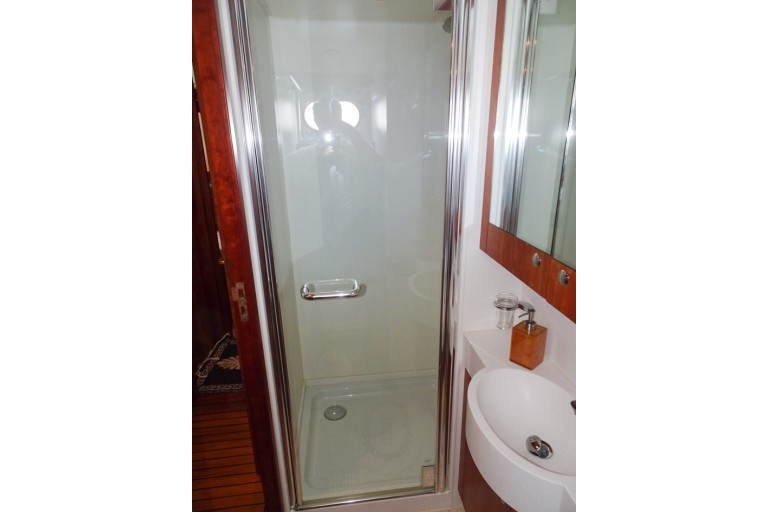

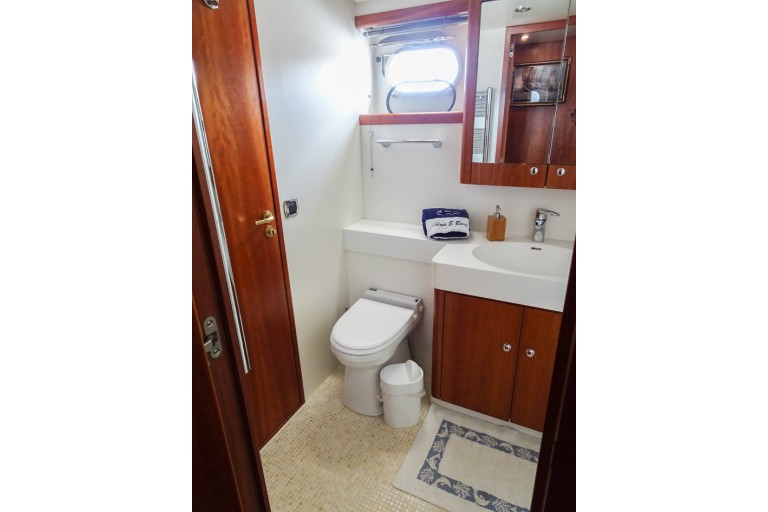

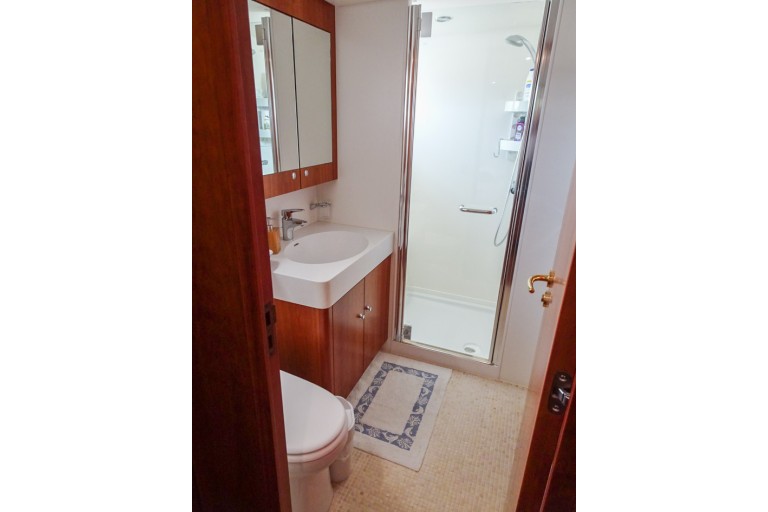

| Bathroom: | Forward: En Suite shower cubicle thermostat tap Corian washbasin with mixer tap and hot & cold running water in 1 area together with the toilet Aft: 2x En Suite shower cubicle thermostat tap Corian washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |

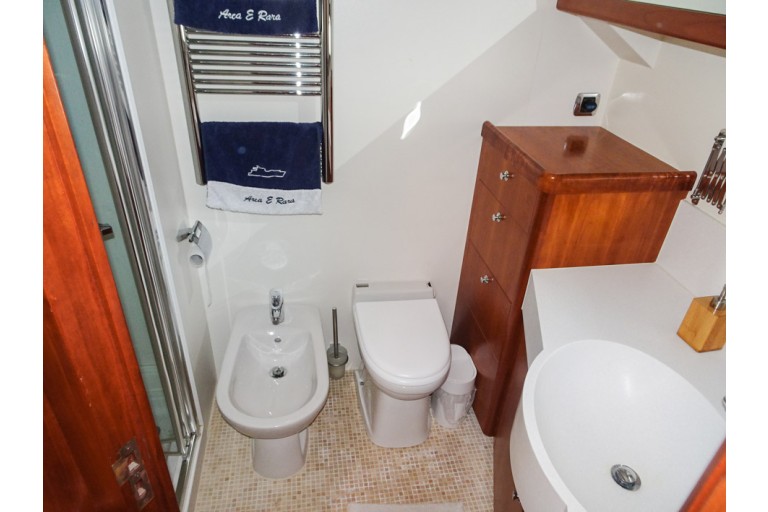

| Toilet / Heads: | Forward: Vacuum flush toilet bidet Aft: 2x Vacuum flush toilet |

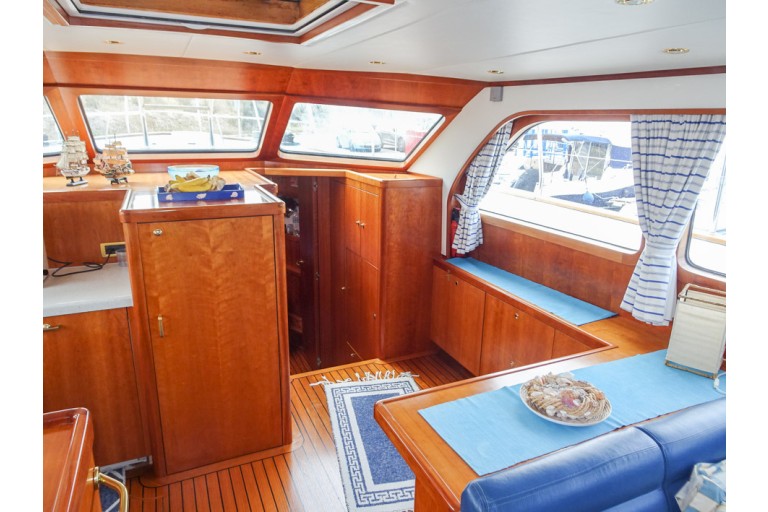

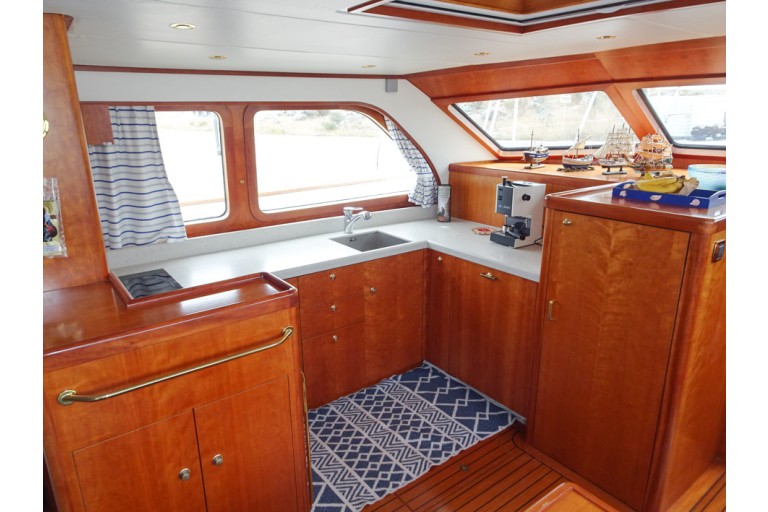

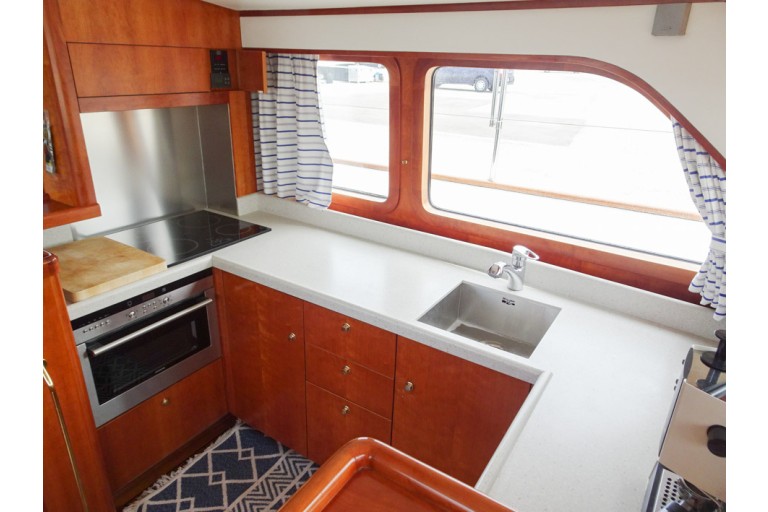

| Galley: | U-shape galley |

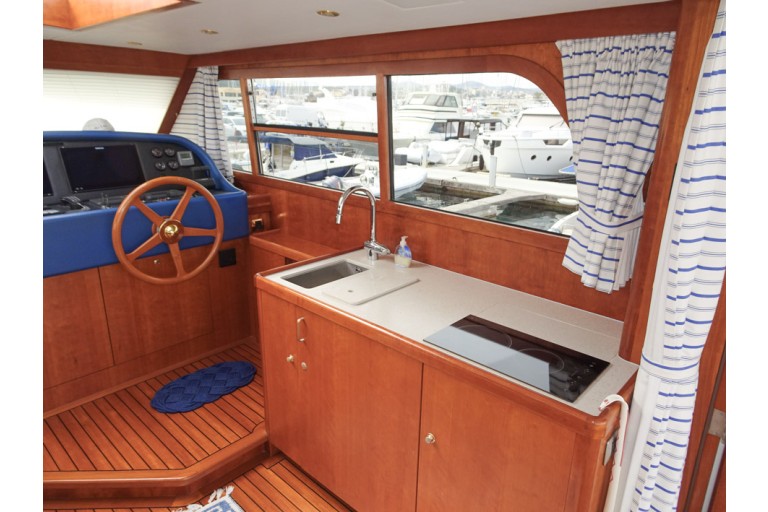

| Cooker: | 4-burner hob induction cooker cookerhood & 2-burner hob (stuurhut / wheelhouse Steuerhaus / timonerie) induction cooker |
| Oven: | microwave/oven |
| Fridge / Refrigerator: | Siemens fridge / refrigerator 230 Volt |
| Freezer: | present 230 Volt |
| Worktop: | Corean worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | Siemens dishwasher |
| Entertainment: | 2x flatscreen TV 1x TV lift Tracvision selfsearching satellite antenna 2x DVD-player Bose stereoset inside and outside speakers |

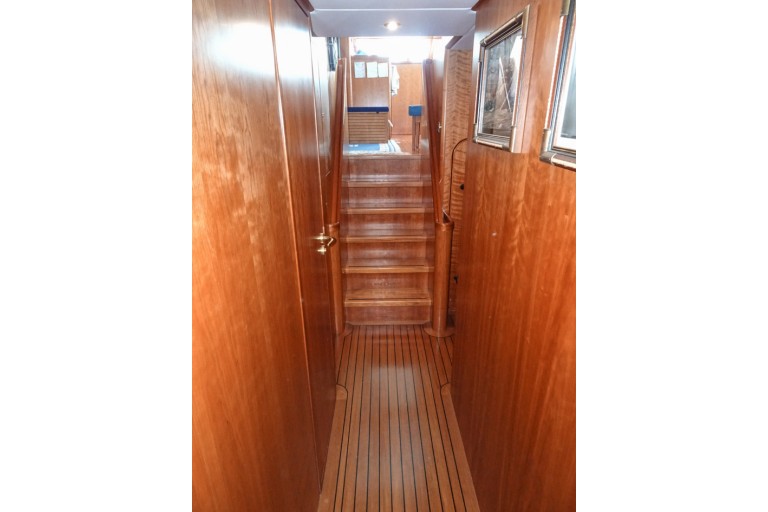

| Headroom (approx.): | wheelhouse (approx.) 2,05 m salon (approx.) 2,00 m galley (approx.) 1,97 m corridor / walkthrough (approx.) 2,02 m ownerscabin (approx.) 2,02 m bathroom / toilet in the front (approx.) 1,97 m Aft: 1,99 m |
| Additional information: | Siemens washing machine / dryer The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. leather sofa |
Navigation equipment

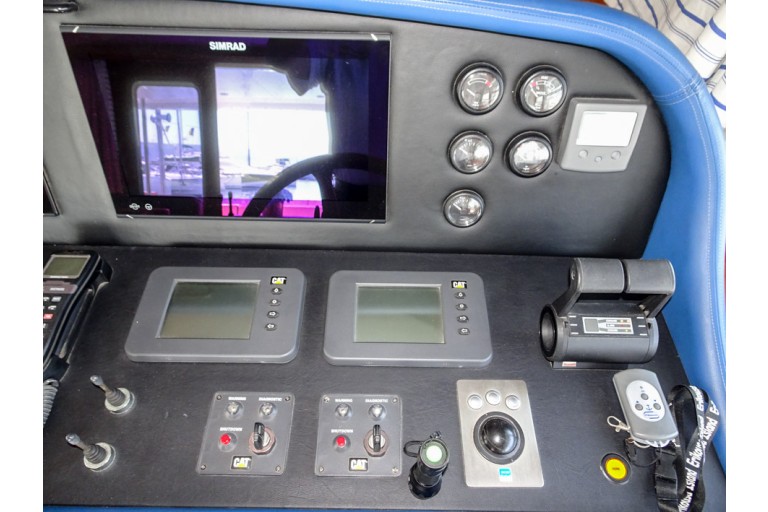

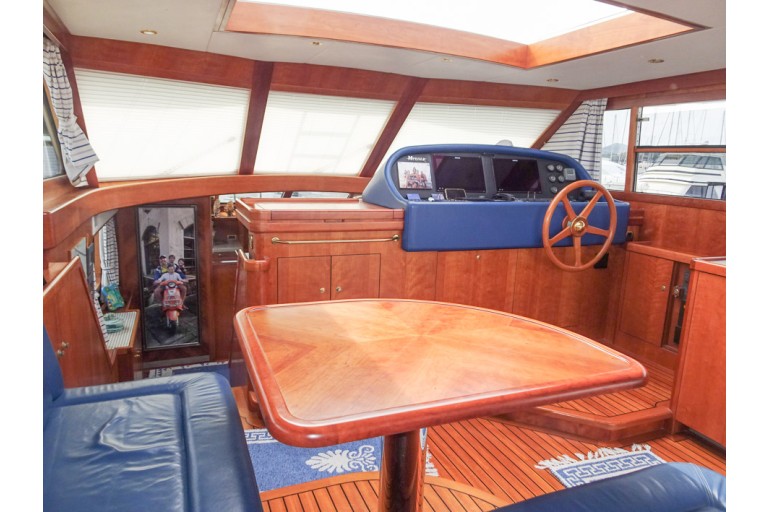

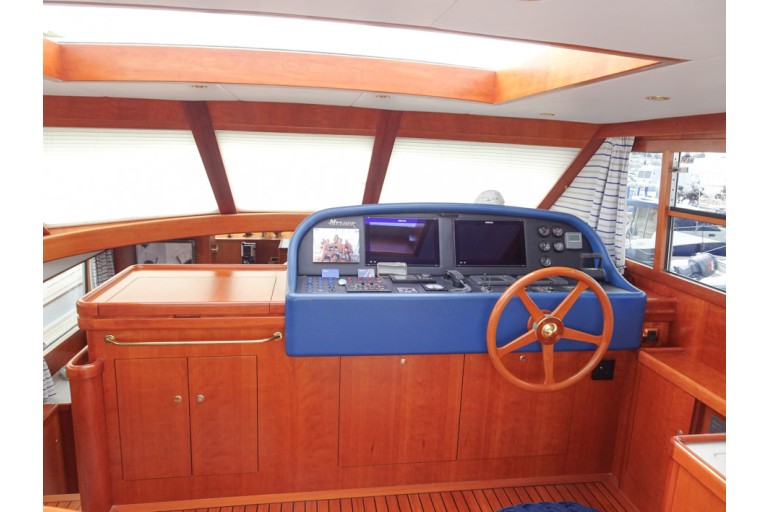

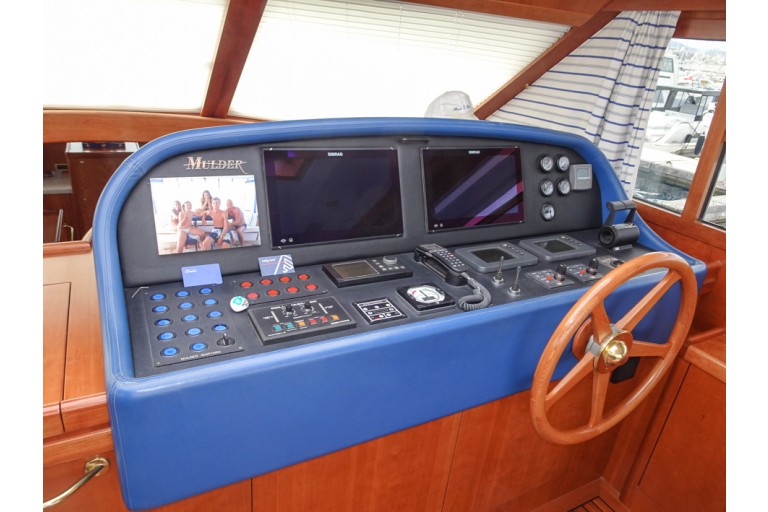

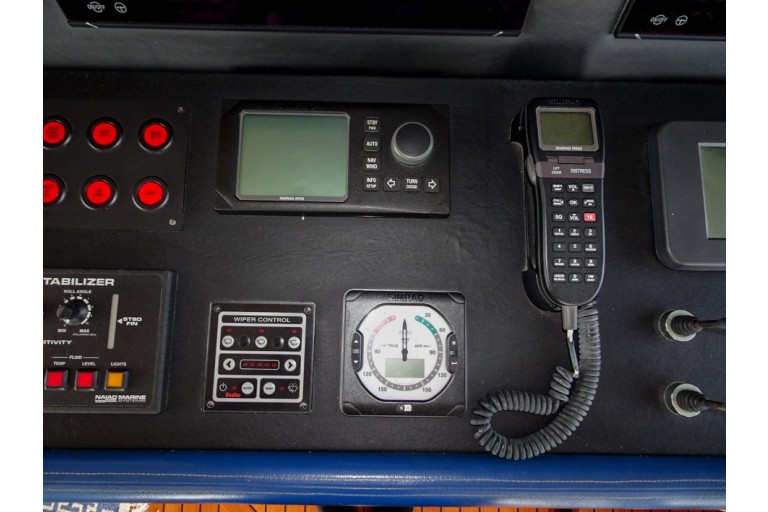

| Navigation equipment: | Simrad GB60 chartplotter / GPS / radar Simrad GB60 depth / echosounder GPS Simrad AP25 autopilot Simrad IS20 windset Simrad RS82 VHF with DSC horn navigation lights rudder indicator 3x window wiper barometer hygrometer thermometer |
Rigging and sails
| Mast: | aluminium mast |
| Lowerable: | yes hydraulic |
Equipment

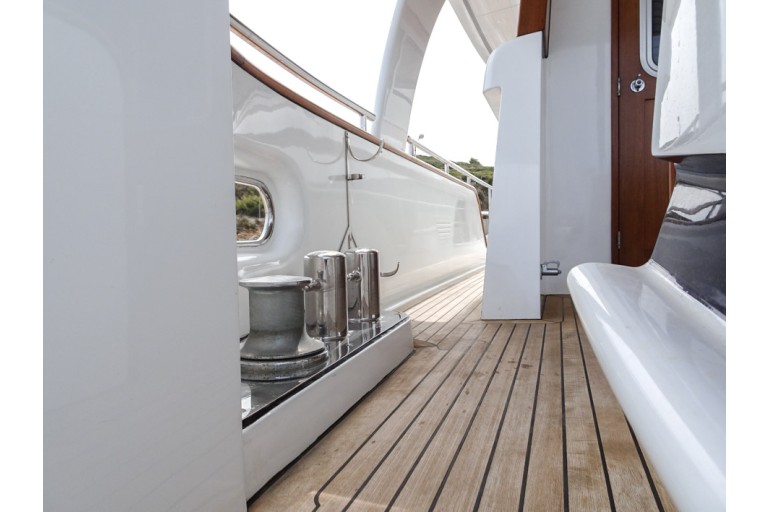

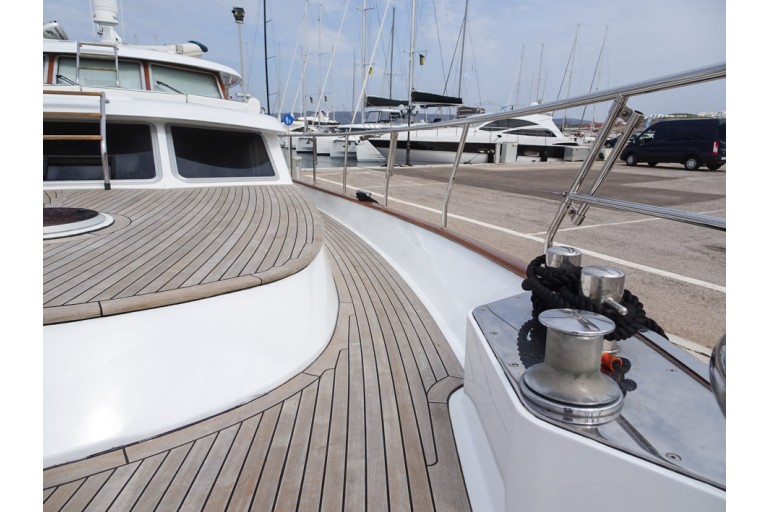

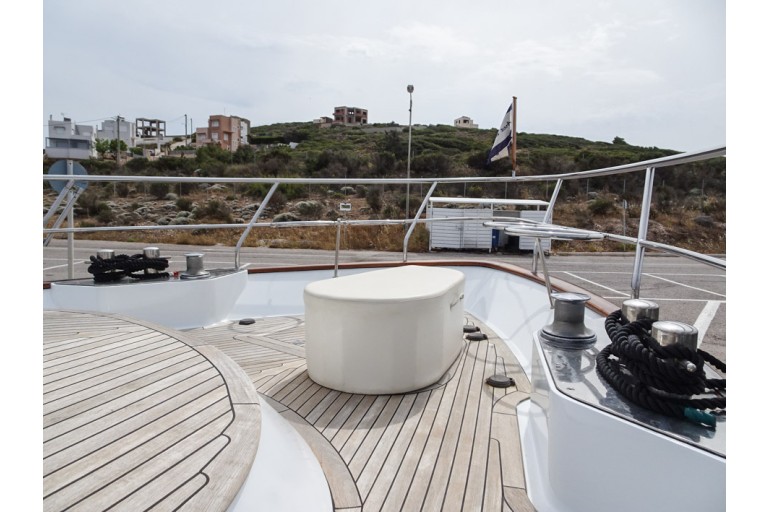

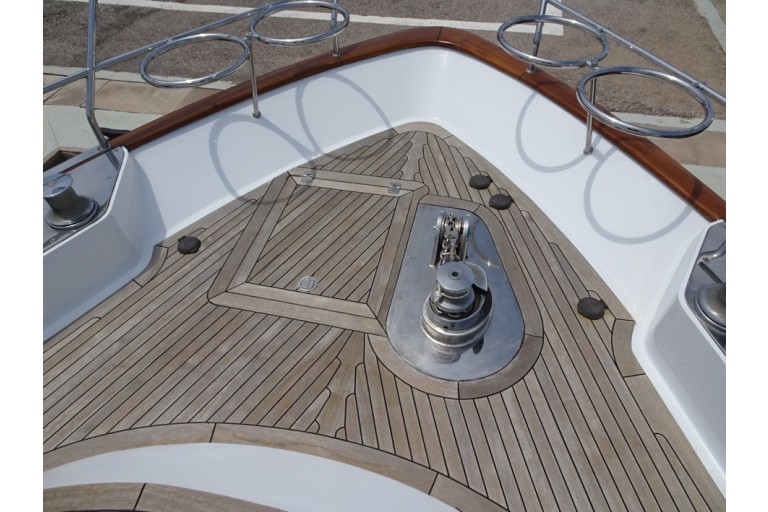

| Anchor equipment: | hydraulic anchor winch cabestan 100 m anchor with chain = Stainless steel Pool anchor in hawse-hole Stainless steel bow plate Quick chain counter Forward: 2x cabestan Aft: 2x cabestan |

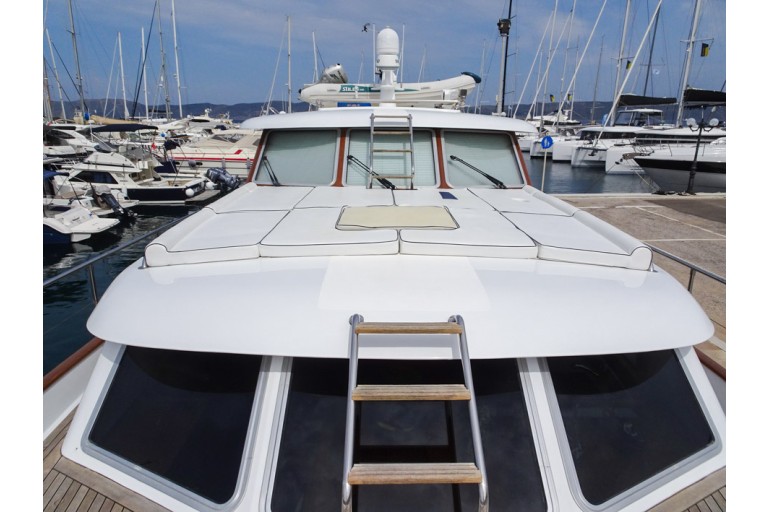

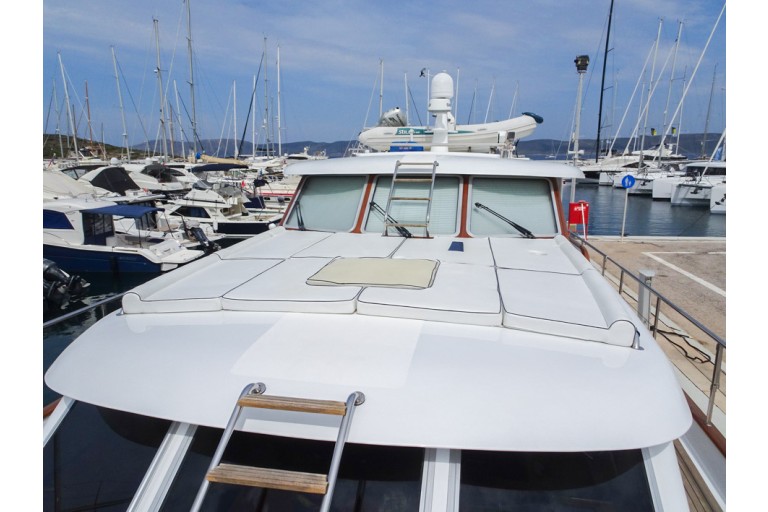

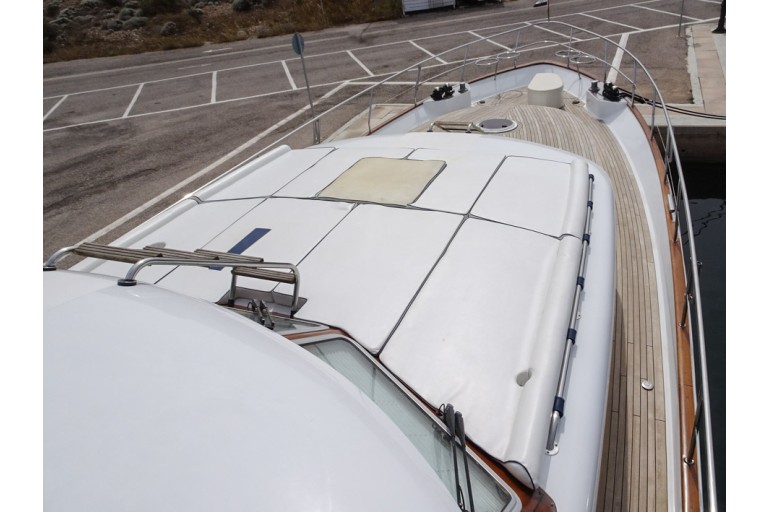

| Outdoor cushions: | present & sun bed on foredeck |
| Awnings: | sunblinds for windows |

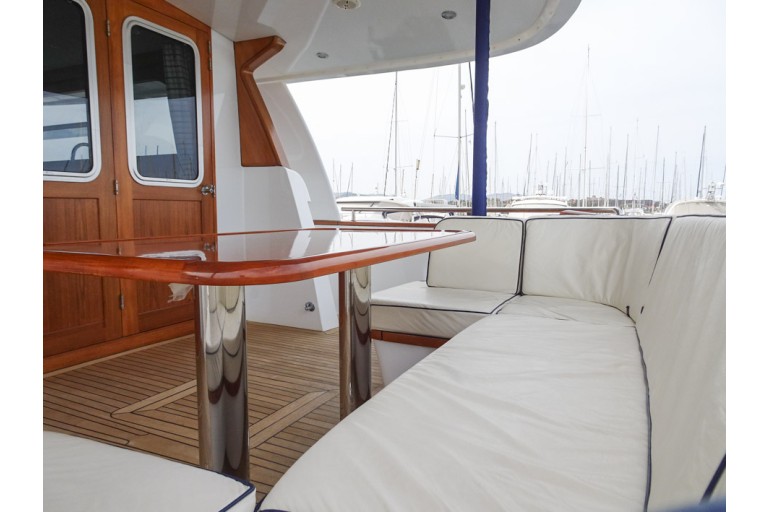

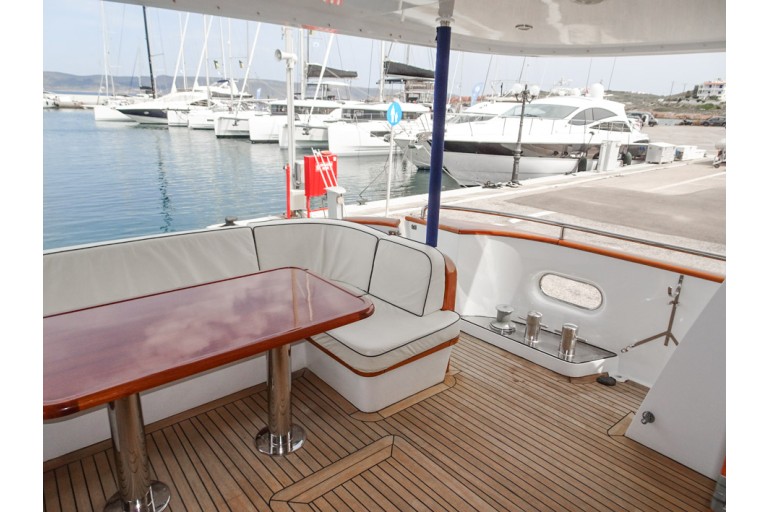

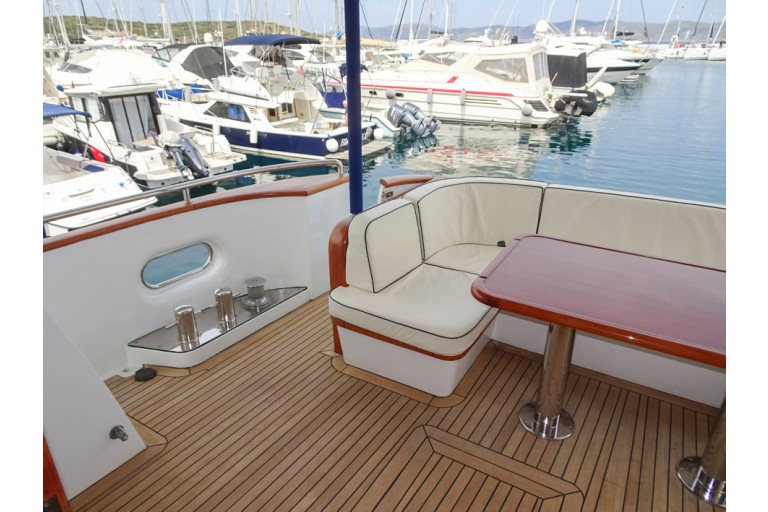

| Bimini: | fixed canopy awning above aft deck |
| Boarding ladder: | present stainless steel |

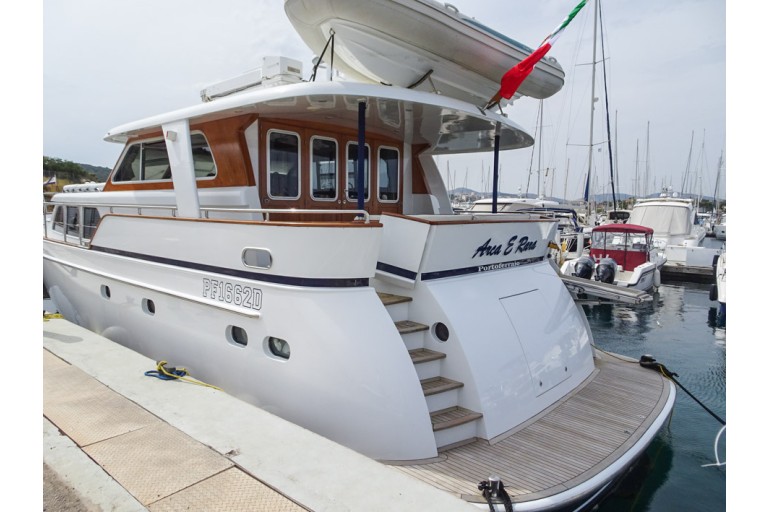

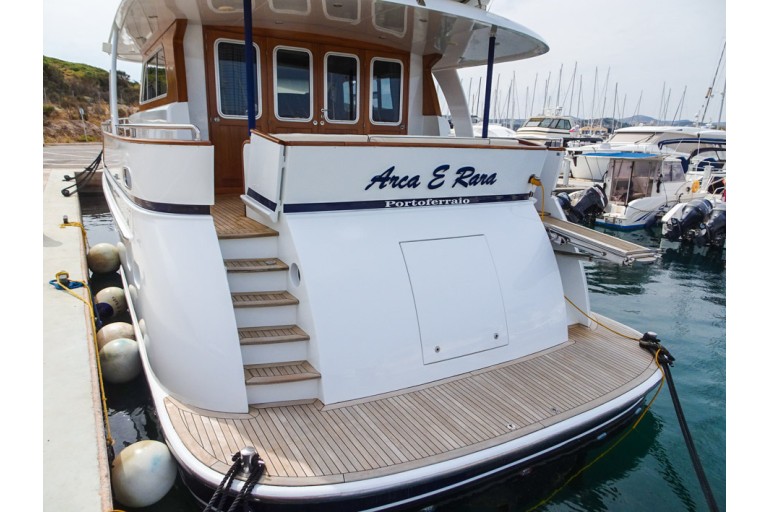

| Swimming platform: | integral |

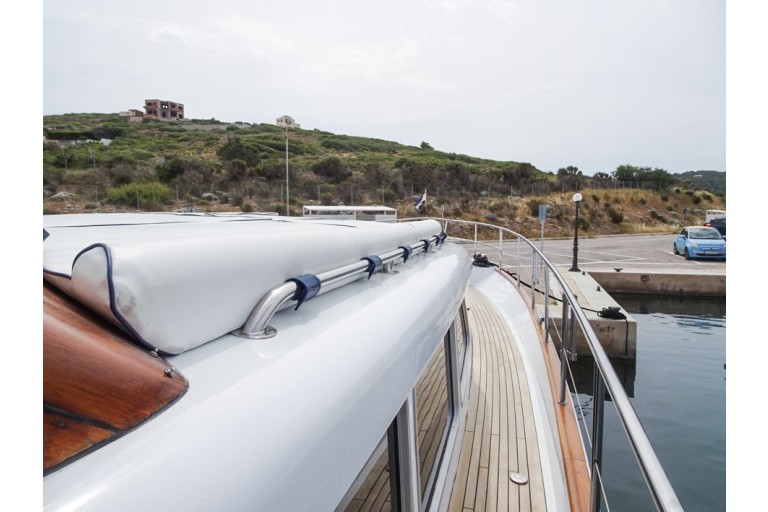

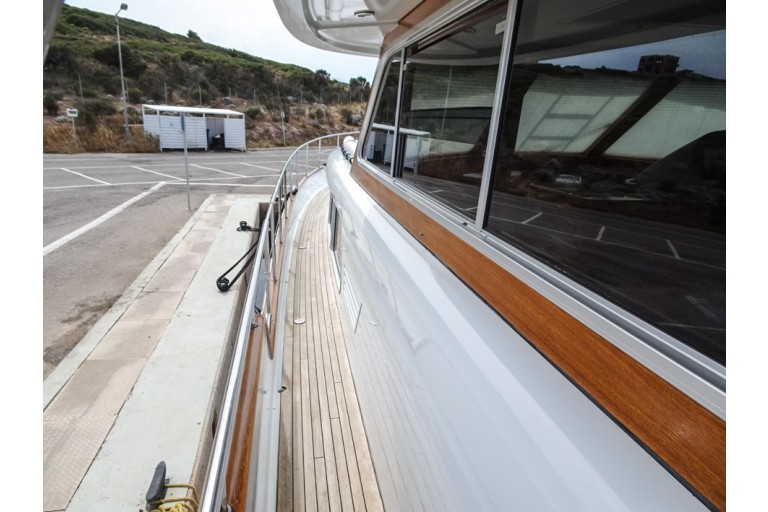

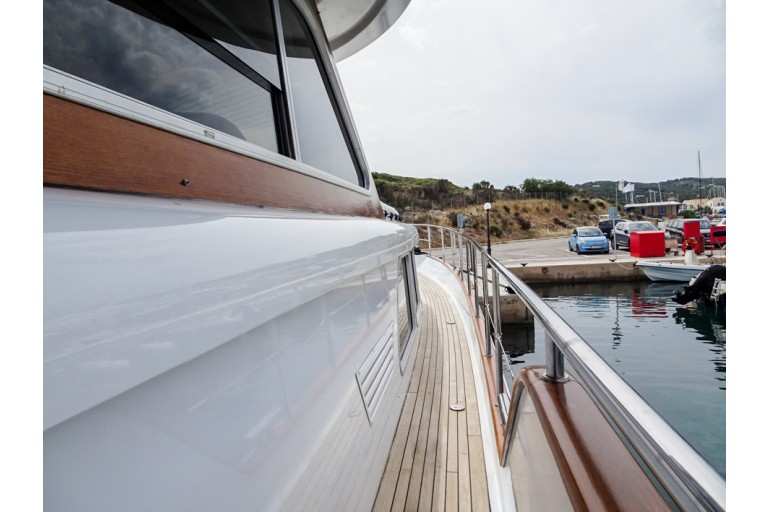

| Searail / Pulpit: | stainless steel searail |

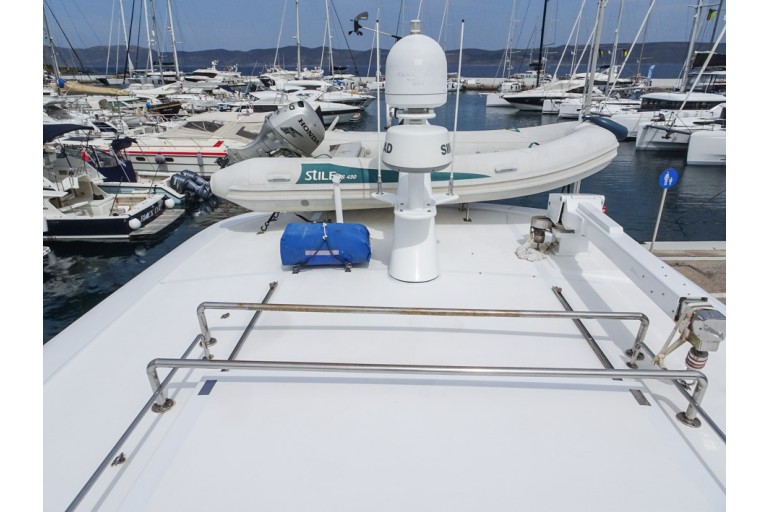

| Davits: | OpacMare present max. 450 kg @ 3.00 m aluminium hydraulic |
| Safety: | fire extinguishers automatic fire extinguishing system in engine room life buoys life jackets 2x liferaft without certificate bilge alarm |
| Additional information: | stainless steel fender holder OpacMare hydraulic operated stainless steel gangway / passerelle sundeck deckshower deck lights underwater LED lighting Survey report of the underwatership is available 11-2020 |
