Motor Cutter 16.36, Live Aboard with TRIWV Sold
Dimensions (m):
16.36 x 4.82 x 1.50
Ref. no.:
230605
Mooring:
Near Amsterdam, Netherlands
Construction year:
1952
Material:
steel
Price:
Sold
VAT not applicable
Vision Doeve Brokers

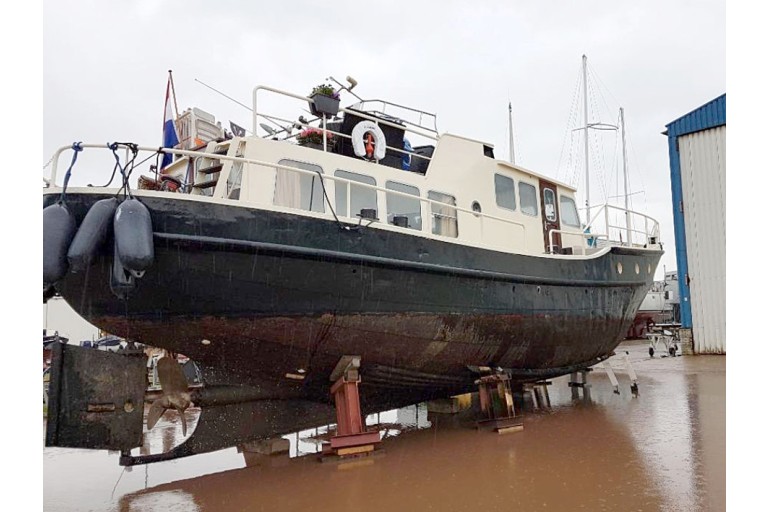

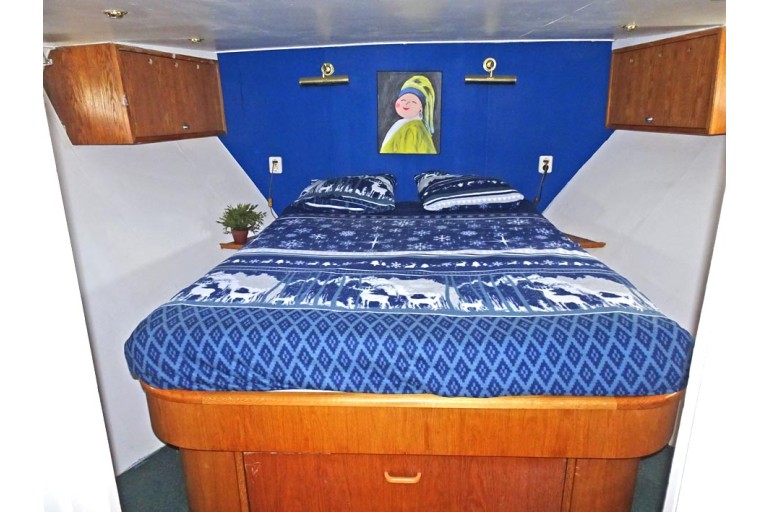

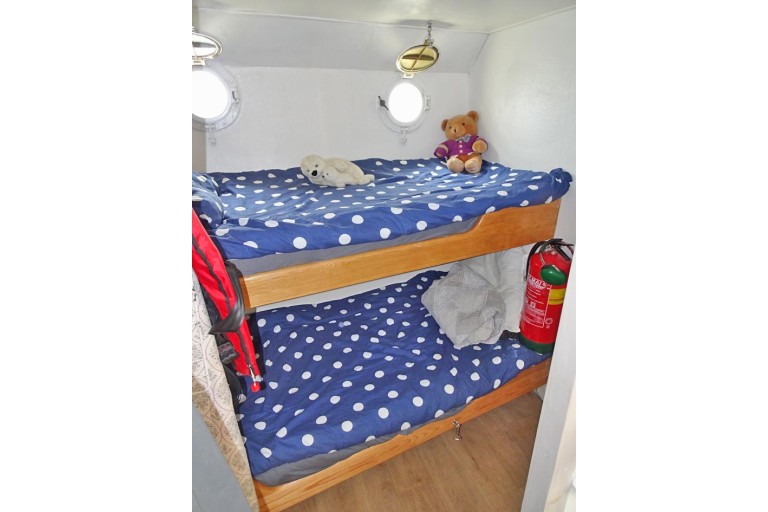

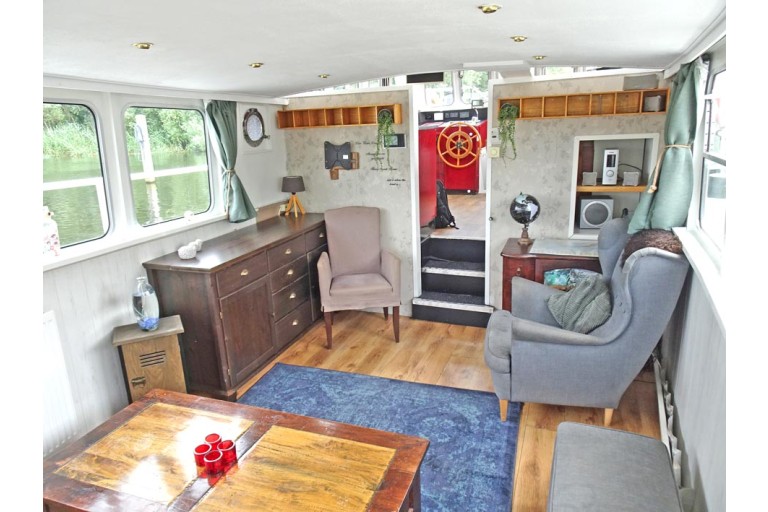

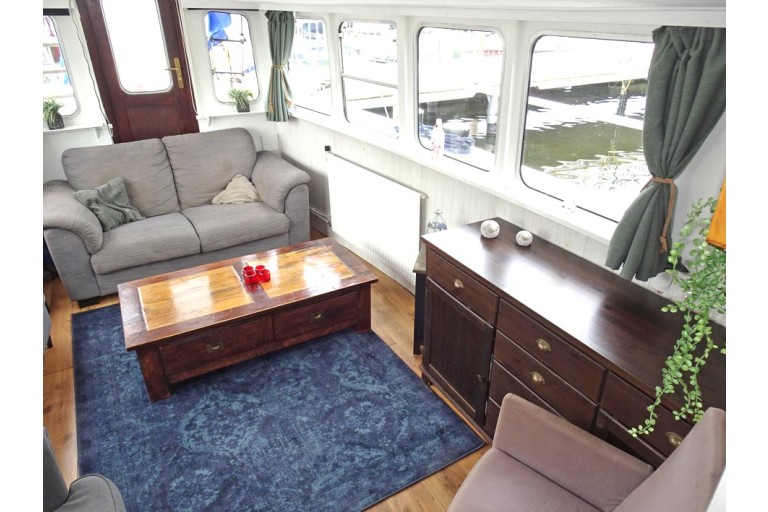

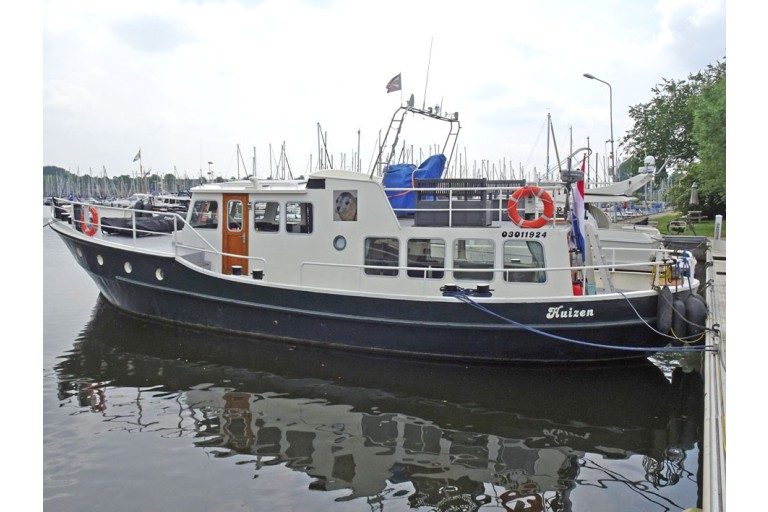

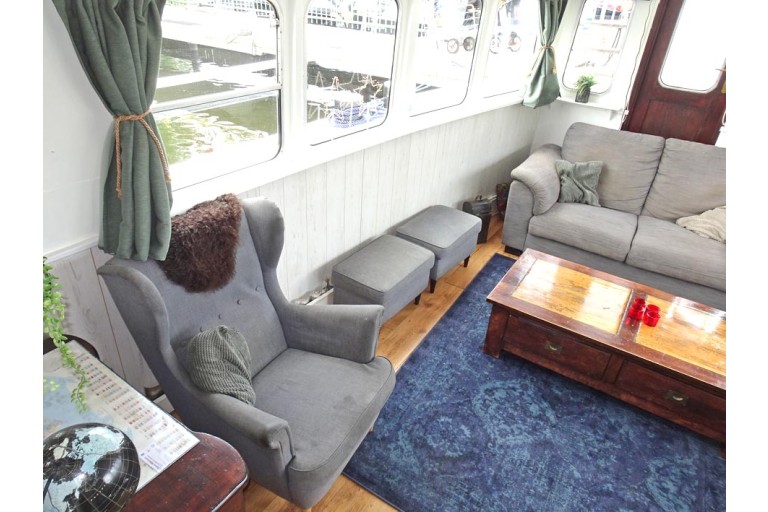

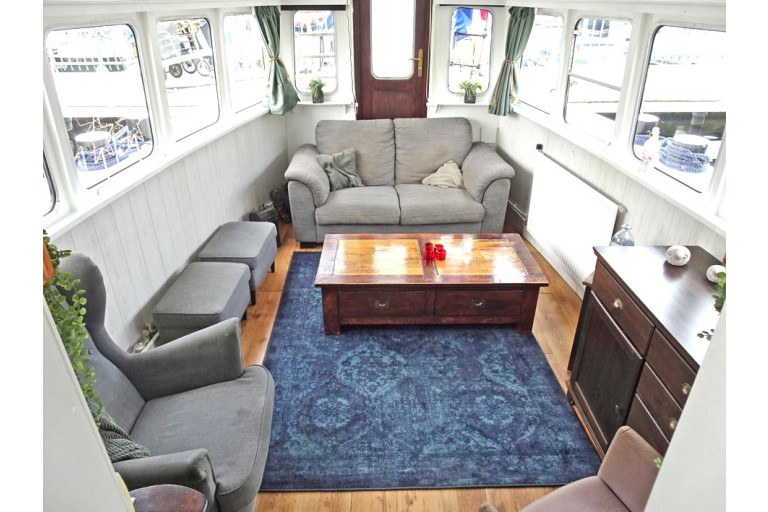

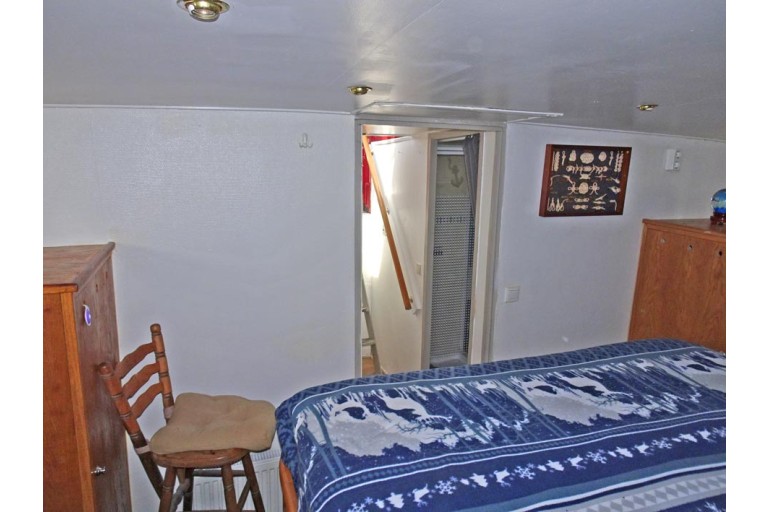

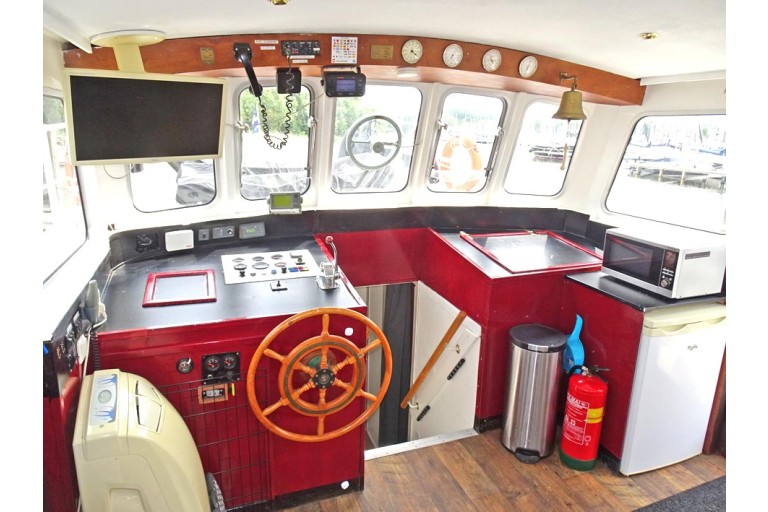

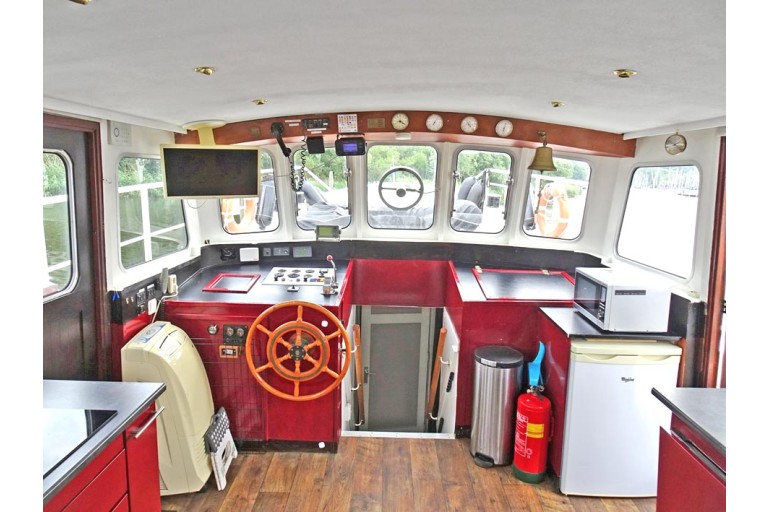

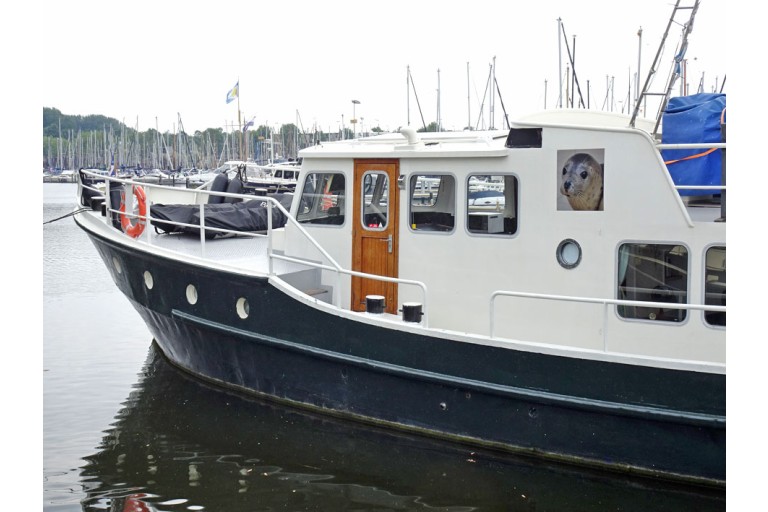

Former bicycle / pedestrian ferry that has been adjusted and refurbished into a cruising Live Aboard motor yacht. She is a sturdy ship with character, with a spacious fore deck and a flybridge with seating area. The spacious wheelhouse is very well-arranged and is also equipped with a galley with a separate wet and dry section. In the fore cabin there is a 2-persons French bed followed by the bathroom with an electric toilet and a shower cabin. The guest cabin has a 2x 1-persons bunk bed. You can reach the salon via the galley. The large windows in the salon gives a lot of light insight and offer a good view around. The electrical installation is extensive and up to date and with the generator the vessel is self-supporting. She is well insulated and very suitable for permanent residence. Her cruising area is very large from the Baltic to the Mediterranean and from the United Kingdom to beyond Berlin.
More information
General information
Yard:
Shipyard Gebroeders Paans, NL-Roodevaart
Hull shape:
round bilged
Hull material:
steel
Deck material:
steel
Superstructure material:
steel
Construction method:
riveted
new steel is welded
closed bollard cabinets
rubbing strake around
bulwark around
3 watertight bulkhead(s)

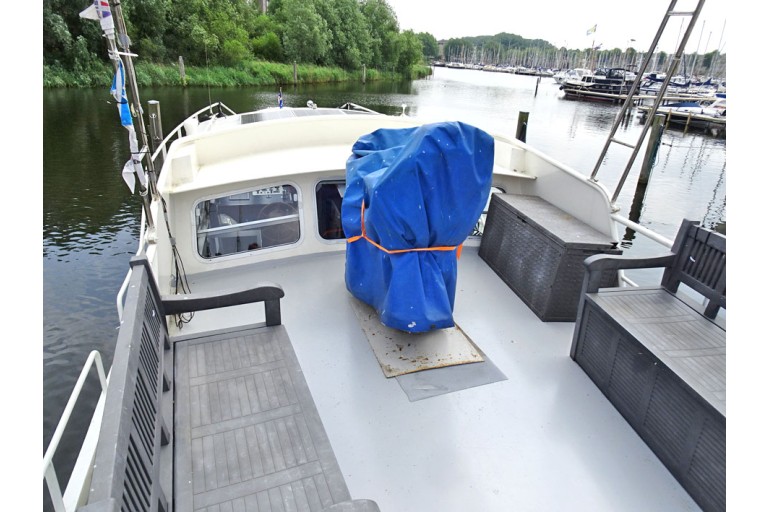

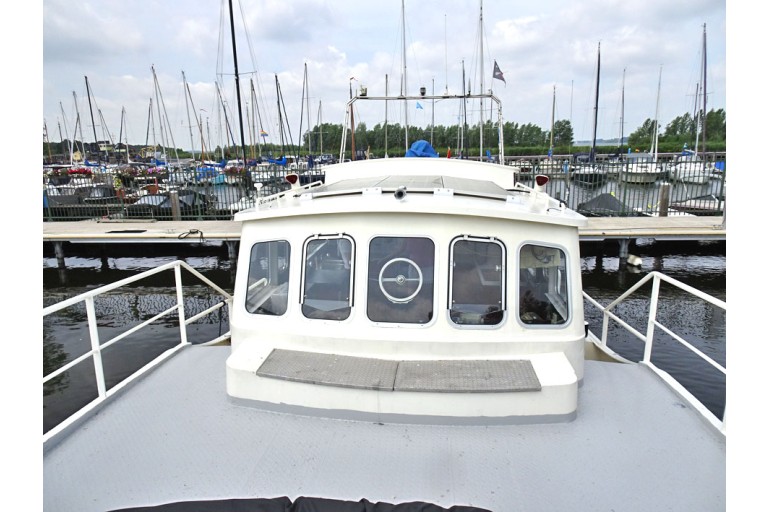

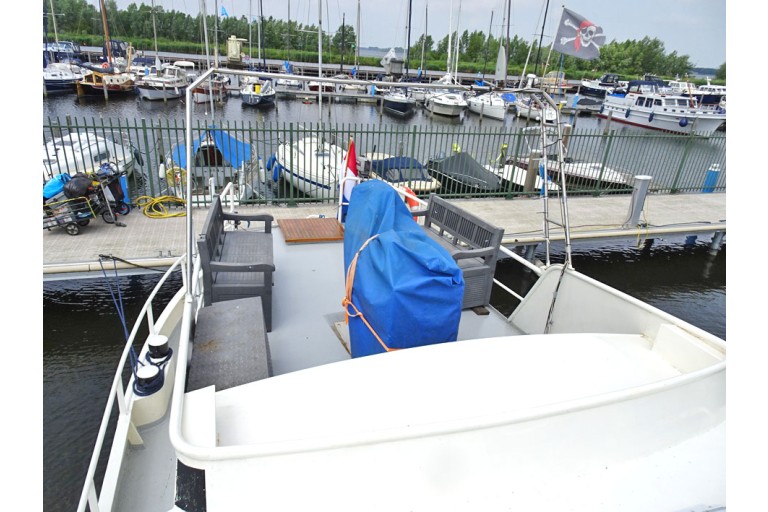

flying bridge
new steel is welded
closed bollard cabinets
rubbing strake around
bulwark around
3 watertight bulkhead(s)
flying bridge
Steering system:
hydraulic

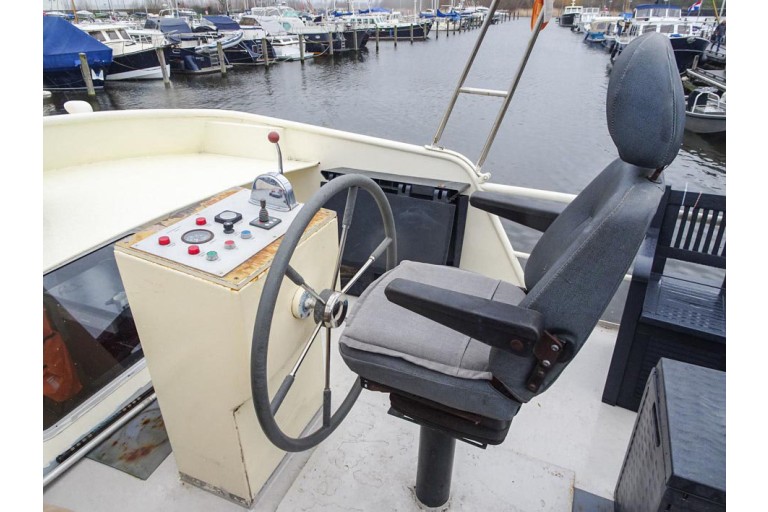

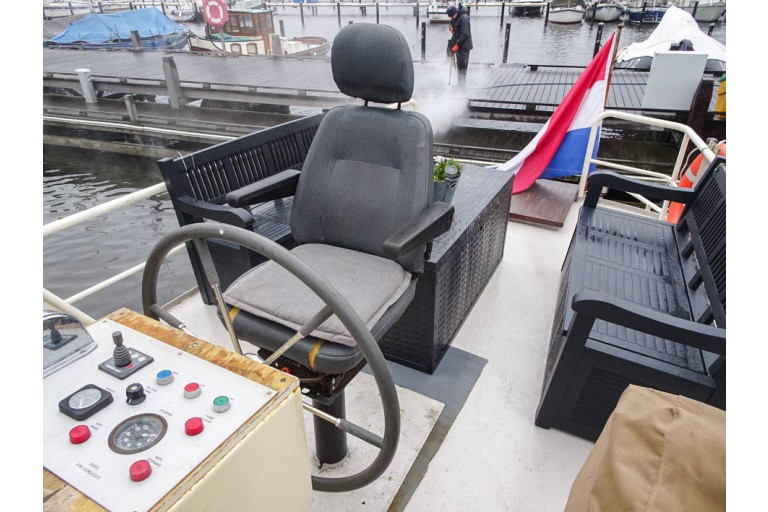

inside and outside steering position
2x wheel
inside and outside steering position
2x wheel
Windows:
aluminium windows frames
portholes
hardwood outside doors
portholes
hardwood outside doors
Displacement (approx.):
45 ton
Ballast (approx.):
trim ballast
steel
steel
Airdraft (approx.):
3,45 m everything down
Owner:
Dutch owner
Registration:
Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
Colour / Paint System:
green hull
white superstructure
last underwatership treatment 06-2017
white superstructure
last underwatership treatment 06-2017
Certificates:
inland waterways certificated (TRIWV / ES-TRIN)
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 06-2024
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 06-2024
Suitable for / as:
recreational vessel
suitable as a year round live- aboard
suitable as a year round live- aboard
General information:
good sailing characteristics
Additional information:
classic lines

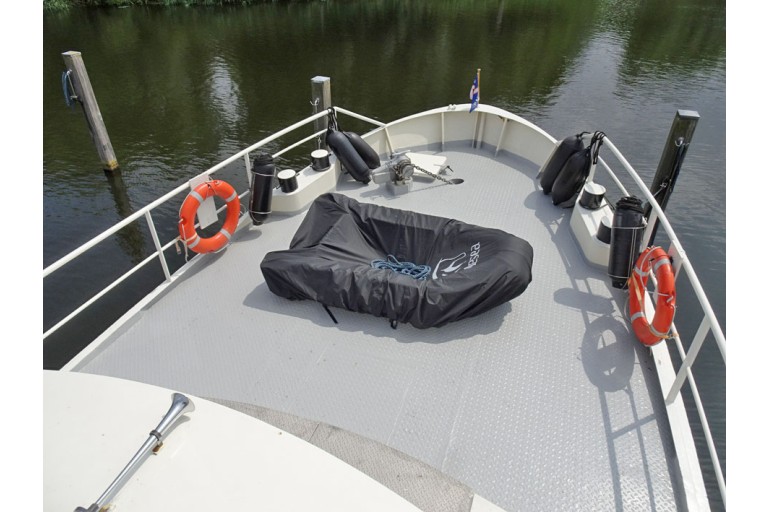

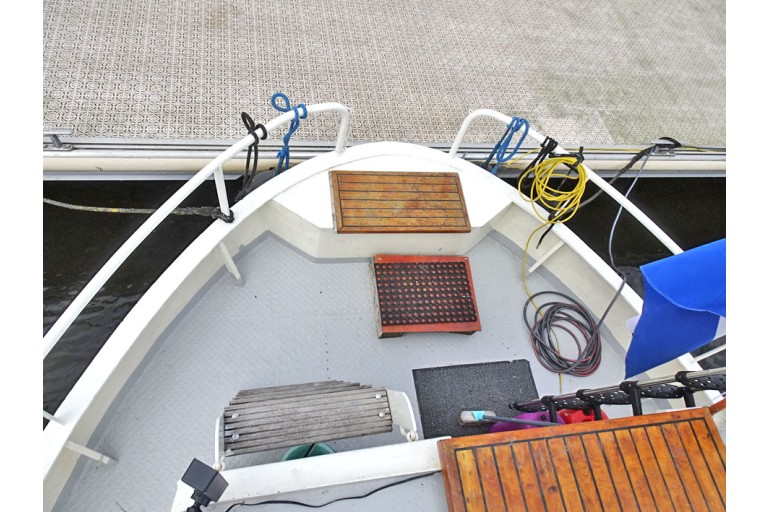

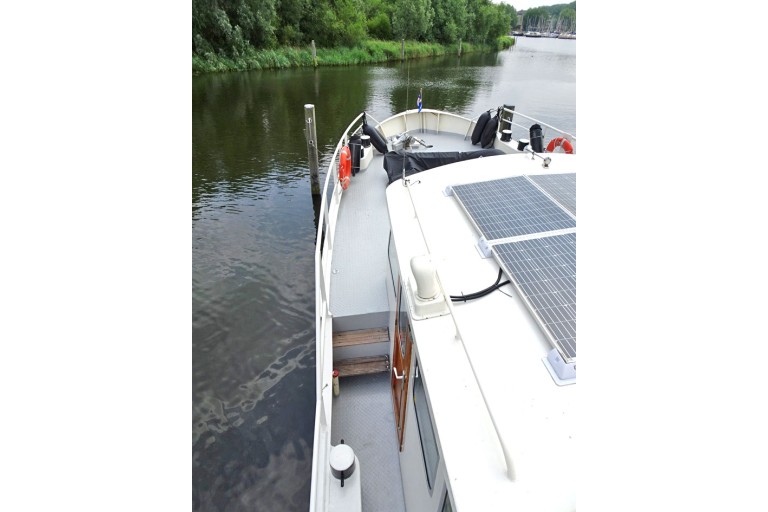

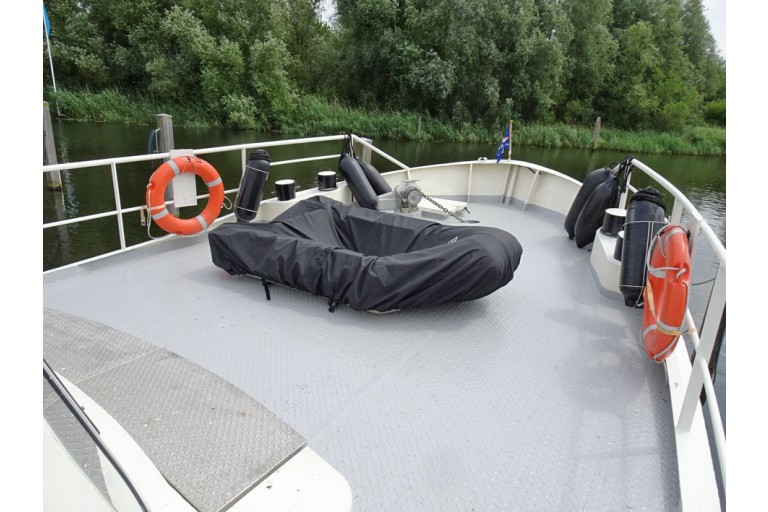

roomy foredeck
forepeak with chain locker
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the coastal waters.
roomy foredeck
forepeak with chain locker
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the coastal waters.

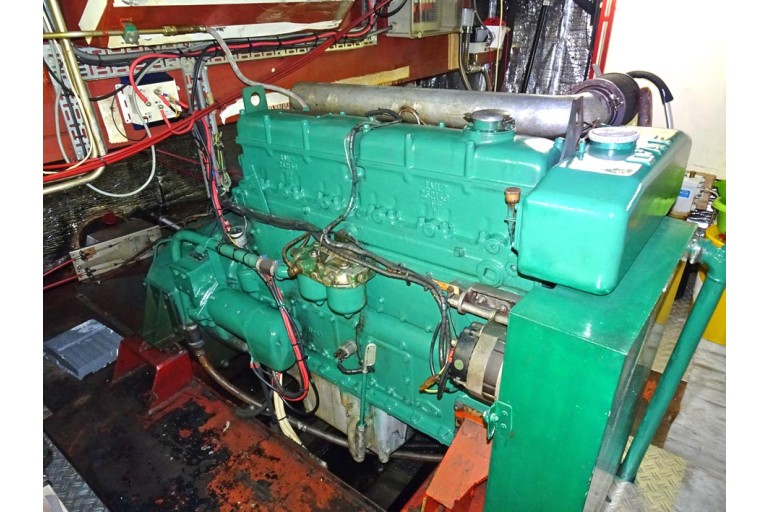

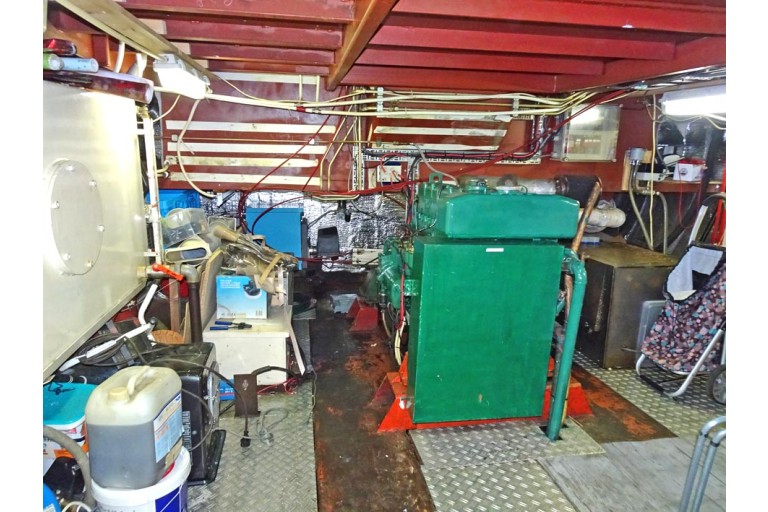

Technical information

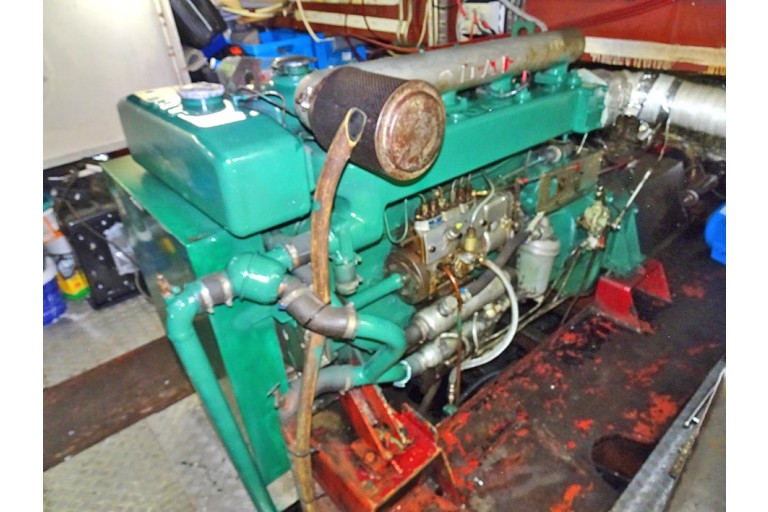

Enginepower:
165 Hp
121 kW
121 kW
Engine brand:
DAF
Engine model:
680
Number of cylinders:
6
Overhaul engine:
2006 partly
Running hours (approx.):
1400 on the hour counter
after overhaul
after overhaul
Fuel:
diesel
Fuel tank (approx.):
1100 litre
2 steel tank(s)
2 steel tank(s)
Cooling system:
intercooling
dry exhaust
insulated exhaust
dry exhaust
insulated exhaust
Propulsion:
3 blade propeller
greased lubrication of propeller shaft
greased lubrication of propeller shaft
Gearbox:
Masson NF hydraulic
Heating:

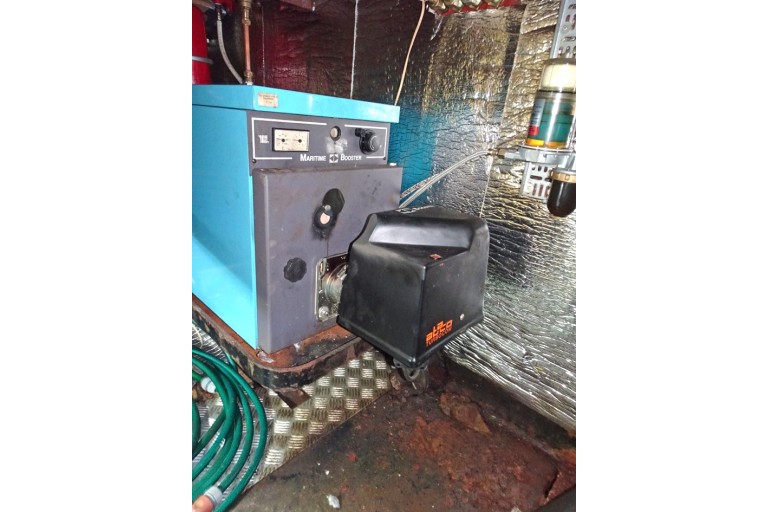

Maritime Booster central heating
combi boiler
on diesel
combi boiler
on diesel
Bow thruster:
Side Power electric bow thruster
24 Volt
24 Volt

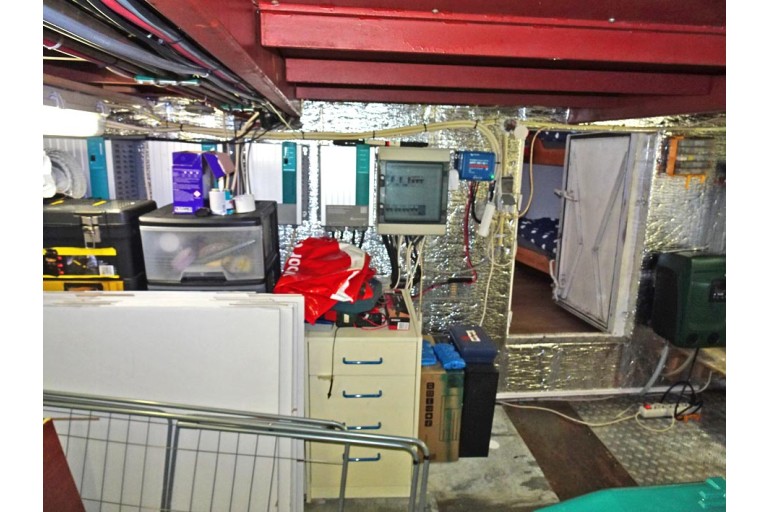

Electricity system:
12 / 24 / 230 / 400 Volt
230 Volt shore power connection
Mastervolt Systemswitch 10 with automatic changeover
230 Volt shore power connection
Mastervolt Systemswitch 10 with automatic changeover
Batteries:
2x 100 Ah starter batterie(s)
4x domestic batterie(s)
1x 55 Ah starter batterie(s) generator
2x 55 Ah bow thruster batterie(s)
Mastervolt BTM-III battery monitor
4x domestic batterie(s)
1x 55 Ah starter batterie(s) generator
2x 55 Ah bow thruster batterie(s)
Mastervolt BTM-III battery monitor
Battery charger:
Mastervolt Mass battery charger 24/100
Ultimate speed battery charger
Victron Blue Power battery charger 24/5
Victron Blue Power battery charger 24/8
Ultimate speed battery charger
Victron Blue Power battery charger 24/5
Victron Blue Power battery charger 24/8
Battery isolator:
battery isolator
Isolation transformer:
Mastervolt GI 3.5 isolation transformer
Earth-leakage breaker:
present
Genny:
Ruggerini whisper set
8 kVA 230/400 Volt
3000 RPM
8 kVA 230/400 Volt
3000 RPM
Inverter:
Mastervolt Mass Sine inverter 24/5000
Victron Orion-Tr inverter 24/12-20
Victron Orion-Tr inverter 24/12-20

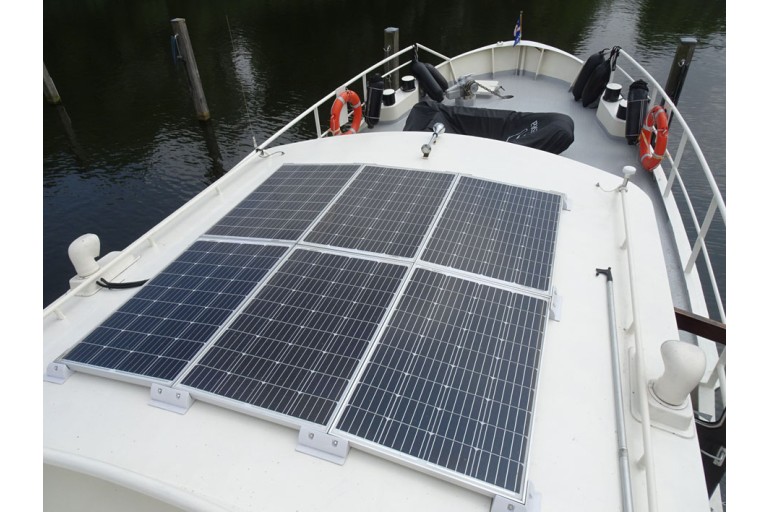

Solar panels:
6x solar panel (2021)
Victron MPPT charge controller 100/30
Victron MPPT charge controller 100/30
Fresh water tank (approx.):
600 litre
1x stainless steel tank(s)
1x stainless steel tank(s)
Water pressure system:
DAB electric water pump
Hot water system:
through the central heating
Holding tank (approx.):
200 litre
1 plastic tank(s)
1 plastic tank(s)
Diesel waterseparator:
present
Bilge pump:
electric pump
12 Volt
12 Volt
Deck wash pump:
submersible pump
Gas system:
no gas on board
Accommodation
Interior:
various materials have been used
simple interior
suitable for living on board
see photographs
simple interior
suitable for living on board
see photographs
Insulation:
glass wool with aluminium foil
well insulated
well insulated
Cabins:
2 cabins
Berth:
owners cabin: 1x 2-pers
Guest cabin(s): 2x 1-pers
Guest cabin(s): 2x 1-pers

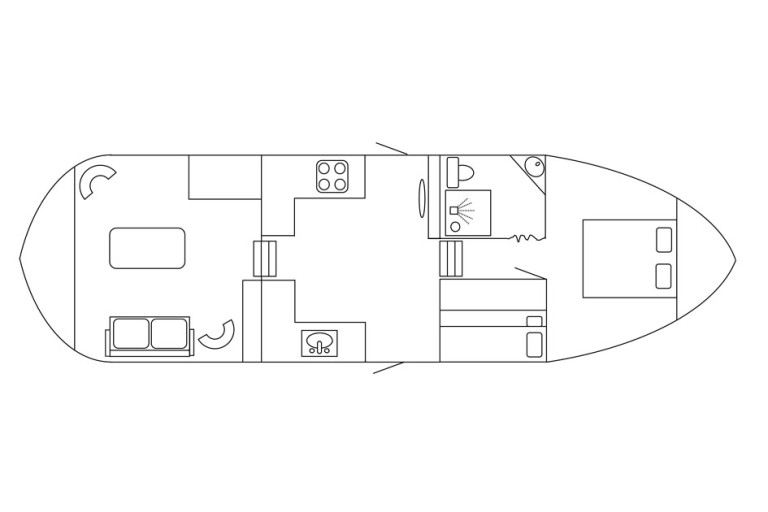

Lay-out plan (not to scale):
see attachment

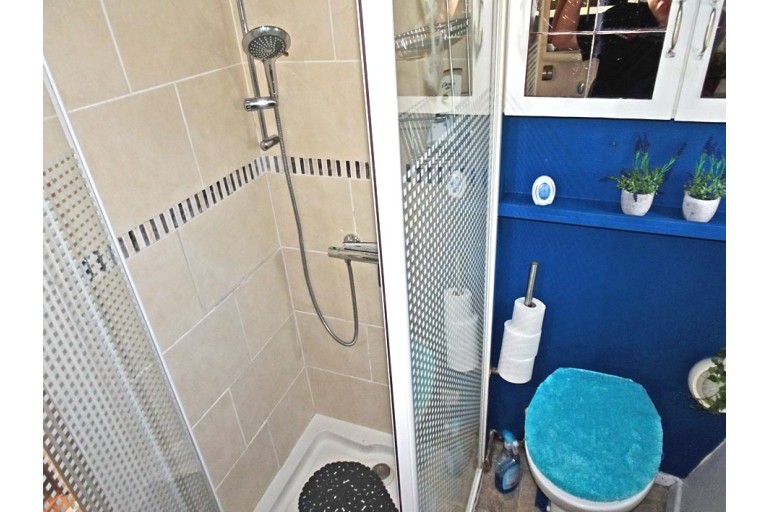

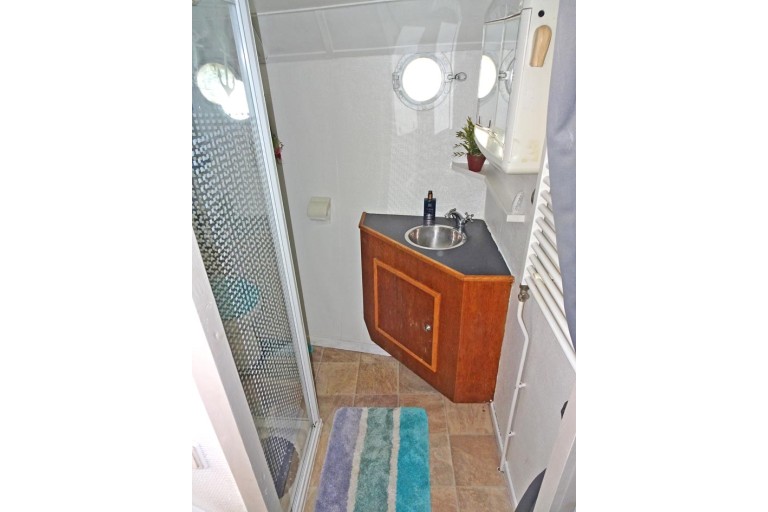

Bathroom:
partly tiled
shower cubicle
thermostat tap
washbasin with mixer tap and hot & cold running water
in 1 area together with the toilet
shower cubicle
thermostat tap
washbasin with mixer tap and hot & cold running water
in 1 area together with the toilet
Toilet / Heads:
electric toilet

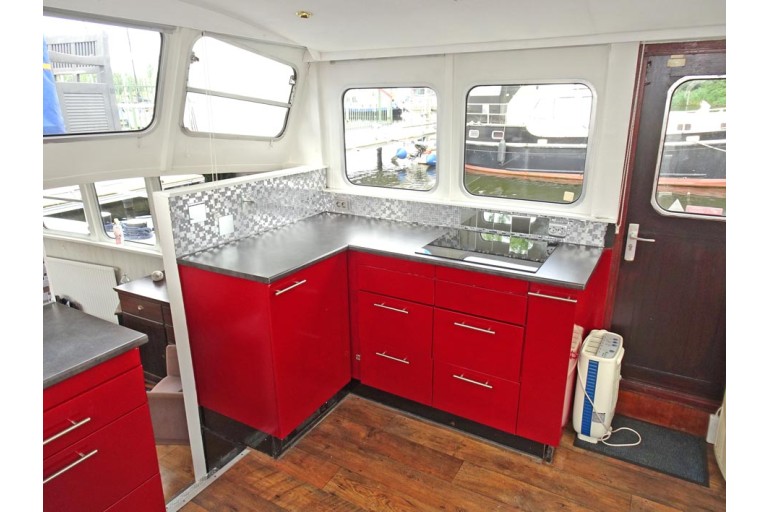

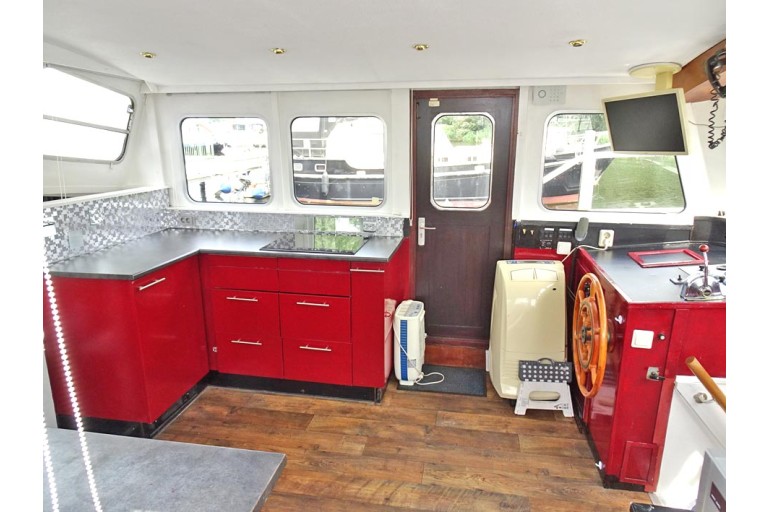

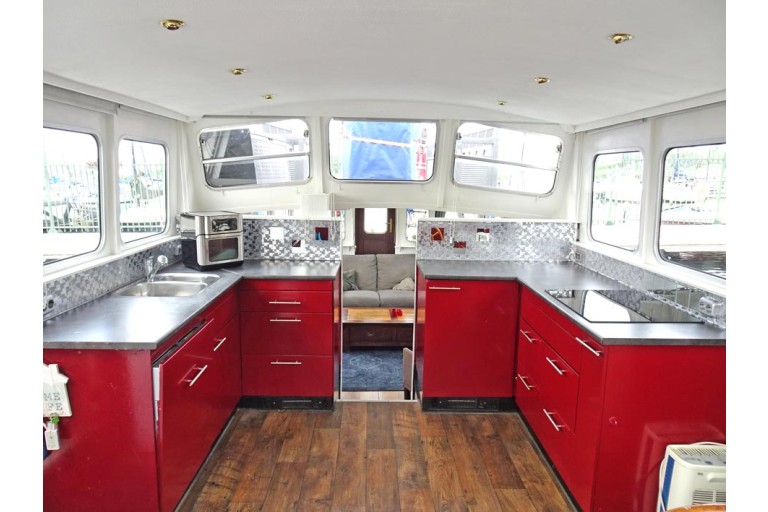

Galley:

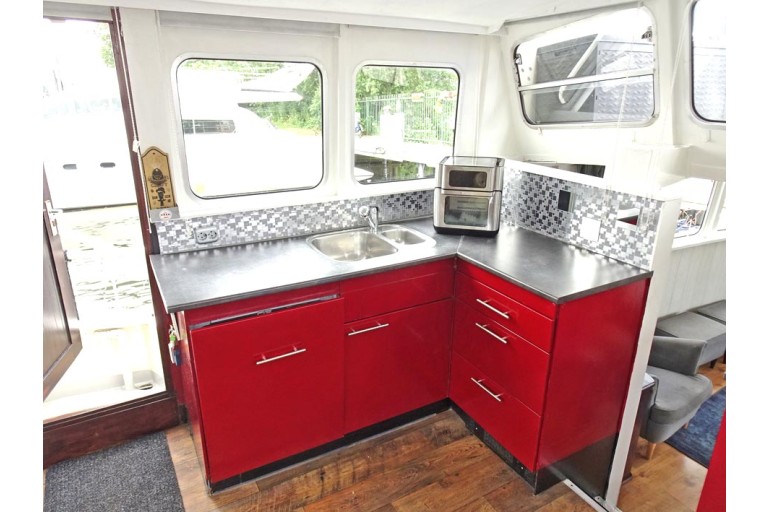

L-shape galley
Cooker:
4-burner hob
induction cooker
induction cooker
Oven:
electric oven
Microwave:
present
Fridge / Refrigerator:
present
230 Volt
230 Volt
Worktop:
laminate worktop
Washbasin:
stainless steel sink
Water tap:
mixer tap with hot & cold running water
Dishwasher:
Miele dishwasher
Entertainment:
flatscreen TV
Headroom (approx.):
ownerscabin (approx.) 1,94 m
bathroom / toilet (approx.) 1,91 m
guest cabin (approx.) 1,90 m
galley (approx.) 2,10 m
salon (approx.) 1,96 m
bathroom / toilet (approx.) 1,91 m
guest cabin (approx.) 1,90 m
galley (approx.) 2,10 m
salon (approx.) 1,96 m
Additional information:

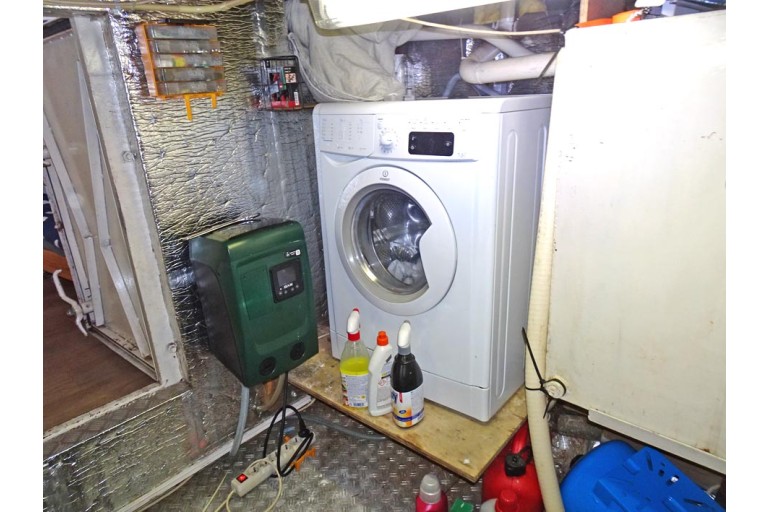

Indesit washing machine / dryer
Rigging and sails
Mast:
apparatus wing
stainless steel
stainless steel
Lowerable:
yes
manual
manual
Equipment
Anchor equipment:
Lofrans electric anchor winch
Pool anchor
in hawse-hole
40 m anchor chain
specified length(s) is/are approximate
Pool anchor
in hawse-hole
40 m anchor chain
specified length(s) is/are approximate
Awnings:
sunblinds for windows
Boarding ladder:
present

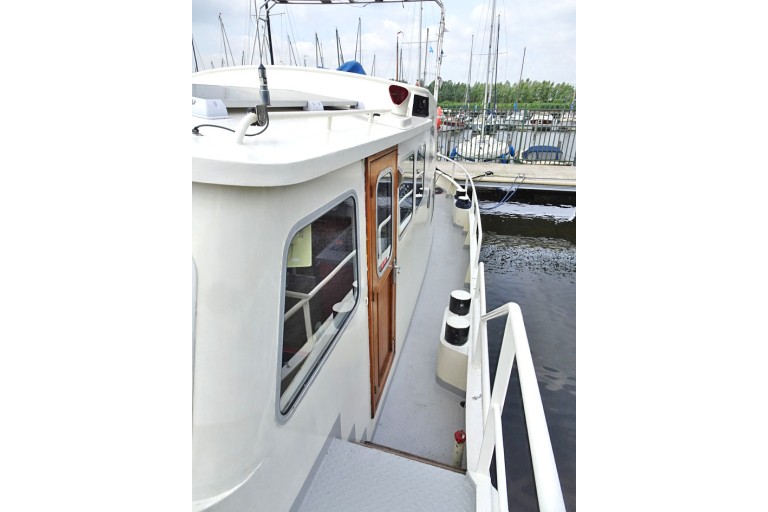

Searail / Pulpit:
searail on bulwark
guardrail around upperdeck
guardrail around upperdeck
Dinghy:
inflatable dinghy
Mariner outboard engine
2 Hp
Mariner outboard engine
2 Hp
Safety:
2 fire extinguishers
3 life buoys
according to the certification requirements
carbon monoxide detector(s)
3 life buoys
according to the certification requirements
carbon monoxide detector(s)
Additional information:
fenders
fender holder
Survey report of the underwatership is available (06-2017)

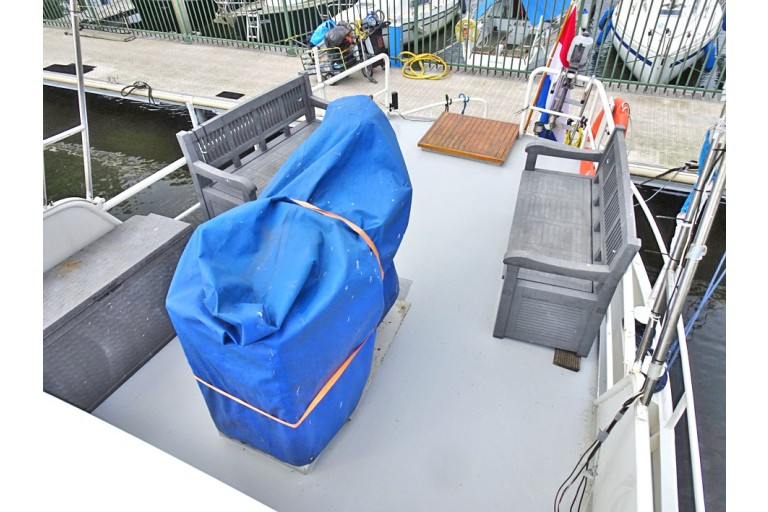

sundeck
set deck furniture
fender holder
Survey report of the underwatership is available (06-2017)
sundeck
set deck furniture
