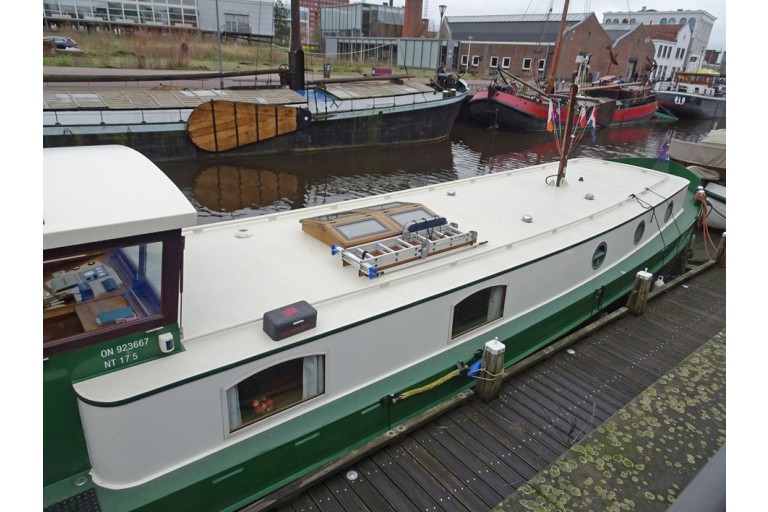

Piper 55N Nivernais Class Dutch Barge Sold

Dimensions (m): 16.80 x 3.72 x 0.80

Ref. no.: 240305

Mooring: Near Utrecht, Netherlands

Construction year: 2008

Material: steel

Price: Sold

VAT has been paid

Download PDF folder

Vision Doeve Brokers

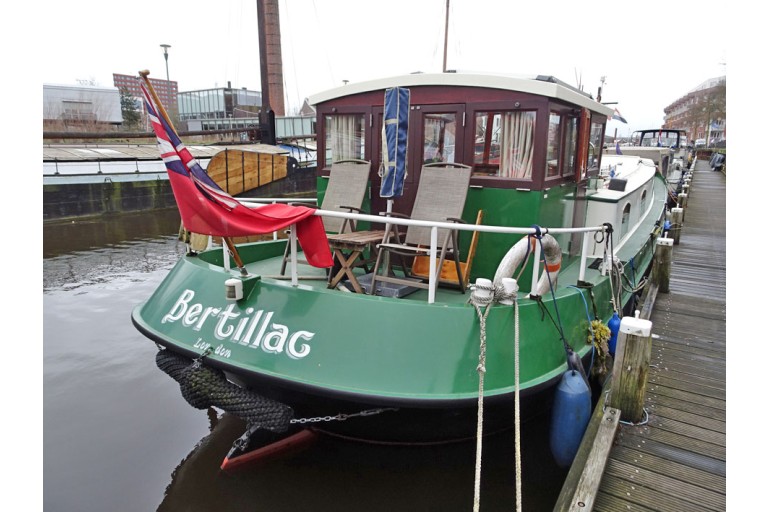

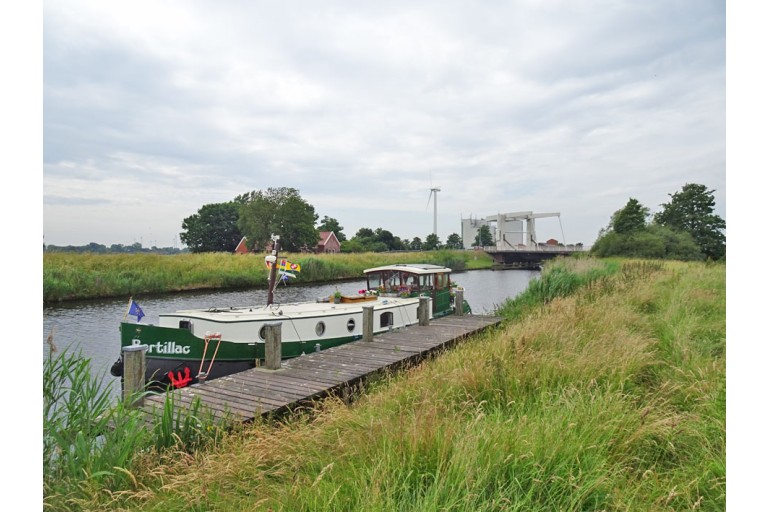

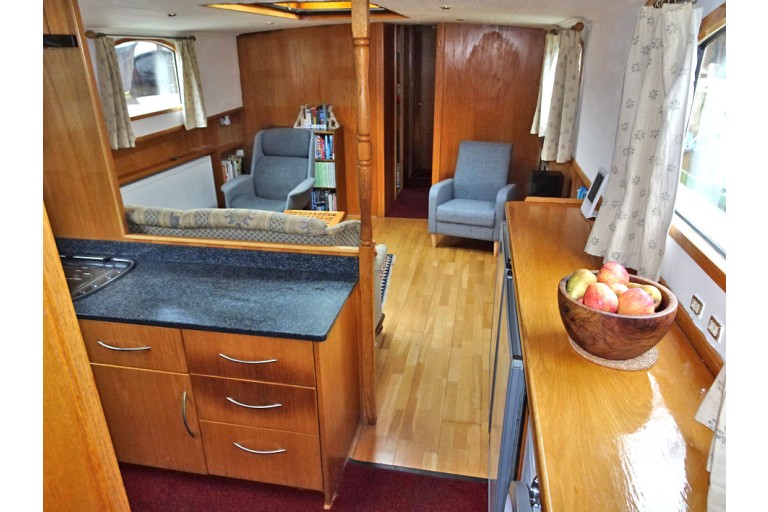

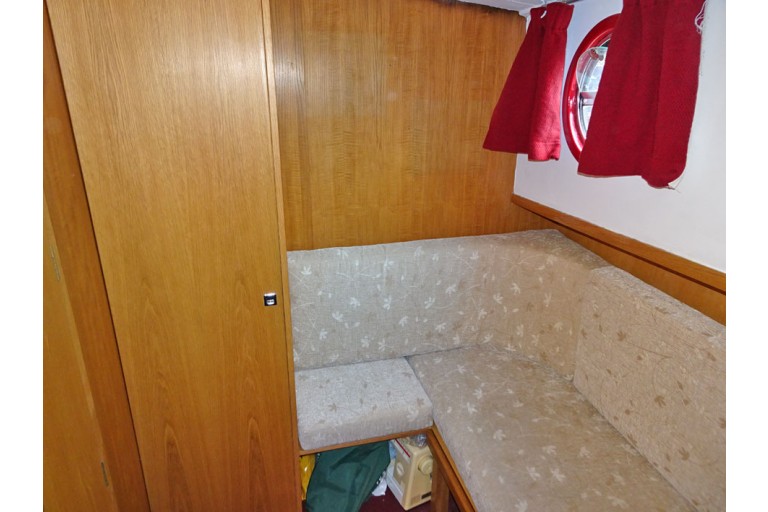

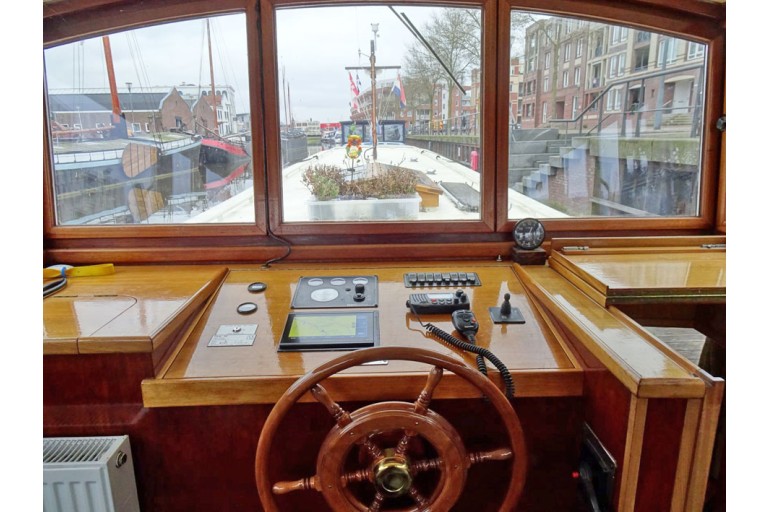

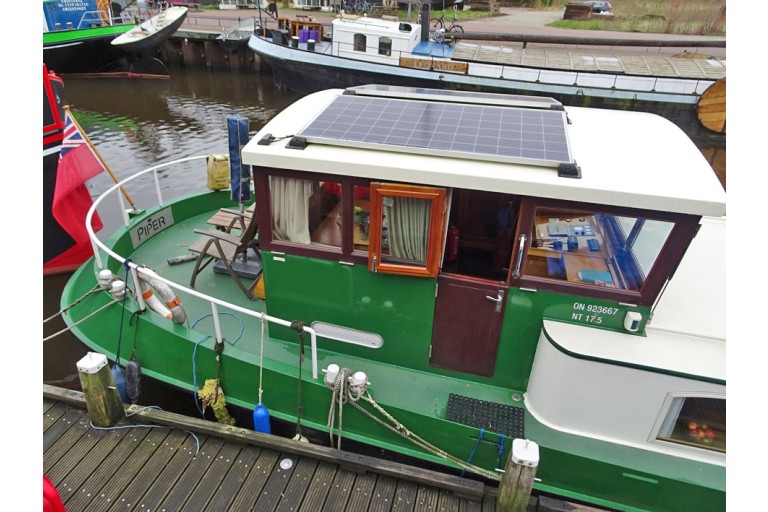

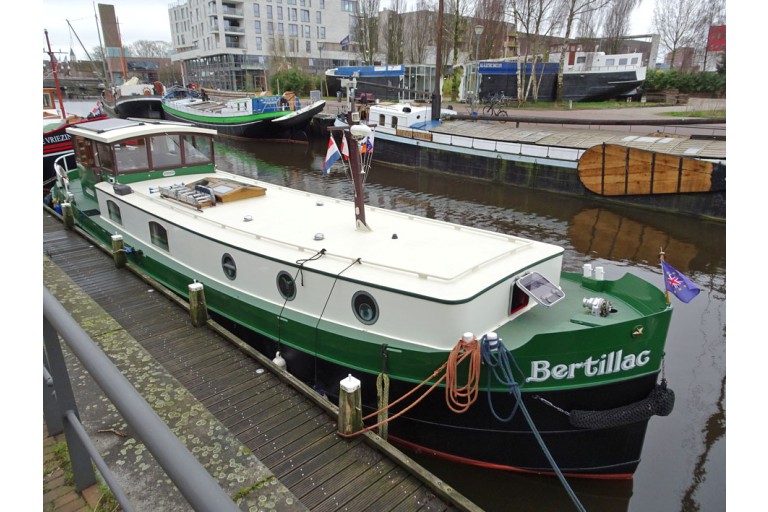

This Dutch Barge Live Aboard Barge, from the first owner, embodies the classic elegance and modern comfort that Piper Barges are known for. The heart of this Luxe Motor replica consists of a 95 hp Sole engine. There is also a generator on board and recently installed solar panels with a powerful inverter/charger. This makes this Dutch Barge completely self-supporting, leaving you free to sail wherever your adventure takes you. The spacious wheelhouse of this Piper offers a panoramic view; together with 2 side doors and the terrace doors that open onto the aft deck, is it a very pleasant space to be. Below deck you will find the galley, a cozy salon and the bathroom. In addition, there is a cabin that currently is in use as an office, complete with a sofa that can easily be converted into a bed. The owner's cabin has a comfortable French bed.

More information

General information

Yard: Yard Piper Boats Limited, UK-Stoke-on-Trent

Hull shape: multi hard chine

Hull material: steel

Deck material: steel

Superstructure material: steel
hardwooden top side of the wheelhouse

Construction method: welded
rubbing strake around
bulwark
wide side decks (gunnels)
closed bollard cabinets

Steering system: hydraulic
wheel
emergency tiller

Windows: plastic window frames
aluminium portholes
double glazing

Displacement (approx.): 33 metric tons

Airdraft (approx.): 3,10 m

Owner: British owner

Registration: British registered (Part 1)

Colour / Paint System: two component basic system
& one component finish
black hull
green bulwark
white superstructure
very well maintained

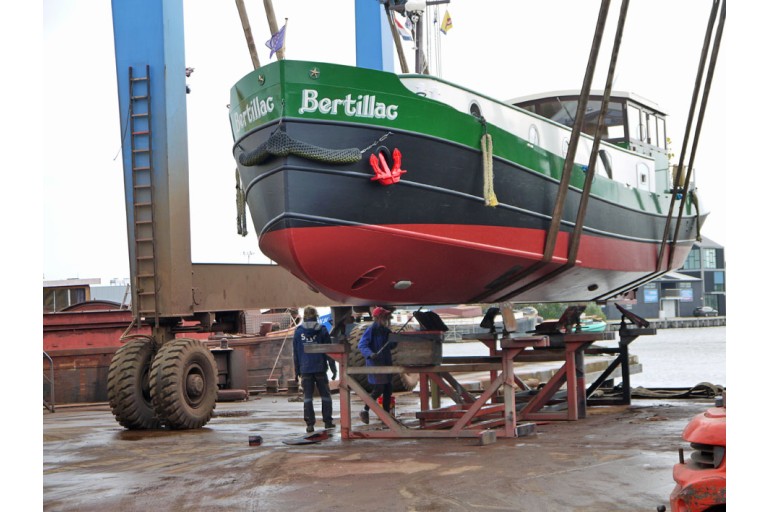

last underwatership treatment 09-2023

Certificates: no certificate requirement

RCD / CE Certification: C

Suitable for / as: recreational vessel
suitable as a year round live- aboard

General information: from first owner
Hand over in consultation.
For sale because of the age of the seller.

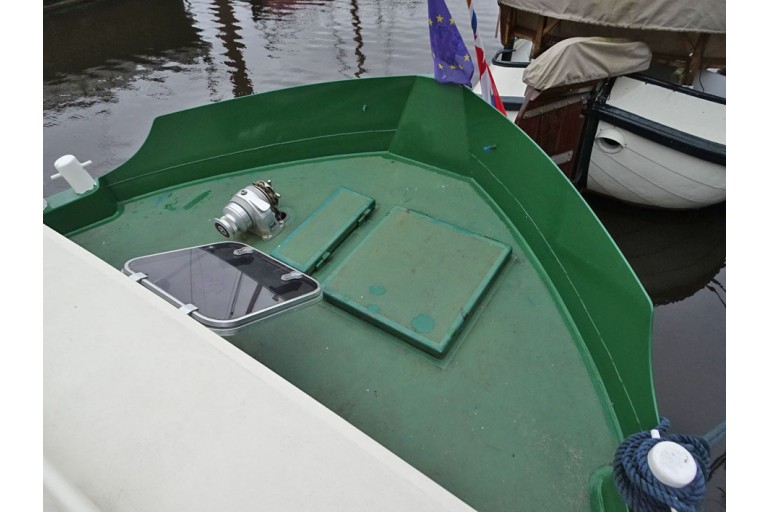

Additional information: chain locker
Hull shape is suitable for drying out.

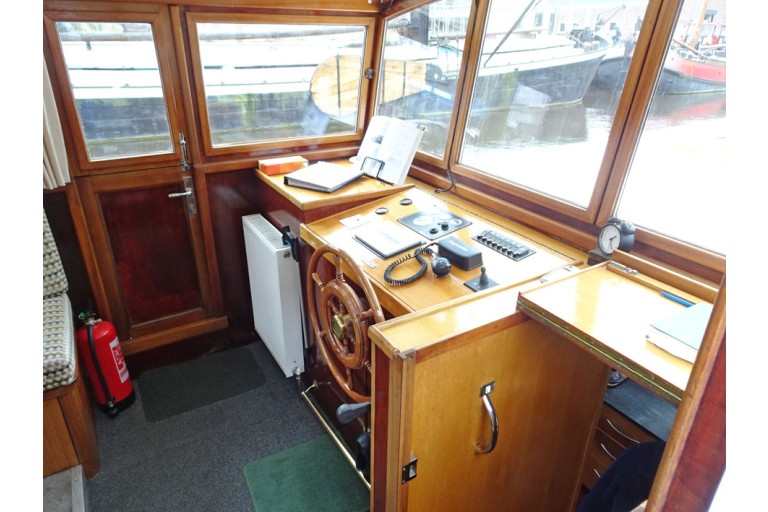

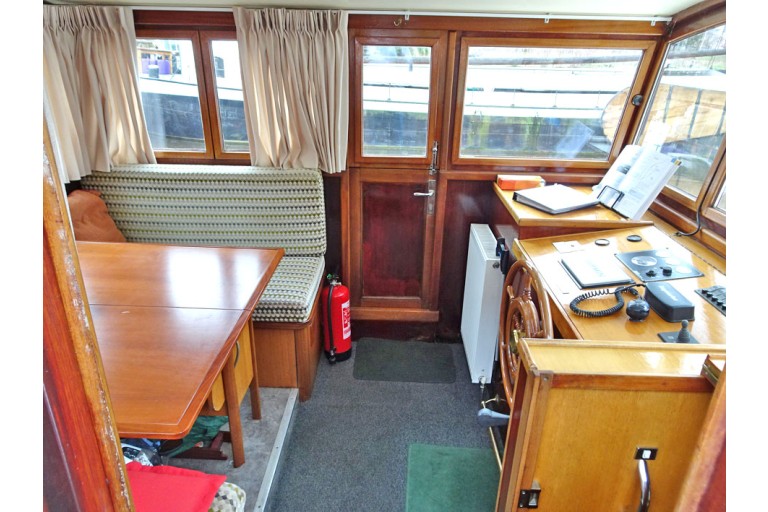

wheelhouse
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.

Technical information

Enginepower: 95 Hp
69,9 kW

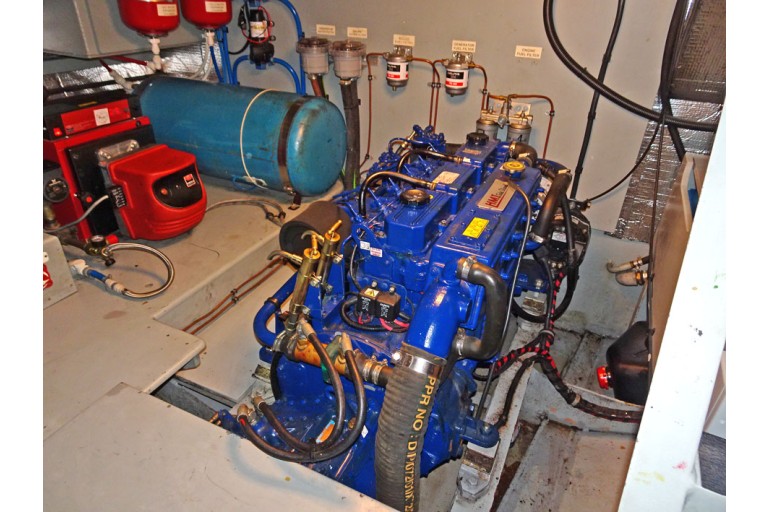

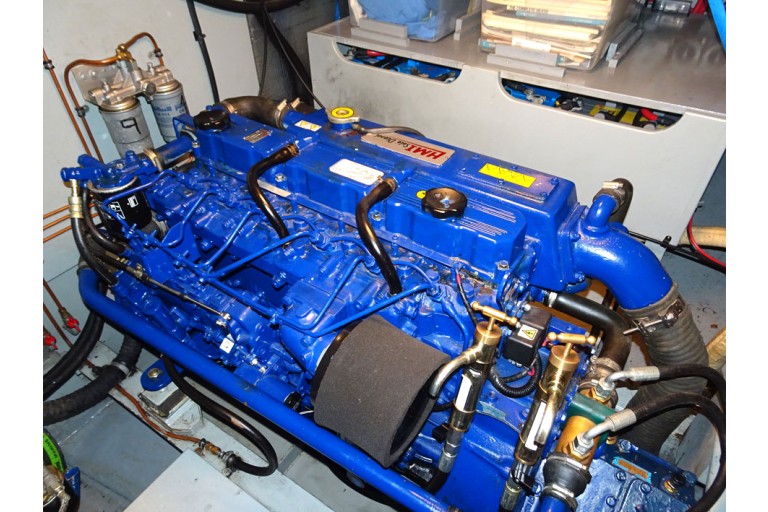

Engine brand: Sole

Revolutions: 2500 RPM

Engine model: SM105

Number of cylinders: 6

Construction year engine: 2008 into operation

Running hours (approx.): 2975 on the hour counter

Fuel: diesel

Fuel tank (approx.): 900 litre
1 steel tank(s)

Cooling system: intercooling
wet exhaust with water separator

Propulsion: 4 blade propeller
water lubricated propeller shaft

Gearbox: PRM 500D2 hydraulic

Speed (approx.): 11 km/hour cruising speed at 1800 RPM

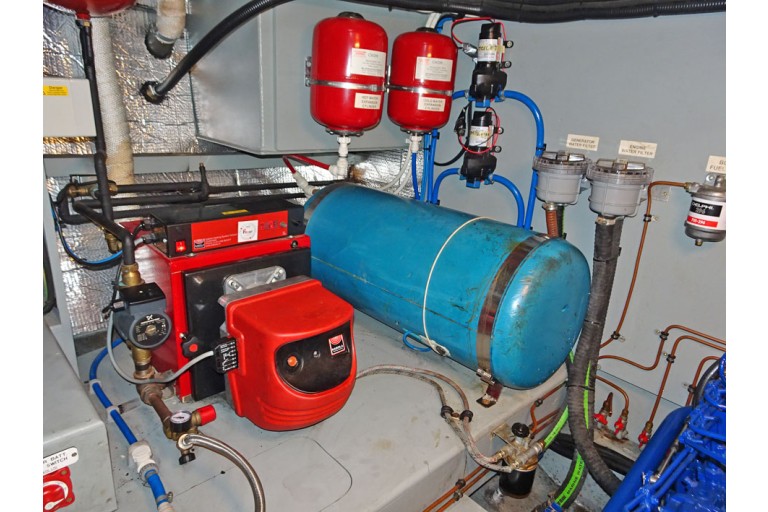

Heating: Kabola HR300 central heating
on diesel

Engine instruments: present

Bow thruster: Vetus electric bow thruster
24 Volt
160 KGF

Electricity system: 12 / 24 / 230 Volt
230 Volt shore power connection
professionally installed system

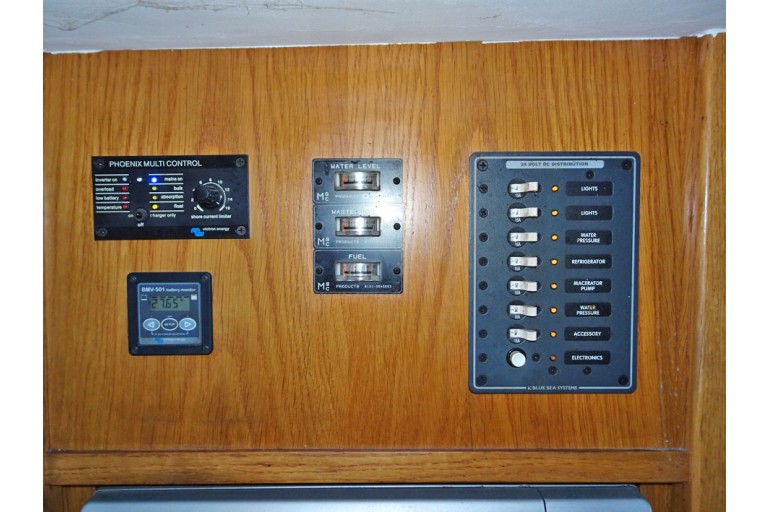

Victron Phoenix Multicontrol

Batteries: 2x 120 Ah starter batterie(s)
1x 80 Ah starter batterie(s) generator
10x 115 Ah domestic batterie(s)
2x 235 Ah bow thruster batterie(s)
Victron BMV-501 battery monitor

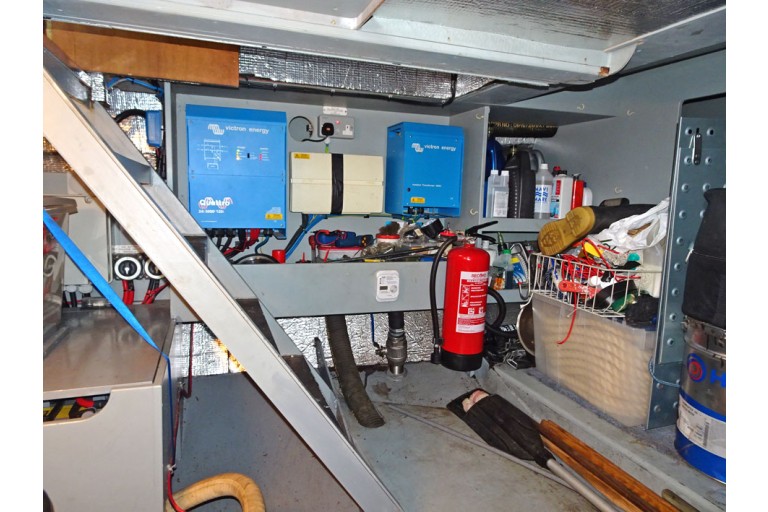

Battery charger: Victron Quattro combi inverter/charger 24/5000/120
Victron Blue Power battery charger 12/15
Victron Centaur battery charger 24/30

Isolation transformer: Victron isolation transformer 3600 Watt

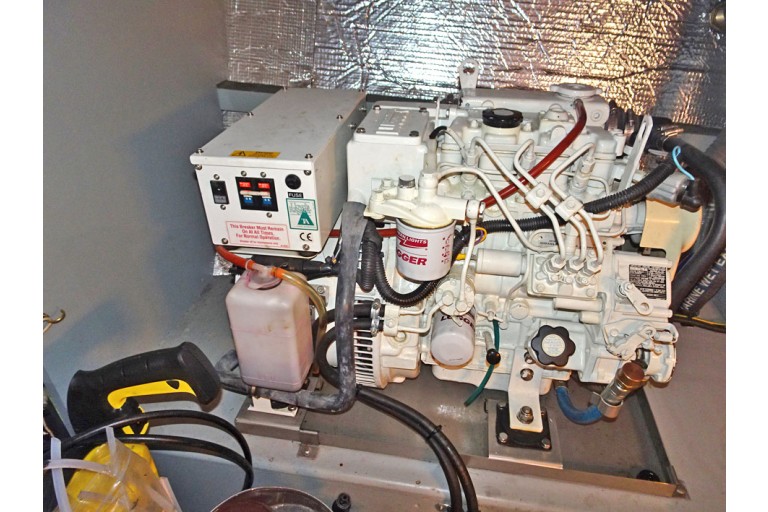

Genny: Northern Lights diesel genny
7 kVA 230 Volt, 1500 RPM
650 running hours (approx.)
wet exhaust with water separator

Inverter: Victron Quattro combi inverter/charger 24/5000/120

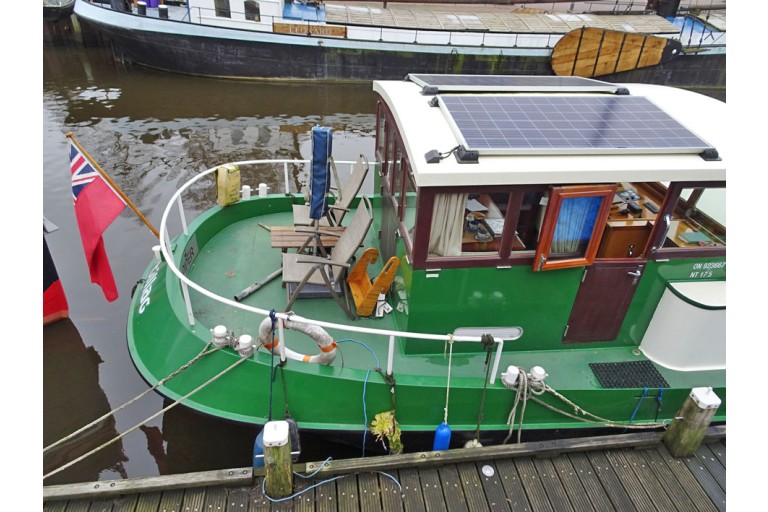

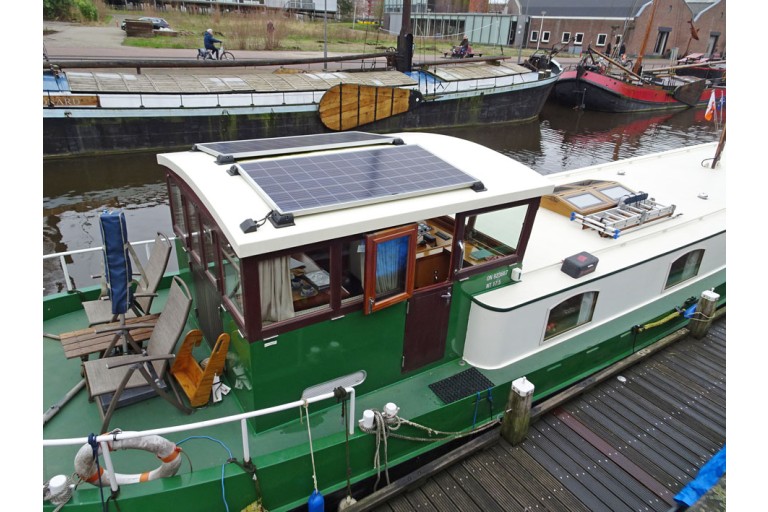

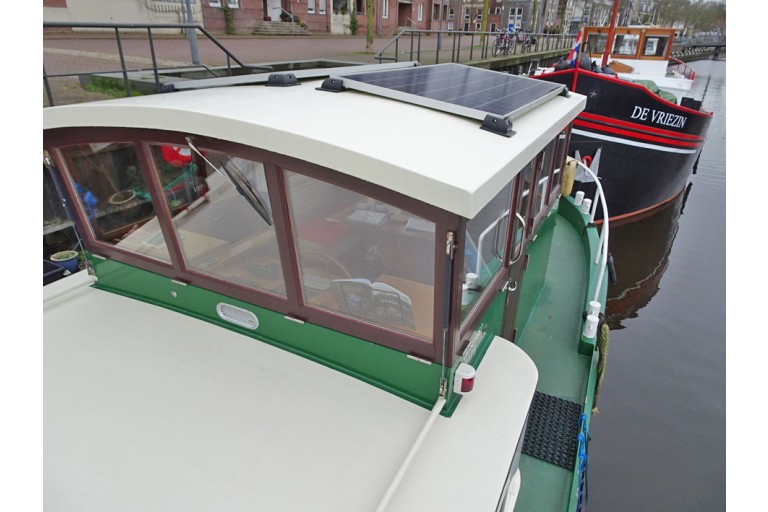

Solar panels: 2x 330 Watt solar panel
Victron BlueSolar MPPT charge controller 100/30

Fresh water tank (approx.): 1400 litre
1 steel tank(s)

Water pressure system: hydrophore pump

Hot water system: boiler/water calorifier via 230 Volt and engine cooling system
& through the central heating

Holding tank (approx.): 1000 litre
1 steel tank(s)

Diesel waterseparator: present

Engineroom: see photographs
well maintained

Bilge pump: 2x electric pump
1x manual pump

Gas system: yes, bottle(s) in bottle box

Accommodation

Interior: Plywood
oak
some overdue maintenance
see photographs

Insulation: foamed insulation

Cabins: 2 cabins

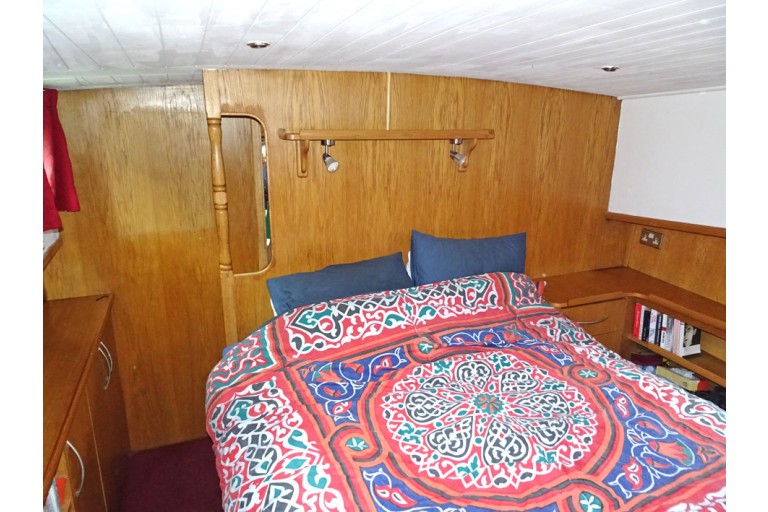

Berth: owners cabin: 1x 2-pers
= French bed
Portside cabin: 1x 2-pers

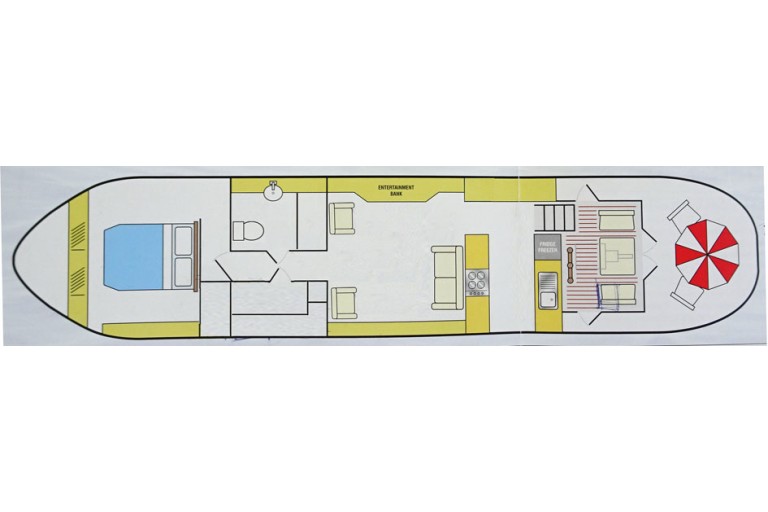

Lay-out plan (not to scale): see attachment

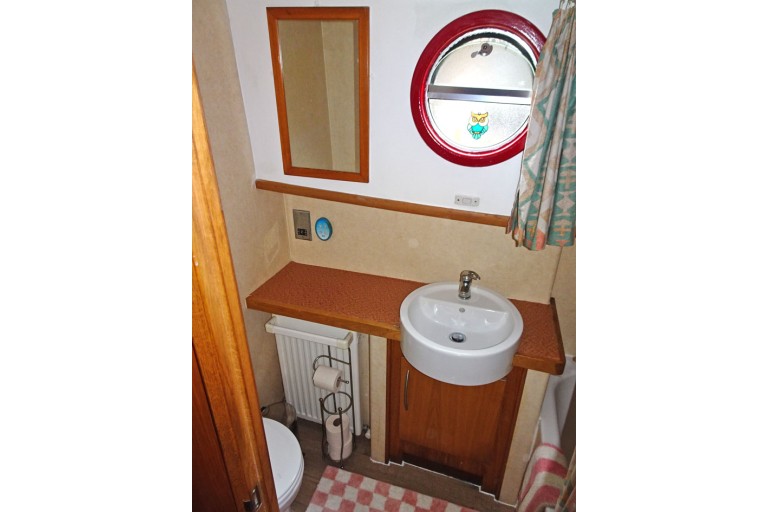

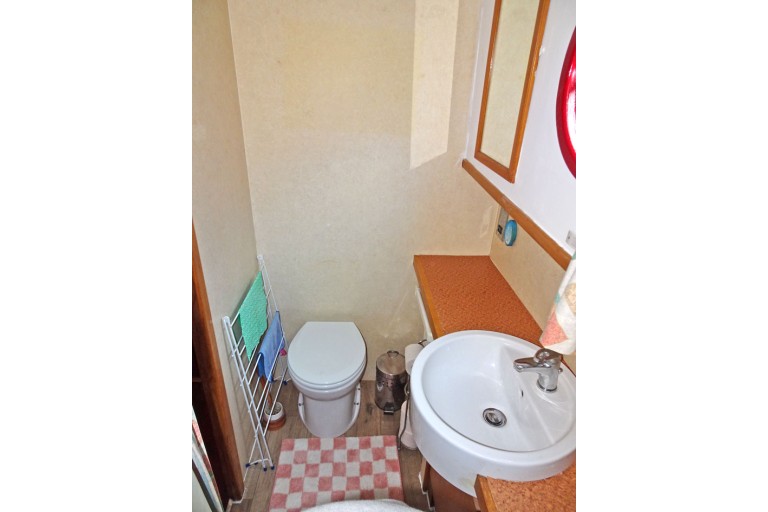

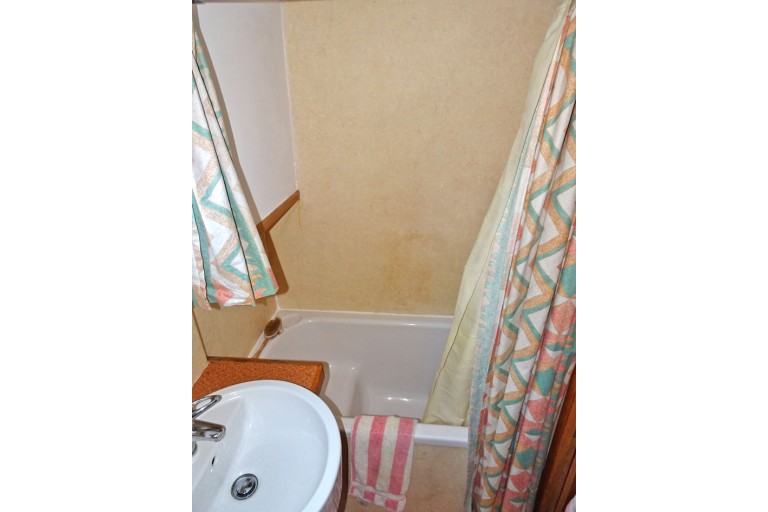

Bathroom: sitting bath with shower
mixer tap with hot & cold running water
washbasin with mixer tap and hot & cold running water
in 1 area together with the toilet

Toilet / Heads: electric toilet

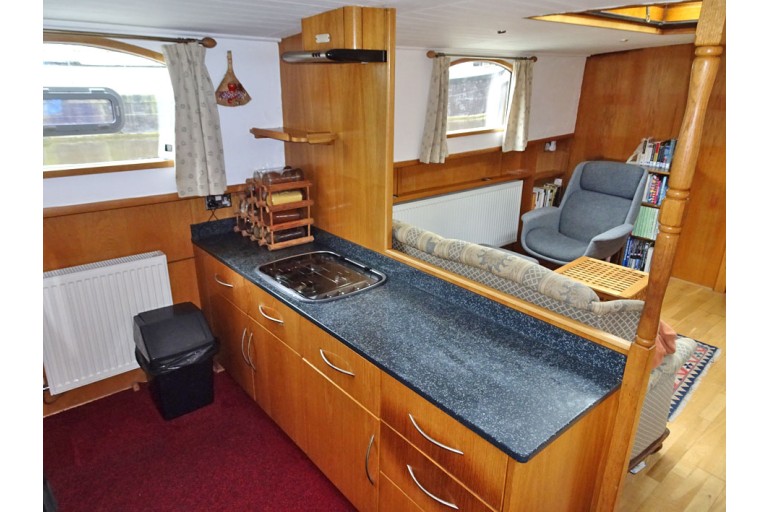

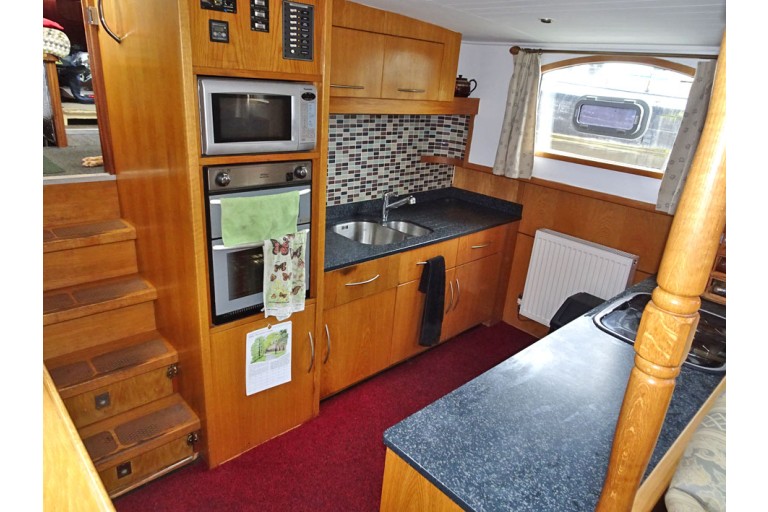

Galley: sideways (hoogte aanrecht / height countertop / Arbeitsplattehöhe / hauteur du comptoir 0,80 m)

Cooker: 4-burner hob
on gas
stainless steel
cookerhood

Oven: SPINFLO Mk3 Midi Prima gas oven
& grill

Microwave: present

Fridge / Refrigerator: present
24 Volt

Freezer: present
24 Volt

Worktop: composite worktop

Washbasin: stainless steel sink

Water tap: mixer tap with hot & cold running water

Headroom (approx.): wheelhouse (approx.) 2,04 m
galley (approx.) 1,93 m
salon (approx.) 1,95 m
bathroom / toilet (approx.) 1,96 m
guest cabin (approx.) 2,00 m
ownerscabin (approx.) 1,91 m

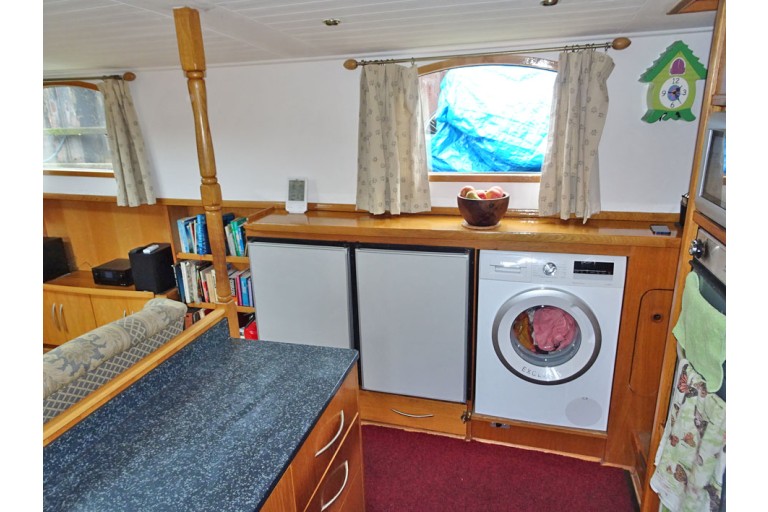

Additional information: Bosch washing machine
