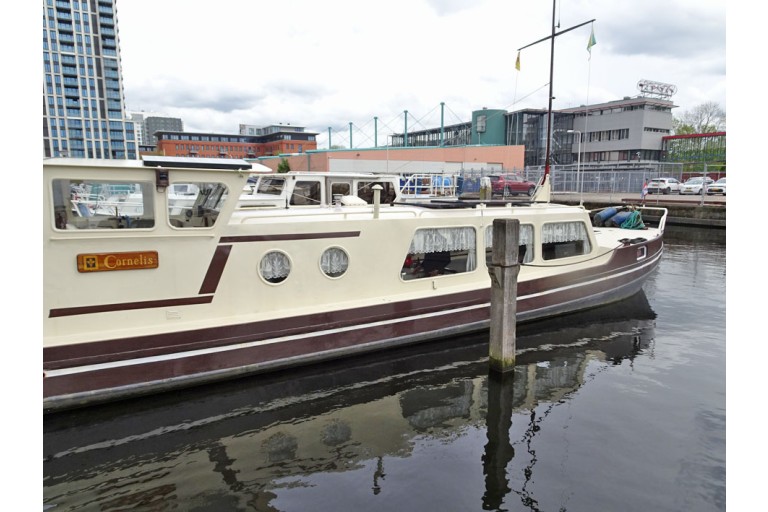

Dutch Barge 14.30 OC Sold
Dimensions (m):
14.30 x 2.85 x 1.00
Ref. no.:
240505
Mooring:
Near The Hague, Netherlands
Construction year:
1930
Material:
steel
Price:
Sold
VAT not applicable
Vision Doeve Brokers

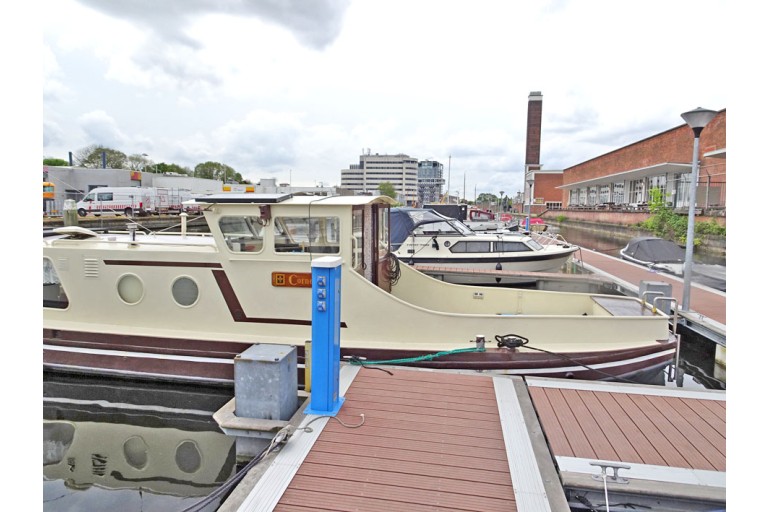

Former inland cargo ship that was specially built to transport steel (IJzerhandel 1) and was subsequently converted into a cruising Dutch Barge / Live Aboard boat and recreational vessel. During the conversion, the air draft was kept low so that a very large sailing area could be navigated. The interior is neat, simple and functional. This Dutch Barge has been in the possession of the seller since 1983, who is saying goodbye to sailing / barging after all these years due to his age.
More information
General information
Yard: | Shipyard Pannevis, NL-Alphen aan den Rijn |

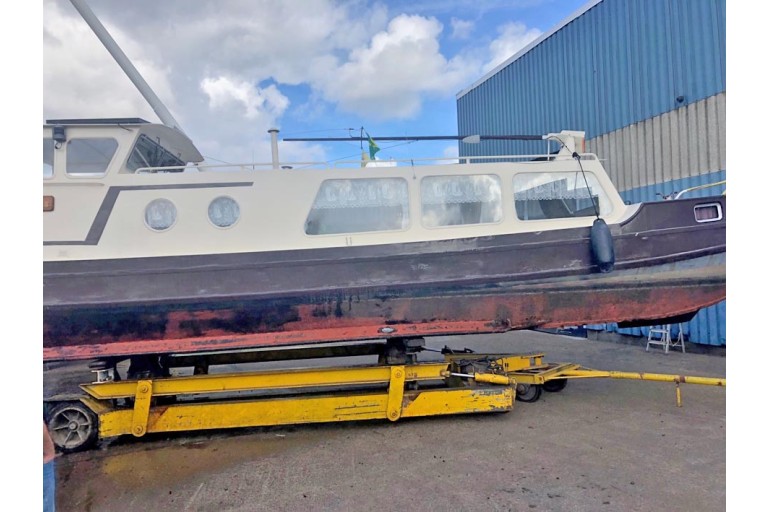

Hull shape: | flatbottom |
Hull material: | steel |
Deck material: | steel |
Superstructure material: | steel |

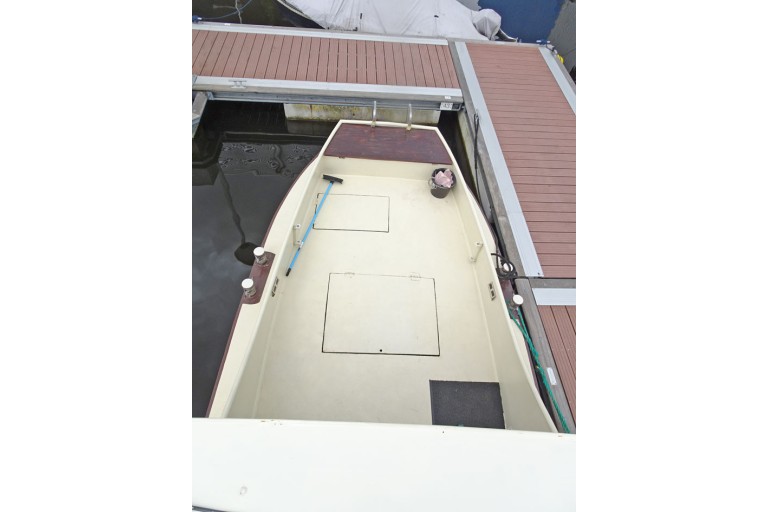

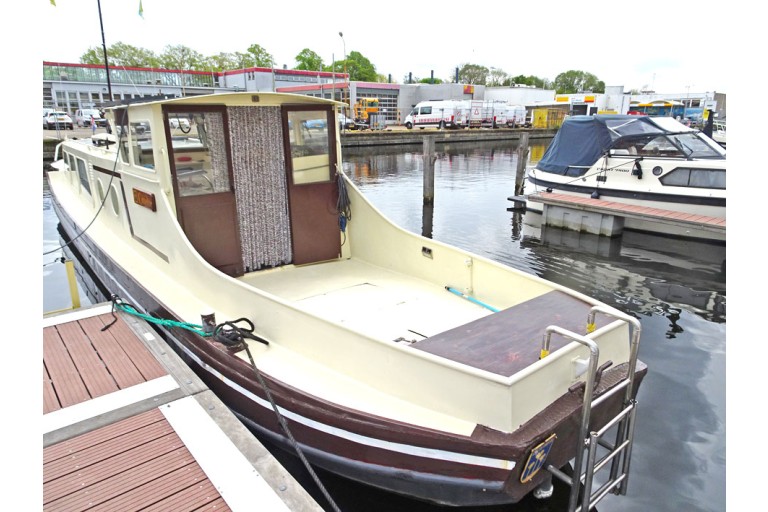

Construction method: | riveted new steel is welded open cockpit self-draining cockpit |

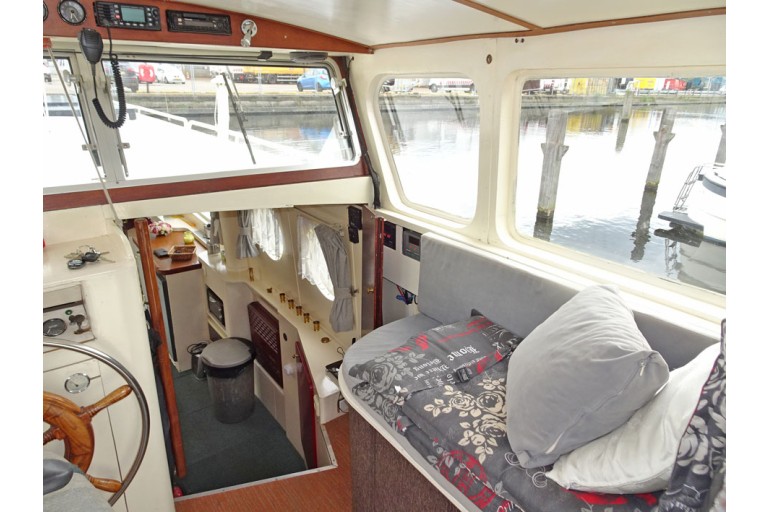

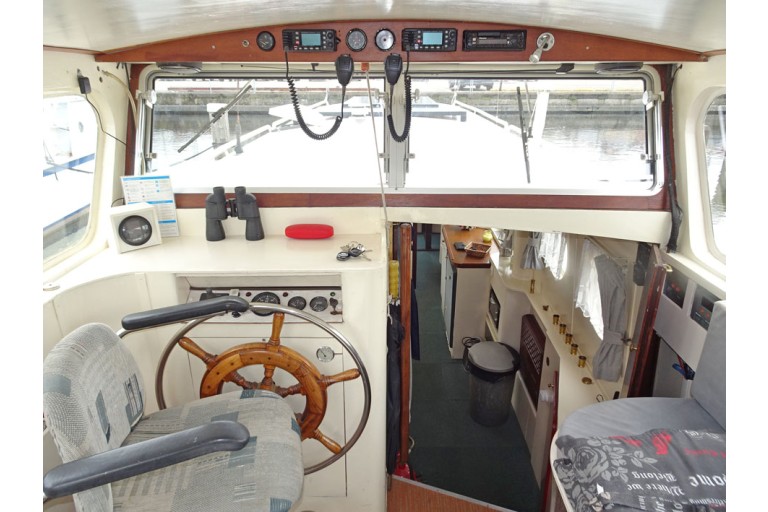

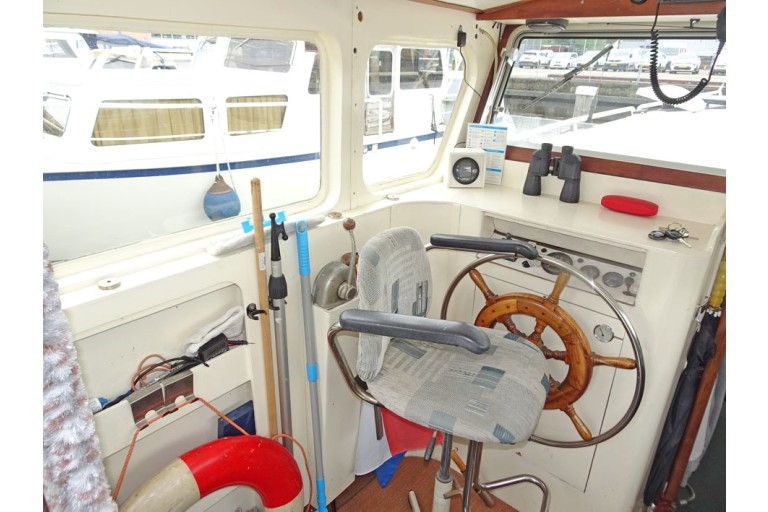

Steering system: | mechanical wheel |
Windows: | rubber window frames & aluminium windows frames |
Displacement (approx.): | 11 ton |
Ballast (approx.): | trim ballast steel |
Airdraft (approx.): | 2,30 m |
Owner: | Dutch owner |

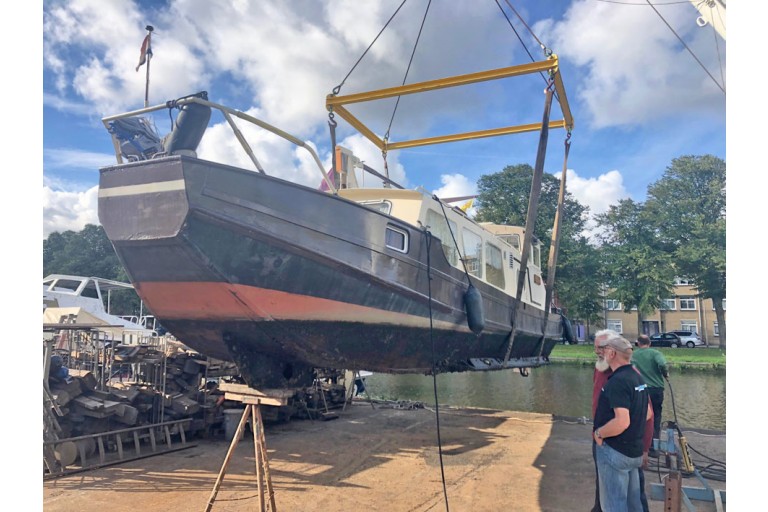

Colour / Paint System: | black hull brown bulwark white superstructure very well maintained 2019 last underwatership treatment |
Certificates: | no certificate requirement |
Suitable for / as: | suitable as a year round live- aboard & recreational vessel inland waterways |
General information: | Old age clause applicable. |
Additional information: | motorvlet Hull shape is suitable for drying out. Given construction year is an estimate. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information

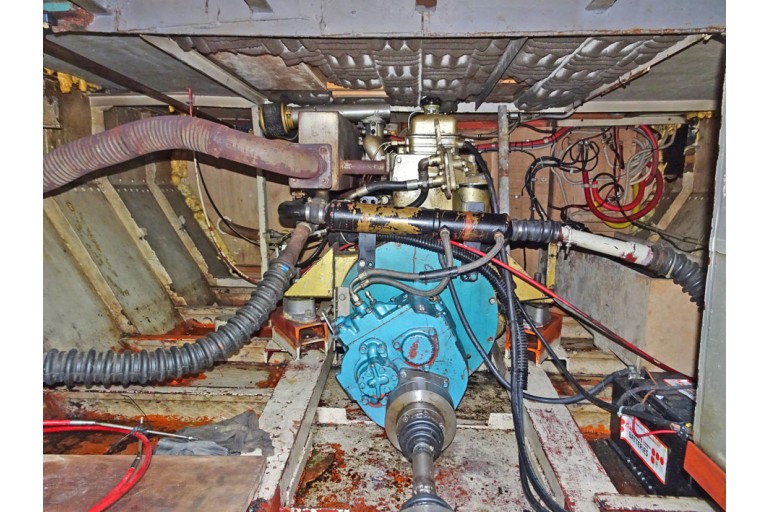

Enginepower: | 105 Hp 77 kW |
Engine brand: | DAF |
Revolutions: | 1700 RPM |
Engine model: | DD575 |
Number of cylinders: | 6 |
Construction year engine: | 1965 |
Overhaul engine: | 1983 |
Running hours (approx.): | unknown |
Fuel: | diesel |
Fuel tank (approx.): | 250 litre 1 steel tank(s) |
Cooling system: | closed cooling pipes |

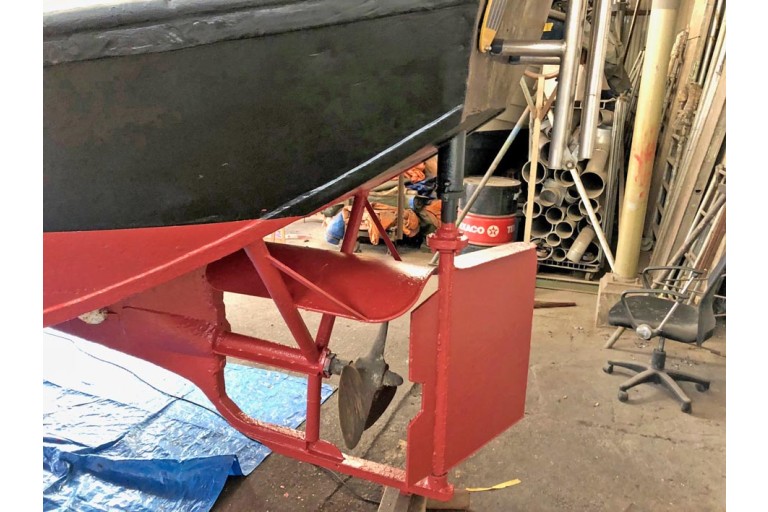

Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
Gearbox: | PRM hydraulic 2023 reconditioned |
Heating: | Trumatic hot air heating on gas |
Bow thruster: | Vetus electric bow thruster 55 KGF 3 kW 12 Volt |
Electricity system: | 12 / 230 Volt 230 Volt shore power connection |
Batteries: | 1x 83 Ah starter batterie(s) 2x 180 Ah domestic batterie(s) |
Battery charger: | Voltcraft CT-8000 battery charger 12/80 |
Inverter: | Kotronic inverter 12/1800 |

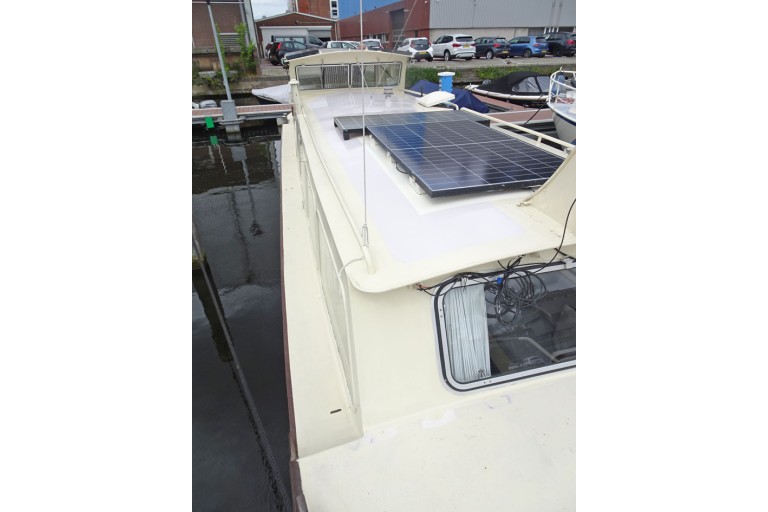

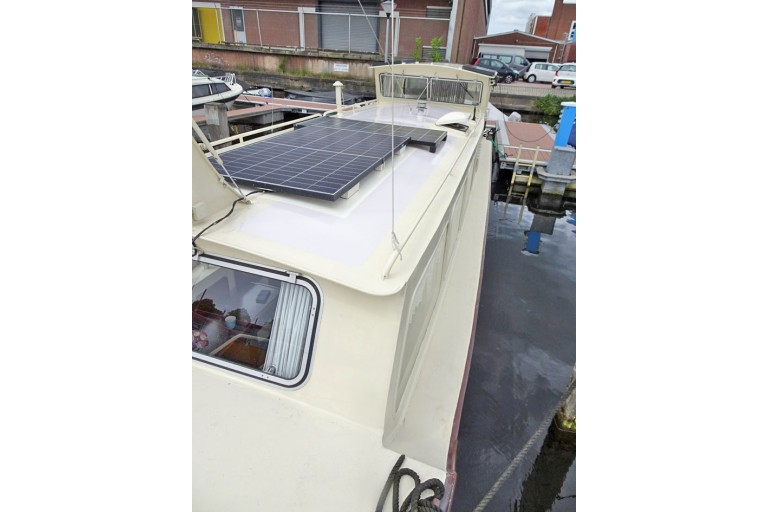

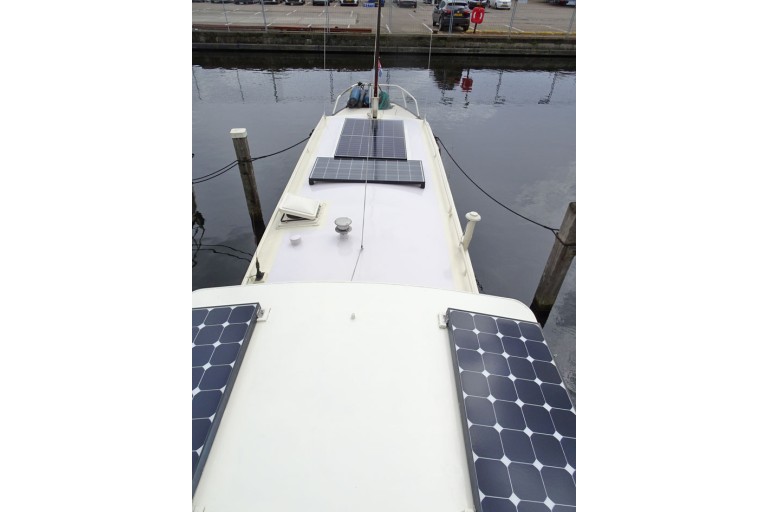

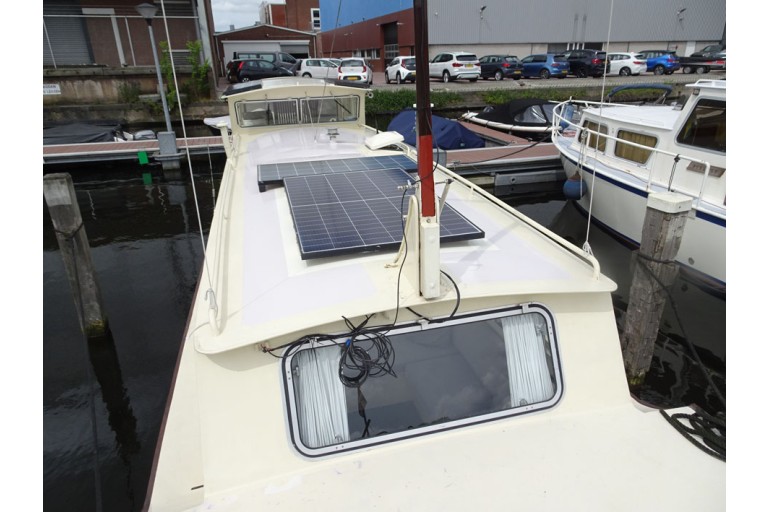

Solar panels: | 4x solar panel 2x charge controller |
Fresh water tank (approx.): | 1000 litre 1 steel tank(s) cemented tank(s) |
Water pressure system: | electric water pump |
Hot water system: | geyser (gas heater) |
Bilge pump: | submersible pump |
Gas system: | yes, bottle(s) in bottle box does not fully meet current safety requirements |

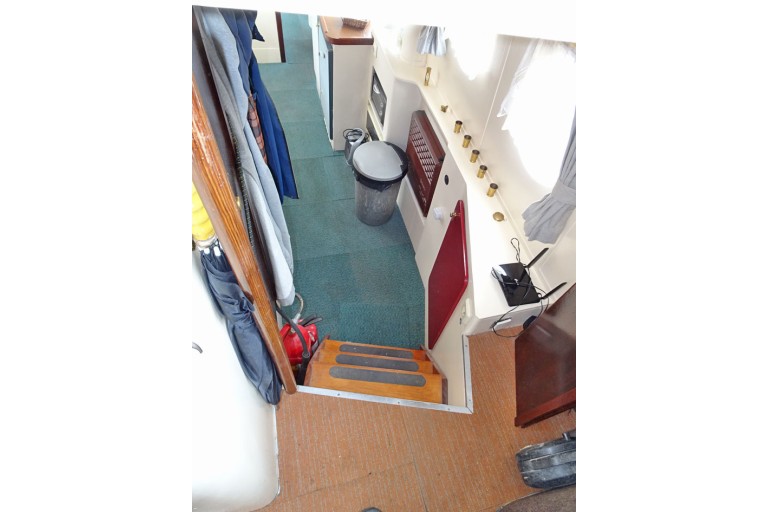

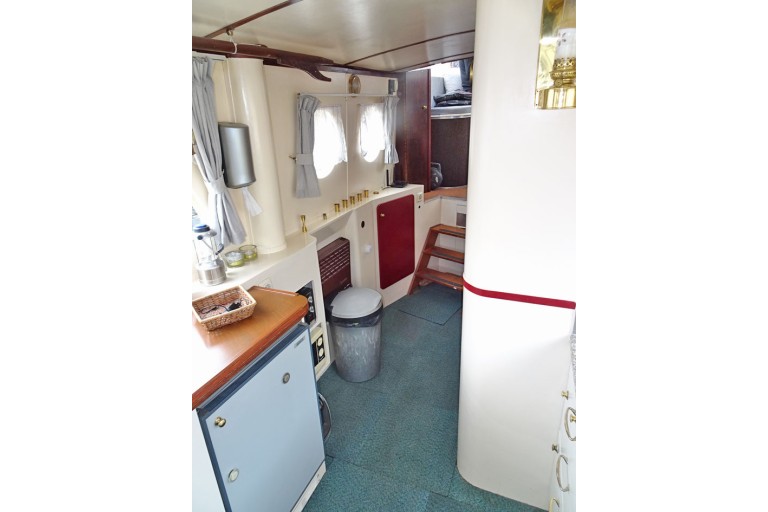

Accommodation
Interior: | various materials have been used |
Insulation: | polystyrene |

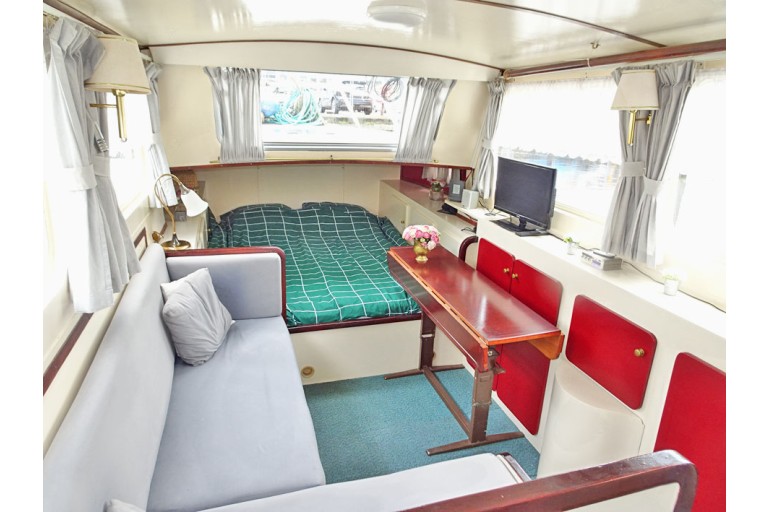

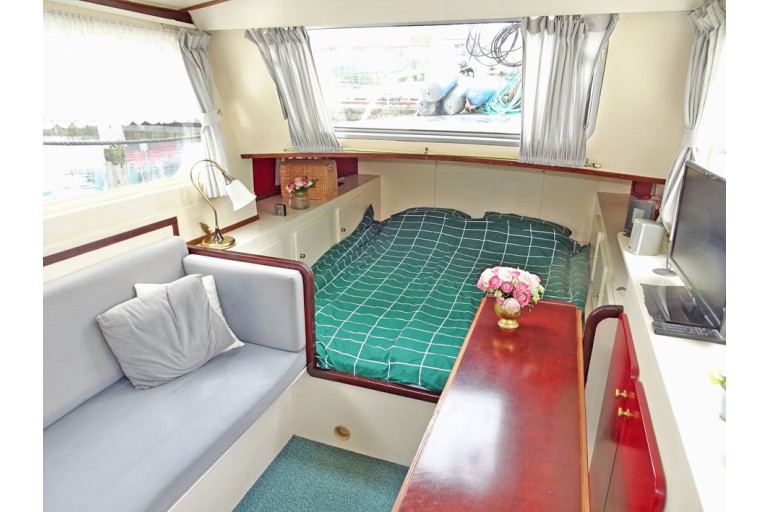

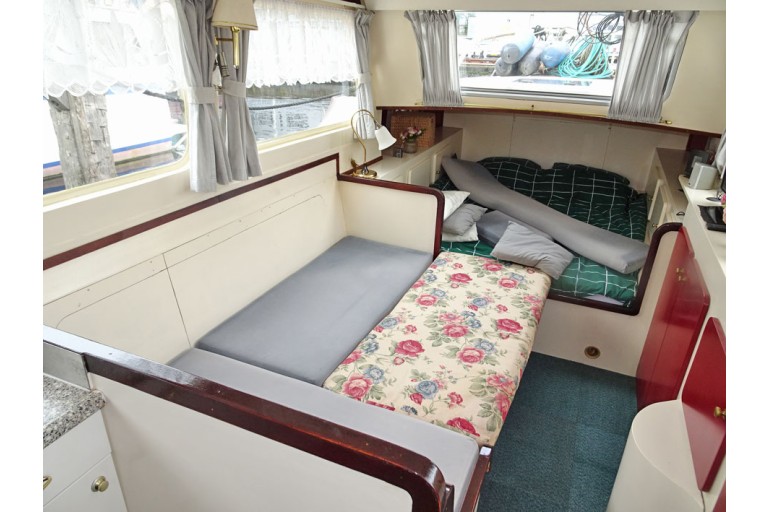

Berth: | Forward: 1x 2-pers Sofa bed: 1x 2-pers |

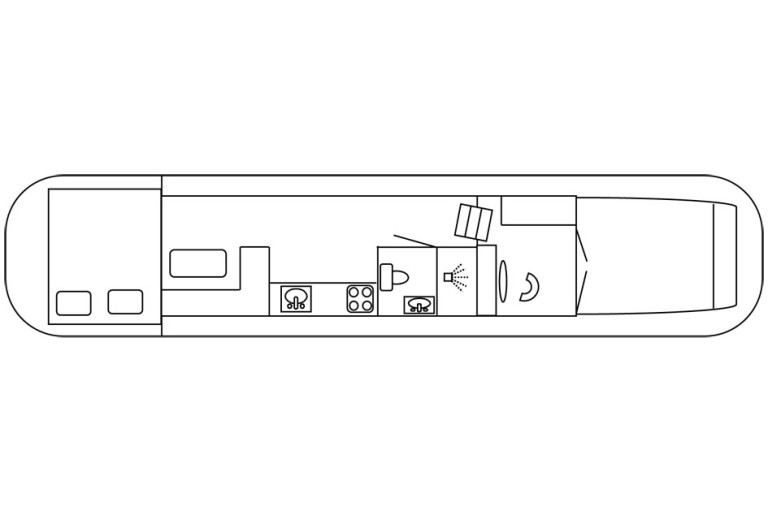

Lay-out plan (not to scale): | see attachment |

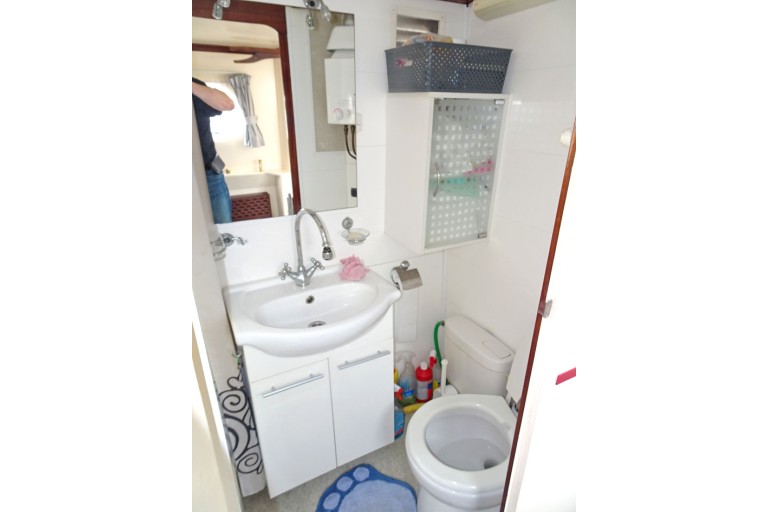

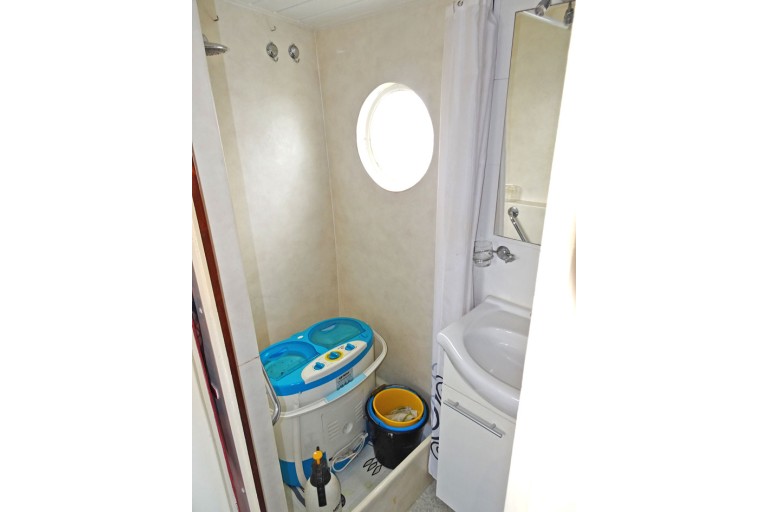

Bathroom: | shower hot & cold running water washbasin hot & cold running water in 1 area together with the toilet |
Toilet / Heads: | electric toilet |

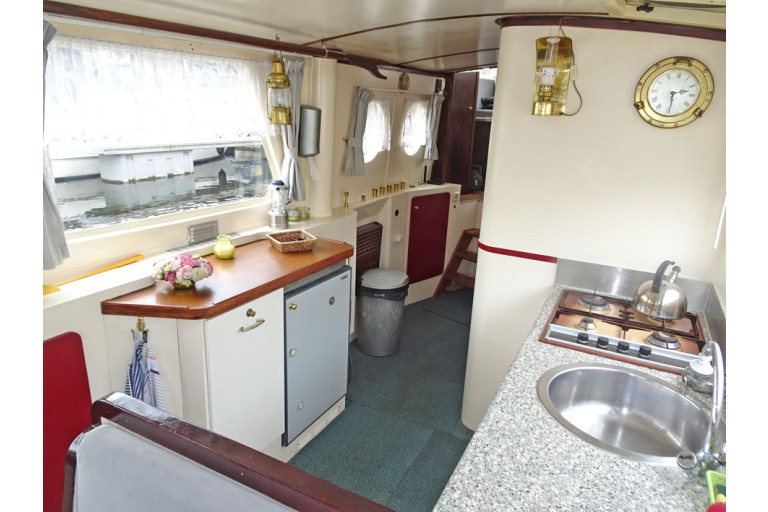

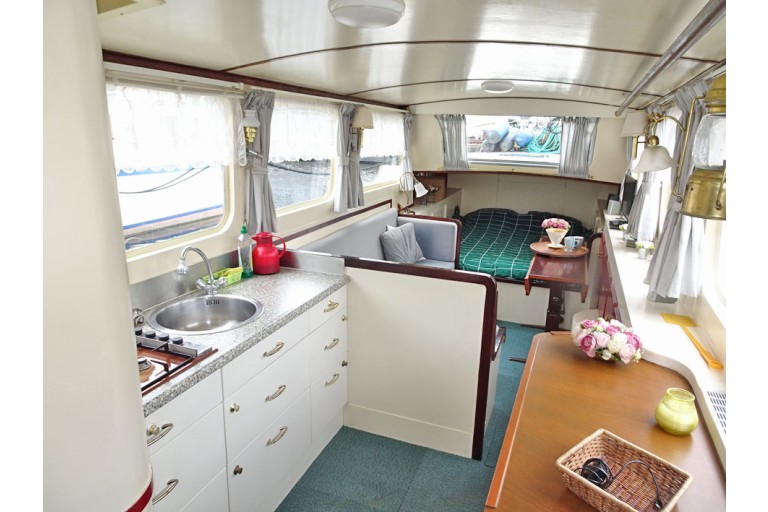

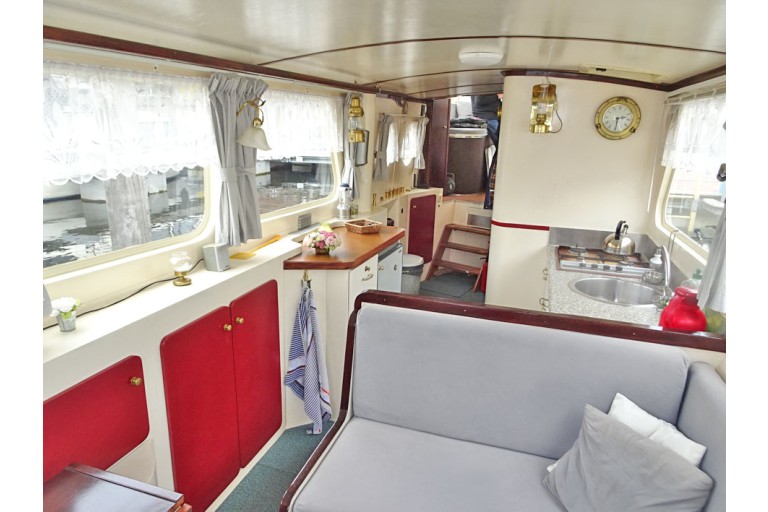

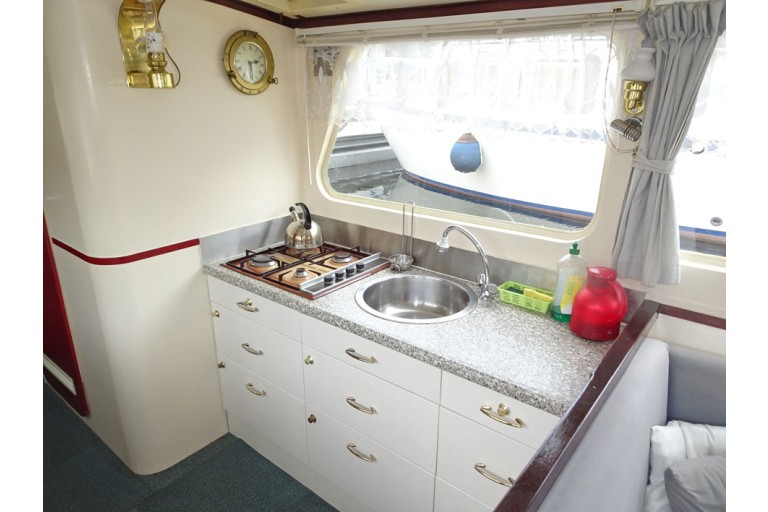

Galley: | along ships |
Cooker: | 4-burner hob on gas |
Oven: | grill |
Microwave: | present |
Fridge / Refrigerator: | Waeco fridge / refrigerator 12 Volt |
Freezer: | small ice compartment |
Worktop: | formica worktop |
Washbasin: | stainless steel sink |
Water tap: | hot & cold running water |
Entertainment: | flatscreen TV radio/cassette |
Headroom (approx.): | forward (approx.) 1,93 m galley (approx.) 1,95 m bathroom / toilet (approx.) 1,87 m wheelhouse (approx.) 1,77 m |
Additional information: | inventory Alpina Twin Tub washing machine |
Navigation equipment

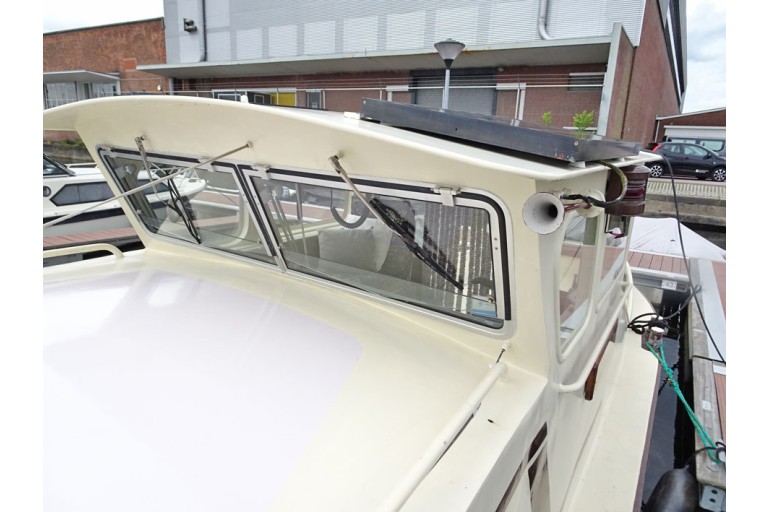

Navigation equipment: | Standard Horizon Eclips VHF with DSC Standard Horizon Eclips VHF horn 2x window wiper navigation lights GPS |
Rigging and sails
Mast: | lantern mast wood |
Lowerable: | yes manual |
Equipment
Anchor equipment: | anchor with rope |
Bimini: | bimini top above cockpit |
Boarding ladder: | present stainless steel |
Searail / Pulpit: | grab rail |
Safety: | carbon monoxide detector(s) |
Additional information: | set deck furniture steering chair |
