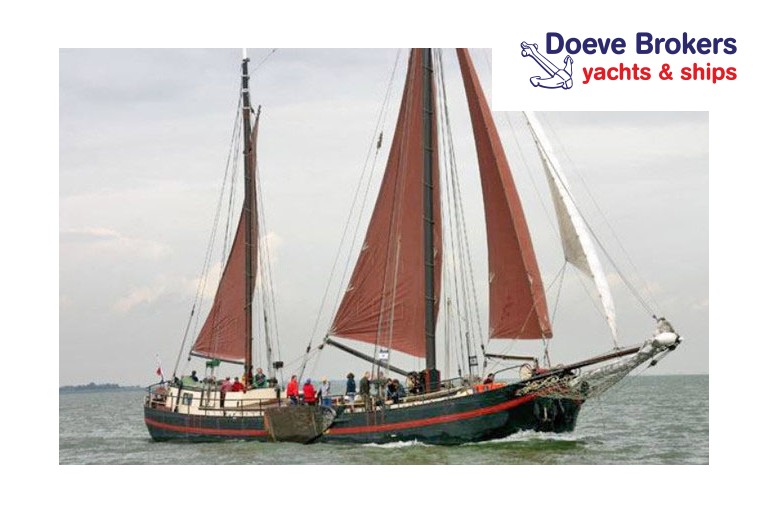

Klipperaak Chartership No longer available
Dimensions (m):
30.43 x 5.02 x 1.35
Ref. no.:
57337.72
Mooring:
Near Amsterdam, Netherlands
Construction year:
1908
Material:
steel
Vision Doeve Brokers
More information
General information
| Yard: | Shipyard H.B. Peters, NL-Dedemsvaart |
| Hull shape: | flatbottom |
| Hull material: | iron/steel |
| Deck material: | iron/steel |
| Superstructure material: | steel teakwooden cockpit steel hatches covers over hold |
| Construction method: | riveted new steel is welded rubbing strake around bulwark around open cockpit self-draining cockpit deckhouse forecastle closed bollard cabinets 4 watertight bulkhead(s) |
| Steering system: | hydraulic wheel attached rudder steel rudder |
| Displacement (approx.): | maximum allowable displacement 132,076 m³ displacement in empty condition 95,247 m³ displacement 36,829 m³ |
| Airdraft (approx.): | 25,00 m |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull black bulwark yellow superstructure |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone 2, 3 & 4 NL Waal, Lek & NL Rhine |
| Suitable for / as: | commercial shipping suitable as a year round live- aboard useful as charter suitable for bigger waterways passengers vessel |
| General information: | Old age clause applicable. Any transactions must be submitted to the client or owner of the vessel for approval. Until this approval has been granted, all offers made are entirely without obligation. Training of a new crew may be discussed. Know-how and information about sailing areas can be passed on. Acquisition of the current operation can be discussed. |
| Additional information: | 42 day guests 26 hotel guests The relevant VAT will be due on the asking price if the vessel is purchased by a consumer or by a Dutch company (provided it concerns a Dutch seller). Sale at 0% VAT to a is eventually possible if the buyer meets the applicable VAT guidelines. classic lines Specified beam excludes the leeboards. Specified length is between bow and stern. |
Technical information
| Enginepower: | 120 Hp 88 kW |
| Engine brand: | DAF |
| Revolutions: | 1800 RPM |
| Engine model: | 615 |
| Number of cylinders: | 6 |
| Construction year engine: | 1980 |
| Overhaul engine: | 2008 reconditioned installed |
| Running hours (approx.): | after overhaul 3400 as declared |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 950 litre steel tank(s) |
| Cooling system: | closed |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | ZF BW 30 hydraulic |
| Speed (approx.): | 5,5 knots top speed |
| Heating: | ACV central heating (2020) combi boiler on diesel |
| Bow thruster: | ???????? |
| Electricity system: | 12 / 24 / 230 / 400 Volt 230 Volt shore power connection |
| Battery charger: | Victron MultiPlus combi inverter/charger 24/3000/120 Mastervolt Mass battery charger 12/25 |
| Genny: | Jelmer Valk whisper set 12 kVA 230/400 Volt |
| Inverter: | Victron MultiPlus combi inverter/charger 24/3000/120 |
| Fresh water tank (approx.): | 2x 2000 litre steel tank(s) cemented tank(s) |
| Water pressure system: | Speck hydrophore pump |
| Hot water system: | through the central heating |
| Holding tank (approx.): | 1x 3000 litre steel tank(s) |
| Bilge pump: | general service pump 400 Volt also deckwash pump |
| Gas system: | yes, bottle(s) in bottle box Gas certificate |
Accommodation
| Interior: | various materials have been used |
| Insulation: | hard foam plates |
| Lay-out plan (not to scale): | see attachment |
| Galley: | L-shape galley |
| Cooker: | 5-burner hob on gas in combination with the oven |
| Fridge / Refrigerator: | fridge / refrigerator 230 Volt |
| Worktop: | stainless steel worktop |
| Washbasin: | stainless steel sink |
Rigging and sails
| Rigging type: | gaff ketch rigged |
| Mast: | 1x steel 1x Oregon Pine |
| Lowerable: | no |
| Boom: | 2x Oregon Pine |
| Gaff: | 2x Oregon Pine |
| Jib boom / Bowsprit: | Oregon Pine Jib boom |
| Leeboards: | oak wooden leeboards 2x leeboards winch electric operated centreboard |
| Winches: | sail winch with 4 reels |
| Material of the sails: | Dacron |
| Sails: | UBS mainsail UBS yankee UBS jib UBS mizzen staysail |
Equipment
| Anchor equipment: | manual anchor winch 2x Klipp anchor 2x anchor chain in hawse-hole warping drum |
| Searail / Pulpit: | searail on bulwark |
| Safety: | fire extinguishers automatic fire extinguishing system in engine room life buoys life jackets Automated External Defibrillator (AED) according to the certification requirements |
