Spits Freycinet 38.95 ES-TRIN certified
Vision Doeve Brokers

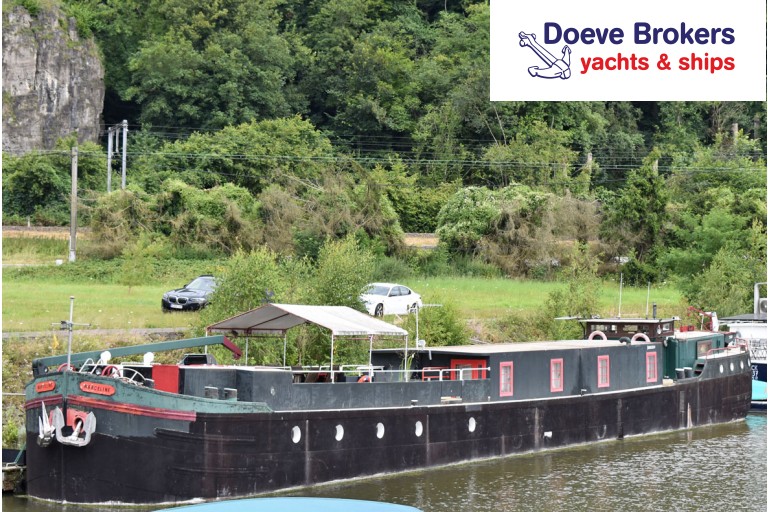

This former inland cargo vessel was converted in 2001 into a comfortable cruising live aboard, with the original aft accommodation, featuring a charming and authentic interior, carefully preserved. The vessel offers exceptionally spacious living quarters, including a spacious owner's cabin with walk-in closet and a large en-suite bathroom with bathtub. For guests, there is a separate bathroom and an separate toilet room. The salon is spacious, enjoys plenty of natural light, and is easily accessible from the main deck. The open galley is fully equipped with all modern conveniences. From the corridor, both the technical room and the washer/dryer setup are accessible. A staircase leads to the original aft cabin, with access to the wheelhouse and two additional aft cabins, including a toilet. All living areas are connected to each other, significantly enhancing comfort and functionality. The forepeak serves as a storage area. In the bow on starboard side, there is a 360° rotating bow thruster installation. On deck, a particularly spacious sun deck is present, equipped with a bimini for shade. Although the exterior of the vessel has not been maintained in recent years, the solid conversion and well-considered layout offer an outstanding opportunity to acquire a fully equipped live aboard for a very attractive price.
More information
General information
| Yard: | Shipyard J. F. Plaquet , B-Peronnes lez Antoing |
| Rebuilt year: | 2001 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel hardwooden top side of the wheelhouse |
| Construction method: | riveted new steel is welded rubbing strake deckhouse pavilion steel flooring in the hold 3 watertight bulkhead(s) |
| Steering system: | mechanical wheel |
| Windows: | plastic window frames 1 plastic outside door double glazing portholes 2 hardwood outside doors hardwood window frames |
| Ballast (approx.): | present tiles 30 metric tons |
| Airdraft (approx.): | 3,80 m 3,30 m with dismantled wheelhouse |
| Owner: | Belgian owner |
| Registration: | Belgian registered |
| Colour / Paint System: | black hull grey superstructure overdue maintenance see photographs last underwatership treatment 04-2021 |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone 3 zone 4 zone 2 Netherlands valid until: 08-2026 |
| Suitable for / as: | inland waterways suitable as a year round live- aboard recreational vessel |
| General information: | offered in the condition that she is in Old age clause applicable. |
| Additional information: | spacious upperdeck forepeak Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 220 Hp 161 kW |
| Engine brand: | Mercedes |
| Revolutions: | 2200 RPM |
| Engine model: | OM 402 |
| Number of cylinders: | V-8 |
| Construction year engine: | unknown |
| Running hours (approx.): | 16780 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1200 litre 400 litre steel tank(s) sludge trap(s) |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Masson NF3 hydraulic reduction/ratio 4:1 |
| Heating: | Sime central heating on diesel |
| Bow thruster: | De Gerlien-van Tiem bow thruster with dieselengine 360 degrees turnable DAF 1160 170 Hp |
| Electricity system: | 12 / 24 / 230 / 400 Volt 230 Volt shore power connection |
| Batteries: | 1x 65 Ah starter batterie(s) generator 2x 120 Ah starter batterie(s) 4x 140 Ah domestic batterie(s) 2x 120 Ah starter batterie(s) bow thruster |
| Battery charger: | Victron MultiPlus combi inverter/charger 24/3000/70 Helvi Progress 17 battery charger |
| Battery isolator: | present |
| Genny: | XS whisper set Yanmar diesel 15 kW 230/400 Volt 1500 RPM 8200 on the hour counter (approx.) |
| Inverter: | Victron MultiPlus combi inverter/charger 24/3000/70 |
| Fresh water tank (approx.): | 10000 litre steel tank(s) |
| Water pressure system: | electric water pump |
| Diesel waterseparator: | present |
| Bilge pump: | general service pump with auxiliary engine Hatz also deckwash pump |
| Additional information: | air compressor spare propeller |
Accommodation
| Interior: | aftcabin: original see photographs hold: Plywood painted white hardwooden floor(s) see photographs |
| Insulation: | available |
| Cabins: | 4 cabins |
| Berth: | owners cabin: 1x 2-pers Guest cabin(s): 1x 2-pers Aft: 1x 2-pers 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | owners cabin En Suite bath with shower thermostat tap washbasin with hot & cold running water tiled bathroom in 1 area together with the toilet & guest cabin(s): shower cubicle thermostat tap washbasin with hot & cold running water tiled bathroom & Aft: washbasin with hot & cold running water |
| Toilet / Heads: | owners cabin electric toilet in bathroom (niet / not / nicht / ne pas 100%) day toilet flush toilet (Sanibrieur) Aft: hand pumptoilet |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob ceramic cooker cookerhood stainless steel |
| Oven: | microwave/oven |
| Fridge / Refrigerator: | present 230 Volt |
| Worktop: | stainless steel worktop wooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | present |
| Headroom (approx.): | galley (approx.) 2,27 m salon (approx.) 2,27 m corridor / walkthrough (approx.) 2,08 m guest cabin (approx.) 2,10 m toilet (approx.) 2,06 m bathroom (approx.) 2,14 m ownerscabin (approx.) 2,20 m bathroom / toilet (approx.) 2,13 m wheelhouse (approx.) 1,76 m aftcabin (approx.) 1,77 m aft (approx.) 1,82 / 1,91 m |
| Additional information: | washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | compass 2x Sailor 144 VHF navigation lights geen / no / kein / non Automatic Identification System (AIS) search light |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch 2x Klipp anchor anchor chain in hawse-hole Aft: Klipp anchor |
| Bimini: | present |
| Dinghy: | present |
| Davits: | present |
| Safety: | fire extinguishers fire blanket life buoys life jackets according to the certification requirements |
| Additional information: | hydraulic crane aluminium gangway |
