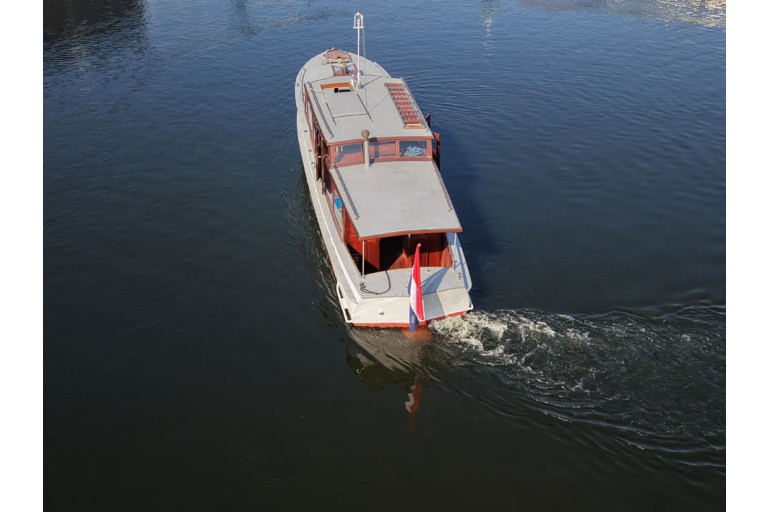

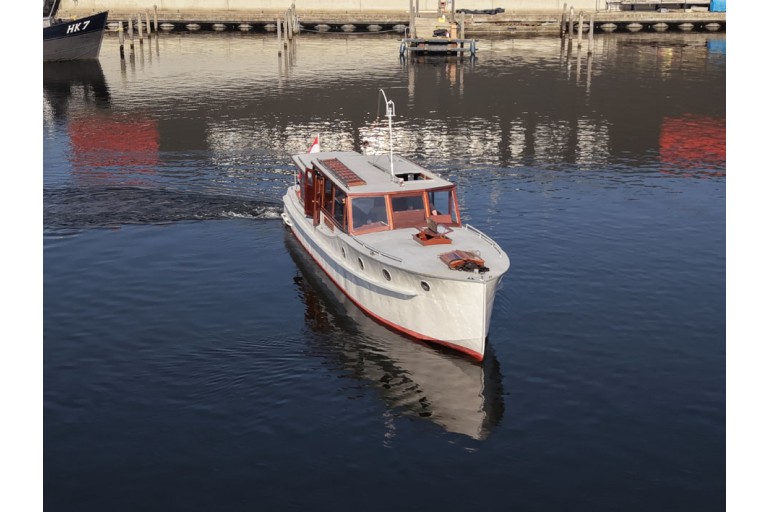

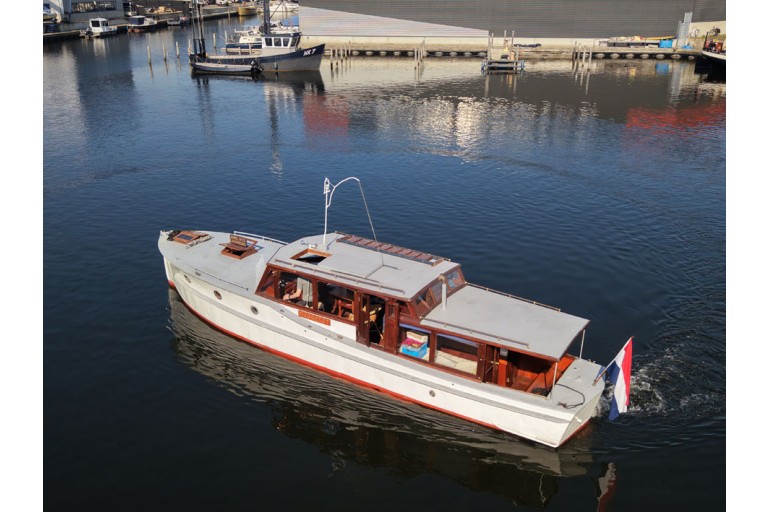

Classic Motor yacht 11.20

Dimensions (m): 11.20 x 2.80 x 0.70
Ref. no.: 260304
Mooring: Near Amersfoort, Netherlands
Construction year: 1929
Material: steel
Price: € 24.500,--
VAT not applicable

Download PDF folder

Contact us

Vision Doeve Brokers

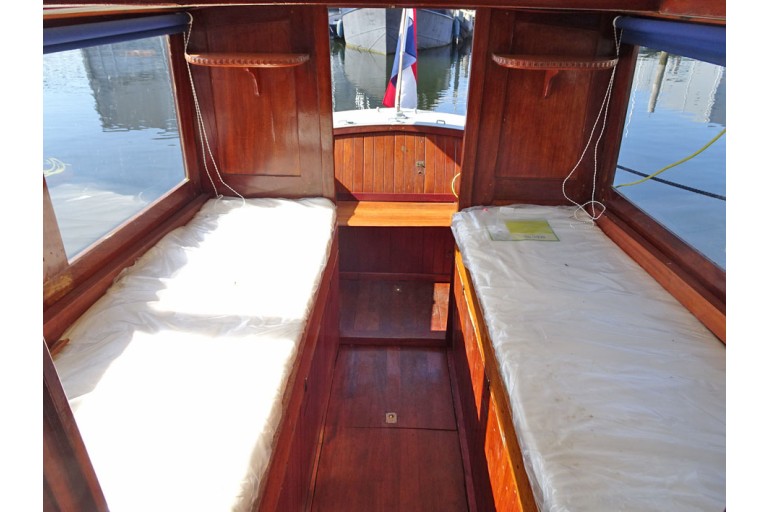

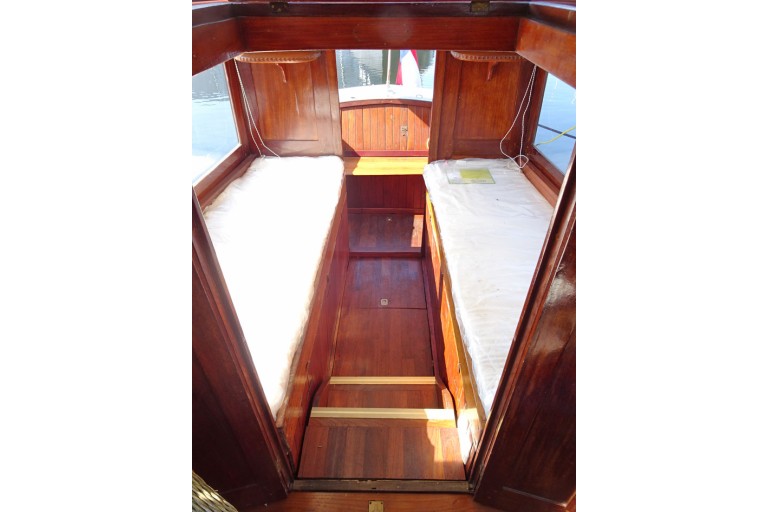

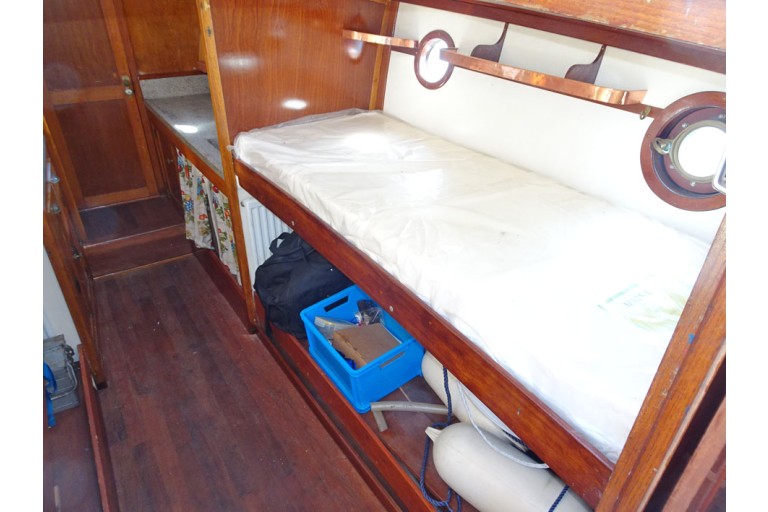

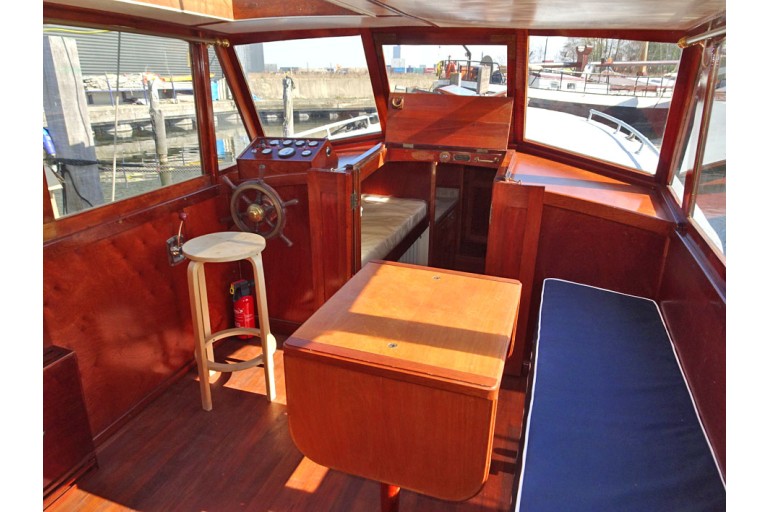

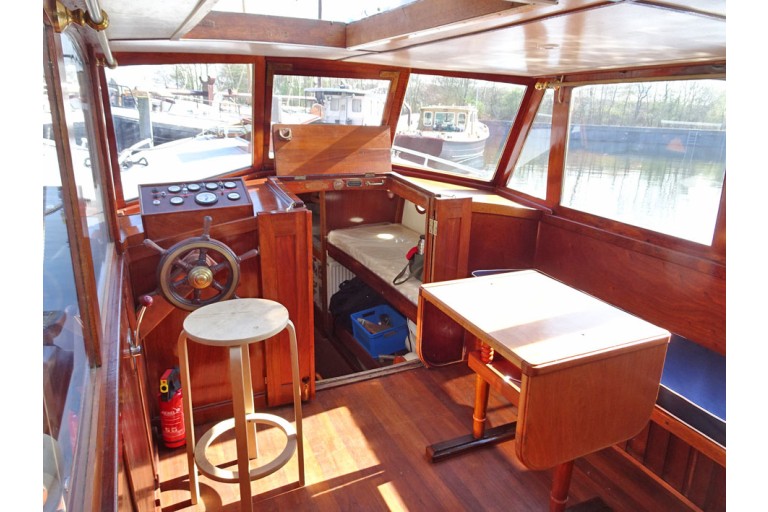

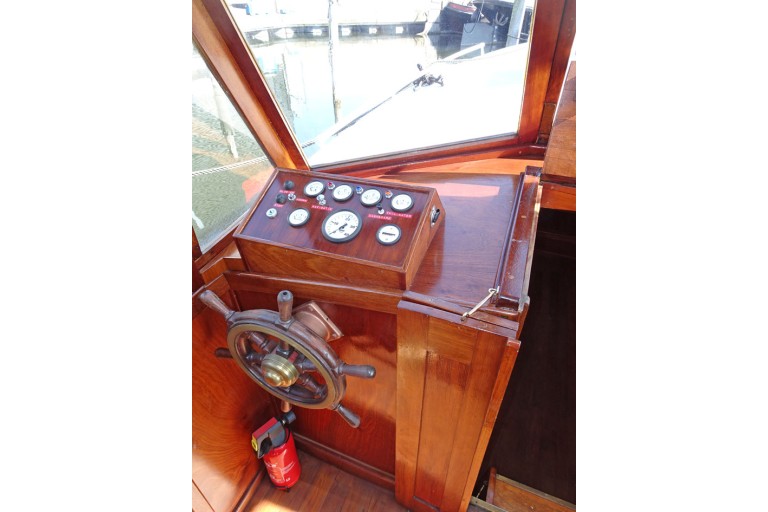

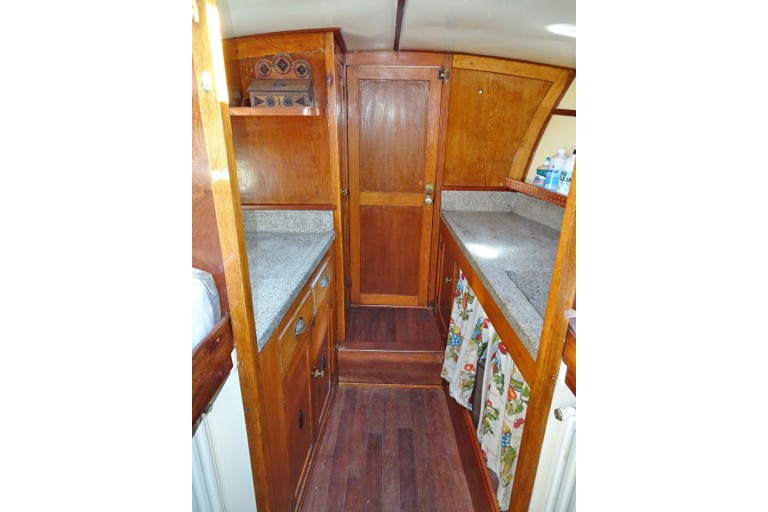

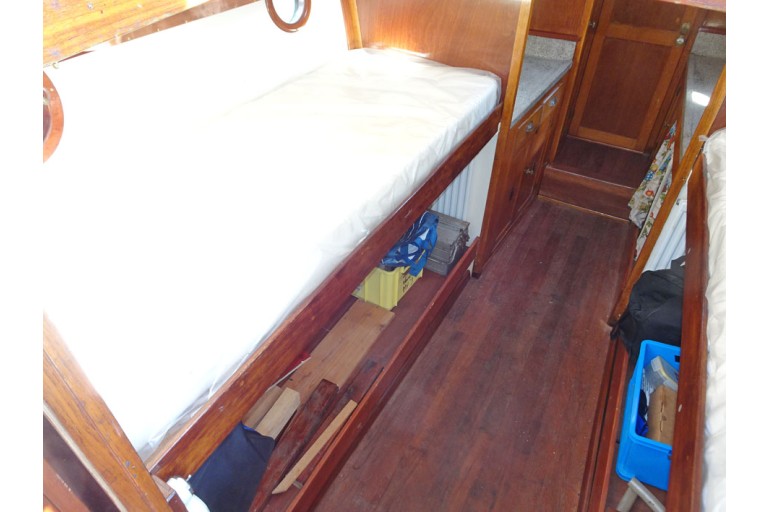

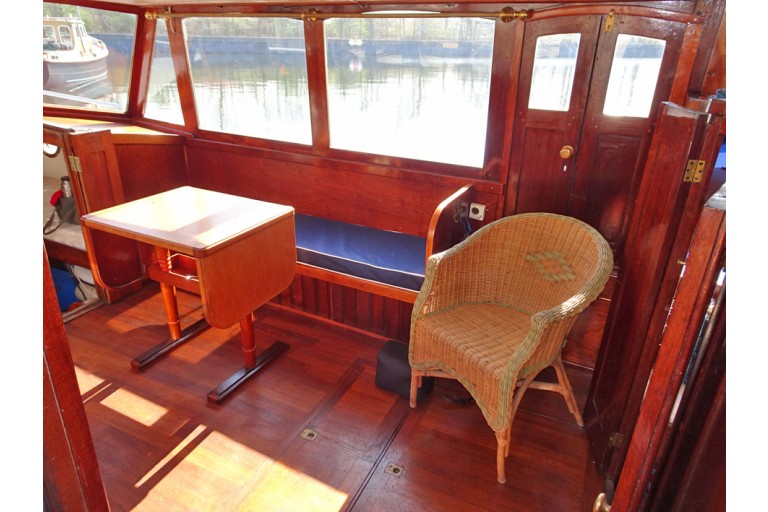

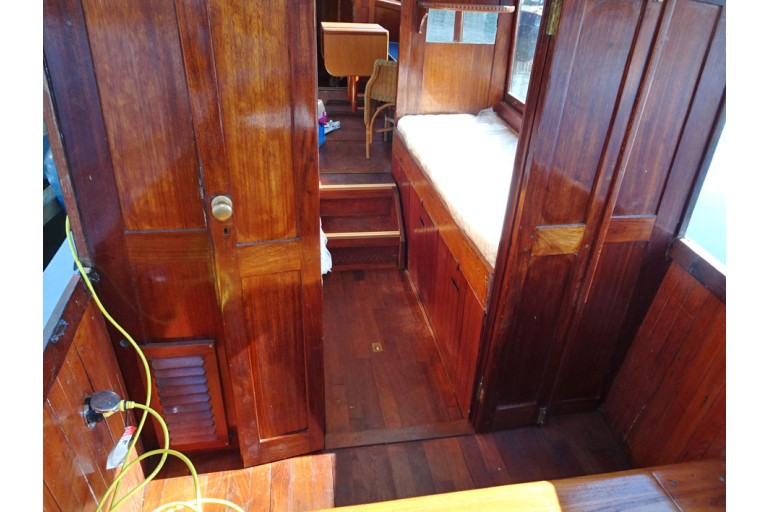

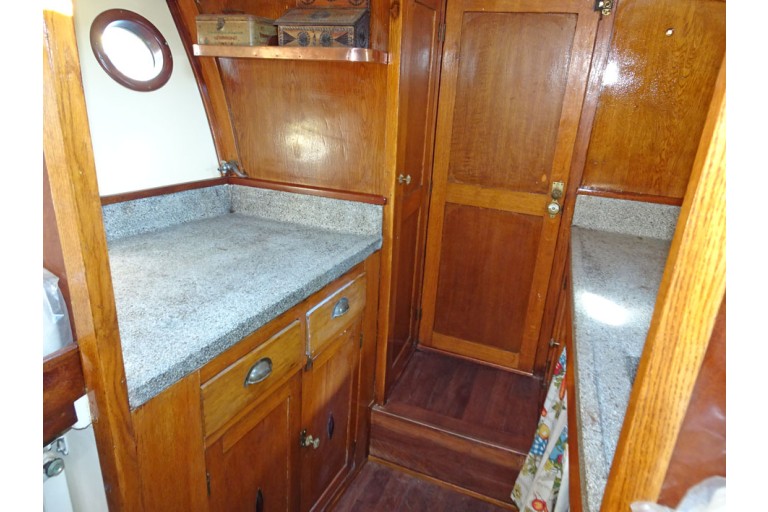

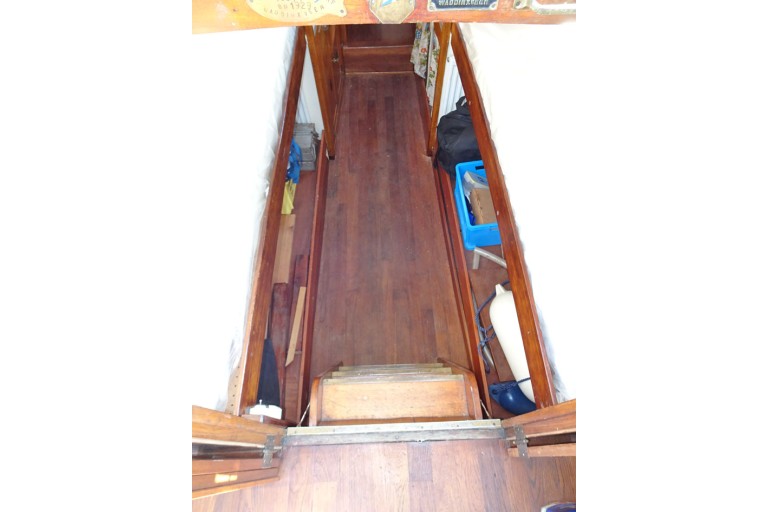

This classic Dutch aft-deck motor yacht was purchased by the current owner in 1995 and underwent an extensive technical refit between 2004 and 2008. During this period, among other things, a new Mitsubishi main engine and a Kabola central heating system were installed. In 2016, the interior was partially refurbished, while the traditional character of the yacht was carefully preserved. The layout is both practical and traditional. From forward to aft, there is first the toilet room, followed by the galley with a worktop on both port and starboard side. Next are two bunk berths. A set of steps leads to the wheelhouse, where the steering position is located on the port side and a settee with table is situated on the starboard side. From the wheelhouse, doors on both sides provide access to the side decks. A staircase aft leads down to the aft cabin, which is fitted with two berths, followed by a door leading to the cockpit. In our opinion, this is a well-maintained classic motor yacht with a charming and traditional appearance. A vessel that will offer a new owner many years of enjoyable cruising and which would also be very welcome at maritime heritage and classic yacht events.

More information

General information

Yard: Shipyard A. Vis jr, NL-Waddinxveen
Hull shape: hard chine
Hull material: steel
Deck material: steel
Superstructure material: teak
Construction method: riveted
new steel is welded
rubbing strake
flush deck
flare shape bow

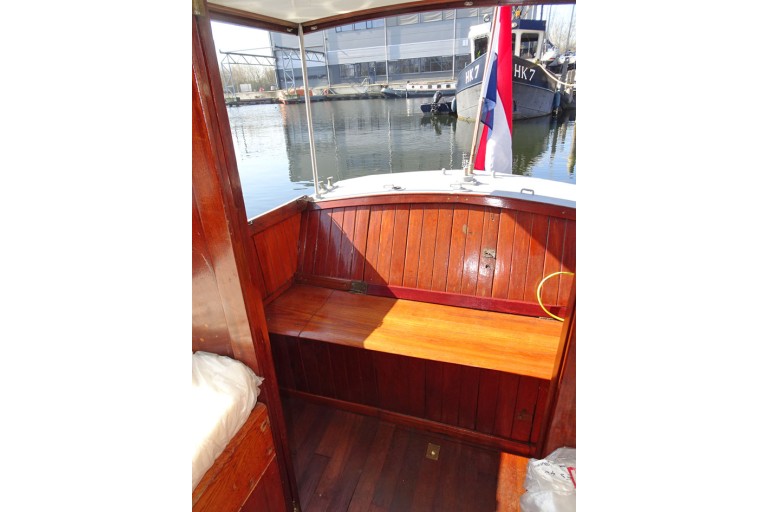

teak in cockpit
teak on cockpit bench
Steering system: mechanical
wheel
balance rudder
Windows: hardwood window frames
hardwood outside doors
Displacement (approx.): 8 metric tons
Airdraft (approx.): 2,25 m
Owner: Dutch owner
Colour / Paint System: white hull
varnished wood
1997 hull sandblasted
2023 underwater ship and hull sandblasted
two component basic system
one component finish
Suitable for / as: recreational vessel
inland waterways
General information: Old age clause applicable.
The ship is recognized as a Historic Vessel
Additional information: classic motor yacht
classic lines

Technical information

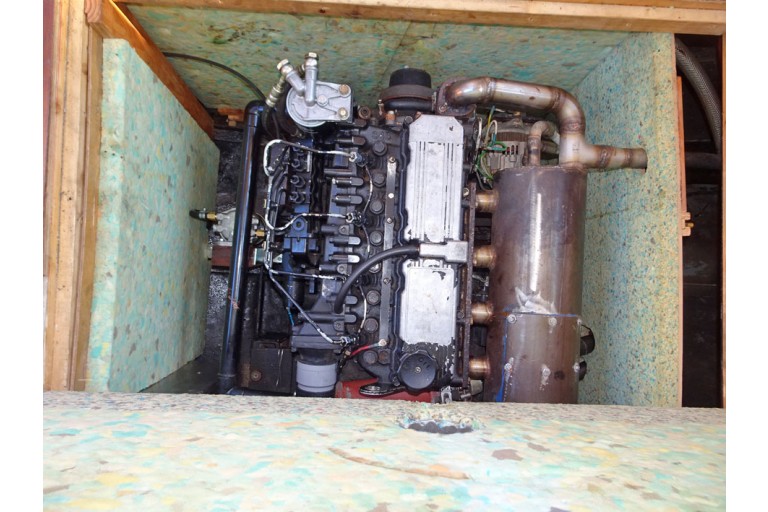

Enginepower: 63 Hp
47 kW
Engine brand: Mitsubishi
Revolutions: 2500 RPM
Engine model: S4S
Number of cylinders: 4
Construction year engine: 2008
Running hours (approx.): 55
Fuel: diesel
Fuel tank (approx.): 1x 450 litre
stainless steel tank(s)
Cooling system: closed
box cooler
wet exhaust
Propulsion: 4 blade propeller
2008 propeller shaft
water lubricated propeller shaft
Gearbox: PRM hydraulic (2008)
Heating: Kabola HR400 central heating
combi boiler
on diesel
&
from the engine cooling system
Electricity system: 12 / 230 Volt
230 Volt shore power connection
Batteries: 1x 100 Ah
1x 105 Ah

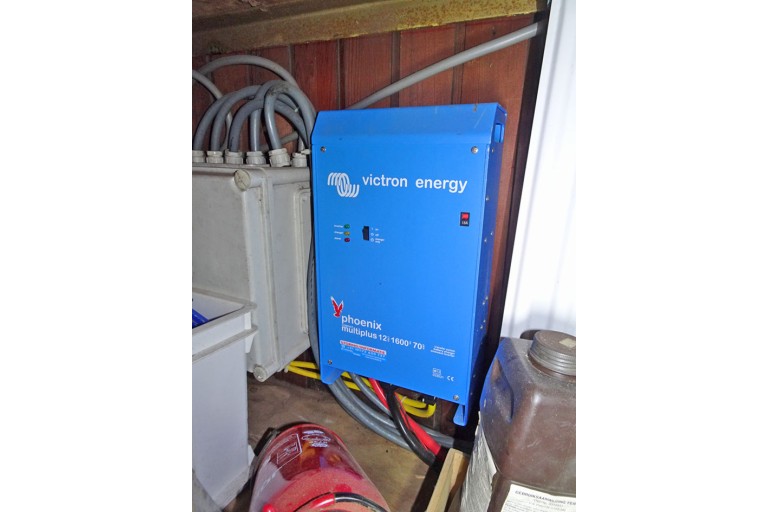

Battery charger: Victron Phoenix Multiplus compact combi inverter/charger 12/1600/70
Battery isolator: battery isolator
Inverter: Victron Phoenix Multiplus compact combi inverter/charger 12/1600/70
Fresh water tank (approx.): 1x 450 litre
stainless steel tank(s)
Water pressure system: electric water pump
Hot water system: through the central heating
Holding tank (approx.): 1x 450 litre
stainless steel tank(s)
Bilge pump: 1 electric pump
Gas system: no gas on board
Additional information: LED lightning

Accommodation

Interior: teak interior
hardwooden floor(s)
see photographs
Cabins: 2 cabins
Berth: Forward: 4x 1-pers
Aft: 2x 1-pers

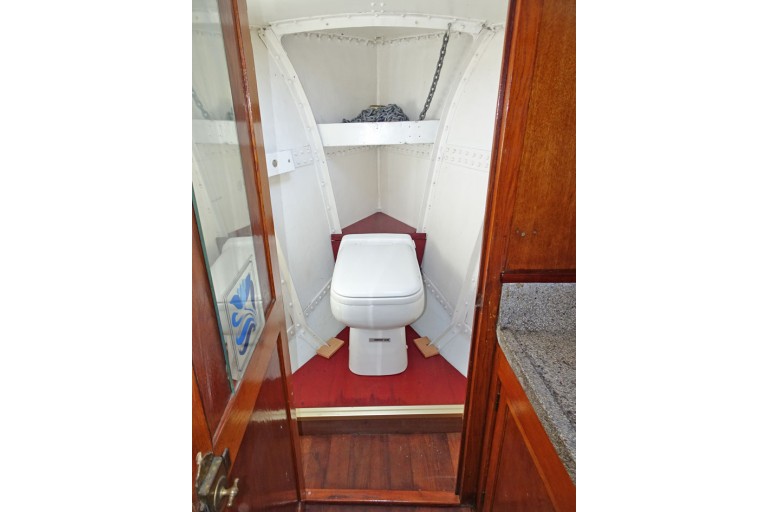

Toilet / Heads: electric toilet
Galley: along ships
Fridge / Refrigerator: portable coolbox
12/230 Volt

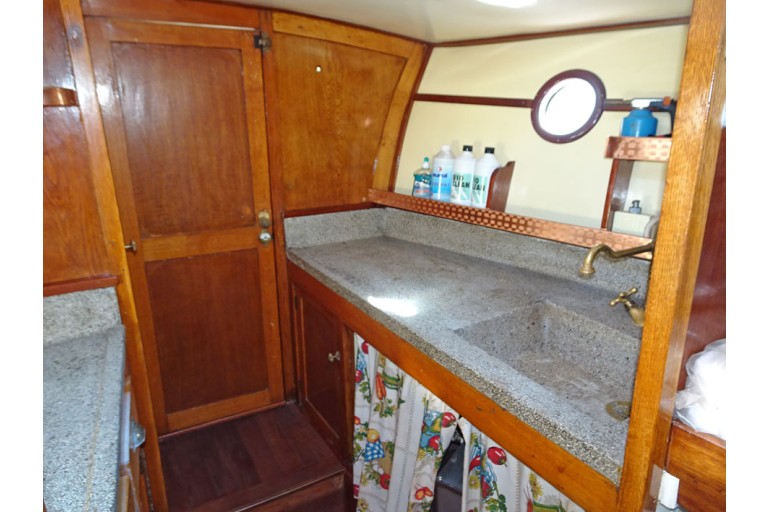

Worktop: granite worktop
Washbasin: granite sink
Water tap: hot & cold running water
Headroom (approx.): salon (approx.) 1,68 m
forward (approx.) 1,71 m
toilet (approx.) 1,50 m
aft (approx.) 1,71 m
Additional information: The vessel will be delivered with everything on board less personal effects & artwork.

Navigation equipment

Navigation equipment: horn

Equipment

Anchor equipment: anchor with chain
Awnings: cover around woodwork wheelhouse
Cockpit tent: present
Searail / Pulpit: grab rail
Safety: safe
2 fire extinguishers
1 life buoy

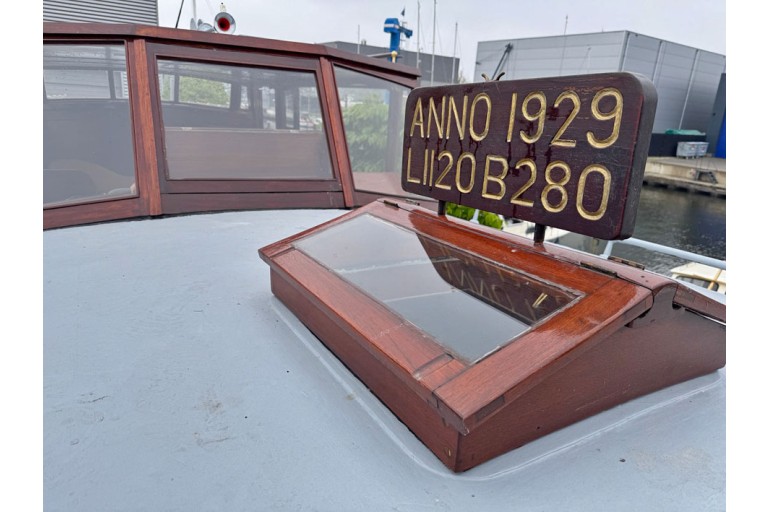

Additional information: 2x hard wooden skylight
2x cover over skylight
