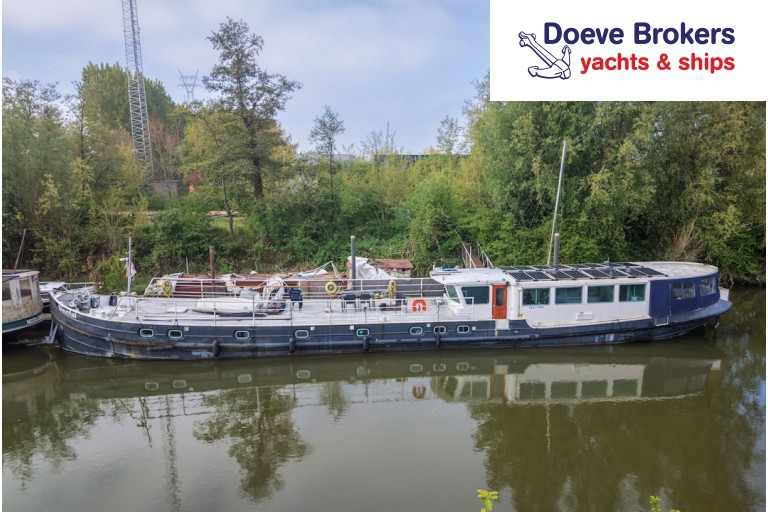

Luxe Motor 31.28, ES-TRIN certified
Dimensions (m):
31.28 x 4.92 x 1.30
Ref. no.:
260408
Mooring:
Near Rotterdam, Netherlands
Construction year:
1924
Material:
steel
Price:
€ 174.500,--
VAT not applicable
Vision Doeve Brokers
This former inland cargo vessel, which later also served as a cockle fishing vessel under the name Jannetje YE85, was completely converted into a spacious and comfortable liveaboard Dutch Barge in 2006/2007. The vessel features a generous owner’s cabin with en-suite bathroom, a workshop, a guest cabin with private sanitary facilities, and an additional cabin currently in use as an office. The L-shaped galley connects to the very spacious wheelhouse, which is equipped with a professionally fitted steering position and patio doors leading to the aft deck. Thanks to the full-beam superstructure, an exceptional amount of living space has been created. With her dimensions and equipment, the vessel is ideally suited for extended cruising on the European inland waterways, including France, Belgium, Germany, and the Netherlands. In addition, she is perfectly suitable for permanent residence. An important added benefit is that permanent living is officially permitted at the current mooring. The mooring owner requires, as a condition for transfer, a prior introduction with any prospective new tenant before granting approval.
More information
General information
| Yard: | Shipyard Gebr. Paans, De Hoop der drie Gebroeders, NL-Roodevaart |
| Yard rebuilt: | Shipyard Multiship, NL-Harlingen Interior: completed in-house finished using professionals |
| Rebuilt year: | 2006/2007 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded wide body superstructure rubbing strake around open cockpit self-draining cockpit closed bollard cabinets 2 watertight bulkhead(s) |
| Steering system: | electric hydraulic steering wheel & steering handle |
| Windows: | aluminium windows frames teak wooden outside doors |
| Displacement (approx.): | 130 metric tons estimated |
| Ballast (approx.): | present 20 ton gravel & steel |
| Airdraft (approx.): | 3,15 m |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | grey hull grey bulwark white superstructure two component system some overdue maintenance see photographs last underwatership treatment 08-2024 |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone 2 Netherlands EU zone 3 EU zone 4 Waal, Lek & NL Rhine valid until: 07-2031 |
| Suitable for / as: | suitable as a year round live- aboard recreational vessel suitable for bigger waterways inland shipping |
| General information: | offered in the condition that she is in (As is Where is) Old age clause applicable. The seller has actually never used the vessel himself. |
| Additional information: | Hull shape is suitable for drying out. roomy foredeck spacious aftdeck forepeak with chain locker Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 296 Hp 218 kW |
| Engine brand: | Scania Vabis |
| Engine model: | DS 1140A |
| Number of cylinders: | 6 |
| Construction year engine: | 1987 installed |
| Running hours (approx.): | 12025 |
| Fuel: | diesel |
| Fuel tank (approx.): | 8000 litre 2 steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Twin Disc MG 5.091 hydraulic reduction/ratio 2,95:1 |
| Heating: | Clima+ Open 35 central heating on diesel |
| Bow thruster: | electric bow thruster 20 Hp |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection Victron Digital Multicontrol with automatic changeover |
| Batteries: | 2x 180 Ah starter batterie(s) 1x 56 Ah starter batterie(s) bow thruster 1000 Ah traction batterie bank 12x 2 Volt Whisper Power Victron BMV-702 battery monitor |
| Battery charger: | Mastervolt MultiPlus combi inverter/charger 24/5000/120 2x Victron Blue Smart battery charger 24/16 |
| Isolation transformer: | Victron isolation transformer 3600 Watt |
| Genny: | BW Generatortechniek whisper set BW13.5/15SSK 13,5 kVA 230 Volt 1500 RPM 2080 running hours (approx.) |
| Inverter: | Mastervolt MultiPlus combi inverter/charger 24/5000/120 |
| Solar panels: | 16x solar panel |
| Fresh water tank (approx.): | 4000 litre 1 stainless steel tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | ACV Smart boiler/water calorifier (230 Volt) |
| Holding tank (approx.): | 2500 litre stainless steel tank(s) wastewater cleaning system |
| Diesel waterseparator: | present |
| Bilge pump: | 3x present |
| Deck wash pump: | present |
| Gas system: | no gas on board |
Accommodation
| Interior: | various materials have been used painted white oak finish see photographs |
| Insulation: | glass wool with aluminium foil & Rockwool with aluminium foil |
| Cabins: | 3 cabins |
| Berth: | owners cabin: 2x 1-pers Midships: 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: shower cubicle shower thermostat tap washbasin with mix tap and hot & cold running water in 1 area together with the toilet Amidship: shower cubicle shower thermostat tap 1x washbasin with mix tap and hot & cold running water 1 washbasin in 1 area together with the toilet |
| Toilet / Heads: | 2x toilet in bathroom |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob induction cooker cookerhood |
| Oven: | AEG microwave/oven |
| Fridge / Refrigerator: | 1 Liebherr fridge / refrigerator |
| Freezer: | 1 Liebherr freezer |
| Worktop: | formica worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | AEG dishwasher |
| Entertainment: | flatscreen TV |
| Headroom (approx.): | ownerscabin (approx.) 2,10 m bathroom / toilet in the front (approx.) 2,07 m corridor / walkthrough (approx.) 2,00 / 2,03 m guest cabin (approx.) 2,04 m bathroom / toilet (approx.) 2,04 m office (approx.) 2,02 m galley (approx.) 2,02 m wheelhouse (approx.) 2,05 m |
| Additional information: | Miele washing machine Miele tumble dryer |
Navigation equipment
| Navigation equipment: | Alphatron Alphatriopilot MF river autopilot (follow-up steering ) Alphatron Alphatriopilot MF rate-of-turn indicator Alphatron Alphatriopilot MF rudder indicator Furuno GP-32 GPS Furuno intercom Raymarine ST60 depth / echosounder ICOM IC-M411 VHF with DSC ICOM IC-M401E VHF ComNav Voyager X3 Automatic Identification System (AIS) navigation lights blue board with oscillating light Automatic Identification System (AIS) horn tunnel light window wiper |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | electric anchor winch Pool anchor 60 m anchor chain in hawse-hole 2x warping drum specified length(s) is/are approximate |
| Bimini: | present |
| Searail / Pulpit: | guardrail around upperdeck guardrail around aftdeck |
| Dinghy: | GRP dinghy |
| Davits: | present |
| Safety: | fire extinguishers life buoys life jackets according to the certification requirements carbon monoxide detector(s) |
| Additional information: | set deck furniture aluminium gangway The ship was completely gutted (only the hull is old) and then rebuilt. Before refitting the interior, the inside of the hull was thoroughly treated. Survey report of the underwatership is available (08-2024) sundeck Takeover of the current residential berth (rent) is possible. |
