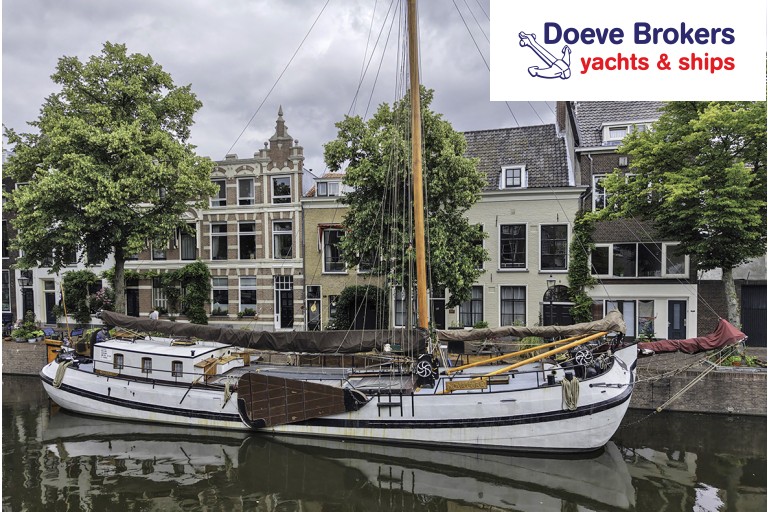

Dutch Sailingtjalk, Residential with ES-TRIN
Dimensions (m):
24.65 x 5.05 x 1.10
Ref. no.:
260904
Mooring:
Near Rotterdam, Netherlands
Construction year:
1907
Material:
steel
Residential berth
Price:
€ 299.500,--
VAT not applicable
Vision Doeve Brokers
This Sailing Tjalk is moored at an exceptionally attractive residential location in the historic heart of Schiedam, the Netherlands. Here you live on the water, surrounded by monumental façades, former warehouses, characteristic bridges and historic vessels. The Lange Haven is one of the most distinctive parts of the old town and still reflects Schiedam’s rich history as a port and distilling city. Thanks to her generous dimensions and characteristic hull shape, this Tjalk offers an abundance of living space. The deckhouse, used as a living room, provides pleasant access to the outside, where you can enjoy the atmosphere and charm of the historic city centre. From the deckhouse, the aft cabin is accessible. Forwards are the master cabin and bathroom with massage shower, washbasin and toilet. Further forward is the spacious salon with a large open galley. The forepeak, now used for storage, is accessible from the salon through a watertight door. An important advantage is the possibility for the buyer to take over the official rented residential mooring. After a purchase agreement has been concluded, the buyer must contact the municipality regarding the mooring. Municipal approval is required and additional conditions may apply.
More information
General information
| Yard: | Shipyard Barkmeijer, NL- Briltil |
| Rebuilt year: | 2015/2017 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel steel hatches covers over hold wooden hatches covers over hold |
| Construction method: | riveted new steel is welded deckhouse bulwark around rubbing strake around cut-water 2 watertight bulkhead(s) |
| Steering system: | hydraulic wheel steel rudder attached rudder |
| Windows: | hardwood window frames double glazing in aft cabin portholes |
| Displacement (approx.): | maximum allowable displacement 127,072 m3 displacement in empty condition 92,684 m3 displacement 34,388 m3 |
| Ballast (approx.): | 20 ton concrete blocks & steel |
| Airdraft (approx.): | 21,50 m 3,70 m lowered mast(s) |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | white hull white bulwark white superstructure 2015 underwater epoxy protected last underwatership treatment 05-2024 some overdue maintenance |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands EU zone 3 EU zone 4 Waal, Lek & NL Rhine valid until: 07-2029 |
| Suitable for / as: | suitable as a year round live- aboard inland waterways & coastal waters recreational vessel |
| General information: | can be sailed by 2 persons The seller has actually never used the vessel himself. offered in the condition that she is in (As is Where is) Old age clause applicable. |
| Additional information: | Specified beam excludes the leeboards. beautiful sheer Hull shape is suitable for drying out. roomy foredeck spacious aftdeck straight hull Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the coastal waters. |
Technical information
| Enginepower: | 120 Hp 88 kW |
| Engine brand: | Ford |
| Engine model: | 2710 |
| Number of cylinders: | 6 |
| Overhaul engine: | as declared 2009 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 1900 litre 2 steel tank(s) |
| Cooling system: | closed box cooler |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | PRM 402 hydraulic |
| Speed (approx.): | 11 km/hour cruising speed 16 km/hour top speed |
| Heating: | Baxiroca Gavina 30 central heating combi boiler on diesel 1x coal stove 1x wood burning stove |
| Bow thruster: | Vetus electric bow thruster 24 Volt 220 KGF |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 1x 180 Ah starter batterie(s) 6x 260 Ah domestic batterie(s) 4x 200 Ah domestic batterie(s) |
| Battery charger: | Studer Xtender XTM 3500-24 combi inverter/charger 24/3500/90 Victron Skylla-TG battery charger 24/50 |
| Isolation transformer: | Sterling Power Zinc saver / Galvanic isolator |
| Earth-leakage breaker: | present |
| Genny: | Mitsubishi diesel 1500 RPM 13,5 kVA 230/400 Volt 5450 running hours (approx.) |
| Inverter: | Studer Xtender XTM 3500-24 combi inverter/charger 24/3500/90 |
| Solar panels: | 2x solar panel |
| Fresh water tank (approx.): | 4000 litre 2 steel tank(s) coated |
| Water pressure system: | hydrophore pump |
| Hot water system: | through the central heating |
| Holding tank (approx.): | present |
| Diesel waterseparator: | present |
| Bilge pump: | 1x electric pump also deckwash pump 1x manual pump |
| Deck wash pump: | submersible pump |
| Gas system: | yes, bottle(s) in bottle box on deck Gas certificate |
Accommodation
| Interior: | Marine Plywood painted white laminate floor(s) completely renovated 2015/2017 some overdue maintenance see photographs |
| Insulation: | glass wool vapor return film |
| Cabins: | 2 cabins |
| Berth: | owners cabin: 1x 2-pers Aft: 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower cubicle thermostat tap washbasin mixer tap with hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | 2x electric toilet |
| Galley: | L-shape galley |
| Cooker: | 5-burner hob on gas cookerhood |
| Oven: | electric oven |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | present 230 Volt |
| Worktop: | wooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | present |
| Headroom (approx.): | foc's hole (approx.) 1,89 m salon (approx.) 2,10 / 1,94 m galley (approx.) 1,94 m corridor / walkthrough (approx.) 2,03 / 2,14 m bathroom / toilet (approx.) 1,98 m ownerscabin (approx.) 1,94 m cabin (approx.) 1,74 m aftcabin (approx.) 1,79 m |
| Additional information: | useful as live-aboard washing machine tumble dryer The vessel will be delivered with everything on board less personal effects & artwork. |
Navigation equipment
| Navigation equipment: | True Heading Carbon Pro Automatic Identification System (AIS) 2x Standard Horizon Eclipse VHF with DSC ICOM IC-M35 portable VHF Garmin 128 GPS intercom navigation lights clock barometer hygrometer compass horn |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | steel |
| Lowerable: | yes spreader electric |
| Boom: | Oregon Pine |
| Gaff: | aluminium |
| Jib boom / Bowsprit: | wooden Jib boom |
| Leeboards: | hardwooden leeboards 2x leeboards winch |
| Winches: | 1x sail winch with 4 reels 1x sail winch with 2 reels & electric winch handle |
| Material of the sails: | Dacron |
| Sails: | mainsail boom jib 2x yankee |
| Additional information: | Lazy Jacks jibboom sail covers pin rail |
Equipment
| Anchor equipment: | manual anchor winch warping drum Klipp anchor 40 m anchor chain 2x kedge anchor electric winch handle specified length(s) is/are approximate |
| Awnings: | over the hold hatches |
| Bimini: | bimini top above aftdeck |
| Boarding ladder: | aluminium |
| Searail / Pulpit: | searail on bulwark |
| Dinghy: | Yamaha outboard engine 4 Hp |
| Safety: | fire blanket fire extinguishers life buoys life jackets according to the certification requirements carbon monoxide detector(s) |
| Additional information: | aluminium gangway Taking over of the current official residential rental mooring is possible. Survey report of the underwatership is available (10-2021) |
