Dutch Barge Ex Patrolvessel 14.78
Vision Doeve Brokers

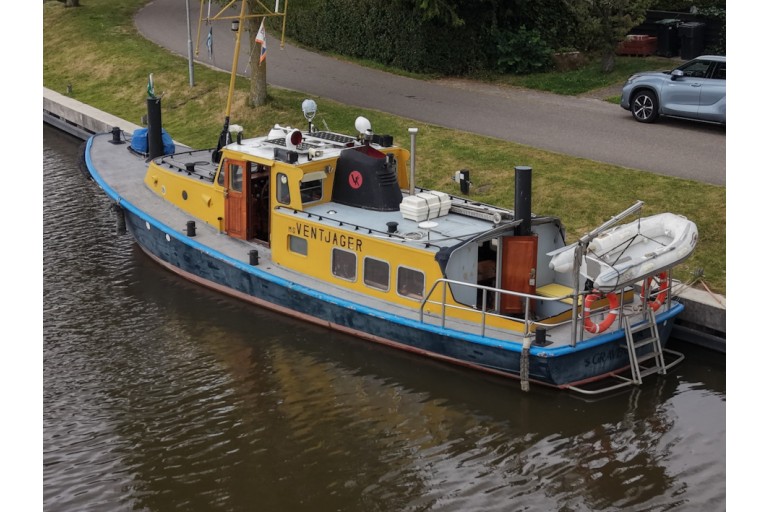

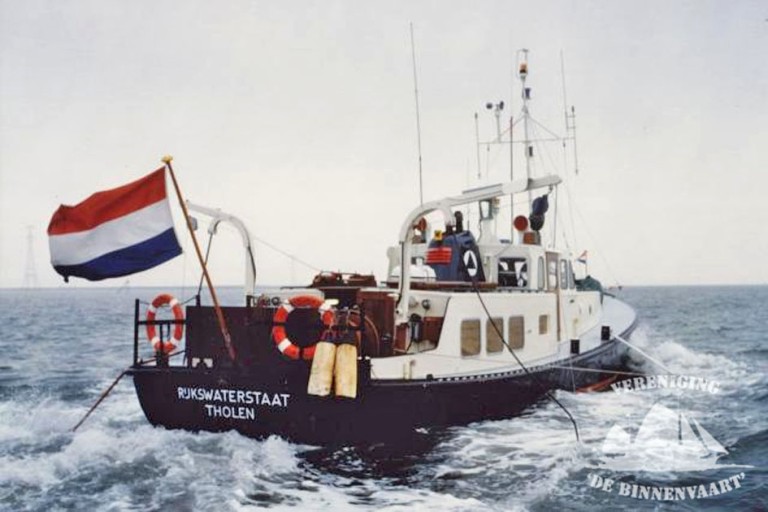

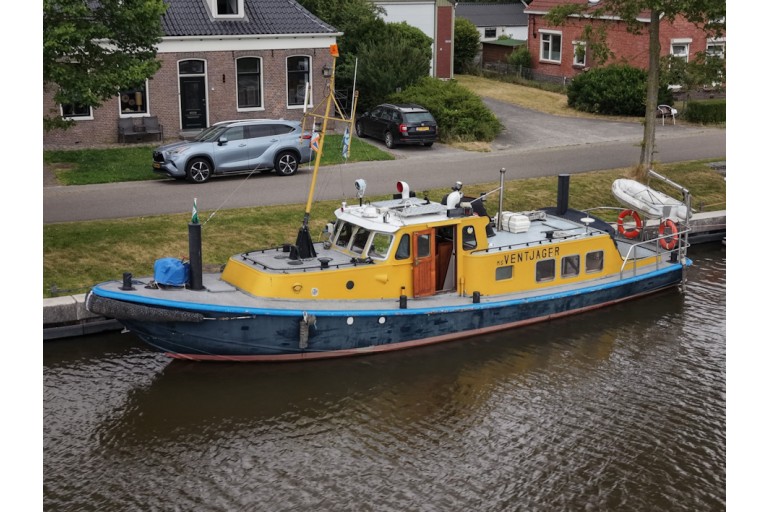

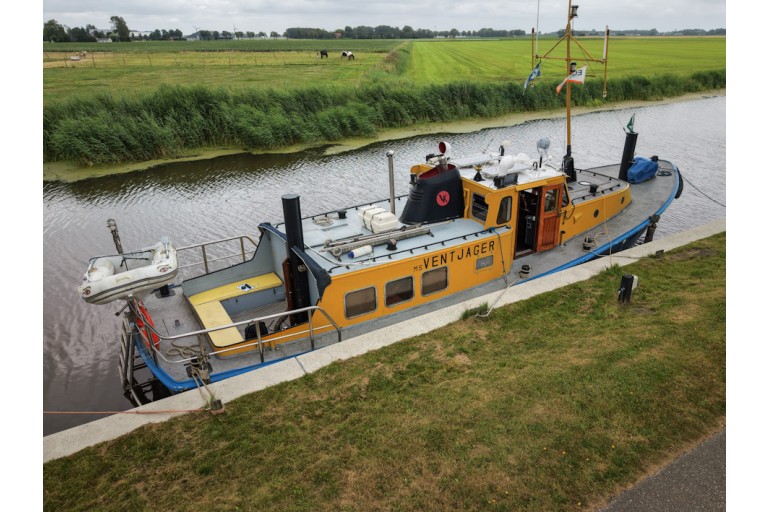

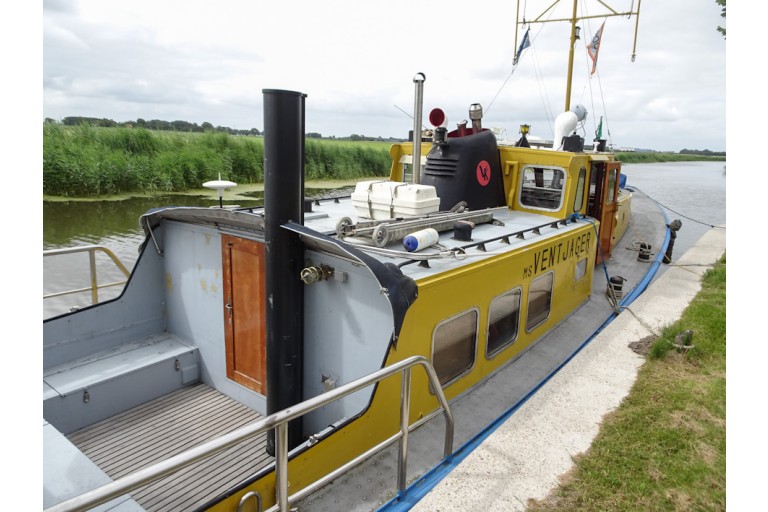

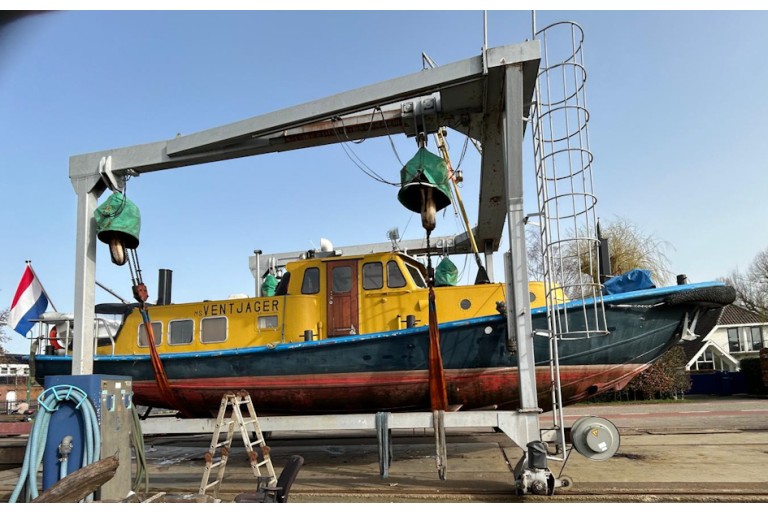

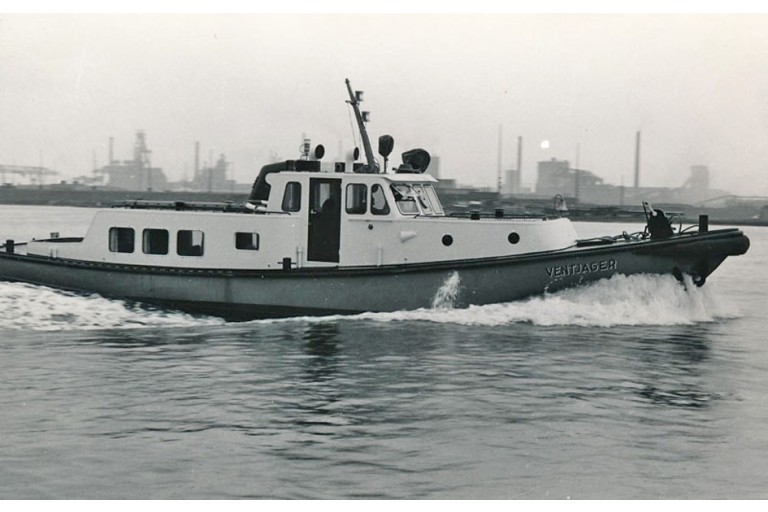

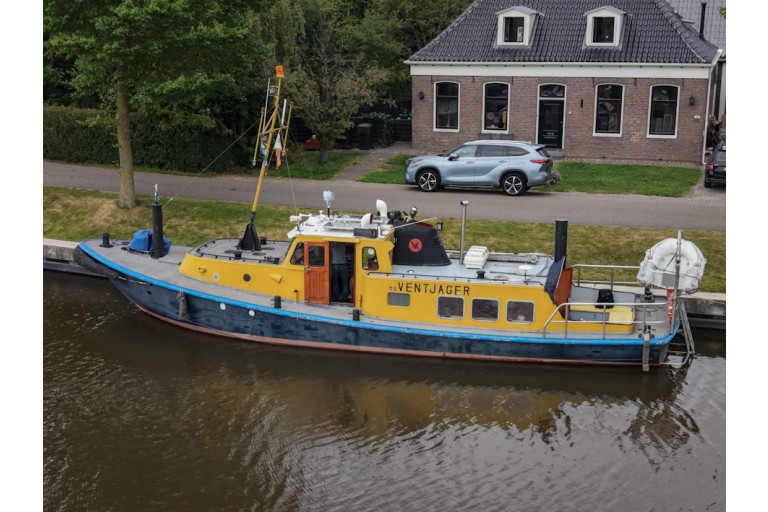

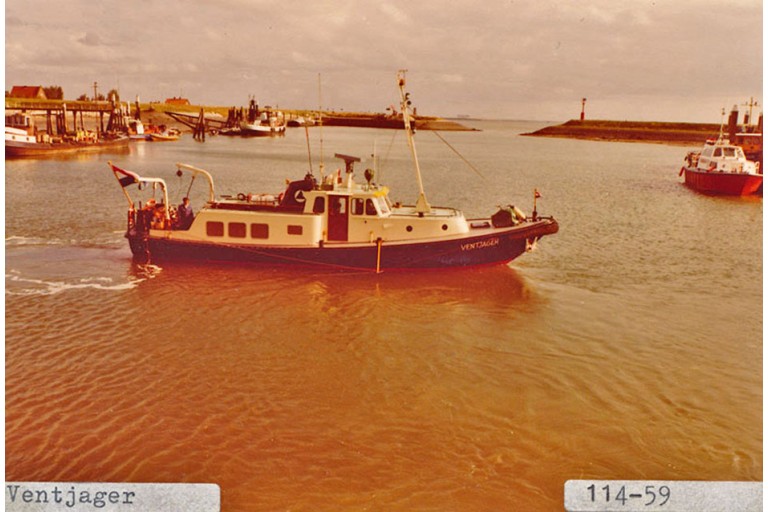

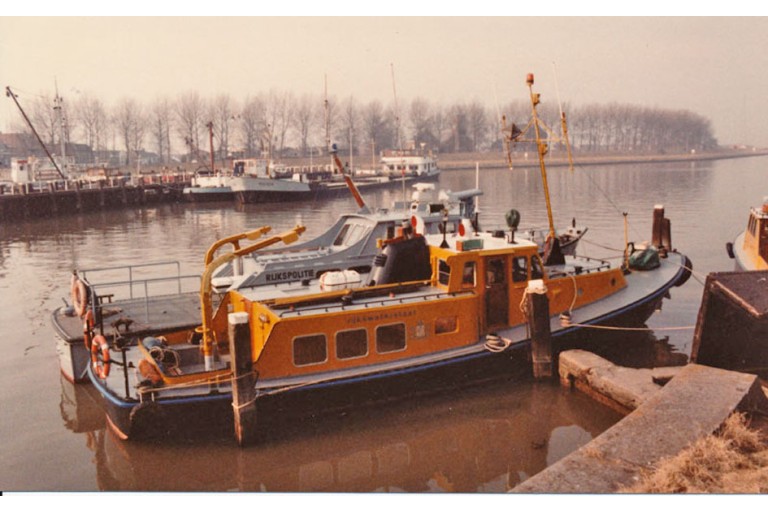

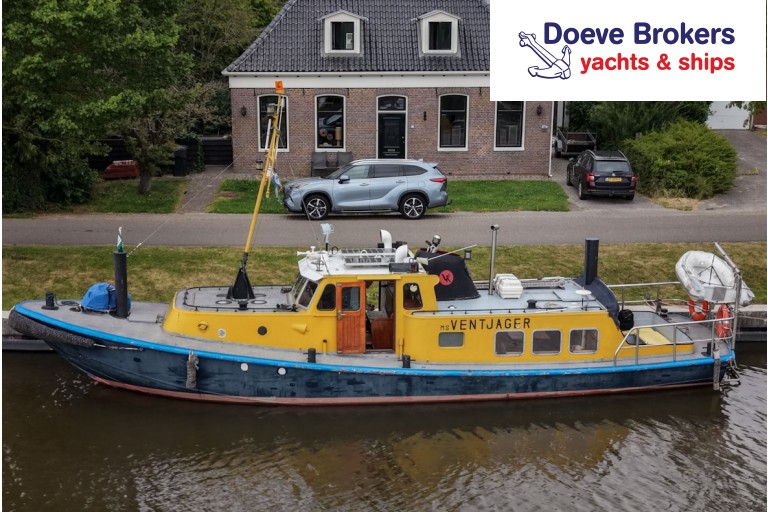

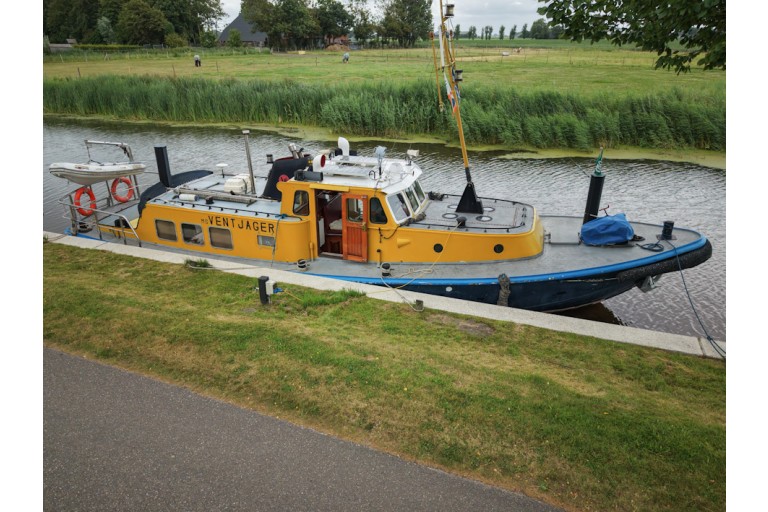

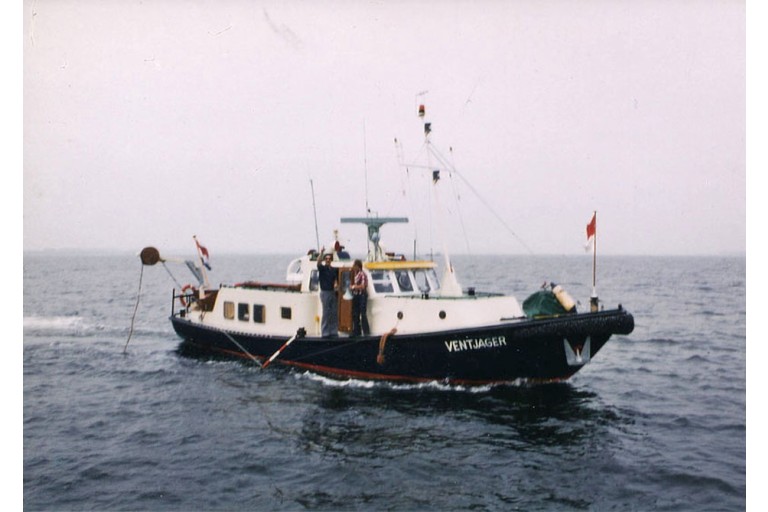

The Ventjager is a former research and laboratory vessel of the Dutch Rijkswaterstaat, the government authority responsible for waterways and water management. She was originally built as a laboratory vessel and converted into a survey and measuring vessel in 1972. In 1985 she was renamed to RWS 83 and remained in service with Rijkswaterstaat until 1988. Since then, she has been used as a recreational vessel and liveaboard barge. The present owner purchased the Ventjager in France and brought her back to the Netherlands. During recent years the vessel has undergone an extensive technical refit, including re-engining with a beautifully overhauled MWM diesel engine. She is furthermore equipped with a generator, a Victron inverter and solar panels, making her largely self-sufficient. A particularly practical feature is the pair of telescopic spud poles, which can be lowered approximately five metres below the bottom of the hull, allowing the vessel to be moored quickly and easily at many locations. Manoeuvring is also exceptionally comfortable thanks to the recently installed bow thruster. In our opinion, the Ventjager is an excellent liveaboard vessel, ideally suited for comfortable living on board and extended cruising throughout the European waterways.
More information
General information
| Yard: | Shipyard Mulder & Rijke, NL-IJmuiden |

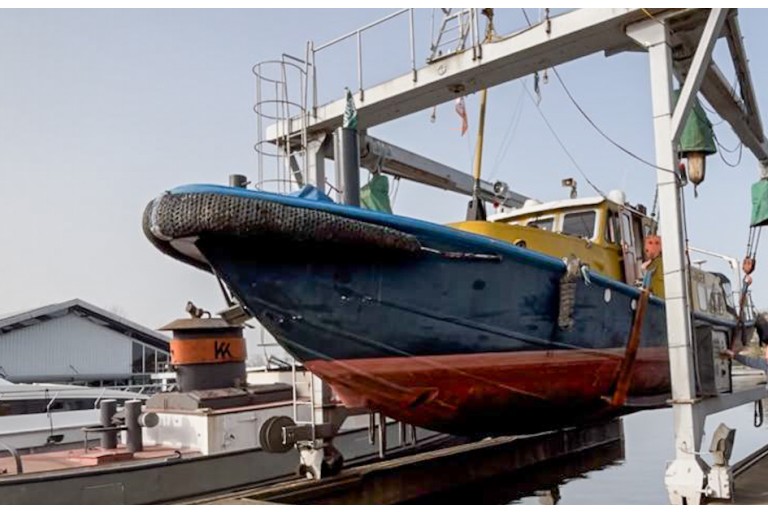

| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | aluminium |
| Construction method: | joggled rubbing strake around wide side decks (gunnels) joggled open cockpit self-draining cockpit watertight bulkhead(s) Sturdy, heavily constructed |

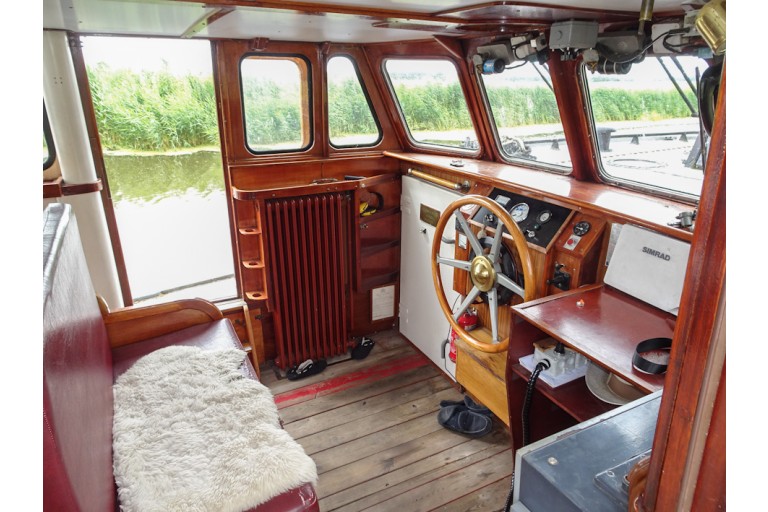

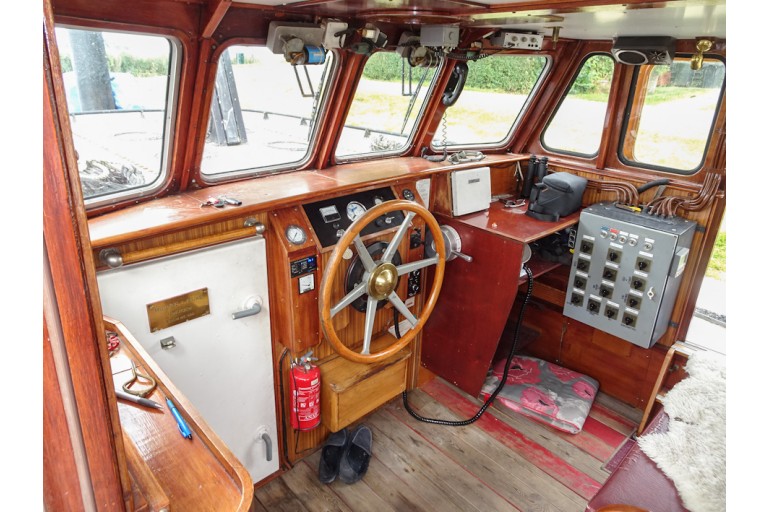

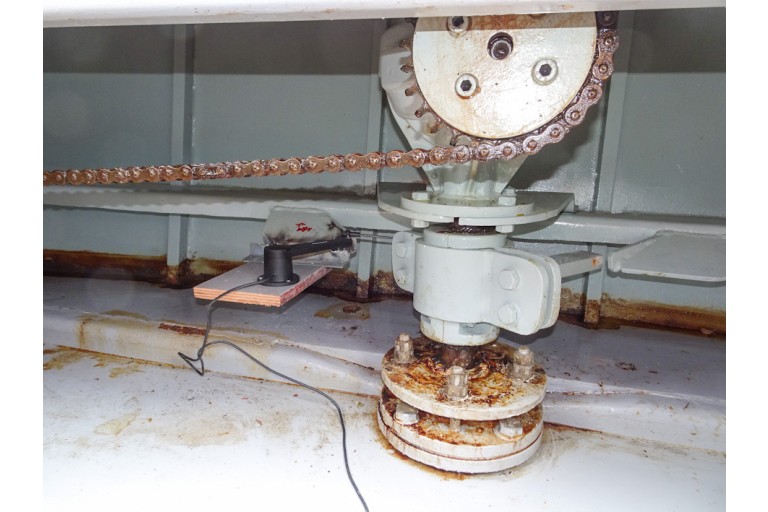

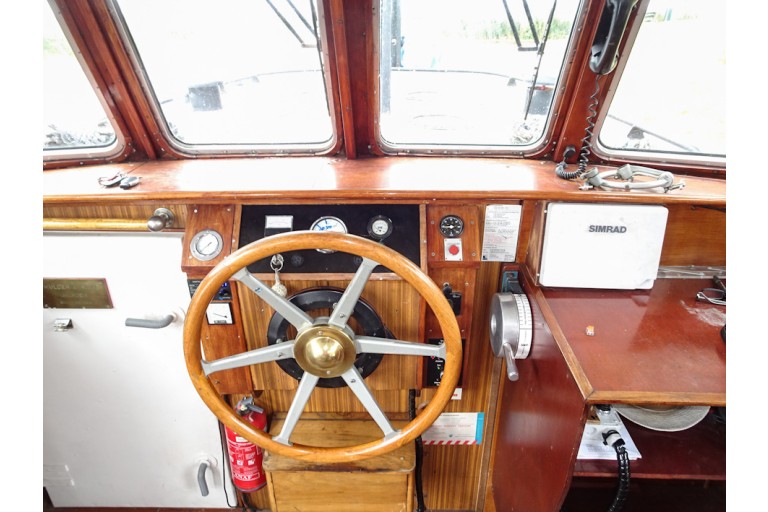

| Steering system: | mech. steering chain/cable wheel & joystick emergency tiller |
| Windows: | aluminium windows frames hardwood outside doors |
| Displacement (approx.): | 20 metric tons |
| Ballast (approx.): | trim ballast lead & concrete |
| Airdraft (approx.): | 3,00 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | black hull yellow superstructure some overdue maintenance last underwatership treatment 05-2026 |
| Certificates: | no certificate requirement |
| Suitable for / as: | inland waterways coastal waters suitable as a year round live- aboard patrol vessel survey vessel |
| General information: | Old age clause applicable. good sailing characteristics |
| Additional information: | forepeak with chain locker classic motor yacht Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 40 Hp 29 kW |

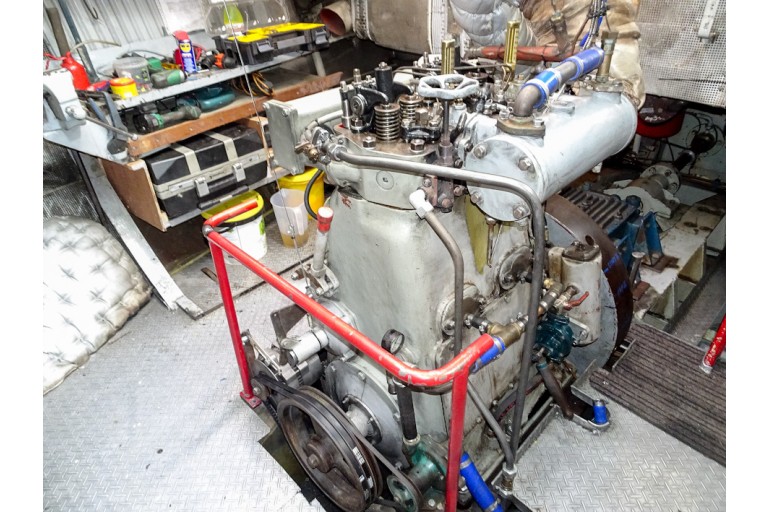

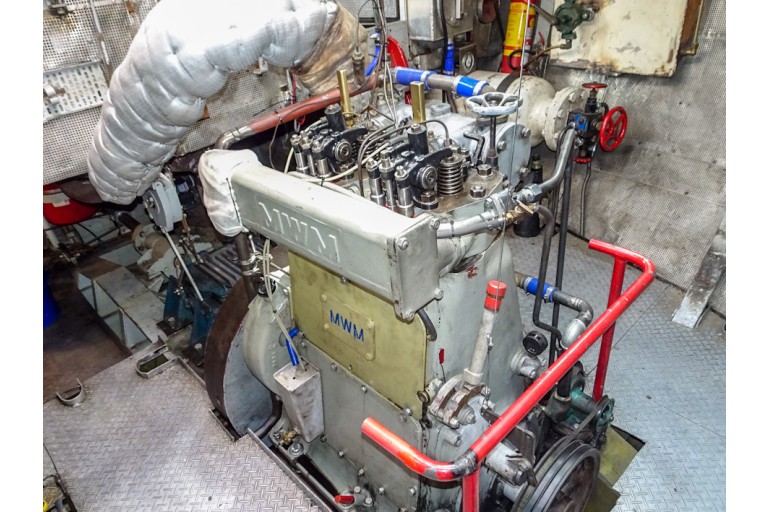

| Engine brand: | MWM |
| Revolutions: | 750 RPM |
| Engine model: | RH422 Z air started |
| Number of cylinders: | 2 |
| Construction year engine: | unknown |
| Overhaul engine: | 2026 reconditioned installed |
| Running hours (approx.): | 25 after overhaul |
| Fuel: | diesel |
| Fuel tank (approx.): | 2x 750 litre 1x 30 litre steel tank(s) |
| Cooling system: | closed keel cooling |

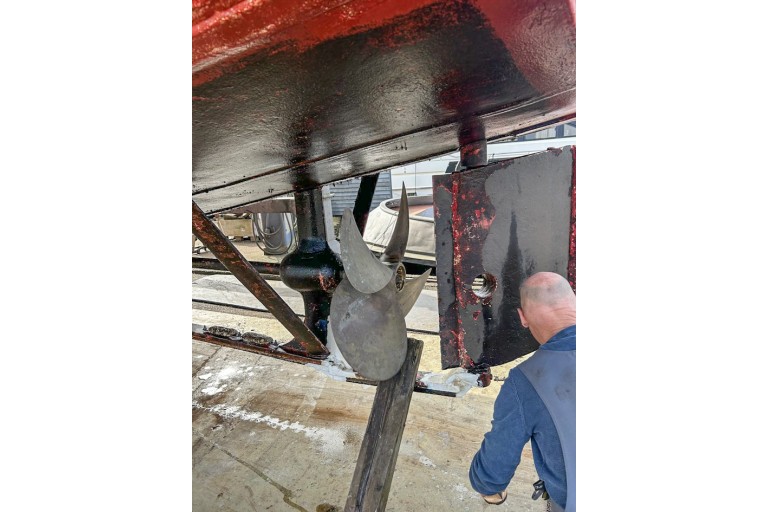

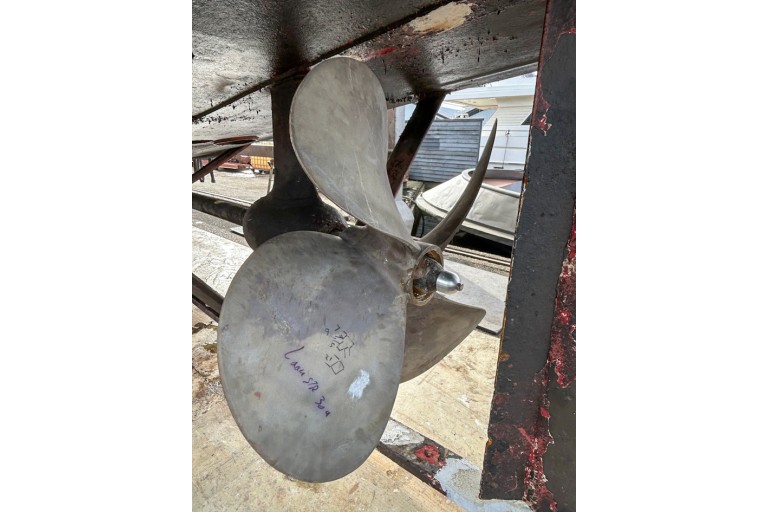

| Propulsion: | 4 blade propeller greased lubrication of propeller shaft greasing device |
| Gearbox: | Reintjes WA035 hydraulic |
| Speed (approx.): | 12 kilometer/hour |

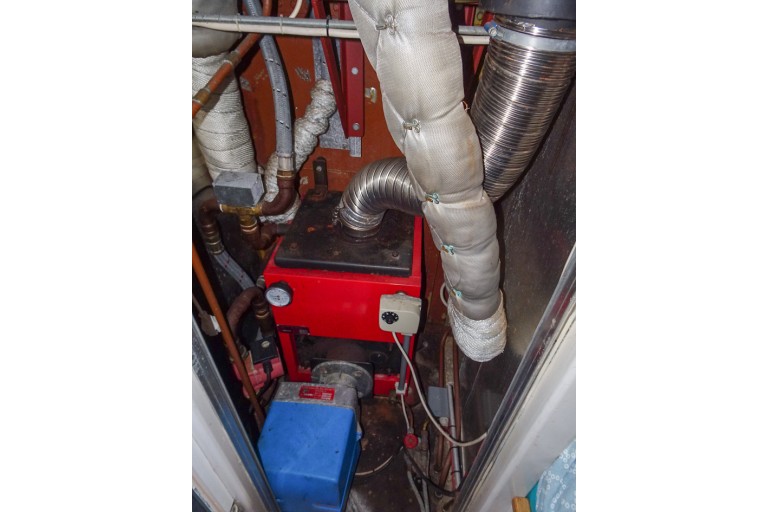

| Heating: | Kabola B17 central heating on diesel & wood burning stove |
| Bow thruster: | Quick electric bow thruster 24 Volt 85 KGF |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection Victron Digital Multicontrol |
| Batteries: | 8x 167 Ah domestic batterie(s) (Hoppecke 6 Volt) 1x 55 Ah starter batterie(s) generator (Optima Red Top) |
| Battery charger: | Victron battery charger 24/8 Victron Quattro combi inverter/charger 24 /3000/70 |
| Earth-leakage breaker: | present |
| Genny: | Mitsubishi diesel genny 7,4 kVA 230 Volt 1500 RPM |
| Inverter: | Victron Quattro combi inverter/charger 24 /3000/70 |

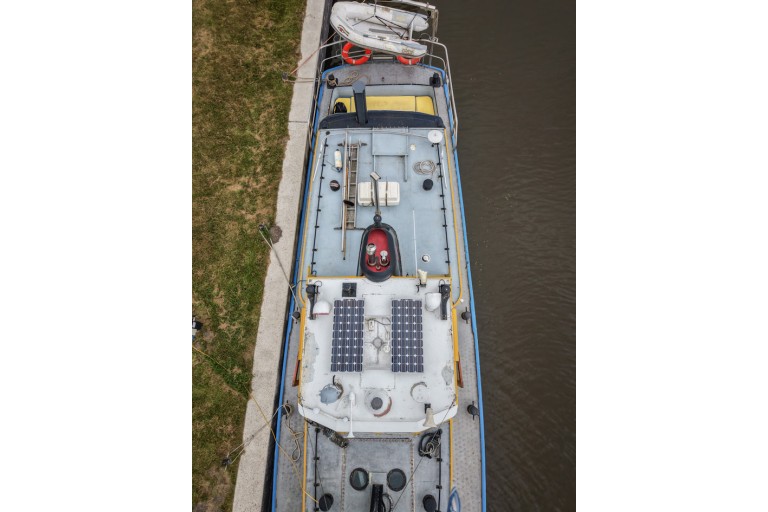

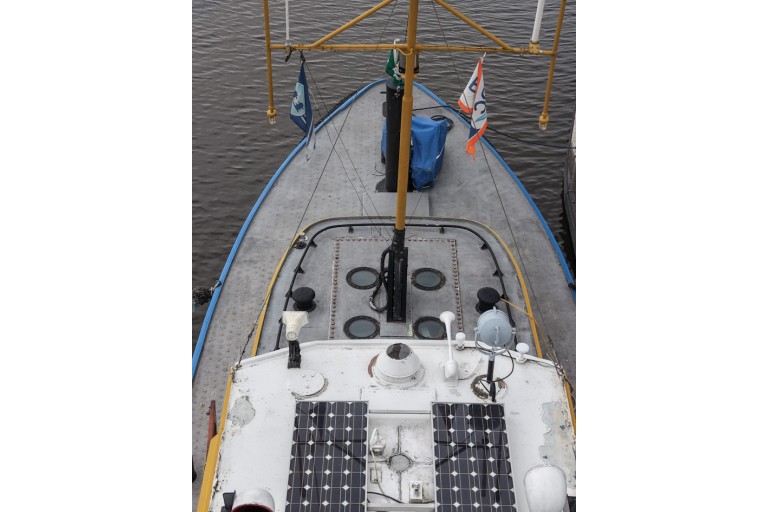

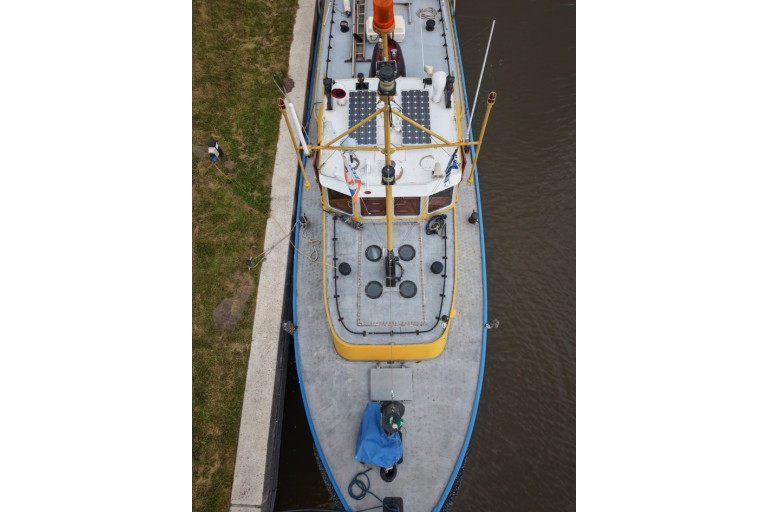

| Solar panels: | 2x solar panel |
| Fresh water tank (approx.): | 1x 1000 litre steel tank(s) 1x 500 litre plastic tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | boiler/water calorifier (230 Volt) & through the central heating & Close In boiler/water calorifier (230 Volt) |
| Holding tank (approx.): | 1x 40 litre steel tank(s) not connected |

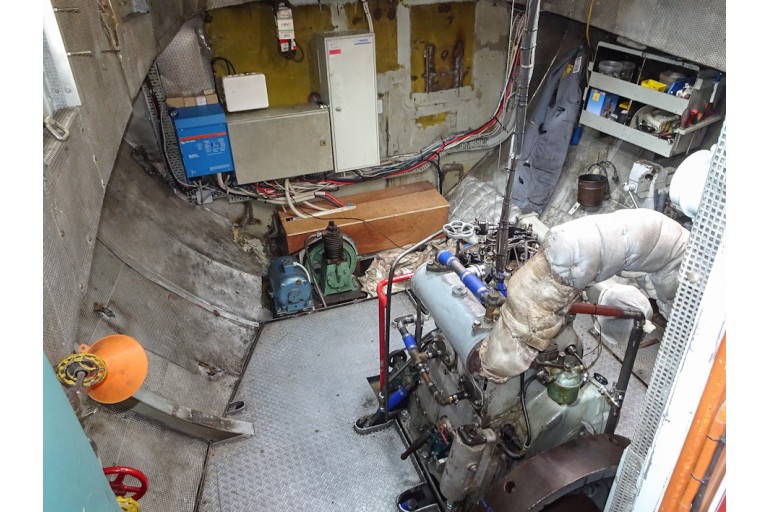

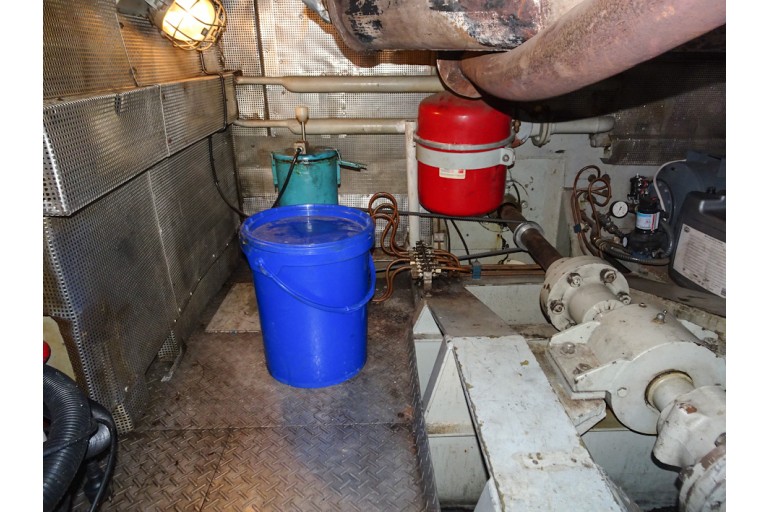

| Engineroom: | sound insulated engineroom well maintained |
| Bilge pump: | present submersible pump |
| Gas system: | no gas on board |

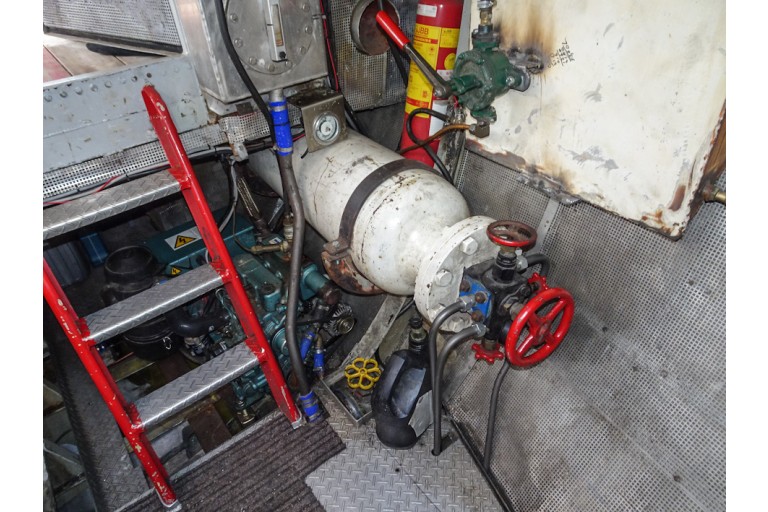

| Additional information: | air compressor air bottle |
Accommodation

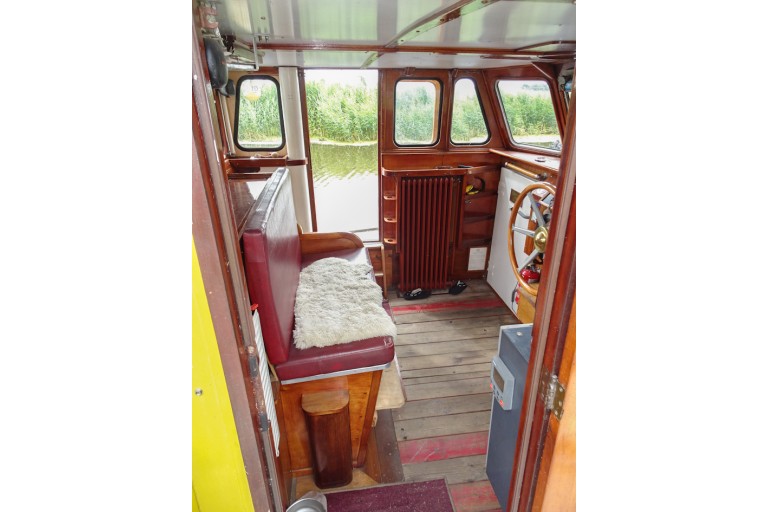

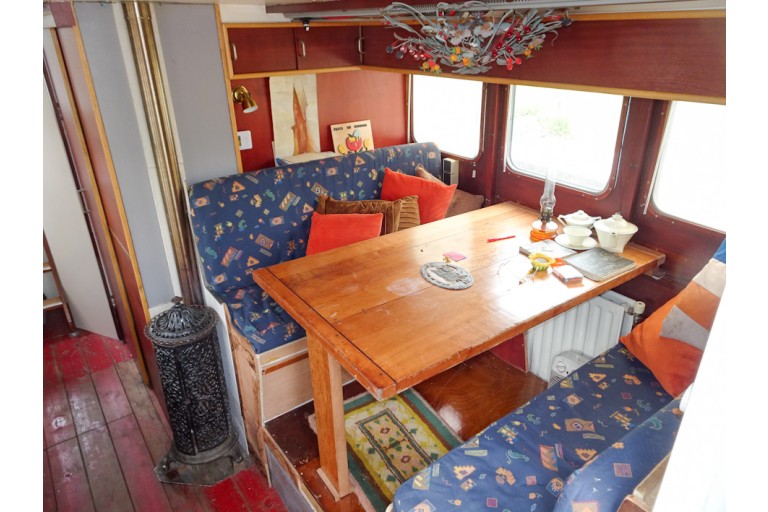

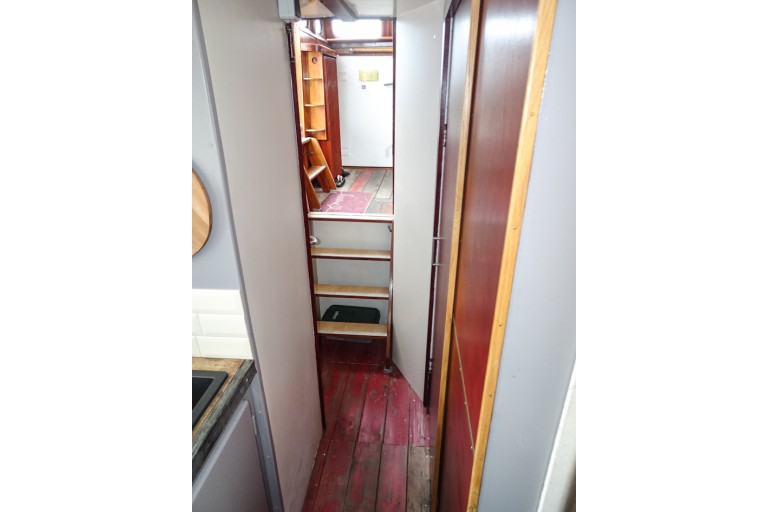

| Interior: | various materials have been used see photographs simple interior suitable for living on board |
| Insulation: | partly Rockwool |
| Cabins: | 1 cabin |

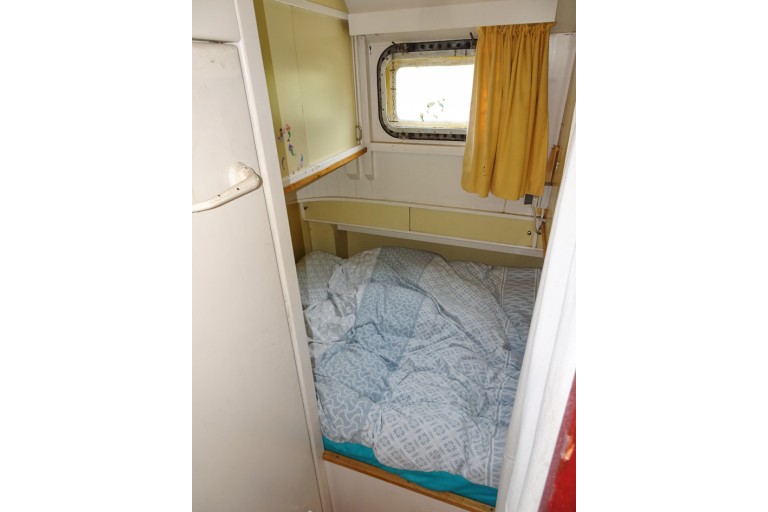

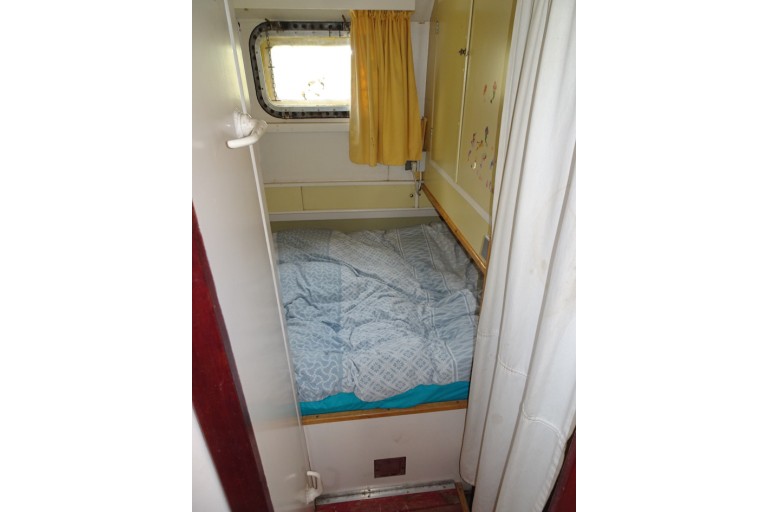

| Berth: | cabin: 1x 2-pers. Dinette: 1x 2-pers. |

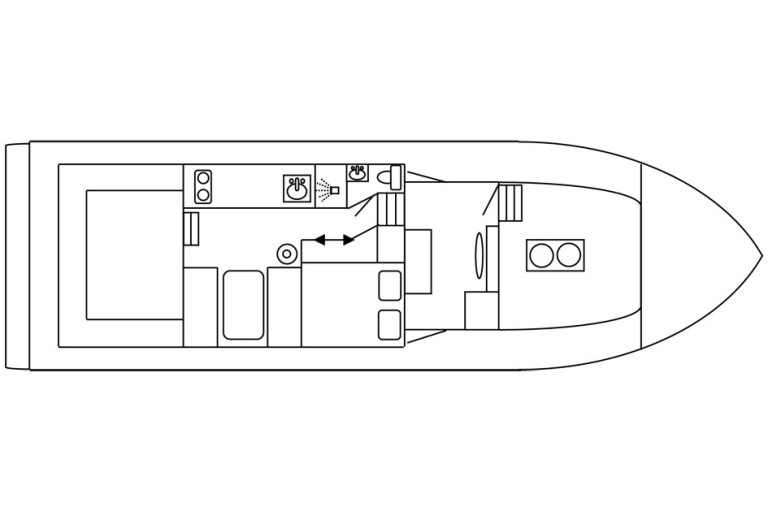

| Lay-out plan (not to scale): | see attachment |

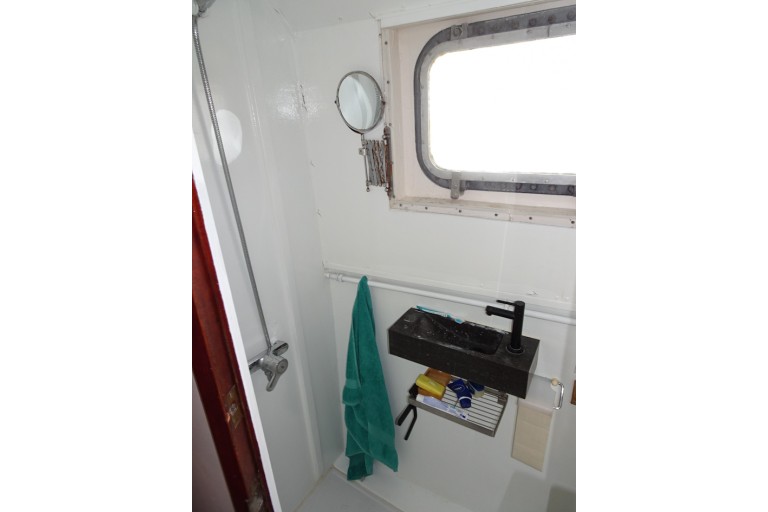

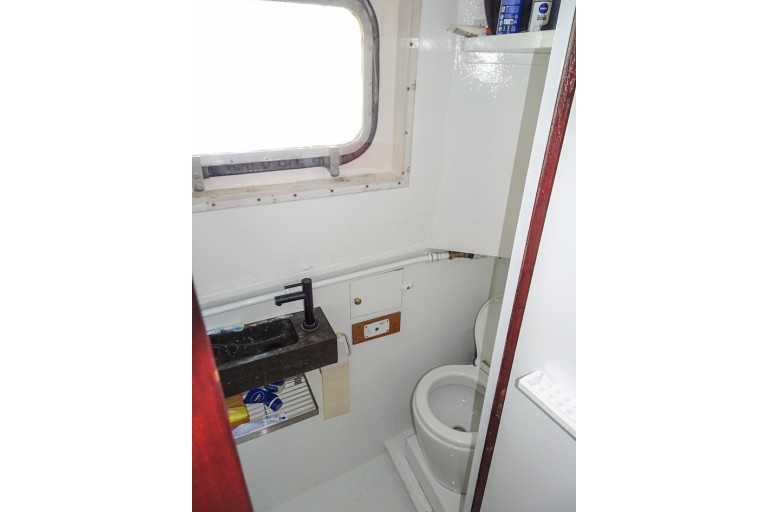

| Bathroom: | washbasin cold running water shower mixer tap with hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | electric toilet |

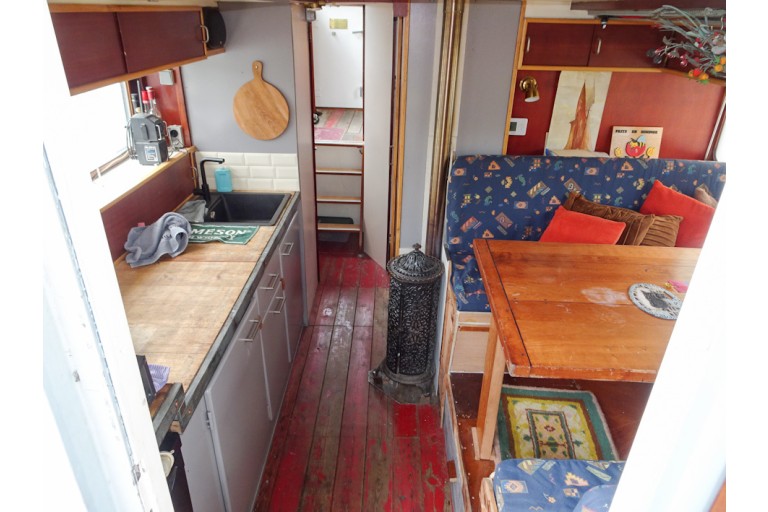

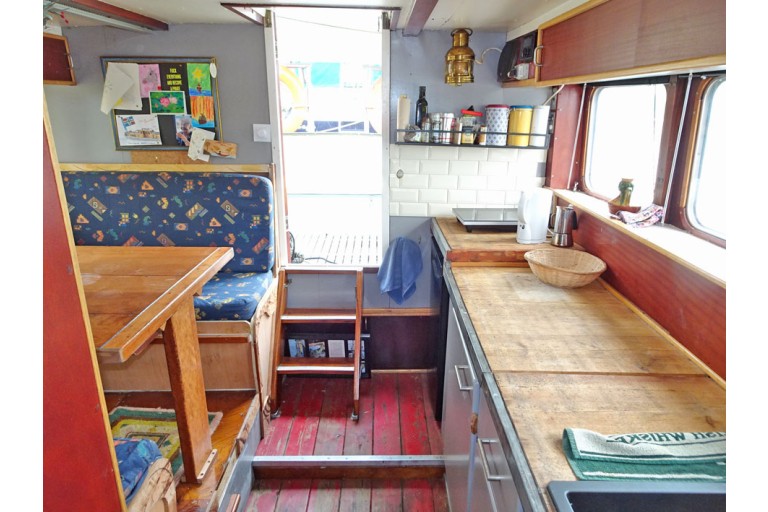

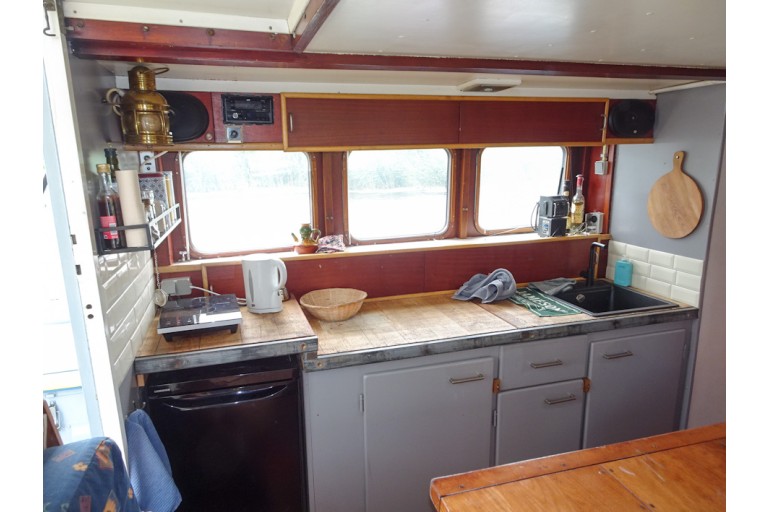

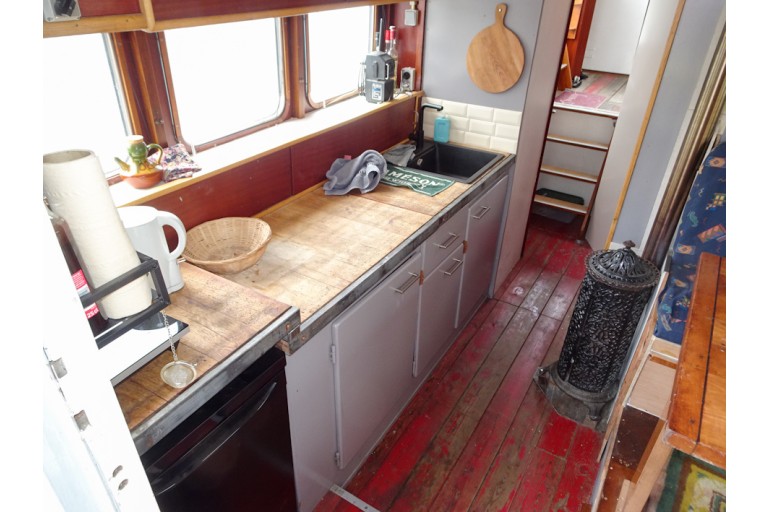

| Galley: | along ships |
| Cooker: | 2-burner hob induction cooker |
| Fridge / Refrigerator: | Liebherr fridge / refrigerator 230 Volt |
| Worktop: | wooden worktop |
| Washbasin: | 1 sink |
| Water tap: | mixer tap with hot & cold running water |
| Headroom (approx.): | wheelhouse (approx.) 1,94 m bathroom / toilet (approx.) 1,98 m aft (approx.) 1,99 m |
Navigation equipment
| Navigation equipment: | Sailor RT144 VHF search light Simrad NSE 8 chartplotter / GPS (niet/not/nicht/ne pas 100%) Raytheon ST6001+ autopilot compass Automatic Identification System (AIS) clock barometer flashing light horn navigation lights 2x window wiper |
Rigging and sails
| Mast: | aluminium |
| Lowerable: | yes manual |
Equipment

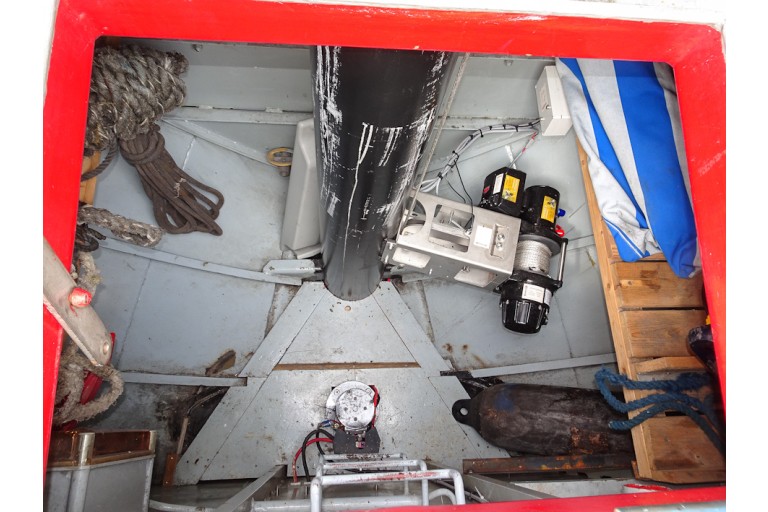

| Anchor equipment: | manual anchor winch Pool anchor anchor chain in hawse-hole Forward: Ankreo spudleg / pole (electric) 5,00 m under the bottom Aft: Ankreo spudleg / pole (electric) 5,00 m under the bottom specified length(s) is/are approximate |
| Outdoor cushions: | cockpit cushion(s) |
| Cockpit tent: | present |
| Boarding ladder: | present stainless steel |
| Searail / Pulpit: | guardrail around aftdeck |

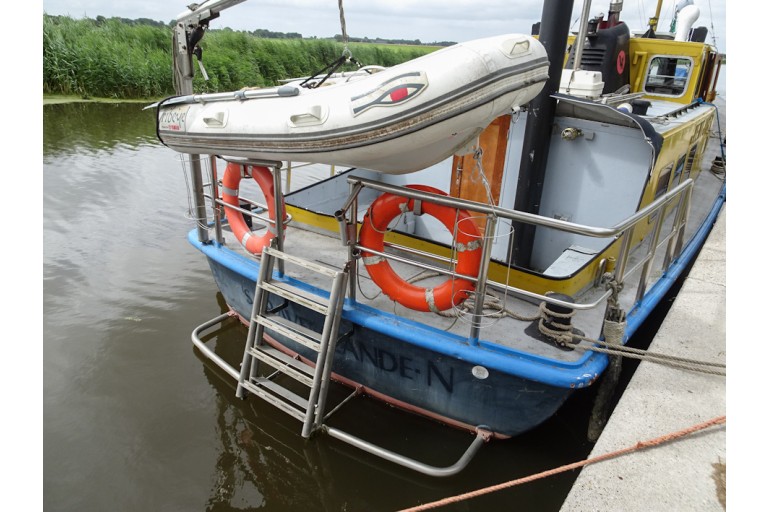

| Dinghy: | present |
| Davits: | present stainless steel |
| Safety: | life jacket liferaft without certificate fire extinguishers life buoys |
| Additional information: | Survey report of the underwatership is available (11-2022) aluminium gangway |
