Gillissen Stevenvlet 11.00 Ok/Ak Sold
Dimensions (m):
11.00 x 3.40 x 1.00
Ref. no.:
130502
Mooring:
Near Amsterdam, Netherlands
Construction year:
1969
Material:
steel
Vision Doeve Brokers

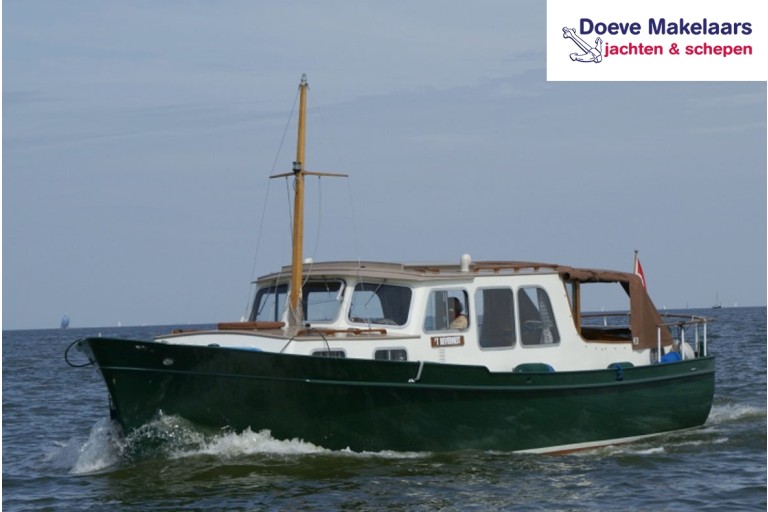

Classic Dutch Motorvlet built with open cockpit and aft cabin. In 2011 she is fitted out with a new engine. A well designed and maintained ship with a cosy interior. Still from the first owner! The ship has a spacious saloon including a comfortable couch, inside steering position, further forward an open galley, bathroom, cabin with V-berth and in the aft cabin a 2- and a 1- persons berth. The owner stops sailing due to advanced age.
More information
General information
Yard:
Shipyard Kuijper BV, NL-Schoorldam
Interior: Modag, NL-Leiden/Alkmaar
Interior: Modag, NL-Leiden/Alkmaar
Designer / Architect:
TH. Gillissen
Hull shape:
round bilged
Hull material:
steel 5/4 mm
Deck material:
steel 4 mm
Superstructure material:
steel 4 mm
Construction method:
aftcabin
rubbing strake around
bulwark
wide side decks (gunnels)
self-draining cockpit
transom stern
flare shape bow
teak in cockpit
rubbing strake around
bulwark
wide side decks (gunnels)
self-draining cockpit
transom stern
flare shape bow
teak in cockpit
Steering system:
hydraulic
wheel
steel rudder
wheel
steel rudder
Windows:
aluminium windows frames
hardwood outside doors
hardwood outside doors
Displacement (approx.):
9 ton
Ballast (approx.):
no ballast
Airdraft (approx.):
2,40 m
Owner:
Dutch owner
Colour / Paint System:
green hull
cream superstructure
2012 last underwatership treatment
cream superstructure
2012 last underwatership treatment
Suitable for / as:
inland waterways
coastal waters
coastal waters
General information:
from first owner
good sailing characteristics
For sale because of the age of the seller.
good sailing characteristics
For sale because of the age of the seller.
Additional information:
classic motor yacht
classic lines
beautiful sheer
Great vessel for cruising on the French canals and rivers.
Great vessel for cruising on the European canals and rivers.
classic lines
beautiful sheer
Great vessel for cruising on the French canals and rivers.
Great vessel for cruising on the European canals and rivers.
Technical information
Enginepower:
60 Hp
44 kW
44 kW
Engine brand:
Nanni
Revolutions:
2800 RPM
Engine model:
N4.60
Number of cylinders:
4
Construction year engine:
2011
Running hours (approx.):
50
Fuel:
diesel
Fuel tank (approx.):
350 litre
2 steel tank(s)
2 steel tank(s)
Cooling system:
intercooling
wet exhaust
wet exhaust
Propulsion:
4 blade propeller
constant velocity prop shaft with thrust bearing
oil bath propeller stern tube
constant velocity prop shaft with thrust bearing
oil bath propeller stern tube
Gearbox:
Twin-Disc Technodrive
hydraulic
2011
hydraulic
2011
Heating:
Webasto hot air heating
on diesel
on diesel
Engine instruments:
present
Bow thruster:
Vetus electric bow thruster
55 KGF
12 Volt
55 KGF
12 Volt
Electricity system:
12 Volt
230 Volt
230 Volt shore power connection
230 Volt
230 Volt shore power connection
Batteries:
1x 225 Amp/hours
domestic batterie(s)
maintenance free
1x Bosch 140 Amp/hours
starter batterie(s)
maintenance free
domestic batterie(s)
maintenance free
1x Bosch 140 Amp/hours
starter batterie(s)
maintenance free
Battery charger:
present
Mobitronic 15 Amp
Mobitronic 15 Amp
Earth-leakage breaker:
present
Genny:
Honda portable
0,9 kW
running hours (approx.) 1
0,9 kW
running hours (approx.) 1
Alternator:
100 ampère
Inverter:
Victron Phoenix inverter
300 VA
300 VA
Fresh water tank (approx.):
350 litre
1 steel tank(s)
1 steel tank(s)
Water pressure system:
electric water pump
Hot water system:
geyser (gas heater)
Holding tank (approx.):
100 litre
1 plastic tank(s)
1 plastic tank(s)
Engineroom:
very well maintained
Bilge pump:
electric pump
also deckwash pump
also deckwash pump
Gas system:
yes, bottle(s) in bottle box
ventilated
ventilated
Accommodation
Interior:
mahogany interior
see photographs
see photographs
Insulation:
for a large part
Cabins:
2 cabins
Berth:
Forward: 2x 1-pers
Salon: 1x 2-pers
Aft: 1x 2-pers & 1x 1-pers
Salon: 1x 2-pers
Aft: 1x 2-pers & 1x 1-pers
Lay-out plan (not to scale):
see attachment
Bathroom:
washbasin with hot & cold running water
in 1 area together with the toilet
in 1 area together with the toilet
Toilet / Heads:
Vacuum flush toilet
Galley:
along ships
Cooker:
3-burner hob
on gas
on gas
Fridge / Refrigerator:
Coolmatic fridge / refrigerator
12 Volt
12 Volt
Freezer:
small ice compartment
Worktop:
stainless steel worktop
Washbasin:
stainless steel sink
Water tap:
hot & cold running water
Headroom (approx.):
forward (approx.) 1,87 m
galley (approx.) 1,88 m
bathroom (approx.) 1,86 m
salon (approx.) 1,90 m
aft (approx.) 1,50 m
galley (approx.) 1,88 m
bathroom (approx.) 1,86 m
salon (approx.) 1,90 m
aft (approx.) 1,50 m
Rigging and sails
Mast:
pine
Lowerable:
yes
manual
manual
Equipment
Anchor equipment:
manual anchor winch
warping drum
40 m anchor chain
Pool anchor
in hawse-hole
2x spare anchor =
Fortress anchor &
plough anchor
warping drum
40 m anchor chain
Pool anchor
in hawse-hole
2x spare anchor =
Fortress anchor &
plough anchor
Outdoor cushions:
present
Cockpit tent:
present
Boarding ladder:
present
Safety:
2x fire extinguisher
1x life buoy
1x life buoy
