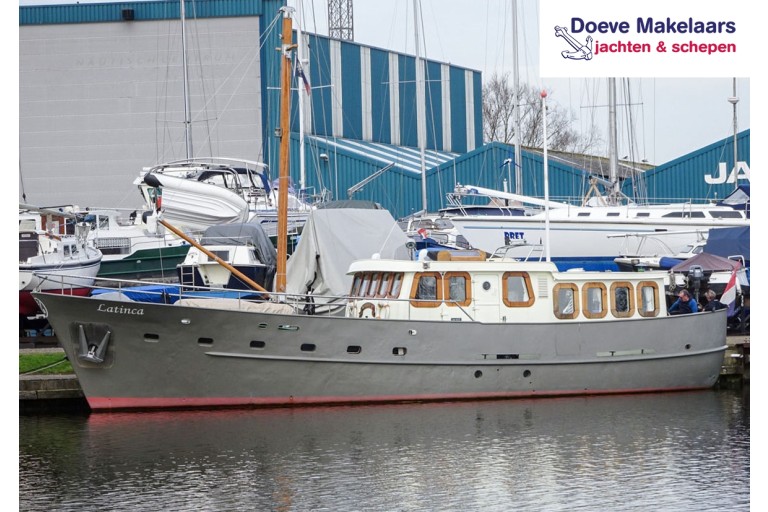

Motor Cutter, Live Aboard 16.55 (Pieter Beeldsnijder) No longer available
Dimensions (m):
16.55 x 4.85 x 1.50
Ref. no.:
170301
Mooring:
Near Alkmaar, Netherlands
Construction year:
1974
Material:
steel
Vision Doeve Brokers
Sturdy and well maintained roundbilge cutter yacht by a design of Pieter Beeldsnijder. This sailing live aboard is very suitable for permanent residence. She is equipped with a refrigerator, freezer, washer, dryer, boiler, pellet stove with central heating and an induction hob. She also has solar panels and a generator. The two available engines be cooled by intercooling. The layout from the front to the rear is as follows: guestcabin, bathroom with shower and toilet, Cabin with washer, dryer and storage room, master cabin with a double bed. The wheelhouse and the galley are both midships. In the aft is the salon and finally the aft deck with a round seat.
More information
General information
| Yard: | Shipyard Fa. C.A. Engelaer & Zonen, NL-Beneden Leeuwen |
| Rebuilt year: | partly 1982 |
| Designer / Architect: | Pieter Beeldsnijder |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel 1982 |
| Construction method: | welded Sturdy, heavily constructed bilge keels rubbing strake wide side decks (gunnels) bollards bulwark |
| Keel: | bilge keels |
| Steering system: | hydraulic wheel remote control |
| Windows: | bronze portholes hardwood window frames double glazing |
| Displacement (approx.): | 40 ton |
| Ballast (approx.): | trim ballast steel |
| Airdraft (approx.): | 3,45 everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | two component basic system one component finish |
| Certificates: | will be delivered with a: inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 |
| Suitable for / as: | suitable as a year round live- aboard suitable for bigger waterways coastal waters seaworthy |
| Additional information: | roomy foredeck Great vessel for cruising on the coastal waters. Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 2x 138 Hp 2x 101 kW |
| Engine brand: | 2x DAF |
| Engine model: | 2x DF 615 |
| Number of cylinders: | 2x 6 |
| Fuel: | diesel |
| Fuel tank (approx.): | 1500 ltr steel tank(s) |
| Cooling system: | keel cooling |
| Propulsion: | 2x 3 blade propeller 2x 80 mm propeller shaft 2x greasing device |
| Gearbox: | 2x PRM hydraulic reduction/ratio 1:4 |
| Heating: | central heating pelletstove |
| Engine instruments: | present |
| Electricity system: | 12 / 230 Volt 230 Volt shore power connection Galvanic Isolator GI-16 (Allpa) |
| Batteries: | 3x 230 Ah domestic batterie(s) (Wilco 2016) 1x 230 Ah domestic batterie(s) (Victron) 2x 120 Ah starter batterie(s) |
| Battery charger: | Victron Multiplus Compact combi inverter/charger 12/1600/70 |
| Earth-leakage breaker: | present |
| Genny: | Kipor diesel KDE 6500 E 5,7 kVA 3000 RPM |
| Inverter: | Victron Multiplus Compact combi inverter/charger 12/1600/70 |
| Solar panels: | 2x 130 Watt |
| Fresh water tank (approx.): | 2x 300 ltr plastic tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | 80 ltr boiler/water calorifier (230 Volt) & through the central heating |
| Holding tank (approx.): | 1x steel tank(s) prepared |
| Diesel waterseparator: | 2x diesel waterseparator |
| Engineroom: | clean engineroom see photographs |
| Bilge pump: | 1x electric pump |
| Gas system: | no gas on board |
Accommodation
| Interior: | various materials have been used carpet on the floor(s) sliding hatch |
| Insulation: | Rockwool |
| Cabins: | 2x cabins |
| Berth: | Forward: 1x 2-pers owners cabin: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower cubicle washbasin with hot & cold running water tiled bathroom in 1 area together with the toilet |
| Toilet / Heads: | 1x hand pumptoilet |
| Galley: | sideways L-shape galley |
| Cooker: | 4-burner hob induction cooker |
| Fridge / Refrigerator: | present |
| Freezer: | present |
| Worktop: | hardwooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | 2x flatscreen TV DVD-player |
| Headroom (approx.): | forward cabin (approx.) 2,00 m bathroom / toilet (approx.) 1,86 / 1,92 m ownerscabin (approx.) 1,90 m corridor / walkthrough (approx.) 1,90 m wheelhouse (approx.) 1,86 m salon (approx.) 1,99 m |
| Additional information: | well maintained The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. useful as live-aboard tumble dryer washing machine |
Navigation equipment
| Navigation equipment: | Garmin VHF 100i VHF with DSC Advansea SX-300 portable VHF Nasa Marine Target 2 depth / echosounder navigation computer camera system Automatic Identification System (AIS) compass window wiper search light horn |
Rigging and sails
| Mast: | wood front mast |
| Lowerable: | manual |
| Boom: | wooden boom |
Equipment
| Anchor equipment: | manual anchor winch 2x Klipp anchor anchor chain in hawse-hole |
| Outdoor cushions: | present |
| Searail / Pulpit: | stainless steel searail |
| Dinghy: | Talamex dinghy with outboard engine Yamaha 3 Hp |
| Safety: | according to the certification requirements |
| Additional information: | aluminium gangway hard wooden skylight |
