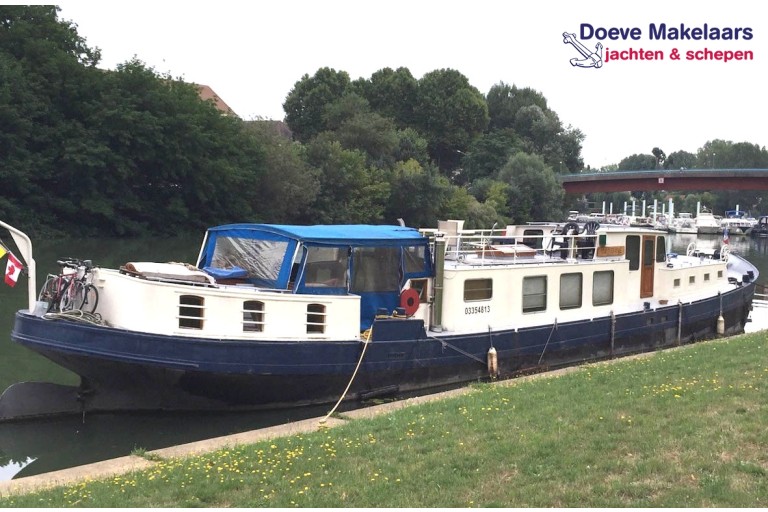

Motorclipper 25.78, with TRIWV Sold
Dimensions (m):
25.78 x 4.68 x 1.10
Ref. no.:
170503
Mooring:
Near Dijon, France
Construction year:
1902
Material:
steel
Vision Doeve Brokers
Former inland cargo vessel that has been completely rebuilt into a comfortable live aboard barge with the possibility to travel on the European waterways for longer periods. Equipped with 4 cabins, 3 bathrooms, a wheelhouse with a good view around, spacious saloon and a separate galley. Outside is an open cockpit with teak grating with behind of that the aft cabin. On top of the superstructure is a large sundeck. By her layout, it is very well possible to use this barge for small-scale charter. Due to circumstances, the maintenance has not been done in the past few years.
More information
General information
| Yard: | Shipyard H. Boot & ZN, NL-Vrijenban |
| Yard rebuilt: | A.J. Boomsma, NL-Sneek |
| Hull shape: | flatbottom |
| Hull material: | iron/steel |
| Deck material: | iron/steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded deckhouse closed bollard cabinets 2 watertight bulkhead(s) rubbing strake around wide side decks (gunnels) kalffsdecks (raised decks) clipper bow |
| Steering system: | hydraulic wheel & joystick |
| Windows: | rubber window frames & aluminium windows frames teak wooden outside doors |
| Displacement (approx.): | 90 ton |
| Ballast (approx.): | present concrete blocks |
| Airdraft (approx.): | 3,35 m |
| Registration: | B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull blue bulwark white superstructure some overdue maintenance |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 valid until: 07-2018 |
| Suitable for / as: | suitable as a year round live- aboard recreational vessel |
| Additional information: | forepeak with chain locker Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 105 Hp 77 kW |
| Engine brand: | DAF |
| Revolutions: | 2400 RPM |
| Engine model: | 575 |
| Number of cylinders: | 6 |
| Construction year engine: | 1965 |
| Running hours (approx.): | 9873 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 900 litre |
| Cooling system: | closed cooling pipes dry exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | ZF BW30V electric / mechanical |
| Heating: | Somy central heating on diesel & stove on wood |
| Bow thruster: | Duco electric bow thruster 20 Hp Vetus radio control |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection Victron VE.Bus Multicontrol |
| Batteries: | 2x 130 Ah starter batterie(s) 6x 180 Ah domestic batterie(s) 2x 52 Ah bow thruster batterie(s) 1x 100 Ah starter batterie(s) generator Mastervolt BTM-I battery monitor |
| Battery charger: | Victron Phoenix Multi Plus combi inverter/charger 24/3000/70 |
| Battery isolator: | present |
| Isolation transformer: | present |
| Genny: | Jelmer Valk whisper set Mitsubishi diesel 3850 running hours (approx.) |
| Alternator: | 24 Volt |
| Inverter: | Victron Phoenix Multi Plus combi inverter/charger 24/3000/70 |
| Fresh water tank (approx.): | 8000 litre |
| Water pressure system: | hydrophore pump |
| Hot water system: | boiler/water calorifier (230 Volt) |
| Diesel waterseparator: | present |
| Engineroom: | see photographs |
| Bilge pump: | 3x electric pump |
| Gas system: | yes, bottle(s) in bottle box on deck does not fully meet current safety requirements |
Accommodation
| Interior: | cherry wood interior Plywood painted white see photographs some overdue maintenance |
| Insulation: | yes glass wool & Rockwool |
| Cabins: | 4 cabins |
| Berth: | Forward: 1x 2-pers Guest cabin(s): 1x 1-pers Guest cabin(s): 1x 1-pers Aft: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: En Suite shower washbasin hot & cold running water in 1 area together with the toilet guest cabin(s): shower washbasin hot & cold running water Aft: shower washbasin hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | 3x toilet |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob on gas in combination with the oven cookerhood |
| Oven: | gas oven |
| Microwave: | microwave/oven |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | ice compartment |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |
| Entertainment: | Philips flatscreen TV satellite antenna Philips radio/CD/MP3 player |
| Headroom (approx.): | forward cabin (approx.) 2,07 m bathroom / toilet in the front (approx.) 2,05 m guest cabin (approx.) 1,40 m bathroom / toilet (approx.) 2,56 m wheelhouse (approx.) 2,07 m salon (approx.) 1,99 m galley (approx.) 2,06 m aftcabin (approx.) 2,01 m bathroom / toilet aft (approx.) 2,12 m |
| Additional information: | useful as live-aboard cutlery and crockery Whirlpool washing machine Bosch tumble dryer |
Navigation equipment
| Navigation equipment: | Standard Horizon VHF with DSC portable VHF rudder indicator tunnel light navigation lights blue board horn window wiper thermometer hygrometer barometer |
Equipment
| Anchor equipment: | manual anchor winch anchor chain in hawse-hole 1x Pool anchor warping drum |
| Bimini: | bimini top above cockpit summer / winter tent with removable side panels and doors |
| Searail / Pulpit: | guardrail around upperdeck |
| Dinghy: | dinghy with outboard engine |
| Davits: | present |
| Safety: | fire extinguishers fire blanket gasdetector life buoys life jackets according to the certification requirements |
| Additional information: | covers over skylights set deck furniture boathook fenders |
