Former German Patrolvessel 18.24, ES-TRIN Rhine No longer available
Dimensions (m):
18.24 x 4.25 x 1.60
Ref. no.:
250605
Mooring:
Near Harlingen, Netherlands
Construction year:
1965
Material:
steel
Vision Doeve Brokers

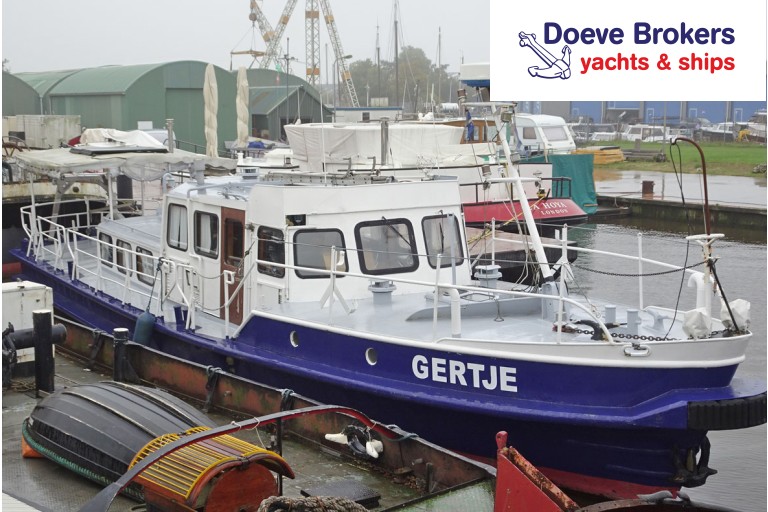

This former inspection vessel of the German Labour Inspectorate was later converted and certified for passenger transport, with a capacity of up to 32 persons on inland waterways and 19 persons on the Lower Elbe under SUK (German Shipping inspectorate). The vessel has since been transformed into a pleasure craft, ES-TRIN certified for Zone 2 in the Netherlands and EU zones 3 and 4, including the German Rhine. Although some areas require attention, the vessel offers a solid foundation for those who value character, versatility, and potential. Thanks to its construction and certification, it is ideally suited for an extensive cruising area ranging from the Mediterranean Sea to the Baltic Sea. Furthermore, it is perfectly suited for extended stays on board, including use as a liveaboard. In short, a vessel with history and potential, ideal for the enthusiast who is not deterred by some finishing work, but who seeks space, sturdiness, and maritime charm.
More information
General information
| Yard: | Shipyard Franke, D-Berlijn |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |

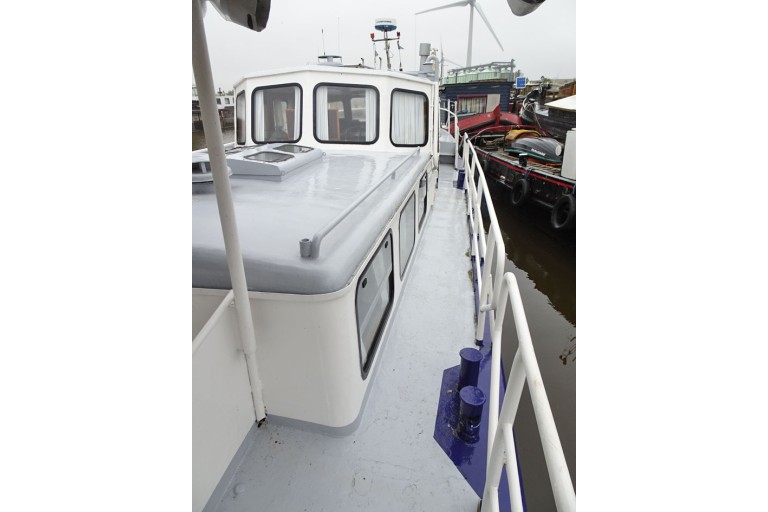

| Construction method: | welded rubbing strake around wide side decks (gunnels) deckhouse forecabin 4x bulkhead |

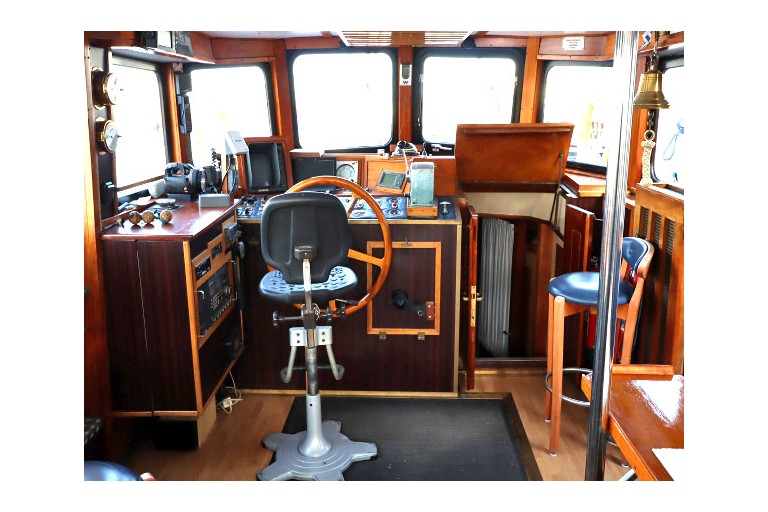

| Steering system: | mechanical wheel |
| Windows: | aluminium windows frames double glazing & single glass hardwood outside doors |
| Displacement (approx.): | 45 metric tons |
| Ballast (approx.): | present steel |
| Airdraft (approx.): | 3,30 m |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | blue hull white superstructure last underwatership treatment welke maand in 2024 is er een keuringsrapport? |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 zone R (Rhine) valid until: ??????????? |
| Suitable for / as: | recreational vessel suitable as a year round live- aboard inland waterways coastal waters |
| General information: | offered in the condition that she is in The seller has actually never used the vessel himself. |

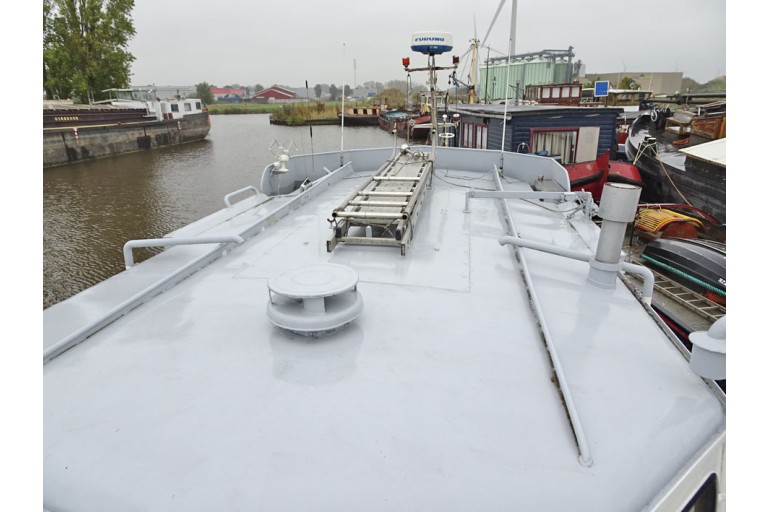

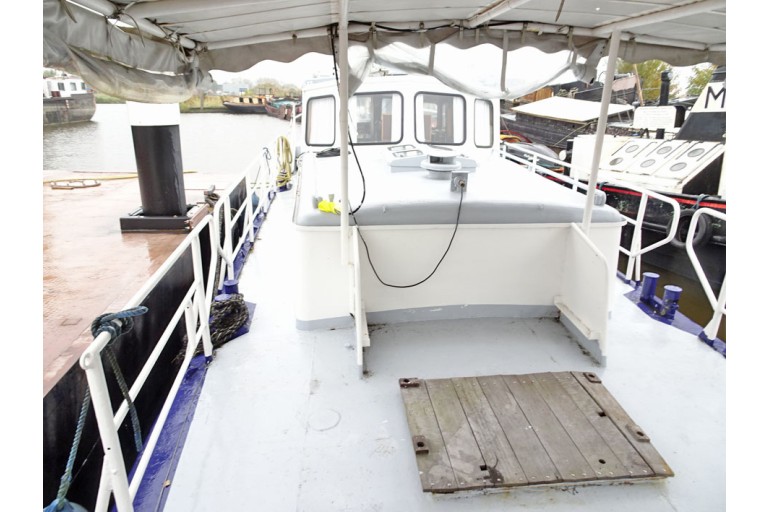

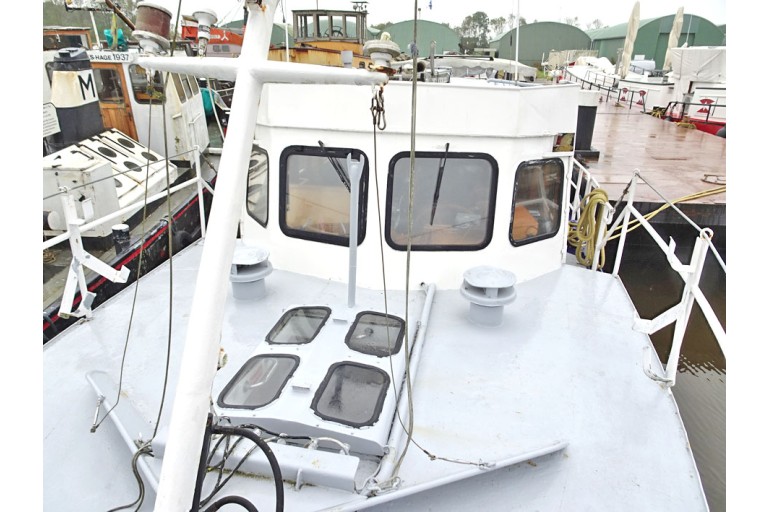

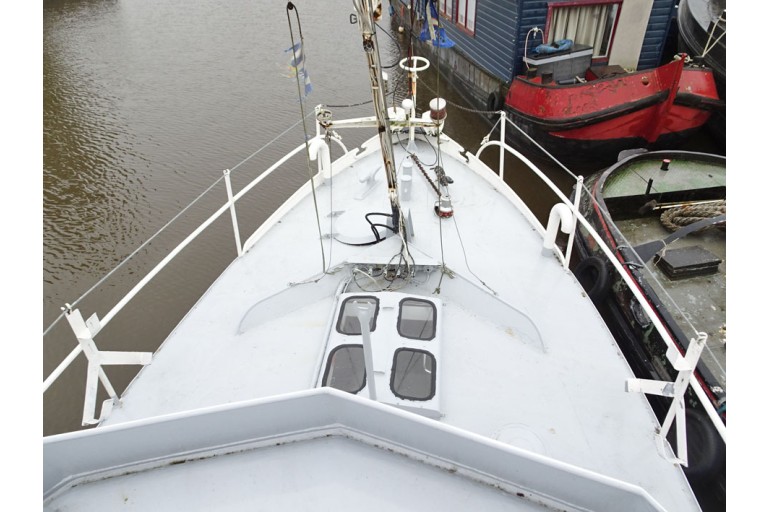

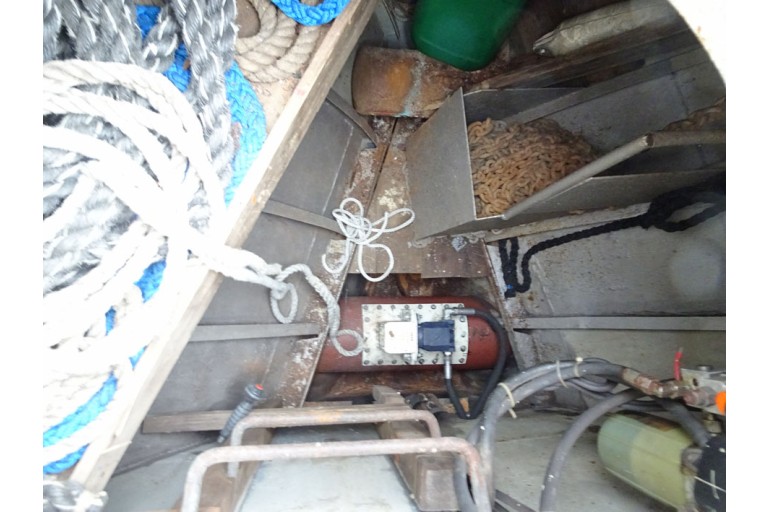

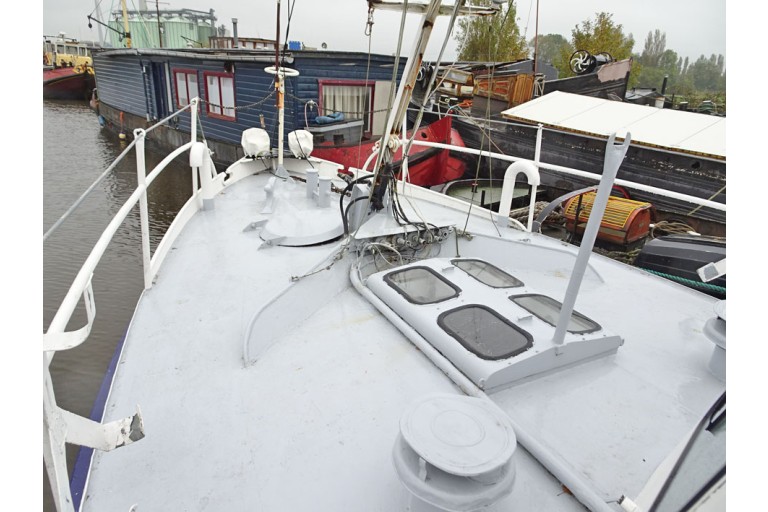

| Additional information: | spacious aftdeck roomy foredeck forepeak with chain locker Great vessel for cruising on the coastal waters. Great vessel for cruising on the European canals and rivers. |
Technical information

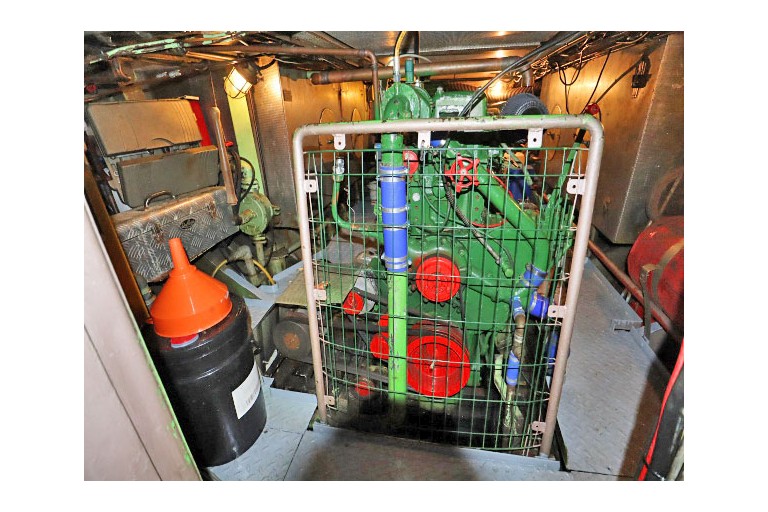

| Enginepower: | 225 Hp 116 kW |
| Engine brand: | Mercedes Benz |
| Revolutions: | 1500 RPM |
| Engine model: | MB 846A |
| Number of cylinders: | 6 |
| Construction year engine: | 1965 |
| Overhaul engine: | 2020 is er een bewijs van aanwezig? Wat is er gedaan? |
| Running hours (approx.): | 50 after overhaul |
| Fuel: | diesel |
| Fuel tank (approx.): | 1400 litre 2 steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 4 blade propeller ??????????? greased lubrication of propeller shaft ??????????? |
| Gearbox: | Reintjes WAV 200 hydraulic reduction/ratio 3:1 |
| Heating: | Webasto central heating Werkt die ????????????? on diesel also engine heating |
| Bow thruster: | DUCO hydraulic bow thruster 20 Hp |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection simple electric system |
| Batteries: | 2x 230 Ah domestic batterie(s) 2x 180 Ah starter batterie(s) 1x 80 Ah starter batterie(s) generator |
| Battery charger: | Victron Phoenix Smart battery charger 24/25/1+1 |
| Battery isolator: | Victron Argofet battery isolator |

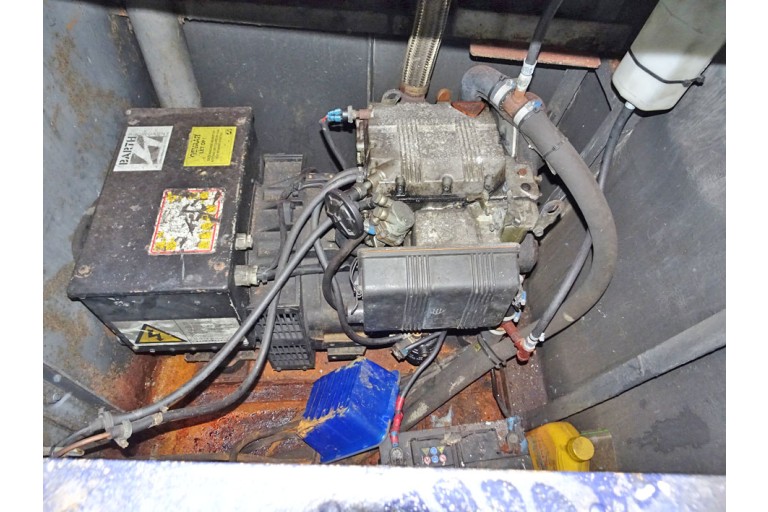

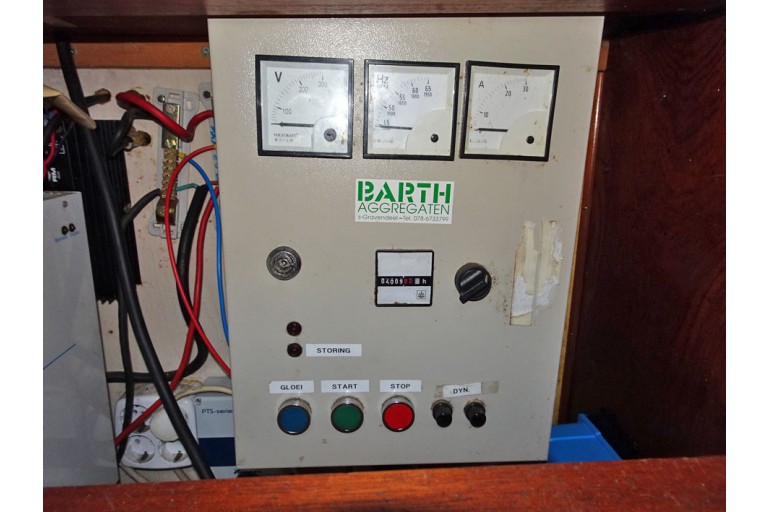

| Genny: | Deutz diesel genny 5 kVA 230 Volt 1500 RPM 4025 running hours (approx.) |
| Inverter: | Berel inverter 24/3600 |

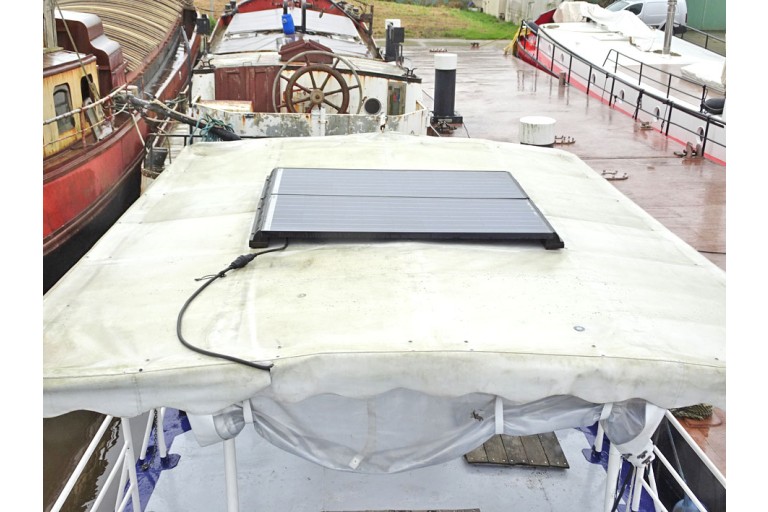

| Solar panels: | 2x |

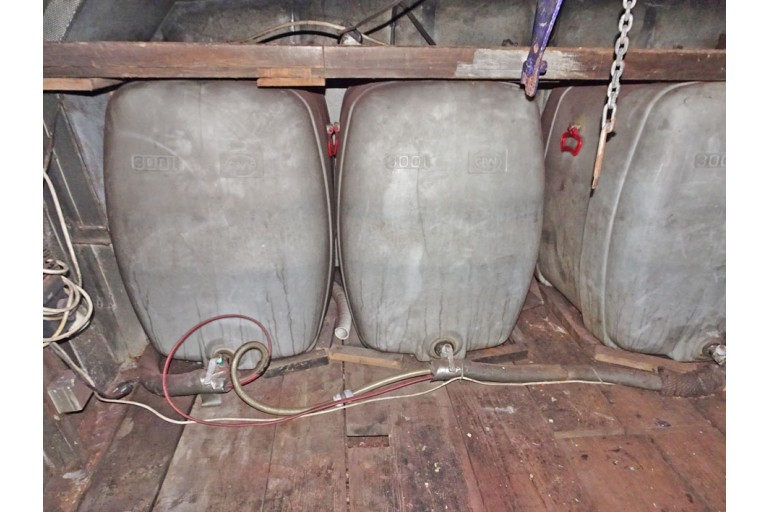

| Fresh water tank (approx.): | 900 litre 3 plastic tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | boiler/water calorifier (230 Volt) via engine cooling system |
| Holding tank (approx.): | 200 litre 1 plastic tank(s) |

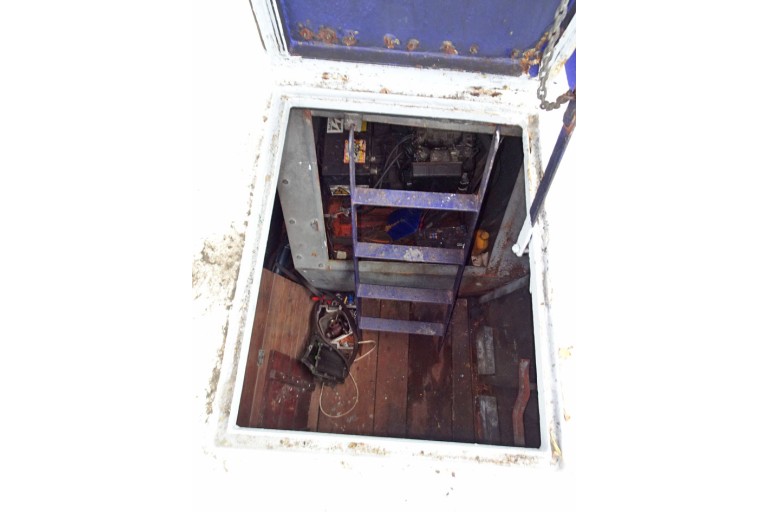

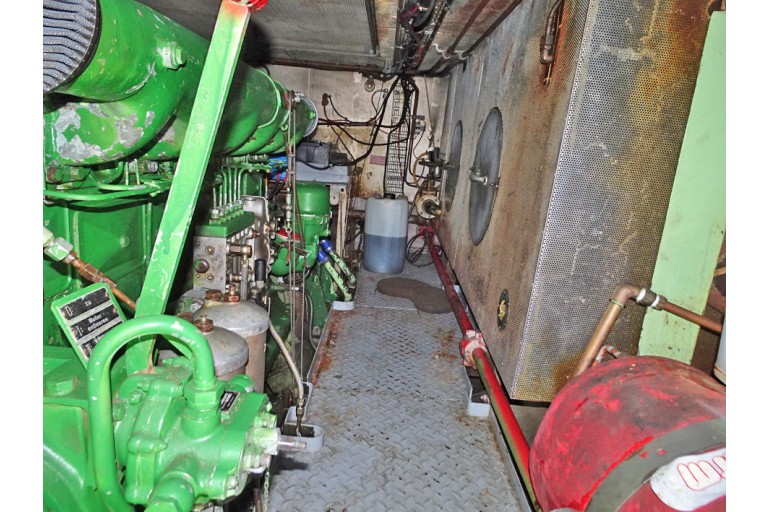

| Engineroom: | some overdue maintenance |
| Bilge pump: | present with manifold by engine & manual pump also deckwash pump |
| Gas system: | no gas on board |
| Additional information: | main engine with PTO for the hydraulic |
Accommodation

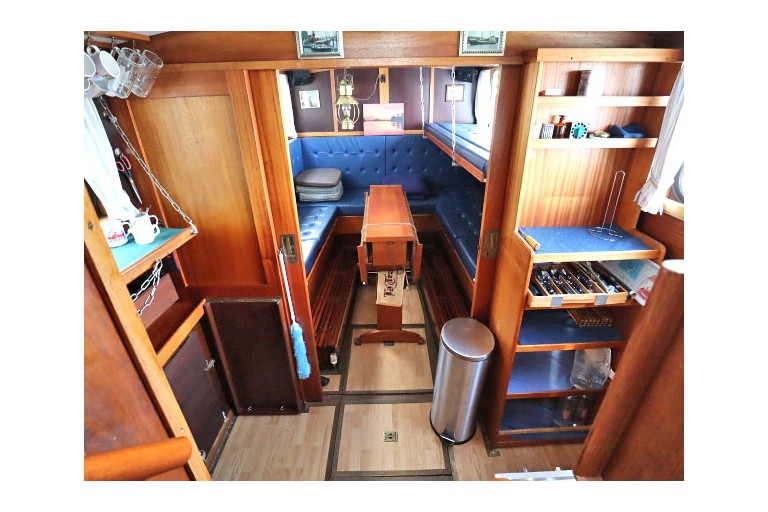

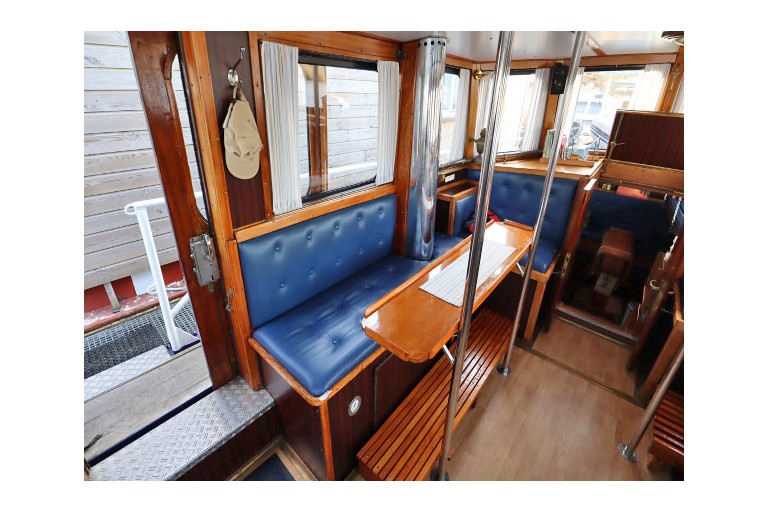

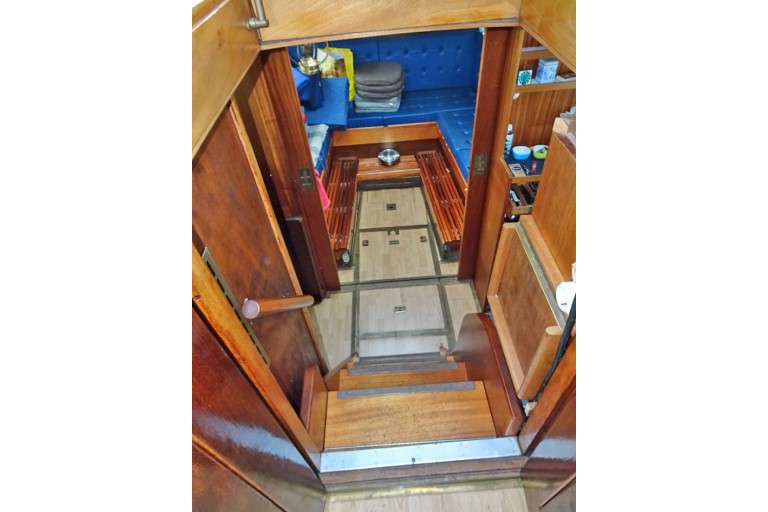

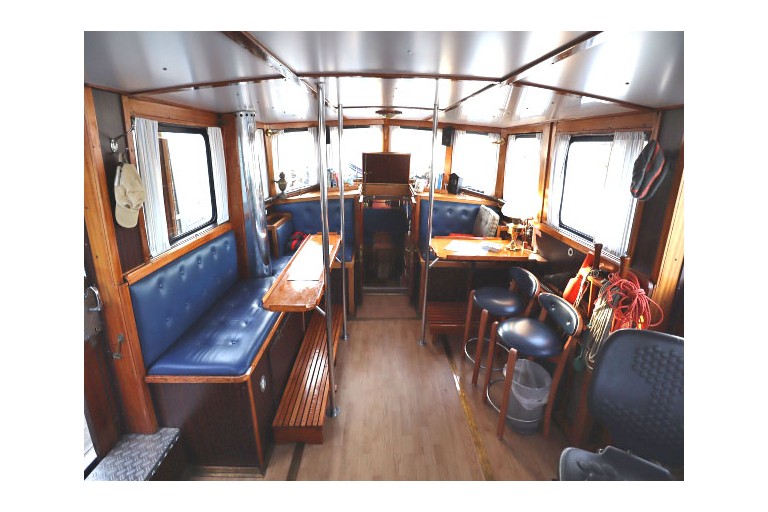

| Interior: | various materials have been used see photographs suitable for living on board |
| Insulation: | available |
| Cabins: | 1 cabin |

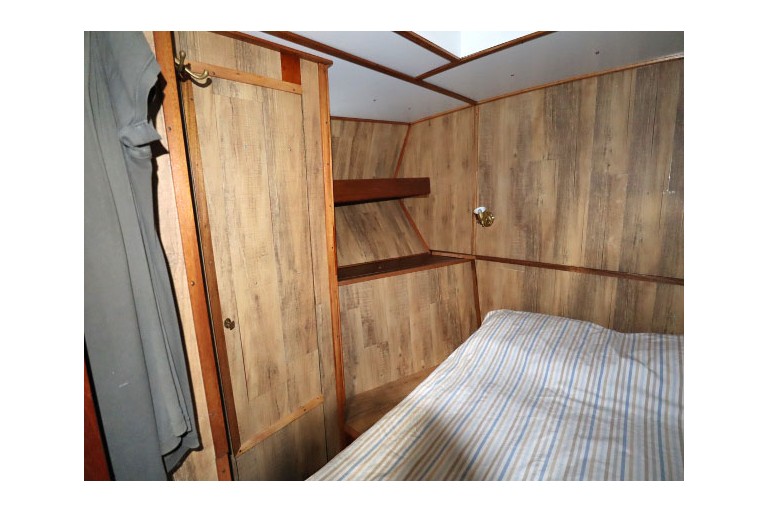

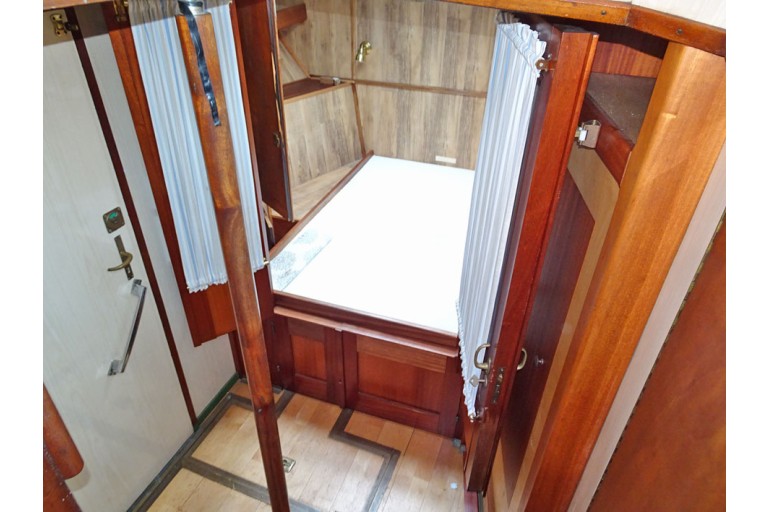

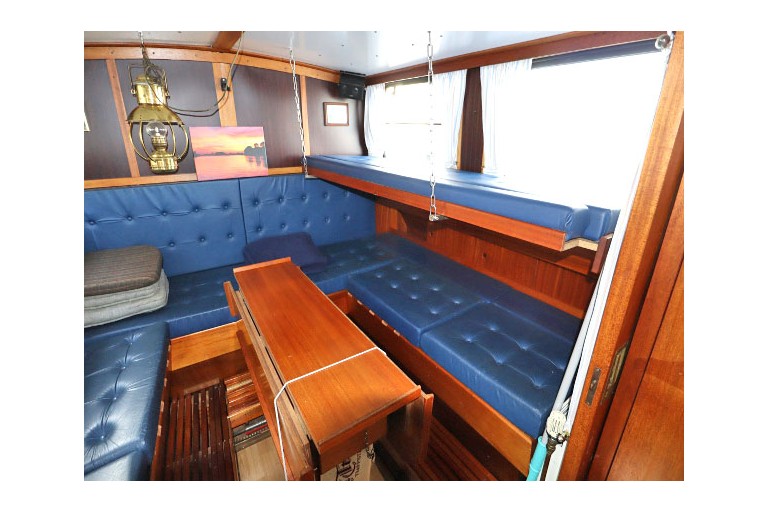

| Berth: | Forward: 1x 2-pers Aft: 4x 1-pers |

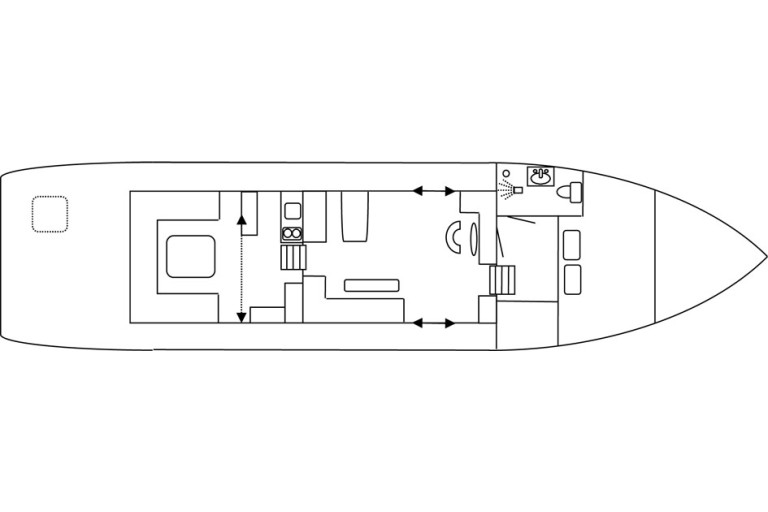

| Lay-out plan (not to scale): | see attachment |

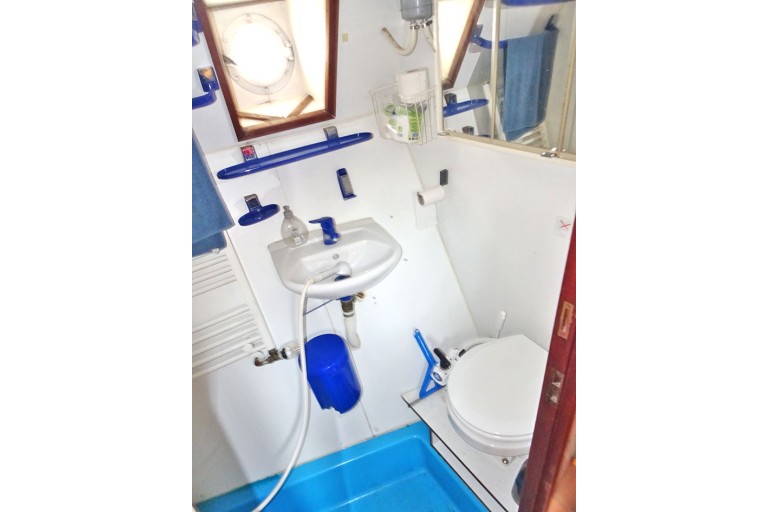

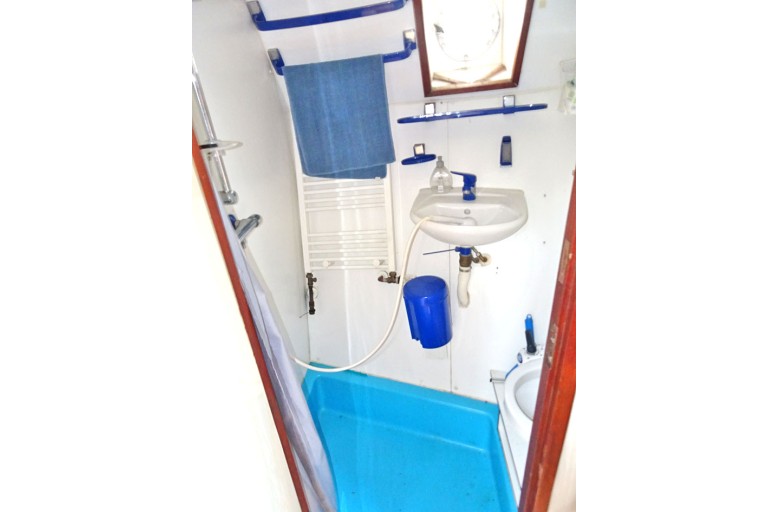

| Bathroom: | shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | hand pumptoilet |

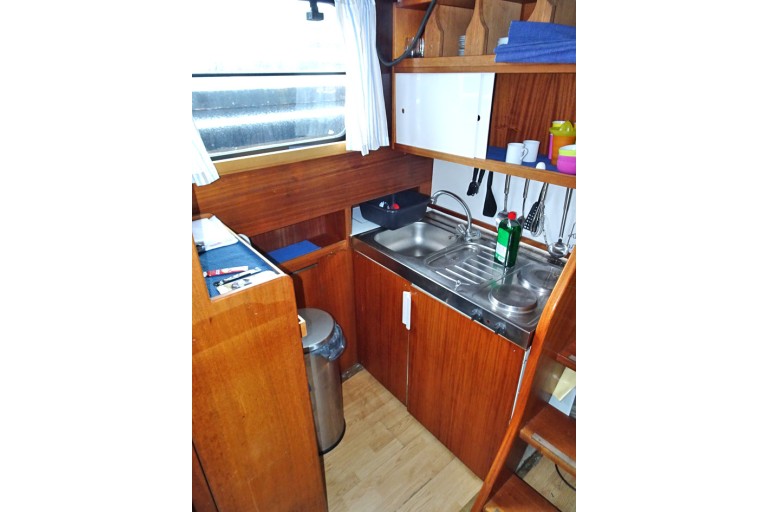

| Galley: | sideways |
| Cooker: | 2-burner hob electric cooker |

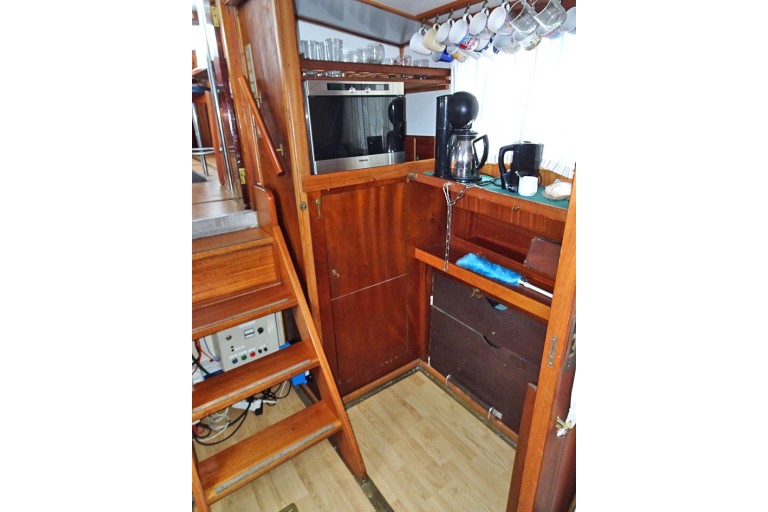

| Oven: | Miele steamer electric oven |
| Fridge / Refrigerator: | present 230 Volt |
| Worktop: | stainless steel worktop |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |

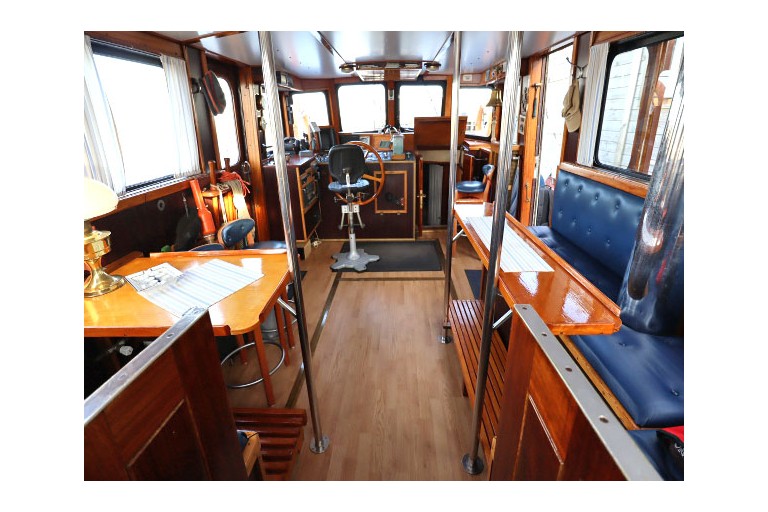

| Headroom (approx.): | wheelhouse (approx.) 1,89 m galley (approx.) 2,01 m aft (approx.) 2,01 m foc's hole (approx.) 1,89 m bathroom / toilet (approx.) 1,86 m |
Navigation equipment

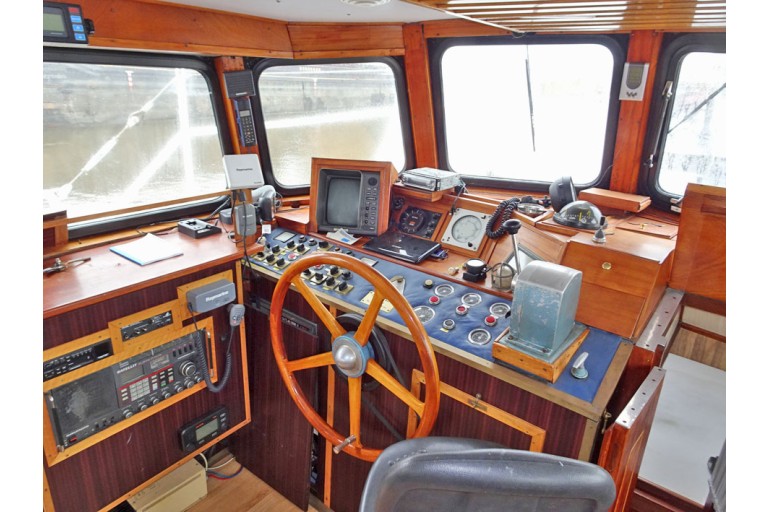

| Navigation equipment: | Em-Trak A100 Automatic Identification System (AIS) Raymarine Ray 49E VHF with DSC Raymarine ST3000 autopilot & S100 remote control Raymarine DS400X fishfinder Incastec depth / echosounder Furuno GPS rudder indicator Manacor PA-302 intercom compass Shipmate RS8300 VHF NASA Target 147 Navtex horn navigation lights 2x window wiper Furuno 1832 daylight radar search light Classens & Plath Variocourse II electric compass |
Rigging and sails
| Mast: | steel lantern mast |
| Lowerable: | yes hydraulic |
Equipment

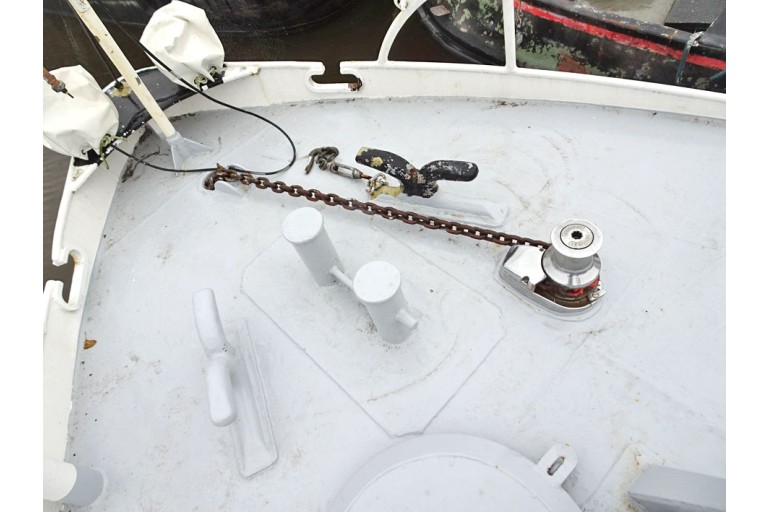

| Anchor equipment: | electric anchor winch Spek anchor anchor chain in hawse-hole cabestan Aft: manual anchor winch anchor anchor chain |

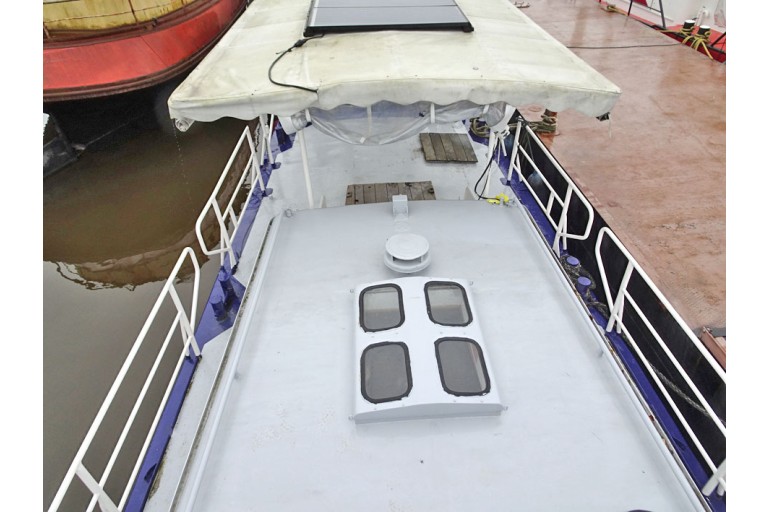

| Bimini: | bimini top above aftdeck |

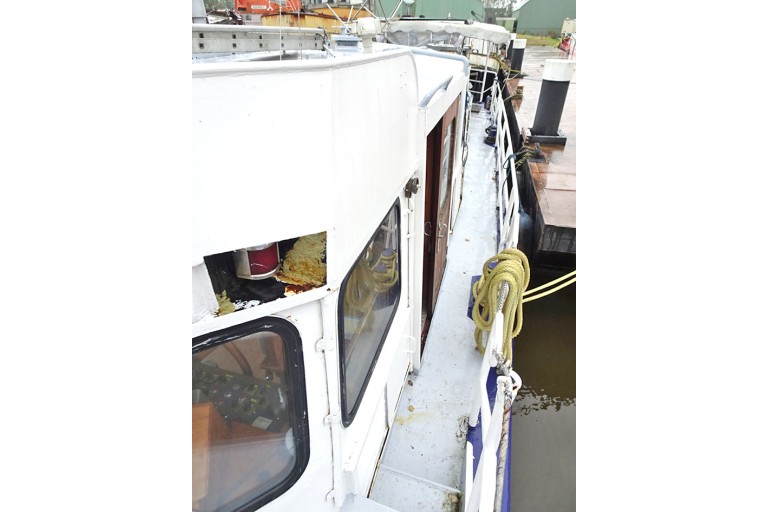

| Searail / Pulpit: | guardrail around |
| Dinghy: | is die RIB er nog bij ???????? |
| Davits: | present stainless steel |
| Safety: | life buoys life jackets fire extinguishers according to the certification requirements |
| Additional information: | aluminium gangway steering chair |
