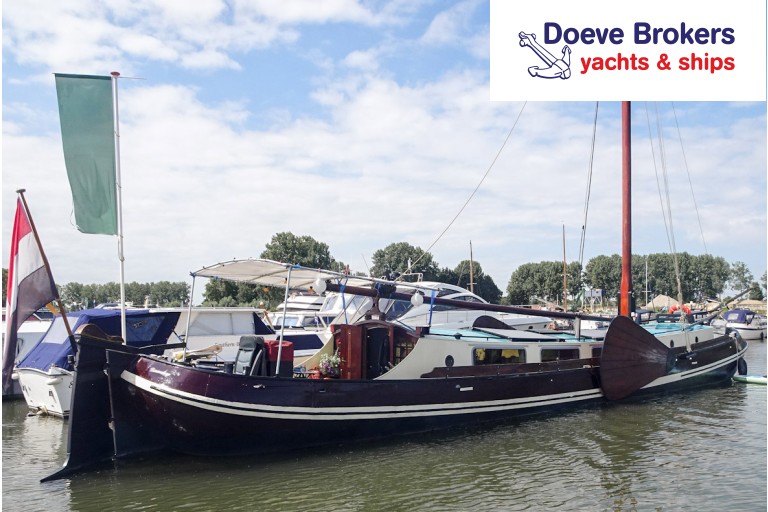

Dutch Barge, Skutsje 19.09 RESIDENTIAL BERTH
Vision Doeve Brokers
A former sailing freighter that has been completely transformed over the past two years into a comfortable and contemporary liveaboard. The ship's interior has been stripped down to the bare steel and then fitted with a completely new interior. The forecastle has been raised, providing headroom here as well. The counterweight of the mast has been removed and the mast can been lowered using an A-Frame. The warm interior is insulated and tastefully finished with mahogany and other materials. Equipped with modern conveniences such as double glazing, infrared underfloor heating, a wood-burning stove and hot-air heating, she offers every comfort for permanent living. The galley features a 4-burner induction cooktop, refrigerator and a freezer. The bathroom is fully equipped with an electric toilet, sink and a shower with thermostatic tap. The ship is technically also well-equipped including a 42 hp engine from 2018, a bow thruster, 4 solar panels and a modernized power grid. The underwater hull was treated in 2024. The ship has been assigned a permanent mooring in NL-Numansdorp. This can be taken over after approval from the municipality. This is a unique opportunity for those who want to live stylishly on the water with a beautiful ship. The vessel is currently located in the area of NL-'s-Hertogenbosch.
More information
General information
| Yard: | Shipyard Barkmeijer, NL-Stroobos |
| Rebuilt year: | interior 2023/2025 |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded open cockpit self-draining cockpit bulwark around saddleback roof closed bollard cabinets cut-water |
| Steering system: | tiller attached rudder steel rudder |
| Windows: | Topwindows plastic window frames double glazing bronze portholes |
| Displacement (approx.): | 44 metric tons |
| Airdraft (approx.): | 2,75 m lowered mast(s) 2,15 m mast(s) removed |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull white striping bordeaux red bulwark white superstructure one component system 2018 completely stripped to bare steel last underwatership treatment 2024 |
| Certificates: | no certificate requirement |
| Suitable for / as: | suitable as a year round live- aboard inland waterways recreational vessel |
| Additional information: | classic sailing yacht Hull shape is suitable for drying out. roomy foredeck Specified length is between bow and stern. Specified beam excludes the leeboards. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 42 Hp 31 kW |
| Engine brand: | Mitsubishi |
| Revolutions: | 3000 RPM |
| Engine model: | S4L2-61SD |
| Number of cylinders: | 4 |
| Construction year engine: | 2018 installed |
| Running hours (approx.): | 200 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 450 litre stainless steel tank(s) |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft Python constant velocity prop shaft with thrust bearing |
| Gearbox: | Velvet hydraulic reduction/ratio 2,91:1 |
| Heating: | Planar hot air heating on diesel stove on wood floor heating = infrared panel(s) |
| Bow thruster: | Drinkwaard 24 Volt 10 Hp |
| Electricity system: | 12 / 24 / 230 Volt shore power connection |
| Batteries: | 1x 100 Ah starter batterie(s) 4x 280 Ah domestic batterie(s) 2x 100 Ah bow thruster batterie(s) |
| Battery charger: | Victron Blue Smart battery charger 12/15 Victron Orion Blue Power battery charger 12/24-10 |
| Genny: | HBM petrol (gasoline) 5 kVA portable |
| Inverter: | Ective CSI 30 inverter 12/3000 Victron Orion-Tr inverter 24/12-10 |
| Solar panels: | 4x 420 Watt 2x MPPT 100/30 charge controller |
| Fresh water tank (approx.): | 2x 650 litre plastic tank(s) |
| Water pressure system: | hydrophore pump |
| Hot water system: | boiler/water calorifier (230 Volt) 1x 35 litre |
| Bilge pump: | present 12 Volt |
| Deck wash pump: | present 12 Volt |
Accommodation
| Interior: | mahogany finish pine synthetic floor(s) various materials have been used |
| Insulation: | Rockwool & polystyrene |
| Cabins: | 1 cabin |
| Berth: | Forward: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | walls of waterproof plate material shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | electric toilet |
| Galley: | along ships |
| Cooker: | 4-burner hob induction cooker cookerhood |
| Fridge / Refrigerator: | 230 Volt |
| Freezer: | 230 Volt |
| Worktop: | formica worktop |
| Washbasin: | sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | flatscreen TV |
| Headroom (approx.): | ownerscabin (approx.) 1,90 m shower (approx.) 1,76 m toilet (approx.) 1,79 m salon (approx.) 1,76 / 1,84 m galley (approx.) 1,97 m |
| Additional information: | useful as live-aboard very well maintained The vessel will be delivered with everything on board less personal effects & artwork. Beko washing machine / dryer see photographs |
Navigation equipment
| Navigation equipment: | Raymarine VHF with DSC Clipper log / speed Clipper depth / echosounder navigation lights |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | wooden mast |
| Lowerable: | yes electric spreader |
| Boom: | wooden boom |
| Gaff: | wooden gaff |
| Jib boom / Bowsprit: | bowsprit |
| Leeboards: | 2x hardwooden leeboards electric operated centreboard |
| Material of the sails: | Dacron |
| Sails: | mainsail jib |
| Additional information: | stainless steel standing rigging 2018 bobstay |
Equipment
| Anchor equipment: | manual anchor winch kedge anchor anchor chain spare anchor = Klipp anchor |
| Awnings: | sunblinds for windows |
| Bimini: | bimini top above cockpit |
| Safety: | 1x fire extinguisher 1x smoke detector(s) 1x life buoy |
