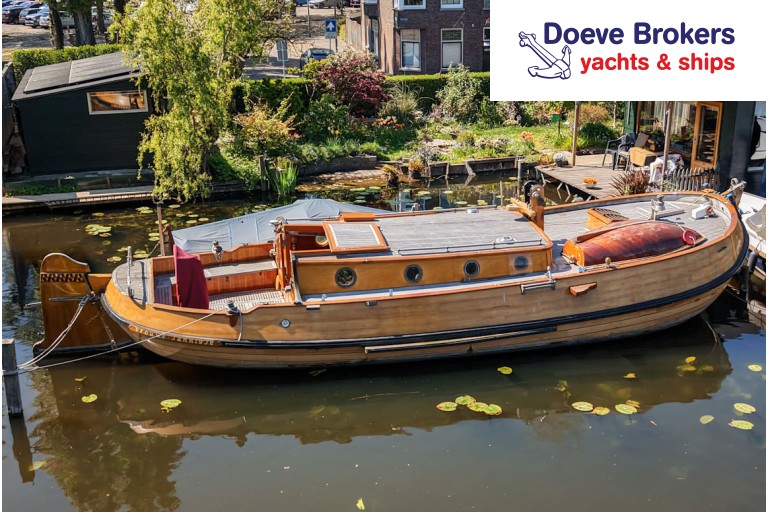

Gipon Lemsteraak 11.10
Vision Doeve Brokers
This Lemsteraak is a fine example of a design by J.K. (Jaap) Gipon. The vessel was built by the owner, an experienced yacht carpenter, and has proven herself in practice during many fine voyages through the Netherlands, Germany and the Baltic Sea. It is a solidly built sailing yacht, constructed in oak with epoxy, ensuring a strong and durable structure. In recent years she has been sailed under engine power, which works perfectly with the powerful Perkins engine. The vessel has a spacious cockpit with cockpit benches. Below deck, the Lemsteraak offers a practical and warm layout. The salon is fitted with a U-shaped seating area and a galley. Forward there is an owner’s cabin, a bathroom with toilet and a cabin with four berths. In the forepeak there are the battery set and the inverter, as well as ample storage space, including for the sails. The vessel is currently not rigged; the spars and leeboards are stored at another location and must be collected and fitted by the buyer. Additionally, the varnish requires attention. The asking price is based on this. On the other hand, a distinctive and characterful vessel is being offered, proven herself to be a solid, seaworthy and practical yacht with excellent sailing qualities. An interesting project for the enthusiast who wishes to restore a classic vessel to full glory.
More information
General information
| Yard: | J.J. Vermaas, NL-Vlaardingen |
| Designer / Architect: | J.K. Gipon |
| Hull shape: | round bilged |
| Hull material: | oak & Meranti epoxy |
| Deck material: | teak deck(s) |
| Superstructure material: | mahogany |
| Construction method: | carvel rubbing strake around open cockpit self-draining cockpit |
| Self made: | yes high quality |
| Steering system: | hydraulic wheel on steering pedestal oak rudder attached rudder |
| Windows: | portholes |
| Displacement (approx.): | 12 metric tons |
| Airdraft (approx.): | 2,20 m mast(s) removed 2,40 m lowered mast(s) |
| Owner: | Dutch owner |
| Colour / Paint System: | 2K clear varnish Hull 1K clear varnish superstructure see photographs overdue maintenance |
| RCD / CE Certification: | exempt, built before June 16, 1998 |
| Suitable for / as: | inland waterways coastal waters recreational vessel |
| General information: | offered in the condition that she is in from first owner |
| Additional information: | Specified length is between bow and stern. Specified beam excludes the leeboards. Hull shape is suitable for drying out. classic sailing yacht beautiful sheer forepeak with chain locker |
Technical information
| Enginepower: | 50 Hp 36 kW |
| Engine brand: | Perkins |
| Revolutions: | 3600 RPM |
| Engine model: | Prima M50 |
| Number of cylinders: | 4 |
| Construction year engine: | 1991 into operation |
| Running hours (approx.): | 2775 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 170 ltr 1x 20 ltr = daytank(s) |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | propeller shaft constant velocity prop shaft with thrust bearing |
| Gearbox: | Hurth HBW 250 3R reduction/ratio 2,74:1 |
| Heating: | central heating on diesel |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection Mastervolt mainmaster control |
| Batteries: | 4x 100 Ah |
| Battery charger: | Mastervolt Ultra Mass combi inverter/charger 24/3500/100 |
| Inverter: | Mastervolt Ultra Mass combi inverter/charger 24/3500/100 |
| Fresh water tank (approx.): | 400 ltr estimated |
| Water pressure system: | electric water pump |
| Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system |
| Gas system: | present not according to the present requirements |
Accommodation
| Interior: | oak interior very well maintained see photographs |
| Insulation: | no not needed |
| Cabins: | 2 cabins |
| Berth: | Forward: 4x 1-pers owners cabin: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | partly tiled washbasin with mix tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | electric toilet |
| Galley: | along ships |
| Cooker: | 3-burner hob on gas in combination with the oven stainless steel half gimbal |
| Oven: | gas oven |
| Fridge / Refrigerator: | fridge / refrigerator drawer |
| Worktop: | tiled worktop |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |
| Headroom (approx.): | salon (approx.) 1,88 / 1,78 m corridor / walkthrough (approx.) 1,80 m bathroom / toilet (approx.) 1,70 m ownerscabin (approx.) 1,78 m forward cabin (approx.) 1,42 m |
Navigation equipment
| Navigation equipment: | Simrad RS25 VHF with DSC Simrad portable VHF compass B&G depth / echosounder B&G log / speed navigation lights |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | Oregon Pine hollow glued Brasker Masten |
| Lowerable: | yes |
| Boom: | Oregon Pine Brasker Masten |
| Gaff: | ash Brasker Masten |
| Jib boom / Bowsprit: | Oregon Pine Jib boom Brasker Masten |
| Leeboards: | oak wooden leeboards 2x leeboards winch |
| Winches: | 4x halyard winch selftailing 3x sheet winch selftailing |
| Material of the sails: | Dacron |
| Sails: | mainsail genua staysail yankee storm jib |
| Additional information: | pin rail bobstay |
Equipment
| Anchor equipment: | electric anchor winch Pool anchor Stainless steel anchor chain in hawse-hole warping drum |
| Awnings: | winter cover(s) |
| Dinghy: | present |
| Additional information: | hard wooden skylight |
