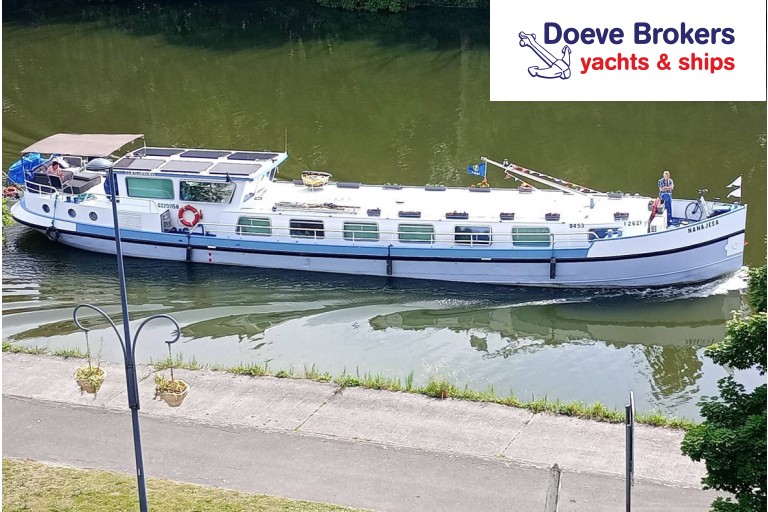

Luxe Motor Dutch Barge 26.25 with ES-TRIN
Dimensions (m):
26.25 x 4.57 x 1.20
Ref. no.:
251201
Mooring:
Near Antwerp, Belgium
Construction year:
1907
Material:
steel
Price:
€ 249.500,--
VAT not applicable
Vision Doeve Brokers
This liveaboard Dutch Barge has been completely refitted and redecorated by the current owner. The layout has been designed to offer excellent comfort for permanent residence on board, while also being ideally suited for bed & breakfast operations or cruising with guests on the European inland waterways, particularly in France, Belgium and the Netherlands. The vendor has successfully operated this concept for many years, even cruising as far as the Canal du Midi in the south of France. The vessel is equipped with, among other things, a spud pole, a Whisper generator set, a reliable main engine and an electrically driven bow thruster, making maneuvering in harbors and locks easy and precise. For guests, there are two cabins available, each with a private en-suite bathroom. The owner’s cabin, also equipped with an en-suite bathroom, is located in the aft cabin. Additionally, there is a spacious storage area that could be converted into an extra cabin if desired. Behind the generous wheelhouse, a comfortable aft deck seating area has been created. In November 2024, the vessel was re-certified, resulting in a renewed certificate valid until November 2031.
More information
General information
| Yard: | Shipyard Gebr. G. & H. Bodewes, NL-Martenshoek |
| Rebuilt year: | 2019/2021 |
| Hull shape: | flatbottom |
| Hull material: | iron/steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded wide side decks (gunnels) rubbing strake around bulwark around deckhouse 2 watertight bulkhead(s) |
| Self made: | interior |
| Steering system: | hydraulic wheel |
| Windows: | aluminium windows frames double glazing hardwooden door |
| Displacement (approx.): | maximum allowable displacement 74,463 m³ displacement in empty condition 52,266 m³ displacement 22,197 m³ |
| Ballast (approx.): | concrete blocks 4 metric tons |
| Airdraft (approx.): | 3,20 m everything down |
| Owner: | Belgian owner |
| Registration: | Belgian registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | grey hull white bulwark grey bulwark white superstructure very well maintained last underwatership treatment 11-2024 |
| Certificates: | Union Inland Navigation Certificate (ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 11-2031 |
| Suitable for / as: | inland waterways suitable as a year round live- aboard recreational vessel hotel ship |
| General information: | Hand over in consultation. good sailing characteristics |
| Additional information: | Hull shape is suitable for drying out. wheelhouse forepeak Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 95 Hp 70 kW |
| Engine brand: | DAF |
| Revolutions: | 1750 RPM |
| Engine model: | 615 |
| Number of cylinders: | 6 |
| Construction year engine: | 1976 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 700 litre 1x 6500 litre steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Self Changing Gears MRF 350MK3A hydraulic |
| Speed (approx.): | 14,5 kilometer/hour |
| Heating: | Webasto hot air heating on diesel & via air conditioning unit |
| Air conditioning: | present reversed circle |
| Bow thruster: | DUCO electric bow thruster 16 Hp 24 Volt |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 2x 230 Ah bow thruster batterie(s) 2x 180 Ah starter batterie(s) 1x 105 Ah starter batterie(s) generator traction batterie bank (12x 2 Volt) |
| Battery charger: | Victron Blue Smart battery charger 24/8 Victron Skylla-TG battery charger 24/100 |
| Genny: | Kohler 13EFOZ whisper set 13 kVA 230 Volt 1500 RPM 2800 running hours (approx.) |
| Inverter: | 2x Victron Phoenix inverter 24/3000 |
| Solar panels: | 6x solar panel Victron BlueSolar MPPT charge controller 150/60-MC4 Victron BlueSolar MPPT charge controller 100/15 |
| Fresh water tank (approx.): | 1x 9000 litre stainless steel tank(s) |
| Water pressure system: | hydrophore pump |
| Hot water system: | 2x boiler/water calorifier (230 Volt) & via engine cooling system |
| Holding tank (approx.): | not present, enough space to build-in |
| Bilge pump: | present |
| Gas system: | yes, bottle(s) in bottle box |
| Additional information: | LED lightning |
Accommodation
| Interior: | Plywood painted white see photographs |
| Insulation: | foamed insulation |
| Cabins: | 3 cabins |
| Berth: | Forward: 1x 2-pers Midships: 1x 2-pers Aft: 1x 2-pers Sofa bed: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | 3x En Suite shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | 3x toilet |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob on gas stainless steel cookerhood |
| Oven: | microwave/oven |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | present 230 Volt |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | present |
| Entertainment: | selfsearching satellite antenna radio/CD player |
| Headroom (approx.): | wheelhouse (approx.) 1,97 m galley (approx.) 1,98 m salon (approx.) 2,20 m middle hut (approx.) 2,08 m bathroom / toilet (approx.) 2,08 m corridor / walkthrough (approx.) 2,06 m forward cabin (approx.) 2,08 m bathroom / toilet (approx.) 2,07 m ownerscabin (approx.) 1,99 m bathroom / toilet (approx.) 2,01 m |
| Additional information: | The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. useful as charter useful as live-aboard central vacuum clean system washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | Em-Trak A100 Automatic Identification System (AIS) ICOM IC-M323G VHF with DSC Clipper depth / echosounder window wiper horn navigation lights clock barometer |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch Pool anchor anchor cable in hawse-hole spudleg / pole (electric) 2,75 m under the bottom |
| Bimini: | sun awning |
| Boarding ladder: | present aluminium |
| Searail / Pulpit: | searail on bulwark guardrail around aftdeck |
| Safety: | life buoys fire extinguishers life jackets according to the certification requirements |
| Additional information: | deck lights sundeck aluminium gangway steering chair Survey report of the underwatership is available (11-2024) bicycle rack |
