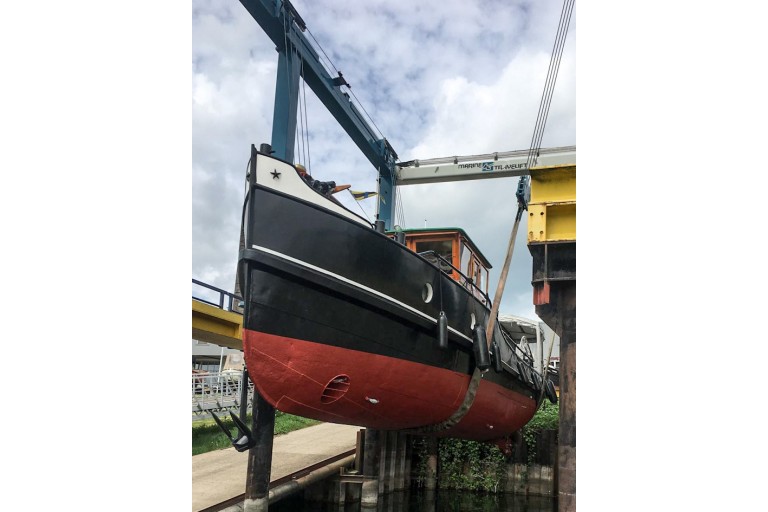

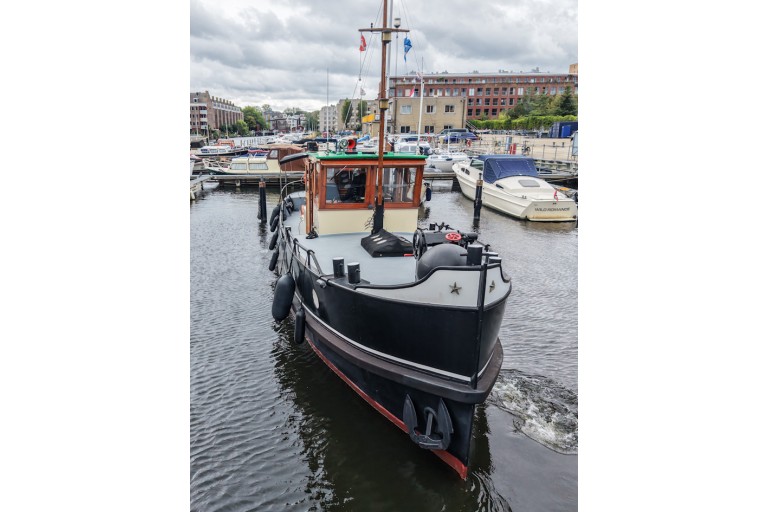

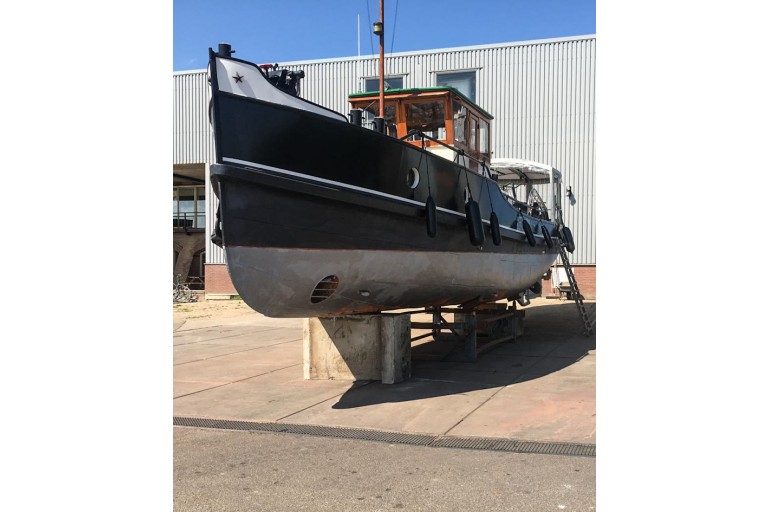

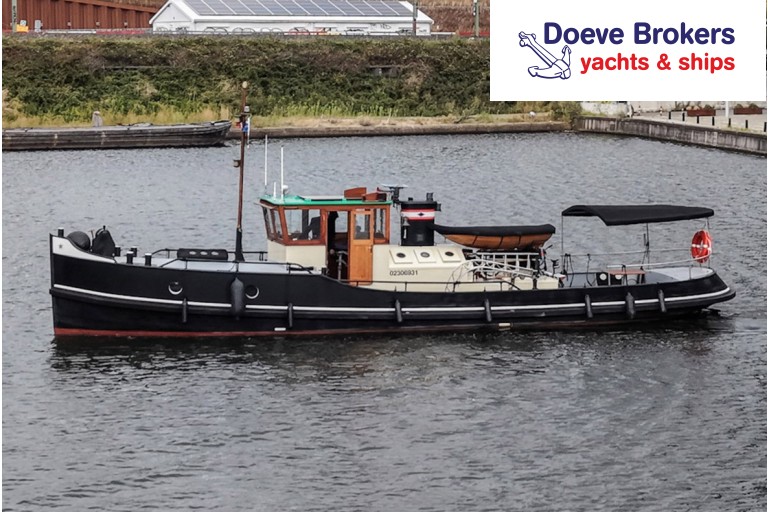

Tugboat 15.63, ES-TRIN certified
Vision Doeve Brokers

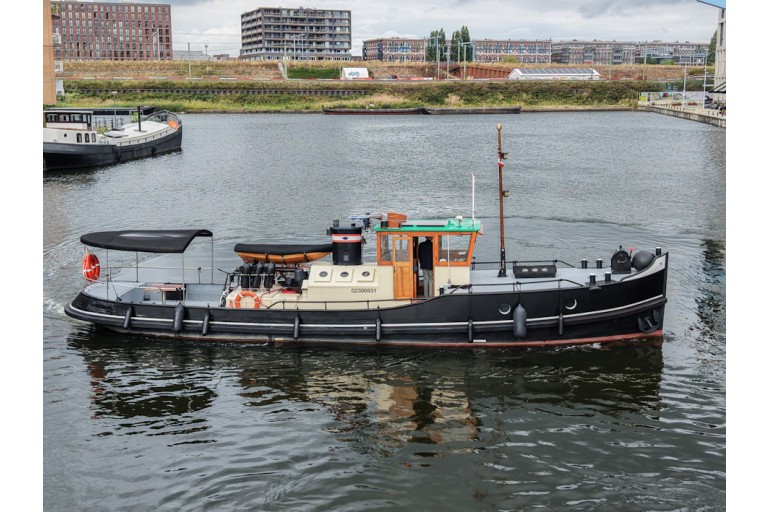

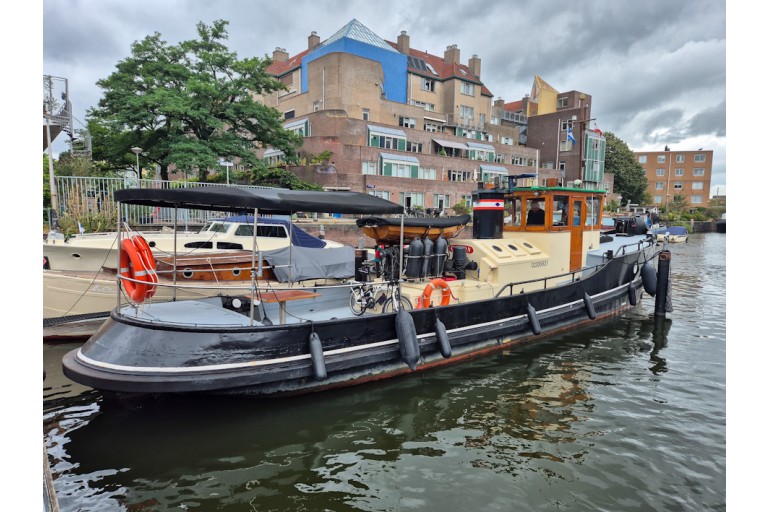

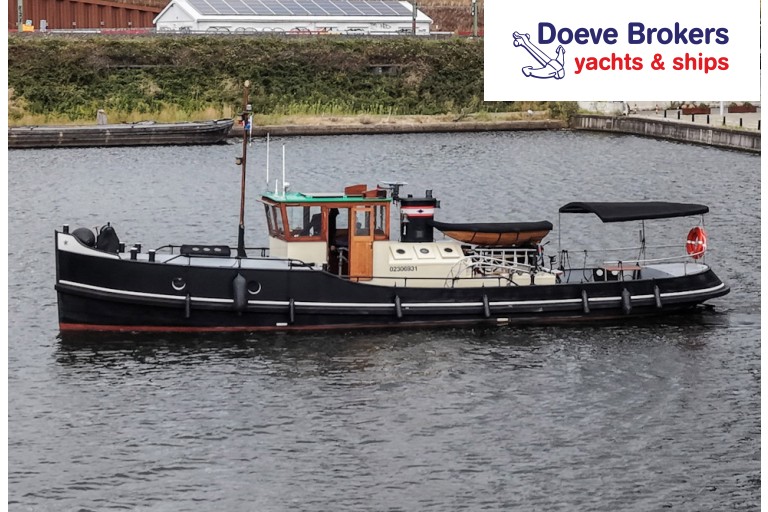

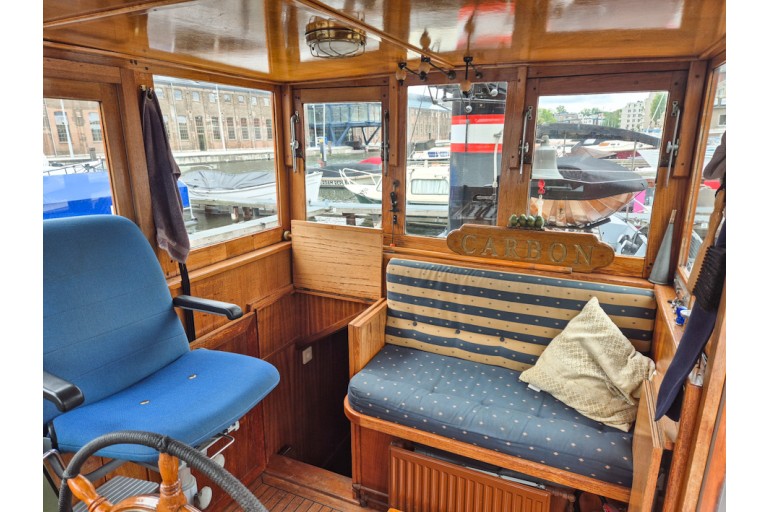

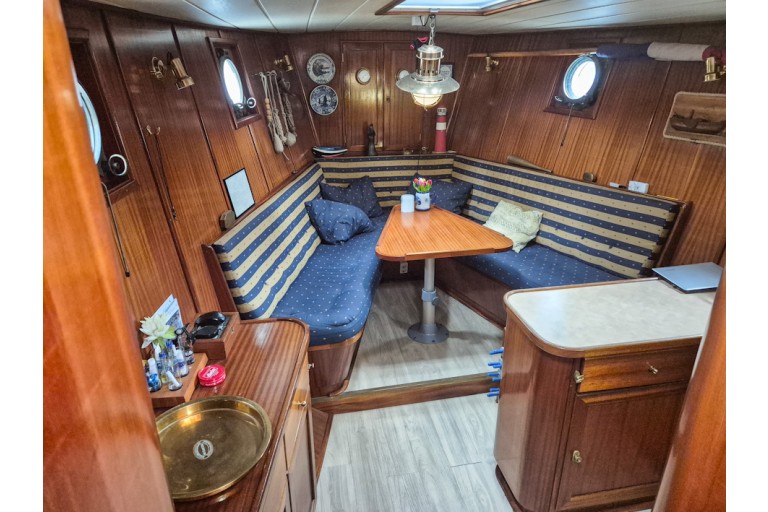

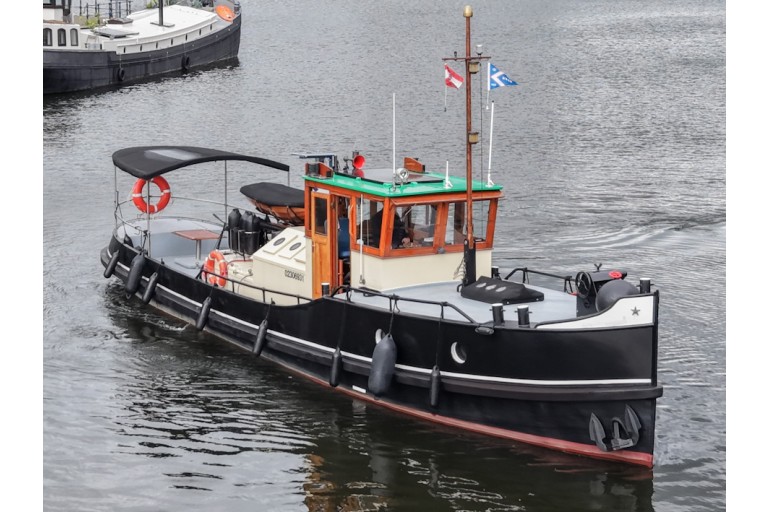

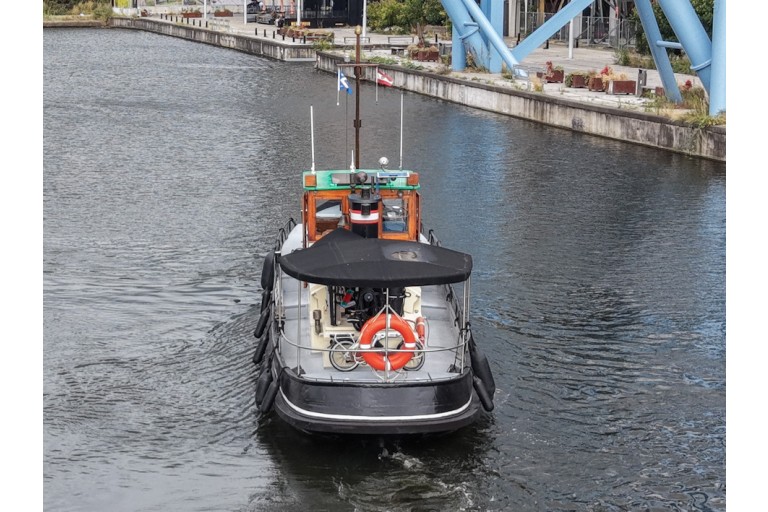

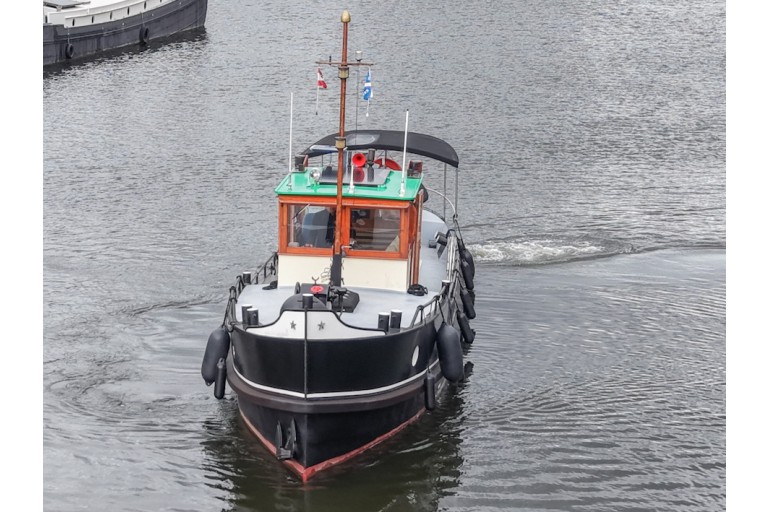

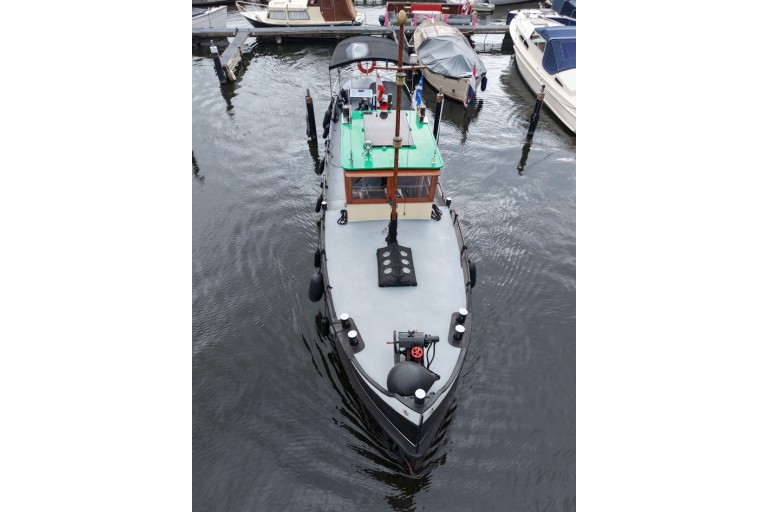

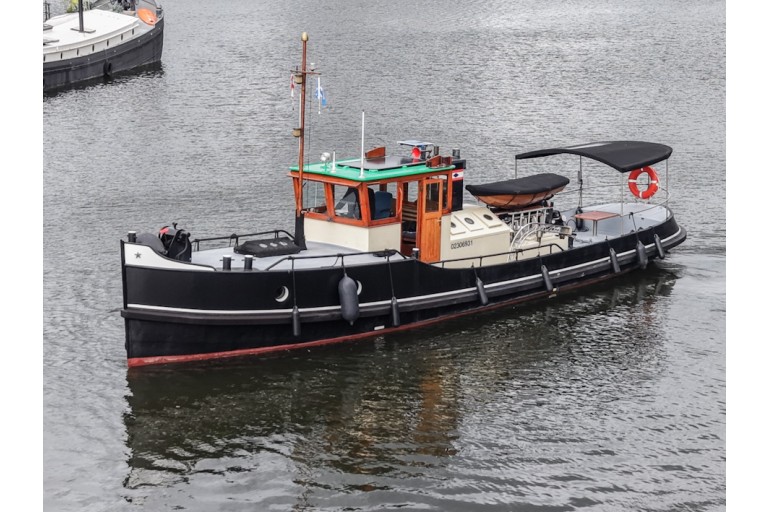

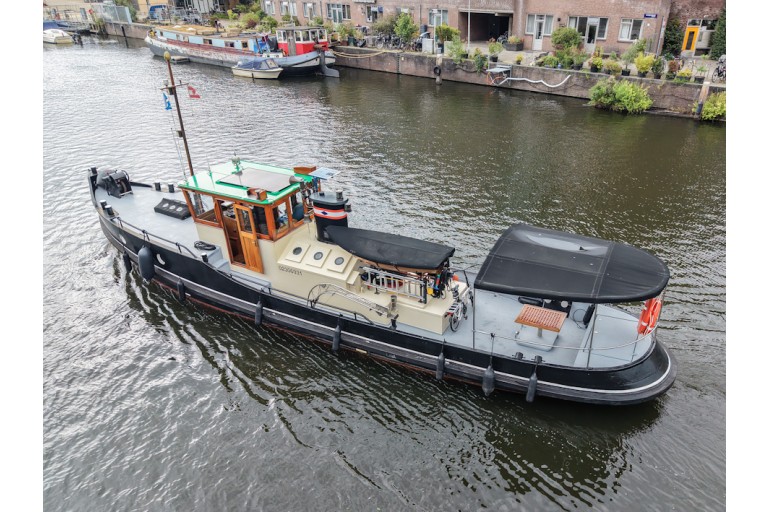

This characterful former steam tug is a fine example of sailing maritime heritage. Around 1946, the vessel was converted and the original steam engine was replaced by a diesel engine. Today, propulsion is provided by a powerful 6-cylinder diesel engine of 165 hp / 121 kW. Although this recreational tug is not subject to certification requirements, she has a valid certificate until August 2029. A notable feature is that both the forepeak and aft accommodation are directly accessible from the wheelhouse. Combined with approximately 1.98 metres of headroom below deck, this is certainly not usual for a tug of this type and considerably enhances comfort on board. The galley is situated in the foreship and is equipped with an induction hob. The V-shaped dinette also provides practical sleeping accommodation and can be used as two separate single berths or converted into one double bed. A unique opportunity for the tugboat enthusiasts looking for an authentic vessel that is not only in a very good state of maintenance but also offers modern comfort. We expect that the new owner of the Carbon will be a very welcome participant at many maritime events.
More information
General information
| Yard: | Shipyard Van Eijk & Zn, NL- Overschie |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded flush deck rubbing strake around bulwark 1 watertight bulkhead(s) Sturdy, heavily constructed closed bollard cabinets aft cabin below |

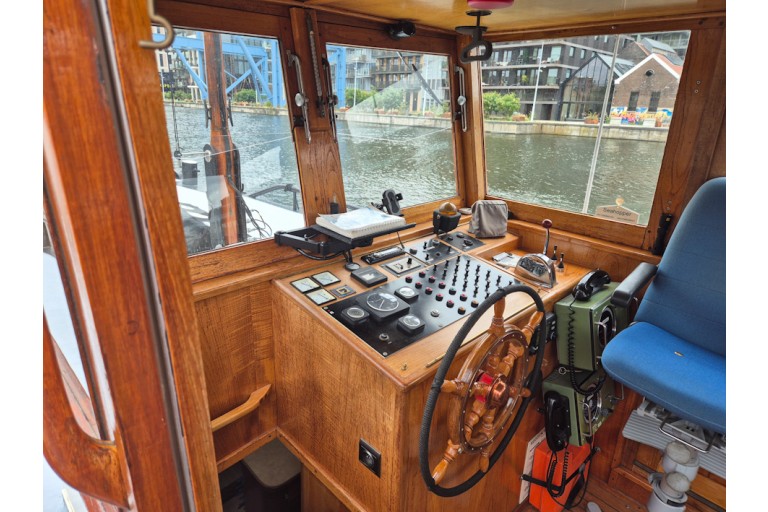

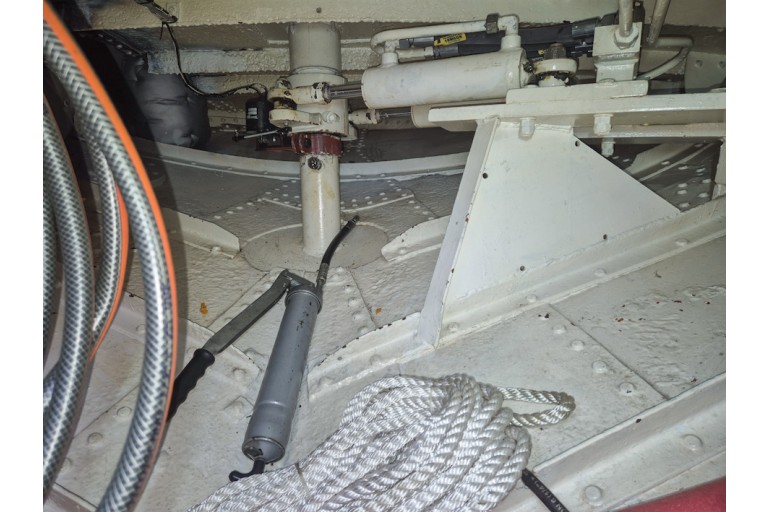

| Steering system: | hydraulic wheel & joystick |
| Windows: | portholes hardwood window frames hardwood outside doors |
| Displacement (approx.): | 30 metric tons |
| Airdraft (approx.): | 3,15 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |

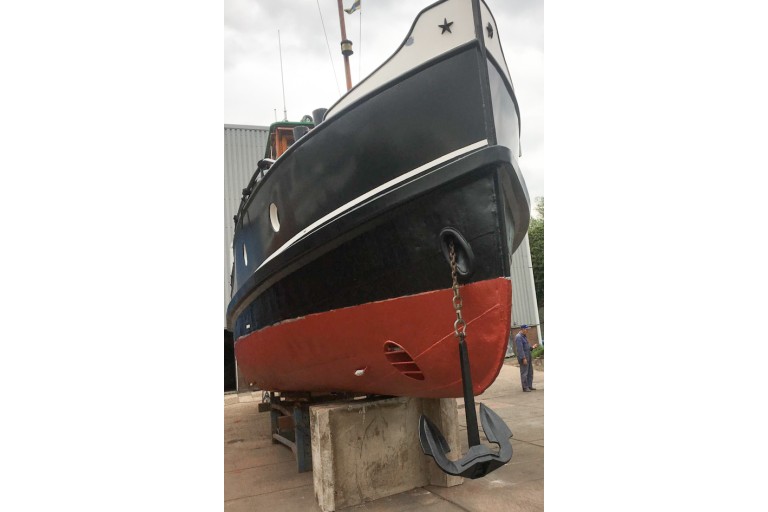

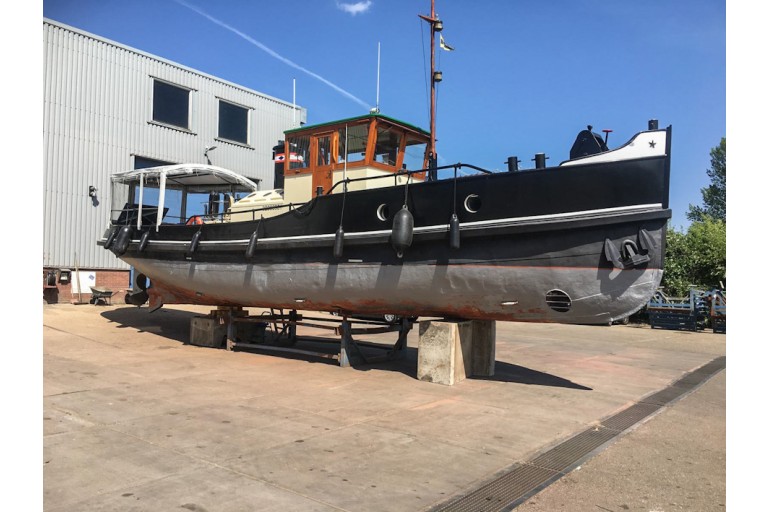

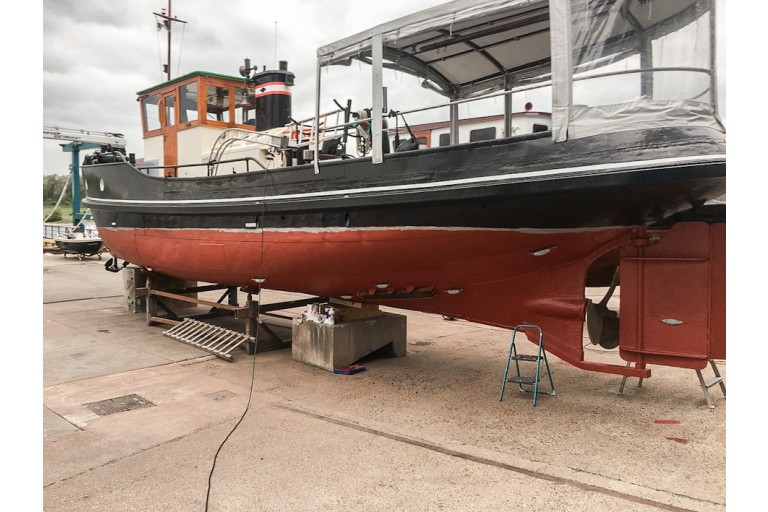

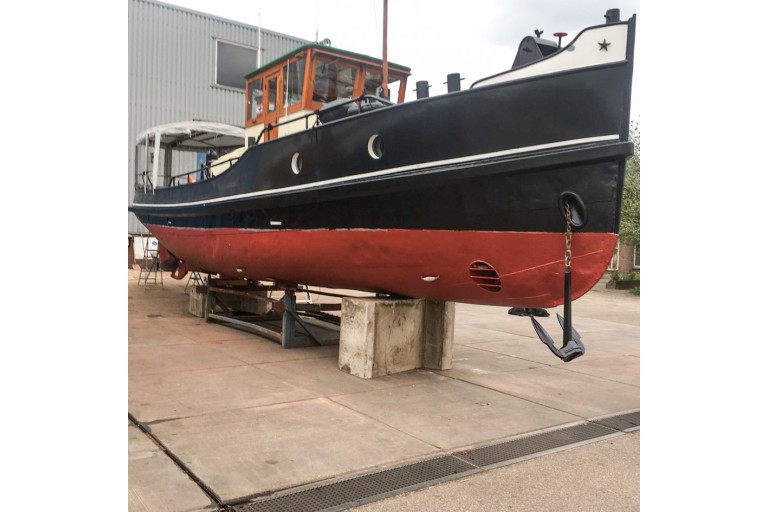

| Colour / Paint System: | black hull black bulwark cream superstructure last underwatership treatment 09-2022 |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands EU zone 3 EU zone 4 Waal, Lek & NL Rhine valid until: 08-2029 no certificate requirement |
| Suitable for / as: | inland waterways suitable for bigger waterways recreational vessel |
| General information: | The ship is recognized as a Historic Vessel Old age clause applicable. |

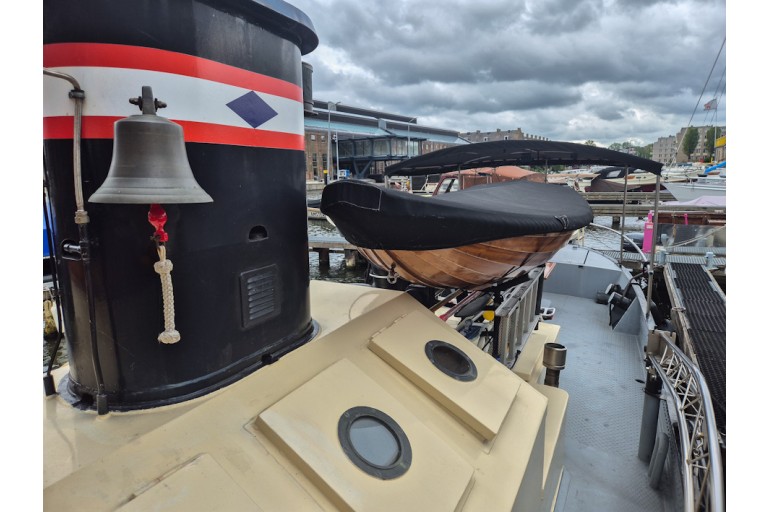

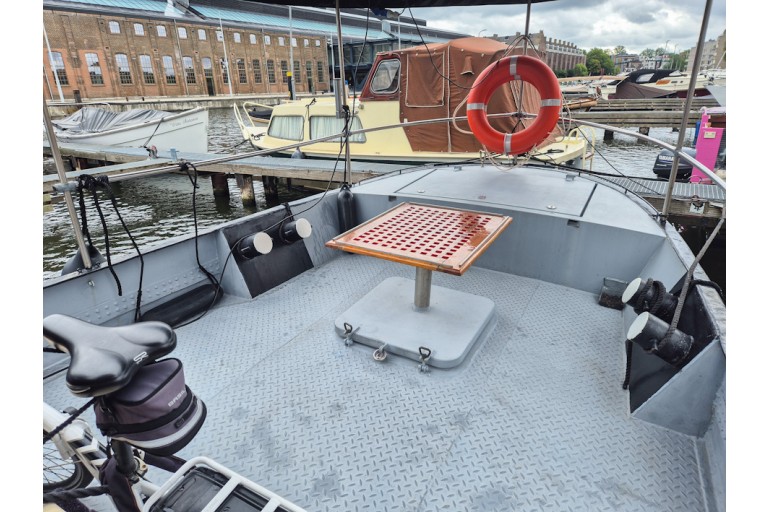

| Additional information: | tug bitts towing hook classic motor yacht tug spacious aftdeck roomy foredeck Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information

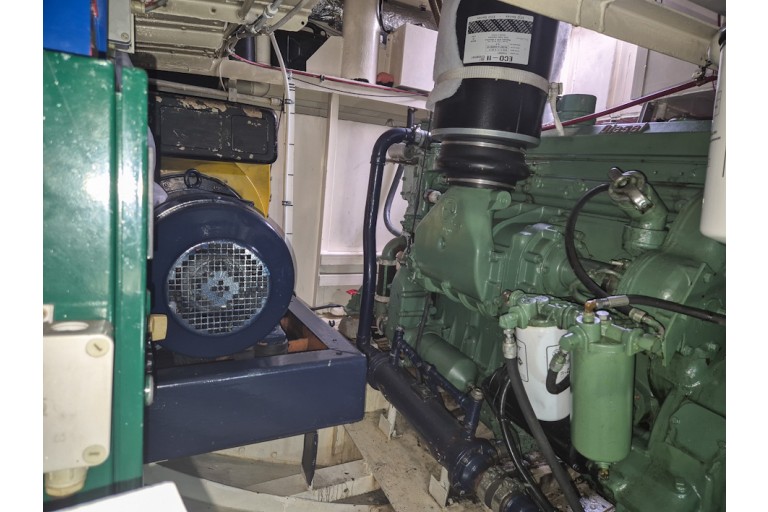

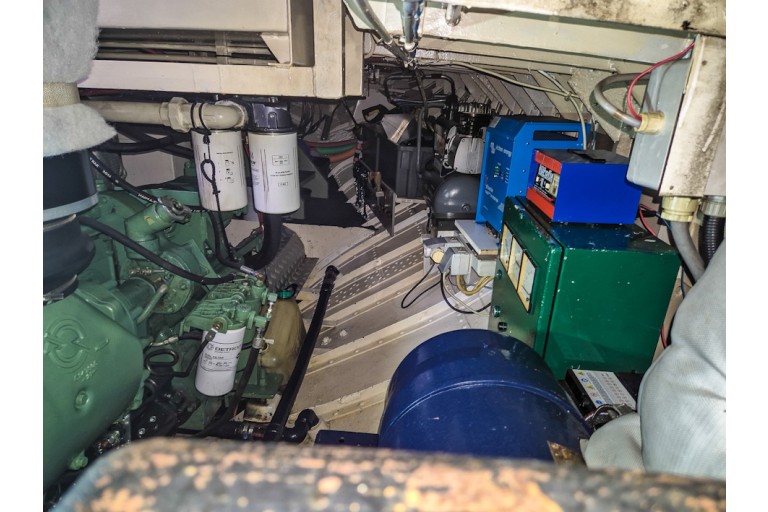

| Enginepower: | 165 Hp 121 kW |
| Engine brand: | GM Detroit |
| Revolutions: | 1600 RPM |
| Engine model: | 671 |
| Number of cylinders: | 6 |
| Construction year engine: | 1988 |
| Running hours (approx.): | 6500 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 700 litre 1 steel tank(s) |
| Cooling system: | closed cooling pipes dry exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Twin Disc hydraulic reduction/ratio 3,39 : 1 |
| Speed (approx.): | 11 km/hour cruising speed at 1000 RPM 16 km/hour top speed |

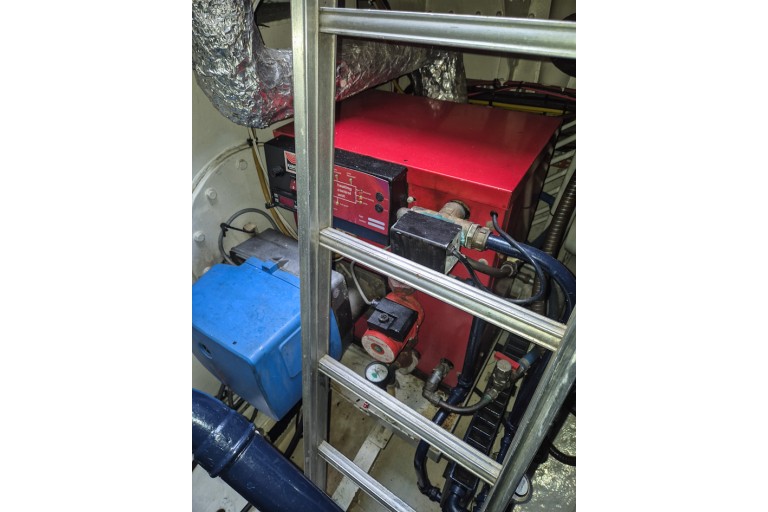

| Heating: | Kabola B12TAP central heating combi boiler on diesel |
| Bow thruster: | hydraulic bow thruster proportional |

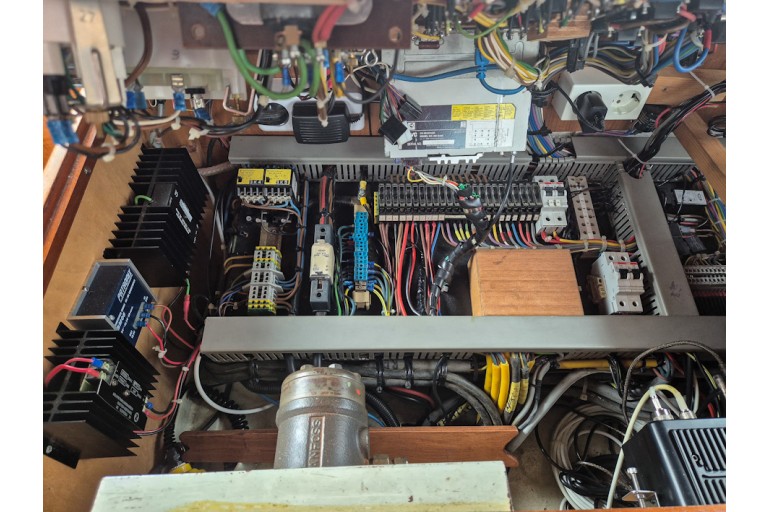

| Electricity system: | 24 / 230 Volt 230 Volt shore power connection Victron Phoenix Multi Control |
| Batteries: | 2x 230 Ah starter batterie(s) 2x 230 Ah domestic batterie(s) 2x 230 Ah domestic batterie(s) 1x 74 Ah starter batterie(s) generator |
| Battery charger: | Victron Phoenix MultiPlus combi inverter/charger 24/2000/60 Einhell Eurofix battery charger |
| Genny: | Hatz 1D80C whisper diesel 4 kVA 230 Volt 1500 RPM |
| Inverter: | Victron Phoenix MultiPlus combi inverter/charger 24/2000/60 |

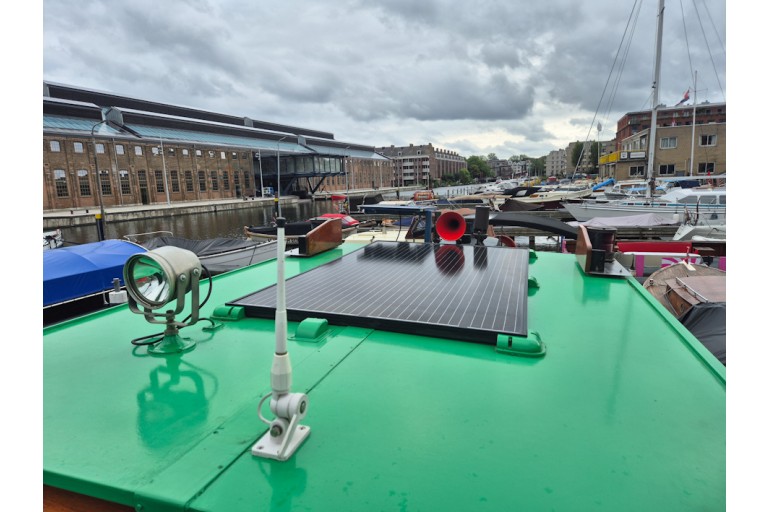

| Solar panels: | 1 solar panel Solarfam MPPT Solar Charge Controller charge controller |
| Fresh water tank (approx.): | 650 litre 1 steel tank(s) |
| Water pressure system: | hydrophore pump |
| Hot water system: | through the central heating |
| Holding tank (approx.): | 350 litre 1 plastic tank(s) |
| Diesel waterseparator: | present |
| Bilge pump: | 2x 24 Volt submersible pump |
| Deck wash pump: | present 230 Volt |
| Gas system: | no gas on board |

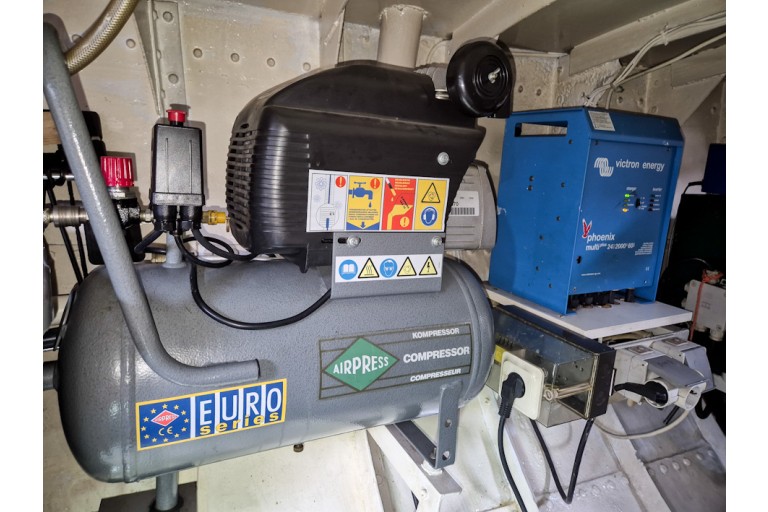

| Additional information: | Airpress air compressor |
Accommodation

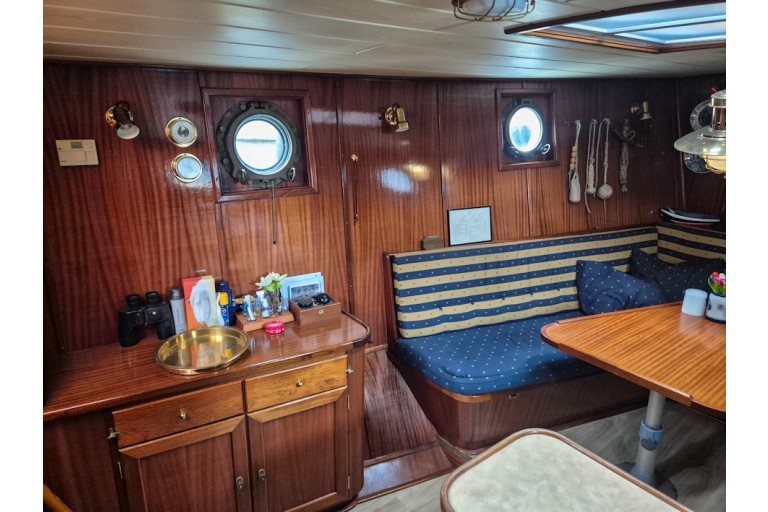

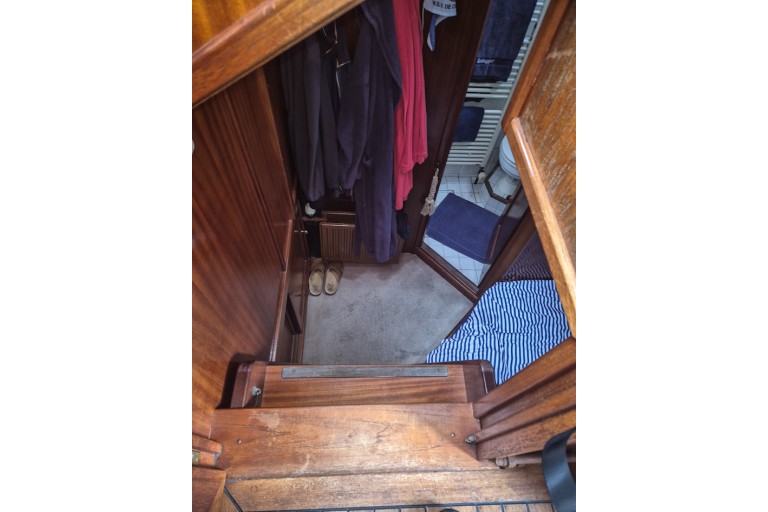

| Interior: | mahogany interior very well maintained see photographs |
| Insulation: | available |
| Cabins: | 1 cabin |

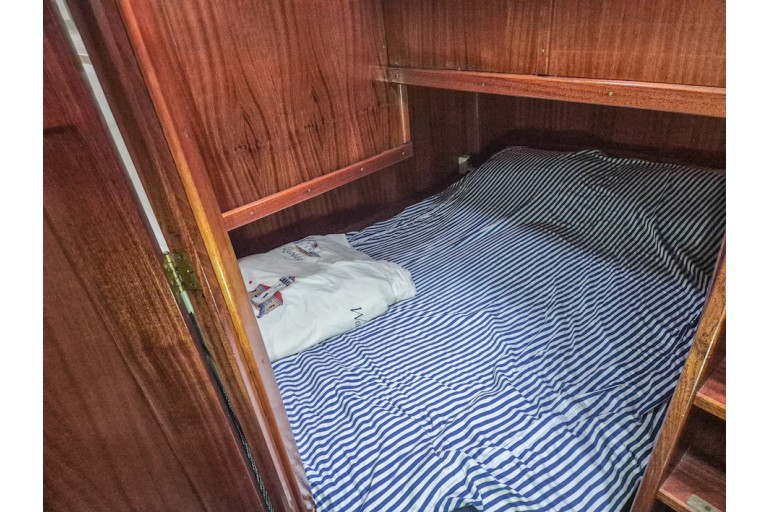

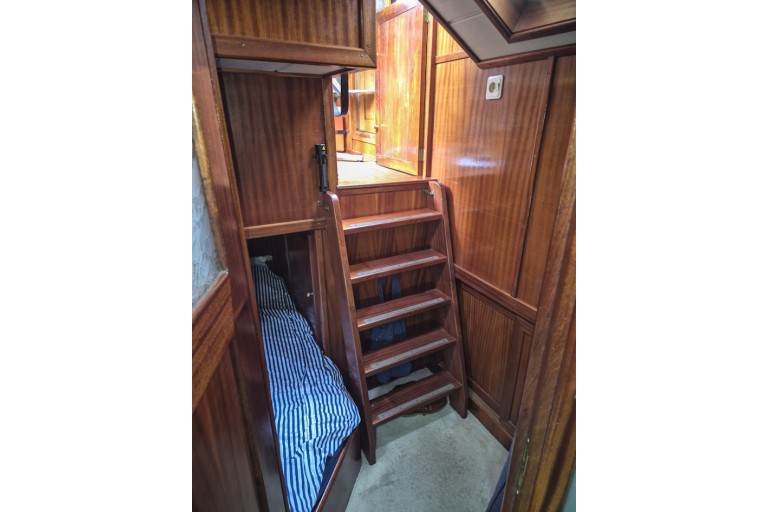

| Berth: | owners cabin: 1x 2-pers Forward: 1x 2-pers |

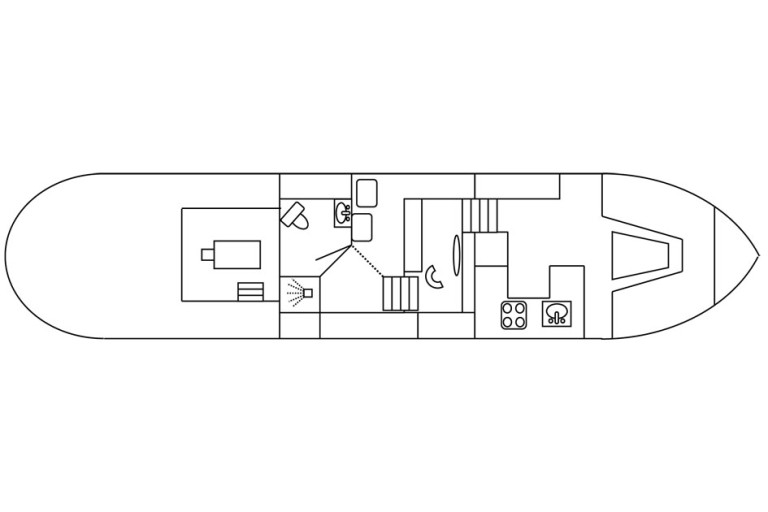

| Lay-out plan (not to scale): | see attachment |

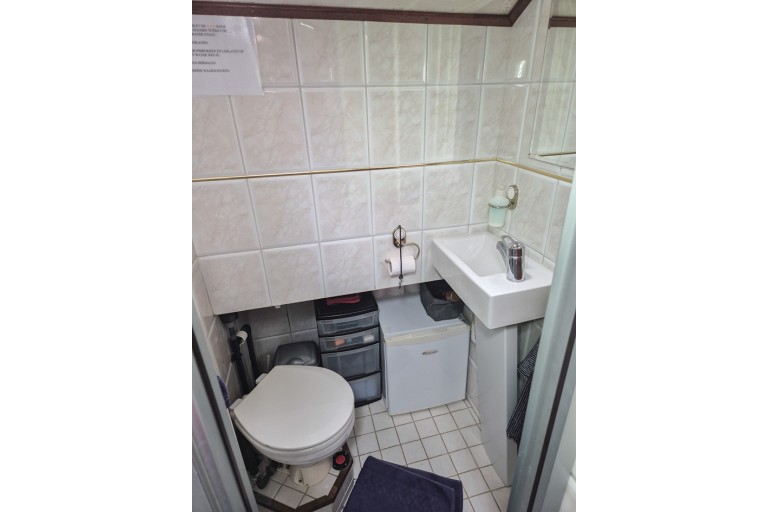

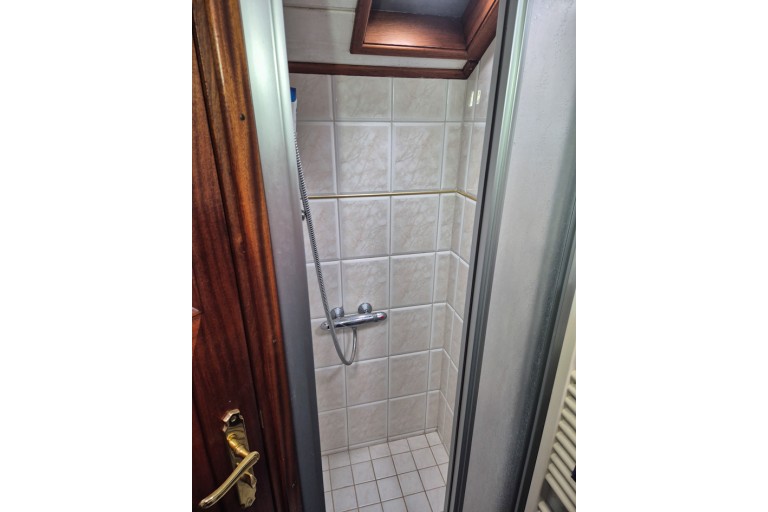

| Bathroom: | shower cubicle thermostat tap washbasin with mix tap and hot & cold running water in 1 area together with the toilet |

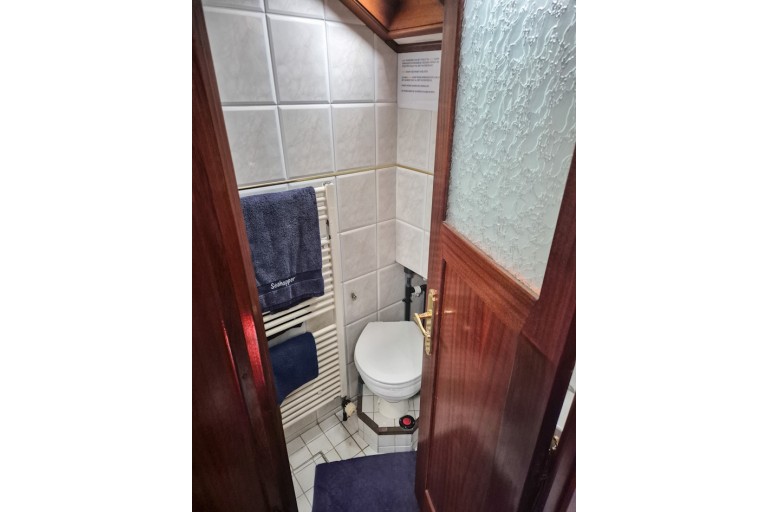

| Toilet / Heads: | electric toilet |

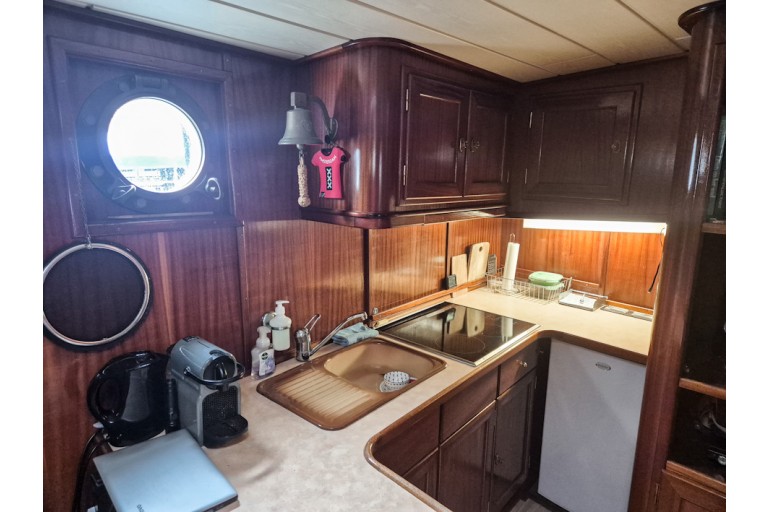

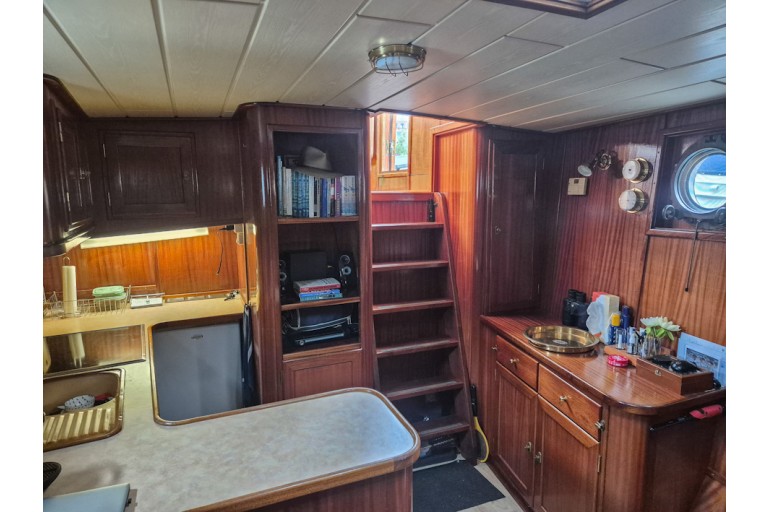

| Galley: | U-shape galley |
| Cooker: | 4-burner hob induction cooker cookerhood |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | present 230 Volt |
| Worktop: | formica worktop |
| Washbasin: | 1 sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | radio/CD player |
| Headroom (approx.): | foc's hole (approx.) 1,98 m galley (approx.) 1,93 m wheelhouse (approx.) 1,87 m aftcabin (approx.) 2,01 m bathroom (approx.) 2,06 m shower (approx.) 1,97 m |
Navigation equipment

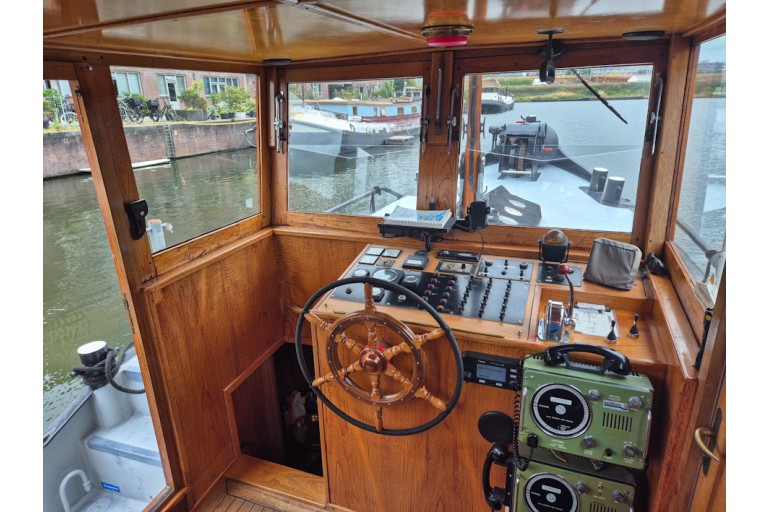

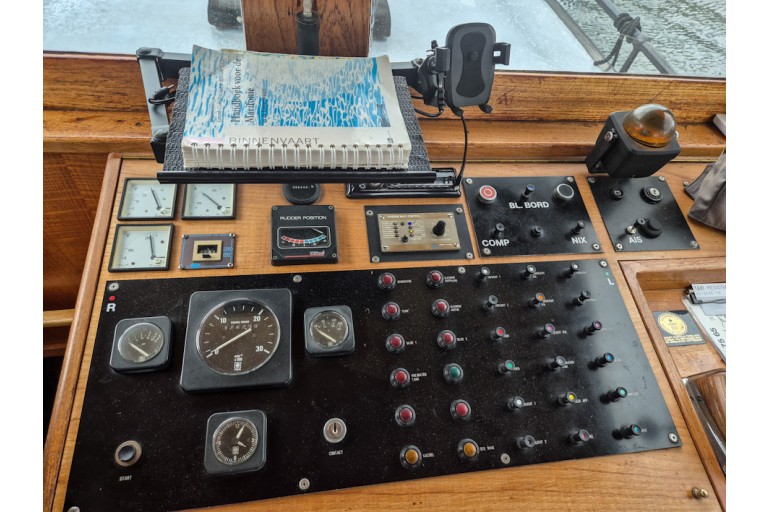

| Navigation equipment: | 2x Sailor RT144 VHF Alewijnse Explorer A4 Automatic Identification System (AIS) GPS blue board with oscillating light navigation lights rudder indicator search light horn window wiper |
Rigging and sails
| Mast: | wooden mast lantern mast |
| Lowerable: | yes manual |
Equipment

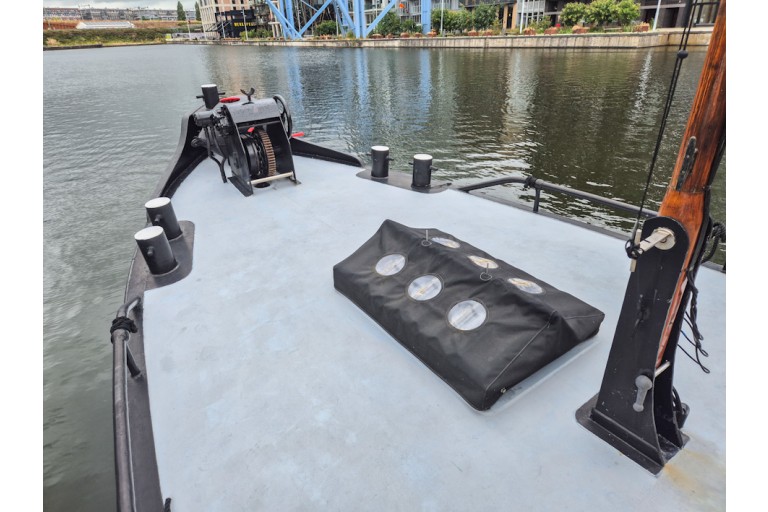

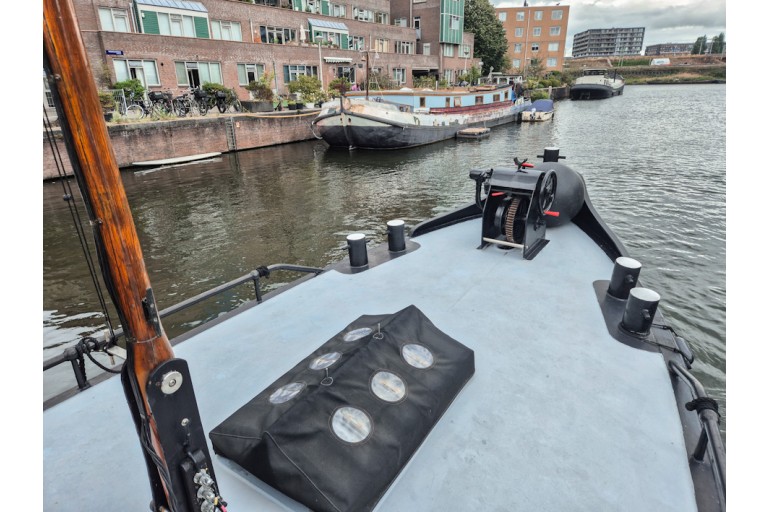

| Anchor equipment: | hydraulic anchor winch Klipp anchor anchor chain in hawse-hole |
| Awnings: | cover around woodwork wheelhouse |

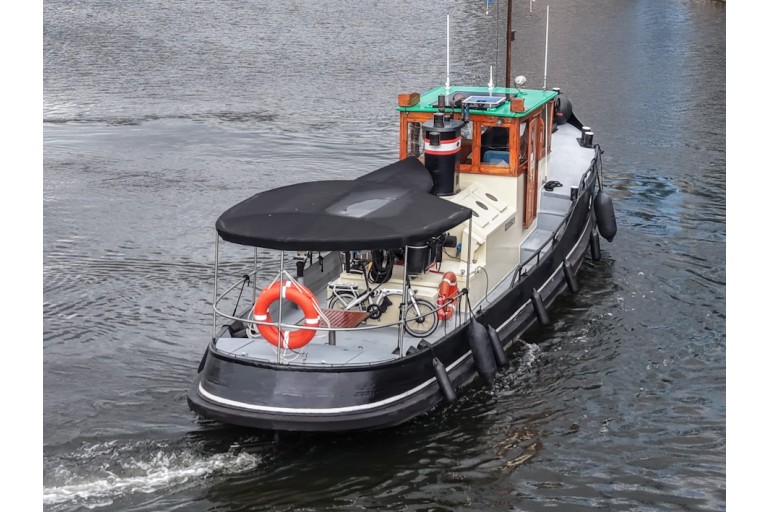

| Bimini: | bimini top above aftdeck |
| Searail / Pulpit: | searail on bulwark |

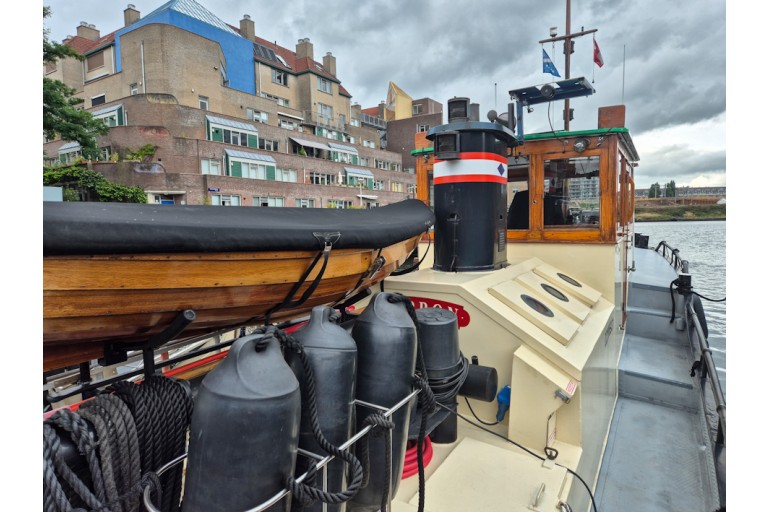

| Dinghy: | present Helderse vlet Minn Kota outboard engine = electric engine |
| Davits: | present stainless steel |
| Safety: | fire extinguishers life buoys life jackets according to the certification requirements |
| Additional information: | skylight cover over skylight steering chair Survey report of the underwatership is available Graag volledige keuringsrapport per mail aanleveren |
