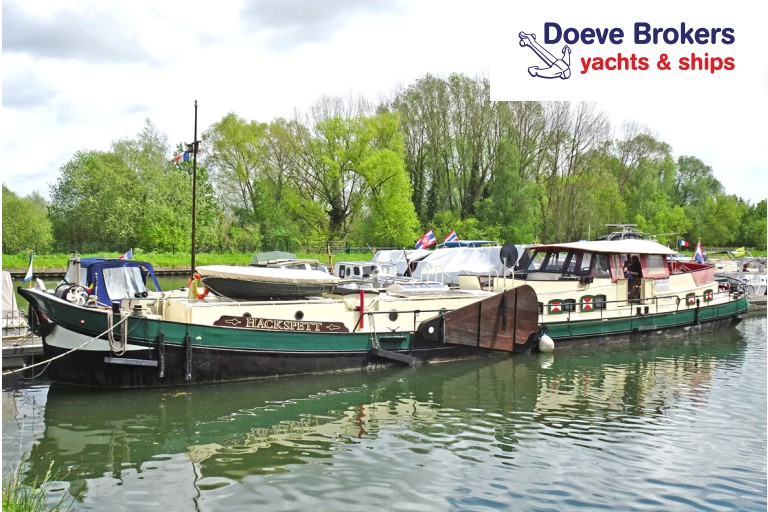

Clipperaak (Dutch Barge) 25.66 with TRIWV
Dimensions (m):
25.66 x 4.26 x 1.00
Ref. no.:
230505
Mooring:
Near Douai, France
Construction year:
1925
Material:
steel
Price:
€ 139.500,--
VAT not applicable
Vision Doeve Brokers
Former inland freighter that has been completely refurbished into a Cruising Live Aboard Dutch Barge, taking into account the air draft so that she can also be used very well in France, for example. This Klipperaak is with her layout also very efficient. For example, the aft cabin is accessible from the inside. The layout is as follows: owner's cabin, bathroom with shower, spacious lounge with open kitchen and stairs to the cockpit and a door to the hallway to the stern, with in there a toilet, spacious double bed and a cot, bathroom with sink and stairs to the aft deck. In the cockpit, with cockpit tent, is the steering position and from which you have a good view all around. There is a 360-degree rotatable bow thruster and a generator placed in the forecastle and the further technics are located in the engine room. In our eyes a “ready to sail-away” Live Aboard Dutch Barge.
More information
General information
Yard:
Shipyard J. Bijlholt, NL-Foxhol
Hull shape:
flatbottom
Hull material:
steel
Deck material:
steel
Superstructure material:
steel
Construction method:
riveted
new steel is welded
bulwark around
rubbing strake around
2 watertight bulkhead(s)
closed bollard cabinets
clipper bow
open cockpit
new steel is welded
bulwark around
rubbing strake around
2 watertight bulkhead(s)
closed bollard cabinets
clipper bow
open cockpit
Steering system:
hydraulic
wheel
steel rudder
attached rudder
wheel
steel rudder
attached rudder
Windows:
wood window frames
& portholes
hardwooden windshield
& portholes
hardwooden windshield
Displacement (approx.):
70 metric tons
estimated
estimated
Ballast (approx.):
no ballast seen
Airdraft (approx.):
3,20 m
2,45 m everything down
2,45 m everything down
Owner:
British owner
Registration:
Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
Colour / Paint System:
black hull
green bulwark
cream superstructure
see photographs
last underwatership treatment 2017
green bulwark
cream superstructure
see photographs
last underwatership treatment 2017
Certificates:
inland waterways certificated (TRIWV / ES-TRIN)
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 09-2024
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 09-2024
Suitable for / as:
inland waterways
suitable for bigger waterways
suitable as a year round live- aboard
recreational vessel
suitable for bigger waterways
suitable as a year round live- aboard
recreational vessel
Additional information:
classic lines
Specified length is between bow and stern.
Hull shape is suitable for drying out.
forepeak with chain locker
Specified beam excludes the leeboards.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
Specified length is between bow and stern.
Hull shape is suitable for drying out.
forepeak with chain locker
Specified beam excludes the leeboards.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
Technical information
Enginepower:
114 Hp
84 kW
84 kW
Engine brand:
Perkins
Engine model:
6.354M
Number of cylinders:
6
Running hours (approx.):
unknown
Fuel:
diesel
Fuel tank (approx.):
1x 800 litre
1x 225 litre
1x 200 litre
steel tank(s)
1x 225 litre
1x 200 litre
steel tank(s)
Cooling system:
closed
box cooler
box cooler
Propulsion:
3 blade propeller
greased lubrication of propeller shaft
greased lubrication of propeller shaft
Gearbox:
Paragon hydraulic
reduction/ratio 3:1
reduction/ratio 3:1
Speed (approx.):
8 km/hour cruising speed at 1800 RPM
Heating:
Kabola Old English stove
on diesel
on diesel
Bow thruster:
Van Ballegooy 400 bow thruster with dieselengine
Iveco Aifo 55 Hp
360 degrees turnable
proportional
Iveco Aifo 55 Hp
360 degrees turnable
proportional
Electricity system:
12 / 24 / 230 Volt
230 Volt shore power connection
with automatic changeover
Victron Phoenix Multi Control
230 Volt shore power connection
with automatic changeover
Victron Phoenix Multi Control
Batteries:
1x 180 Ah starter batterie(s)
4x 180 Ah domestic batterie(s) (2022)
2x 100 Ah starter batterie(s) bow thruster
1x 100 Ah starter batterie(s) generator
Victron BMV-501 battery monitor
4x 180 Ah domestic batterie(s) (2022)
2x 100 Ah starter batterie(s) bow thruster
1x 100 Ah starter batterie(s) generator
Victron BMV-501 battery monitor
Battery charger:
Victron Phoenix MultiPlus combi inverter/charger 24/3000/70
Victron Skylla-TG battery charger 24/50
Victron Skylla-TG battery charger 24/50
Isolation transformer:
Sterling Power Zinc Saver / isolation transformer 30 Amp
Earth-leakage breaker:
present
Genny:
Lister Petter diesel
9,4 kVA 230 Volt
1500 RPM
2075 running hours (approx.)
box cooler
9,4 kVA 230 Volt
1500 RPM
2075 running hours (approx.)
box cooler
Alternator:
1x 12 Volt
1x 24 Volt
1x 24 Volt
Inverter:
Victron Phoenix MultiPlus combi inverter/charger 24/3000/70
Solar panels:
10x solar panel
Fresh water tank (approx.):
1x 1200 litre
1x 600 litre
plastic tank(s)
1x 600 litre
plastic tank(s)
Water pressure system:
Speck hydrophore pump
Hot water system:
2x boiler/water calorifier (230 Volt)
= 2x 10 litre
= 2x 10 litre
Holding tank (approx.):
not present, enough space to build-in
Diesel waterseparator:
present
Bilge pump:
1x manual pump
3x electric pump
1x submersible pump
3x electric pump
1x submersible pump
Deck wash pump:
present
230 Volt
230 Volt
Gas system:
yes, bottle(s) in bottle box on deck
Additional information:
spare propeller
partly LED lightning
air compressor
partly LED lightning
air compressor
Accommodation
Interior:
various materials have been used
hardwooden floor(s)
see photographs
hardwooden floor(s)
see photographs
Insulation:
Rockwool
Cabins:
2 cabins
Berth:
Forward: 1x 2-pers
Aft: 1x 2-pers
Aft: 1x 2-pers
Lay-out plan (not to scale):
see attachment
Bathroom:
Forward:
shower cubicle
mixer tap with hot & cold running water
washbasin with mixer tap and hot & cold running water
in 1 area together with the toilet
Aft:
washbasin with hot & cold running water
shower cubicle
mixer tap with hot & cold running water
washbasin with mixer tap and hot & cold running water
in 1 area together with the toilet
Aft:
washbasin with hot & cold running water
Toilet / Heads:
2x electric toilet
Galley:
along ships
Cooker:
4-burner hob
on gas
in combination with the oven
on gas
in combination with the oven
Oven:
gas oven
& grill
& grill
Fridge / Refrigerator:
present
230 Volt
230 Volt
Freezer:
present
230 Volt
230 Volt
Worktop:
hardwooden worktop
Washbasin:
stainless steel sink
vegetable sink
vegetable sink
Water tap:
mixer tap with hot & cold running water
Entertainment:
radio/CD player
flatscreen TV
satellite antenna
Humax free Sat box
LG DVD-player
flatscreen TV
satellite antenna
Humax free Sat box
LG DVD-player
Headroom (approx.):
ownerscabin (approx.) 1,89 m
bathroom / toilet in the front (approx.) 1,79 m
salon (approx.) 1,88 / 1,95 m
galley (approx.) 1,96 m
corridor / walkthrough (approx.) 1,39 m
toilet aft (approx.) 1,68 m
aftcabin (approx.) 1,82 m
bathroom aft (approx.) 1,71 m
bathroom / toilet in the front (approx.) 1,79 m
salon (approx.) 1,88 / 1,95 m
galley (approx.) 1,96 m
corridor / walkthrough (approx.) 1,39 m
toilet aft (approx.) 1,68 m
aftcabin (approx.) 1,82 m
bathroom aft (approx.) 1,71 m
Additional information:
useful as live-aboard
well maintained
inventory
washing machine
well maintained
inventory
washing machine
Rigging and sails
Mast:
wooden mast
Lowerable:
yes
manual
manual
Leeboards:
iroko wooden leeboards
2x leeboards winch
2x leeboards winch
Equipment
Anchor equipment:
manual anchor winch with electric motor
Klipp anchor
anchor chain
in hawse-hole
& stern anchor
Klipp anchor
anchor chain
in hawse-hole
& stern anchor
Bimini:
bimini top above cockpit
Cockpit tent:
present
Searail / Pulpit:
searail on bulwark
Dinghy:
GRP dinghy
electric engine
electric engine
Safety:
life buoys
life jackets
fire extinguishers
according to the certification requirements
carbon monoxide detector(s)
gasdetector
life jackets
fire extinguishers
according to the certification requirements
carbon monoxide detector(s)
gasdetector
Additional information:
2x skylight
covers over skylights
set deck furniture
aluminium gangway
ladder
cover over dinghy
Survey report of the underwatership is available (09-2017)
covers over skylights
set deck furniture
aluminium gangway
ladder
cover over dinghy
Survey report of the underwatership is available (09-2017)
