Sailingcutter 15.45, large sailing area
Vision Doeve Brokers

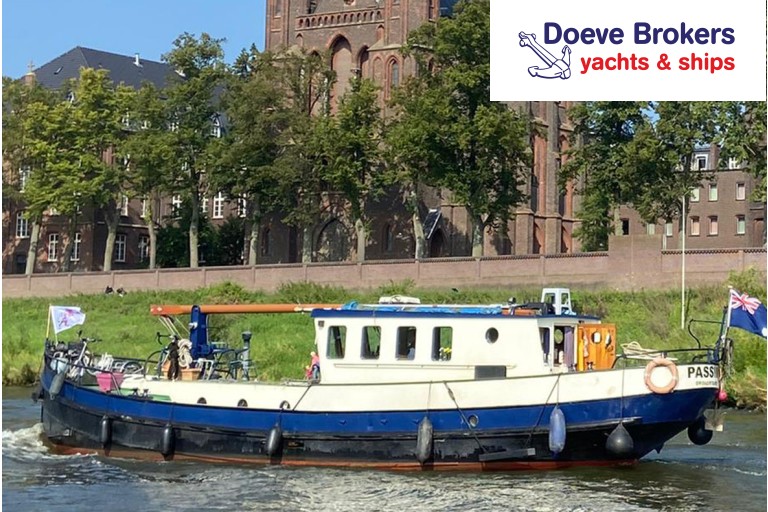

Former eel transport vessel, completely converted into a comfortable liveaboard vessel in the 1990s. Thanks to her unique construction, this cutter is ideally suited for the adventurous water sports enthusiast who wants to explore both the Baltic Sea or the Mediterranean Sea, as well as the inland waterways. The current owner has sailed this vessel from Stockholm in Sweden to Barcelona in Spain and in France even the Canal du Midi and the Garonne up to Bordeaux. Of course, many more cruising areas are possible. The masts are collapsible and currently lying flat. The hull has a lugger stern and a steep bow, giving her a beautiful line. The vessel is equipped with an owner's cabin with a double bed, a spacious salon with an L-shaped sofa that can easily be converted into an extra double berth, a wheelhouse with steering position, dinette and galley. In the aft cabin, accessible via a hatch in the floor, there are three more berths. The vessel can also be steered from outside by using a remote control. In short, an excellent opportunity to sail both coastal and inland waters with one and the same vessel.
More information
General information
Yard: | Shipyard NL-Roodevaart |
Yard rebuilt: | Shipyard Smit |
Rebuilt year: | 1991/1998 |
Hull shape: | round bilged |
Hull material: | steel |
Deck material: | steel |
Superstructure material: | steel |
Construction method: | riveted new steel is welded rubbing strake around bulwark wide side decks (gunnels) |
Steering system: | hydraulic wheel steel rudder emergency tiller |
Windows: | aluminium windows frames brass window frames brass portholes |
Displacement (approx.): | 30 ton |
Ballast (approx.): | 10 ton steel |
Airdraft (approx.): | 2,80 m everything down 10,85 m height above water |
Owner: | British owner |
Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
Colour / Paint System: | black hull blue bulwark white superstructure see photographs last underwatership treatment 04-2024 |
Certificates: | no certificate requirement |
Suitable for / as: | inland waterways coastal waters suitable as a year round live- aboard |
General information: | can be sailed by 2 persons good sailing characteristics Old age clause applicable. |
Additional information: | Hull shape is suitable for drying out. Great vessel for cruising on the French canals and rivers. Great vessel for cruising on the European canals and rivers. |
Technical information
Enginepower: | 105 Hp 77 kW |
Engine brand: | DAF |
Revolutions: | 2400 RPM |
Engine model: | DD575 |
Number of cylinders: | 6 |
Construction year engine: | 1964 |
Overhaul engine: | 1991 reconditioned installed |
Running hours (approx.): | 4575 on the hour counter (07-2025) |
Fuel: | diesel |
Fuel tank (approx.): | 1000 litre 1 steel tank(s) |
Cooling system: | closed box cooler |
Propulsion: | 4 blade propeller greased lubrication of propeller shaft |
Gearbox: | PRM hydraulic (1991) reduction/ratio 3,1:1 |
Speed (approx.): | 10 km/hour cruising speed at 1200 RPM 15 km/hour top speed |
Heating: | Kabola stove heater on diesel |
Bow thruster: | Kalkman electric bow thruster 10 Hp 24 Volt |
Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
Batteries: | 2x 180 Ah starter batterie(s) (2025) 4x 110 Ah domestic batterie(s) (2024) |
Battery charger: | Mastervolt Mass battery charger 24/25 |
Inverter: | Waeco Perfect Power PP1004 Inverter 24/1000 Waeco DCDC24 Inverter 24 Volt – 12 Volt |
Solar panels: | 4x solar panel |
Fresh water tank (approx.): | 750 litre 1 steel tank(s) |
Water pressure system: | hydrophore pump |
Hot water system: | Rheinstrom boiler/water calorifier (230 Volt) & via engine cooling system |
Holding tank (approx.): | 750 litre 1 steel tank(s) |
Diesel waterseparator: | present |
Bilge pump: | 3x electric pump 1x manual pump |
Deck wash pump: | present |
Gas system: | yes, bottle(s) in bottle box on deck |
Accommodation
Interior: | teak interior & Plywood with laths (classic) painted white teak floor(s) suitable for living on board see photographs |
Insulation: | Rockwool |
Cabins: | 2 cabins |
Berth: | Forward: 1x 2-pers Aft: 3x 1-pers Salon: 1x 2-pers |
Lay-out plan (not to scale): | see attachment |
Bathroom: | washbasin with hot & cold running water shower tiled bathroom in 1 area together with the toilet |
Toilet / Heads: | electric toilet |
Galley: | along ships |
Cooker: | 2-burner hob on gas gimbals stainless steel |
Oven: | gas oven |
Fridge / Refrigerator: | fridge / refrigerator 230 Volt |
Freezer: | freezer 230 Volt |
Washbasin: | stainless steel sink |
Water tap: | hot & cold running water |
Entertainment: | flatscreen TV |
Headroom (approx.): | ownerscabin (approx.) 1,83 m salon (approx.) 1,99 m aftcabin (approx.) 1,12 m wheelhouse (approx.) 1,88 m bathroom / toilet (approx.) 1,77 m |
Additional information: | inventory lots of storage space |
Navigation equipment
Navigation equipment: | barometer clock Shipmate RS7500 GPS Raymarine depth / echosounder Raymarine windset Raymarine log / speed Raymarine Sat Nav E7 chartplotter / GPS ICOM IC-M71 VHF burglary alarm 2x window wiper clinometer |
Rigging and sails
Rigging type: | gaff ketch rigged |
Mast: | 1x aluminium mast 1x wooden mast douglas |
Lowerable: | yes |
Boom: | 2x wooden boom douglas |
Gaff: | 2x wooden gaff douglas |
Jib boom / Bowsprit: | wooden Jib boom |
Winches: | 1x |
Sails: | mainsail 2x jib mizzen |
Additional information: | very well maintained pin rail sail covers |
Equipment
Anchor equipment: | manual anchor winch with electric motor warping drum Klipp anchor in hawse-hole & kedge anchor |
Awnings: | winter cover(s) |
Safety: | 3x fire extinguisher 4x life buoy EPIRB Plastimo Cruiser liferaft with certificate safety harness Danbuoy 4x life jacket fire blanket 2x life line |
Additional information: | deck lights steering chair gangway fenders The ship was completely gutted (only the hull is old) and then rebuilt. Before refitting the interior, the inside of the hull was thoroughly treated. boarding ladder |
