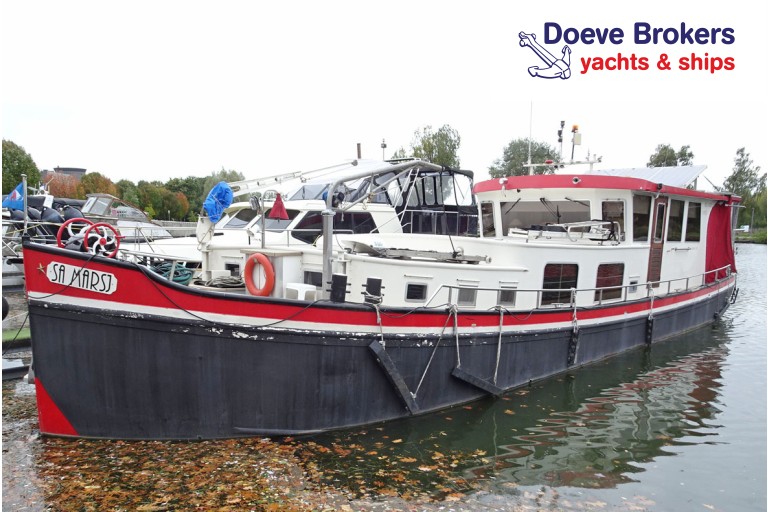

Luxe Motor 18.30
Dimensions (m):
18.30 x 4.80 x 1.10
Ref. no.:
251102
Mooring:
Near Turnhout, Belgium
Construction year:
2002
Material:
steel
Price:
€ 224.500,--
VAT has been paid
Vision Doeve Brokers
In 2002 this casco Luxe Motor was newly built and subsequently fully completed by the first owner. The current, second owner then commissioned various upgrades, including the installation of telescopic spud poles. Later they took the vessel to France and even navigated as far as Béziers on Canal du Midi. This cruising liveaboard vessel is comfortably equipped with, among other things, central heating, air conditioning in the owner’s cabin, a washing machine and dryer, a separate bathroom with shower cabin and a separate toilet room. The spacious owner’s cabin offers excellent comfort, while the storage area beneath the wheelhouse easily can be converted into a 2-persons cabin. The many large windows in the wheelhouse and salon provide an exceptionally bright and open atmosphere on board. The spacious galley is equipped with a 4-burner induction cooktop, a dishwasher, two refrigerators and a separate freezer. Thanks to the numerous storage spaces throughout the ship, she is highly suitable for permanent living or extended journeys. Due to the dimensions, ES-TRIN certification is not required, making the vessel very well suitable for cruising the European inland waterways.
More information
General information
| Yard: | Joint Stock shipbuilding company, RU-Rybinsk completed in-house finished |
| Designer / Architect: | K & S Maritiem Technisch Bureau, NL-Enkhuizen |
| Hull shape: | V-bottom |
| Hull material: | steel 6 mm |
| Deck material: | steel 6 mm Flexiteek decks (niet / not / nicht / ne pas 100%) |
| Superstructure material: | steel 6 mm |
| Construction method: | welded rubbing strake around bulwark around wide side decks (gunnels) stainless steel cleats bollards 2 watertight bulkhead(s) |
| Self made: | interior |
| Steering system: | hydraulic wheel electric steering = remote control fish tail rudder |
| Windows: | double glazing & single glass aluminium windows frames aluminium portholes hardwood outside doors |
| Displacement (approx.): | 50 ton |
| Ballast (approx.): | 9 ton poured concrete |
| Airdraft (approx.): | 3,20 m |
| Owner: | Belgian owner |
| Registration: | Belgian registered |
| Colour / Paint System: | black hull white superstructure red bulwark two component basic system one component finish last underwatership treatment 09-2022 |
| Certificates: | no certificate requirement |
| RCD / CE Certification: | D |
| Suitable for / as: | suitable as a year round live- aboard inland waterways recreational vessel |
| General information: | from second owner Any transactions must be submitted to the client or owner of the vessel for approval. Until this approval has been granted, all offers made are entirely without obligation. Hand over in consultation. |
| Additional information: | Hull shape is suitable for drying out. roomy foredeck spacious aftdeck classic lines forepeak with chain locker Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 118 Hp 87 kW |
| Engine brand: | DAF |
| Engine model: | DF 615 |
| Number of cylinders: | 6 |
| Overhaul engine: | 2004 reconditioned installed |
| Running hours (approx.): | 950 after overhaul on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 1200 litre white 1x 1200 litre red steel tank(s) |
| Cooling system: | box cooler dry exhaust insulated exhaust |
| Propulsion: | 4 blade propeller Python constant velocity prop shaft with thrust bearing greased lubrication of propeller shaft |
| Gearbox: | ZF-Hurth 45-1 hydraulic reduction/ratio 3,03:1 |
| Speed (approx.): | 11 km/hour cruising speed |
| Heating: | Kabola KB45 Ecoline combi boiler on diesel radiators & via air conditioning unit |
| Air conditioning: | present in owner's cabin reversed circle |
| Bow thruster: | Drinkwaard electric bow thruster 24 Volt 20 Hp |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection with automatic changeover Victron mainmaster control |
| Batteries: | 2x 220 Ah starter batterie(s) 840 Ah domestic batterie(s) (12x 2 Volt) 2x 220 Ah bow thruster batterie(s) 1x 60 Ah starter batterie(s) starter batterie(s) generator |
| Battery charger: | Victron Quattro combi inverter/charger 24/5000/120 Whisper Power WBC Handy 70 battery charger 12/7 Xenteq TBC 500 Prof battery charger |
| Battery isolator: | Victron Argofet battery isolator |
| Isolation transformer: | Victron isolation transformer 7000 Watt |
| Earth-leakage breaker: | present |
| Genny: | Lister Petter diesel genny 1500 RPM 17 kVA 230 Volt box cooler 300 running hours (approx.) |
| Alternator: | Mastervolt ALPHA PRO II alternator 100 ampère |
| Inverter: | Victron Quattro combi inverter/charger 24/5000/120 |
| Solar panels: | 8x solar panel Victron SmartSolar MTTP 150/85-TR |
| Fresh water tank (approx.): | 5000 litre 2 steel tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | through the central heating |
| Holding tank (approx.): | 200 litre 1 stainless steel tank(s) |
| Diesel waterseparator: | present |
| Engineroom: | well maintained clean engineroom see photographs |
| Bilge pump: | electric pump with manifold |
| Deck wash pump: | Stork electric pump |
| Gas system: | no gas on board |
| Additional information: | air compressor LED lightning |
Accommodation
| Interior: | cherry wood interior Marine Plywood teak wooden floor(s) with ashen see photographs suitable for living on board |
| Insulation: | Rockwool with aluminium foil |
| Cabins: | 2 cabins |
| Berth: | Forward: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower cubicle thermostat tap washbasin with hot & cold running water partly tiled |
| Toilet / Heads: | electric toilet washbasin cold running water tiled toilet |
| Galley: | L-shape galley |
| Cooker: | Siemens 4-burner hob induction cooker Siemens cookerhood |
| Fridge / Refrigerator: | 1x Inventum fridge / refrigerator 1x Liebherr fridge / refrigerator |
| Freezer: | 1x Bosch freezer |
| Worktop: | formica worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | 1x flatscreen TV selfsearching satellite antenna |
| Headroom (approx.): | forward cabin (approx.) 1,99 m corridor / walkthrough (approx.) 1,95 m toilet (approx.) 1,89 m shower (approx.) 1,89 m salon (approx.) 2,18 m wheelhouse (approx.) 2,05 m aft cabin (approx.) 2,43 / 1,33 m |
| Additional information: | Miele washing machine tumble dryer The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. |
Navigation equipment
| Navigation equipment: | Autohelm electric compass Navman 3100 windset Navman 3100 depth / echosounder Navman 3100 log / speed 2x Sailor RT2048 VHF Raymarine ST60 rudder indicator Plastimo clinometer Sailor SP3510 portable VHF Cobra MR HH415 portable VHF horn search light Hef-Tronic HT 1120 intercom navigation lights flashing light camera system PC-NAVIGO chartplotter laptop window wiper clock barometer |
Rigging and sails
| Mast: | apparatus wing |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch Klipp anchor anchor chain in hawse-hole 2x spudleg / pole (electric) 5 m under the bottom 2x touchscreen control specified length(s) is/are approximate |
| Outdoor cushions: | present |
| Bimini: | present with removable side panels / doors |
| Boarding ladder: | present |
| Searail / Pulpit: | stainless steel searail on bulwark |
| Dinghy: | present GRP dinghy |
| Davits: | present stainless steel |
| Safety: | smoke detector(s) fire extinguisher fire blanket life buoy life jackets automatic fire extinguishing system in engine room |
| Additional information: | 2x 24 Volt stainless steel crane steering chair aluminium gangway Survey report of the underwatership is available (09-2022) |
