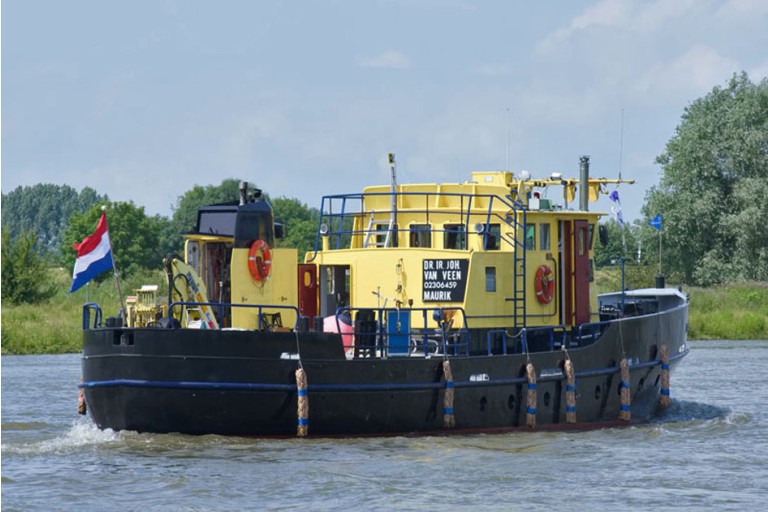

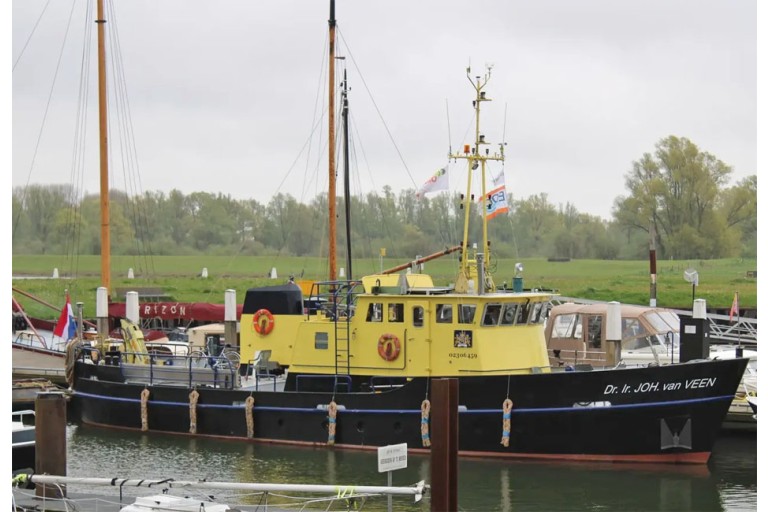

Former Waterway authorities / Sailing residential vessel 23.23, ES-TRIN Rhine certified
Vision Doeve Brokers

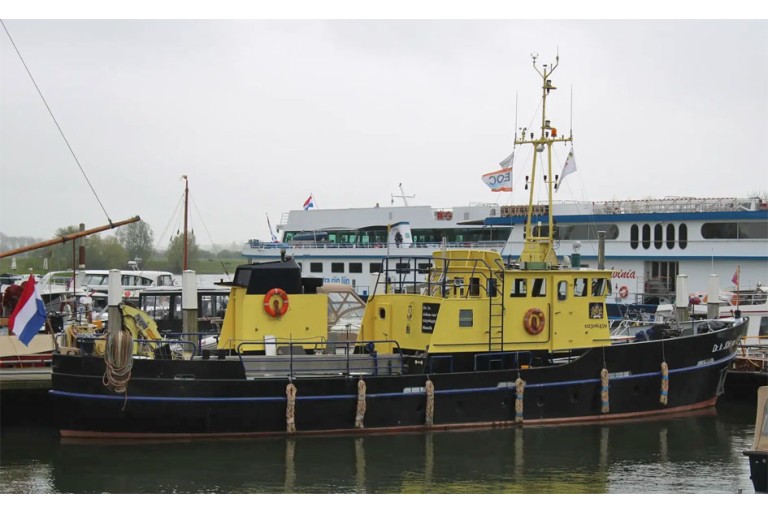

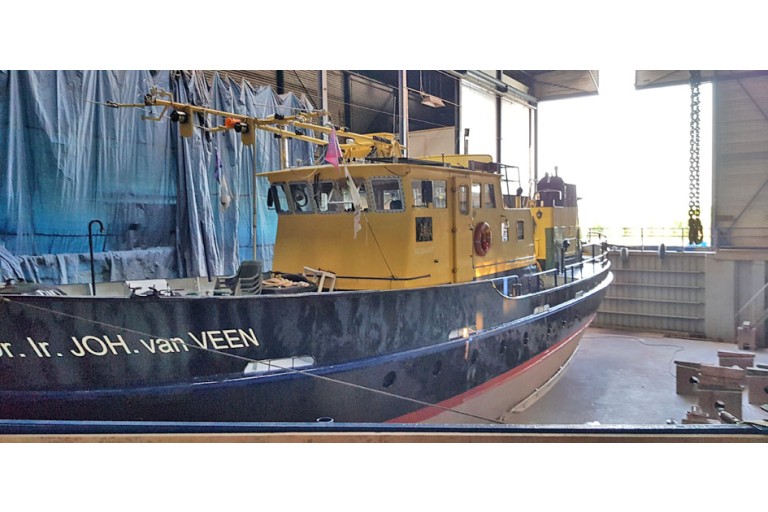

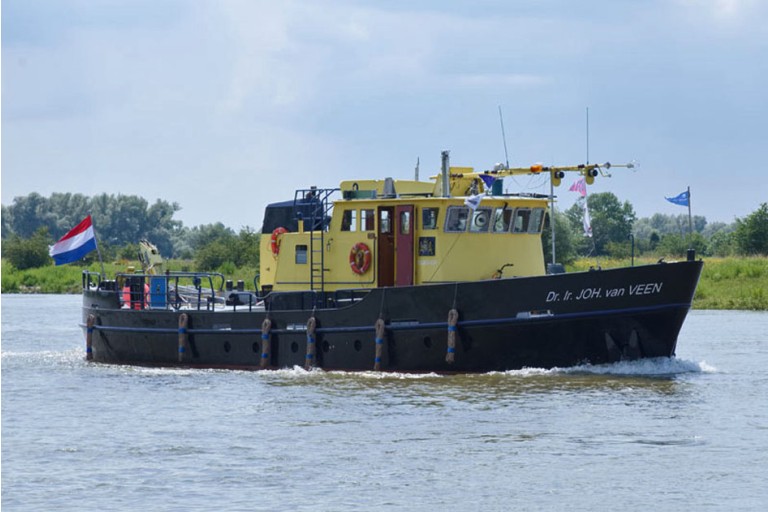

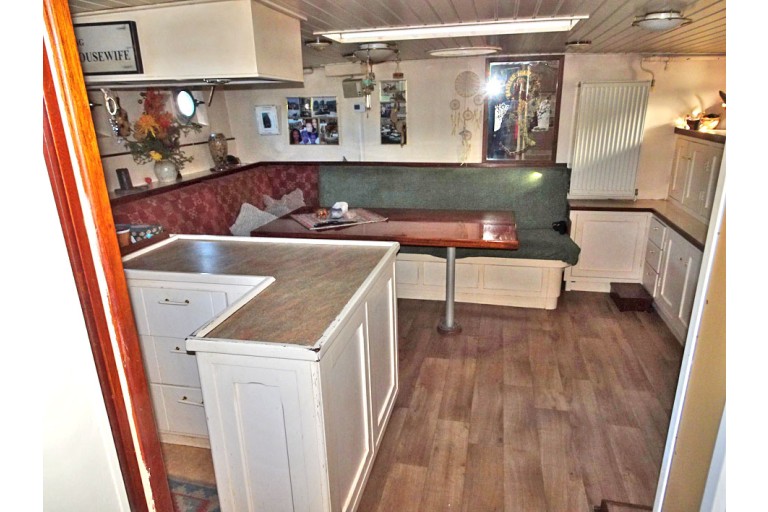

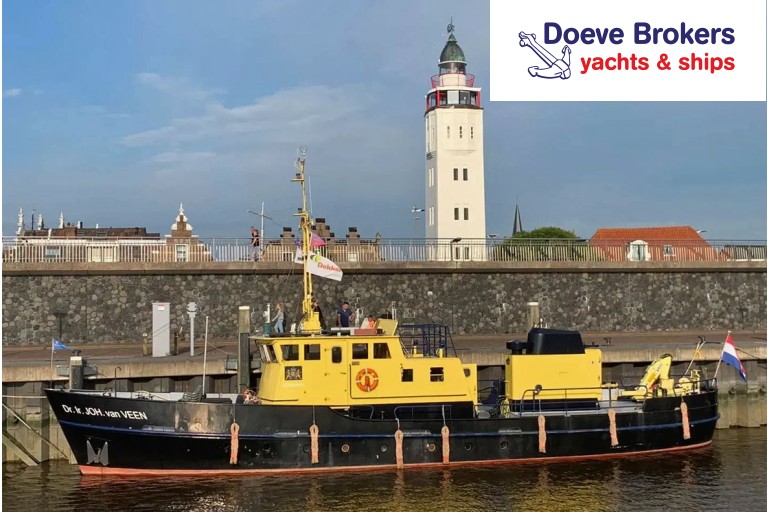

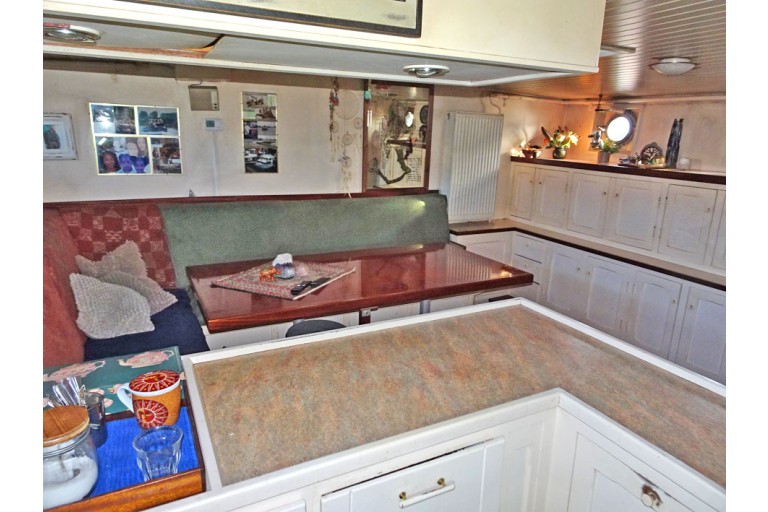

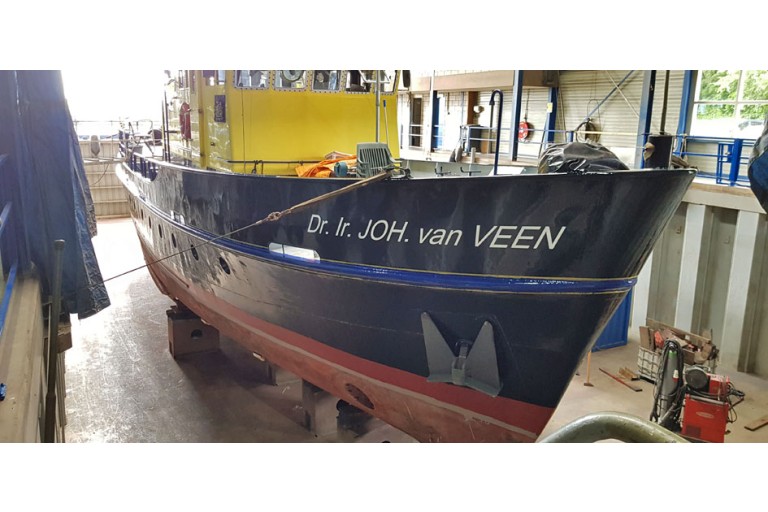

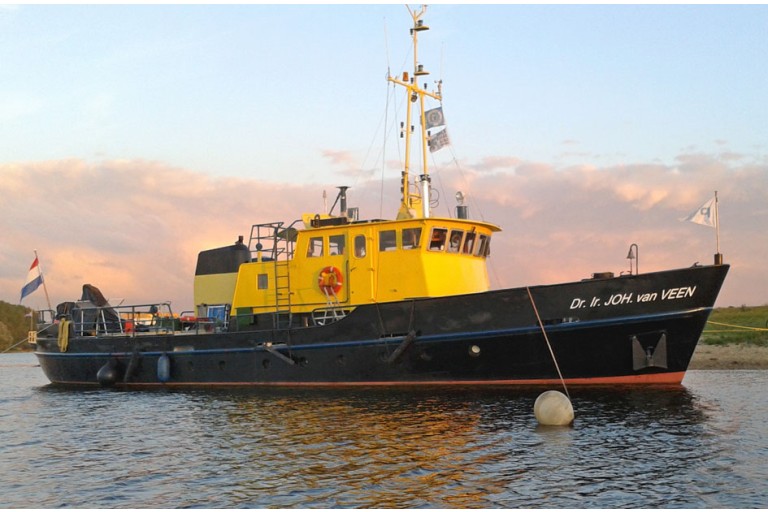

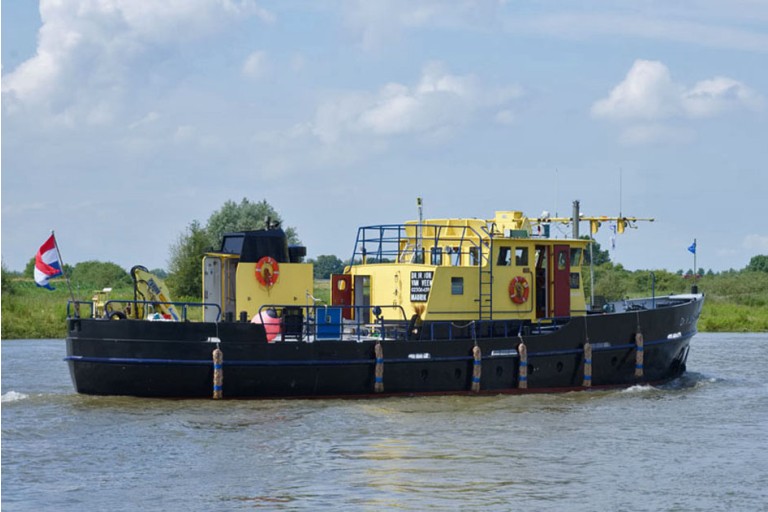

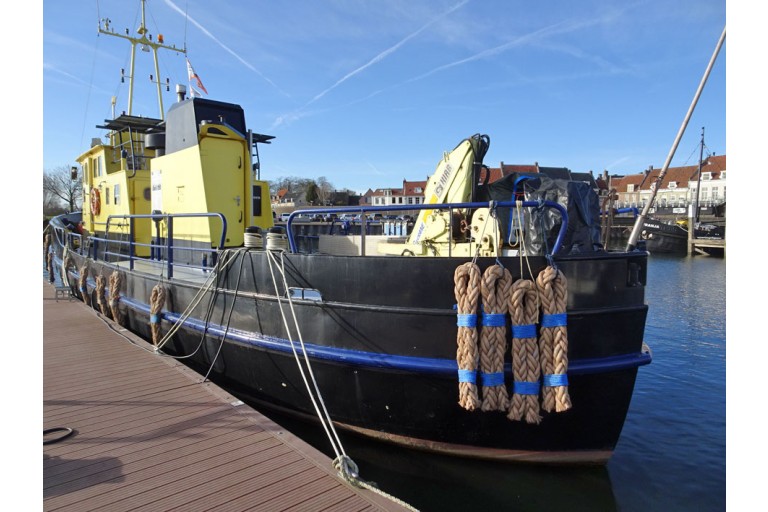

On January 14, 1965, this vessel, now in use as a cruising liveaboard vessel, was commissioned by the Dutch Directorate-General for Public Works and Water Management (Rijkswaterstaat). The vessel was deployed in support of the Delta Works and for hydrographic operations in the Northern Netherlands. Operating from her home port of Delfzijl, it carried out hydrographic surveys, including measurements and observations of the seabed and hydrodynamic conditions. After being decommissioned in 1998, the Dr. Ir. Johan van Veen has been permanently inhabited by the subsequent two owners and was adapted for residential use in several areas, including the installation of a wheelchair lift to the lower deck. The vessel has three cabins, a spacious salon/mess with open-plan galley, a bathroom, a comfortable wheelhouse with excellent all-round visibility, and a generous aft deck. The aft deck was previously also used to accommodate a container with survey/measurements equipment. In our view, this is a robust and well-converted vessel suitable for permanent habitation. She has already been registered for the Ship Carousel scheme, while remaining suitable for alternative operational use. During her active service, the vessel was operated by the Dutch water authority up to 12 nautical miles offshore, in conditions of up to Beaufort force 8. Of particular note is that the vessel holds valid certification for navigation on the River Rhine.
More information
General information
| Yard: | Shipyard Fa. H. Schouten, NL-Muiden |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | aluminium superstructure |

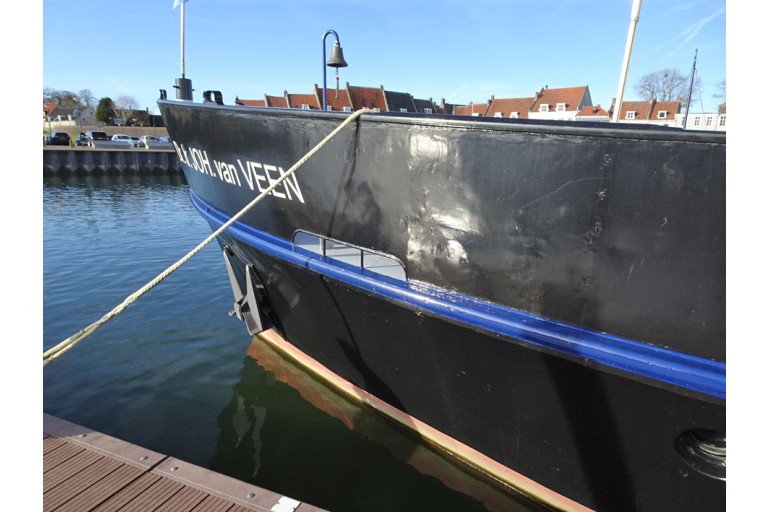

| Construction method: | welded rubbing strake around bulwark flare shape bow closed bollard cabinets Sturdy, heavily constructed 3 watertight bulkhead(s) 1 watertight bulkhead(s) with watertight door(s) canoe stern |
| Keel: | bilge keels |
| Steering system: | hydraulic wheel & electric steering |
| Windows: | aluminium windows frames single glass |
| Displacement (approx.): | 74 GT 22 NT 80 metric tons |
| Airdraft (approx.): | 5,50 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |

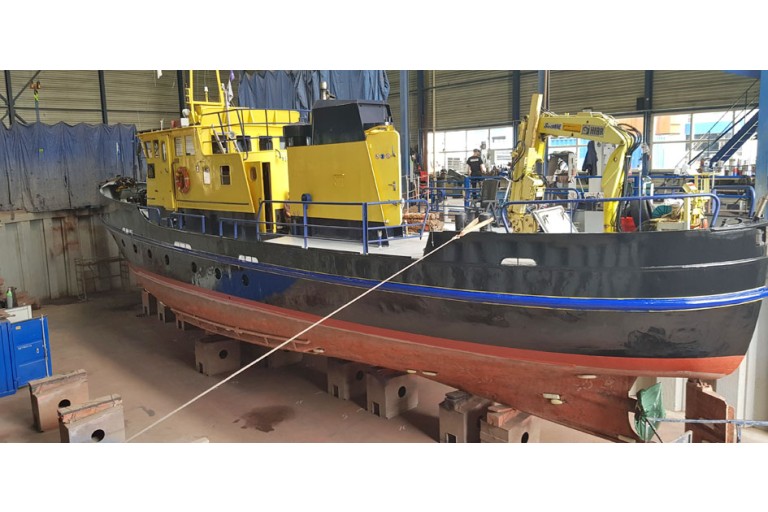

| Colour / Paint System: | black hull black bulwark yellow superstructure see photographs last underwatership treatment 07-2021 |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 3 zone 4 zone R (Rhine) zone 2 Netherlands valid until: 10-2028 |
| Suitable for / as: | suitable as a year round live- aboard inland waterways coastal waters recreational vessel inspection vessel ROV carrier diving (vehicle) support vessel |
| General information: | Hand over in consultation. Old age clause applicable. |

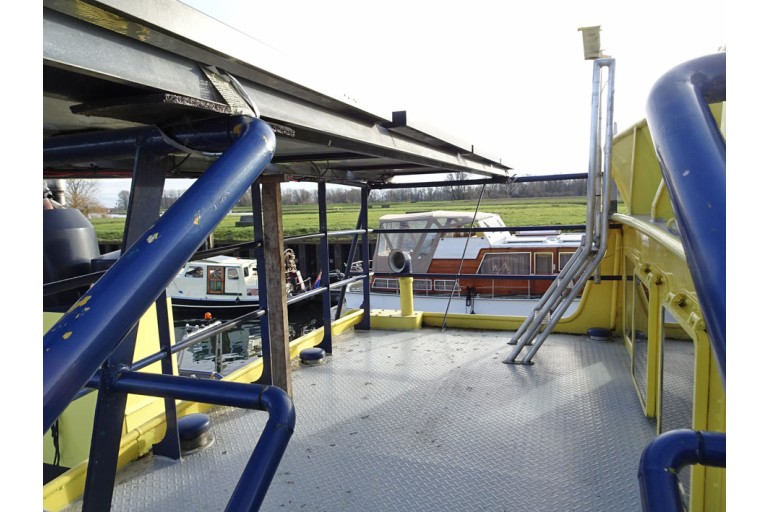

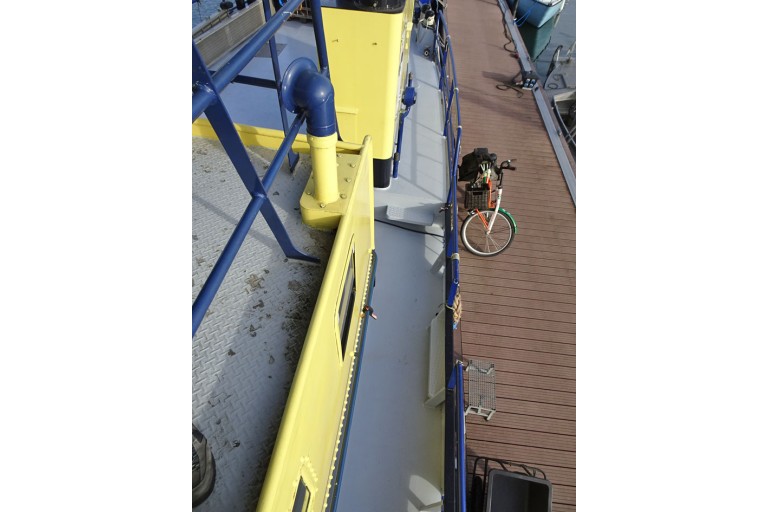

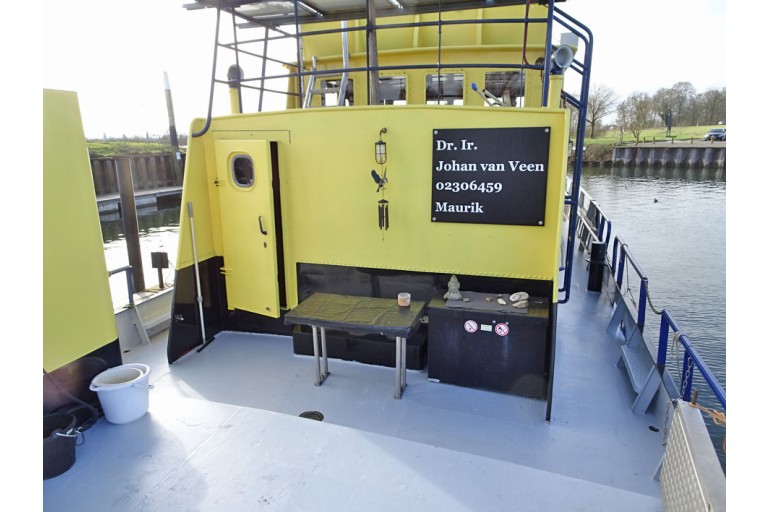

| Additional information: | forepeak with chain locker spacious aftdeck Specified length is between bow and stern. Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the coastal waters. |
Technical information

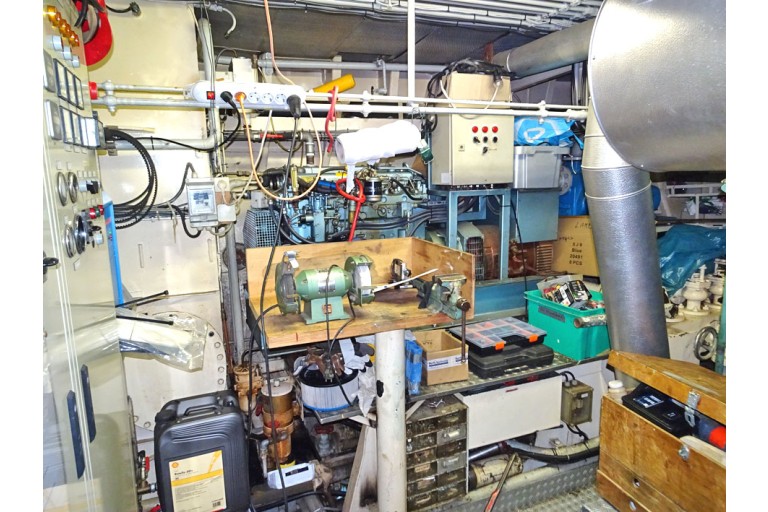

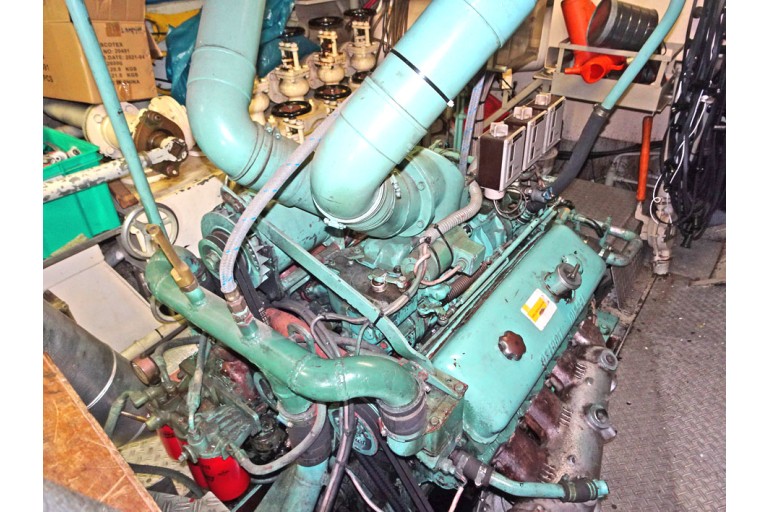

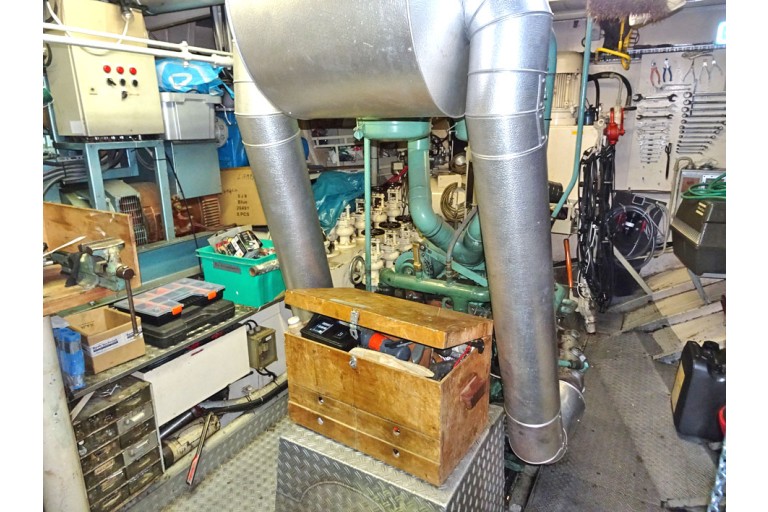

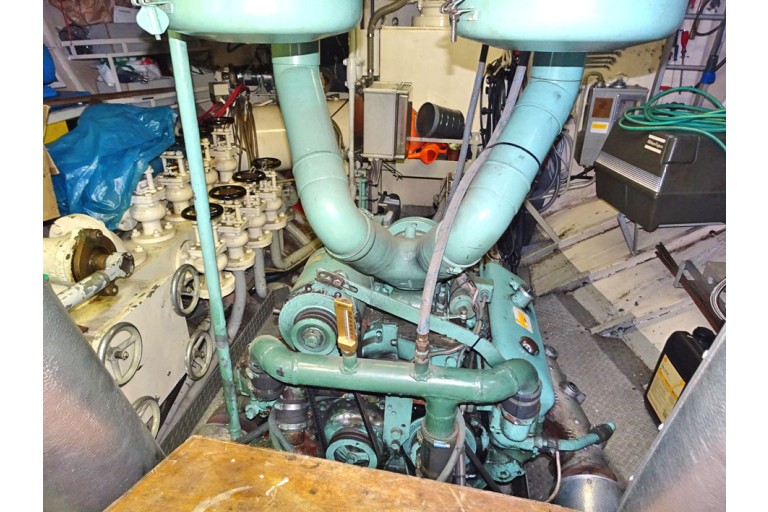

| Enginepower: | 232 Hp 171 kW |
| Engine brand: | GM Detroit |
| Revolutions: | 1800 RPM |
| Engine model: | 8V71 |
| Number of cylinders: | V8 |
| Construction year engine: | 1976 |
| Overhaul engine: | 1990 reconditioned installed |
| Running hours (approx.): | 20640 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 3000 litre 3 steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 4 blade propeller oil bath propeller stern tube |

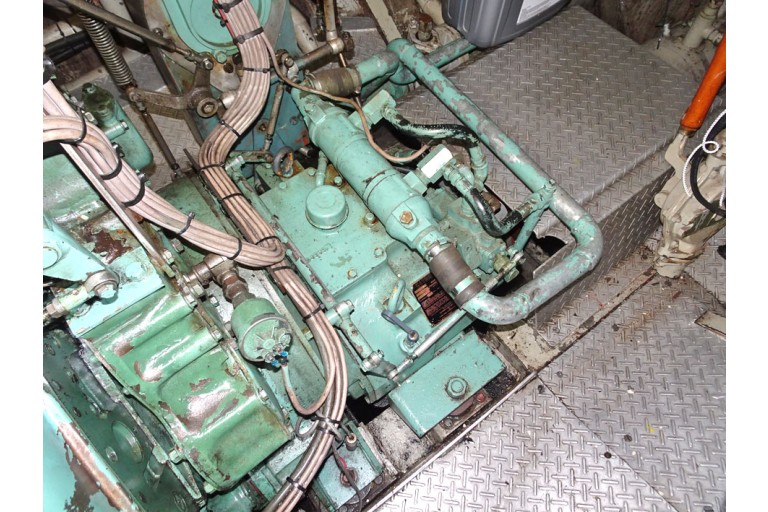

| Gearbox: | Carterpillar by Twin Disc MG-509 hydraulic |
| Speed (approx.): | 12 km/hour cruising speed at 1200 RPM 18 km/hour top speed at 1800 RPM |

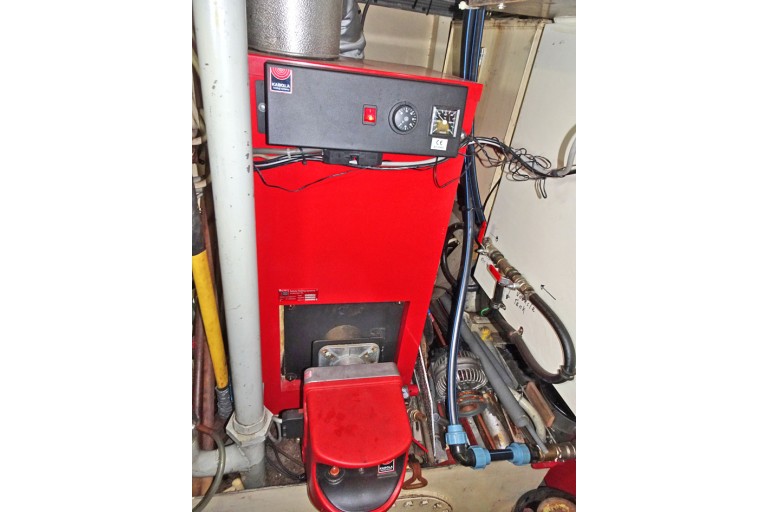

| Heating: | Kabola B25 central heating on diesel & stove on wood |
| Engine instruments: | alarm system |
| Bow thruster: | HRP hydraulic bow thruster proportional 30 kW |

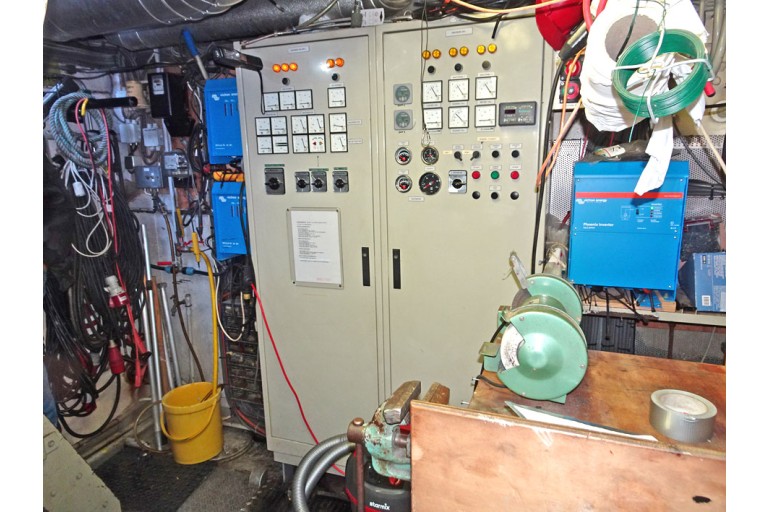

| Electricity system: | 24 / 230 / 400 Volt 230 Volt shore power connection 400 Volt shore power connection |
| Batteries: | 2x 225 Ah starter batterie(s) 625 Ah traction batterie bank 625 Ah traction batterie bank 2 emergency batterie(s) 2x Victron BMV 700 battery monitor |
| Battery charger: | 2x Victron Skylla-TG battery charger 24/80 |
| Isolation transformer: | 2x isolation transformer |
| Genny: | Perkins diesel genny 60 kVA, 230/400 Volt 1500 RPM 14050 running hours (approx.) |

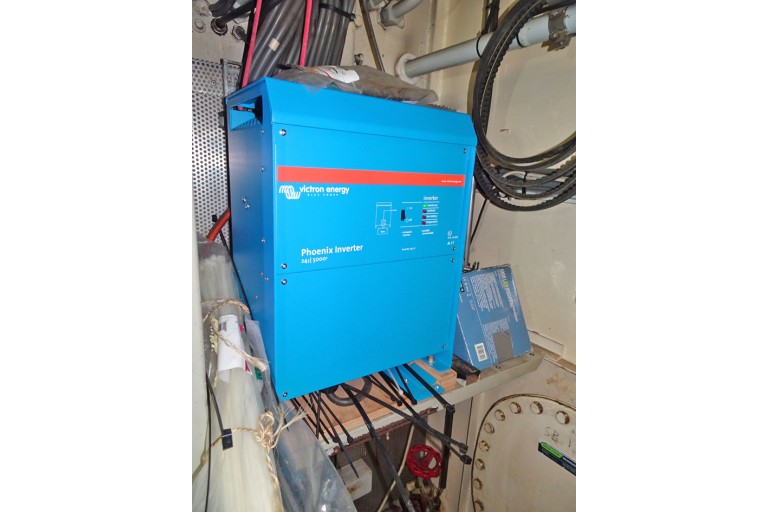

| Inverter: | Victron Phoenix inverter 24/5000 |

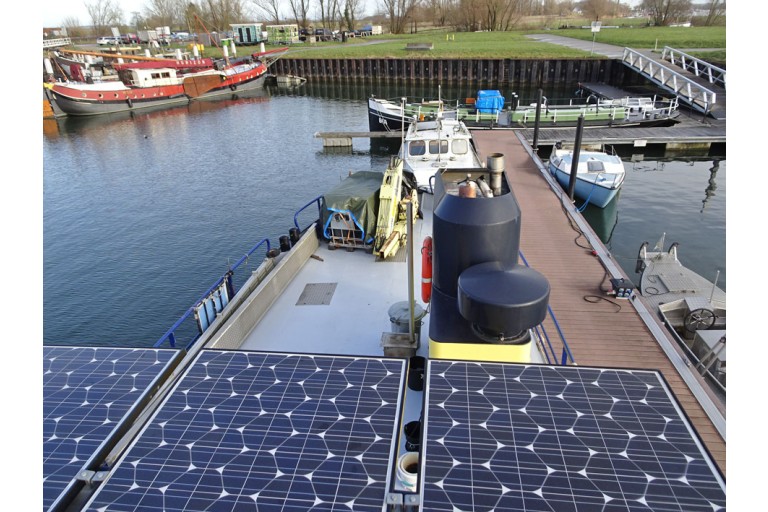

| Solar panels: | 4x 235 Wp solar panel Victron BlueSolar MPPT charge controller 100/50 |
| Fresh water tank (approx.): | 2200 litre 1 steel tank(s) cemented tank(s) |
| Water pressure system: | DAB hydrophore pump |
| Hot water system: | boiler/water calorifier (400 Volt) |
| Holding tank (approx.): | 1 grey water tank(s) |
| Diesel waterseparator: | present |
| Bilge pump: | electric pump 400 Volt with manifold also deckwash pump |
| Deck wash pump: | 1x electric pump 230 Volt |
| Gas system: | yes, bottle(s) in bottle box |

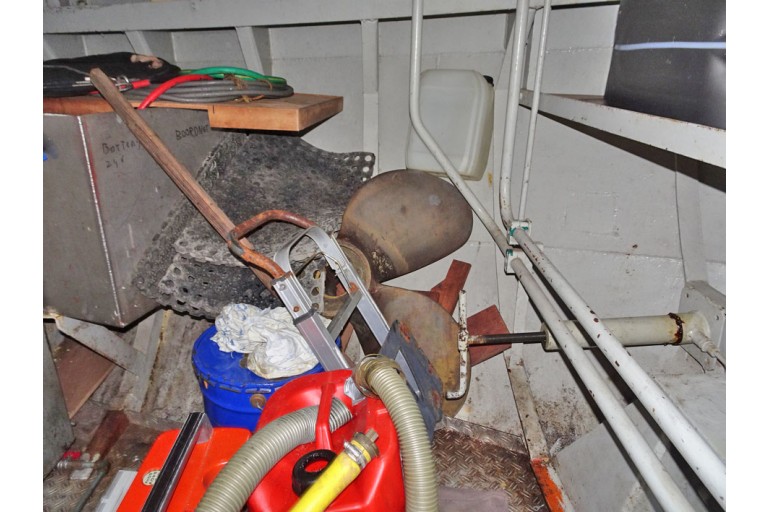

| Additional information: | air compressor partly LED lightning spare propeller |
Accommodation
| Interior: | various materials have been used see photographs suitable for living on board |
| Insulation: | available |

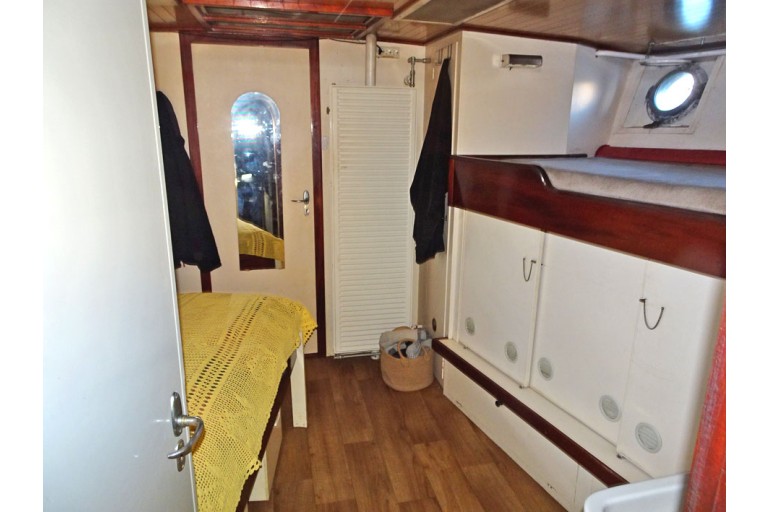

| Cabins: | 3 cabins |

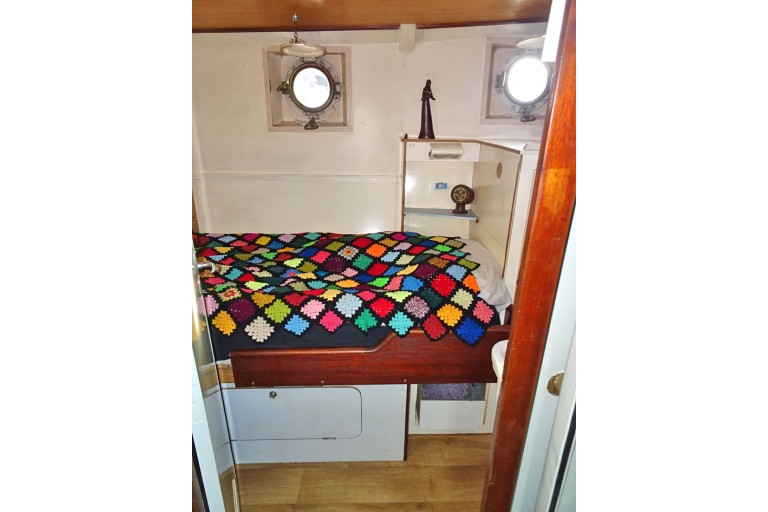

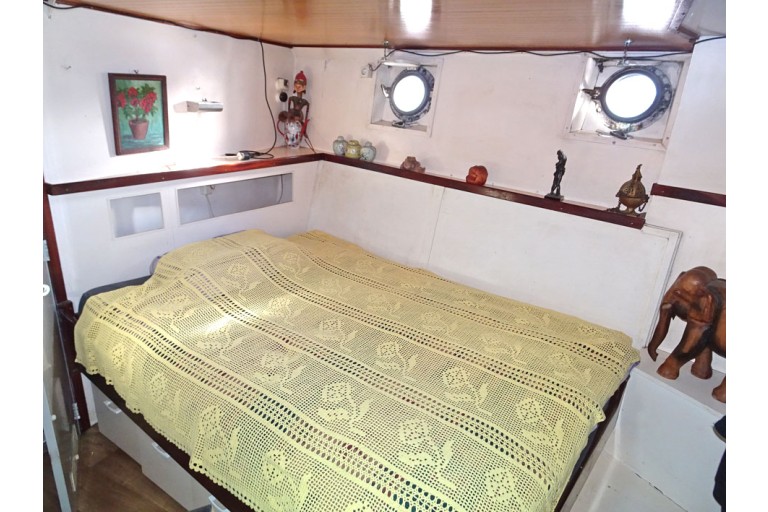

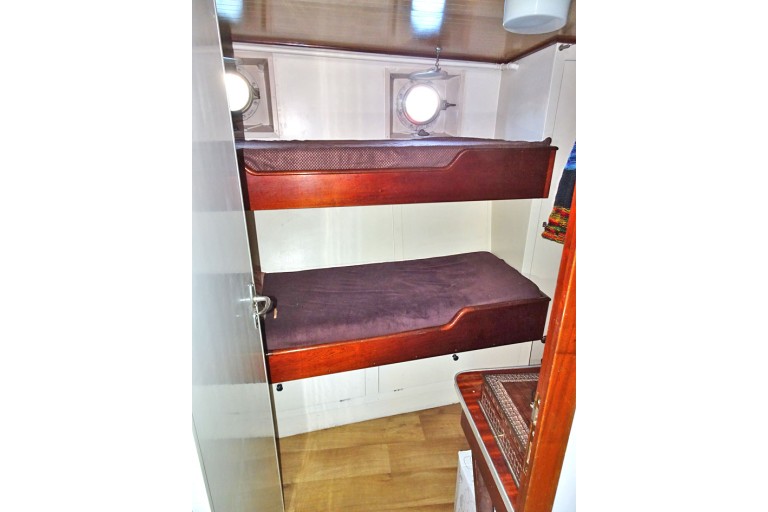

| Berth: | Forward: 1x 2-pers & 1x1-pers Starboard cabin: 2x 1-pers Portside cabin: 1x 1-pers |
| Lay-out plan (not to scale): | see attachment |

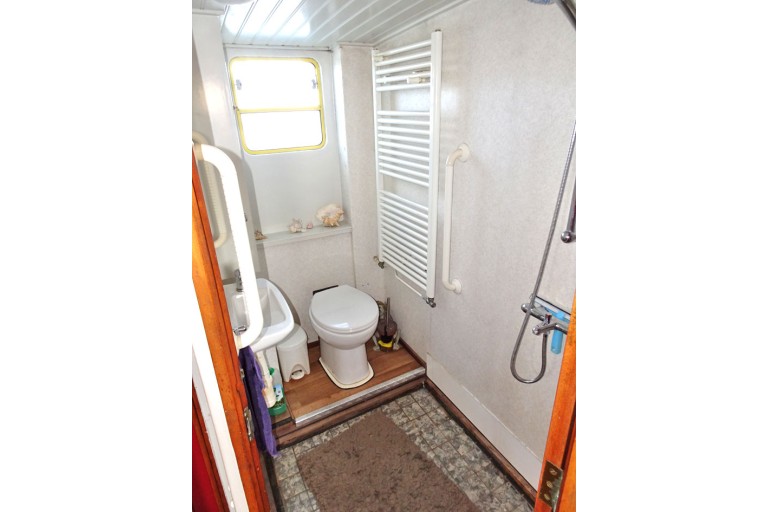

| Bathroom: | shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet & cabins with wash basin with hot & cold running water |
| Toilet / Heads: | toilet in bathroom |

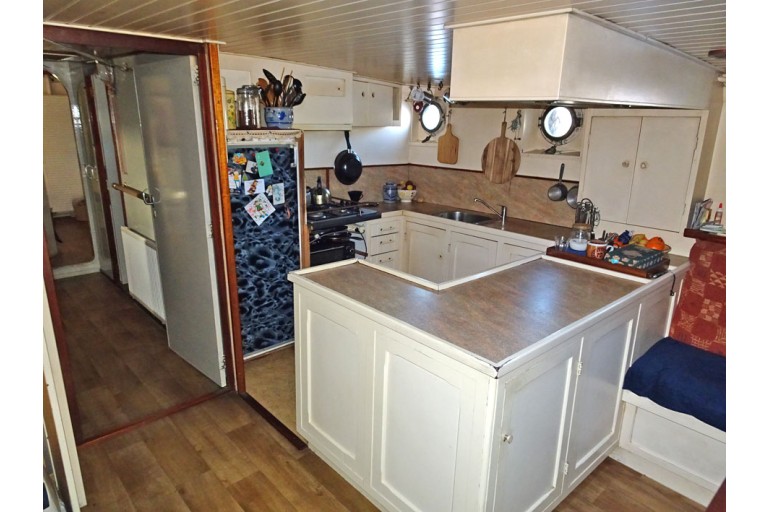

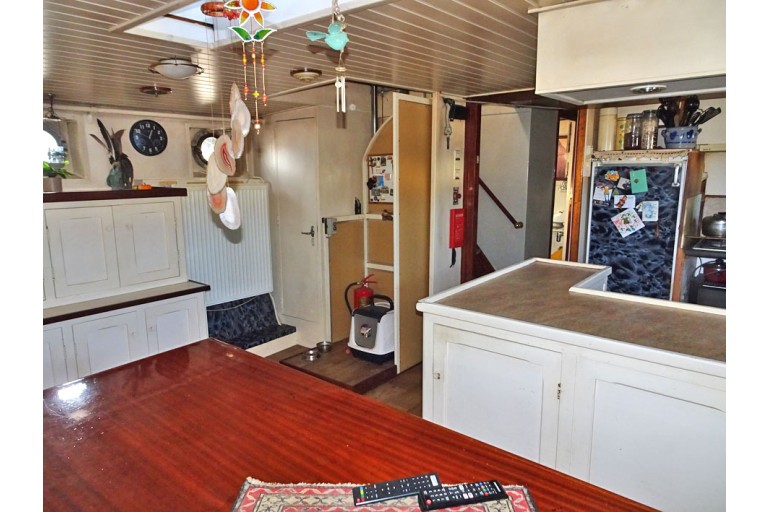

| Galley: | U-shape galley |
| Cooker: | 4-burner hob stainless steel on gas cookerhood |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | present 230 Volt |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |

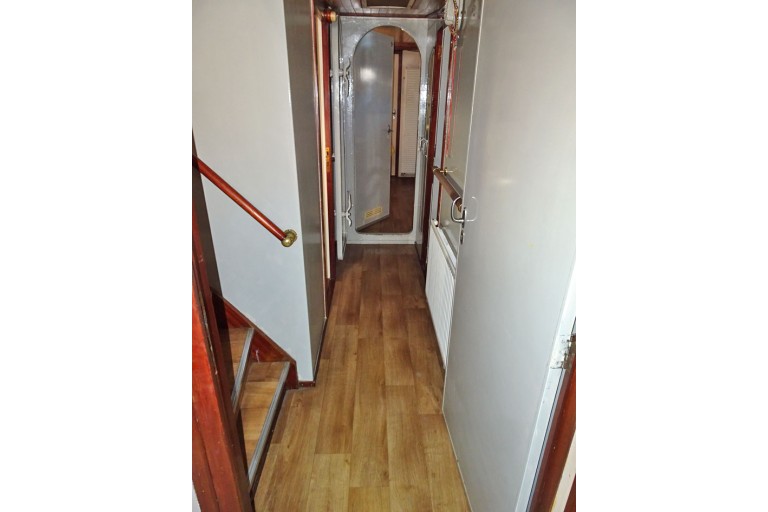

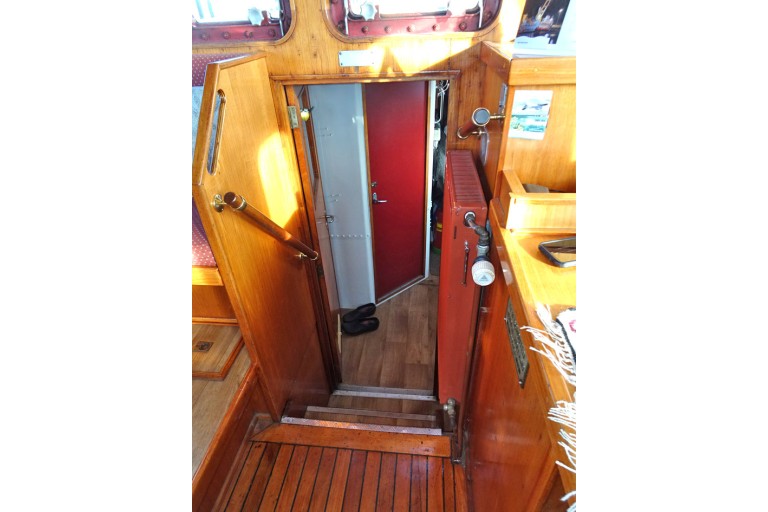

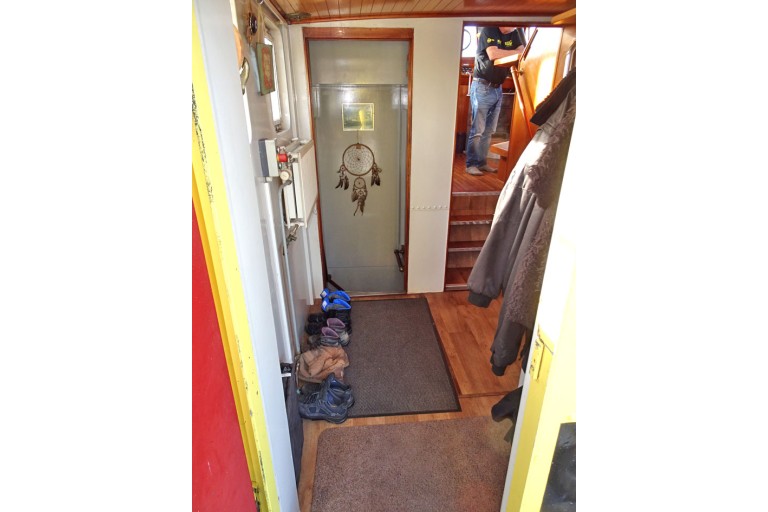

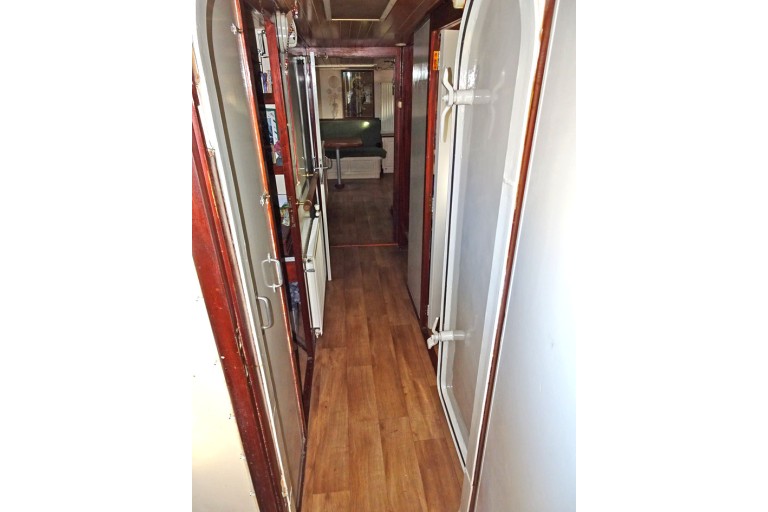

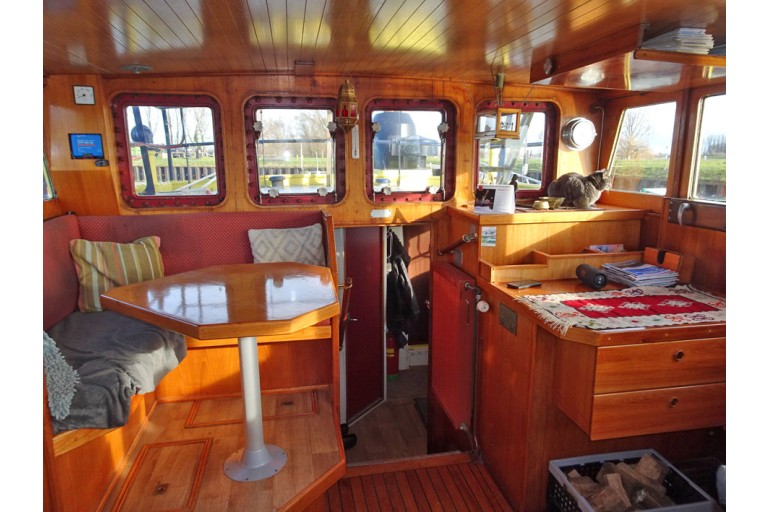

| Headroom (approx.): | wheelhouse (approx.) 2,14 m corridor / walkthrough (approx.) 1,98 m bathroom (approx.) 2,00 m ownerscabin (approx.) 1,96 m corridor / walkthrough (approx.) 1,98 m cabins (approx.) 1,97 m salon (approx.) 1,94 m galley (approx.) 1,92 m |

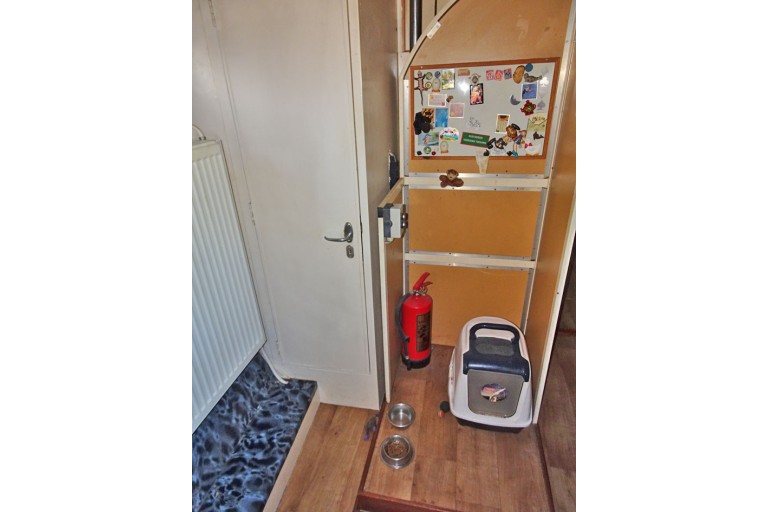

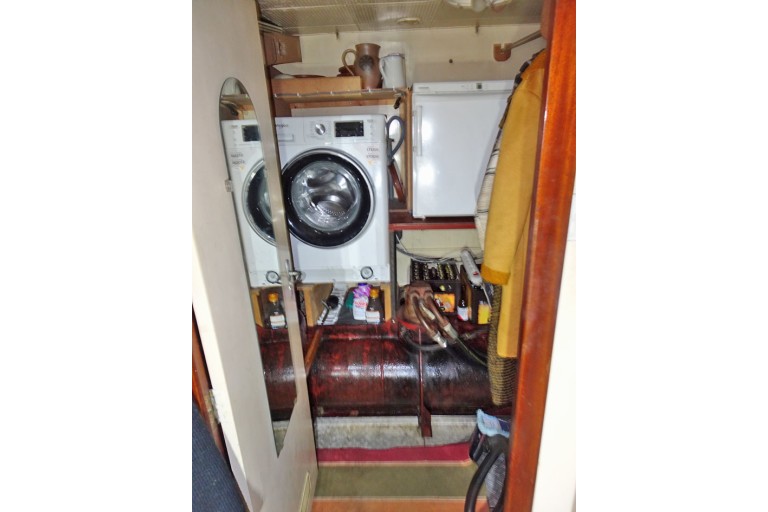

| Additional information: | washing machine The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. wheelchair lift |
Navigation equipment

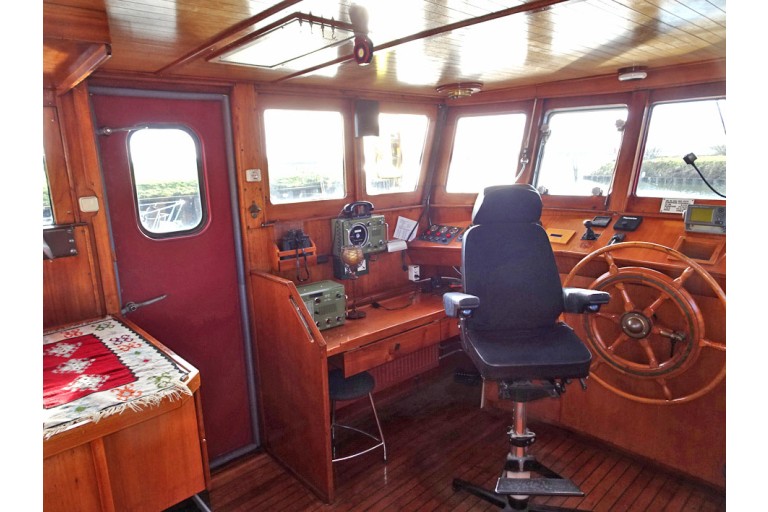

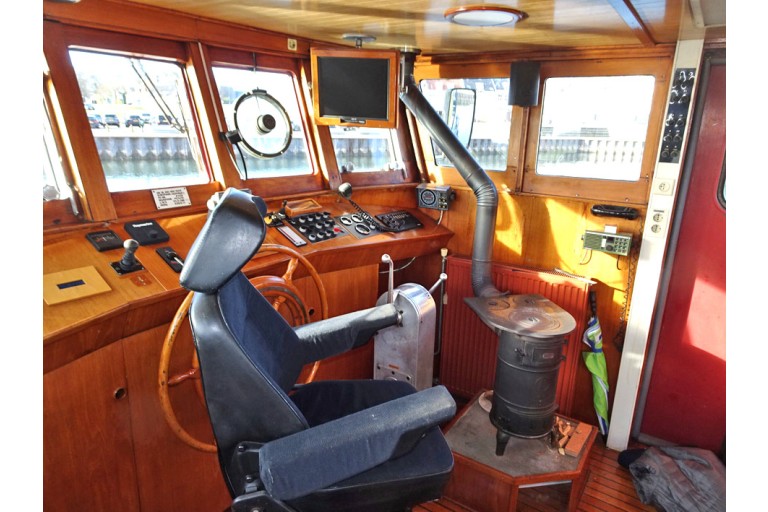

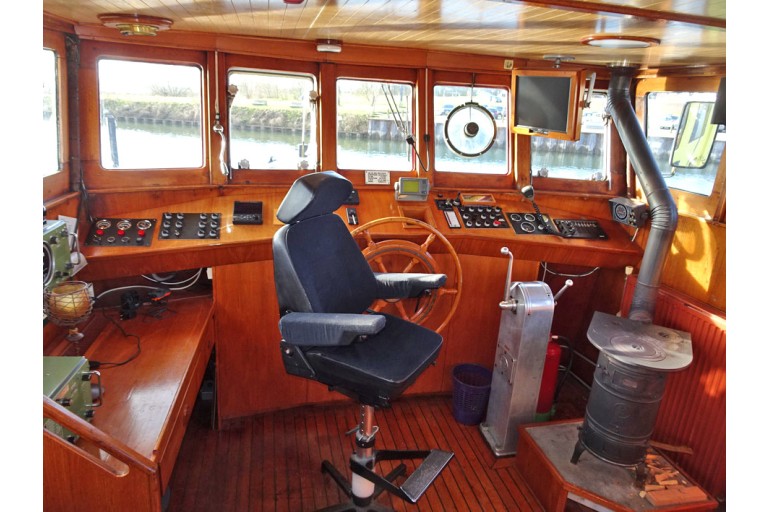

| Navigation equipment: | Sailor RT2048 VHF Sailor 144 VHF Em-Trak A200 Automatic Identification System (AIS) Furuno GPS Nasa Sting Ray depth / echosounder Bouyer PC 1106 intercom search light clearviewscreen window wiper Cobra HH350 portable VHF rudder indicator Raymarine autopilot & follow up steering & flashing light navigation lights blue board with oscillating light ships bell |
Rigging and sails

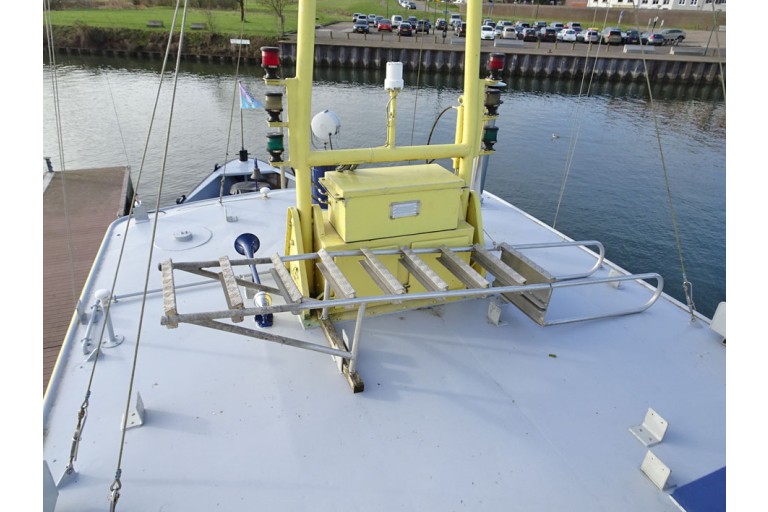

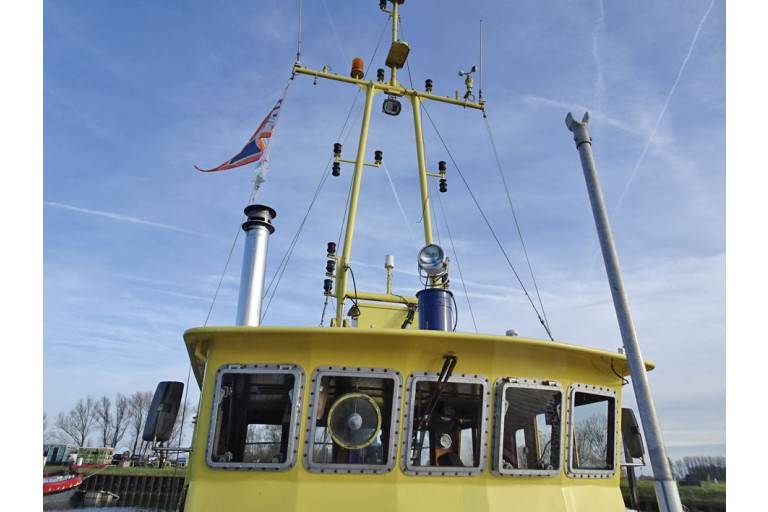

| Mast: | lantern mast aluminium |
| Lowerable: | yes hydraulic |
Equipment

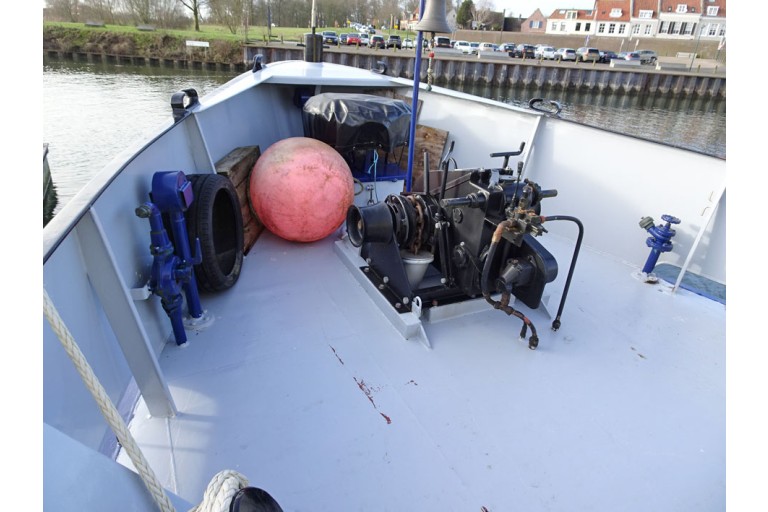

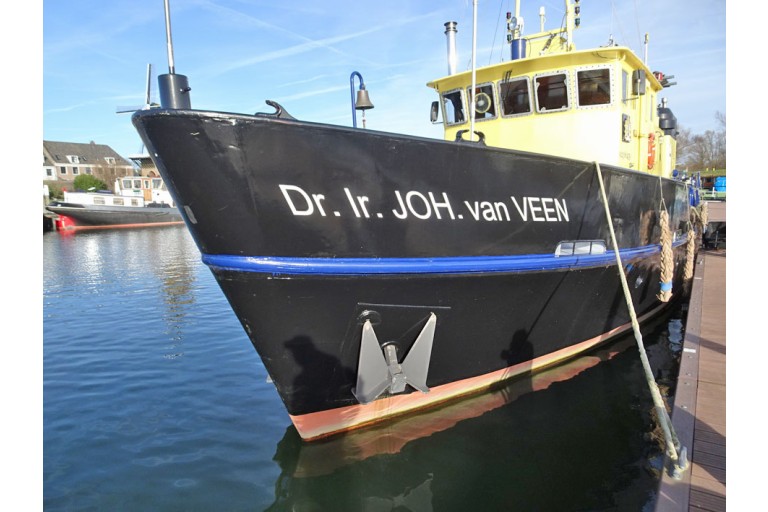

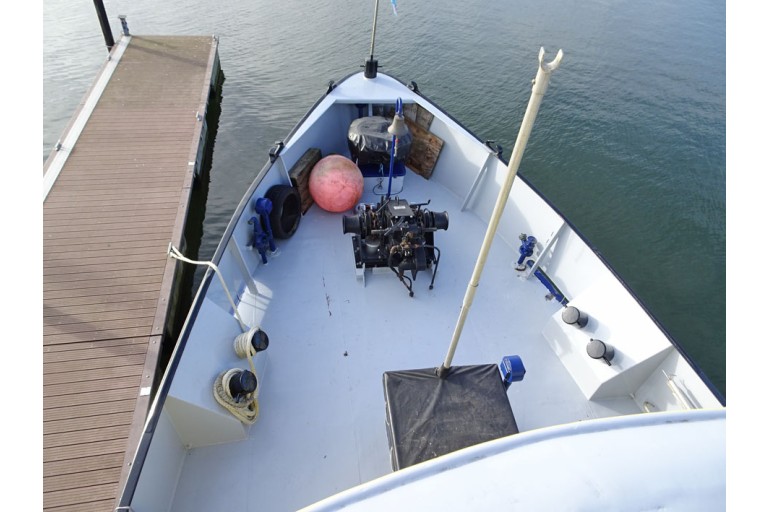

| Anchor equipment: | Ridderinkhof hydraulic anchor winch Pool anchor anchor chain in hawse-hole |
| Boarding ladder: | present aluminium |
| Searail / Pulpit: | guardrail around aftdeck |
| Safety: | life buoys life jackets fire extinguishers according to the certification requirements fire blanket |

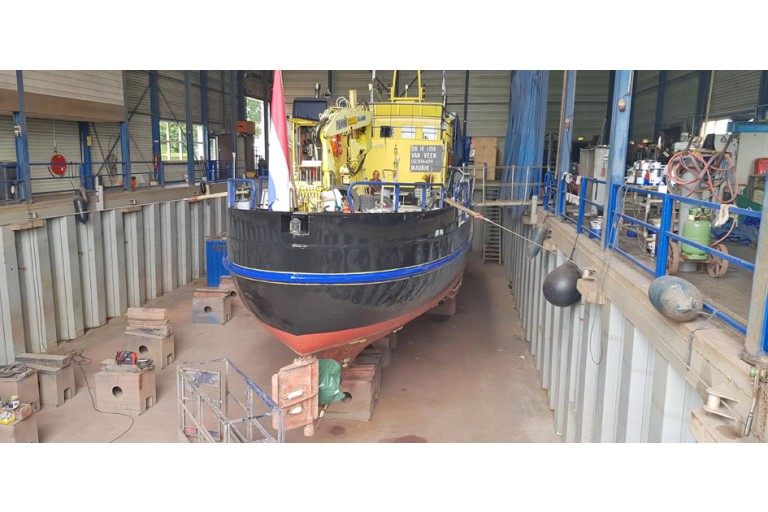

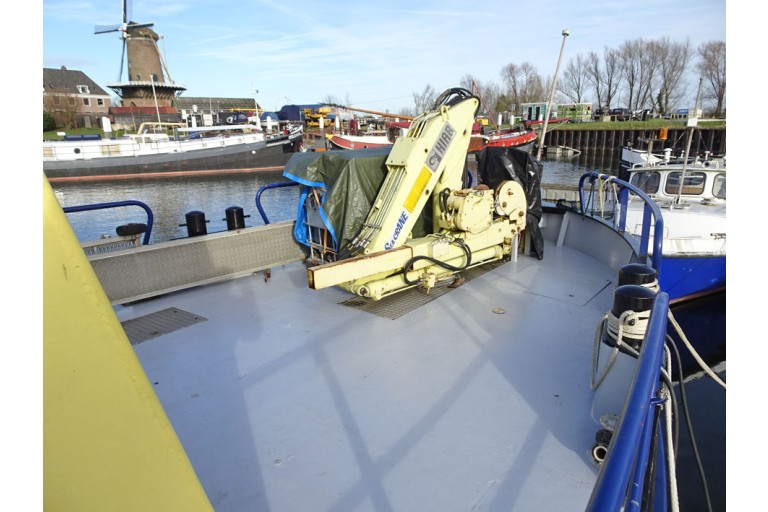

| Additional information: | HIAB crane aluminium gangway deck lights steering chair Survey report of the underwatership is available (07-2021) |
