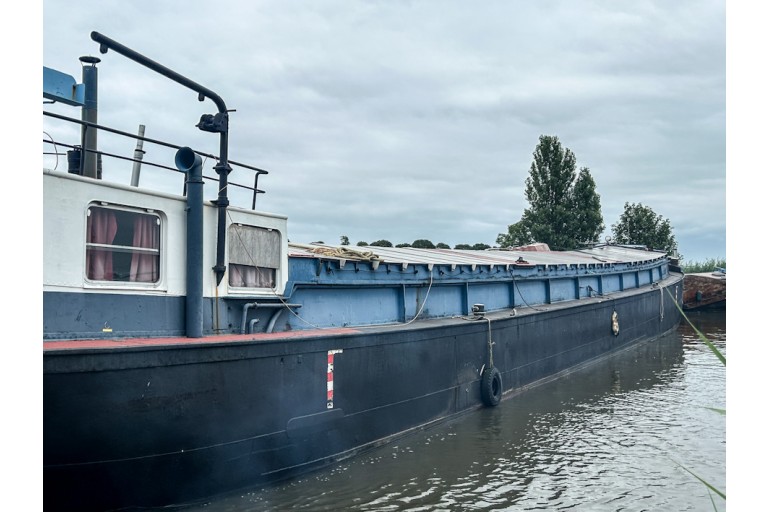

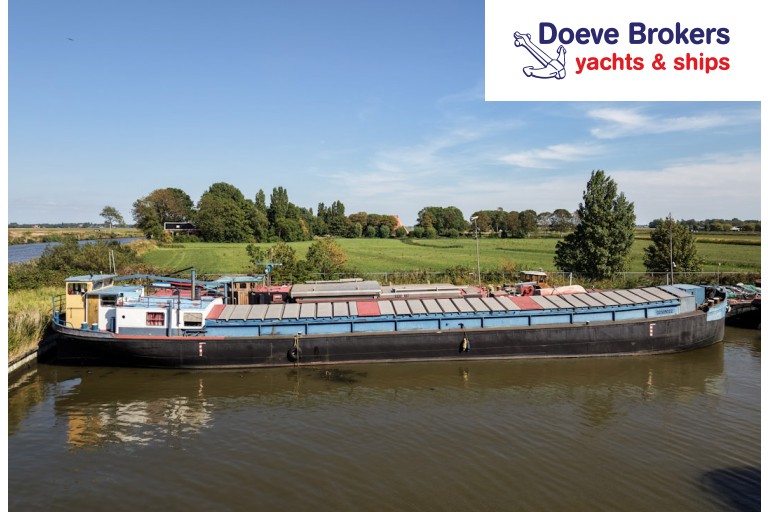

Dutch Barge Liveaboard 38.89, ES-TRIN certified

Dimensions (m): 38.89 x 6.22 x 1.00
Ref. no.: 260804
Mooring: Near Harlingen, Netherlands
Construction year: 1930
Material: steel
Price: € 44.500,--
VAT not applicable

Download PDF folder

Contact us

Vision Doeve Brokers

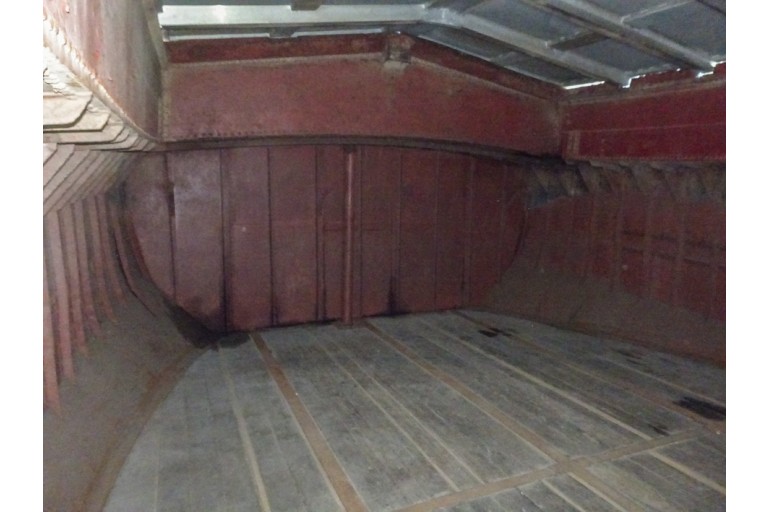

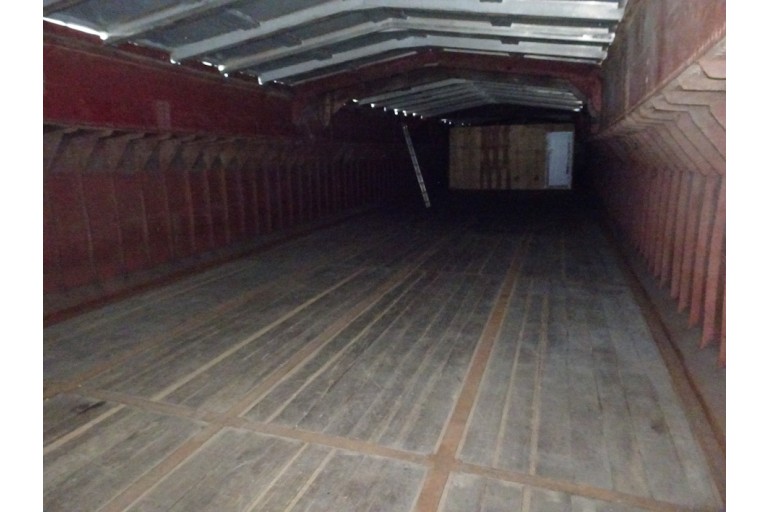

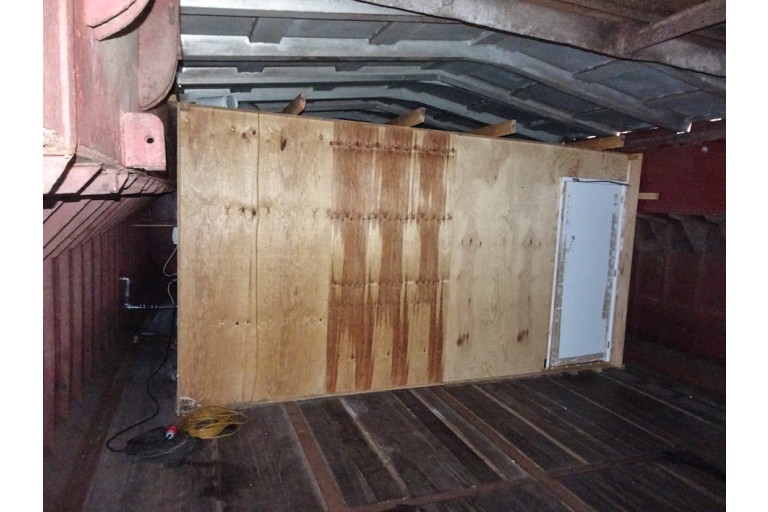

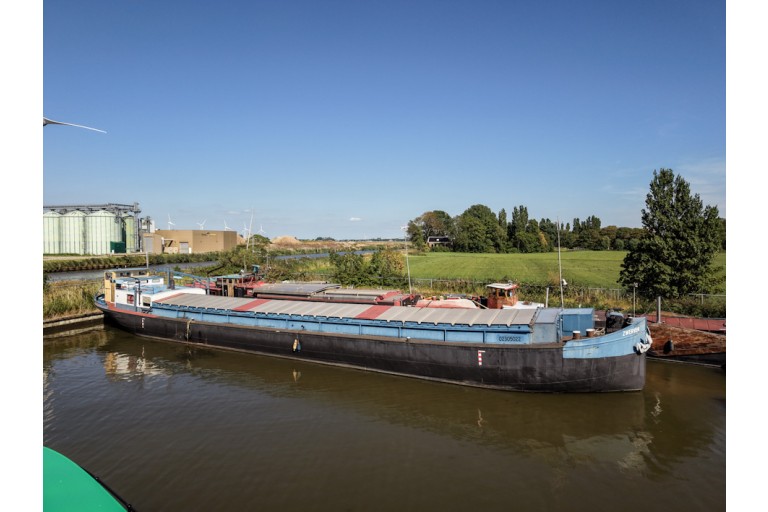

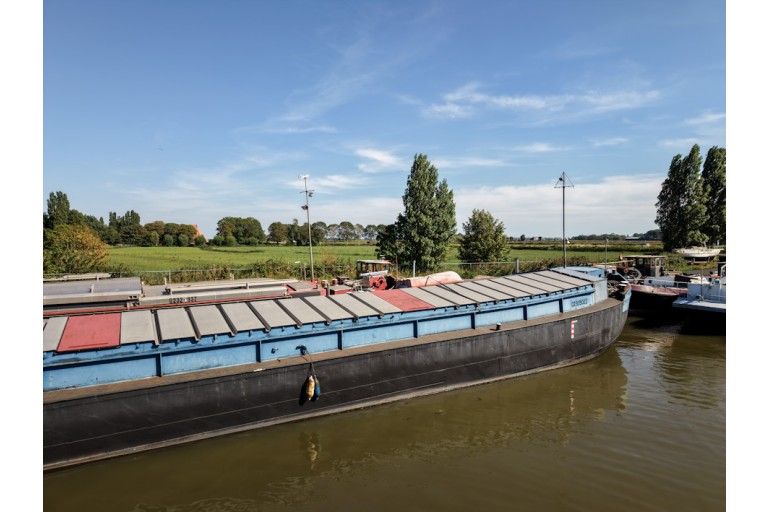

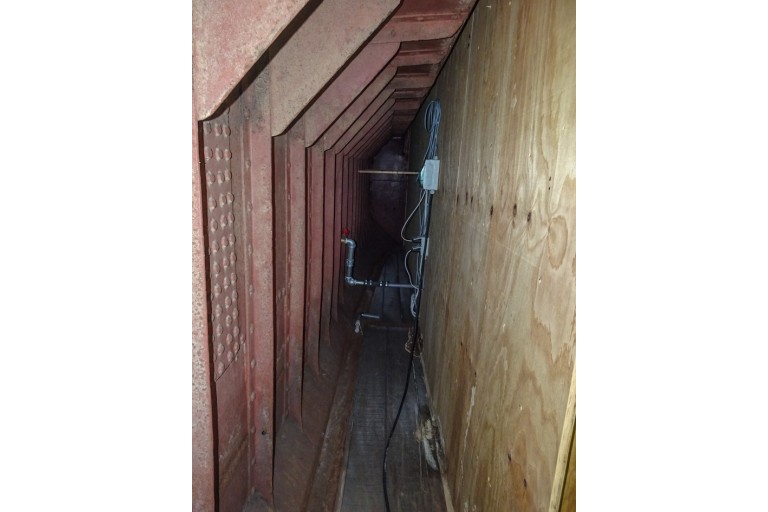

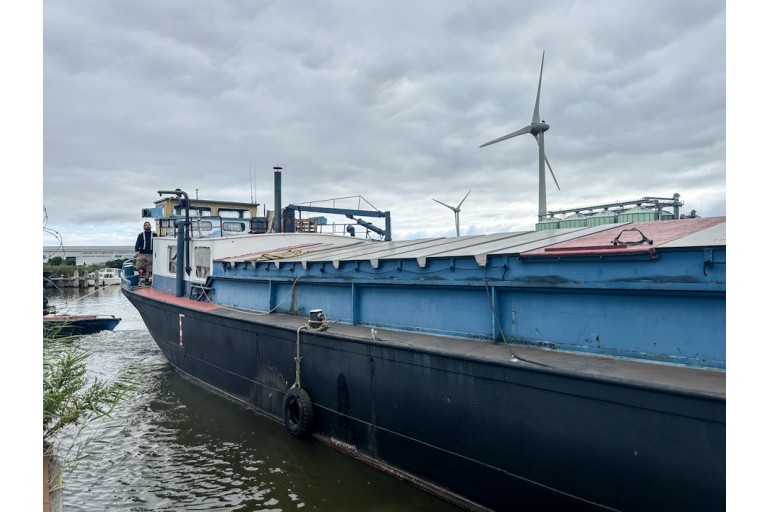

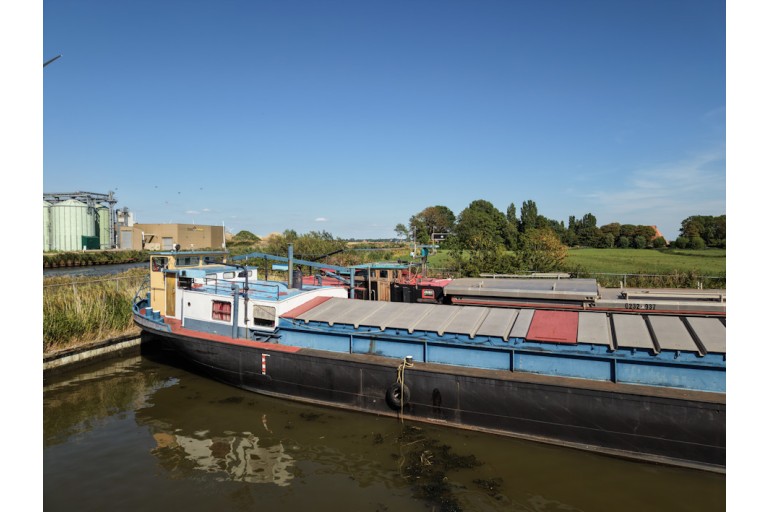

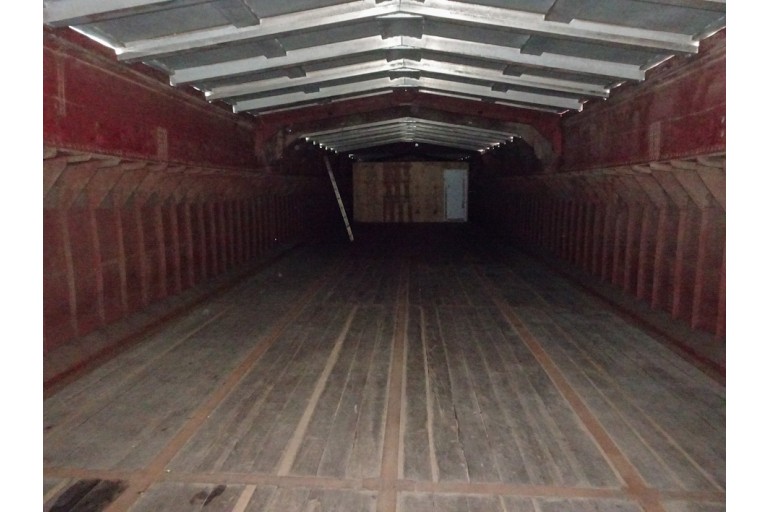

Former inland cargo vessel that has been used as a liveaboard vessel. The accommodation is basic and, in our opinion, requires a complete renovation. In the cargo hold, there is a wooden box in which a cabin and bathroom have been created. Apart from this, the cargo hold is empty and the wooden cargo hold floor lies on the frames. This makes the vessel an excellent basis for an entirely new layout and interior. The vessel's certification is in order and valid until June 2031. In the forepeak there is a generator set and a 360-degree rotating bow thruster installation, which is currently not operational because the underside of the installation was welded closed during the last yard visit. Due to changed circumstances of the seller, the vessel is being offered for sale. Particularly thanks to her generous beam, this vessel offers, in our opinion, very interesting possibilities for a complete refit into a spacious and comfortable (cruising) liveaboard vessel. The large, predominantly freely configurable space offers plenty of possibilities for, for example, a spacious salon, kitchen/dining area, several cabins and bathrooms. For inspiration and to give an impression of the possibilities, several artist impressions of a possible future interior have been added to the photographs. These are solely intended for illustrative purposes and do not constitute a developed plan.

More information

General information

Yard: Shipyard J.Th. Fikkers, NL-Muntendam
Hull shape: flatbottom
Hull material: steel
Deck material: steel
Superstructure material: steel

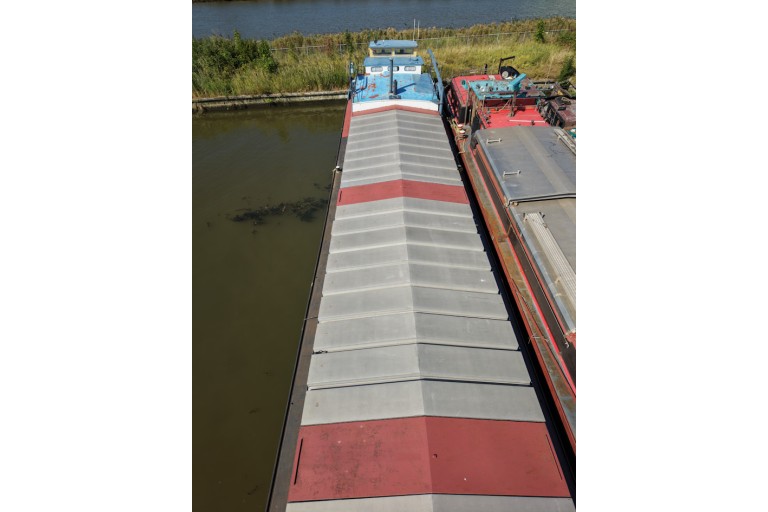

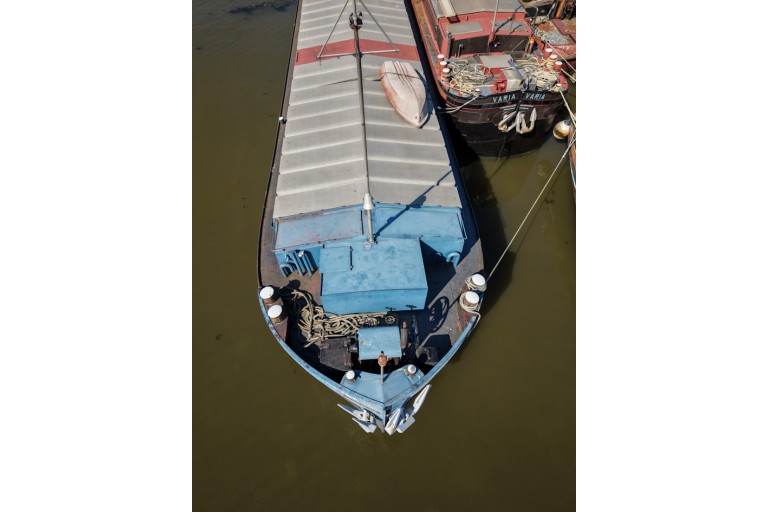

aluminium hatch covers over hold
hardwooden top side of the wheelhouse
Construction method: riveted
new steel is welded
rubbing strake around
deckhouse
3 watertight bulkhead(s)

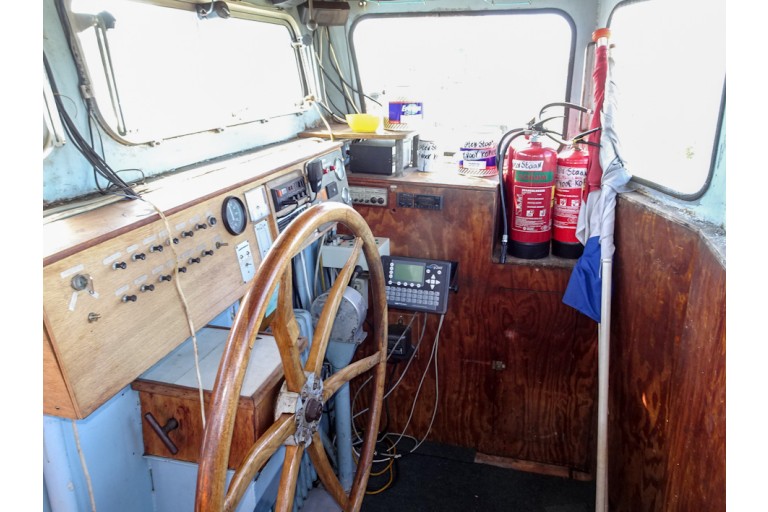

Steering system: mechanical
wheel
Windows: aluminium windows frames
hardwooden door
Displacement (approx.): loading capacity 320,195 m³
Airdraft (approx.): 4,50 m
Owner: Dutch owner
Registration: Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.

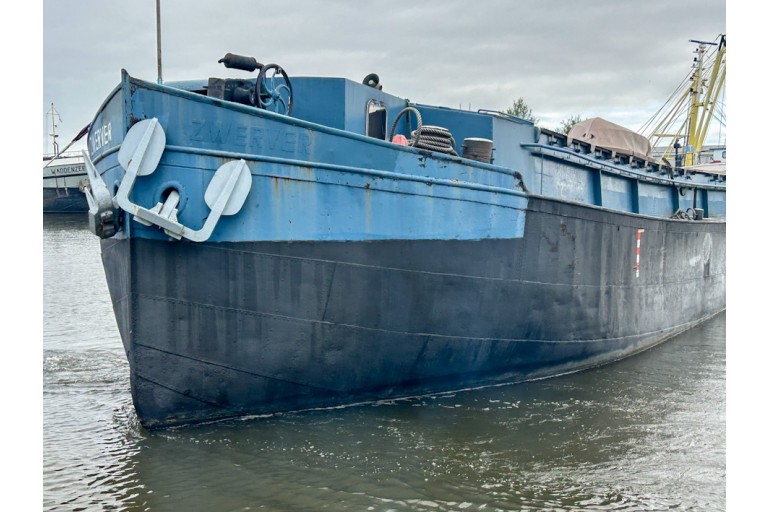

Colour / Paint System: black hull
white superstructure
overdue maintenance
see photographs
last underwatership treatment 08-2024
Certificates: Union Inland Navigation Certificate (ES-TRIN)
zone 2 Netherlands
EU zone 3
EU zone 4
Waal, Lek & NL Rhine
valid until: 06-2031
Suitable for / as: inland shipping
recreational vessel
suitable as a year round live- aboard
accommodation ship
restaurant
pancake restaurant
General information: offered in the condition that she is in (As is Where is)
Old age clause applicable.
The seller has actually never used the vessel himself.

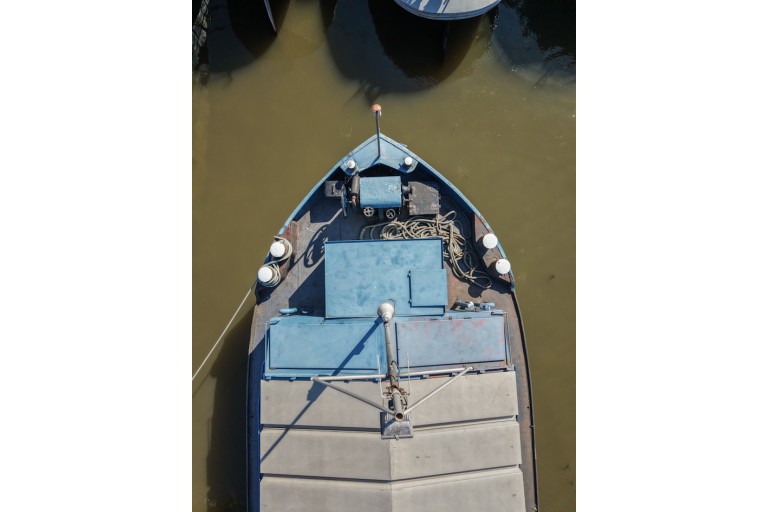

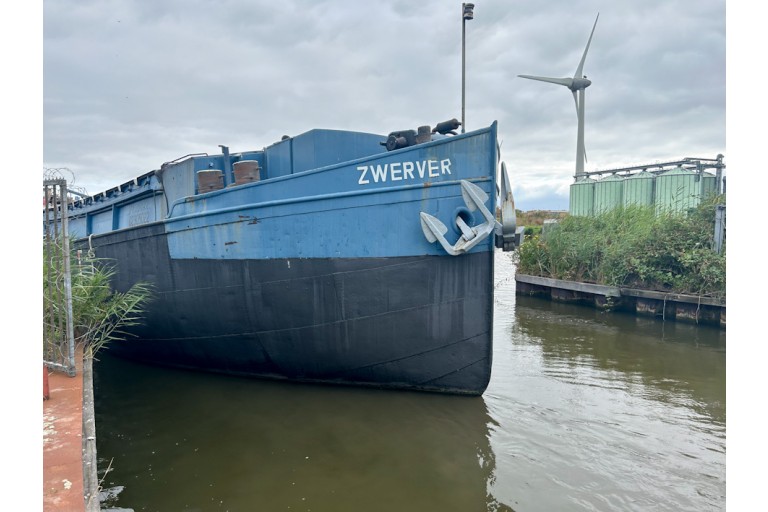

Additional information: forepeak with chain locker
Great vessel for cruising on the European canals and rivers.

Technical information

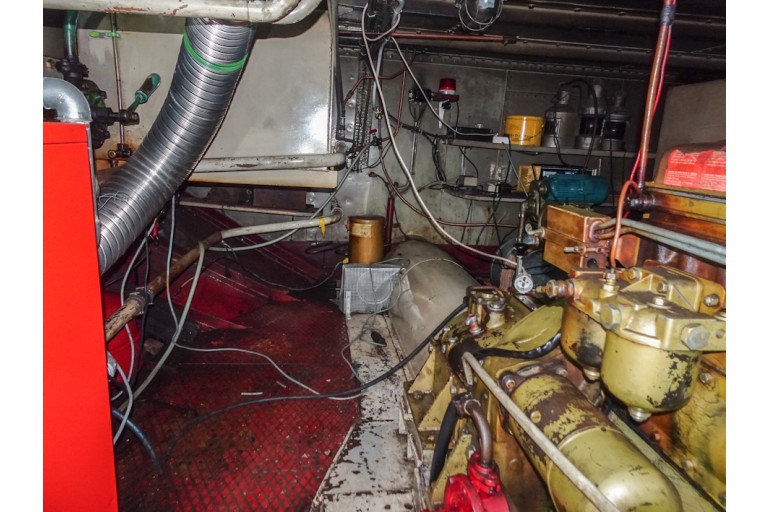

Enginepower: 120 Hp
88 kW

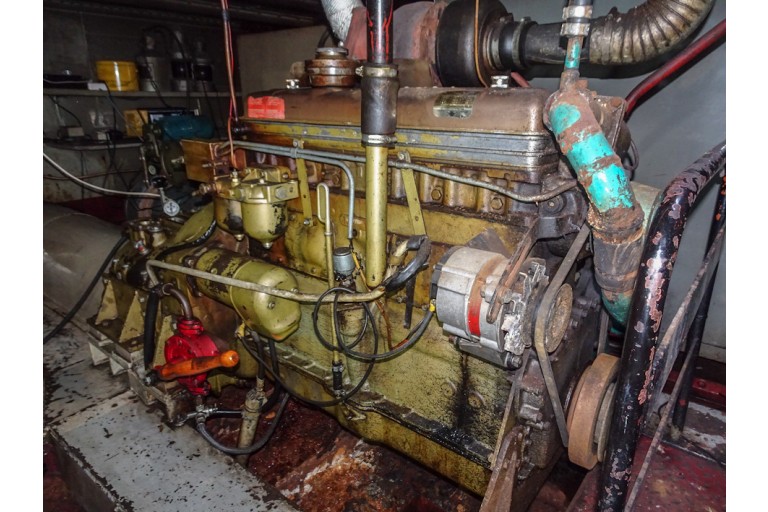

Engine brand: DAF
Revolutions: 2100 RPM
Engine model: DS575 M
Number of cylinders: 6
Construction year engine: 1964
Running hours (approx.): unknown
Fuel: diesel
Fuel tank (approx.): present, unknown volume
Cooling system: intercooling
dry exhaust
insulated exhaust
Propulsion: 3 blade propeller
greased lubrication of propeller shaft
greasing device
Gearbox: ZF BW30V2 electric / hydraulic
reduction/ratio 3,91:1

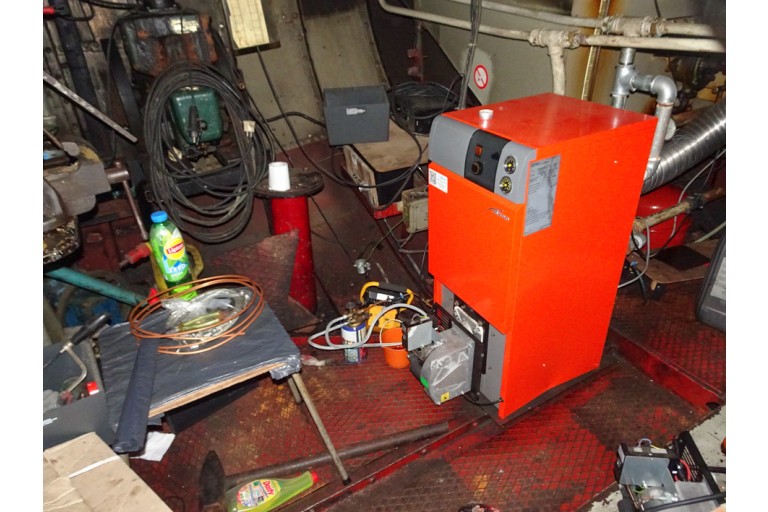

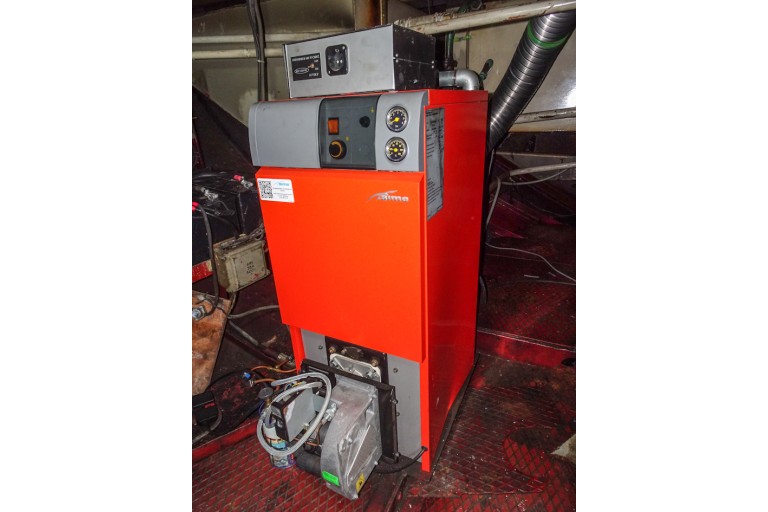

Heating: Sime AR 4 Freestanding central heating
on diesel
Bow thruster: bow thruster with dieselengine
DAF 105 Hp
proportional
not working
Electricity system: 12 / 24 / 230 Volt
simple electric system
Batteries: starter batterie(s)
domestic batterie(s)
starter batterie(s) generator

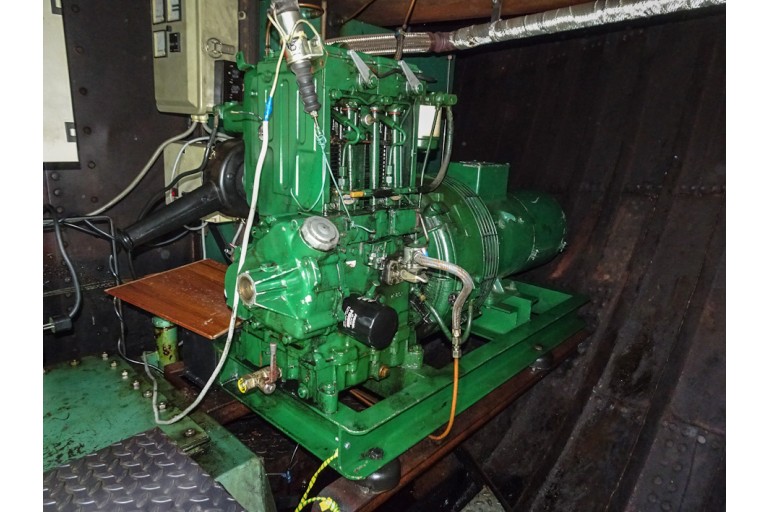

Genny: Lister diesel genny
8,5 kVA 230 Volt
1500 RPM
Fresh water tank (approx.): present, content unknown

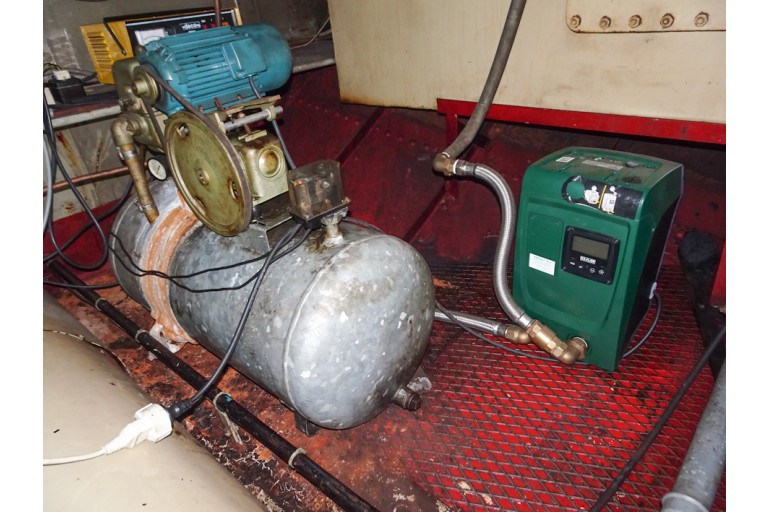

Water pressure system: DAB hydrophore pump

Accommodation

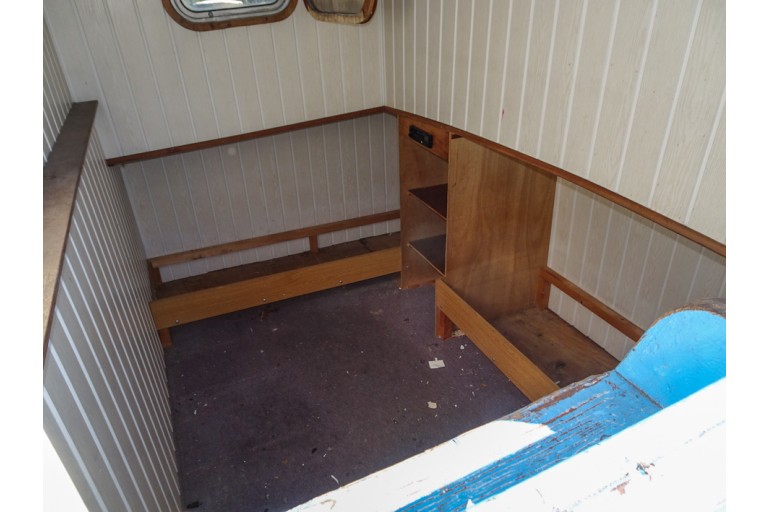

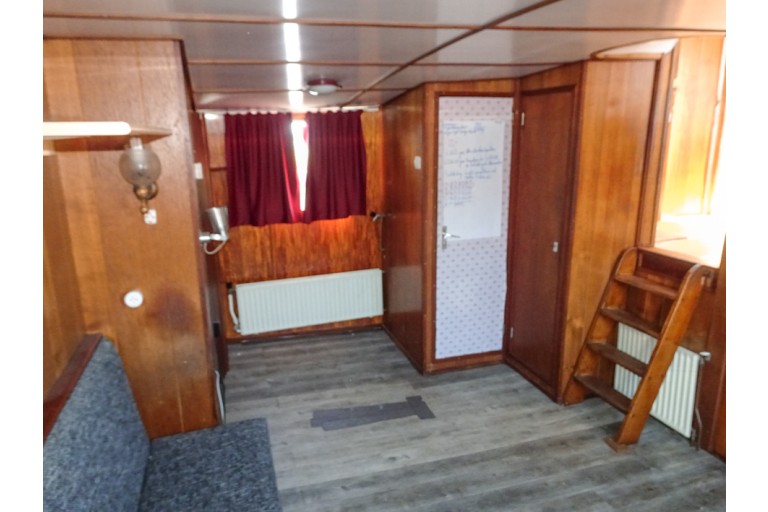

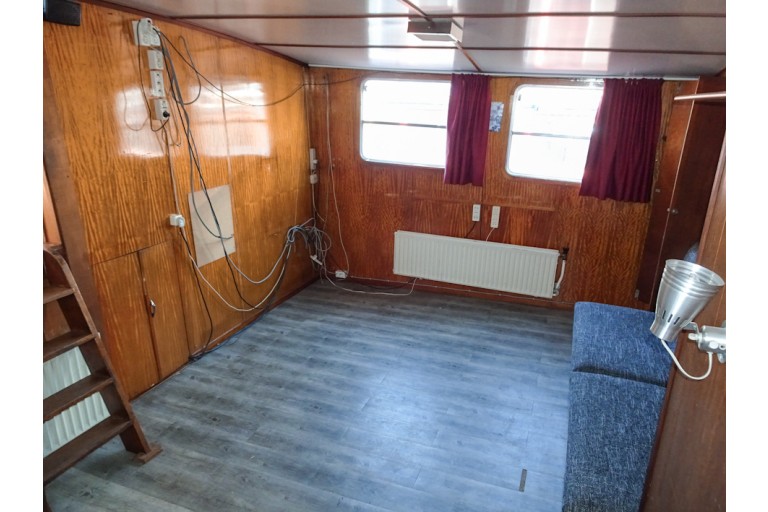

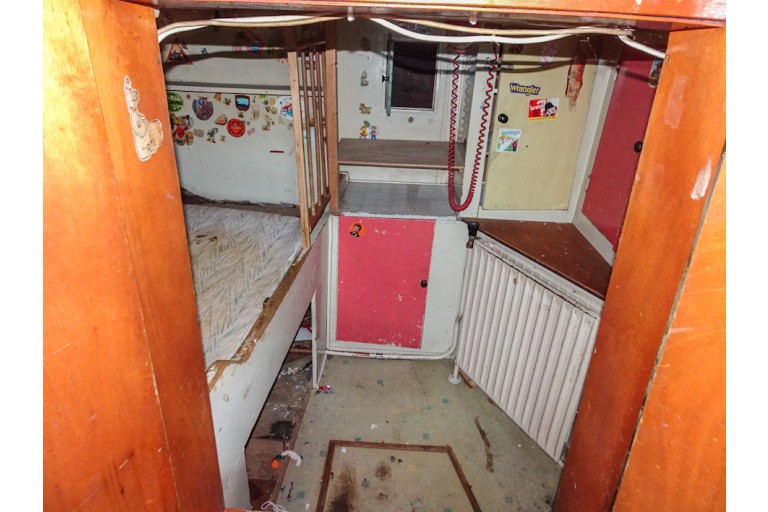

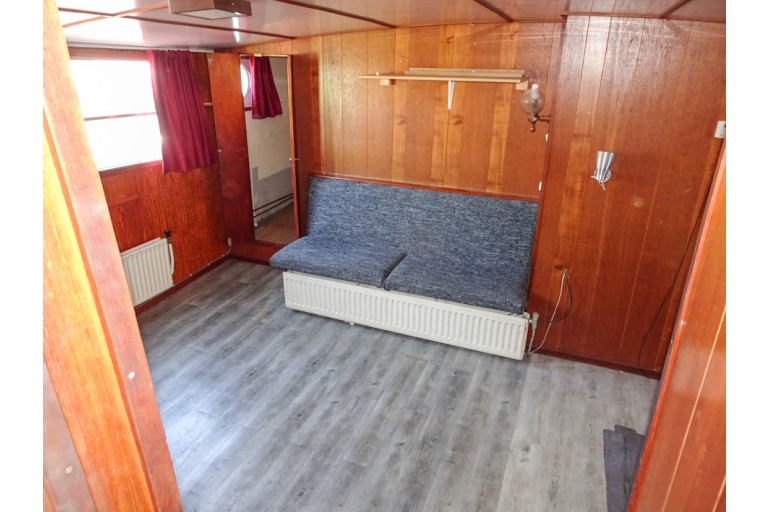

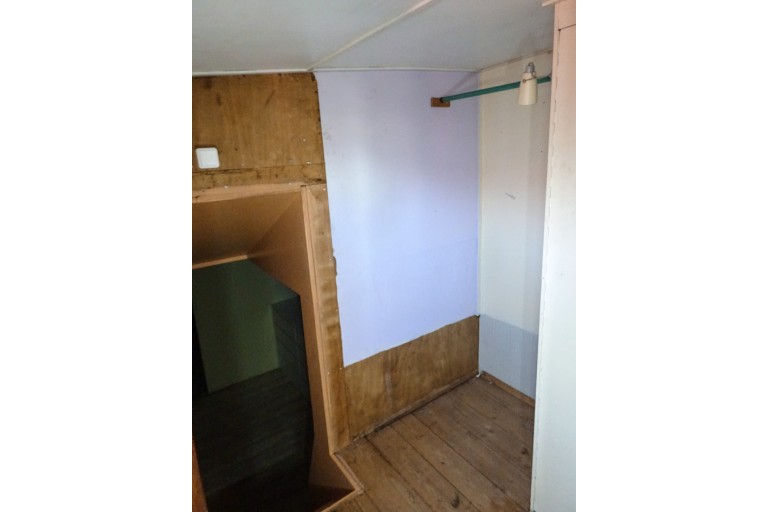

Interior: Various parts of the interior have been removed and are missing.
overdue maintenance
see photographs
Offered in the condition in which the interior is currently found; the operation of the various components is not guaranteed.
Insulation: partly

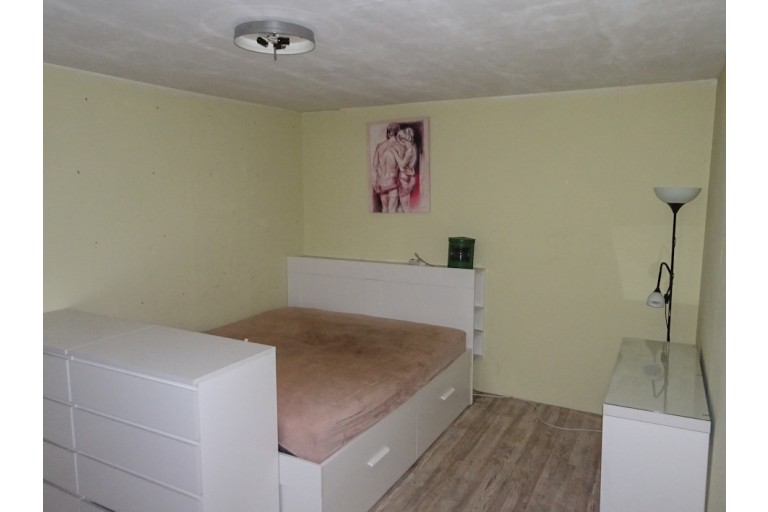

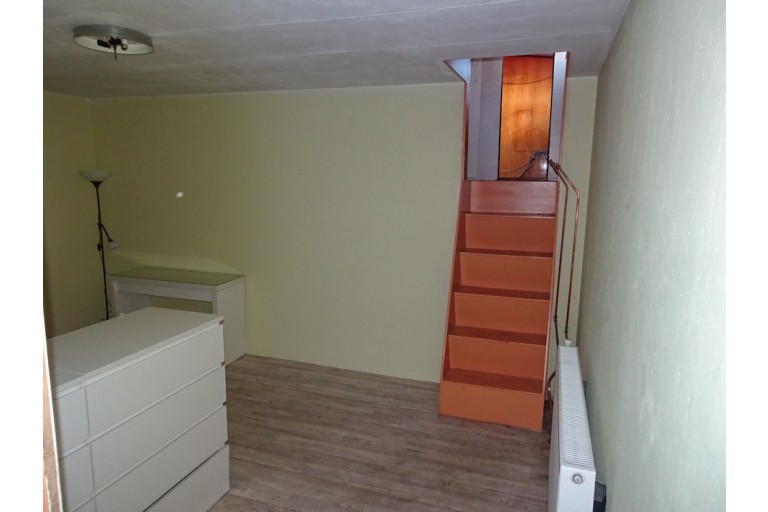

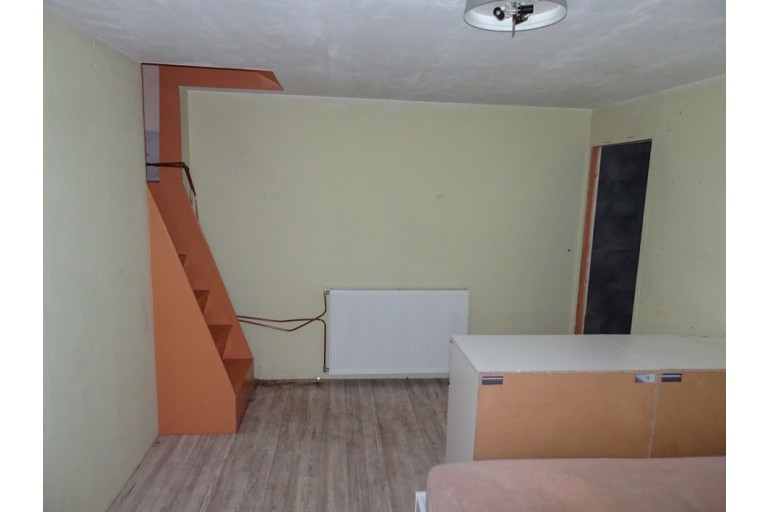

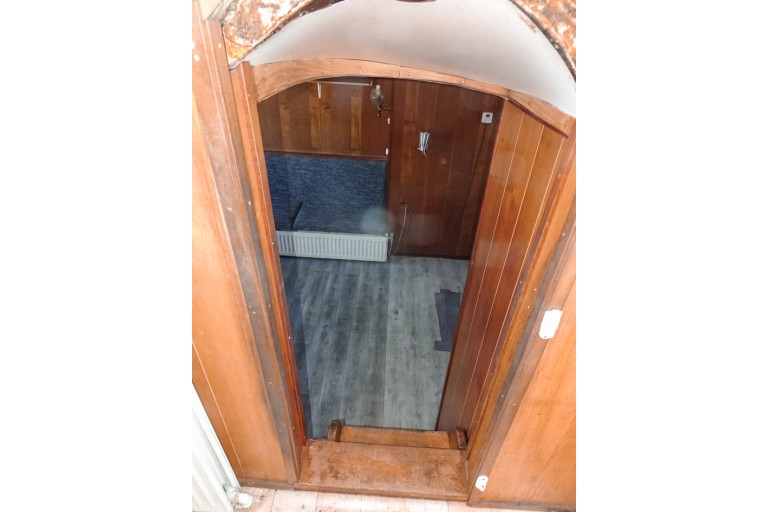

Cabins: 1 cabin

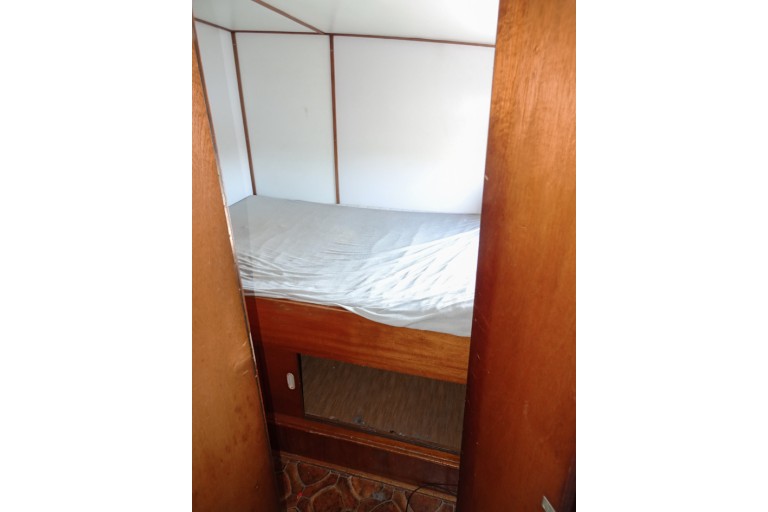

Berth: Old cargo hold: 1x 2-pers
Aft: 1x 2-pers
& 1x 1-pers

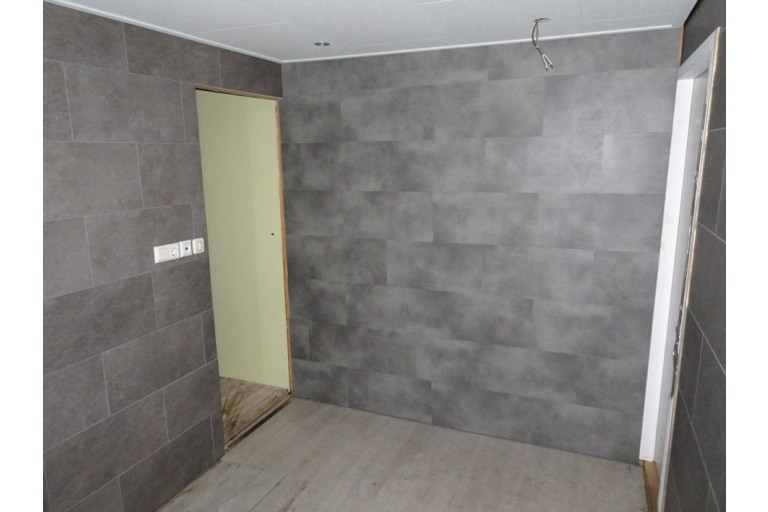

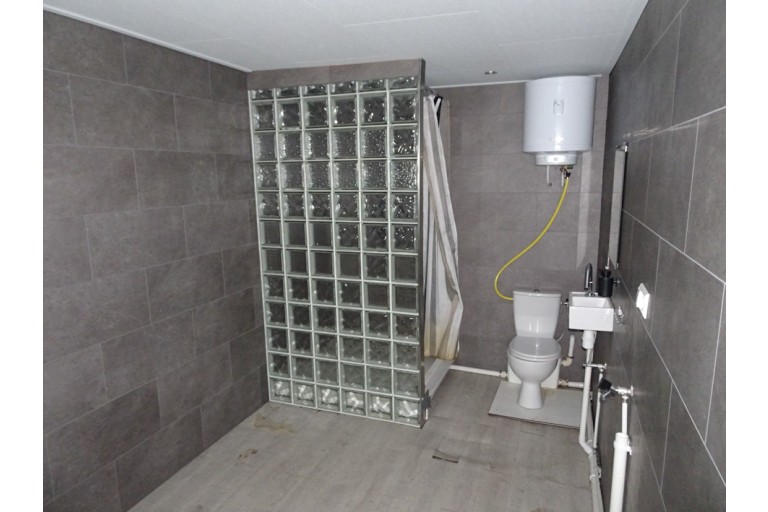

Bathroom: shower
thermostat tap
washbasin with mix tap and hot & cold running water
in 1 area together with the toilet
overdue maintenance

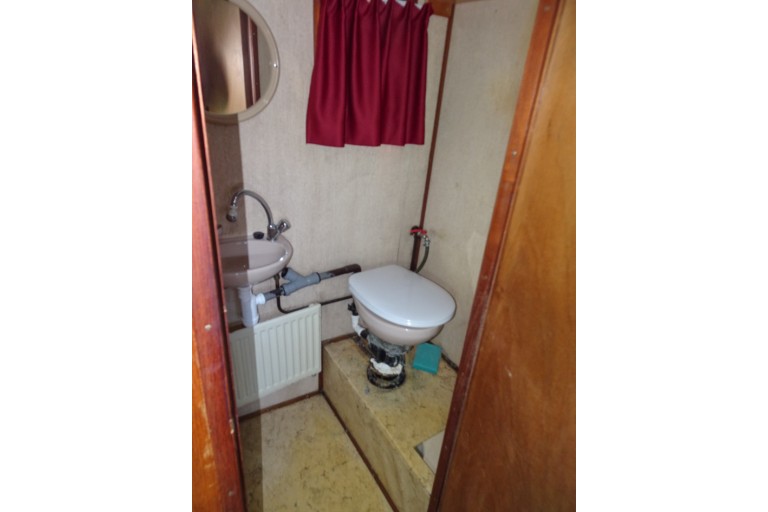

Toilet / Heads: Forward:
toilet
Aft:
above water toilet
washbasin
cold running water

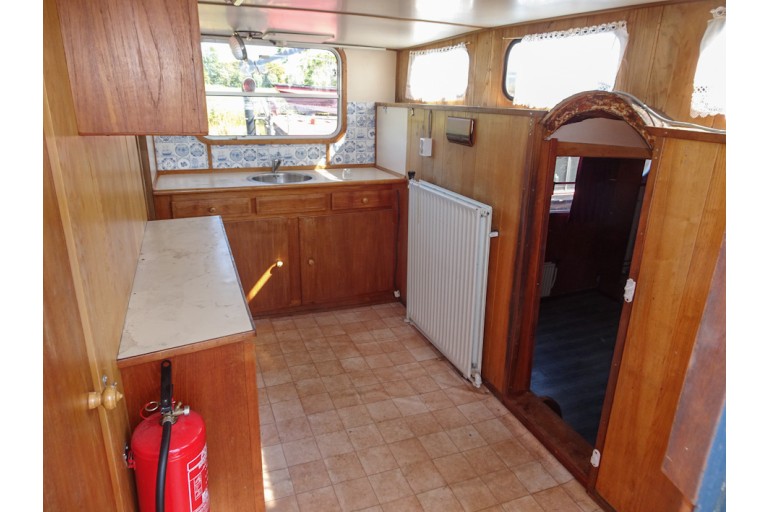

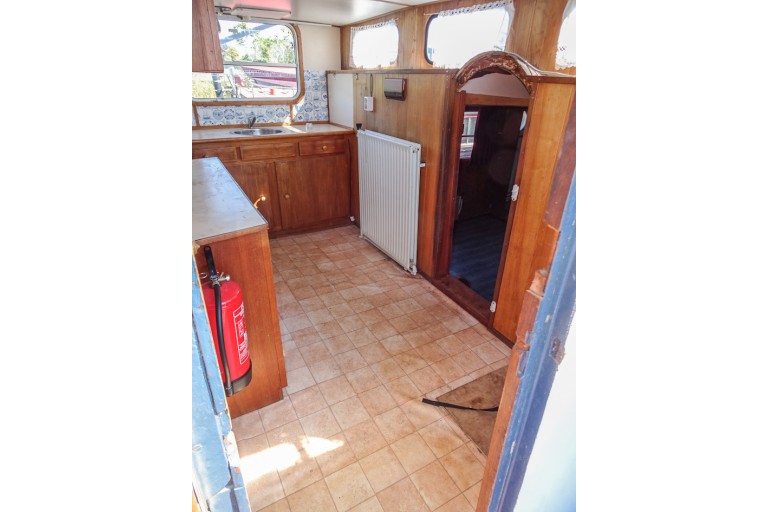

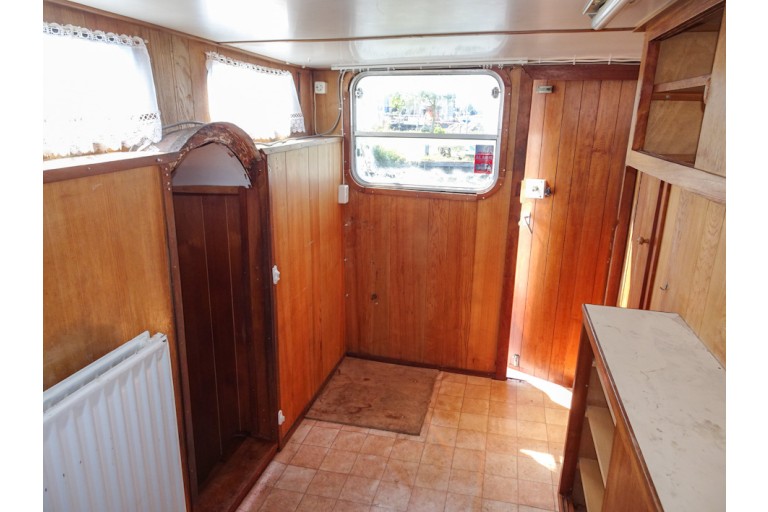

Galley: along ships
Washbasin: stainless steel sink
Water tap: mixer tap with hot & cold running water

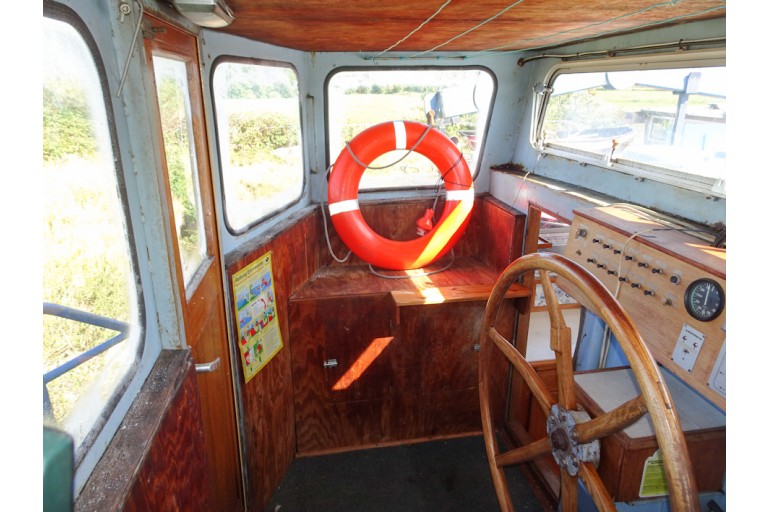

Headroom (approx.): wheelhouse (approx.) 1,91 m
galley (approx.) 1,76 m
cabin (approx.) 1,90 m / 2,10 m
toilet aft (approx.) 1,95 m
cabin (approx) 2,42 m
bathroom / toilet (approx.) 2,30 m

Navigation equipment

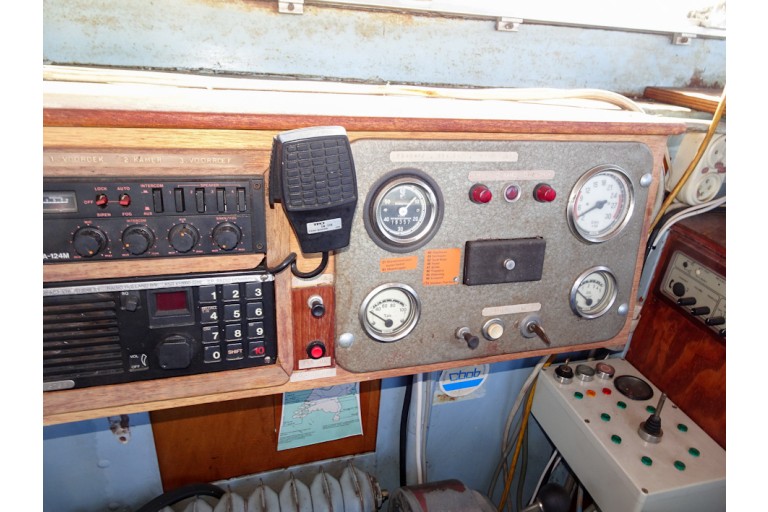

Navigation equipment: Sailor RT2048 VHF
Nauticast Automatic Identification System (AIS)
navigation lights
horn
rudder indicator
window wiper

Rigging and sails

Mast: lantern mast
aluminium
Lowerable: yes
manual

Equipment

Anchor equipment: manual anchor winch with motor
2x Klipp anchor
anchor chain
in hawse-hole
Dinghy: present
Safety: fire extinguishers
life buoys
life jackets
according to the certification requirements
Additional information: Survey report of the underwatership is available (04-2024)
